SUBARU LEGACY 1997 Service Repair Manual

B4M1263A
8Y7

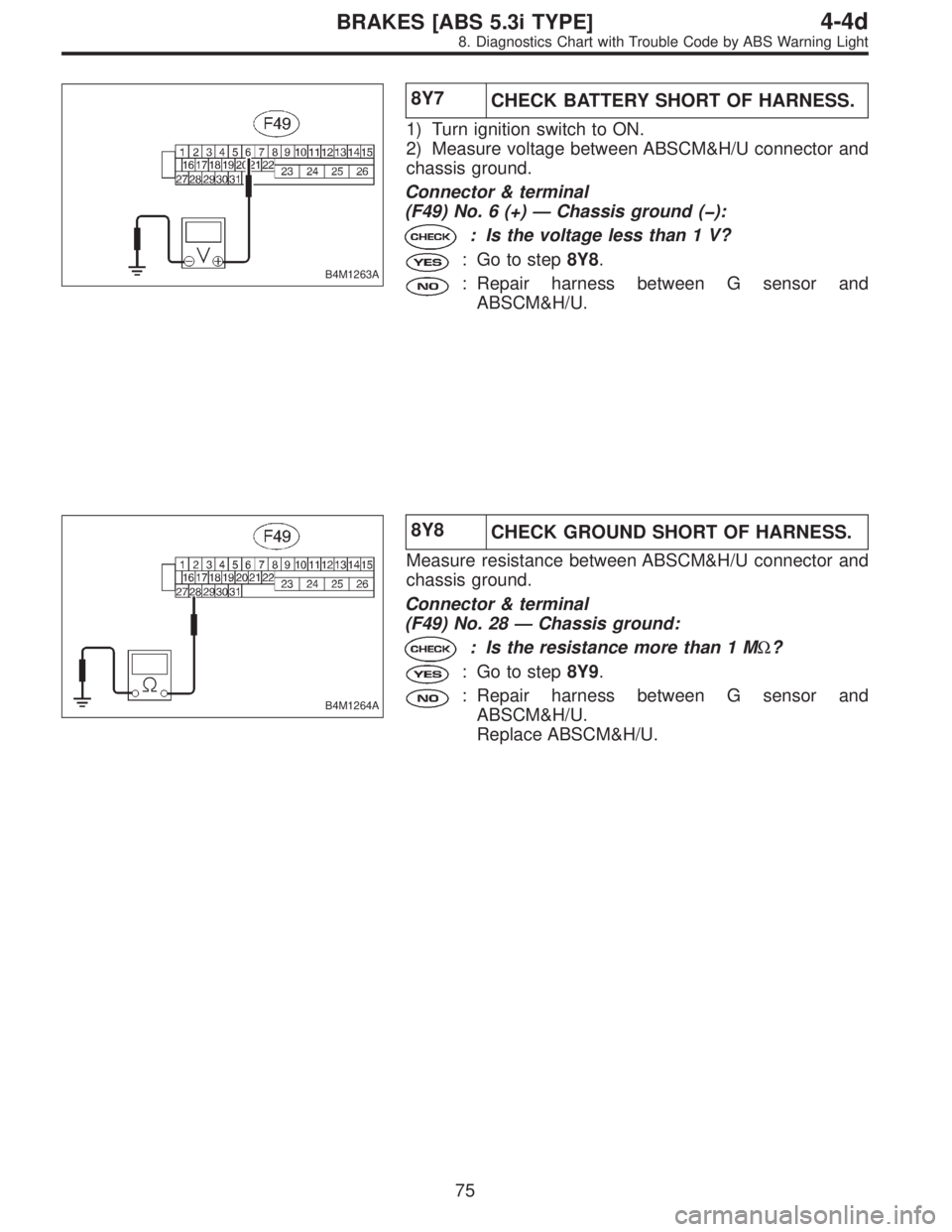

CHECK BATTERY SHORT OF HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 6 (+)—Chassis ground ():
: Is the voltage less than 1 V?
: Go to step8Y8.
: Repair harness between G sensor and
ABSCM&H/U.
B4M1264A
8Y8
CHECK GROUND SHORT OF HARNESS.
Measure resistance between ABSCM&H/U connector and
chassis ground.
Connector & terminal
(F49) No. 28—Chassis ground:
: Is the resistance more than 1 MΩ?
: Go to step8Y9.
: Repair harness between G sensor and
ABSCM&H/U.
Replace ABSCM&H/U.
75
4-4dBRAKES [ABS 5.3i TYPE]
8. Diagnostics Chart with Trouble Code by ABS Warning Light

B4M0915

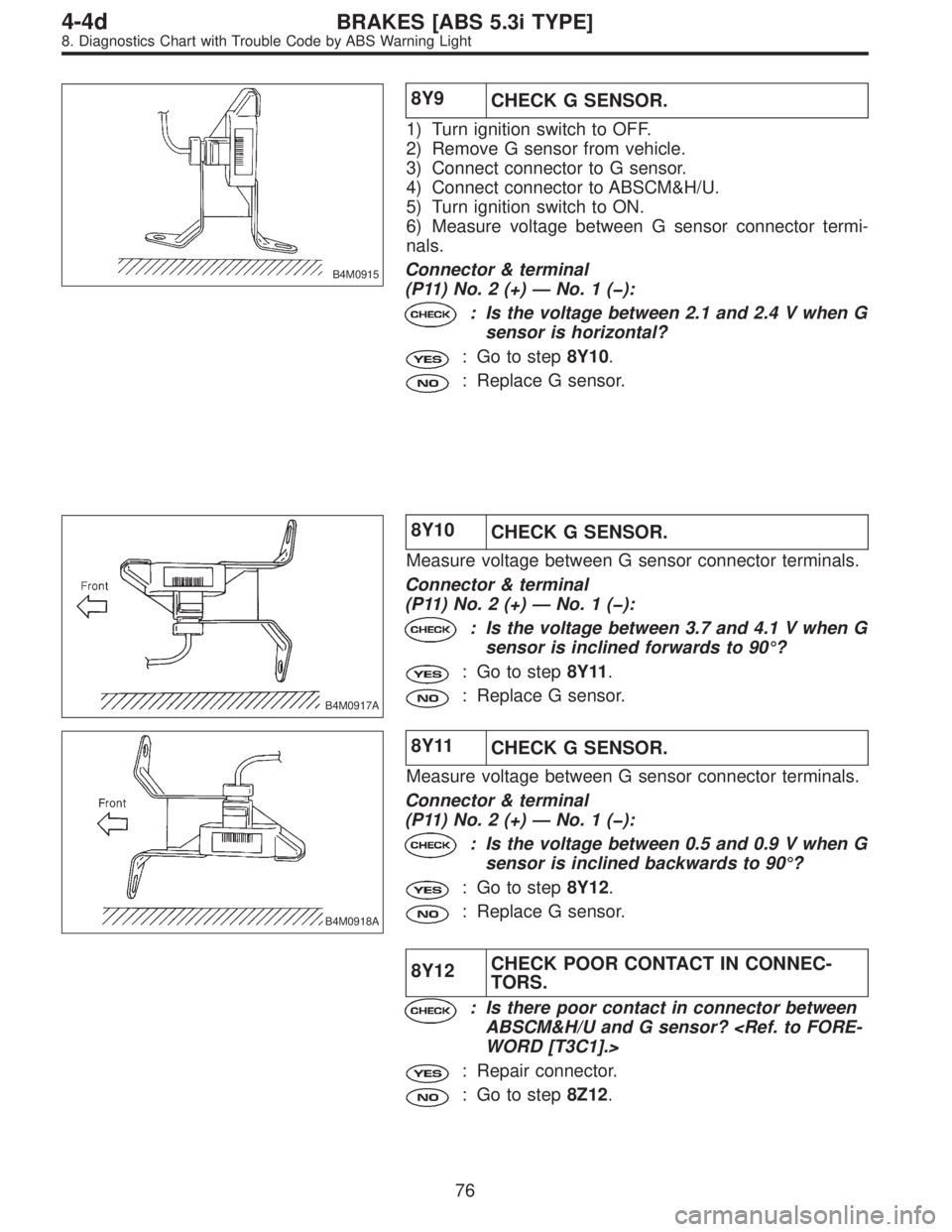

8Y9
CHECK G SENSOR.
1) Turn ignition switch to OFF.
2) Remove G sensor from vehicle.
3) Connect connector to G sensor.
4) Connect connector to ABSCM&H/U.
5) Turn ignition switch to ON.
6) Measure voltage between G sensor connector termi-
nals.
Connector & terminal
(P11) No. 2 (+)—No.1():
: Is the voltage between 2.1 and 2.4 V when G
sensor is horizontal?
: Go to step8Y10.
: Replace G sensor.
B4M0917A
8Y10
CHECK G SENSOR.
Measure voltage between G sensor connector terminals.
Connector & terminal
(P11) No. 2 (+)—No.1():
: Is the voltage between 3.7 and 4.1 V when G
sensor is inclined forwards to 90°?
: Go to step8Y11.
: Replace G sensor.
B4M0918A
8Y11
CHECK G SENSOR.
Measure voltage between G sensor connector terminals.
Connector & terminal
(P11) No. 2 (+)—No.1():
: Is the voltage between 0.5 and 0.9 V when G
sensor is inclined backwards to 90°?
: Go to step8Y12.
: Replace G sensor.
8Y12CHECK POOR CONTACT IN CONNEC-
TORS.
: Is there poor contact in connector between
ABSCM&H/U and G sensor? WORD [T3C1].>
: Repair connector.
: Go to step8Z12.
76
4-4dBRAKES [ABS 5.3i TYPE]
8. Diagnostics Chart with Trouble Code by ABS Warning Light

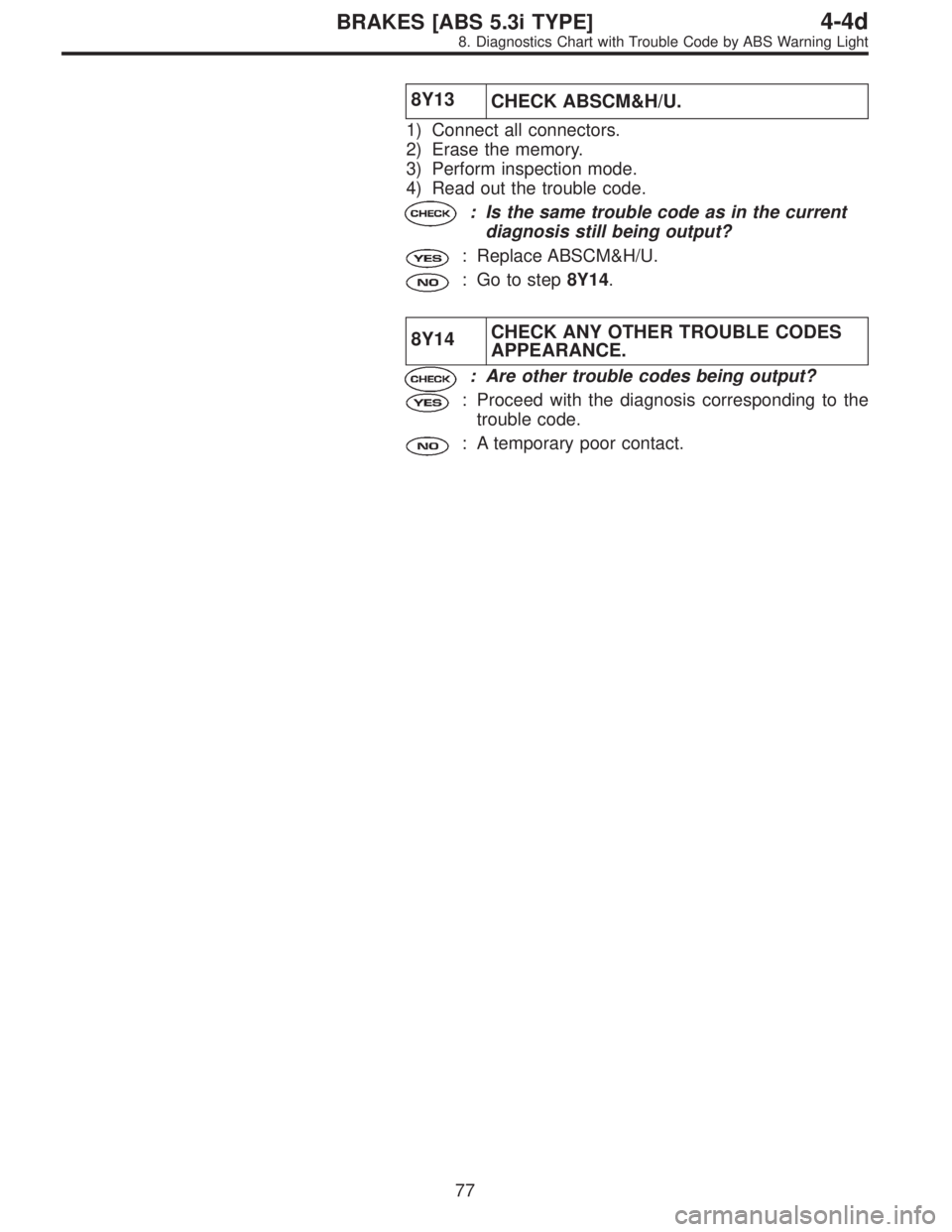

8Y13
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM&H/U.
: Go to step8Y14.
8Y14CHECK ANY OTHER TROUBLE CODES
APPEARANCE.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
77
4-4dBRAKES [ABS 5.3i TYPE]
8. Diagnostics Chart with Trouble Code by ABS Warning Light

G2M0096

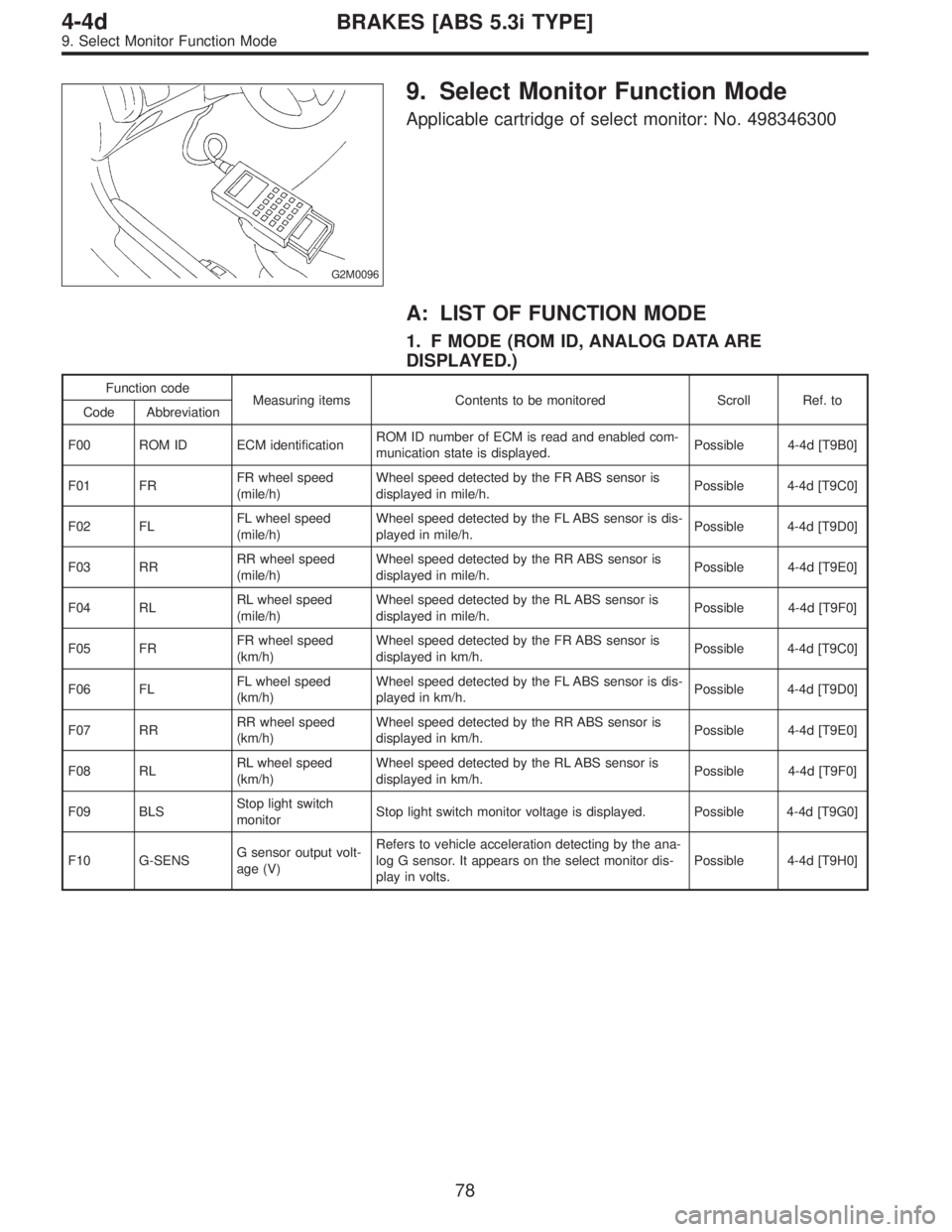

9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498346300
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
F00 ROM ID ECM identificationROM ID number of ECM is read and enabled com-
munication state is displayed.Possible 4-4d [T9B0]
F01 FRFR wheel speed
(mile/h)Wheel speed detected by the FR ABS sensor is
displayed in mile/h.Possible 4-4d [T9C0]
F02 FLFL wheel speed
(mile/h)Wheel speed detected by the FL ABS sensor is dis-
played in mile/h.Possible 4-4d [T9D0]
F03 RRRR wheel speed
(mile/h)Wheel speed detected by the RR ABS sensor is
displayed in mile/h.Possible 4-4d [T9E0]
F04 RLRL wheel speed
(mile/h)Wheel speed detected by the RL ABS sensor is
displayed in mile/h.Possible 4-4d [T9F0]
F05 FRFR wheel speed
(km/h)Wheel speed detected by the FR ABS sensor is
displayed in km/h.Possible 4-4d [T9C0]
F06 FLFL wheel speed
(km/h)Wheel speed detected by the FL ABS sensor is dis-
played in km/h.Possible 4-4d [T9D0]
F07 RRRR wheel speed
(km/h)Wheel speed detected by the RR ABS sensor is
displayed in km/h.Possible 4-4d [T9E0]
F08 RLRL wheel speed
(km/h)Wheel speed detected by the RL ABS sensor is
displayed in km/h.Possible 4-4d [T9F0]
F09 BLSStop light switch
monitorStop light switch monitor voltage is displayed. Possible 4-4d [T9G0]
F10 G-SENSG sensor output volt-
age (V)Refers to vehicle acceleration detecting by the ana-
log G sensor. It appears on the select monitor dis-
play in volts.Possible 4-4d [T9H0]
78
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

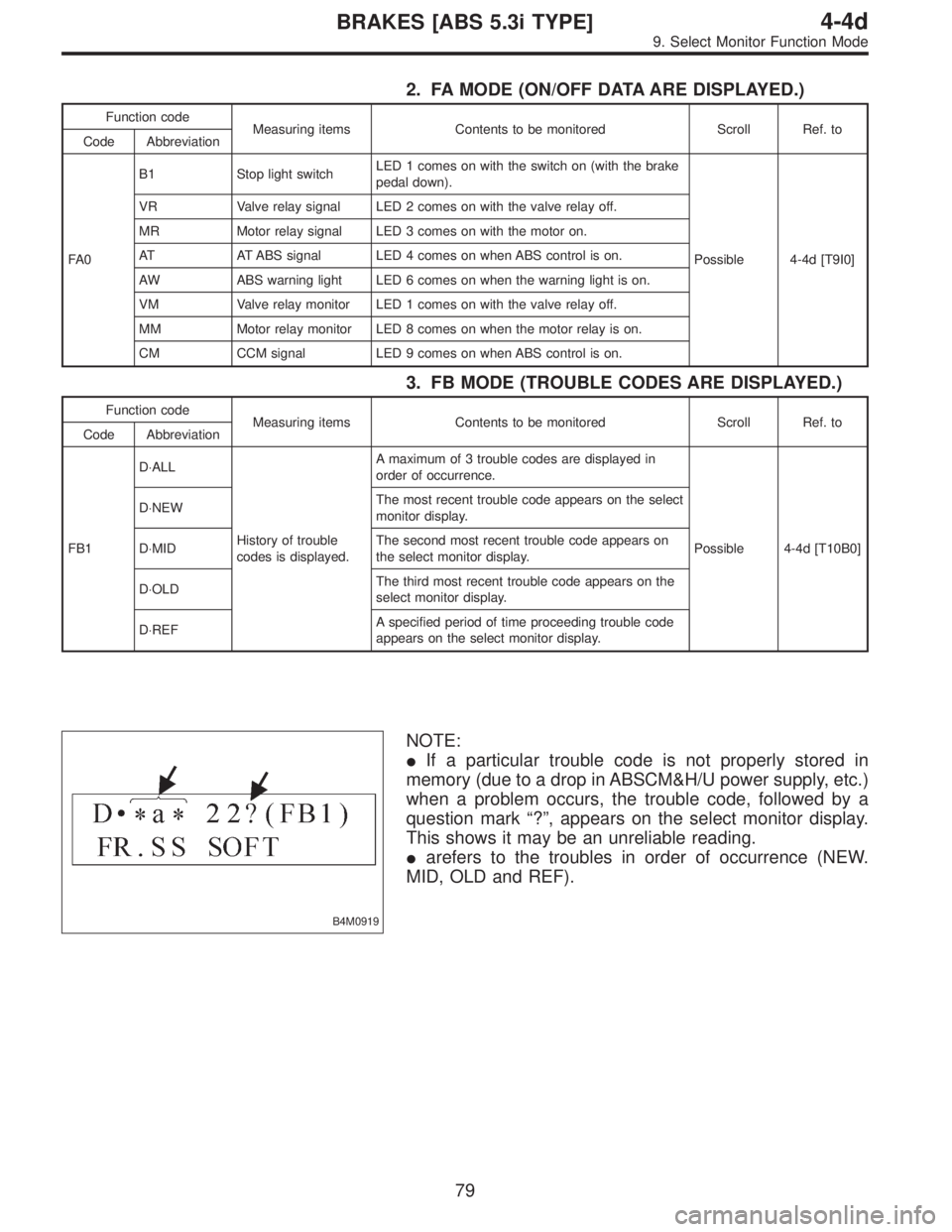

2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FA 0B1 Stop light switchLED 1 comes on with the switch on (with the brake
pedal down).
Possible 4-4d [T9I0] VR Valve relay signal LED 2 comes on with the valve relay off.
MR Motor relay signal LED 3 comes on with the motor on.
AT AT ABS signal LED 4 comes on when ABS control is on.
AW ABS warning light LED 6 comes on when the warning light is on.
VM Valve relay monitor LED 1 comes on with the valve relay off.
MM Motor relay monitor LED 8 comes on when the motor relay is on.
CM CCM signal LED 9 comes on when ABS control is on.
3. FB MODE (TROUBLE CODES ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FB1D⋅ALL
History of trouble
codes is displayed.A maximum of 3 trouble codes are displayed in
order of occurrence.
Possible 4-4d [T10B0] D⋅NEWThe most recent trouble code appears on the select
monitor display.
D⋅MIDThe second most recent trouble code appears on
the select monitor display.
D⋅OLDThe third most recent trouble code appears on the
select monitor display.
D⋅REFA specified period of time proceeding trouble code
appears on the select monitor display.
B4M0919
NOTE:

If a particular trouble code is not properly stored in
memory (due to a drop in ABSCM&H/U power supply, etc.)
when a problem occurs, the trouble code, followed by a
question mark“?”, appears on the select monitor display.
This shows it may be an unreliable reading.

arefers to the troubles in order of occurrence (NEW.
MID, OLD and REF).
79
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

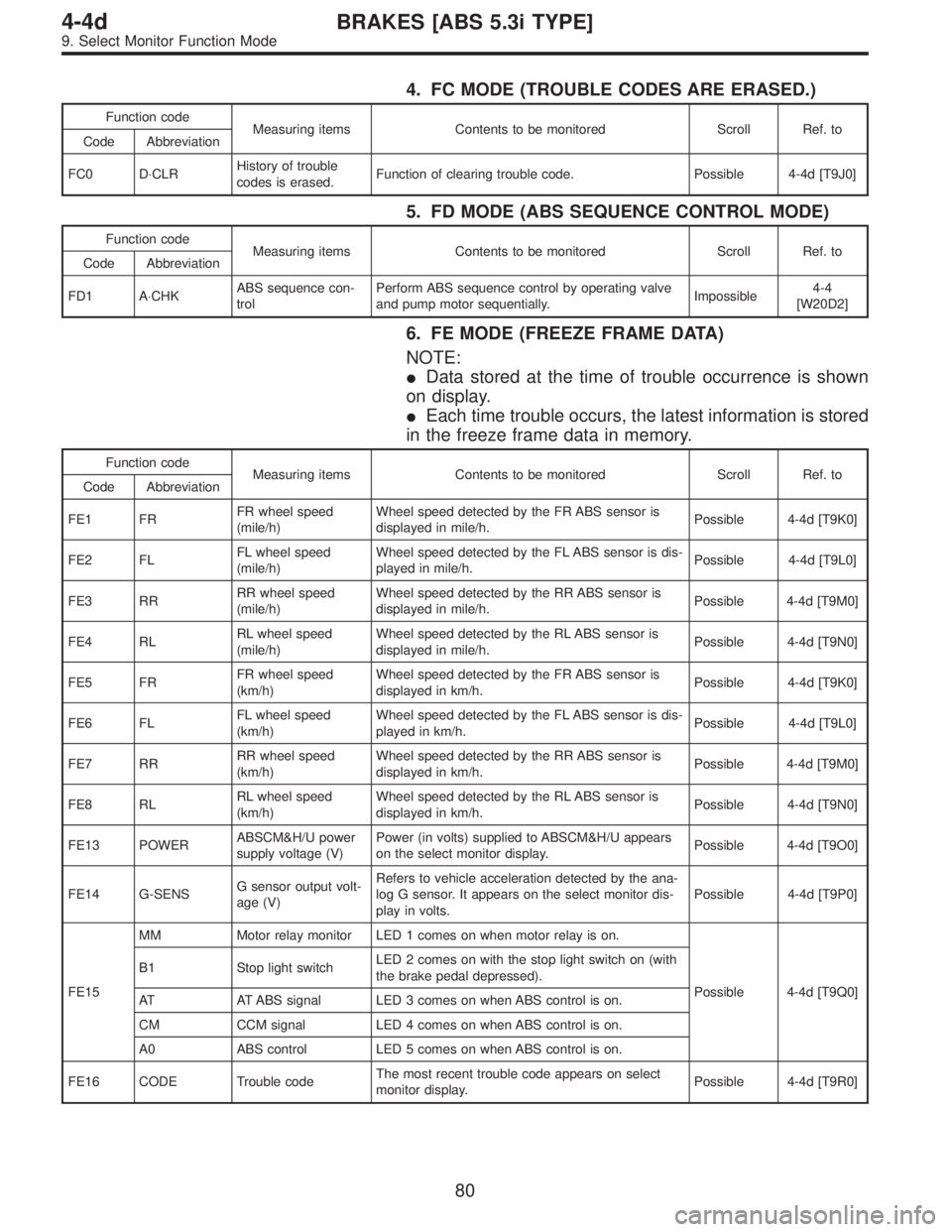

4. FC MODE (TROUBLE CODES ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes is erased.Function of clearing trouble code. Possible 4-4d [T9J0]
5. FD MODE (ABS SEQUENCE CONTROL MODE)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS sequence con-
trolPerform ABS sequence control by operating valve
and pump motor sequentially.Impossible4-4
[W20D2]
6. FE MODE (FREEZE FRAME DATA)
NOTE:

Data stored at the time of trouble occurrence is shown
on display.

Each time trouble occurs, the latest information is stored
in the freeze frame data in memory.
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FE1 FRFR wheel speed
(mile/h)Wheel speed detected by the FR ABS sensor is
displayed in mile/h.Possible 4-4d [T9K0]
FE2 FLFL wheel speed
(mile/h)Wheel speed detected by the FL ABS sensor is dis-
played in mile/h.Possible 4-4d [T9L0]
FE3 RRRR wheel speed
(mile/h)Wheel speed detected by the RR ABS sensor is
displayed in mile/h.Possible 4-4d [T9M0]
FE4 RLRL wheel speed
(mile/h)Wheel speed detected by the RL ABS sensor is
displayed in mile/h.Possible 4-4d [T9N0]
FE5 FRFR wheel speed
(km/h)Wheel speed detected by the FR ABS sensor is
displayed in km/h.Possible 4-4d [T9K0]
FE6 FLFL wheel speed
(km/h)Wheel speed detected by the FL ABS sensor is dis-
played in km/h.Possible 4-4d [T9L0]
FE7 RRRR wheel speed
(km/h)Wheel speed detected by the RR ABS sensor is
displayed in km/h.Possible 4-4d [T9M0]
FE8 RLRL wheel speed
(km/h)Wheel speed detected by the RL ABS sensor is
displayed in km/h.Possible 4-4d [T9N0]
FE13 POWERABSCM&H/U power
supply voltage (V)Power (in volts) supplied to ABSCM&H/U appears
on the select monitor display.Possible 4-4d [T9O0]
FE14 G-SENSG sensor output volt-
age (V)Refers to vehicle acceleration detected by the ana-
log G sensor. It appears on the select monitor dis-
play in volts.Possible 4-4d [T9P0]
FE15MM Motor relay monitor LED 1 comes on when motor relay is on.
Possible 4-4d [T9Q0] B1 Stop light switchLED 2 comes on with the stop light switch on (with
the brake pedal depressed).
AT AT ABS signal LED 3 comes on when ABS control is on.
CM CCM signal LED 4 comes on when ABS control is on.
A0 ABS control LED 5 comes on when ABS control is on.
FE16 CODE Trouble codeThe most recent trouble code appears on select
monitor display.Possible 4-4d [T9R0]
80
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

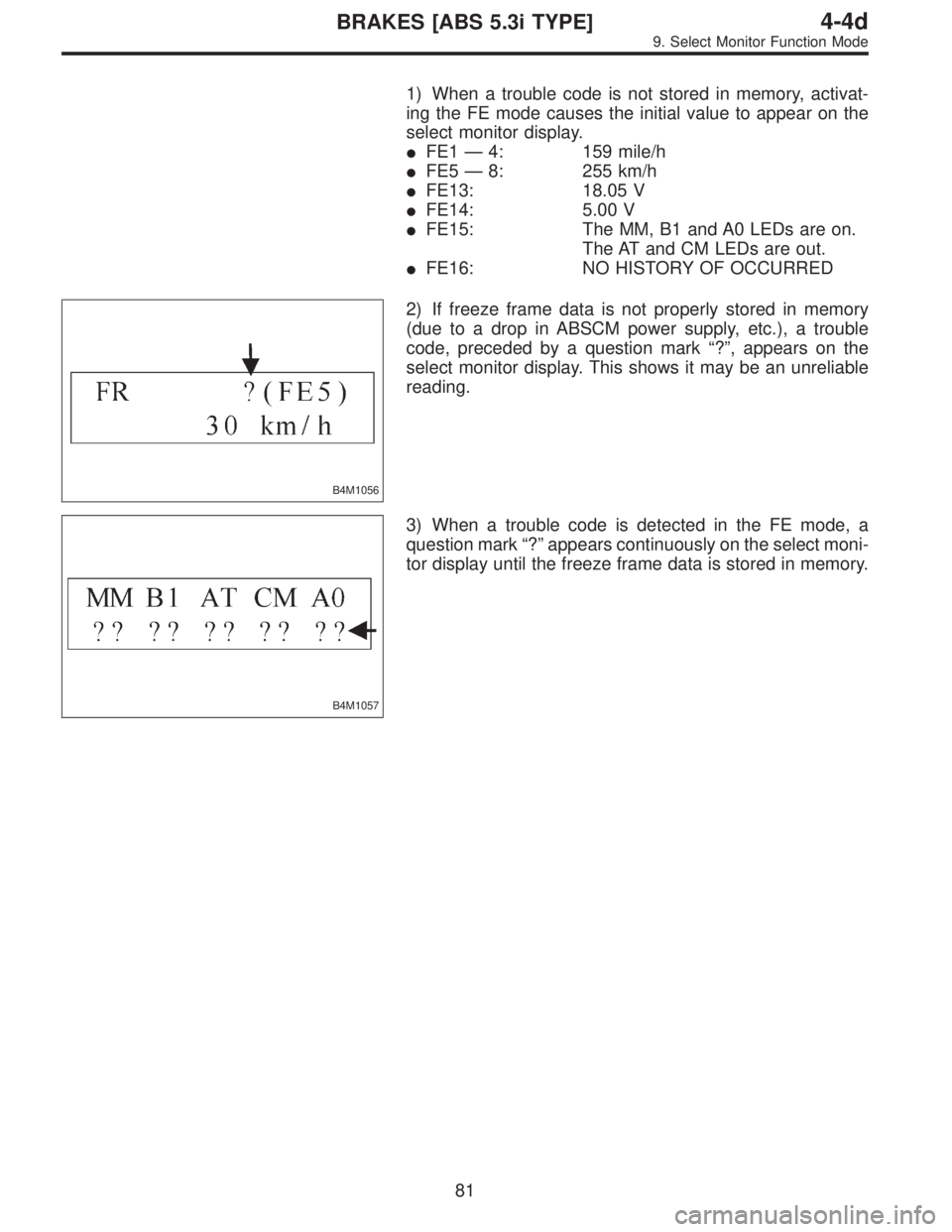

1) When a trouble code is not stored in memory, activat-
ing the FE mode causes the initial value to appear on the
select monitor display.

FE1—4: 159 mile/h

FE5—8: 255 km/h

FE13: 18.05 V

FE14: 5.00 V

FE15: The MM, B1 and A0 LEDs are on.
The AT and CM LEDs are out.

FE16: NO HISTORY OF OCCURRED
B4M1056
2) If freeze frame data is not properly stored in memory
(due to a drop in ABSCM power supply, etc.), a trouble
code, preceded by a question mark“?”, appears on the
select monitor display. This shows it may be an unreliable
reading.
B4M1057
3) When a trouble code is detected in the FE mode, a
question mark“?”appears continuously on the select moni-
tor display until the freeze frame data is stored in memory.
81
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

H4M1117
B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display
9B1
CHECK MESSAGE OF DISPLAY.
: Does display indicate message“Error 1”?
: Repair loose or disconnect connector, or discon-
tinued circuit in data link circuit.
: Go to step9B2.
9B2
CHECK MESSAGE OF DISPLAY.
: Does display indicate message“Error 2”?
: Repair poor contact of select monitor cartridge, or
installation of different type select monitor car-
tridge.
: Data link system is normal.
B4M0922
C: MODE F01 AND F05
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—

Compare speedometer with monitor indications.

F01: FR wheel speed is indicated in mile per hour (mile/
h).

F05: FR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FR wheel speed is 30
km/h.
82
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

B4M0923

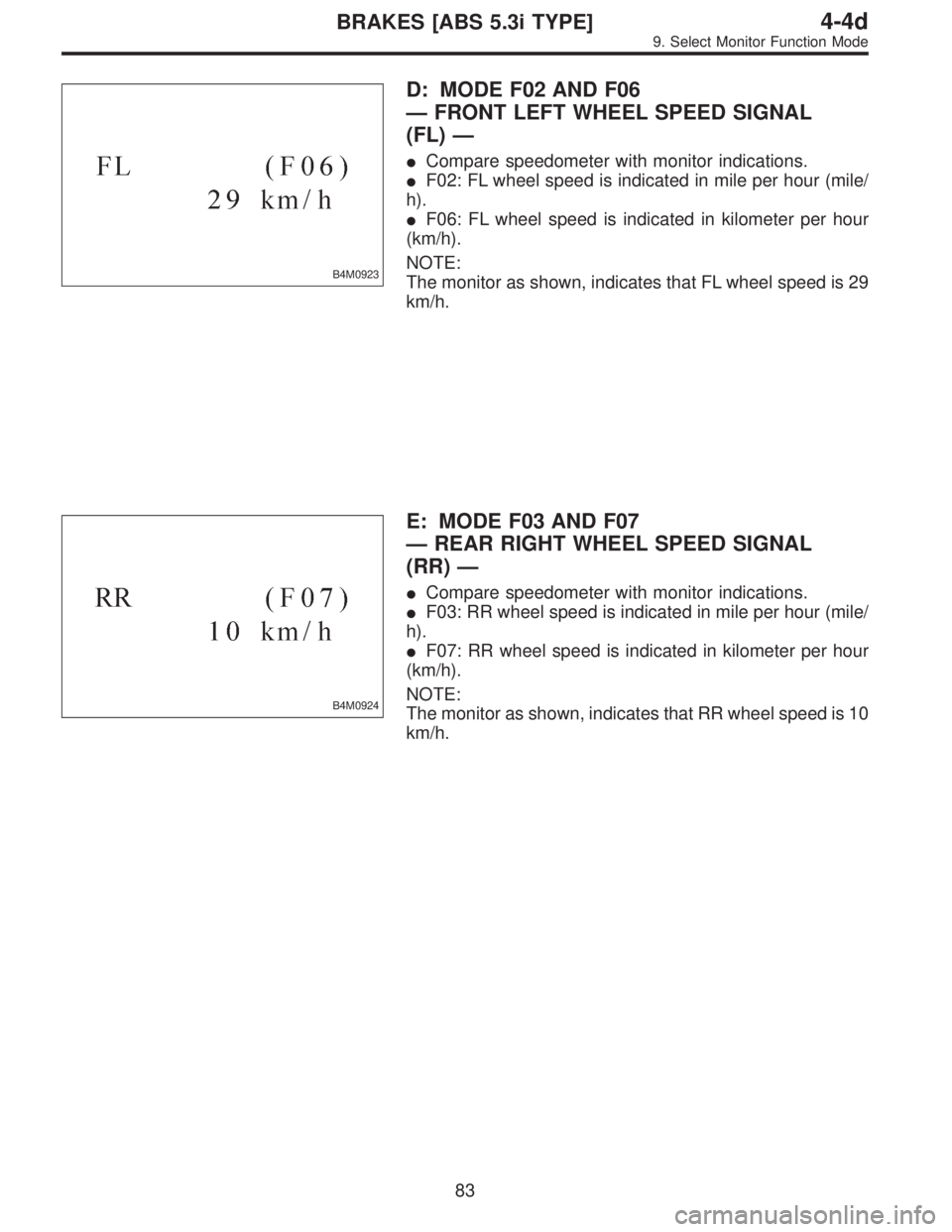

D: MODE F02 AND F06
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—

Compare speedometer with monitor indications.

F02: FL wheel speed is indicated in mile per hour (mile/
h).

F06: FL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FL wheel speed is 29
km/h.
B4M0924
E: MODE F03 AND F07
—REAR RIGHT WHEEL SPEED SIGNAL
(RR)—

Compare speedometer with monitor indications.

F03: RR wheel speed is indicated in mile per hour (mile/
h).

F07: RR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RR wheel speed is 10
km/h.
83
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

B4M0925

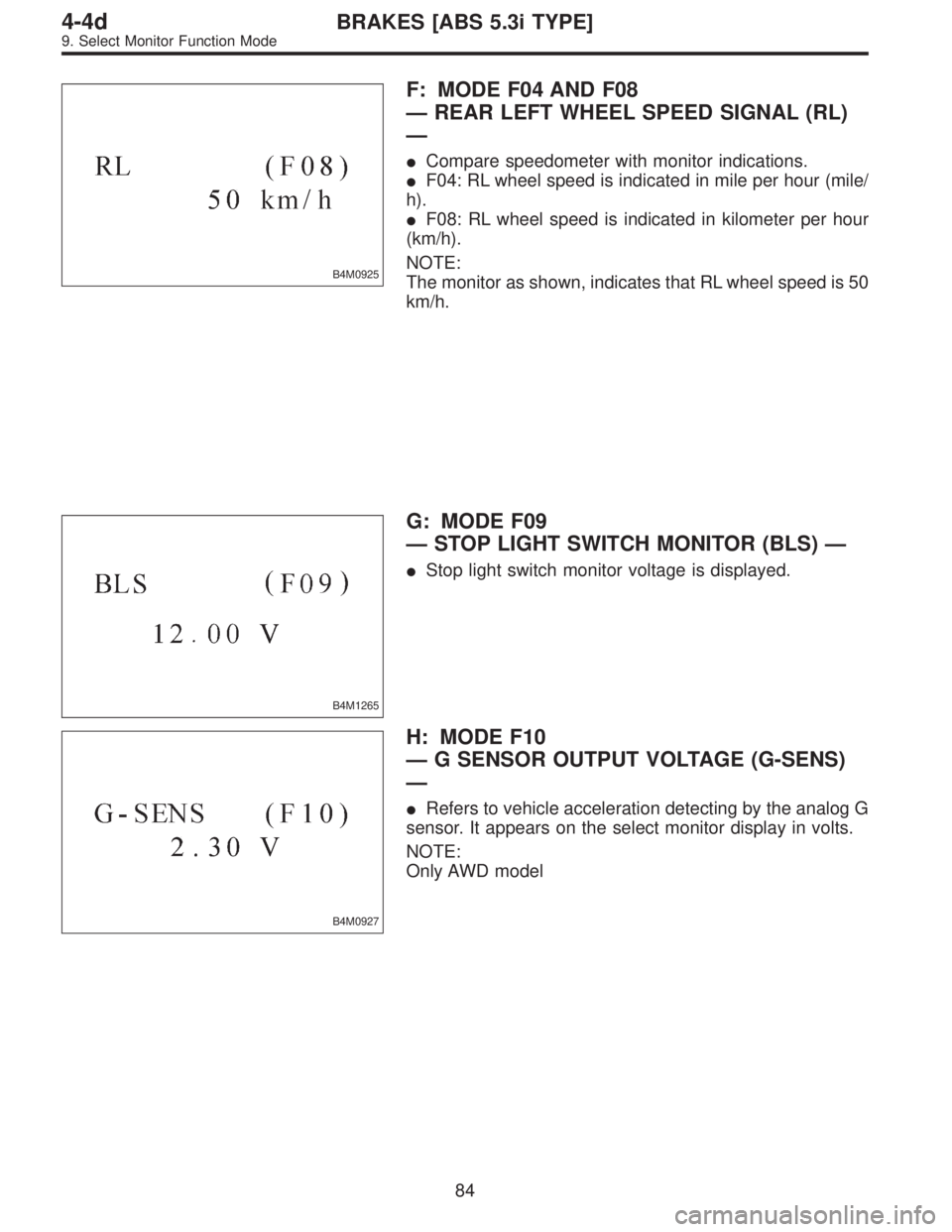

F: MODE F04 AND F08
—REAR LEFT WHEEL SPEED SIGNAL (RL)
—

Compare speedometer with monitor indications.

F04: RL wheel speed is indicated in mile per hour (mile/
h).

F08: RL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RL wheel speed is 50
km/h.
B4M1265
G: MODE F09
—STOP LIGHT SWITCH MONITOR (BLS)—

Stop light switch monitor voltage is displayed.
B4M0927
H: MODE F10
—G SENSOR OUTPUT VOLTAGE (G-SENS)
—

Refers to vehicle acceleration detecting by the analog G
sensor. It appears on the select monitor display in volts.
NOTE:
Only AWD model
84
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
