SUBARU LEGACY 2006 4.G Owners Manual

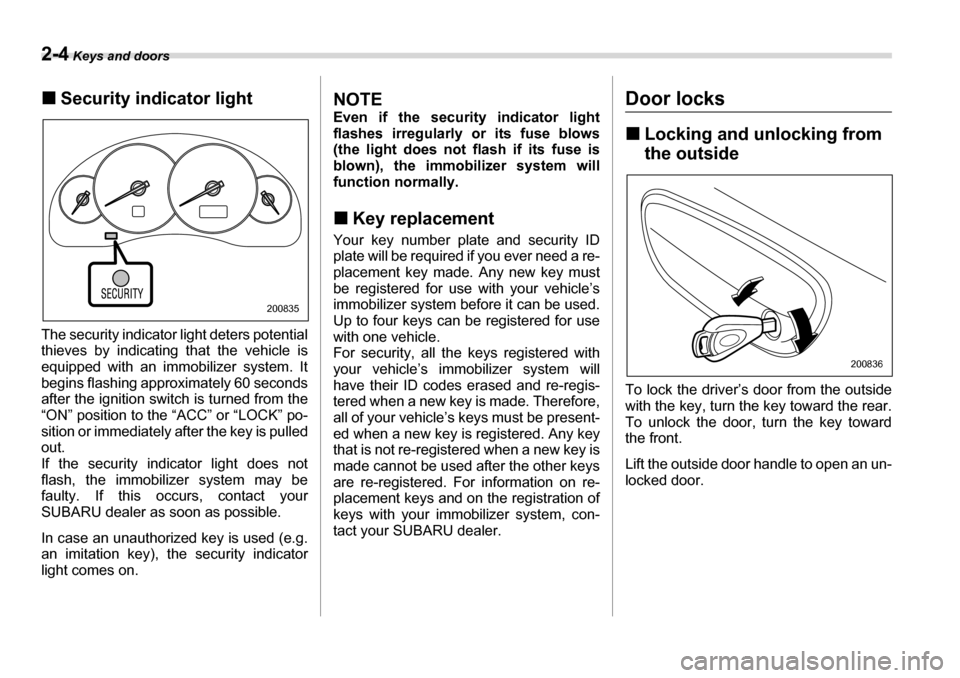

2-4 Keys and doors
„Security indicator light
The security indicator light deters potential
thieves by indicating that the vehicle is
equipped with an immobilizer system. It
begins flashing approximately 60 seconds
after the ignition switch is turned from the
“ON” position to the “ACC” or “LOCK” po-
sition or immediately after the key is pulled
out.
If the security indicator light does not
flash, the immobilizer system may be
faulty. If this occurs, contact your
SUBARU dealer as soon as possible.
In case an unauthorized key is used (e.g. an imitation key), the security indicator
light comes on.NOTE
Even if the security indicator light
flashes irregularly or its fuse blows
(the light does not flash if its fuse is
blown), the immobilizer system will function normally. „ Key replacement
Your key number plate and security ID
plate will be required if you ever need a re-placement key made. Any new key must
be registered for use with your vehicle’s
immobilizer system before it can be used.
Up to four keys can be registered for use
with one vehicle.
For security, all the keys registered with
your vehicle’s immobilizer system will
have their ID codes erased and re-regis-
tered when a new key is made. Therefore,
all of your vehicle’s keys must be present-
ed when a new key is registered. Any key
that is not re-registered when a new key is
made cannot be used after the other keys
are re-registered. For information on re-
placement keys and on the registration of keys with your imm obilizer system, con-
tact your SUBARU dealer.Door locks „ Locking and unlocking from
the outside
To lock the driver’s door from the outside
with the key, turn the key toward the rear.
To unlock the door, turn the key toward
the front.
Lift the outside door handle to open an un- locked door.
200835
200836

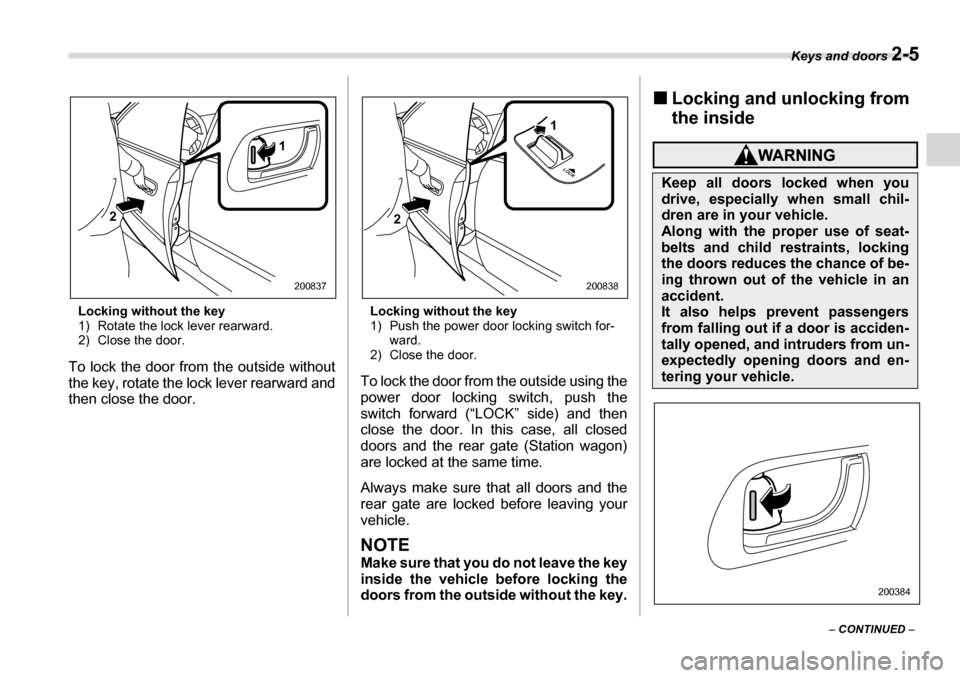

Keys and doors 2-5
– CONTINUED –
Locking without the key
1) Rotate the lock lever rearward.
2) Close the door.
To lock the door fr om the outside without
the key, rotate the lock lever rearward and
then close the door. Locking without the key
1) Push the power door locking switch for-
ward.
2) Close the door.
To lock the door from the outside using the
power door locking switch, push the
switch forward (“LOCK” side) and then
close the door. In this case, all closed
doors and the rear gate (Station wagon)
are locked at the same time.
Always make sure that all doors and the
rear gate are locked before leaving yourvehicle.
NOTE
Make sure that you do not leave the key
inside the vehicle before locking the
doors from the outs ide without the key. „
Locking and unlocking from
the inside
2 1
200837
LOCK
21
200838
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.
Along with the proper use of seat-
belts and child restraints, locking
the doors reduces the chance of be-
ing thrown out of the vehicle in an
accident.
It also helps prevent passengers
from falling out if a door is acciden-
tally opened, and intruders from un-
expectedly opening doors and en-
tering your vehicle.
200384

2-6 Keys and doors

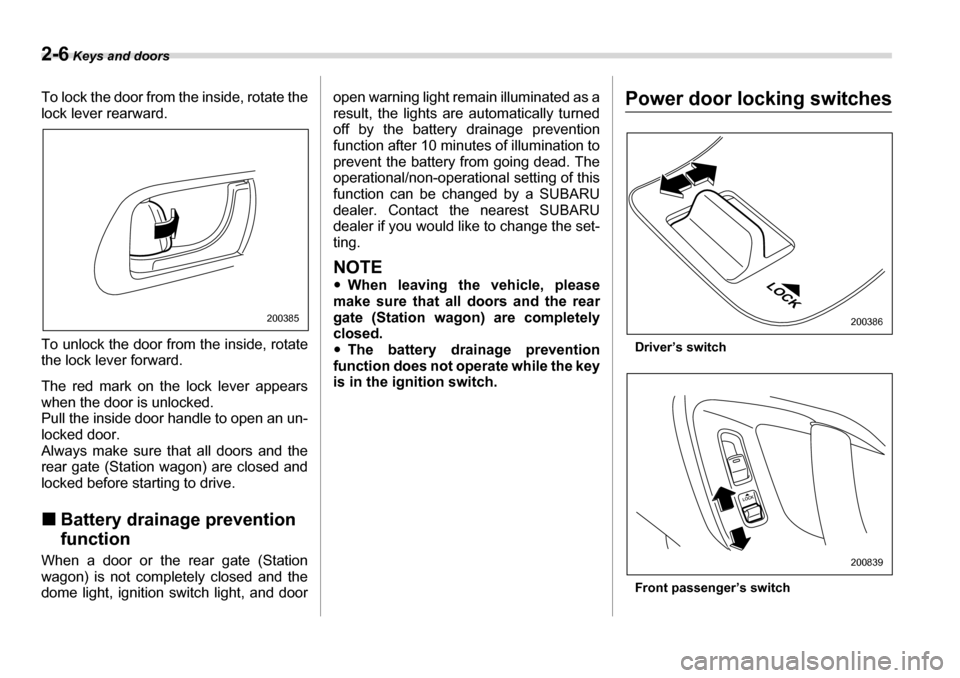

To lock the door from the inside, rotate the
lock lever rearward.
To unlock the door from the inside, rotate
the lock lever forward.
The red mark on the lock lever appears
when the door is unlocked.
Pull the inside door handle to open an un-
locked door.
Always make sure that all doors and the
rear gate (Station wagon) are closed and
locked before starting to drive. „Battery drainage prevention
function
When a door or the rear gate (Station
wagon) is not completely closed and the
dome light, ignition switch light, and door open warning light remain illuminated as a
result, the lights are automatically turned
off by the battery
drainage prevention
function after 10 minutes of illumination to
prevent the battery from going dead. The
operational/non-operational setting of this
function can be changed by a SUBARU
dealer. Contact the nearest SUBARU
dealer if you would like to change the set-
ting.
NOTE y When leaving the vehicle, please
make sure that all doors and the rear
gate (Station wago n) are completely
closed. y The battery drainage prevention
function does not operate while the key
is in the ignition switch.
Power door locking switches
Driver’s switch
Front passenger’s switch
200385
LOCK
200386
200839

Keys and doors 2-7
– CONTINUED –

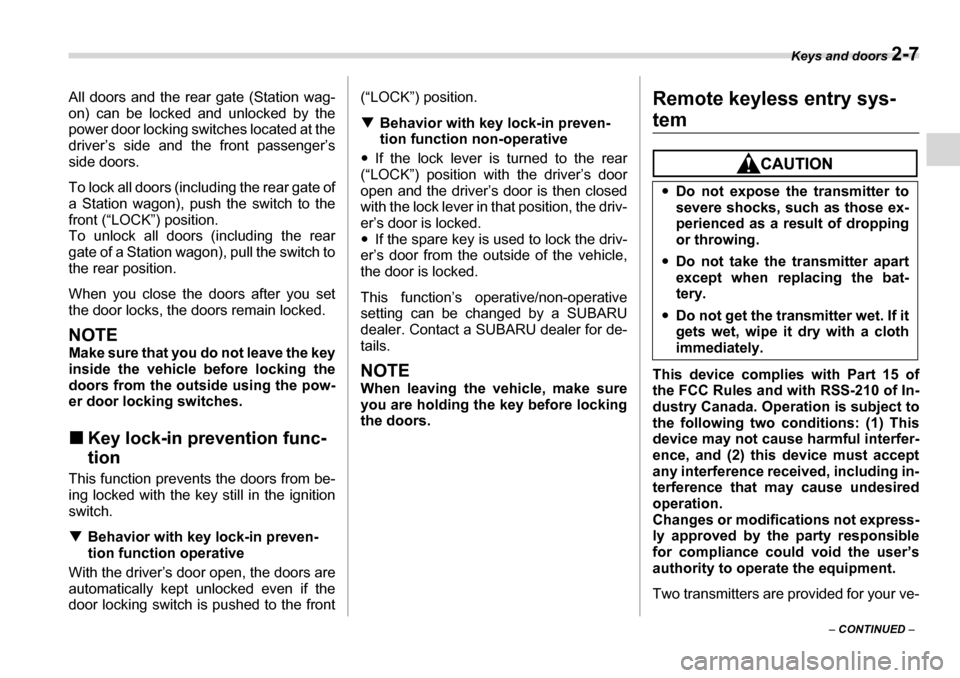

All doors and the rear gate (Station wag-
on) can be locked and unlocked by the
power door locking switches located at the
driver’s side and the front passenger’s
side doors.
To lock all doors (including the rear gate of
a Station wagon), push the switch to the
front (“LOCK”) position.
To unlock all doors (including the rear
gate of a Station wagon), pull the switch to
the rear position.
When you close the doors after you set
the door locks, the doors remain locked.
NOTE
Make sure that you do not leave the key
inside the vehicle before locking the
doors from the outside using the pow-
er door locking switches. „
Key lock-in prevention func- tion
This function prevents the doors from be-
ing locked with the key still in the ignition switch. T Behavior with key lock-in preven- tion function operative
With the driver’s door open, the doors are
automatically kept unlocked even if the
door locking switch is pushed to the front (“LOCK”) position. T
Behavior with key lock-in preven-
tion function non-operative
y If the lock lever is turned to the rear
(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the driv-
er’s door is locked. y If the spare key is used to lock the driv-
er’s door from the outside of the vehicle,
the door is locked.
This function’s operative/non-operative
setting can be changed by a SUBARU
dealer. Contact a SUBARU dealer for de- tails.
NOTE
When leaving the vehicle, make sure
you are holding the key before locking
the doors. Remote keyless entry sys-
tem
This device complies with Part 15 of
the FCC Rules and with RSS-210 of In-
dustry Canada. Operation is subject to
the following two co
nditions: (1) This
device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
Two transmitters are provided for your ve- y
Do not expose the transmitter to
severe shocks, such as those ex-
perienced as a result of dropping
or throwing.
y Do not take the transmitter apart
except when replacing the bat- tery.
y Do not get the tran smitter wet. If it
gets wet, wipe it dry with a cloth
immediately.

2-8 Keys and doors

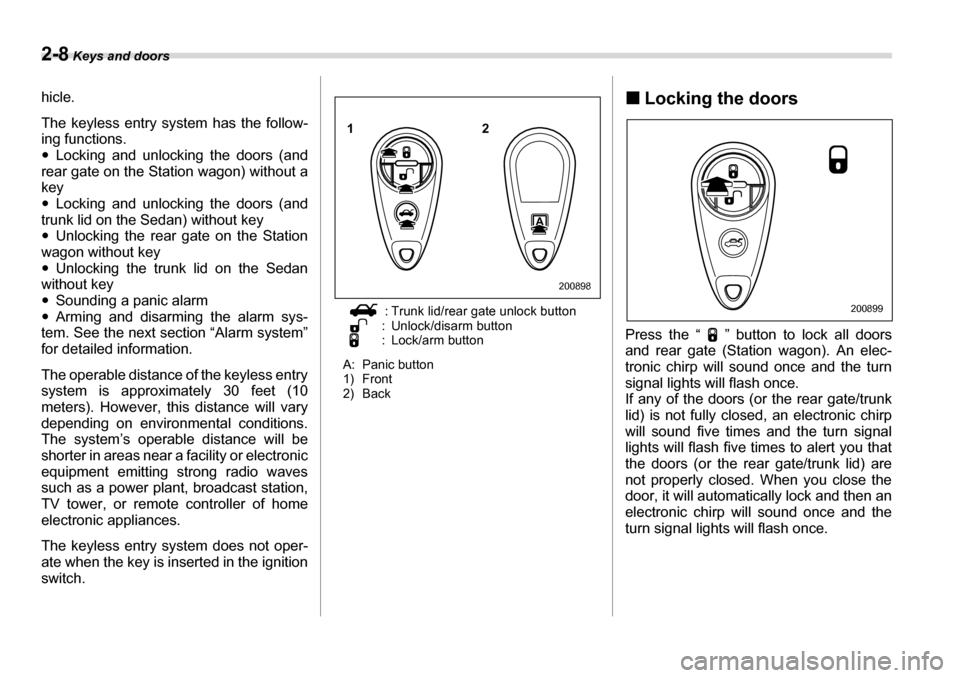

hicle.
The keyless entry system has the follow-
ing functions.yLocking and unlocking the doors (and
rear gate on the Station wagon) without akeyy Locking and unlocking the doors (and
trunk lid on the Sedan) without keyy Unlocking the rear gate on the Station
wagon without key y Unlocking the trunk lid on the Sedan
without key y Sounding a panic alarm
y Arming and disarming the alarm sys-
tem. See the next section “Alarm system”
for detailed information.
The operable distance of the keyless entry
system is approximately 30 feet (10
meters). However, this distance will vary
depending on environmental conditions.
The system’s operable distance will be
shorter in areas near a facility or electronic
equipment emitting strong radio waves
such as a power plant, broadcast station,
TV tower, or remote controller of home
electronic appliances.
The keyless entry system does not oper-
ate when the key is inserted in the ignitionswitch. : Trunk lid/rear gate unlock button
: Unlock/disarm button
: Lock/arm button
A: Panic button
1) Front
2) Back „
Locking the doors
Press the “ ” button to lock all doors
and rear gate (Station wagon). An elec-
tronic chirp will sound once and the turn
signal lights will flash once.
If any of the doors (o r the rear gate/trunk
lid) is not fully closed, an electronic chirp
will sound five times and the turn signal
lights will flash five times to alert you that
the doors (or the rear gate/trunk lid) are
not properly closed. When you close the
door, it will automatically lock and then an
electronic chirp will sound once and the
turn signal lights will flash once.
200898
A
12
200899

Keys and doors 2-9
– CONTINUED –
„

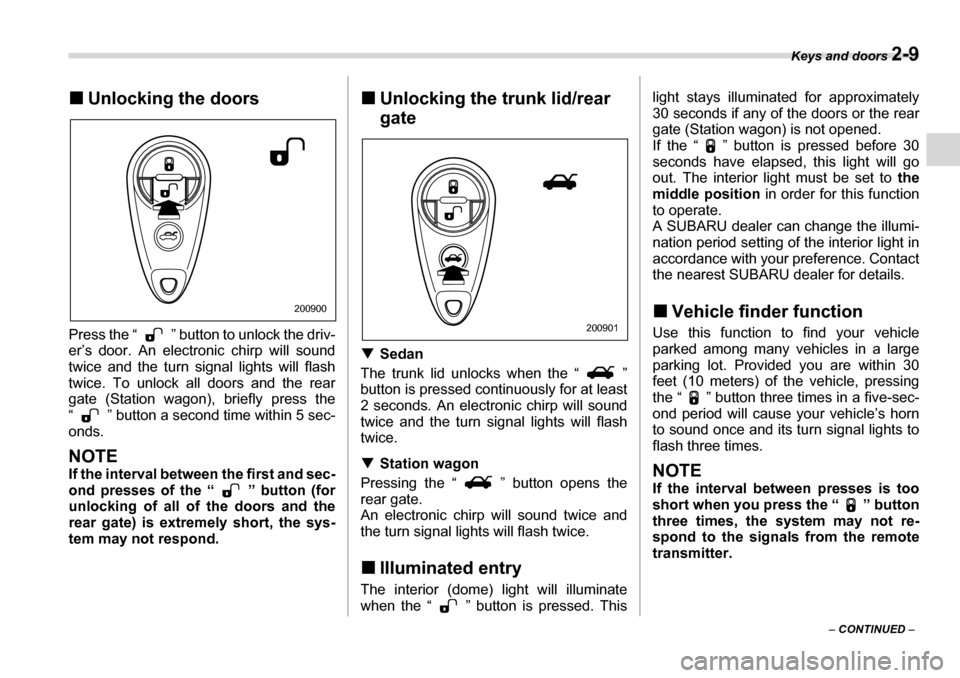

Unlocking the doors
Press the “ ” button to unlock the driv-
er’s door. An electronic chirp will sound
twice and the turn signal lights will flash
twice. To unlock all doors and the rear
gate (Station wagon), briefly press the
“ ” button a second time within 5 sec-
onds.
NOTE
If the interval between the first and sec-
ond presses of the “ ” button (for
unlocking of all of the doors and the
rear gate) is extremely short, the sys-
tem may not respond. „
Unlocking the trunk lid/rear gate
T Sedan
The trunk lid un locks when the “ ”
button is pressed continuously for at least
2 seconds. An electr onic chirp will sound
twice and the turn signal lights will flash
twice. T Station wagon
Pressing the “ ” button opens the
rear gate.
An electronic chirp will sound twice and
the turn signal lights will flash twice. „ Illuminated entry
The interior (dome) light will illuminate
when the “ ” button is pressed. This light stays illuminated for approximately
30 seconds if any of the doors or the rear
gate (Station wagon) is not opened.
If the “ ” button is pressed before 30
seconds have elapsed, this light will go
out. The interior light must be set to
the
middle position in order for this function
to operate.
A SUBARU dealer can change the illumi-
nation period setting of the interior light in
accordance with your preference. Contact
the nearest SUBARU dealer for details. „ Vehicle finder function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a five-sec-
ond period will cause your vehicle’s horn
to sound once and its turn signal lights to flash three times.NOTE
If the interval between presses is too
short when you press the “ ” button
three times, the system may not re-
spond to the signal s from the remote
transmitter.
200900
200901

2-10 Keys and doors

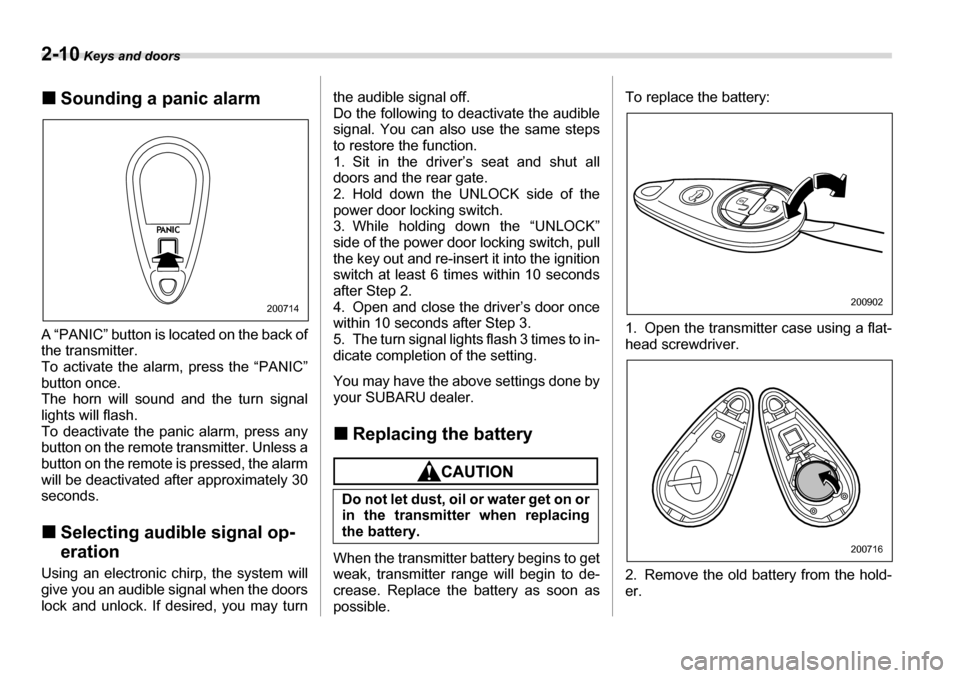

„Sounding a panic alarm
A “PANIC” button is located on the back of
the transmitter.
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the turn signal
lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. Unless a
button on the remote is pressed, the alarm
will be deactivated after approximately 30seconds. „ Selecting audible signal op- eration
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn the audible signal off.
Do the following to deactivate the audible
signal. You can also use the same steps
to restore the function.
1. Sit in the driver’s seat and shut all
doors and the rear gate.
2. Hold down the UNLOCK side of the
power door locking switch.
3. While holding down the “UNLOCK”
side of the power door locking switch, pull
the key out and re-insert it into the ignition
switch at least 6 times within 10 seconds
after Step 2.
4. Open and close the driver’s door once
within 10 seconds after Step 3.
5. The turn signal lights flash 3 times to in-
dicate completion of the setting.
You may have the above settings done by
your SUBARU dealer. „
Replacing the battery
When the transmitter battery begins to get
weak, transmitter range will begin to de-
crease. Replace the battery as soon as
possible. To replace the battery:
1. Open the transmitter case using a flat-
head screwdriver.
2. Remove the old battery from the hold- er.
200714
Do not let dust, oil or water get on or
in the transmitter when replacing
the battery.
200902
200716

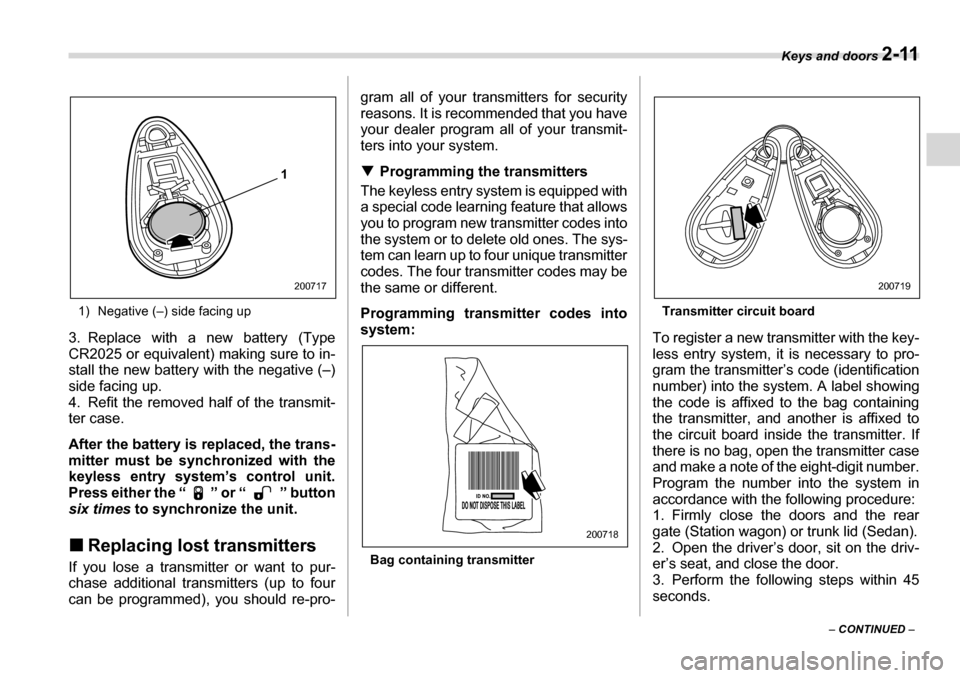

Keys and doors 2-11
– CONTINUED –
1) Negative (–) side facing up
3. Replace with a new battery (Type
CR2025 or equivalent) making sure to in-
stall the new battery with the negative (–)
side facing up.
4. Refit the removed half of the transmit-ter case.
After the battery is replaced, the trans-
mitter must be synchronized with the
keyless entry system’s control unit.
Press either the “ ” or “ ” button
six times to synchronize the unit.
„ Replacing lost transmitters
If you lose a transmitter or want to pur-
chase additional transmitters (up to four
can be programmed), you should re-pro- gram all of your transmitters for security
reasons. It is recommended that you have
your dealer program all of your transmit-
ters into your system. T
Programming the transmitters
The keyless entry system is equipped with
a special code learning feature that allows
you to program new transmitter codes into
the system or to delete old ones. The sys-
tem can learn up to four unique transmitter
codes. The four transmitter codes may be
the same or different.
Programming transmitter codes into
system:
Bag containing transmitter Transmitter circuit board
To register a new transmitter with the key-
less entry system, it is necessary to pro-
gram the transmitter’s code (identification
number) into the syst em. A label showing
the code is affixed to the bag containing
the transmitter, and another is affixed to
the circuit board inside the transmitter. If
there is no bag, open the transmitter case
and make a note of the eight-digit number.
Program the number into the system in
accordance with the following procedure:
1. Firmly close the doors and the rear
gate (Station wagon) or trunk lid (Sedan).
2. Open the driver’s door, sit on the driv-
er’s seat, and close the door.
3. Perform the following steps within 45 seconds.
1
200717
200718
200719

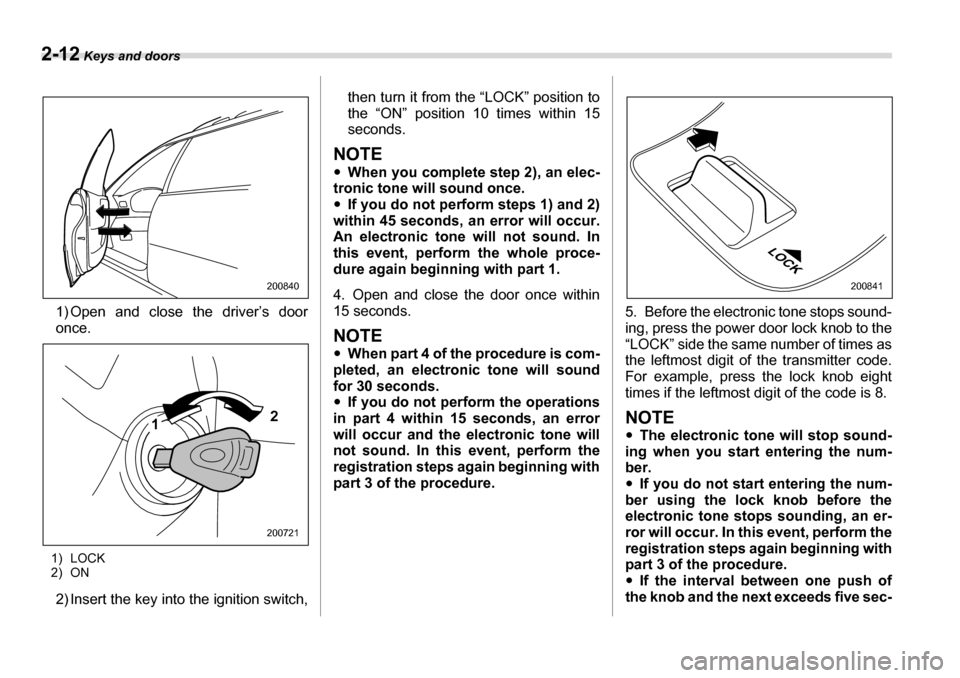

2-12 Keys and doors
1) Open and close the driver’s door
once.
1) LOCK
2) ON 2) Insert the key into the ignition switch, then turn it from the “LOCK” position to
the “ON” position 10 times within 15 seconds.
NOTE y
When you complete step 2), an elec-
tronic tone will sound once. y If you do not perform steps 1) and 2)
within 45 seconds, an error will occur.
An electronic tone will not sound. In
this event, perform the whole proce-
dure again beginning with part 1.
4. Open and close the door once within 15 seconds.
NOTE y When part 4 of the procedure is com-
pleted, an electronic tone will sound
for 30 seconds. y If you do not perform the operations
in part 4 within 15 seconds, an error
will occur and the electronic tone will
not sound. In this event, perform the
registration steps again beginning with
part 3 of the procedure. 5. Before the electronic tone stops sound-
ing, press the power door lock knob to the
“LOCK” side the same number of times as
the leftmost digit of the transmitter code.
For example, press the lock knob eight
times if the leftmost digit of the code is 8.
NOTE y
The electronic tone will stop sound-
ing when you start entering the num-
ber. y If you do not start entering the num-
ber using the lock knob before the
electronic tone stops sounding, an er-
ror will occur. In this event, perform the
registration steps again beginning with
part 3 of the procedure. y If the interval between one push of
the knob and the next exceeds five sec-
200840
2
1
200721
LOCK
200841

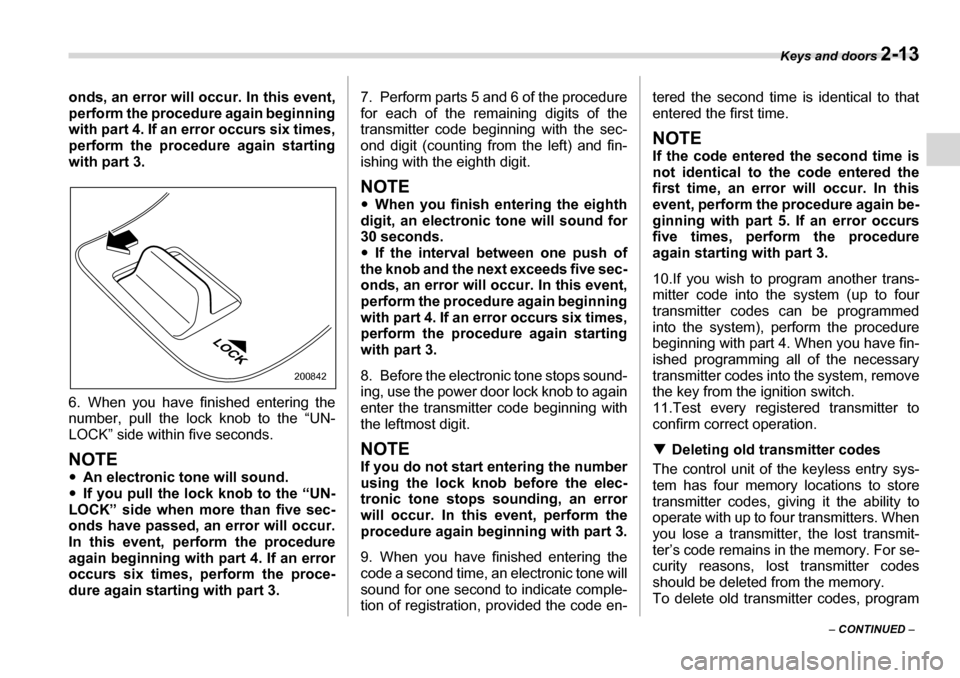

Keys and doors 2-13
– CONTINUED –
onds, an error will occur. In this event,
perform the procedure again beginning
with part 4. If an error occurs six times,
perform the procedure again starting
with part 3.
6. When you have finished entering the
number, pull the lock knob to the “UN-
LOCK” side within five seconds.
NOTE y
An electronic tone will sound.
y If you pull the lock knob to the “UN-
LOCK” side when more than five sec-
onds have passed, an error will occur.
In this event, perform the procedure
again beginning with part 4. If an error
occurs six times, perform the proce-
dure again starting with part 3. 7. Perform parts 5 and 6 of the procedure
for each of the remaining digits of the
transmitter code beginning with the sec-
ond digit (counting from the left) and fin-
ishing with the eighth digit.
NOTE y
When you finish entering the eighth
digit, an electronic tone will sound for
30 seconds.y If the interval between one push of
the knob and the next exceeds five sec-
onds, an error will occur. In this event,
perform the procedure again beginning
with part 4. If an error occurs six times,
perform the procedure again starting
with part 3.
8. Before the electronic tone stops sound-
ing, use the power door lock knob to again
enter the transmitter code beginning with
the leftmost digit.
NOTE
If you do not start entering the number
using the lock knob before the elec-
tronic tone stops sounding, an error
will occur. In this event, perform the
procedure again beginning with part 3.
9. When you have finished entering the
code a second time, an electronic tone will
sound for one second to indicate comple-
tion of registration, provided the code en- tered the second time is identical to that
entered the first time.
NOTE
If the code entered
the second time is
not identical to th e code entered the
first time, an error will occur. In this
event, perform the procedure again be-
ginning with part 5. If an error occurs
five times, perform the procedure
again starting with part 3.
10.If you wish to program another trans-
mitter code into the system (up to four
transmitter codes can be programmed
into the system), perform the procedure
beginning with part 4. When you have fin-
ished programming all of the necessary
transmitter codes into the system, remove
the key from the ignition switch.
11.Test every registered transmitter to
confirm correct operation. T Deleting old transmitter codes
The control unit of the keyless entry sys-
tem has four memory locations to store
transmitter codes, giving it the ability to
operate with up to four transmitters. When
you lose a transmitter, the lost transmit-
ter’s code remains in the memory. For se-
curity reasons, lost transmitter codes
should be deleted from the memory.
To delete old transmitter codes, program
LOCK
200842
