SUBARU LEGACY 2006 4.G Owners Manual

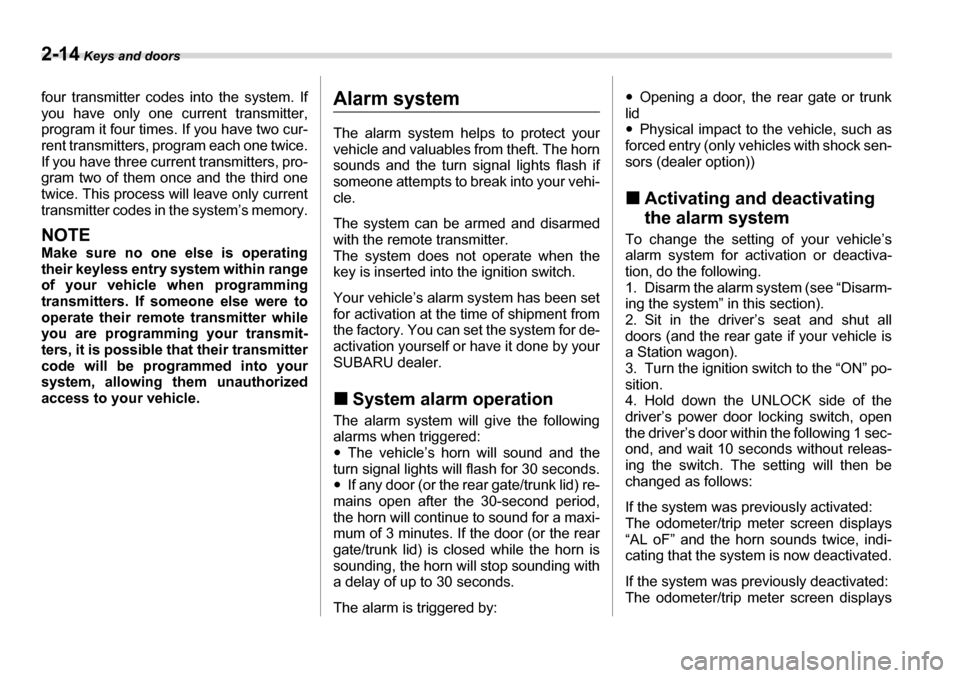

2-14 Keys and doors
four transmitter codes into the system. If
you have only one current transmitter,
program it four times. If you have two cur-
rent transmitters, pr ogram each one twice.
If you have three current transmitters, pro-
gram two of them once and the third one
twice. This process will leave only current
transmitter codes in the system’s memory.
NOTE
Make sure no one else is operating
their keyless entry system within range
of your vehicle when programming
transmitters. If someone else were to
operate their remote transmitter while
you are programming your transmit-
ters, it is possible that their transmitter
code will be programmed into your
system, allowing them unauthorized
access to your vehicle.
Alarm system
The alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the turn signal lights flash if
someone attempts to break into your vehi-cle.
The system can be armed and disarmed
with the remote transmitter.The system does no t operate when the
key is inserted into the ignition switch.
Your vehicle’s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for de-
activation yourself or have it done by your
SUBARU dealer. „ System alarm operation
The alarm system will give the following
alarms when triggered: y The vehicle’s horn will sound and the
turn signal lights will flash for 30 seconds. y If any door (or the rear gate/trunk lid) re-
mains open after the 30-second period,
the horn will continue to sound for a maxi-
mum of 3 minutes. If the door (or the rear
gate/trunk lid) is closed while the horn is
sounding, the horn will stop sounding with
a delay of up to 30 seconds.
The alarm is triggered by: y
Opening a door, the rear gate or trunk
lid y Physical impact to the vehicle, such as
forced entry (only vehicles with shock sen-
sors (dealer option)) „ Activating and deactivating
the alarm system
To change the setting of your vehicle’s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system (see “Disarm-
ing the system” in this section).
2. Sit in the driver’s seat and shut all
doors (and the rear gate if your vehicle is
a Station wagon).
3. Turn the ignition switch to the “ON” po-
sition.
4. Hold down the UNLOCK side of the
driver’s power door locking switch, open
the driver’s door within the following 1 sec-
ond, and wait 10 seconds without releas-
ing the switch. The setting will then be
changed as follows:
If the system was pr eviously activated:
The odometer/trip meter screen displays
“AL oF” and the horn sounds twice, indi-
cating that the system is now deactivated.
If the system was prev iously deactivated:
The odometer/trip meter screen displays

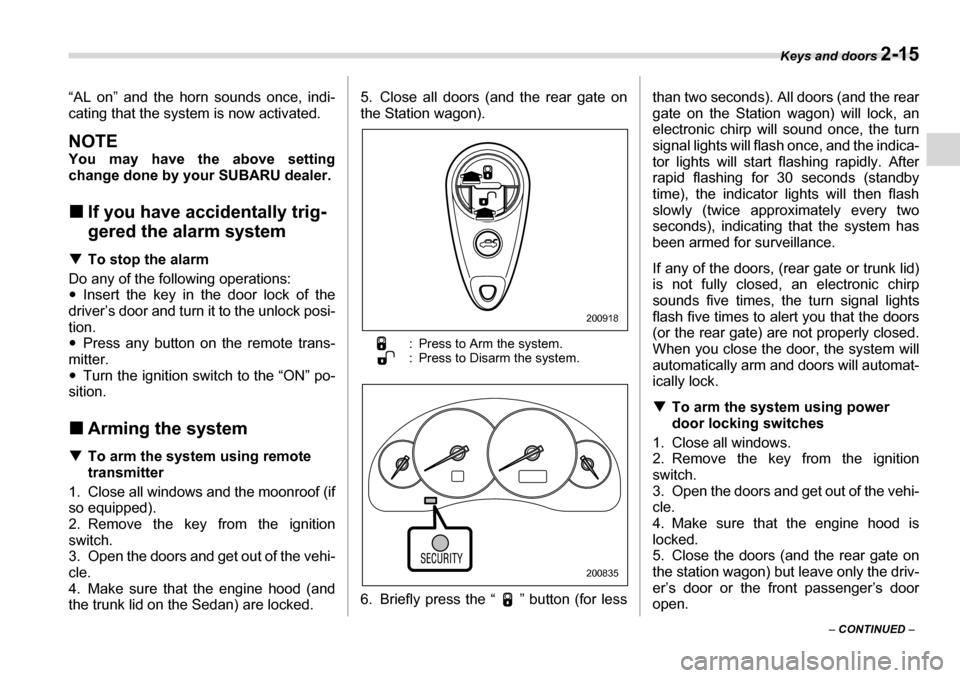

Keys and doors 2-15
– CONTINUED –
“AL on” and the horn sounds once, indi-
cating that the system
is now activated.
NOTE
You may have the above setting
change done by your SUBARU dealer. „If you have accidentally trig-
gered the alarm system
T To stop the alarm
Do any of the following operations: y Insert the key in the door lock of the
driver’s door and turn it to the unlock posi- tion. y Press any button on the remote trans-
mitter. y Turn the ignition switch to the “ON” po-
sition. „ Arming the system
T To arm the system using remote
transmitter
1. Close all windows and the moonroof (if
so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-cle.
4. Make sure that the engine hood (and
the trunk lid on the Sedan) are locked. 5. Close all doors (and the rear gate on
the Station wagon).
: Press to Arm the system.
: Press to Disarm the system.
6. Briefly press the “ ” button (for less than two seconds). All doors (and the rear
gate on the Station wagon) will lock, an
electronic chirp will sound once, the turn
signal lights will flash once, and the indica-
tor lights will start flashing rapidly. After
rapid flashing for 30 seconds (standby
time), the indicator lights will then flash
slowly (twice approximately every two seconds), indicating
that the system has
been armed for surveillance.
If any of the doors, (re ar gate or trunk lid)
is not fully closed, an electronic chirp
sounds five times, the turn signal lights
flash five times to alert you that the doors
(or the rear gate) are not properly closed.
When you close the door, the system will
automatically arm and doors will automat-
ically lock. T To arm the system using power
door locking switches
1. Close all windows.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-
cle.
4. Make sure that the engine hood is
locked.
5. Close the doors (and the rear gate on
the station wagon) but leave only the driv-
er’s door or the front passenger’s door
open.
200918
200835

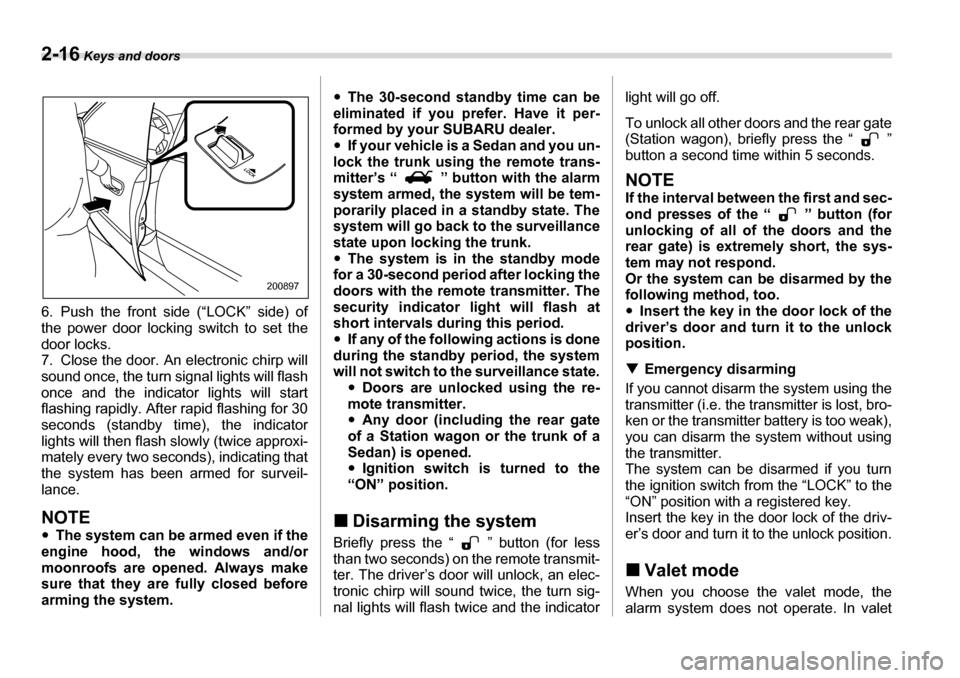

2-16 Keys and doors
6. Push the front side (“LOCK” side) of
the power door locking switch to set thedoor locks.
7. Close the door. An electronic chirp will
sound once, the turn signal lights will flash
once and the indicator lights will start
flashing rapidly. After rapid flashing for 30
seconds (standby time), the indicator
lights will then flash slowly (twice approxi-
mately every two seconds), indicating that
the system has been armed for surveil-
lance.
NOTE yThe system can be armed even if the
engine hood, the windows and/or
moonroofs are opened. Always make
sure that they are fully closed before
arming the system. y
The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your SUBARU dealer.y If your vehicle is a Sedan and you un-
lock the trunk usin g the remote trans-
mitter’s “ ” button with the alarm
system armed, the system will be tem-
porarily placed in a standby state. The
system will go back to the surveillance
state upon locking the trunk. y The system is in the standby mode
for a 30-second period after locking the
doors with the remo te transmitter. The
security indicator light will flash at
short intervals during this period.y If any of the following actions is done
during the standby period, the system
will not switch to the surveillance state.
yDoors are unlocked using the re-
mote transmitter. y Any door (including the rear gate
of a Station wagon or the trunk of a
Sedan) is opened. y Ignition switch is turned to the
“ON” position.
„ Disarming the system
Briefly press the “ ” button (for less
than two seconds) on the remote transmit-
ter. The driver’s door will unlock, an elec-
tronic chirp will sound twice, the turn sig-
nal lights will flash twice and the indicator light will go off.
To unlock all other doors and the rear gate
(Station wagon), briefly press the “ ”
button a second time within 5 seconds.
NOTE
If the interval betw
een the first and sec-
ond presses of the “ ” button (for
unlocking of all of the doors and the
rear gate) is extreme ly short, the sys-
tem may not respond.
Or the system can be disarmed by the following method, too.y Insert the key in the door lock of the
driver’s door and turn it to the unlock
position. T Emergency disarming
If you cannot disarm the system using the
transmitter (i.e. the transmitter is lost, bro-
ken or the transmitter battery is too weak),
you can disarm the system without using
the transmitter.
The system can be disarmed if you turn
the ignition switch from the “LOCK” to the
“ON” position with a registered key.
Insert the key in the door lock of the driv-
er’s door and turn it to the unlock position. „ Valet mode
When you choose the valet mode, the
alarm system does not operate. In valet
200897
LOCK

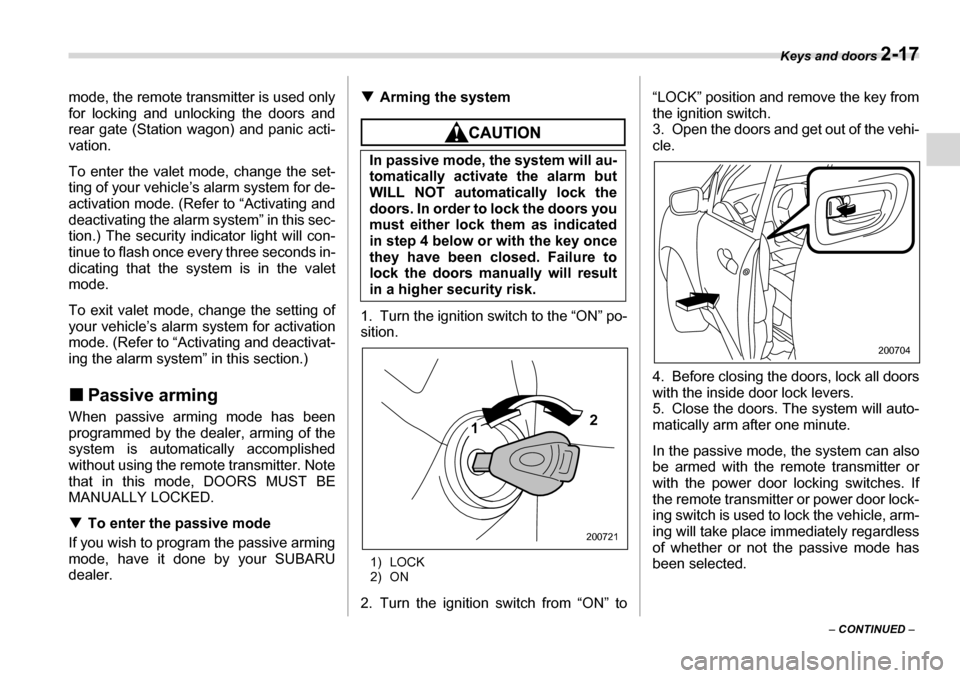

Keys and doors 2-17
– CONTINUED –
mode, the remote transmitter is used only
for locking and unlocking the doors and
rear gate (Station wagon) and panic acti-
vation.
To enter the valet mode, change the set-
ting of your vehicle’s alarm system for de-
activation mode. (Refer to “Activating and deactivating the ala
rm system” in this sec-
tion.) The security indicator light will con-
tinue to flash once every three seconds in-
dicating that the syst em is in the valet
mode.
To exit valet mode, change the setting of
your vehicle’s alarm system for activation
mode. (Refer to “Activating and deactivat-
ing the alarm system” in this section.) „ Passive arming
When passive arming mode has been
programmed by the dealer, arming of the system is automatic ally accomplished
without using the remote transmitter. Note
that in this mode, DOORS MUST BE MANUALLY LOCKED. T To enter the passive mode
If you wish to program the passive arming
mode, have it done by your SUBARU
dealer. T
Arming the system
1. Turn the ignition switch to the “ON” po- sition.
1) LOCK
2) ON
2. Turn the ignition switch from “ON” to “LOCK” position and remove the key from
the ignition switch.
3. Open the doors and
get out of the vehi-
cle.
4. Before closing the doors, lock all doors
with the inside door lock levers.
5. Close the doors. The system will auto-
matically arm after one minute.
In the passive mode, the system can also
be armed with the remote transmitter or
with the power door locking switches. If
the remote transmitter or power door lock-
ing switch is used to lock the vehicle, arm-
ing will take place immediately regardless
of whether or not the passive mode has
been selected.
In passive mode, the system will au-
tomatically activate the alarm but
WILL NOT automatically lock the
doors. In order to lock the doors you
must either lock them as indicated
in step 4 below or with the key once
they have been closed. Failure to
lock the doors manually will result
in a higher security risk.
2
1
200721
200704

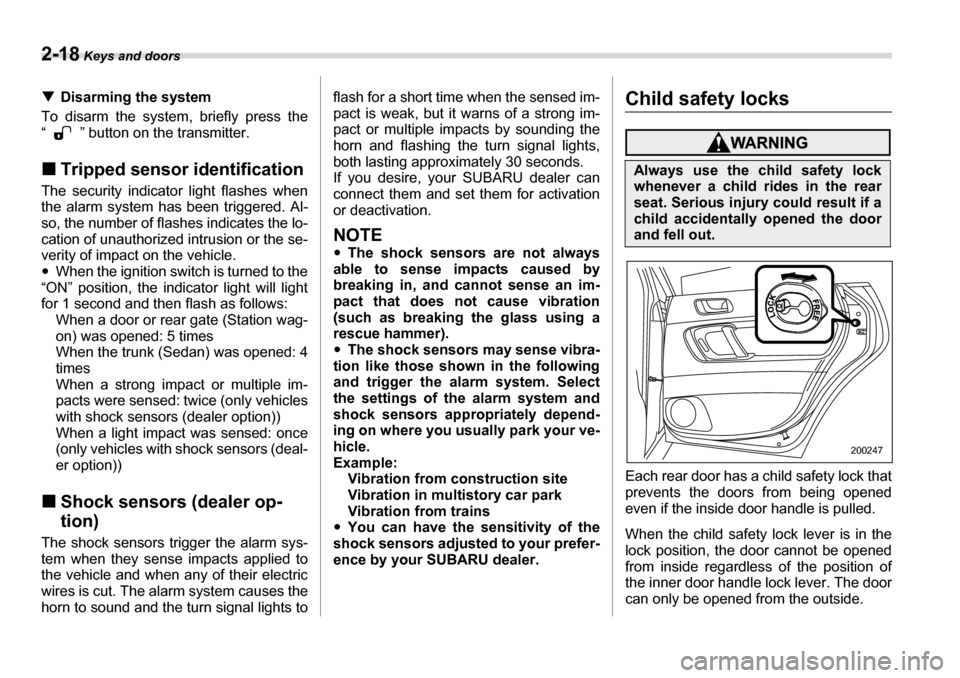

2-18 Keys and doors
TDisarming the system
To disarm the system, briefly press the
“ ” button on the transmitter. „ Tripped sensor identification
The security indicator light flashes when
the alarm system has been triggered. Al-
so, the number of flashes indicates the lo-
cation of unauthorized intrusion or the se-
verity of impact on the vehicle.y When the ignition switch is turned to the
“ON” position, the indicator light will light
for 1 second and then flash as follows:
When a door or rear gate (Station wag-
on) was opened: 5 times
When the trunk (Sedan) was opened: 4times
When a strong impact or multiple im-
pacts were sensed: twice (only vehicles
with shock sensors (dealer option))
When a light impact was sensed: once
(only vehicles with shock sensors (deal-
er option))
„ Shock sensors (dealer op- tion)
The shock sensors trigger the alarm sys-
tem when they sense impacts applied to
the vehicle and when any of their electric
wires is cut. The alarm system causes the
horn to sound and the turn signal lights to flash for a short time when the sensed im-
pact is weak, but it warns of a strong im-
pact or multiple impacts by sounding the
horn and flashing the turn signal lights,
both lasting approximately 30 seconds.
If you desire, your SUBARU dealer can
connect them and set them for activation
or deactivation.
NOTE y
The shock sensors are not always
able to sense impacts caused by
breaking in, and cannot sense an im-
pact that does not cause vibration
(such as breaking the glass using a
rescue hammer).y The shock sensors may sense vibra-
tion like those shown in the following
and trigger the alarm system. Select
the settings of the alarm system and
shock sensors appropriately depend-
ing on where you usually park your ve-hicle.
Example:
Vibration from construction site
Vibration in multistory car park
Vibration from trains
y You can have the sensitivity of the
shock sensors adjusted to your prefer-
ence by your SUBARU dealer.
Child safety locks
Each rear door has a child safety lock that
prevents the doors from being opened
even if the inside door handle is pulled.
When the child safety lock lever is in the
lock position, the door cannot be opened
from inside regardless of the position of
the inner door handle lock lever. The door
can only be opened from the outside.
Always use the child safety lock
whenever a child rides in the rear
seat. Serious injury could result if a
child accidentally opened the door
and fell out.
200247

Keys and doors 2-19
– CONTINUED –

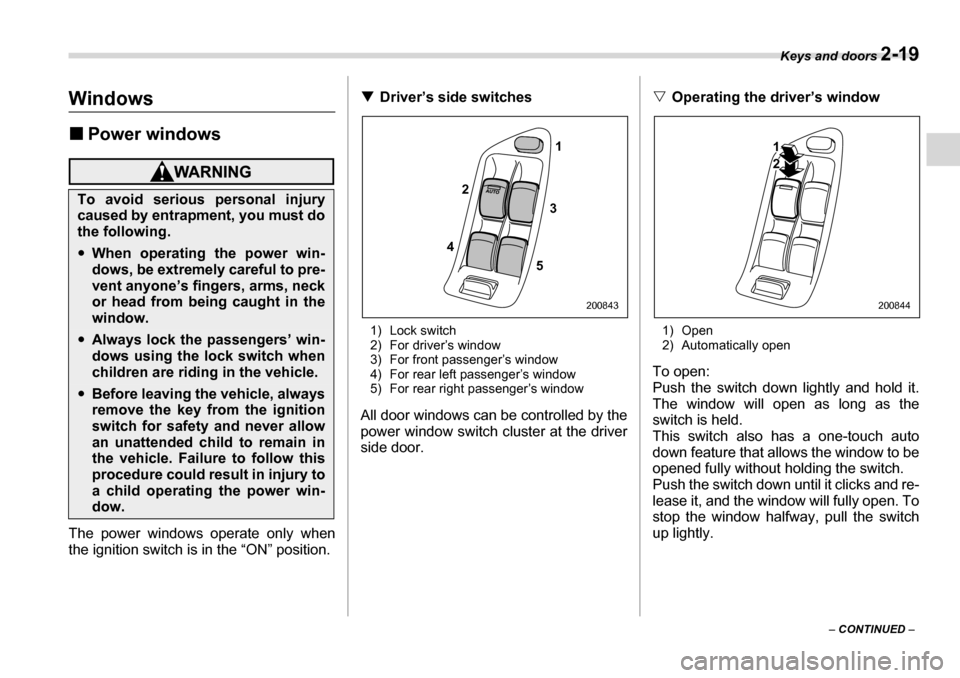

Windows „Power windows
The power windows operate only when
the ignition switch is in the “ON” position. T
Driver’s side switches
1) Lock switch
2) For driver’s window
3) For front passenger’s window
4) For rear left passenger’s window
5) For rear right passenger’s window
All door windows can be controlled by the
power window switch cluster at the driver
side door. V
Operating the driver’s window
1) Open
2) Automatically open
To open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down feature that allows the window to be
opened fully without holding the switch.
Push the switch down until it clicks and re-
lease it, and the window will fully open. To
stop the window halfwa y, pull the switch
up lightly.
To avoid serious personal injury
caused by entrapment, you must dothe following.
y When operating the power win-
dows, be extremely careful to pre-
vent anyone’s fingers, arms, neck
or head from being caught in the
window.
yAlways lock the passengers’ win-
dows using the lock switch when
children are riding in the vehicle.
yBefore leaving th e vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the power win-
dow.
1
3
5
4 2
200843
1 2
200844

2-20 Keys and doors

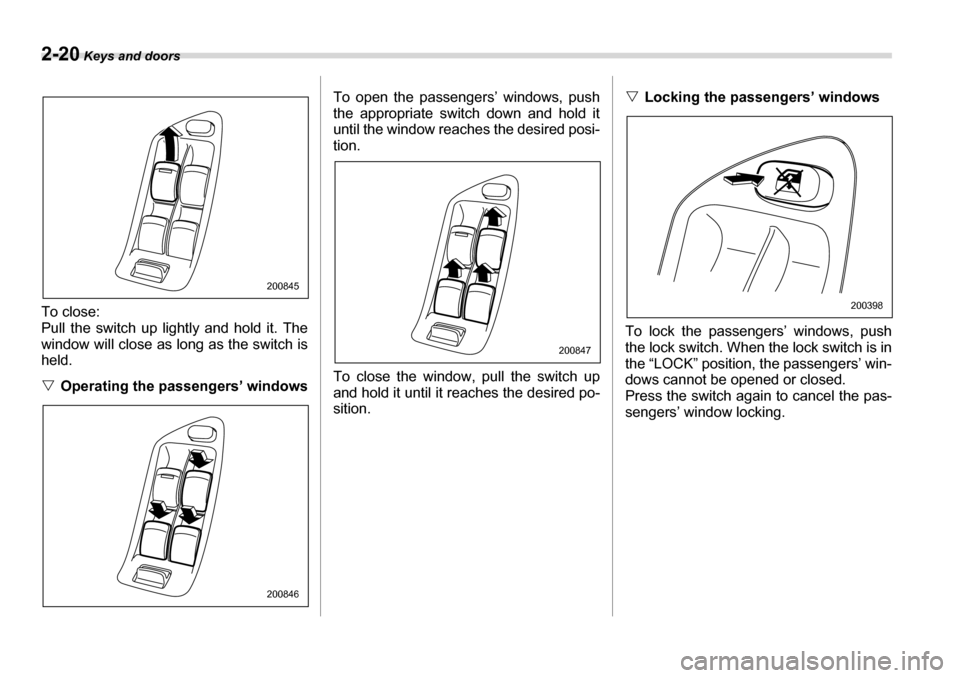

To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held. VOperating the passengers’ windows To open the passengers’ windows, push
the appropriate switch down and hold it
until the window reaches the desired posi-
tion.
To close the window, pull the switch up
and hold it until it reaches the desired po-sition. V
Locking the passengers’ windows
To lock the passengers’ windows, push
the lock switch. When the lock switch is in
the “LOCK” position, the passengers’ win-
dows cannot be opened or closed.
Press the switch again to cancel the pas-
sengers’ window locking.
200845
200846
200847
200398

Keys and doors 2-21
– CONTINUED –
T

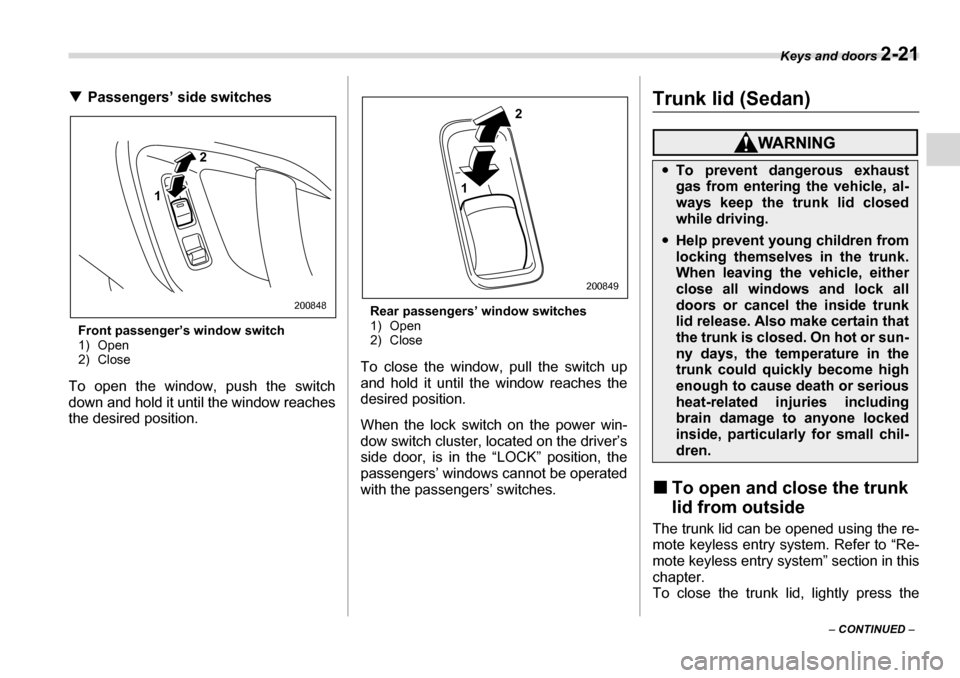

Passengers’ side switches
Front passenger’s window switch
1) Open
2) Close
To open the window, push the switch
down and hold it until the window reaches
the desired position. Rear passengers’ window switches
1) Open
2) Close
To close the window, pull the switch up
and hold it until the window reaches the
desired position.
When the lock switch on the power win-
dow switch cluster, located on the driver’s
side door, is in the “LOCK” position, the
passengers’ windows cannot be operated
with the passengers’ switches.
Trunk lid (Sedan)
„ To open and close the trunk
lid from outside
The trunk lid can be opened using the re-
mote keyless entry system. Refer to “Re-
mote keyless entry system” section in this chapter.
To close the trunk lid, lightly press the
2
1
200848
1 2
200849
y
To prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the trunk lid closed
while driving.
yHelp prevent young children from
locking themselves in the trunk.
When leaving the vehicle, either
close all windows and lock all
doors or cancel the inside trunk
lid release. Also make certain that
the trunk is closed. On hot or sun-
ny days, the temperature in the
trunk could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.

2-22 Keys and doors

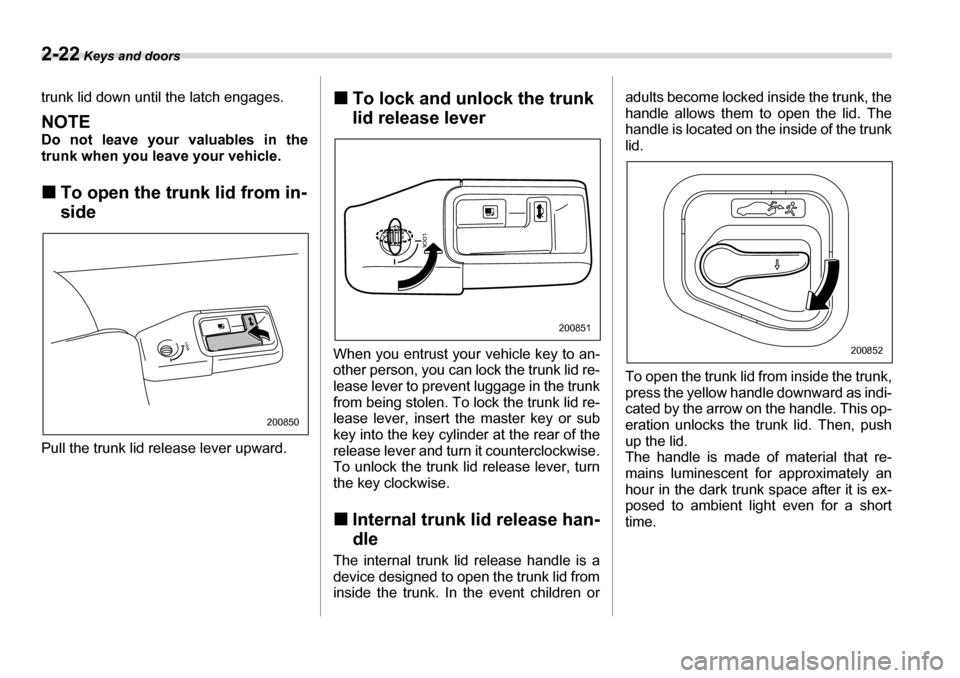

trunk lid down until the latch engages.
NOTE
Do not leave your valuables in the
trunk when you leave your vehicle. „To open the trunk lid from in- side
Pull the trunk lid release lever upward. „
To lock and unlock the trunk
lid release lever
When you entrust your vehicle key to an-
other person, you can lock the trunk lid re-
lease lever to prevent luggage in the trunk
from being stolen. To lock the trunk lid re-
lease lever, insert the master key or sub
key into the key cylinder at the rear of the
release lever and turn it counterclockwise.
To unlock the trunk lid release lever, turn
the key clockwise. „ Internal trunk lid release han- dle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunklid.
To open the trunk lid from inside the trunk,
press the yellow handle downward as indi-
cated by the arrow on the handle. This op-
eration unlocks the tr
unk lid. Then, push
up the lid.
The handle is made of material that re-
mains luminescent for approximately an
hour in the dark trunk space after it is ex-
posed to ambient light even for a short
time.
LOCK
200850
200851
200852

Keys and doors 2-23
– CONTINUED –

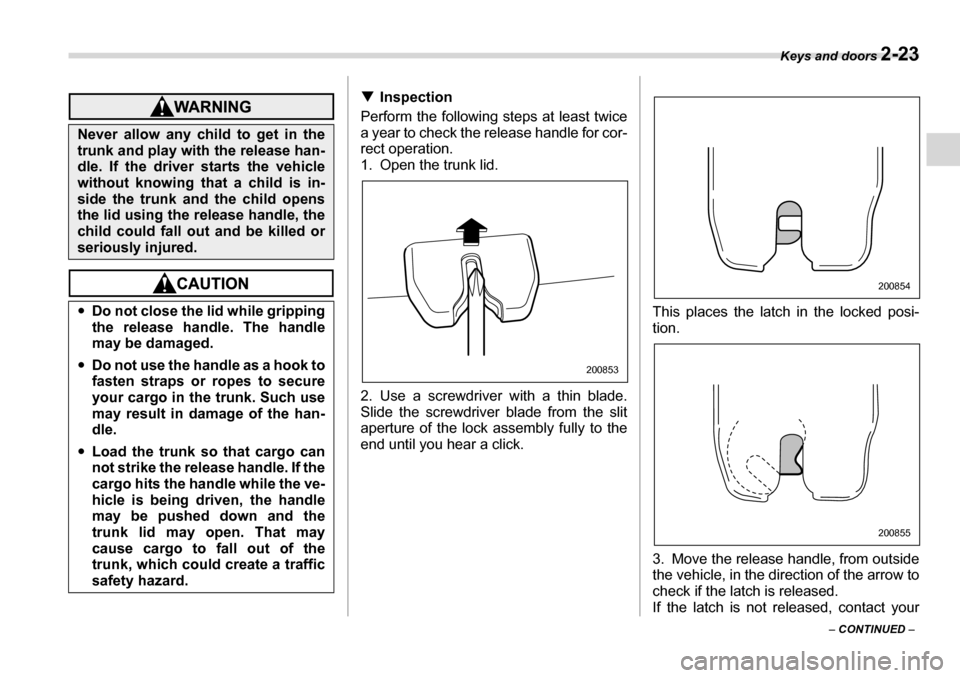

TInspection
Perform the following steps at least twice
a year to check the release handle for cor-
rect operation.
1. Open the trunk lid.
2. Use a screwdriver with a thin blade.
Slide the screwdriver blade from the slit
aperture of the lock assembly fully to the
end until you hear a click. This places the latch in the locked posi- tion.
3. Move the release handle, from outside
the vehicle, in the direction of the arrow to
check if the latch is released.
If the latch is not released, contact your
Never allow any child to get in the
trunk and play with the release han-
dle. If the driver starts the vehicle
without knowing that a child is in-
side the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured. y
Do not close the lid while gripping
the release handle. The handle
may be damaged.
y Do not use the handle as a hook to
fasten straps or ropes to secure
your cargo in the trunk. Such use
may result in damage of the han-
dle.
y Load the trunk so that cargo can
not strike the release handle. If the
cargo hits the handle while the ve-
hicle is being driven, the handle
may be pushed down and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard.
200853
200854
200855
