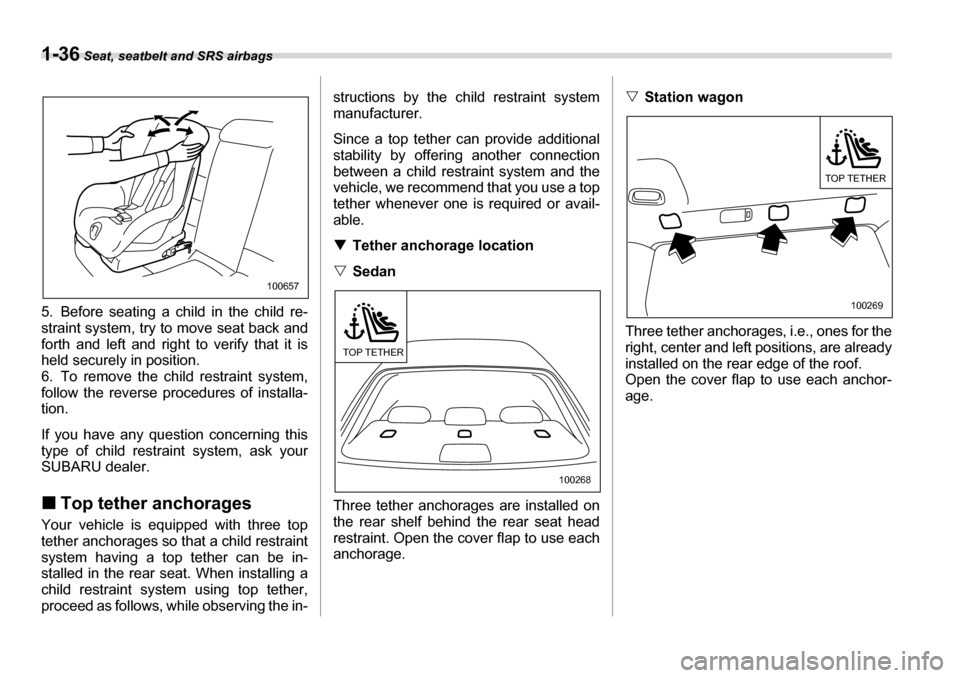

5. Before seating a child in the child re-
straint system, try to move seat back and
forth and left and right to verify that it is
held securely in position.
6. To remove the ch ild restraint system,
follow the reverse procedures of installa- tion.
If you have any question concerning this
type of child restraint system, ask your
SUBARU dealer. „ Top tether anchorages
Your vehicle is equipped with three top
tether anchorages so that a child restraint
system having a top tether can be in-
stalled in the rear seat. When installing a
child restraint system using top tether,
proceed as follows, while observing the in- structions by the
child restraint system
manufacturer.
Since a top tether can provide additional
stability by offering another connection
between a child restraint system and the
vehicle, we recommend that you use a top
tether whenever one is required or avail-
able. T Tether anchorage location
V Sedan
Three tether anchorages are installed on
the rear shelf behind the rear seat head
restraint. Open the cover flap to use each
anchorage. V
Station wagon
Three tether anchorages, i.e., ones for the
right, center and left positions, are already
installed on the rear edge of the roof.
Open the cover flap to use each anchor-
age.
100657
TOP TETHER
100268
TOP TETHER
100269

Seat, seatbelt and SRS airbags 1-37
– CONTINUED –
T

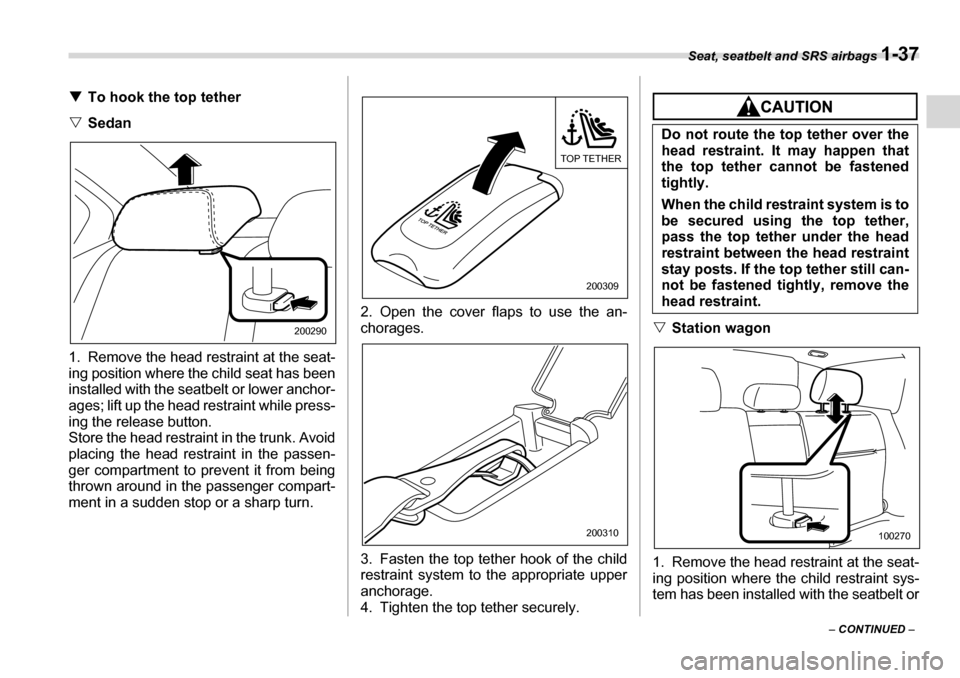

To hook the top tether
V Sedan
1. Remove the head restraint at the seat-
ing position where the child seat has been
installed with the seatbelt or lower anchor-
ages; lift up the head restraint while press-
ing the release button.
Store the head restraint in the trunk. Avoid
placing the head restraint in the passen-
ger compartment to prevent it from being
thrown around in the passenger compart-
ment in a sudden stop or a sharp turn. 2. Open the cover flaps to use the an-
chorages.
3. Fasten the top tether hook of the child
restraint system to the appropriate upper
anchorage.
4. Tighten the top tether securely.
V
Station wagon0
1. Remove the head restraint at the seat-
ing position where the child restraint sys-
tem has been installed with the seatbelt or
200290
TOP TETHER
200309
200310
Do not route the top tether over the
head restraint. It may happen that
the top tether cannot be fastened tightly.
When the child restraint system is to
be secured using the top tether,
pass the top tether under the head
restraint between the head restraint
stay posts. If the top tether still can-
not be fastened ti ghtly, remove the
head restraint.
100270

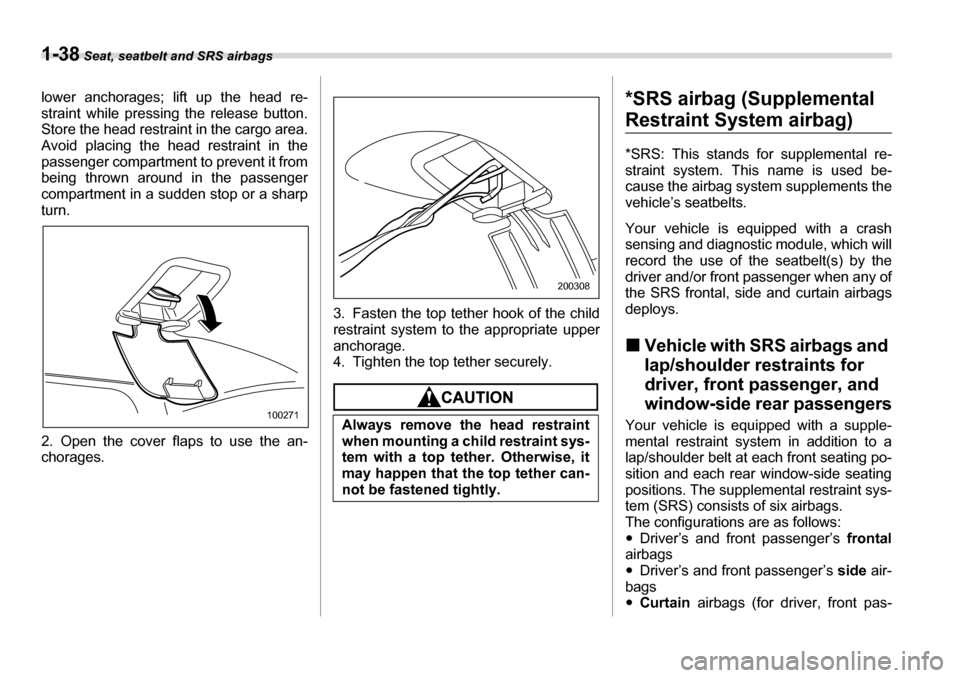

1-38 Seat, seatbelt and SRS airbags
lower anchorages; lift up the head re-
straint while pressing the release button.
Store the head restrain t in the cargo area.
Avoid placing the head restraint in the
passenger compartment to prevent it from
being thrown around in the passenger
compartment in a sudden stop or a sharp turn.
2. Open the cover flaps to use the an-
chorages. 3. Fasten the top tether hook of the child
restraint system to
the appropriate upper
anchorage.
4. Tighten the top tether securely.*SRS airbag (Supplemental
Restraint System airbag)
*SRS: This stands for supplemental re-
straint system. This name is used be-
cause the airbag system supplements the
vehicle’s seatbelts.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seatbelt(s) by the
driver and/or front passenger when any of
the SRS frontal, side and curtain airbags
deploys. „ Vehicle with SRS airbags and
lap/shoulder restraints for
driver, front passenger, and
window-side rear passengers
Your vehicle is equipped with a supple-
mental restraint system in addition to a
lap/shoulder belt at each front seating po-
sition and each rear window-side seating positions. The supplemental restraint sys-
tem (SRS) consists of six airbags.
The configurations are as follows: y Driver’s and front passenger’s frontal
airbags y Driver’s and front passenger’s side air-
bagsy Curtain airbags (for driver, front pas-
100271Always remove the head restraint
when mounting a child restraint sys-
tem with a top teth er. Otherwise, it
may happen that the top tether can-
not be fastened tightly.
200308

Seat, seatbelt and SRS airbags 1-39
– CONTINUED –

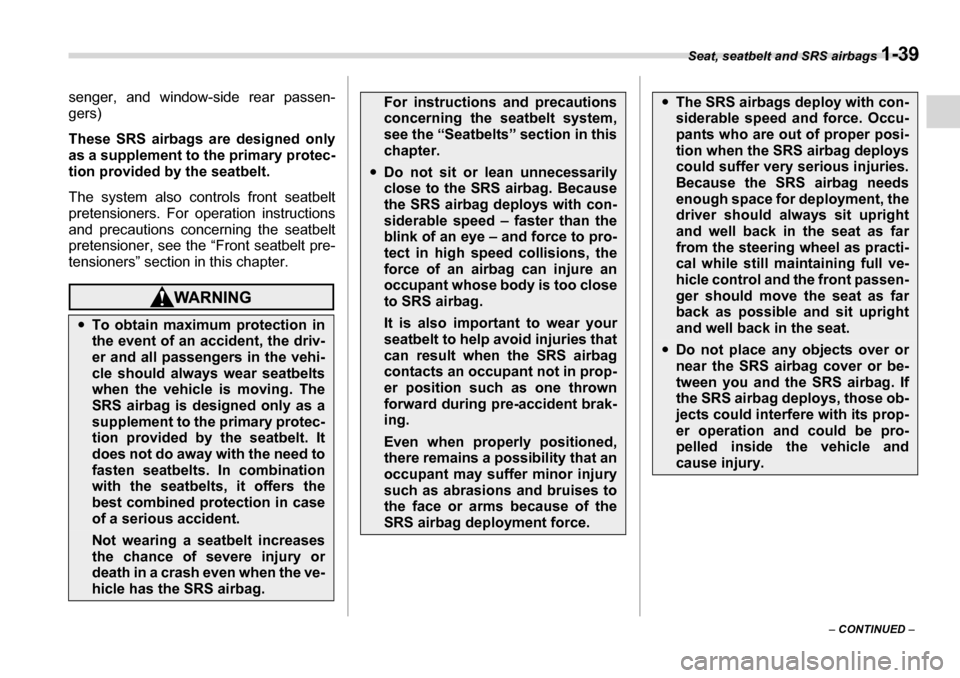

senger, and window-side rear passen-
gers)
These SRS airbags are designed only
as a supplement to the primary protec-
tion provided by the seatbelt.
The system also controls front seatbelt
pretensioners. For operation instructions
and precautions conc
erning the seatbelt
pretensioner, see the “Front seatbelt pre-
tensioners” section in this chapter.
yTo obtain maximum protection in
the event of an accident, the driv-
er and all passengers in the vehi-
cle should always wear seatbelts
when the vehicle is moving. The
SRS airbag is designed only as a
supplement to the primary protec-
tion provided by the seatbelt. It
does not do away with the need to
fasten seatbelts. In combination
with the seatbelts, it offers the
best combined protection in case
of a serious accident.
Not wearing a seatbelt increases
the chance of severe injury or
death in a crash even when the ve-
hicle has the SRS airbag.
For instructions and precautions
concerning the seatbelt system,
see the “Seatbelts” section in this
chapter.
yDo not sit or lean unnecessarily
close to the SRS airbag. Because
the SRS airbag deploys with con-
siderable speed – faster than the
blink of an eye – and force to pro-
tect in high speed collisions, the
force of an airbag can injure an
occupant whose body is too close to SRS airbag.
It is also important to wear your
seatbelt to help avoid injuries that
can result when the SRS airbag
contacts an occupant not in prop-
er position such as one thrown
forward during pre-accident brak-
ing.
Even when properly positioned,
there remains a possibility that an
occupant may suffer minor injury
such as abrasions and bruises to
the face or arms because of the
SRS airbag deployment force.
yThe SRS airbags deploy with con-
siderable speed and force. Occu-
pants who are out of proper posi-
tion when the SRS airbag deploys
could suffer very serious injuries.
Because the SRS airbag needs
enough space for deployment, the
driver should always sit upright
and well back in the seat as far
from the steering wheel as practi-
cal while still maintaining full ve-
hicle control and the front passen-
ger should move the seat as far
back as possible and sit upright
and well back in the seat.
yDo not place any objects over or
near the SRS airbag cover or be-
tween you and the SRS airbag. If
the SRS airbag deploys, those ob-
jects could interfere with its prop-
er operation and could be pro-
pelled inside the vehicle and
cause injury.

1-40 Seat, seatbelt and SRS airbags
NOTE
When you sell your vehicle, we urge
you to explain to the buyer that it is
equipped with SRS airbags by alerting
him or her to the applicable section in
this owner’s manual.

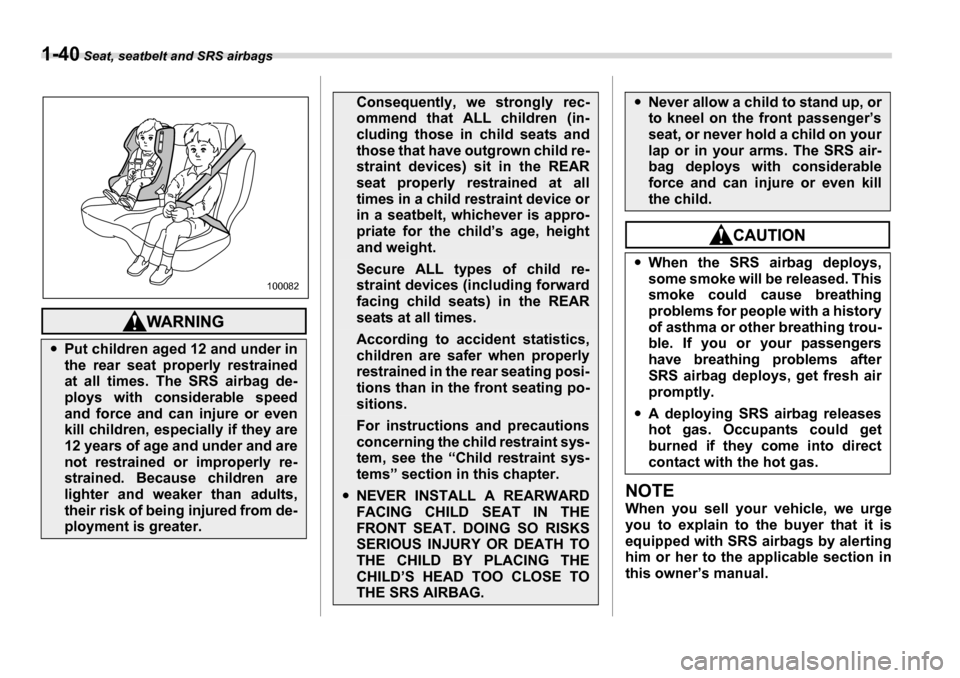

yPut children aged 12 and under in
the rear seat properly restrained
at all times. The SRS airbag de-
ploys with considerable speed
and force and can injure or even
kill children, especially if they are
12 years of age and under and are
not restrained or improperly re-
strained. Because children are
lighter and weaker than adults,
their risk of being injured from de-
ployment is greater.
100082
Consequently, we strongly rec-
ommend that ALL children (in-
cluding those in child seats andthose that have ou tgrown child re-
straint devices) sit in the REAR
seat properly restrained at all
times in a child restraint device or
in a seatbelt, whichever is appro-
priate for the child’s age, height
and weight.
Secure ALL types of child re-
straint devices (i ncluding forward
facing child seats) in the REAR
seats at all times.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating po-
sitions.
For instructions and precautions
concerning the child restraint sys-
tem, see the “Child restraint sys-
tems” section in this chapter.
y NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
yNever allow a child to stand up, or
to kneel on the front passenger’s
seat, or never hold a child on your
lap or in your arms. The SRS air-
bag deploys with considerable
force and can injure or even kill
the child.
y When the SRS ai rbag deploys,
some smoke will be released. This
smoke could cause breathing
problems for people with a history
of asthma or other breathing trou-
ble. If you or your passengers
have breathing problems after
SRS airbag deploys, get fresh air
promptly.
y A deploying SRS airbag releases
hot gas. Occupants could get
burned if they come into direct
contact with the hot gas.

Seat, seatbelt and SRS airbags 1-41
– CONTINUED –

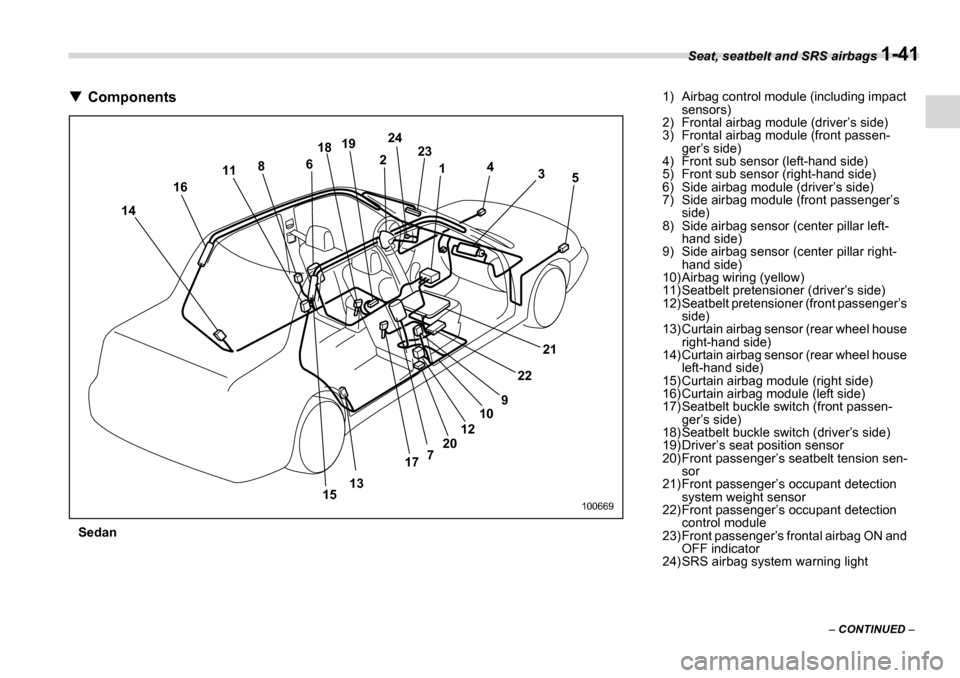

TComponents
Sedan
1
2
3
4
5
6 18
19 24
23
8
11
13
14
16
15 21
22
9
7 10
12
20
17
100669
1) Airbag control module (including impact sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passen-
ger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s
side)
8) Side airbag sensor (center pillar left- hand side)
9) Side airbag sensor (center pillar right- hand side)
10) Airbag wiring (yellow)
11) Seatbelt pretensioner (driver’s side)
12) Seatbelt pretensioner (front passenger’s side)
13) Curtain airbag sensor (rear wheel house right-hand side)
14) Curtain airbag sensor (rear wheel house
left-hand side)
15) Curtain airbag module (right side)
16) Curtain airbag module (left side)
17) Seatbelt buckle switch (front passen- ger’s side)
18) Seatbelt buckle switch (driver’s side)
19) Driver’s seat position sensor
20) Front passenger’s seatbelt tension sen-
sor
21) Front passenger’s occupant detection system weight sensor
22) Front passenger’s occupant detection
control module
23) Front passenger’s frontal airbag ON and OFF indicator
24) SRS airbag system warning light

1-42 Seat, seatbelt and SRS airbags

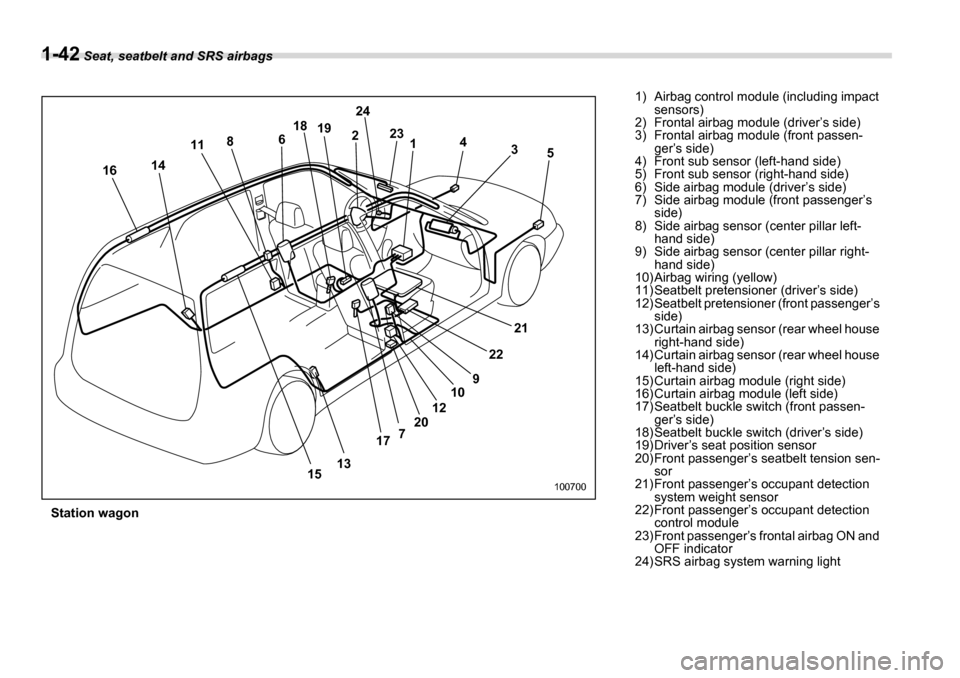

Station wagon
1
2
3
4
5
13
6
18
19 24
23
8
11
14
15
16
21
22
9
7 10
12
20
17
100700
1) Airbag control module (including impact sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passen-
ger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s
side)
8) Side airbag sensor (center pillar left- hand side)
9) Side airbag sensor (center pillar right- hand side)
10) Airbag wiring (yellow)
11) Seatbelt pretensioner (driver’s side)
12) Seatbelt pretensioner (front passenger’s side)
13) Curtain airbag sensor (rear wheel house right-hand side)
14) Curtain airbag sensor (rear wheel house
left-hand side)
15) Curtain airbag module (right side)
16) Curtain airbag module (left side)
17) Seatbelt buckle switch (front passen- ger’s side)
18) Seatbelt buckle switch (driver’s side)
19) Driver’s seat position sensor
20) Front passenger’s seatbelt tension sen- sor
21) Front passenger’s occupant detection system weight sensor
22) Front passenger’s occupant detection
control module
23) Front passenger’s frontal airbag ON and OFF indicator
24) SRS airbag system warning light

Seat, seatbelt and SRS airbags 1-43
– CONTINUED –
„

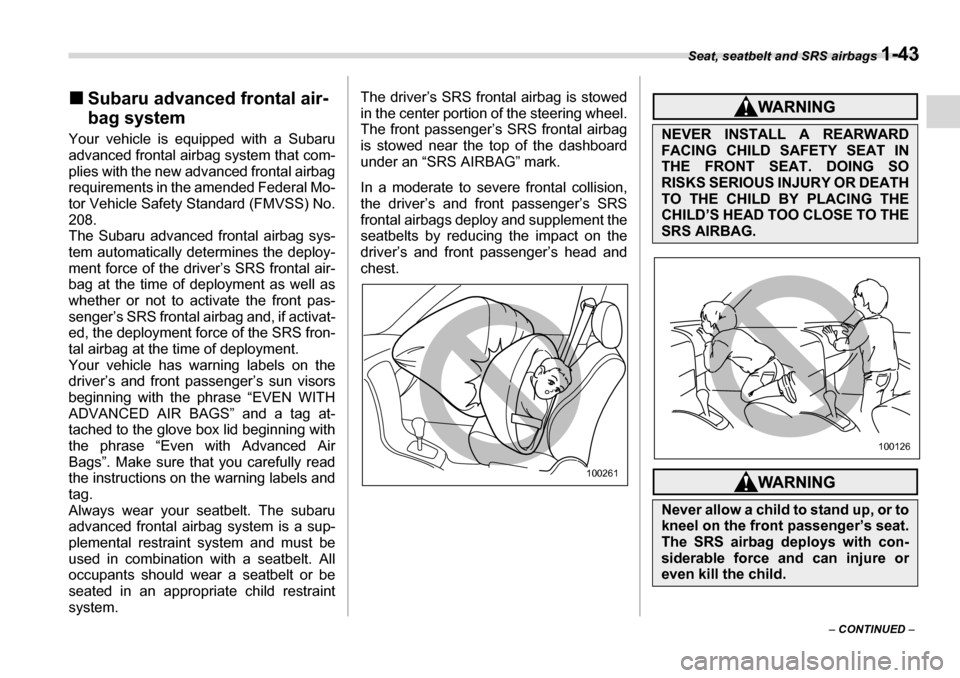

Subaru advanced frontal air-
bag system
Your vehicle is equipped with a Subaru
advanced frontal airbag system that com-
plies with the new advanced frontal airbag
requirements in the amended Federal Mo-
tor Vehicle Safety Standard (FMVSS) No.
208.
The Subaru advanced frontal airbag sys-
tem automatically determines the deploy-
ment force of the driver’s SRS frontal air-
bag at the time of deployment as well as
whether or not to activate the front pas-
senger’s SRS frontal airbag and, if activat-
ed, the deployment force of the SRS fron-
tal airbag at the time of deployment.
Your vehicle has warning labels on the
driver’s and front passenger’s sun visors beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag at-
tached to the glove box lid beginning with
the phrase “Even with Advanced Air
Bags”. Make sure th at you carefully read
the instructions on the warning labels andtag.
Always wear your seatbelt. The subaru
advanced frontal airbag system is a sup-
plemental restraint system and must be
used in combination with a seatbelt. All
occupants should wear a seatbelt or be
seated in an appropriate child restraintsystem. The driver’s SRS frontal airbag is stowed
in the center portion of the steering wheel.
The front passenger’s SRS frontal airbag
is stowed near the top of the dashboard
under an “SRS AIRBAG” mark.
In a moderate to seve
re frontal collision,
the driver’s and front passenger’s SRS
frontal airbags deploy and supplement the
seatbelts by reducing the impact on the
driver’s and front passenger’s head and chest.
100261
NEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH
TO THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE SRS AIRBAG.
Never allow a child to stand up, or to
kneel on the front passenger’s seat.
The SRS airbag deploys with con-
siderable force and can injure or
even kill the child.
100126

1-44 Seat, seatbelt and SRS airbags
Never hold a child on your lap or in
your arms. The SRS airbag deploys
with considerable force and can in-
jure or even kill the child.
100125
The SRS airbag deploys with con-
siderable speed and force. Occu-
pants who are out of proper position
when the SRS airbag deploys could
suffer very serious injuries. Be-
cause the SRS airbag needs enough
space for deployment, the driver
should always sit upright and well
back in the seat as far from the
steering wheel as practical while
still maintaining full vehicle control
and the front passenger should
move the seat as far back as possi-
ble and sit upright and well back in
the seat.
100155
It is also important to wear your
seatbelt to help avoid injuries that
can result when the SRS airbag con-
tacts an occupant not in proper po-
sition such as one thrown toward
the front of the vehicle during pre-
accident braking.
Do not put any objects over the
steering wheel pad and dashboard. If the SRS fronta l airbag deploys,
those objects could interfere with its
proper operation and could be pro-
pelled inside the vehicle and cause
injury.
100274

Seat, seatbelt and SRS airbags 1-45
– CONTINUED –
TDriver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending on the severity
of impact, backward-forward adjustment
of the driver’s seat position and whether or
not he/she is wearing the seatbelt.
The backward-forward adjustment of the
driver’s seat position is monitored by the
driver’s seat position sensor under the driver’s seat.
Whether or not the driver is wearing the
seatbelt is monitored by the seatbelt buck-le switch.
Observe the following precautions. Failure
to do so may cause the seatbelt buckle
switch and/or the seat position sensor to
malfunction, preventing the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or causing the system to fail. y
Do not place articles/metal objects or in-
stall any accessory other than a genuine
SUBARU accessory under the driver’s
seat. Do not allow the rear seat occupant
to kick the driver’s seat or push up its bot-
tom surface with his/her feet. y Do not place a magnet near the seatbelt
buckle or under the driver’s seat.
If the seatbelt buckle switch and/or the
driver’s seat position sensor have failed,
the SRS airbag system warning light will il-
luminate. Although the driver’s SRS fron-
tal airbag can deploy regardless of the
backward-forward adjustment of the driv-
er’s seat position even when the warning
light is on, have th e system inspected by
your SUBARU dealer immediately if the
SRS airbag system warning light comes
on.
NOTE
The driver’s SRS si de airbag, SRS cur-
tain airbag and seatbelt pretensioner
are not controlled by the Subaru ad-
vanced frontal airbag system. T Front passenger’s SRS frontal air-
bag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator op-
erates in different ways depending on the
severity of impact.
The total load on the seat is monitored by
the passenger’s occupant detection sys-
tem weight sensor under the seat.
The system has another sensor that mon-
itors the tension of the front passenger
seatbelt. Using the total seat load and
seatbelt tension data from the sensors,
the occupant detection system deter-
mines whether the front passenger’s SRS
frontal airbag should or should not be in-
flated. The occupant detecti on system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal.
Observe the following precautions. Failure
to do so may prevent the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or cause the system to fail.

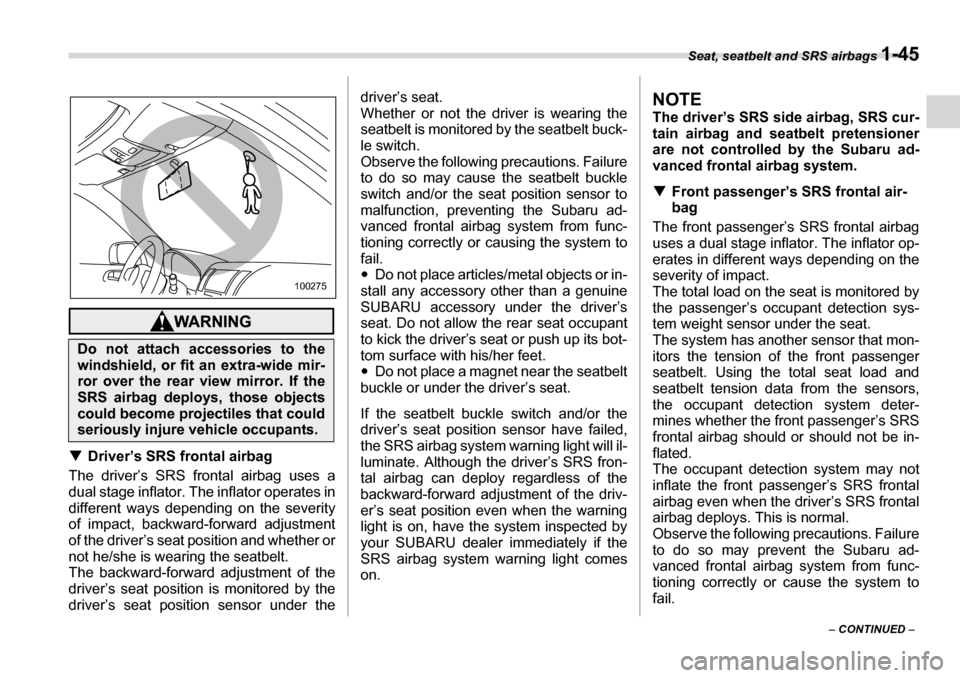

Do not attach accessories to the
windshield, or fit an extra-wide mir-
ror over the rear vi ew mirror. If the
SRS airbag deploys, those objects
could become projectiles that could
seriously injure vehicle occupants.
100275
