SUBARU LEGACY 2017 6.G Multimedia System Manual

SETTINGS
7

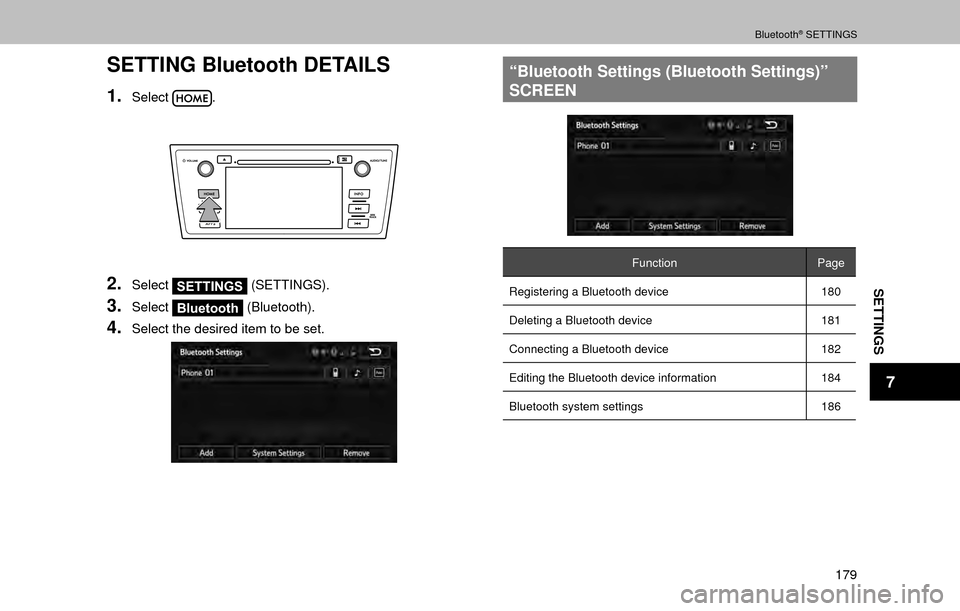

Bluetooth® SETTINGS
179
SETTING Bluetooth DETAILS
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectBluetooth (Bluetooth).
4.Select the desired item to be set.
“Bluetooth Settings (Bluetooth Settings)”
SCREEN
Function
Page
Registering a Bluetooth device 180
Deleting a Bluetooth device 181
Connecting a Bluetooth device 182
Editing the Bluetooth device information 184
Bluetooth system settings 186

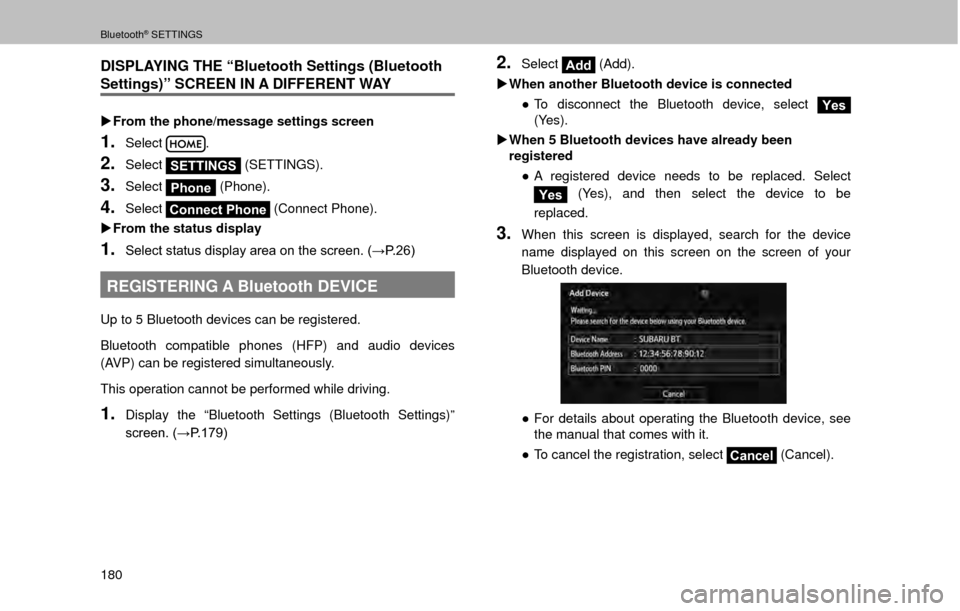

Bluetooth® SETTINGS
180
DISPLAYING THE “Bluetooth Settings (Bluetooth
Settings)” SCREEN IN A DIFFERENT WAY
XFrom the phone/message settings screen
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.SelectConnect Phone (Connect Phone).
X From the status display
1.6HOHFWVWDWXVGLVSOD\DUHDRQWKHVFUHHQ
:3
REGISTERING A Bluetooth DEVICE
Up to 5 Bluetooth devices can be registered.
Bluetooth compatible phones (HFP) and audio devices
(AVP) can be registered simultaneously.
This operation cannot be performed while driving.
1.Display the “Bluetooth Settings (Bluetooth Settings)”
VFUHHQ
:3
2.SelectAdd (Add).
X When another Bluetooth device is connected

”To disconnect the Bluetooth device, select
Yes
(Yes).
X When 5 Bluetooth devices have already been
registered

”A registered device needs to be replaced. Select
Yes (Yes), and then select the device to be
replaced.
3.When this screen is displayed, search for the device
name displayed on this screen on the screen of your
Bluetooth device.

” For details about operating the Bluetooth device, see
the manual that comes with it.

” To cancel the registration, select
Cancel (Cancel).

SETTINGS
7
Bluetooth® SETTINGS
181

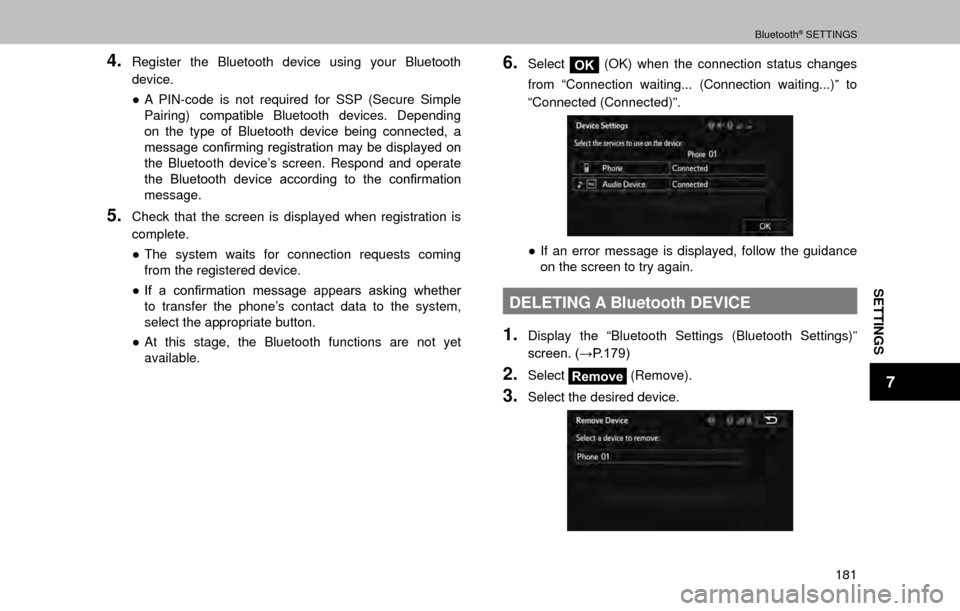

4.Register the Bluetooth device using your Bluetooth
device.

”A PIN-code is not required for SSP (Secure Simple
Pairing) compatible Bluetooth devices. Depending
on the type of Bluetooth device being connected, a
PHVVDJH FRQ

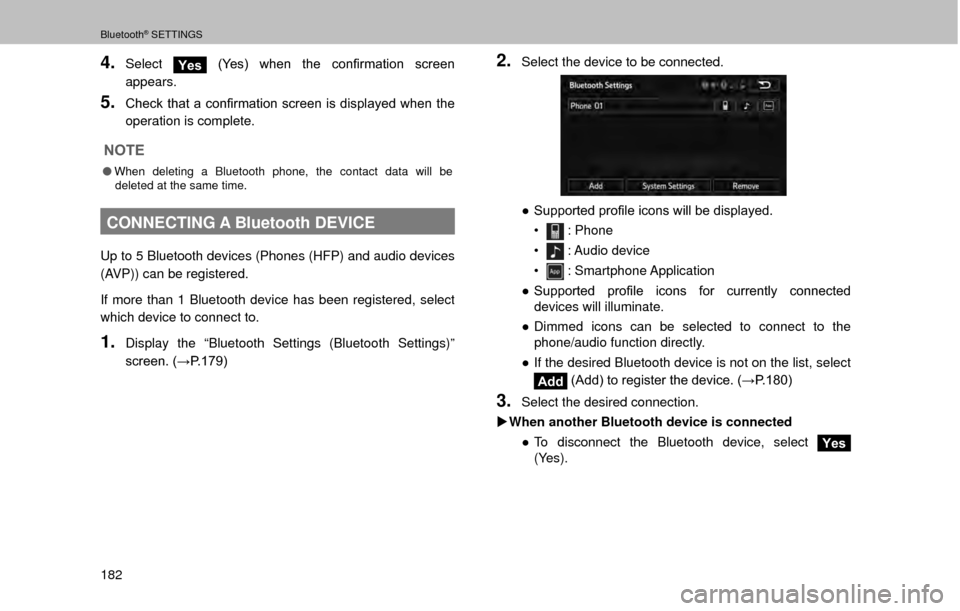

Bluetooth® SETTINGS
182
4.SelectYes <HV ZKHQ WKH FRQ

SETTINGS
7
Bluetooth® SETTINGS
183

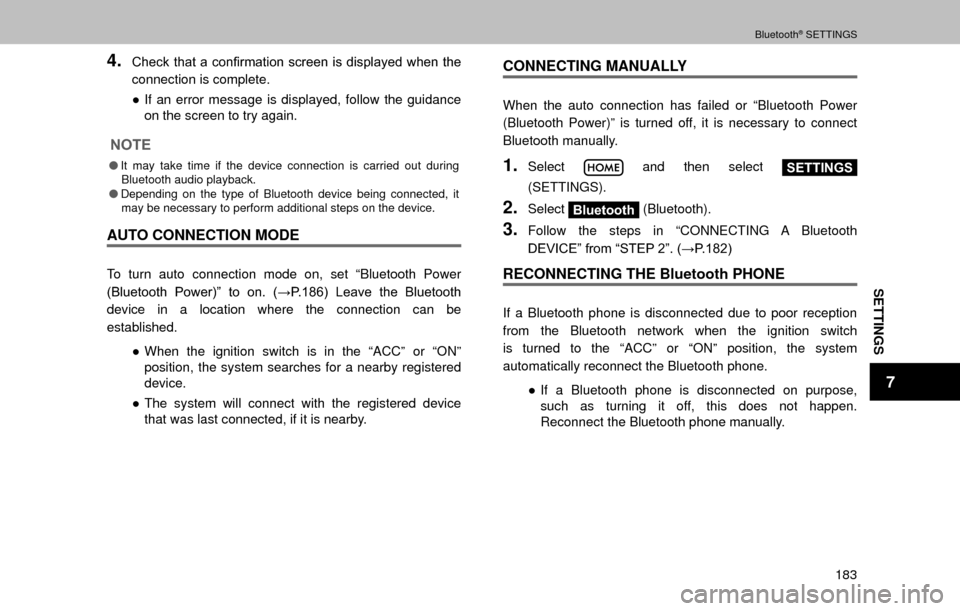

4.&KHFN WKDW D FRQ

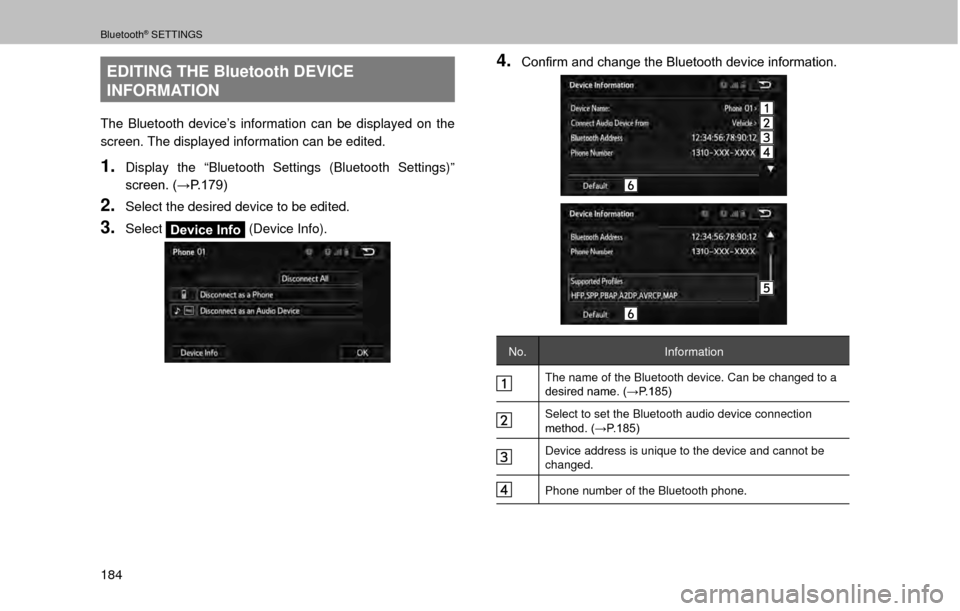

Bluetooth® SETTINGS
184
EDITING THE Bluetooth DEVICE
INFORMATION
The Bluetooth device’s information can be displayed on the
screen. The displayed information can be edited.
1.Display the “Bluetooth Settings (Bluetooth Settings)”
VFUHHQ
:3
2.Select the desired device to be edited.
3.SelectDevice Info (Device Info).
4.&RQ¿UPDQGFKDQJHWKH%OXHWRRWKGHYLFHLQIRUPDWLRQ
No.
Information
The name of the Bluetooth device. Can be changed to a
GHVLUHGQDPH
:3
Select to set the Bluetooth audio device connection
PHWKRG
:3
Device address is unique to the device and cannot be
changed.
Phone number of the Bluetooth phone.

SETTINGS
7

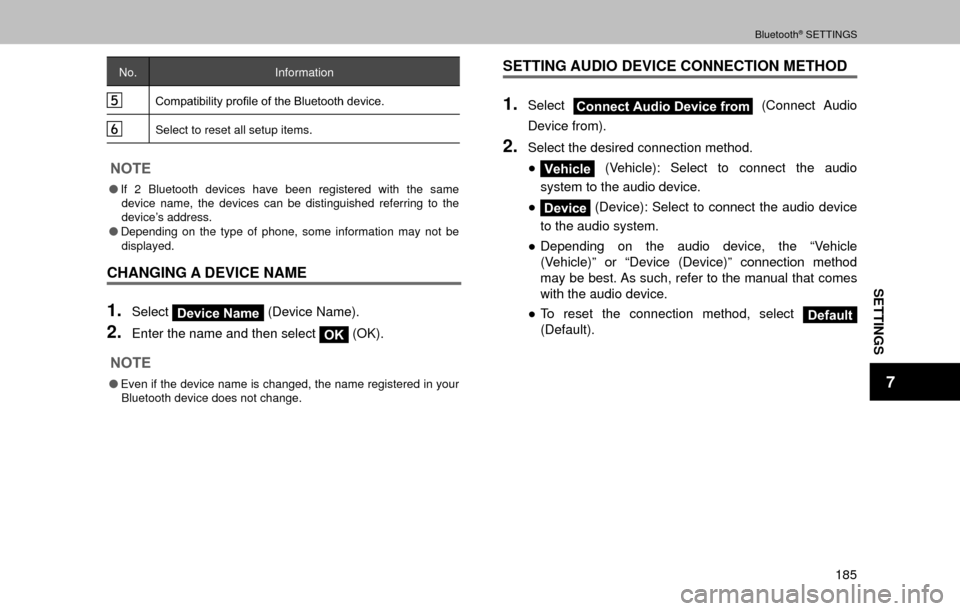

Bluetooth® SETTINGS
185
No.Information
&RPSDWLELOLW\SUR¿OHRIWKH%OXHWRRWKGHYLFH
Select to reset all setup items.
NOTE
OIf 2 Bluetooth devices have been registered with the same
device name, the devices can be distinguished referring to the
device’s address.
O Depending on the type of phone, some information may not be
displayed.
CHANGING A DEVICE NAME
1.SelectDevice Name (Device Name).
2.Enter the name and then select OK (OK).
NOTE
O
Even if the device name is changed, the name registered in your
Bluetooth device does not change.
SETTING AUDIO DEVICE CONNECTION METHOD
1.SelectConnect Audio Device from (Connect Audio
Device from).
2.Select the desired connection method.

”
Vehicle (Vehicle): Select to connect the audio
system to the audio device.

”
Device (Device): Select to connect the audio device
to the audio system.

” Depending on the audio device, the “Vehicle
(Vehicle)” or “Device (Device)” connection method
may be best. As such, refer to the manual that comes
with the audio device.

” To reset the connection method, select
Default
(Default).

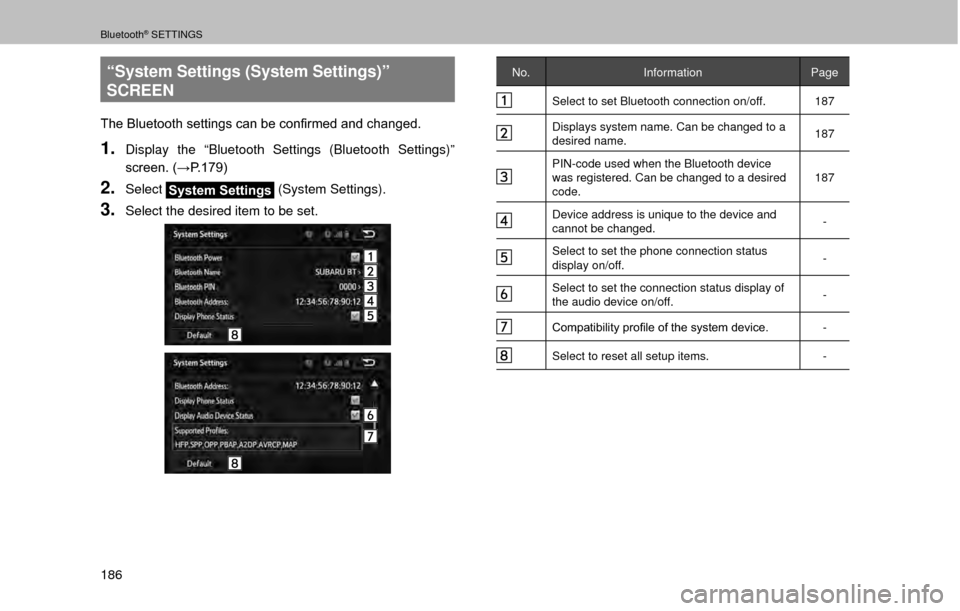

Bluetooth® SETTINGS
186
“System Settings (System Settings)”
SCREEN
7KH%OXHWRRWKVHWWLQJVFDQEHFRQ¿UPHGDQGFKDQJHG
1.Display the “Bluetooth Settings (Bluetooth Settings)”
VFUHHQ
:3
2.SelectSystem Settings (System Settings).
3.Select the desired item to be set.
No.
Information Page
Select to set Bluetooth connection on/off. 187
Displays system name. Can be changed to a
desired name. 187
PIN-code used when the Bluetooth device
was registered. Can be changed to a desired
code.187
Device address is unique to the device and
cannot be changed.
-
Select to set the phone connection status
display on/off.-
Select to set the connection status display of
the audio device on/off.-
&RPSDWLELOLW\SUR¿OHRIWKHV\VWHPGHYLFH
-
Select to reset all setup items. -

SETTINGS
7
Bluetooth® SETTINGS
187
CHANGING “Bluetooth Power (Bluetooth Power)”
1.SelectBluetooth Power (Bluetooth Power).
Q WHEN “Bluetooth Power (Bluetooth Power)” IS ON
The Bluetooth device is automatically connected when
the ignition switch is turned to the “ACC” or “ON” position.\
Q WHEN “Bluetooth Power (Bluetooth Power)” IS OFF
The Bluetooth device is disconnected, and the system will
not connect to it next time.
NOTE
O While driving, the auto connection state can be changed from off
to on, but cannot be changed from on to off.
EDITING THE Bluetooth NAME
1.SelectBluetooth Name (Bluetooth Name).
2.Enter a name and then select OK (OK).
EDITING THE PIN-CODE
1.SelectBluetooth PIN (Bluetooth PIN).
2.Enter a PIN-code and then select OK (OK).

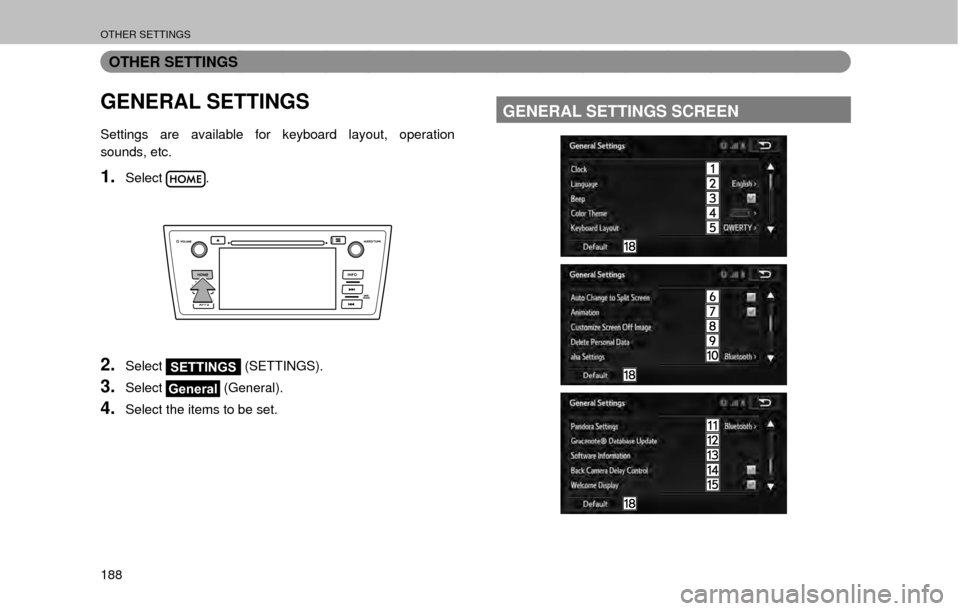

OTHER SETTINGS
188
OTHER SETTINGS
GENERAL SETTINGS
Settings are available for keyboard layout, operation
sounds, etc.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.Select the items to be set.
GENERAL SETTINGS SCREEN
