SUBARU LEGACY 2017 6.G Multimedia System Manual
Manufacturer: SUBARU, Model Year: 2017, Model line: LEGACY, Model: SUBARU LEGACY 2017 6.GPages: 308, PDF Size: 3.73 MB

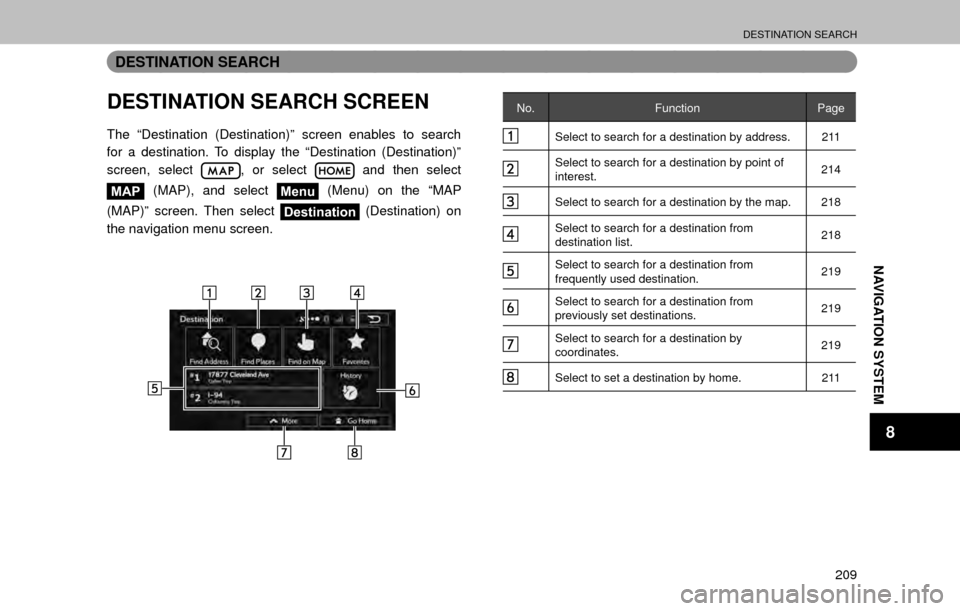

Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8
DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 211
Select to search for a destination by point of
interest. 214
Select to search for a destination by the map. 218
Select to search for a destination from
destination list.218
Select to search for a destination from
frequently used destination.219
Select to search for a destination from
previously set destinations.219
Select to search for a destination by
coordinates.219
Select to set a destination by home.
211

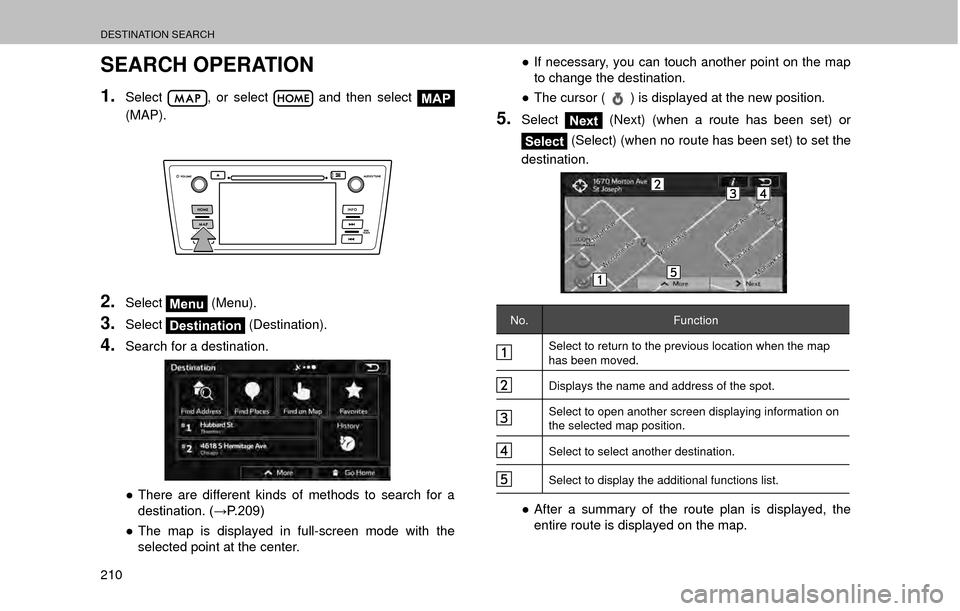

Page 212 of 308
DESTINATION SEARCH
210
SEARCH OPERATION
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
3.SelectDestination (Destination).
4.Search for a destination.
”
There are different kinds of methods to search for a
G H V W L Q D W L R Q : 3
” The map is displayed in full-screen mode with the
selected point at the center. ”
If necessary, you can touch another point on the map
to change the destination.
” The cursor (
) is displayed at the new position.
5.SelectNext (Next) (when a route has been set) or
Select (Select) (when no route has been set) to set the
destination.
No. Function
Select to return to the previous location when the map
has been moved.
Displays the name and address of the spot.
Select to open another screen displaying information on
the selected map position.
Select to select another destination.
Select to display the additional functions list.
”After a summary of the route plan is displayed, the
entire route is displayed on the map.

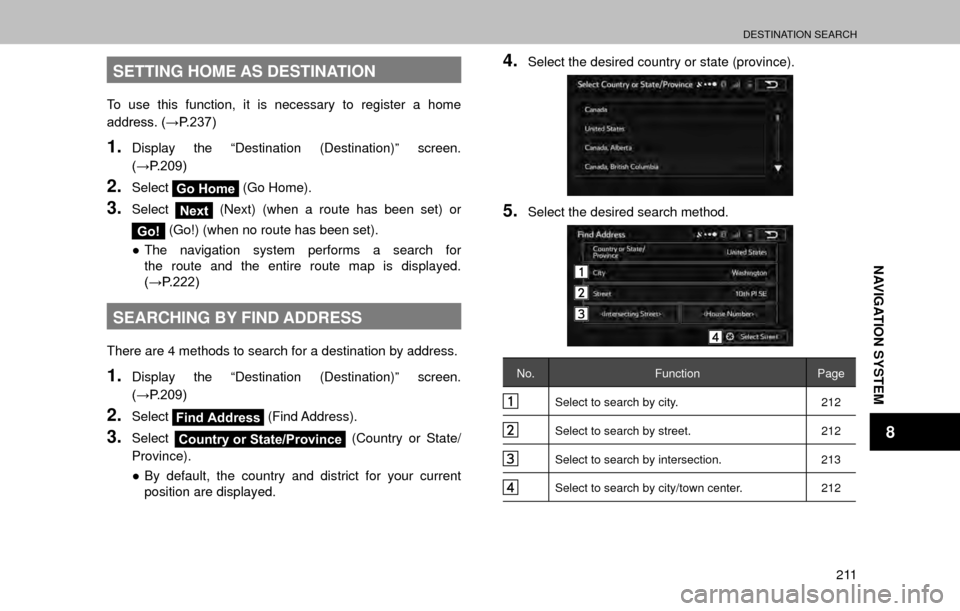

Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1.Display the “Destination (Destination)” screen.
: 3
2.SelectGo Home (Go Home).
3.SelectNext (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
” The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1.Display the “Destination (Destination)” screen.
: 3
2.SelectFind Address (Find Address).
3.SelectCountry or State/Province (Country or State/
Province).
” By default, the country and district for your current
position are displayed.
4.Select the desired country or state (province).
5.Select the desired search method.
No. Function Page
Select to search by city. 212
Select to search by street.212
Select to search by intersection.213
Select to search by city/town center. 212
Page 214 of 308

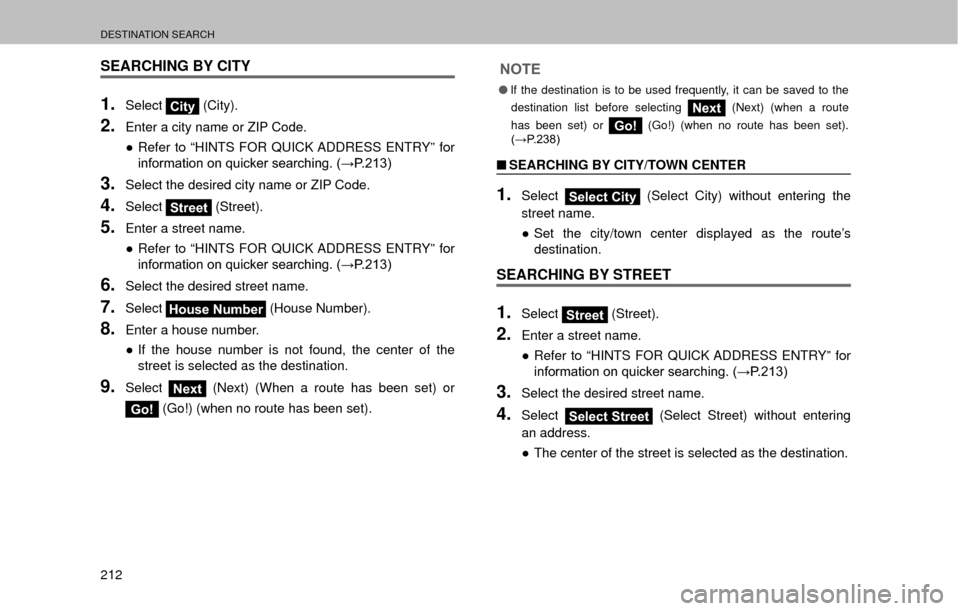

DESTINATION SEARCH
212
SEARCHING BY CITY
1.SelectCity (City).
2.Enter a city name or ZIP Code.
”
Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3.Select the desired city name or ZIP Code.
4.SelectStreet (Street).
5.Enter a street name.
”
Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
6.Select the desired street name.
7.SelectHouse Number (House Number).
8.Enter a house number.
”
If the house number is not found, the center of the
street is selected as the destination.
9.SelectNext (Next) (When a route has been set) or
Go! (Go!) (when no route has been set).
NOTE
O
If the destination is to be used frequently, it can be saved to the
destination list before selecting
Next (Next) (when a route
has been set) or
Go! (Go!) (when no route has been set).
: 3
Q SEARCHING BY CITY/TOWN CENTER
1.SelectSelect City (Select City) without entering the
street name.
” Set the city/town center displayed as the route’s
destination.
SEARCHING BY STREET
1.SelectStreet (Street).
2.Enter a street name.
”
Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3.Select the desired street name.
4.SelectSelect Street (Select Street) without entering
an address.
” The center of the street is selected as the destination.

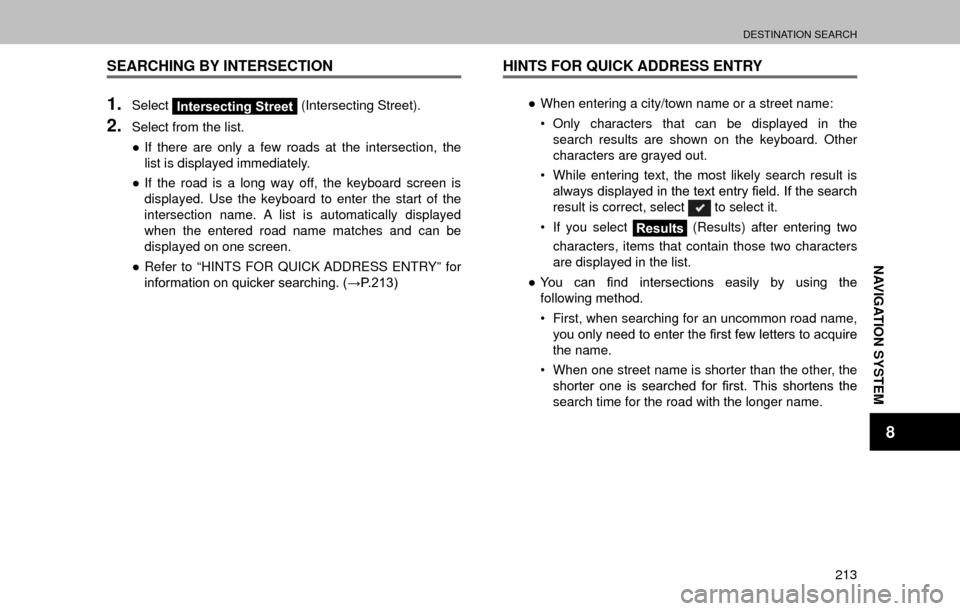

Page 215 of 308
DESTINATION SEARCH
213
NAVIGATION SYSTEM
8
SEARCHING BY INTERSECTION
1.SelectIntersecting Street (Intersecting Street).
2.Select from the list.
”
If there are only a few roads at the intersection, the
list is displayed immediately.
” If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
” Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \

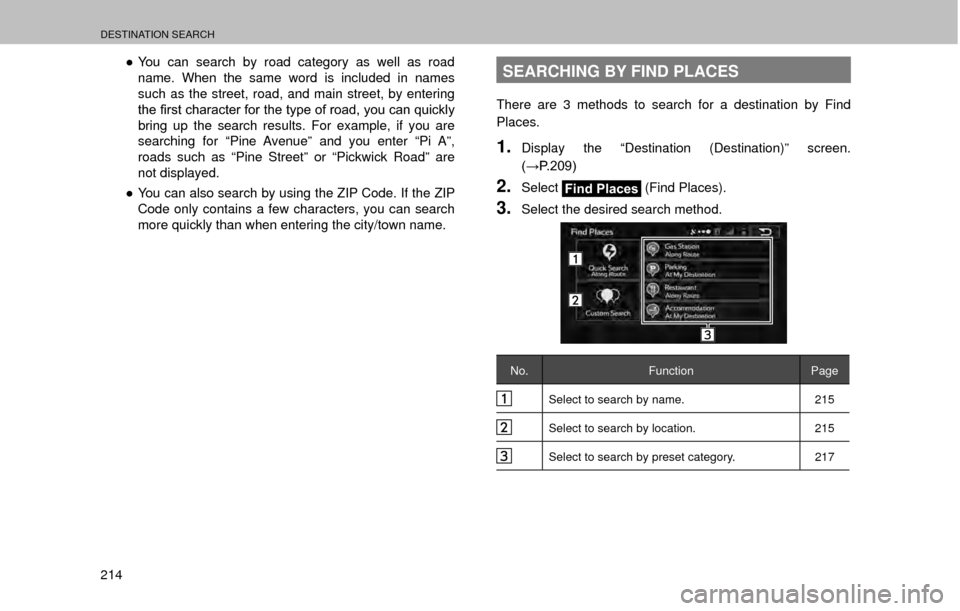

Page 216 of 308
DESTINATION SEARCH
214”
You can search by road category as well as road
name. When the same word is included in names
such as the street, road, and main street, by entering
W K H

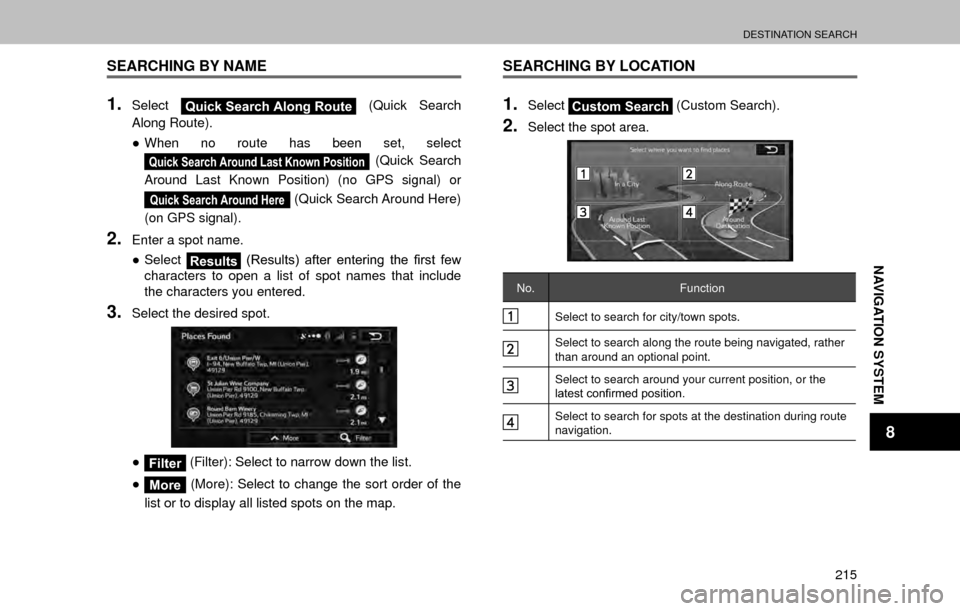

Page 217 of 308
DESTINATION SEARCH
215
NAVIGATION SYSTEM
8
SEARCHING BY NAME
1.SelectQuick Search Along Route (Quick Search
Along Route).
” When no route has been set, select
Quick Search Around Last Known Position (Quick Search
Around Last Known Position) (no GPS signal) or
Quick Search Around Here (Quick Search Around Here)
(on GPS signal).
2.Enter a spot name.
” Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
Page 218 of 308

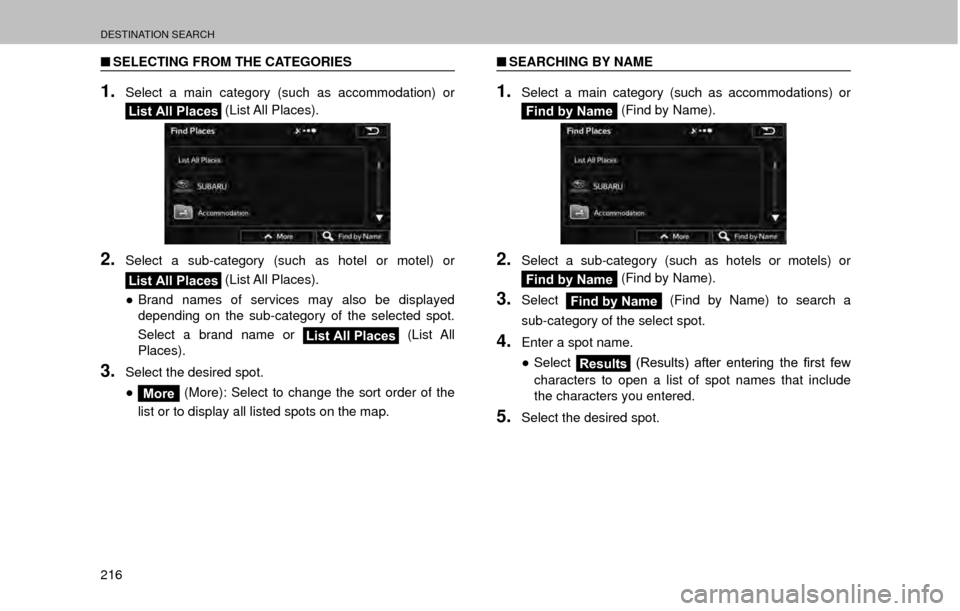

DESTINATION SEARCH
216
QSELECTING FROM THE CATEGORIES
1.Select a main category (such as accommodation) or
List All Places (List All Places).
2.Select a sub-category (such as hotel or motel) or
List All Places (List All Places).
” Brand names of services may also be displayed
depending on the sub-category of the selected spot.
Select a brand name or
List All Places (List All
Places).
3.Select the desired spot.
”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.
Q SEARCHING BY NAME
1.Select a main category (such as accommodations) or
Find by Name (Find by Name).
2.Select a sub-category (such as hotels or motels) or
Find by Name (Find by Name).
3.SelectFind by Name (Find by Name) to search a
sub-category of the select spot.
4.Enter a spot name.
” Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H

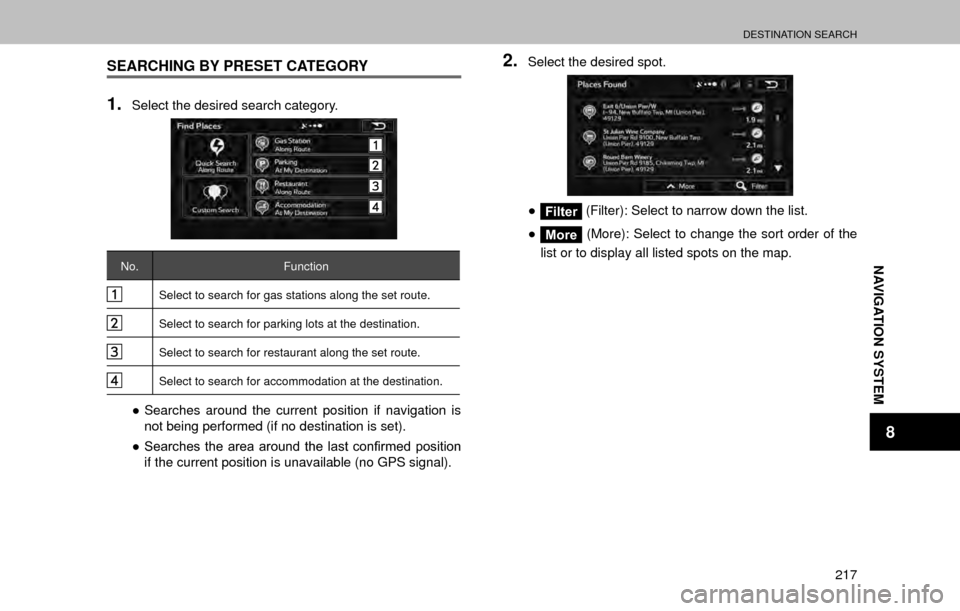

Page 219 of 308
DESTINATION SEARCH
217
NAVIGATION SYSTEM
8
SEARCHING BY PRESET CATEGORY
1.Select the desired search category.
No.Function
Select to search for gas stations along the set route.
Select to search for parking lots at the destination.
Select to search for restaurant along the set route.
Select to search for accommodation at the destination.
”Searches around the current position if navigation is
not being performed (if no destination is set).

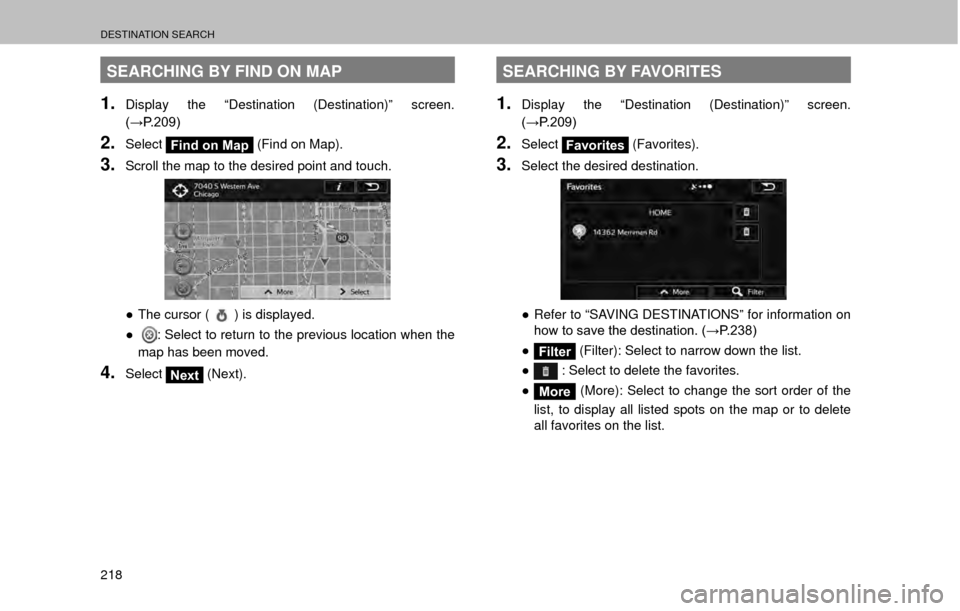

Page 220 of 308
DESTINATION SEARCH
218
SEARCHING BY FIND ON MAP
1.Display the “Destination (Destination)” screen.
: 3
2.SelectFind on Map (Find on Map).
3.Scroll the map to the desired point and touch.
”
The cursor () is displayed.
”
: Select to return to the previous location when the
map has been moved.
4.SelectNext (Next).
SEARCHING BY FAVORITES
1.Display the “Destination (Destination)” screen.
: 3
2.SelectFavorites (Favorites).
3.Select the desired destination.
”
Refer to “SAVING DESTINATIONS” for information on
K R Z W R V D Y H W K H G H V W L Q D W L R Q : 3
”
Filter (Filter): Select to narrow down the list.
”
: Select to delete the favorites.
”
More (More): Select to change the sort order of the
list, to display all listed spots on the map or to delete
all favorites on the list.
