SUBARU LEGACY 2017 6.G Multimedia System Manual

DESTINATION SEARCH
219
NAVIGATION SYSTEM
8
SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1.Display the “Destination (Destination)” screen.

:3
2.Select the destination or .
SEARCHING FROM HISTORY
1.Display the “Destination (Destination)” screen.

:3
2.SelectHistory (History).
3.Select the desired destination.

”Filter (Filter): Select to narrow down the list.

”
: Select to delete the previous destination.

”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1.Display the “Destination (Destination)” screen.

:3
2.SelectMore (More).
3.SelectCoordinate (Coordinate).
4.Select.

”
Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.

” Select
More (More) to set the UTM coordinates.
5.Enter the latitude and longitude and then select Next
(Next).

DESTINATION SEARCH
220
OTHER SEARCH OPERATION
SEARCHING BY WHERE AM I?
You can search for the closest assistance service by using
the “Where Am I? (Where Am I?)” screen.
1.Display the “Where Am I? (Where Am I?)” screen.

:3
2.SelectHelp Nearby (Help Nearby).
3.Select the desired search category.
No.
Function
Select to search for vehicle repairs / road-side
assistance services.
Select to search for hospitals / emergency services.
No.Function
Select to search for police stations.
Select to search for gas stations.

”This button searches for everything around your
FXUUHQWSRVLWLRQRUWKHODWHVWFRQ

DESTINATION SEARCH
221
NAVIGATION SYSTEM
8
SEARCHING GAS STATION IN LOW FUEL
WARNING
A nearby gas station can be selected as a destination.
1.SelectYes (Yes) when the low fuel warning appears.
2.Select the desired nearby gas station.
SEARCHING FOR A REST AREA
FOLLOWING PERIODIC REST
NOTIFICATION
PERIODIC REST NOTIFICATION POP-UP
When you have been driving for a long time, a warning
message will pop up on the screen.
1.Display the “General Settings (General Settings)”
VFUHHQ
:3
2.SelectPeriodic Rest Notification (Periodic Rest
1RWL¿FDWLRQ
SEARCHING FOR A REST AREA FOLLOWING
PERIODIC REST NOTIFICATION
A nearby place to rest can be selected as a destination.
1.SelectYes (Yes) when the long time drive warning
appears.
2.Select the desired nearby place to rest.

DESTINATION SEARCH

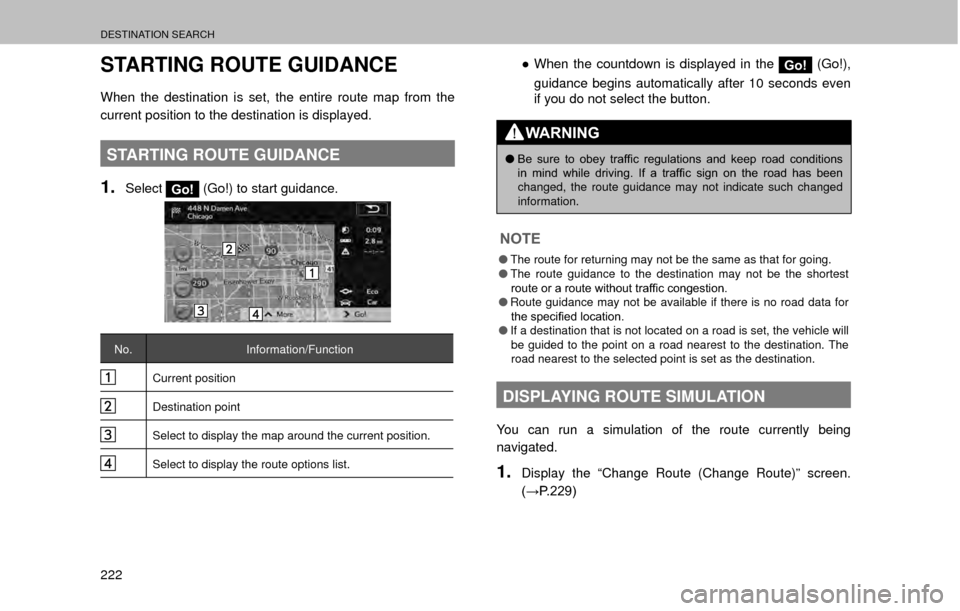

222
STARTING ROUTE GUIDANCE
When the destination is set, the entire route map from the
current position to the destination is displayed.
STARTING ROUTE GUIDANCE
1.SelectGo! (Go!) to start guidance.
No.
Information/Function
Current position
Destination point
Select to display the map around the current position.
Select to display the route options list.

”When the countdown is displayed in the Go! (Go!),
guidance begins automatically after 10 seconds even
if you do not select the button.
WARNING
O %H VXUH WR REH\ WUDI

DESTINATION SEARCH
223
NAVIGATION SYSTEM
8
2.SelectMore (More).
3.SelectSimulate Navigation (Simulate Navigation).
4.Check that the route simulation is displayed.

”
The simulation begins from the start point and works
through the entire route at the recommended speed.

” You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No.Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1.SelectMenu (Menu) on the map screen.
2.SelectCancel Route (Cancel Route).

” You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5RXWH&KDQJH5RXWH

ROUTE GUIDANCE

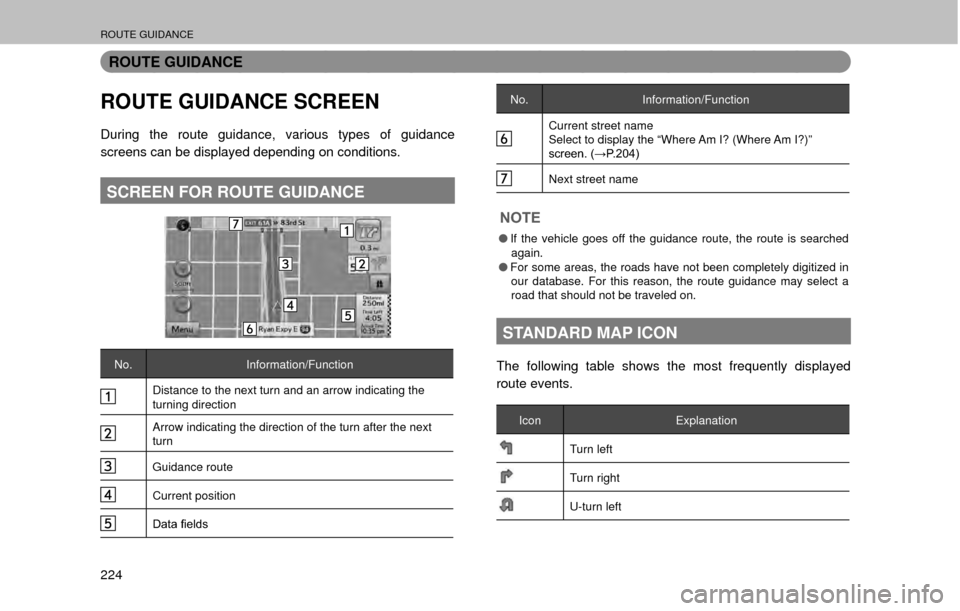

224
ROUTE GUIDANCE
ROUTE GUIDANCE SCREEN
During the route guidance, various types of guidance
screens can be displayed depending on conditions.
SCREEN FOR ROUTE GUIDANCE
No.Information/Function
Distance to the next turn and an arrow indicating the
turning direction
Arrow indicating the direction of the turn after the next
turn
Guidance route
Current position
'DWD¿HOGV
No.Information/Function
Current street name
Select to display the “Where Am I? (Where Am I?)”
VFUHHQ
:3
Next street name
NOTE
OIf the vehicle goes off the guidance route, the route is searched
again.
O For some areas, the roads have not been completely digitized in
our database. For this reason, the route guidance may select a
road that should not be traveled on.
STANDARD MAP ICON
The following table shows the most frequently displayed
route events.
Icon Explanation
Turn left
Turn right
U-turn left

ROUTE GUIDANCE
225
NAVIGATION SYSTEM
8
IconExplanation
U-turn right
Keep left at the fork in the road.
Keep right at the fork in the road.
Turn left & sharp curve.
Turn right & sharp curve.
Stay in the left lane.
Stay in the right lane.
Go straight ahead at the intersection.
Turn left at the T junction.
Turn right at the T junction.
Go left at the roundabout. Third exit (next change in
direction).
Join the roundabout (the route change after the next
change).
Join the expressway.
Leave the expressway.
Board the ferry.
IconExplanation
Disembark from the ferry.
You are half way to your destination.
You have arrived at your destination.
DATA FIELDS
:KHQ WKH YHKLFOH LV RQ WKH JXLGDQFH URXWH WKH GDWD

ROUTE GUIDANCE

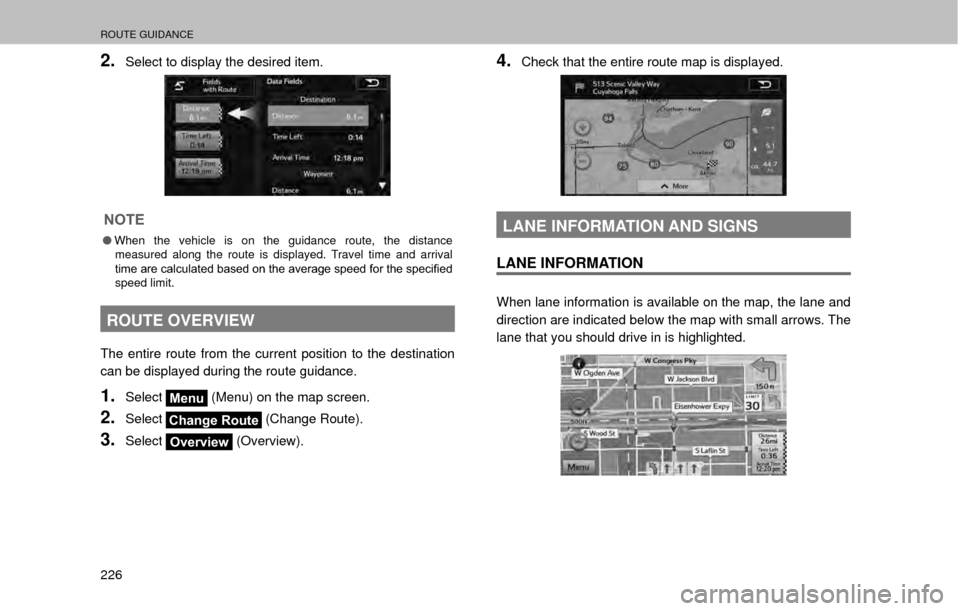

226
2.Select to display the desired item.
NOTE
OWhen the vehicle is on the guidance route, the distance
measured along the route is displayed. Travel time and arrival
WLPHDUHFDOFXODWHGEDVHGRQWKHDYHUDJHVSHHGIRUWKHVSHFL¿HG
speed limit.
ROUTE OVERVIEW
The entire route from the current position to the destination
can be displayed during the route guidance.
1.SelectMenu (Menu) on the map screen.
2.SelectChange Route (Change Route).
3.SelectOverview (Overview).
4.Check that the entire route map is displayed.
LANE INFORMATION AND SIGNS
LANE INFORMATION
When lane information is available on the map, the lane and
direction are indicated below the map with small arrows. The
lane that you should drive in is highlighted.

ROUTE GUIDANCE
227
NAVIGATION SYSTEM
8
SIGNS
When detailed information is available, the arrows are
removed and signs are displayed. Signs are displayed
at the top of the map. The color and design of the signs is
the same as signs actually found at the side of the road or
overhead signs. These signs show the district and the route
number for the lane direction.

”All signs are displayed in the same manner even
when driving without using the navigation system.
During navigation, only the sign that shows the lane in
which you should drive is highlighted, the other signs
are toned down.
HIGHWAY SERVICES
When driving on the expressway, this displays information
on up to the next three highway service areas. By default,
“Gas Station (Gas Station)”, “Restaurant (Restaurant)”, \
“Rest Area (Rest Area)”, and “Car Service (Car Service)” are
displayed. You can change the items displayed by setting
WKH

ROUTE GUIDANCE

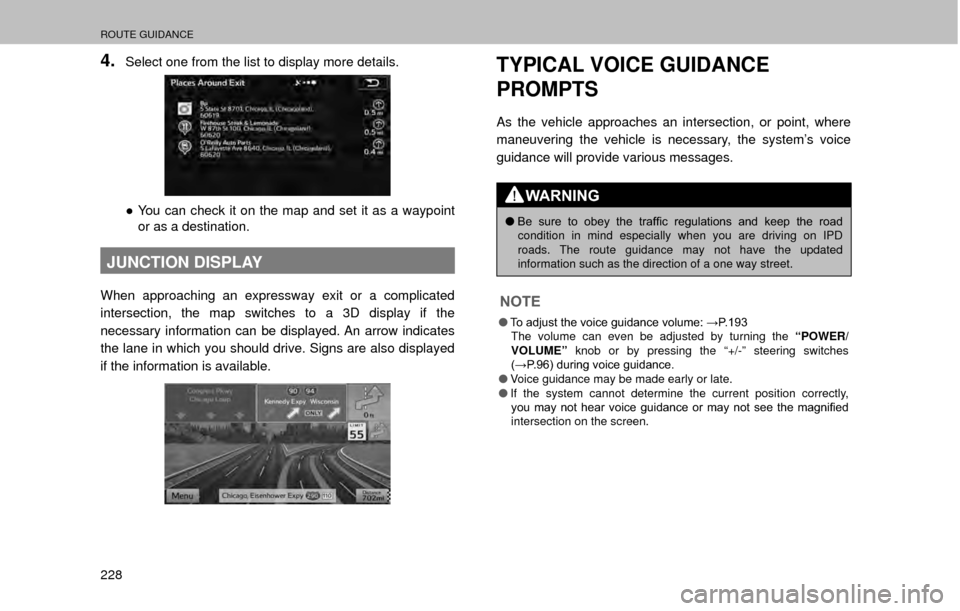

228
4.Select one from the list to display more details.

”You can check it on the map and set it as a waypoint
or as a destination.
JUNCTION DISPLAY
When approaching an expressway exit or a complicated
intersection, the map switches to a 3D display if the
necessary information can be displayed. An arrow indicates
the lane in which you should drive. Signs are also displayed
if the information is available.
TYPICAL VOICE GUIDANCE
PROMPTS
As the vehicle approaches an intersection, or point, where
maneuvering the vehicle is necessary, the system’s voice
guidance will provide various messages.
WARNING
O %H VXUH WR REH\ WKH WUDI
