SUBARU LEGACY 2017 6.G Multimedia System Manual

SETUP
239
NAVIGATION SYSTEM
8
SETUP

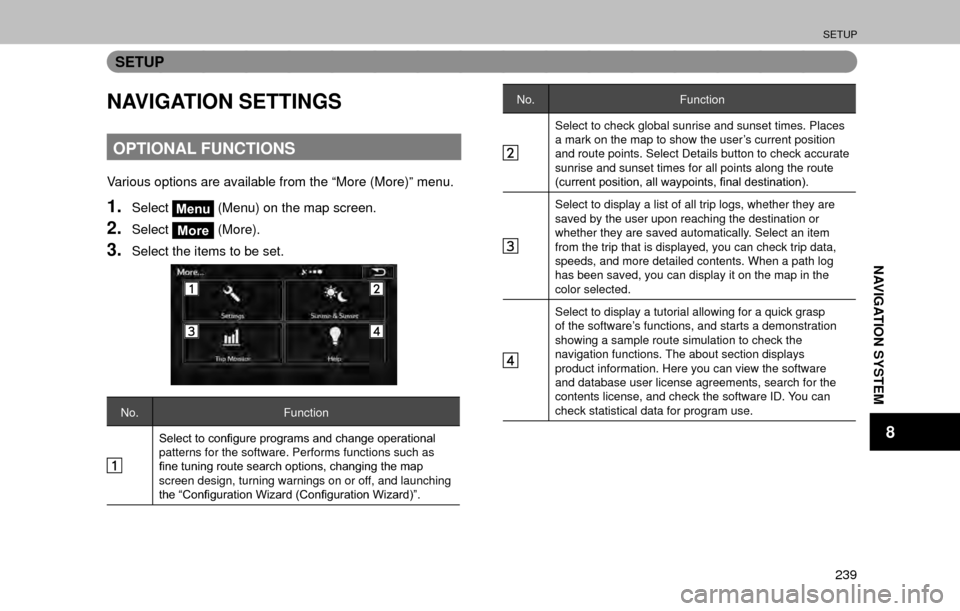

NAVIGATION SETTINGS
OPTIONAL FUNCTIONS
Various options are available from the “More (More)” menu.
1.SelectMenu (Menu) on the map screen.
2.SelectMore (More).
3.Select the items to be set.
No.
Function
6HOHFWWRFRQ¿JXUHSURJUDPVDQGFKDQJHRSHUDWLRQDO
patterns for the software. Performs functions such as
¿QHWXQLQJURXWHVHDUFKRSWLRQVFKDQJLQJWKHPDS
screen design, turning warnings on or off, and launching
WKH³&RQ¿JXUDWLRQ:L]DUG&RQ¿JXUDWLRQ:L]DUG´
No.Function
Select to check global sunrise and sunset times. Places
a mark on the map to show the user’s current position
and route points. Select Details button to check accurate
sunrise and sunset times for all points along the route
FXUUHQWSRVLWLRQDOOZD\SRLQWV¿QDOGHVWLQDWLRQ
Select to display a list of all trip logs, whether they are
saved by the user upon reaching the destination or
whether they are saved automatically. Select an item
from the trip that is displayed, you can check trip data,
speeds, and more detailed contents. When a path log
has been saved, you can display it on the map in the
color selected.
Select to display a tutorial allowing for a quick grasp
of the software’s functions, and starts a demonstration
showing a sample route simulation to check the
navigation functions. The about section displays
product information. Here you can view the software
and database user license agreements, search for the
contents license, and check the software ID. You can
check statistical data for program use.

SETUP
240

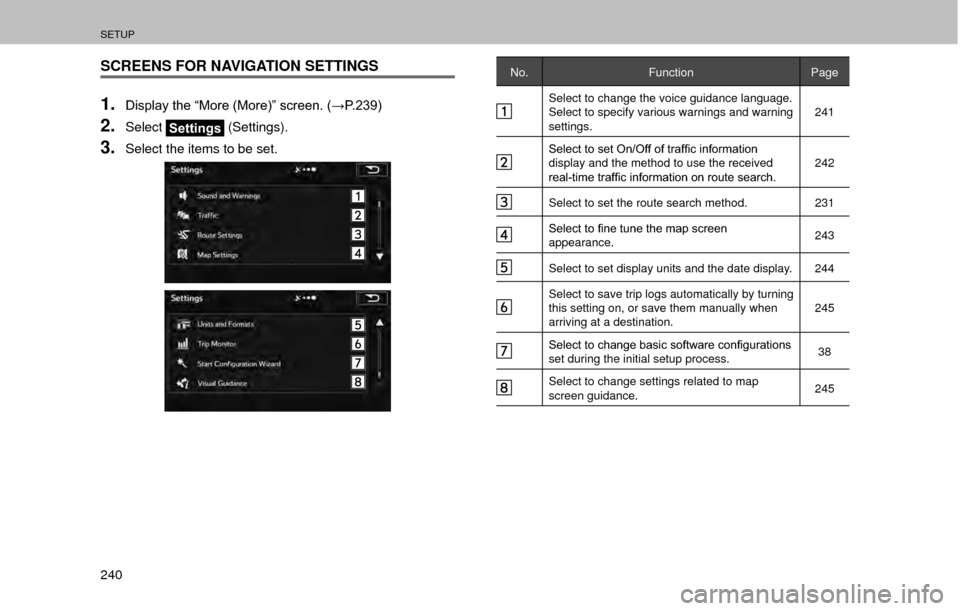

SCREENS FOR NAVIGATION SETTINGS
1.'LVSOD\WKH

SETUP
241
NAVIGATION SYSTEM
8

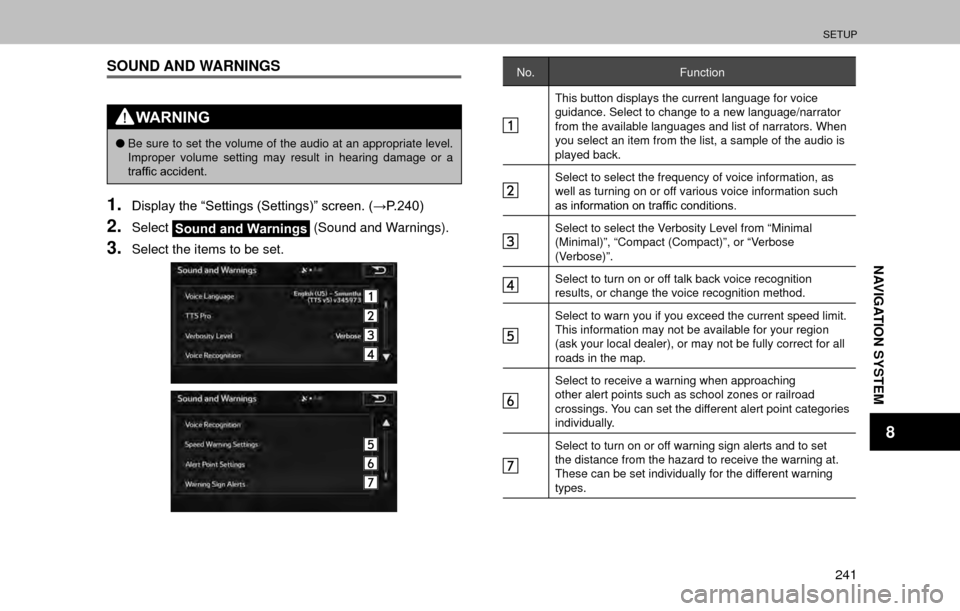

SOUND AND WARNINGS
WARNING
OBe sure to set the volume of the audio at an appropriate level.
Improper volume setting may result in hearing damage or a
WUDI¿FDFFLGHQW
1.'LVSOD\WKH

SETUP
242

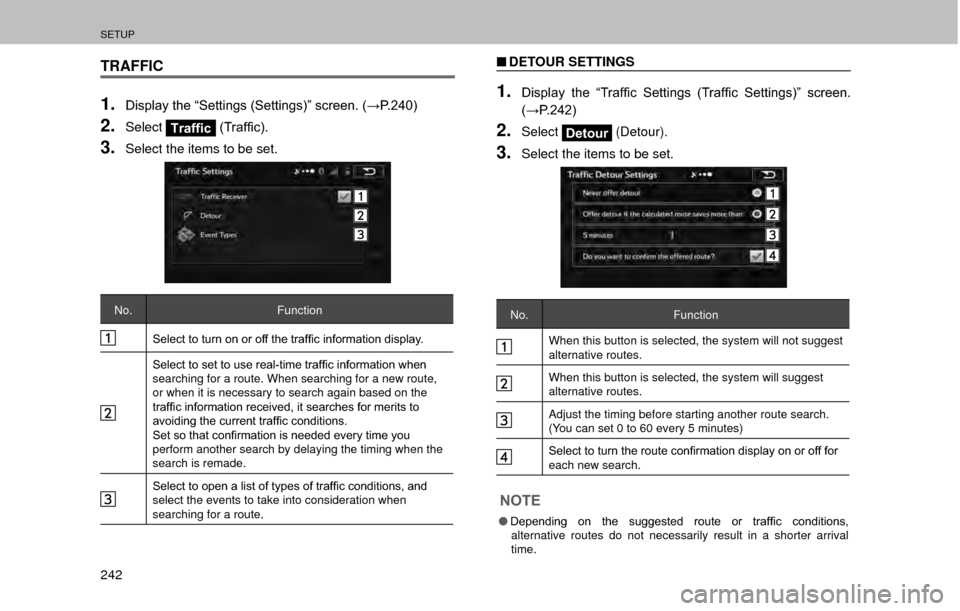

TRAFFIC
1.'LVSOD\WKH

SETUP
243
NAVIGATION SYSTEM
8

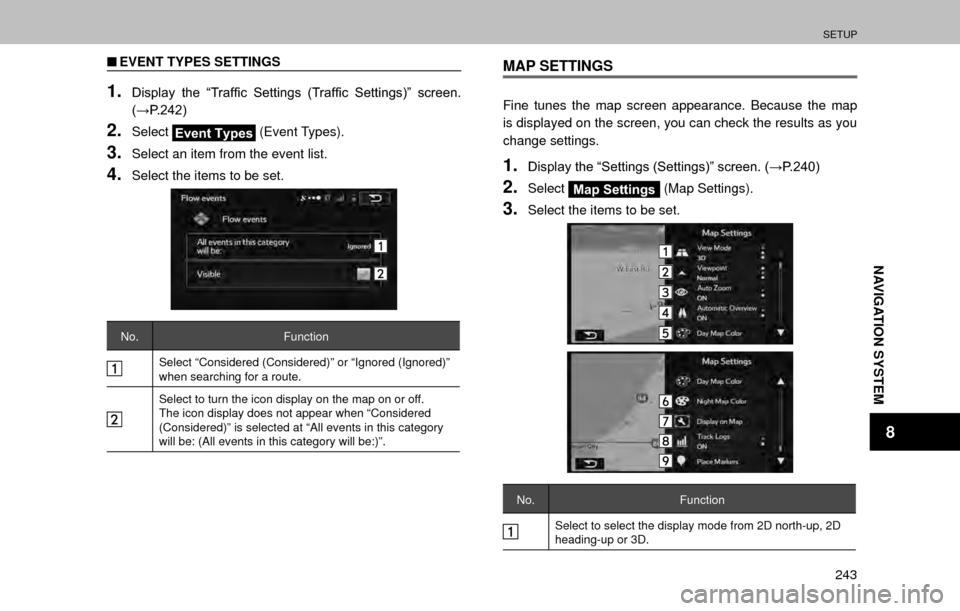

QEVENT TYPES SETTINGS
1.'LVSOD\ WKH

SETUP
244

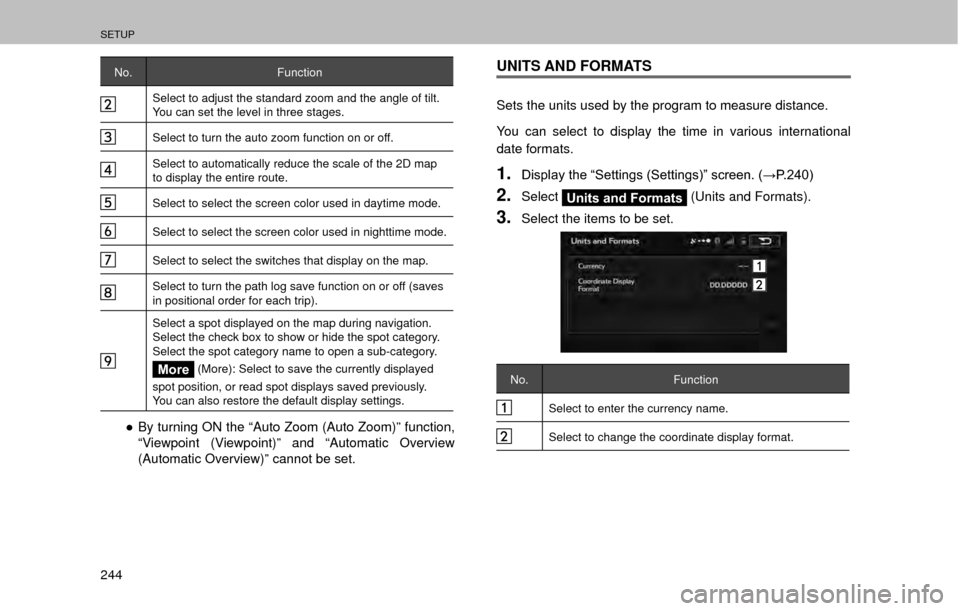

No.Function
Select to adjust the standard zoom and the angle of tilt.
You can set the level in three stages.
Select to turn the auto zoom function on or off.
Select to automatically reduce the scale of the 2D map
to display the entire route.
Select to select the screen color used in daytime mode.
Select to select the screen color used in nighttime mode.
Select to select the switches that display on the map.
Select to turn the path log save function on or off (saves
in positional order for each trip).
Select a spot displayed on the map during navigation.
Select the check box to show or hide the spot category.
Select the spot category name to open a sub-category.
More (More): Select to save the currently displayed
spot position, or read spot displays saved previously.
You can also restore the default display settings.

” By turning ON the “Auto Zoom (Auto Zoom)” function,
“Viewpoint (Viewpoint)” and “Automatic Overview
(Automatic Overview)” cannot be set.
UNITS AND FORMATS
Sets the units used by the program to measure distance.
You can select to display the time in various international
date formats.
1.'LVSOD\WKH

SETUP
245
NAVIGATION SYSTEM
8

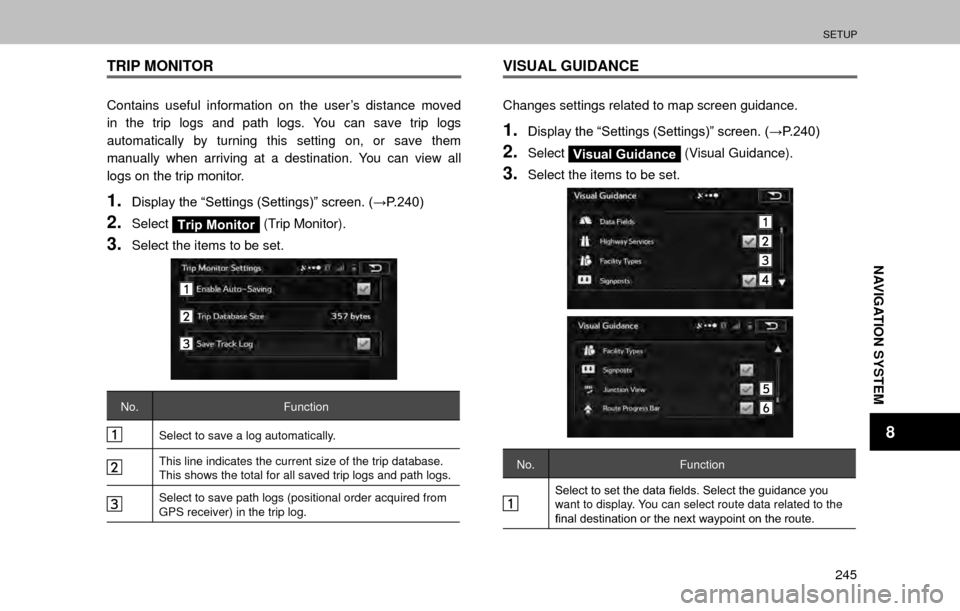

TRIP MONITOR
Contains useful information on the user’s distance moved
in the trip logs and path logs. You can save trip logs
automatically by turning this setting on, or save them
manually when arriving at a destination. You can view all
logs on the trip monitor.
1.'LVSOD\WKH

SETUP
246

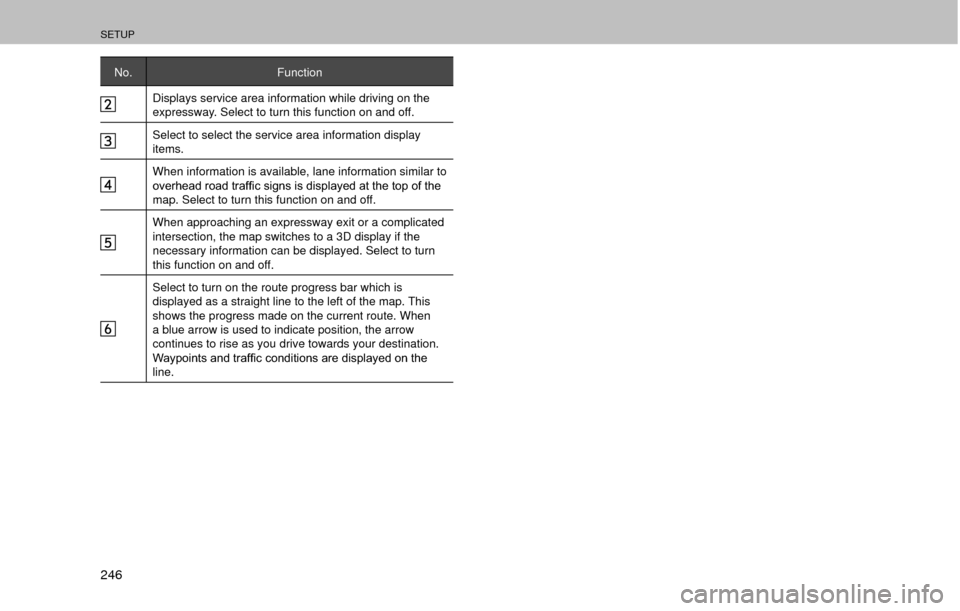

No.Function
Displays service area information while driving on the
expressway. Select to turn this function on and off.
Select to select the service area information display
items.
When information is available, lane information similar to
RYHUKHDGURDGWUDI¿FVLJQVLVGLVSOD\HGDWWKHWRSRIWKH
map. Select to turn this function on and off.
When approaching an expressway exit or a complicated
intersection, the map switches to a 3D display if the
necessary information can be displayed. Select to turn
this function on and off.
Select to turn on the route progress bar which is
displayed as a straight line to the left of the map. This
shows the progress made on the current route. When
a blue arrow is used to indicate position, the arrow
continues to rise as you drive towards your destination.
:D\SRLQWVDQGWUDI

TIPS FOR THE NAVIGATION SYSTEM
247
NAVIGATION SYSTEM
8

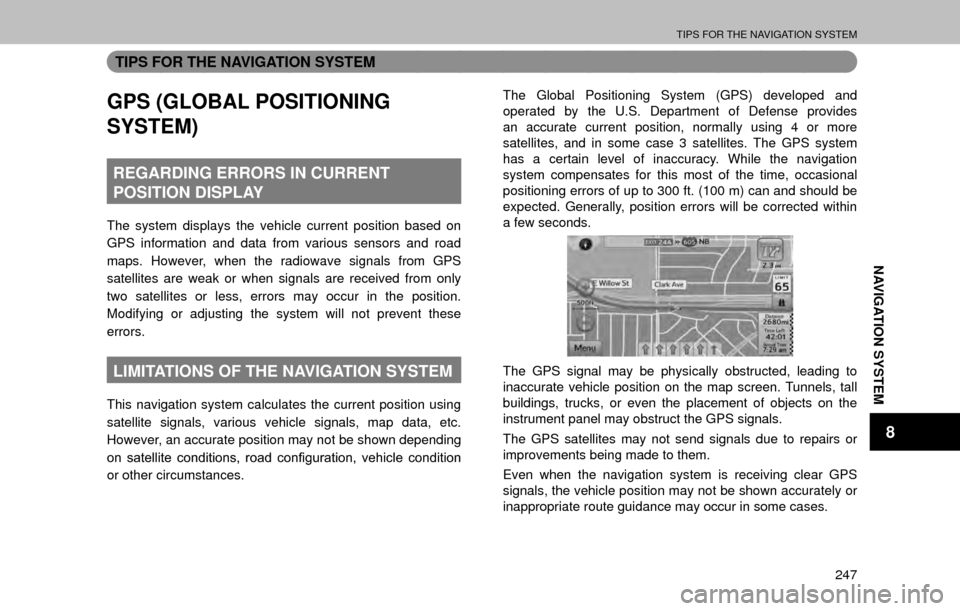

TIPS FOR THE NAVIGATION SYSTEM
GPS (GLOBAL POSITIONING
SYSTEM)
REGARDING ERRORS IN CURRENT
POSITION DISPLAY
The system displays the vehicle current position based on
GPS information and data from various sensors and road
maps. However, when the radiowave signals from GPS
satellites are weak or when signals are received from only
two satellites or less, errors may occur in the position.
Modifying or adjusting the system will not prevent these
errors.
LIMITATIONS OF THE NAVIGATION SYSTEM
This navigation system calculates the current position using
satellite signals, various vehicle signals, map data, etc.
However, an accurate position may not be shown depending
RQ VDWHOOLWH FRQGLWLRQV URDG FRQ

TIPS FOR THE NAVIGATION SYSTEM
248

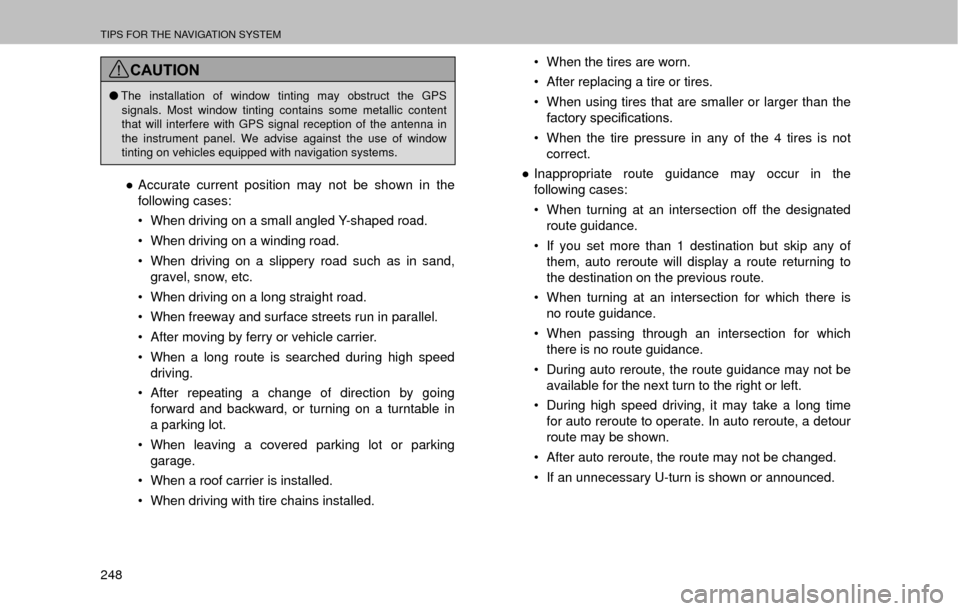

CAUTION
OThe installation of window tinting may obstruct the GPS
signals. Most window tinting contains some metallic content
that will interfere with GPS signal reception of the antenna in
the instrument panel. We advise against the use of window
tinting on vehicles equipped with navigation systems.

” Accurate current position may not be shown in the
following cases:
‡When driving on a small angled Y-shaped road.
‡ When driving on a winding road.
‡ When driving on a slippery road such as in sand,
gravel, snow, etc.
‡ When driving on a long straight road.
‡ When freeway and surface streets run in parallel.
‡ After moving by ferry or vehicle carrier.
‡ When a long route is searched during high speed
driving.
‡ After repeating a change of direction by going
forward and backward, or turning on a turntable in
a parking lot.
‡ When leaving a covered parking lot or parking
garage.
‡ When a roof carrier is installed.
‡ When driving with tire chains installed. ‡
When the tires are worn.
‡ After replacing a tire or tires.
‡ When using tires that are smaller or larger than the
IDFWRU\VSHFL¿FDWLRQV
‡ When the tire pressure in any of the 4 tires is not
correct.

” Inappropriate route guidance may occur in the
following cases:
‡When turning at an intersection off the designated
route guidance.
‡ If you set more than 1 destination but skip any of
them, auto reroute will display a route returning to
the destination on the previous route.
‡ When turning at an intersection for which there is
no route guidance.
‡ When passing through an intersection for which
there is no route guidance.
‡ During auto reroute, the route guidance may not be
available for the next turn to the right or left.
‡ During high speed driving, it may take a long time
for auto reroute to operate. In auto reroute, a detour
route may be shown.
‡ After auto reroute, the route may not be changed.
‡ If an unnecessary U-turn is shown or announced.
