Page 291 of 627

5-36
Audio
"
If you press the “ ” button while the player is
in all disc ejection mode, the mode will be can-
celled following ejection of the disc that is current-
ly being ejected. " If you press the “CD” button while the player is
in all disc ejection mode, the player will draw in the
discs that have been ejected and play them.
Page 292 of 627

5-37
Audio
– CONTINUED –

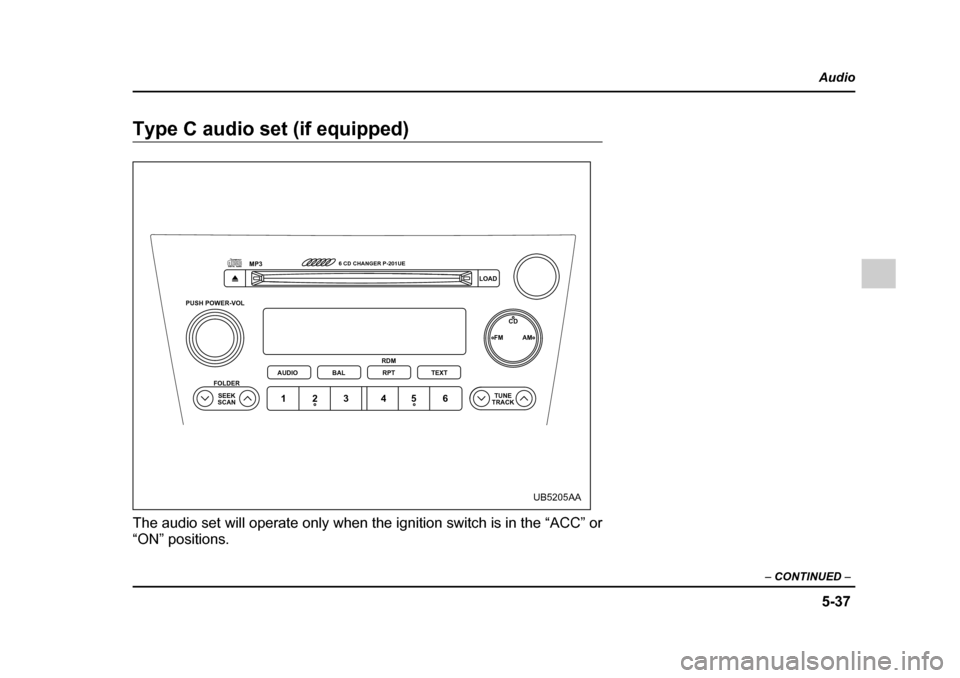

Type C audio set (if equipped)
The audio set will operate only when the ignition switch is in the “ACC” or
“ON” positions.
PUSH POWER-VOL
SEEK
SCAN
FOLDER
TUNE
TRACK
AUDIO
MP3
6 CD CHANGER P-201UE
BAL RPT
RDM
TEXTLOAD
FM AMCD
123 456
UB5205AA
Page 293 of 627

5-38
Audio
!
Radio operation

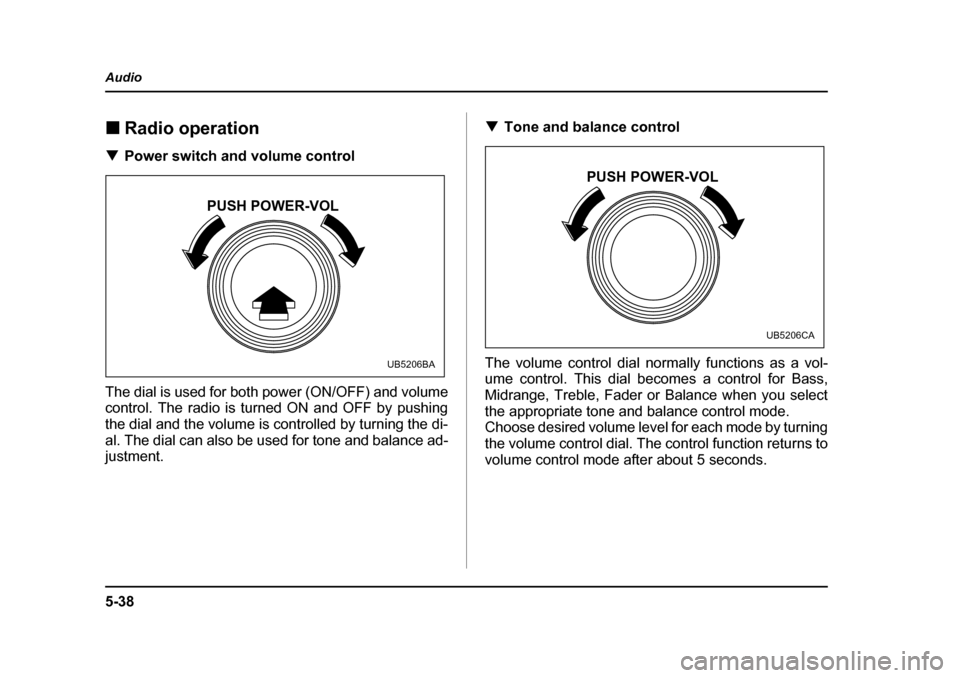

! Power switch and volume control
The dial is used for both power (ON/OFF) and volume
control. The radio is turned ON and OFF by pushing
the dial and the volume is controlled by turning the di-
al. The dial can also be used for tone and balance ad-
justment. !
Tone and balance control
The volume control dial normally functions as a vol-
ume control. This dial becomes a control for Bass,
Midrange, Treble, Fader or Balance when you select
the appropriate tone and balance control mode.
Choose desired volume level for each mode by turning
the volume control dial. The control function returns to
volume control mode after about 5 seconds.
PUSH POWER-VOL
UB5206BA
PUSH POWER-VOL
UB5206CA
Page 294 of 627

5-39
Audio
– CONTINUED –

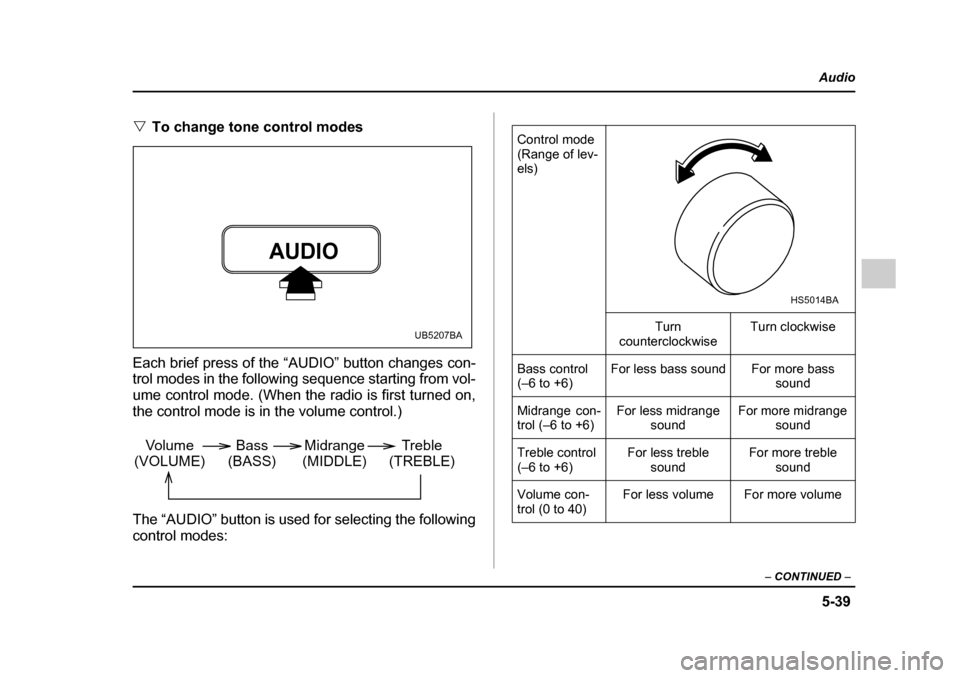

"To change tone control modes
Each brief press of the “AUDIO” button changes con-
trol modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on,
the control mode is in the volume control.)
The “AUDIO” button is used for selecting the following
control modes:
AUDIO
UB5207BA
Volume
(VOLUME) Bass
(BASS) Midrange
(MIDDLE) Treble
(TREBLE)
Control mode
(Range of lev- els)
Turn
counterclockwise Turn clockwise
Bass control
(–6 to +6) For less bass sound For more bass
sound
Midrange con-
trol (–6 to +6) For less midrange
sound For more midrange
sound
Treble control
(–6 to +6) For less treble
sound For more treble
sound
Volume con-
trol (0 to 40) For less volume For more volume
HS5014BA
Page 295 of 627

5-40
Audio
"

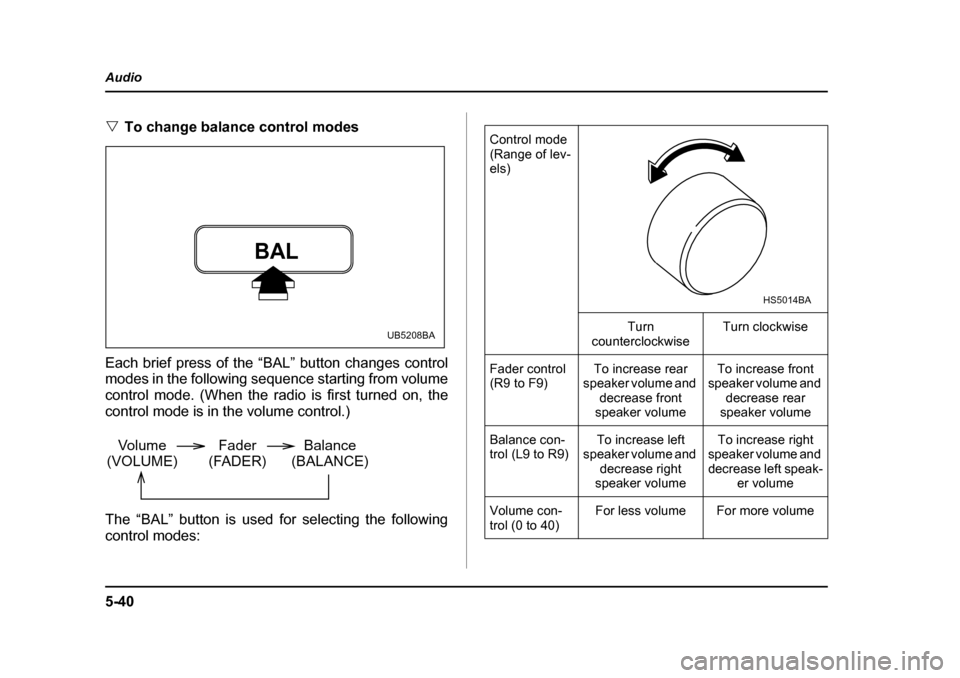

To change balance control modes
Each brief press of the “BAL” button changes control
modes in the following sequence starting from volume
control mode. (When the radio is first turned on, the
control mode is in the volume control.)
The “BAL” button is used for selecting the following control modes:
BAL
UB5208BA
Volume
(VOLUME) Balance
(BALANCE)
Fader
(FADER)
Control mode
(Range of lev- els)
Turn
counterclockwise Turn clockwise
Fader control
(R9 to F9) To increase rear
speaker volume and decrease front
speaker volume To increase front
speaker volume and decrease rear
speaker volume
Balance con-
trol (L9 to R9) To increase left
speaker volume and decrease right
speaker volume To increase right
speaker volume and
decrease left speak- er volume
Volume con-
trol (0 to 40) For less volume For more volume
HS5014BA
Page 296 of 627

5-41
Audio
– CONTINUED –

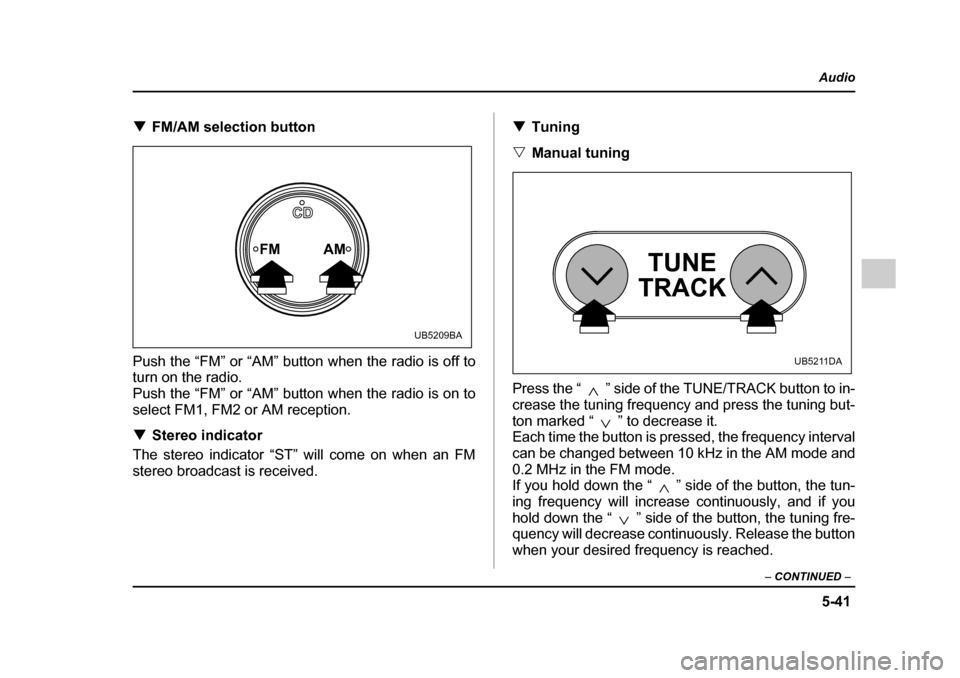

!FM/AM selection button
Push the “FM” or “AM” button when the radio is off to turn on the radio.
Push the “FM” or “AM” button when the radio is on to
select FM1, FM2 or AM reception. ! Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. !
Tuning
" Manual tuning
Press the “ ” side of the TUNE/TRACK button to in-
crease the tuning frequency and press the tuning but-
ton marked “ ” to decrease it.
Each time the button is pressed, the frequency interval
can be changed between 10 kHz in the AM mode and
0.2 MHz in the FM mode.
If you hold down the “ ” side of the button, the tun-
ing frequency will increase continuously, and if you
hold down the “ ” side of the button, the tuning fre-
quency will decrease continuously. Release the button
when your desired frequency is reached.
FM AM
CD
UB5209BA
TUNE
TRACK
UB5211DA
Page 297 of 627

5-42
Audio
NOTE
While you are holding down either side of the
TUNE/TRACK button, the tuning frequency will not
stop changing even if the frequency of a receiv-
able station is reached. "

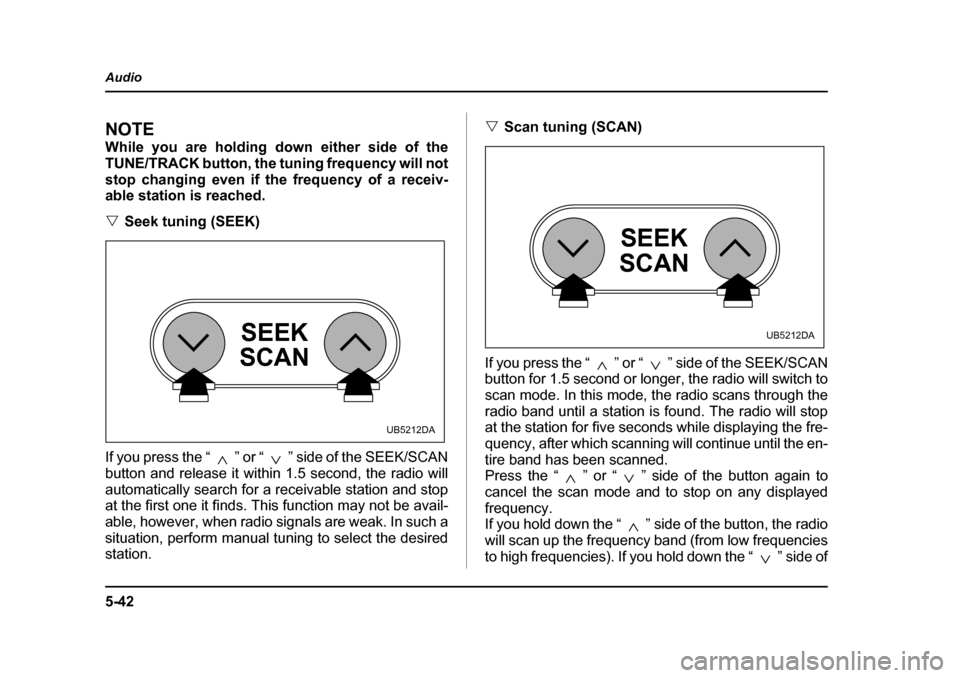

Seek tuning (SEEK)
If you press the “ ” or “ ” side of the SEEK/SCAN
button and release it within 1.5 second, the radio will
automatically search for a receivable station and stop
at the first one it finds. This function may not be avail-
able, however, when radio signals are weak. In such a
situation, perform manual tuning to select the desired
station. "
Scan tuning (SCAN)
If you press the “ ” or “ ” side of the SEEK/SCAN
button for 1.5 second or longer, the radio will switch to
scan mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned.
Press the “ ” or “ ” side of the button again to
cancel the scan mode and to stop on any displayed
frequency.
If you hold down the “ ” side of the button, the radio
will scan up the frequency band (from low frequencies
to high frequencies). If you hold down the “ ” side of
SEEK
SCAN
UB5212DA
SEEK
SCAN
UB5212DA
Page 298 of 627

5-43
Audio
– CONTINUED –
the button, the radio will scan down the frequency
band (from high frequencies to low frequencies).
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-

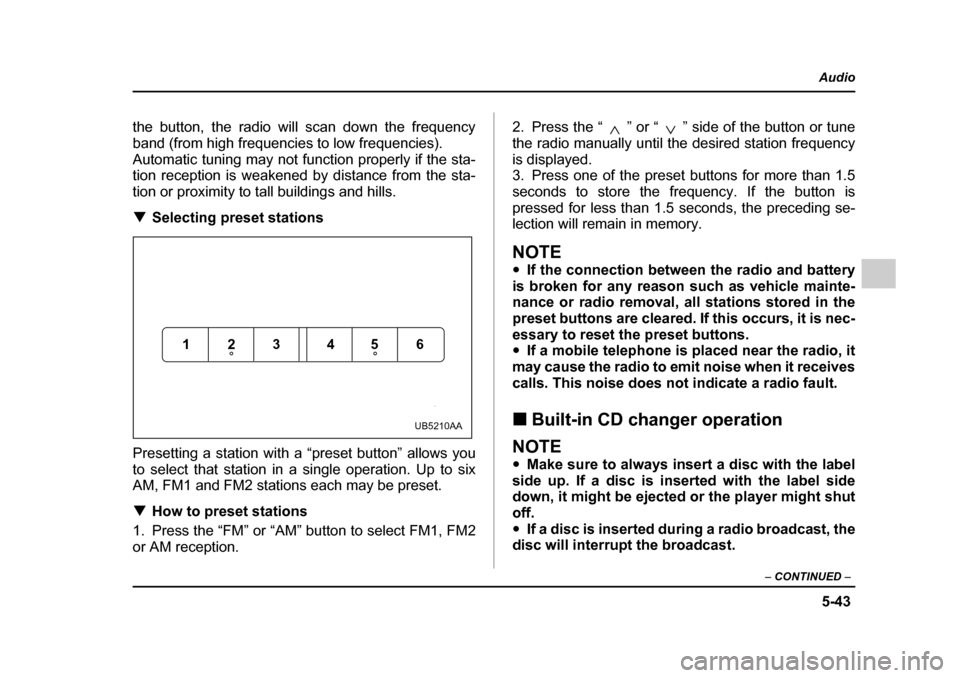

tion or proximity to tall buildings and hills. !Selecting preset stations
Presetting a station with a “preset button” allows you
to select that station in a single operation. Up to six
AM, FM1 and FM2 stations each may be preset. ! How to preset stations
1. Press the “FM” or “AM” button to select FM1, FM2
or AM reception. 2. Press the “ ” or “ ” side of the button or tune
the radio manually until the desired station frequency
is displayed.
3. Press one of the preset buttons for more than 1.5
seconds to store the frequency. If the button is
pressed for less than 1.5 seconds, the preceding se-
lection will remain in memory.
NOTE "
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. " If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault. ! Built-in CD changer operation
NOTE "Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shutoff." If a disc is inserted during a radio broadcast, the
disc will interrupt the broadcast.
123 456
UB5210AA
Page 299 of 627

5-44
Audio
"
After the last song finishes, the disc will auto-
matically return to track 1 (the first song on the
disc) and will automatically play back. " The player is designed to be able to play music
CD-Rs and music CD-RWs, but it may not be able
to play certain ones. " Single CDs (i.e., 8 cm/3 inch CDs) are not sup-
ported, and if inserted, they will be immediately

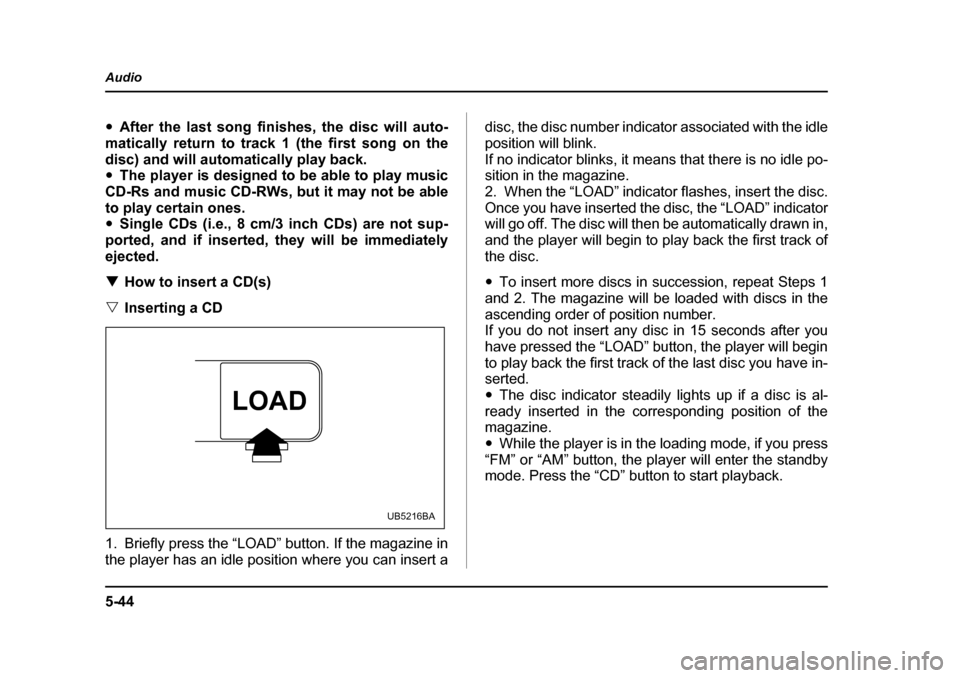

ejected. ! How to insert a CD(s)
" Inserting a CD
0
1. Briefly press the “LOAD” button. If the magazine in
the player has an idle position where you can insert a disc, the disc number indicator associated with the idle
position will blink.
If no indicator blinks, it means that there is no idle po-
sition in the magazine.
2. When the “LOAD” indicator flashes, insert the disc.Once you have inserted the disc, the “LOAD” indicator
will go off. The disc will then be automatically drawn in,
and the player will begin to play back the first track of
the disc. "
To insert more discs in succession, repeat Steps 1
and 2. The magazine will be loaded with discs in the
ascending order of position number.
If you do not insert any disc in 15 seconds after you
have pressed the “LOAD” button, the player will begin
to play back the first track of the last disc you have in-
serted. " The disc indicator steadily lights up if a disc is al-
ready inserted in the corresponding position of the magazine. " While the player is in the loading mode, if you press
“FM” or “AM” button, the player will enter the standby
mode. Press the “CD” button to start playback.
LOAD
UB5216BA
Page 300 of 627

5-45
Audio
– CONTINUED –

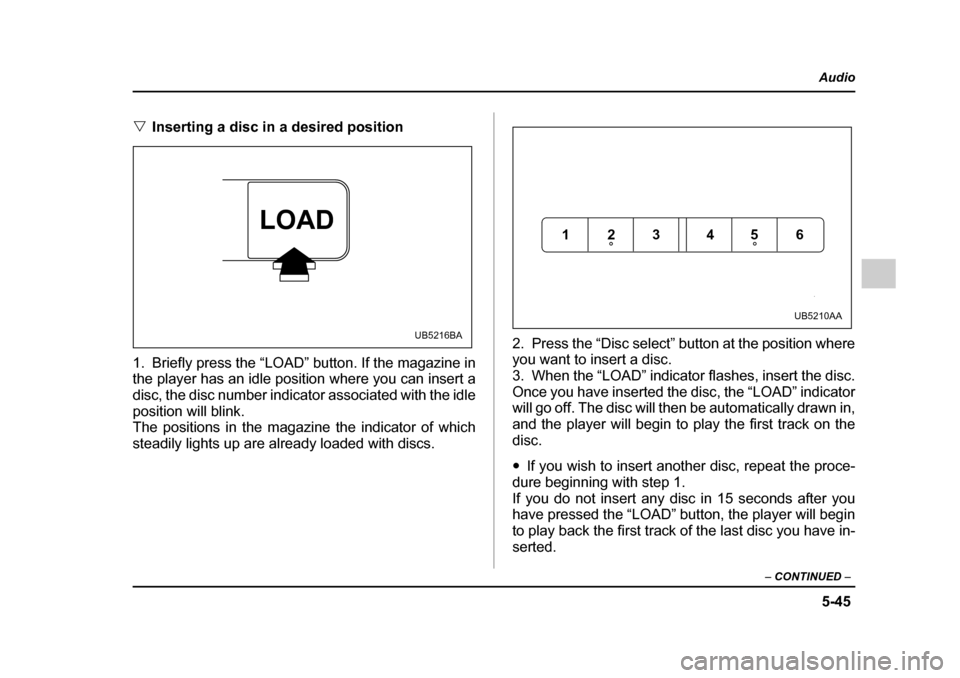

"Inserting a disc in a desired position0
1. Briefly press the “LOAD” button. If the magazine in
the player has an idle position where you can insert a
disc, the disc number indicator associated with the idle
position will blink.
The positions in the magazine the indicator of which
steadily lights up are already loaded with discs. 2. Press the “Disc select” button at the position where
you want to insert a disc.
3. When the “LOAD” indicator flashes, insert the disc.
Once you have inserted the disc, the “LOAD” indicator
will go off. The disc will then be automatically drawn in,
and the player will begin to play the first track on thedisc. "
If you wish to insert another disc, repeat the proce-
dure beginning with step 1.
If you do not insert any disc in 15 seconds after you
have pressed the “LOAD” button, the player will begin
to play back the first track of the last disc you have in-serted.
LOAD
UB5216BA
123 456
UB5210AA
