SUBARU OUTBACK 2005 4.G Owners Manual

11 - 6 2
Maintenance and service

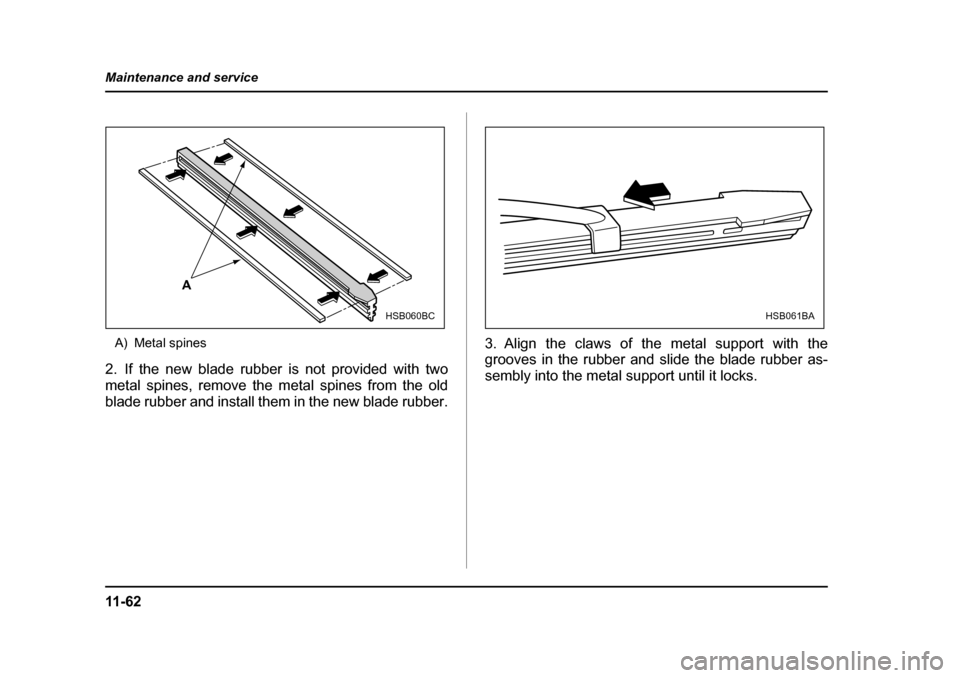

A) Metal spines
2. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber. 3. Align the claws of the metal support with the
grooves in the rubber and slide the blade rubber as-
sembly into the metal support until it locks.
A
HSB060BCHSB061BA

11 -6 3
Maintenance and service
– CONTINUED –

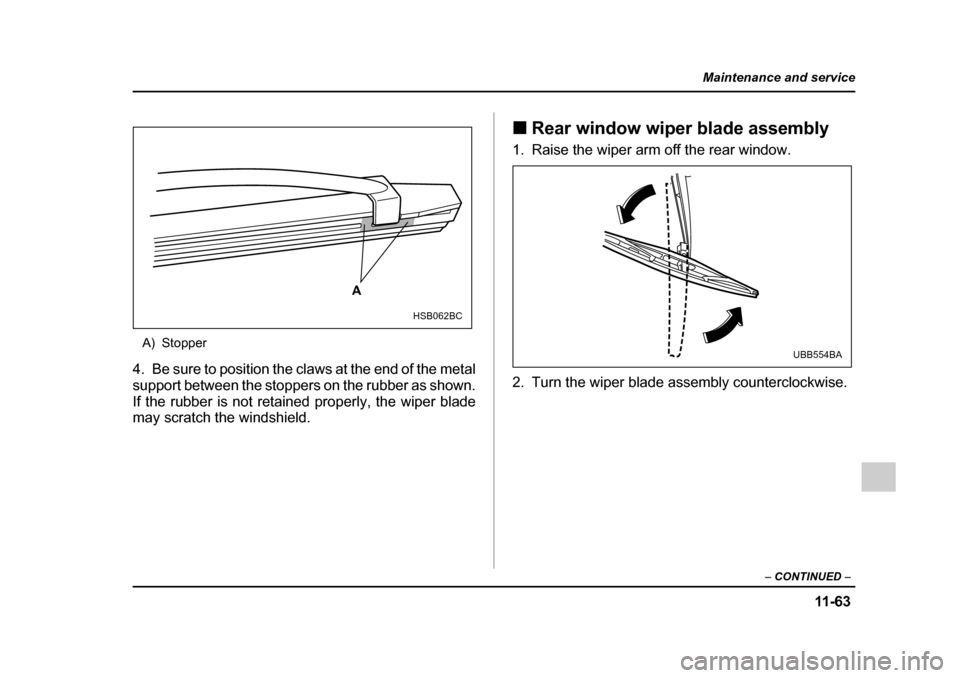

A) Stopper
4. Be sure to position the claws at the end of the metal
support between the stoppers on the rubber as shown.
If the rubber is not retained properly, the wiper blade
may scratch the windshield. !
Rear window wiper blade assembly
1. Raise the wiper arm off the rear window.
2. Turn the wiper blade assembly counterclockwise.
A
HSB062BC
UBB554BA

11 - 6 4
Maintenance and service

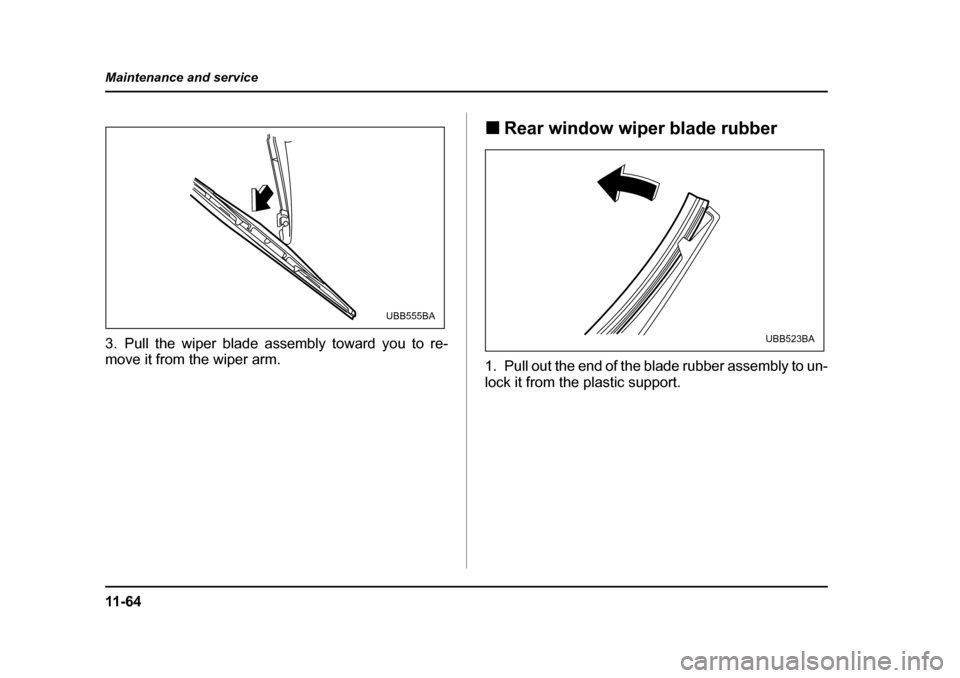

3. Pull the wiper blade assembly toward you to re-
move it from the wiper arm.
!
Rear window wiper blade rubber
1. Pull out the end of the blade rubber assembly to un-
lock it from the plastic support.
UBB555BA
UBB523BA

11 -6 5
Maintenance and service
– CONTINUED –

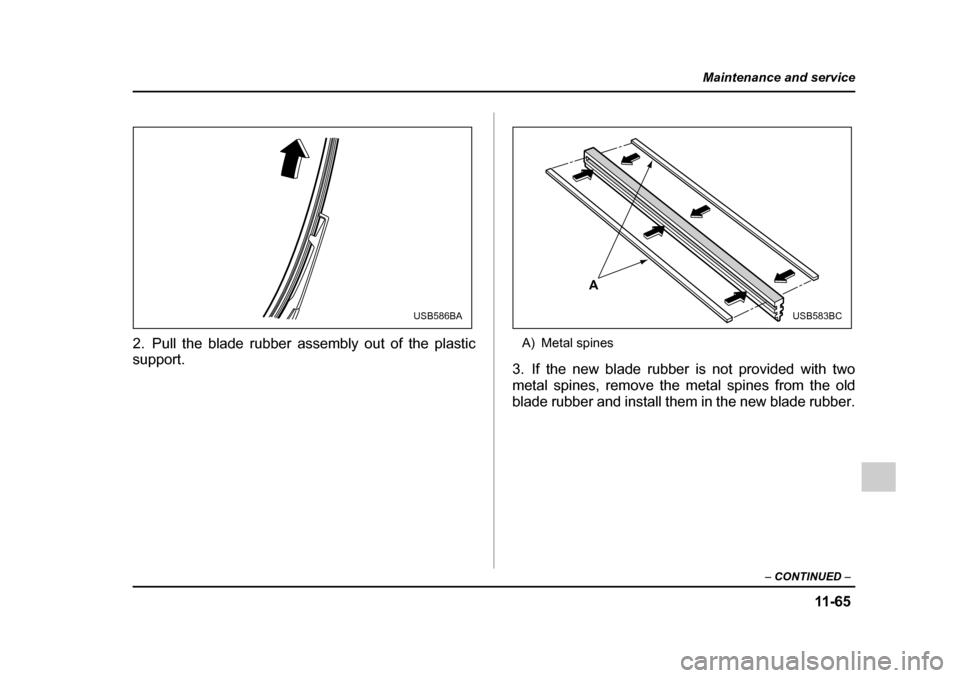

2. Pull the blade rubber assembly out of the plastic
support. A) Metal spines
3. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber.
USB586BA
A
USB583BC

11 - 6 6
Maintenance and service

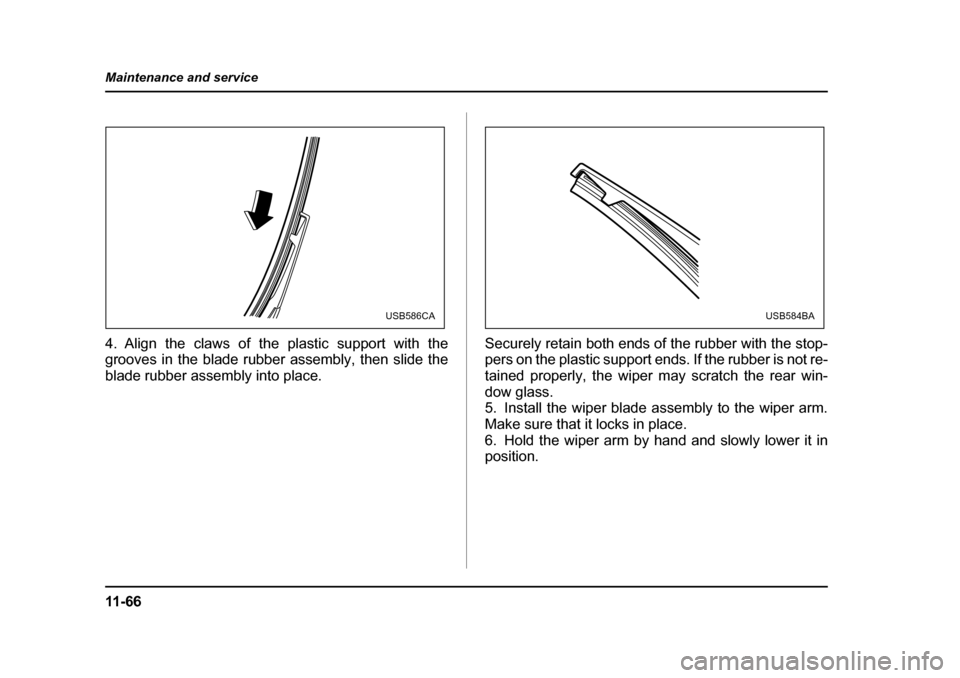

4. Align the claws of the plastic support with the
grooves in the blade rubber assembly, then slide the
blade rubber assembly into place.
Securely retain both ends of the rubber with the stop-
pers on the plastic support ends. If the rubber is not re-
tained properly, the wiper may scratch the rear win-
dow glass.
5. Install the wiper blade assembly to the wiper arm.
Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly lower it in position.
USB586CAUSB584BA

11 -6 7
Maintenance and service
– CONTINUED –
Battery
"Before beginning work on or near any bat-
tery, be sure to extinguish all cigarettes, match-
es, and lighters. Never expose a battery to an
open flame or electric sparks. Batteries give off
a gas which is highly flammable and explosive." For safety, in case an explosion does occur,
wear eye protection or shield your eyes when
working near any battery. Never lean over a bat-tery. " Do not let battery fluid contact eyes, skin,
fabrics, or paint because battery fluid is a cor-
rosive acid. If battery fluid gets on your skin or
in your eyes, immediately flush the area with
water thoroughly. Seek medical help immedi-
ately if acid has entered the eyes.
If battery fluid is accidentally swallowed, imme-
diately drink a large amount of milk or water,
and seek medical attention immediately. " To lessen the risk of sparks, remove rings,
metal watchbands, and other metal jewelry.
Never allow metal tools to contact the positive
battery terminal and anything connected to it
WHILE you are at the same time in contact with any other metallic portion of the vehicle be-
cause a short circuit will result."
Keep everyone including children away from
the battery." Charge the battery in a well-ventilated area.
" Battery posts terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to case
cancer and reproductive harm. Wash hands af-
ter handling.
Never use more than 10 amperes when charg-
ing the battery because it will shorten battery
life.
It is unnecessary to periodically check the battery fluid
level or periodically refill with distilled water.

11 - 6 8
Maintenance and service

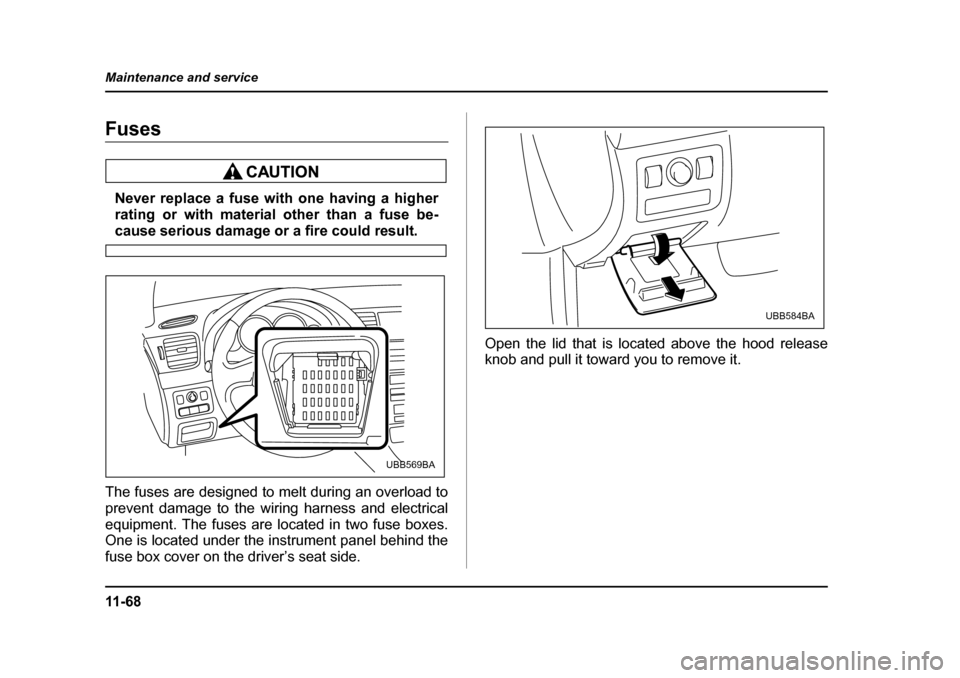

Fuses
Never replace a fuse with one having a higher
rating or with material other than a fuse be-
cause serious damage or a fire could result.
The fuses are designed to melt during an overload to
prevent damage to the wiring harness and electrical
equipment. The fuses are located in two fuse boxes.
One is located under the instrument panel behind the
fuse box cover on the driver’s seat side. Open the lid that is located above the hood release
knob and pull it toward you to remove it.
UBB569BA
UBB584BA

11 -6 9
Maintenance and service
– CONTINUED –

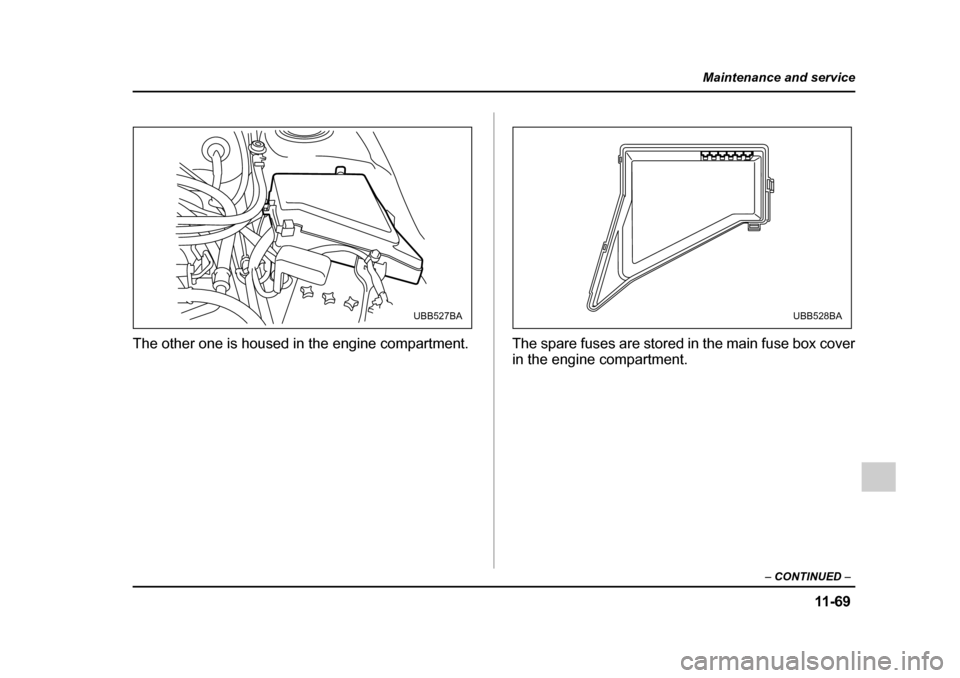

The other one is housed in the engine compartment. The spare fuses are stored in the main fuse box cover
in the engine compartment.
UBB527BAUBB528BA

11 - 7 0
Maintenance and service
The fuse puller is stored in the main fuse box in the en-
gine compartment.
A) Good
B) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
(For behind the coin tray: open the coin tray and pull it
horizontally to remove it.)
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for
UB9569BA
AB
HSB067BB

11 -7 1
Maintenance and service
– CONTINUED –
each fuse.

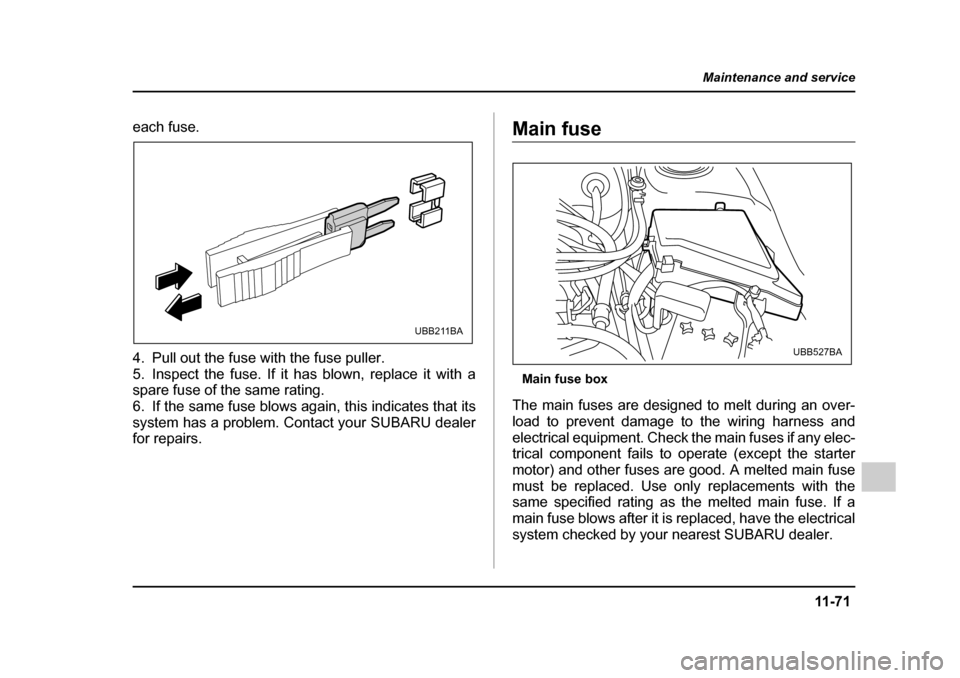

4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a
spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its
system has a problem. Contact your SUBARU dealer for repairs.Main fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.
UBB211BA
UBB527BA
