SUBARU OUTBACK 2005 4.G Owners Manual

11 - 8 2
Maintenance and service
!

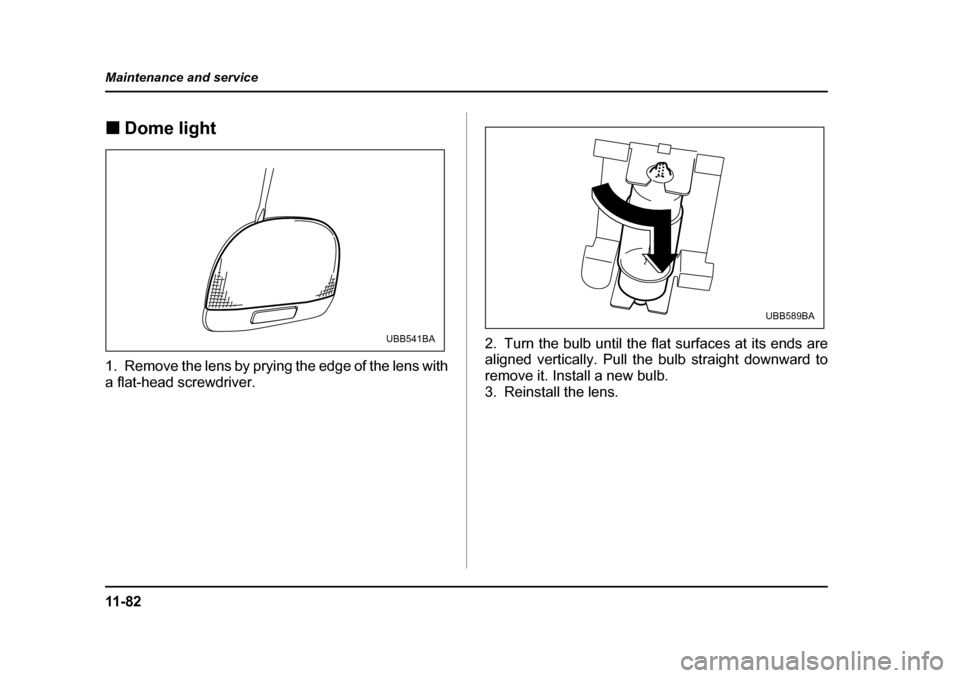

Dome light
1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver. 2. Turn the bulb until the flat surfaces at its ends are
aligned vertically. Pull the bulb straight downward to
remove it. Install a new bulb.
3. Reinstall the lens.
UBB541BA
UBB589BA

11 -8 3
Maintenance and service
– CONTINUED –

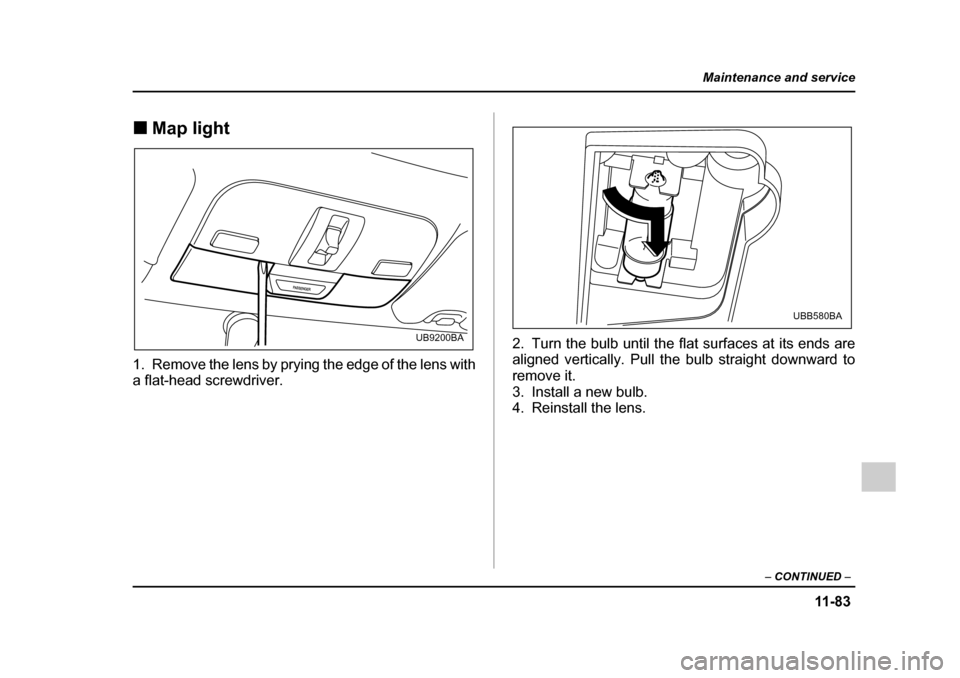

!Map light0
1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver. 2. Turn the bulb until the flat surfaces at its ends are
aligned vertically. Pull the bulb straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.
PASSENGER
UB9200BA
UBB580BA

11 - 8 4
Maintenance and service
!

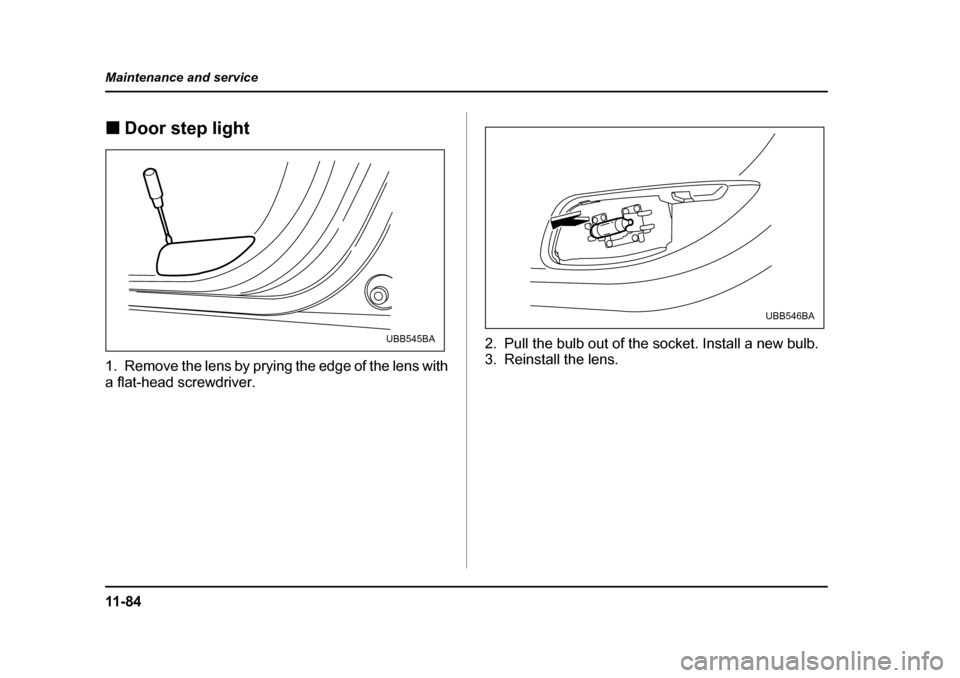

Door step light
1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver. 2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens.
UBB545BA
UBB546BA

11 -8 5
Maintenance and service
– CONTINUED –

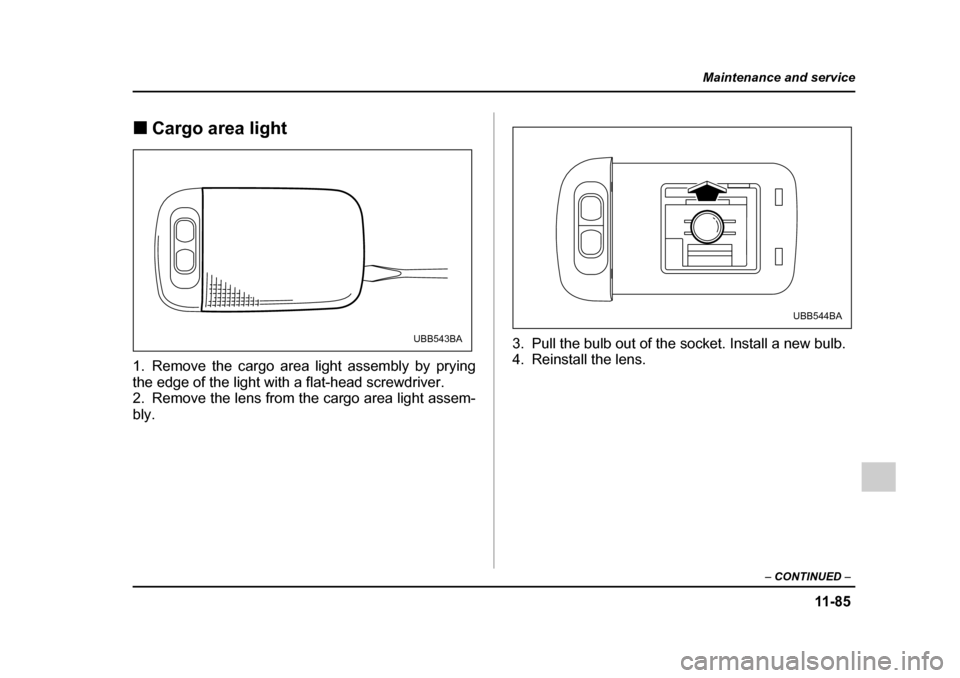

!Cargo area light
1. Remove the cargo area light assembly by prying
the edge of the light with a flat-head screwdriver.
2. Remove the lens from the cargo area light assem-
bly. 3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the lens.
UBB543BA
UBB544BA

11 - 8 6
Maintenance and service
!

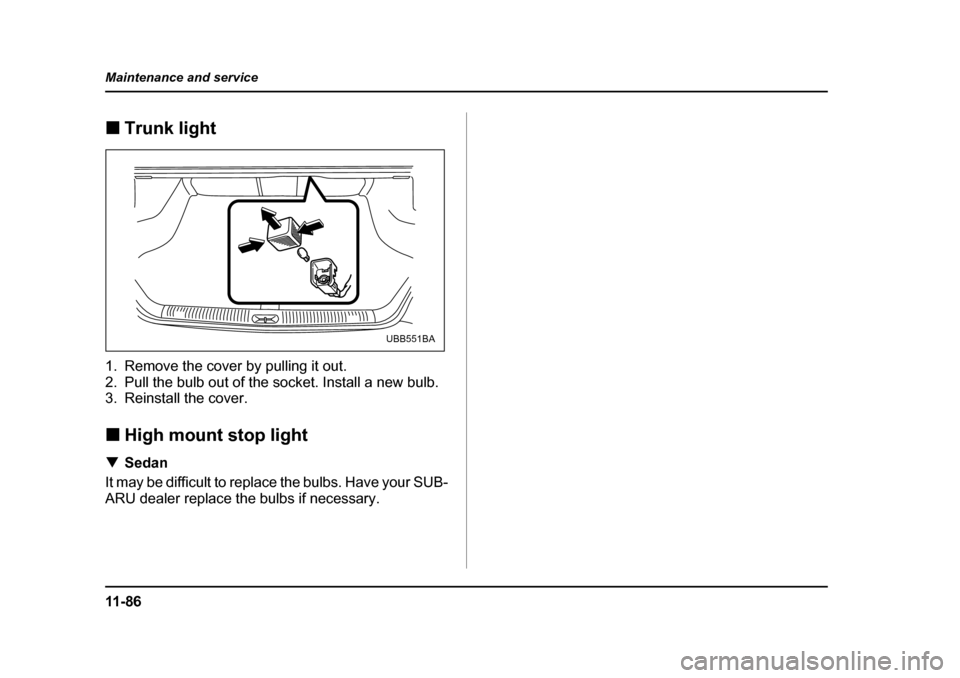

Trunk light
1. Remove the cover by pulling it out.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the cover. ! High mount stop light
! Sedan
It may be difficult to replace the bulbs. Have your SUB-
ARU dealer replace the bulbs if necessary.
UBB551BA

12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ................................................................ 12-3
Electrical system .............................................. 12-3
Capacities .......................................................... 12-4
Tires ................................................................... 12-5
Wheel alignment ............................................... 12-5
Fuses and circuits ........................................ 12-6 Fuse panel located in the passenger compartment .................................................. 12-6
Fuse panel located in the engine compartment .................................................. 12-8
Bulb chart ...................................................... 12-10
Vehicle identification .................................... 12-11

12-2
Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. !

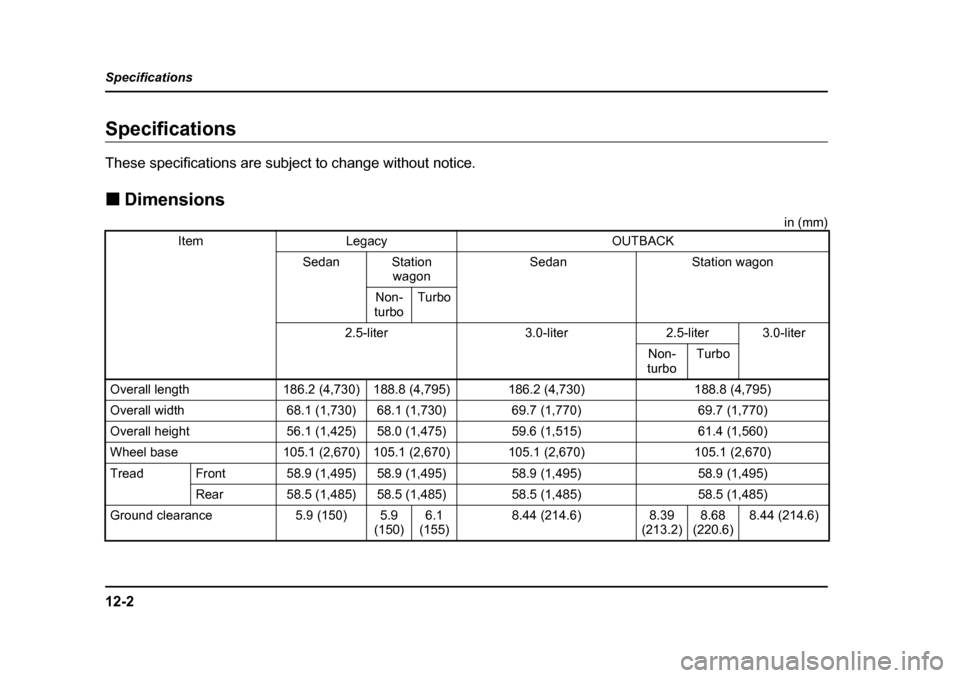

Dimensions
in (mm)
ItemLegacy OUTBACK
SedanStation wagon SedanStation wagon
Non-
turboTurbo
2.5-liter3.0-liter2.5-liter3.0-liter
Non-
turboTurbo
Overall length186.2 (4,730)188.8 (4,795)186.2 (4,730)188.8 (4,795)
Overall width68.1 (1,730)68.1 (1,730)69.7 (1,770)69.7 (1,770)
Overall height56.1 (1,425)58.0 (1,475)59.6 (1,515)61.4 (1,560)
Wheel base105.1 (2,670)105.1 (2,670)105.1 (2,670)105.1 (2,670)
TreadFront58.9 (1,495)58.9 (1,495)58.9 (1,495)58.9 (1,495)
Rear58.5 (1,485)58.5 (1,485)58.5 (1,485)58.5 (1,485)
Ground clearance5.9 (150)5.9
(150)6.1
(155)8.44 (214.6)8.39
(213.2)8.68
(220.6)8.44 (214.6)

12-3
Specifications
– CONTINUED –

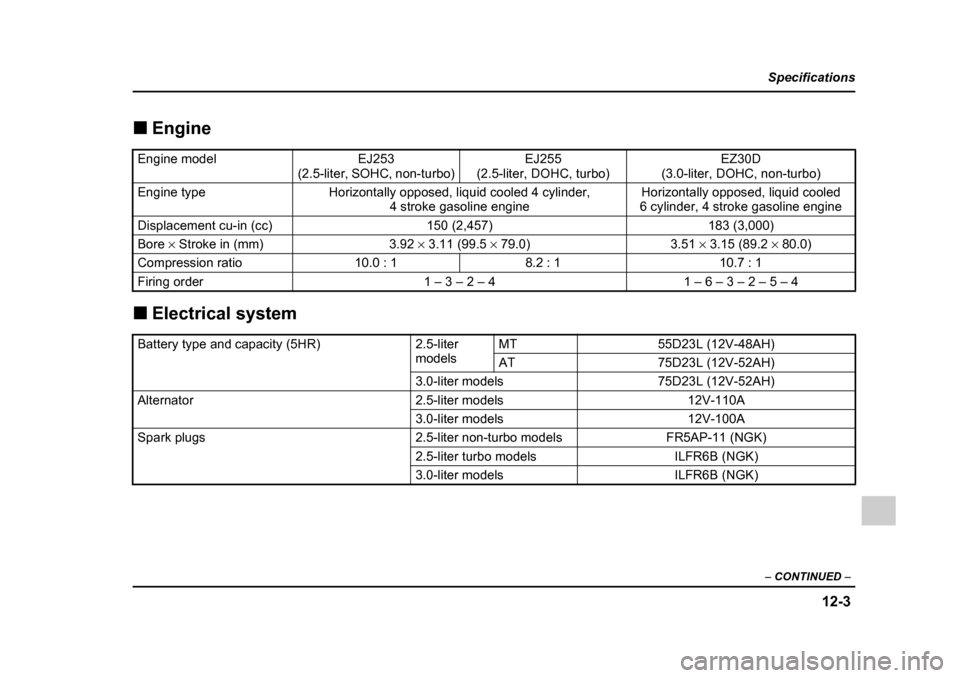

!Engine
! Electrical system
Engine modelEJ253
(2.5-liter, SOHC, non-turbo)EJ255
(2.5-liter, DOHC, turbo)EZ30D
(3.0-liter, DOHC, non-turbo)
Engine typeHorizontally opposed, liquid cooled 4 cylinder, 4 stroke gasoline engineHorizontally opposed, liquid cooled
6 cylinder, 4 stroke gasoline engine
Displacement cu-in (cc)150 (2,457)183 (3,000)
Bore × Stroke in (mm)3.92 × 3.11 (99.5 × 79.0)3.51 × 3.15 (89.2 × 80.0)
Compression ratio10.0 : 18.2 : 110.7 : 1
Firing order1 – 3 – 2 – 41 – 6 – 3 – 2 – 5 – 4
Battery type and capacity (5HR)2.5-liter modelsMT55D23L (12V-48AH)
AT75D23L (12V-52AH)
3.0-liter models75D23L (12V-52AH)
Alternator2.5-liter models12V-110A
3.0-liter models12V-100A
Spark plugs2.5-liter non-turbo modelsFR5AP-11 (NGK)
2.5-liter turbo modelsILFR6B (NGK)
3.0-liter modelsILFR6B (NGK)

12-4
Specifications !

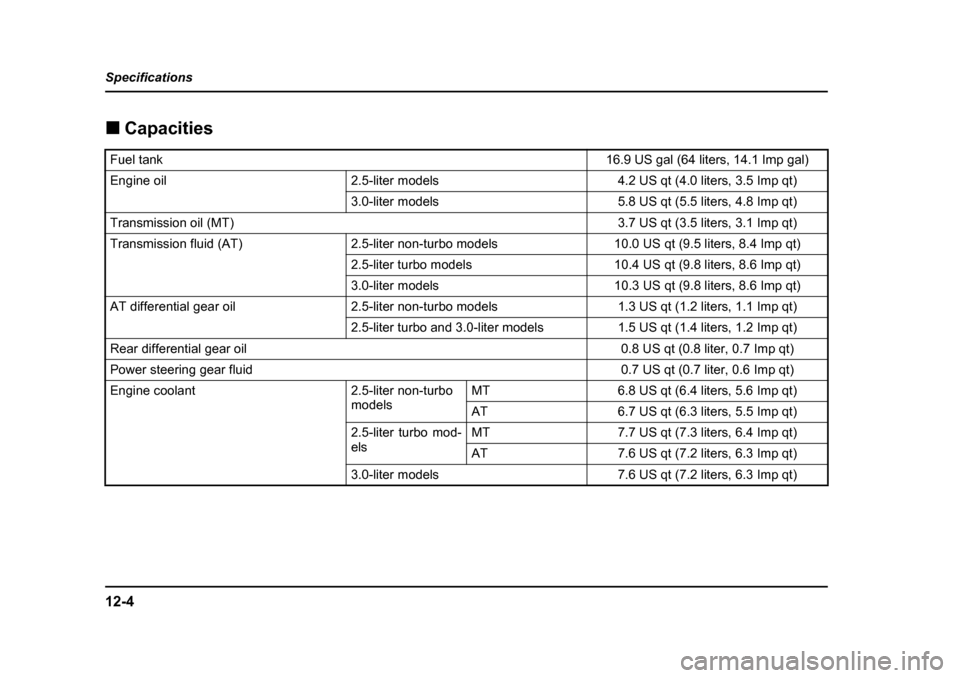

Capacities
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil2.5-liter models4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0-liter models5.8 US qt (5.5 liters, 4.8 Imp qt)
Transmission oil (MT)3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT)2.5-liter non-turbo models10.0 US qt (9.5 liters, 8.4 Imp qt)
2.5-liter turbo models10.4 US qt (9.8 liters, 8.6 Imp qt)
3.0-liter models10.3 US qt (9.8 liters, 8.6 Imp qt)
AT differential gear oil2.5-liter non-turbo models1.3 US qt (1.2 liters, 1.1 Imp qt)
2.5-liter turbo and 3.0-liter models1.5 US qt (1.4 liters, 1.2 Imp qt)
Rear differential gear oil0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering gear fluid0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant2.5-liter non-turbo
modelsMT6.8 US qt (6.4 liters, 5.6 Imp qt)
AT6.7 US qt (6.3 liters, 5.5 Imp qt)
2.5-liter turbo mod- elsMT7.7 US qt (7.3 liters, 6.4 Imp qt)
AT7.6 US qt (7.2 liters, 6.3 Imp qt)
3.0-liter models7.6 US qt (7.2 liters, 6.3 Imp qt)

12-5
Specifications
– CONTINUED –

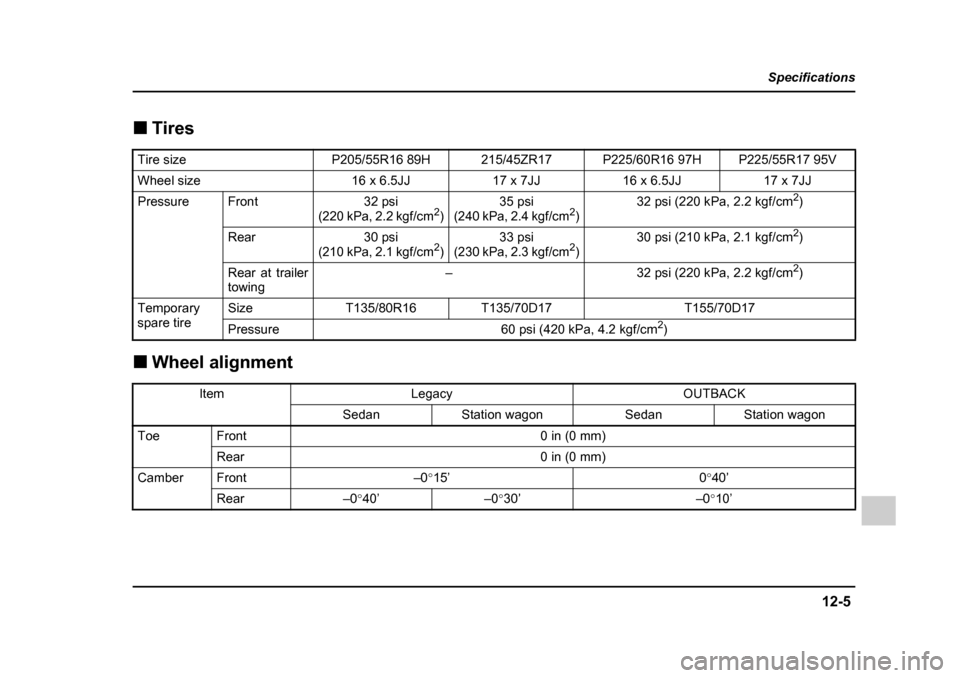

!Tires
! Wheel alignment
Tire sizeP205/55R16 89H215/45ZR17P225/60R16 97HP225/55R17 95V
Wheel size16 x 6.5JJ17 x 7JJ16 x 6.5JJ17 x 7JJ
PressureFront32 psi
(220 kPa, 2.2 kgf/cm 2
)35 psi
(240 kPa, 2.4 kgf/cm 2
)32 psi (220 kPa, 2.2 kgf/cm 2
)
Rear30 psi
(210 kPa, 2.1 kgf/cm 2
)33 psi
(230 kPa, 2.3 kgf/cm 2
)30 psi (210 kPa, 2.1 kgf/cm 2
)
Rear at trailer
towing–32 psi (220 kPa, 2.2 kgf/cm 2
)
Temporary
spare tireSizeT135/80R16T135/70D17T155/70D17
Pressure60 psi (420 kPa, 4.2 kgf/cm 2
)
ItemLegacyOUTBACK
SedanStation wagonSedanStation wagon
ToeFront0 in (0 mm)
Rear0 in (0 mm)
CamberFront–0 °15’0 °40’
Rear–0 °40’–0 °30’–0 °10’
