NAVIGATION OPERATION
32
6. Select Go! (Go!).

”Guidance to the destination is displayed on the
screen and can be heard via voice guidance.SETTING HOME AS THE
DESTINATION (WITH NAVIGATION
FUNCTION)
1. Select , or select and then select MAP
(MAP).
2. Select Menu (Menu).

FUNCTION INDEX
34
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 60, 69
Playing an audio CD or MP3/WMA/AAC disc 78
Playing an SD*
1 card 87
Playing a USB memory 81
Playing an iPod
®84
Playing a Bluetooth device 91
Using the aha application 152
Using the AUX port 94
Using the MirrorLink
TM application 150
Using the Pandora
®*2 application 158
Using the steering wheel audio switches 96
Audio system settings 98
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMap*
*: With navigation function
Displaying maps Page
Viewing the map screen 200
Displaying the current position 205
Changing the scale 206
Changing the map orientation 207
Displaying the estimated travel/arrival time to the
destination225
'LVSOD\LQJWUDI¿FLQIRUPDWLRQ208
Searching for destinations Page
Searching for the destination 210

FUNCTION INDEX
35
1
QUICK GUIDE

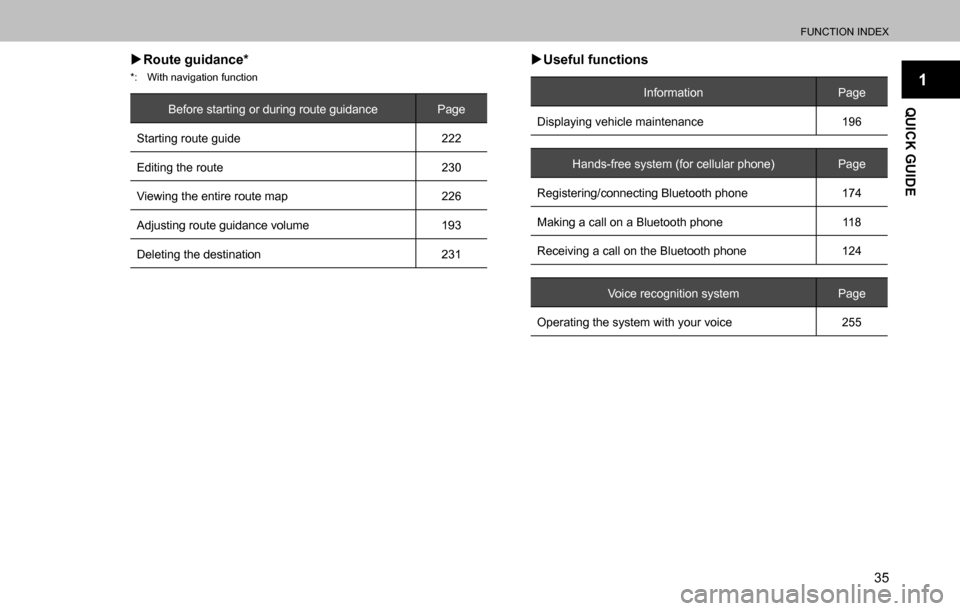

XRoute guidance*
*: With navigation function
Before starting or during route guidance Page
Starting route guide 222
Editing the route 230
Viewing the entire route map 226
Adjusting route guidance volume 193
Deleting the destination 231
XUseful functions
Information Page
Displaying vehicle maintenance 196
Hands-free system (for cellular phone) Page
Registering/connecting Bluetooth phone 174
Making a call on a Bluetooth phone 118
Receiving a call on the Bluetooth phone 124
Voice recognition system Page
Operating the system with your voice 255

BASIC INFORMATION BEFORE OPERATION
44

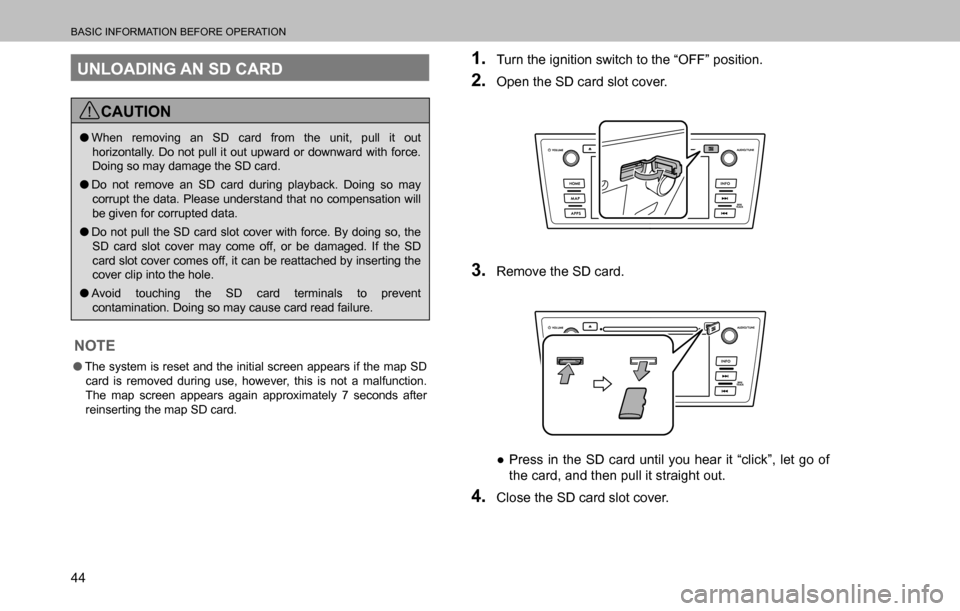

UNLOADING AN SD CARD
CAUTION
OWhen removing an SD card from the unit, pull it out
horizontally. Do not pull it out upward or downward with force.
Doing so may damage the SD card.
ODo not remove an SD card during playback. Doing so may
corrupt the data. Please understand that no compensation will
be given for corrupted data.
ODo not pull the SD card slot cover with force. By doing so, the
SD card slot cover may come off, or be damaged. If the SD
card slot cover comes off, it can be reattached by inserting the
cover clip into the hole.
OAvoid touching the SD card terminals to prevent
contamination. Doing so may cause card read failure.
NOTE
OThe system is reset and the initial screen appears if the map SD
card is removed during use, however, this is not a malfunction.
The map screen appears again approximately 7 seconds after
reinserting the map SD card.
1. Turn the ignition switch to the “OFF” position.
2. Open the SD card slot cover.
3. Remove the SD card.

”Press in the SD card until you hear it “click”, let go of
the card, and then pull it straight out.
4. Close the SD card slot cover.

BASIC INFORMATION BEFORE OPERATION
46
Operation method Outline Main use
Rotate*1
To change the
map direction,
rotate with two
¿QJHUVWRXFKLQJ
the screen.Changing the
horizontal
display angle of
the map.
*1: With navigation function
*2: The above operations may not be performed on all screens.
NOTE
OFlick operations may not be performed smoothly in high
altitudes.
TOUCH SCREEN OPERATION
This system is operated mainly by the buttons on the
screen. (Referred to as screen buttons in this manual.)

”When a screen button is touched, a beep sounds.
7KHEHHSVRXQGFDQEHWXUQHGRQRURII
:3
CAUTION
OTo prevent damaging the screen, lightly touch the screen
EXWWRQVZLWK\RXU

ahaTM by HARMAN
156
STATION OPERATION SCREEN BUTTONS
Button Function
Select to start playback.
Select to pause playback.
Select to stop playback.
Select to upload “Like” information to the
application server. To cancel “Like” information
that is being uploaded to the server, select this
button again.
Select to upload “Dislike” information to the
application server. To cancel “Dislike” information
that isbeing uploaded to the server, select this
button again.
*Select to display the POI information on the map
VFUHHQDQGVHWLWDVDGHVWLQDWLRQ
:3
Select to call the registered number.
Select to upload your current location to your
social network.
Select to send your voice to the application
VHUYHU
:3
Button Function
Select to refresh the content item information in
the current station.
Select to rewind the current content item for 15
seconds.
Select to fast forward the current content item for
30 seconds.
*: With navigation function
NOTE
OThe button display will vary depending on each station or content
item.
SHOUT FUNCTION
Your voice can be sent to the application server.
1. Select .

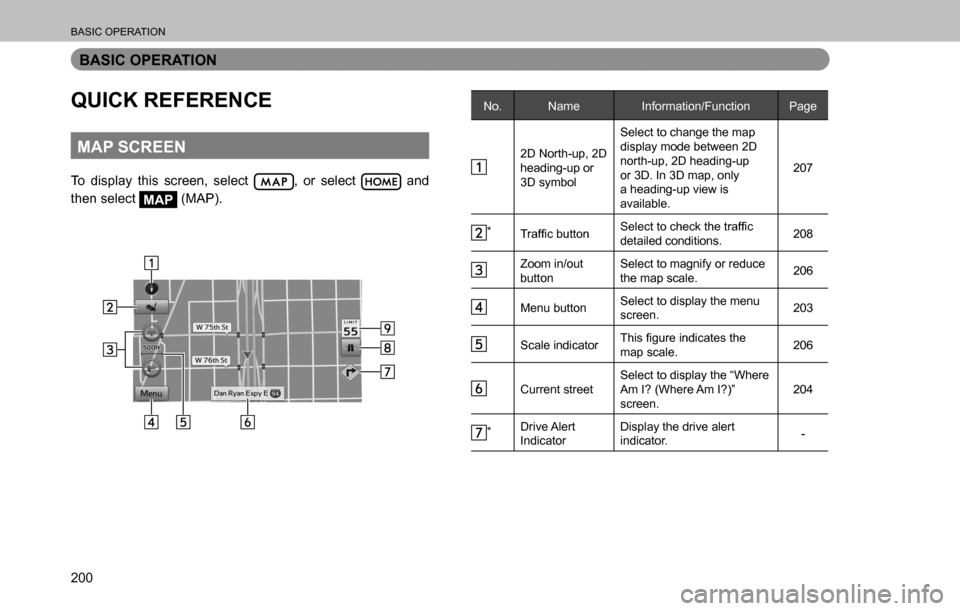

BASIC OPERATION
200
BASIC OPERATION
QUICK REFERENCE
MAP SCREEN
To display this screen, select , or select and
then select
MAP (MAP).
No. Name Information/Function Page
2D North-up, 2D
heading-up or
3D symbolSelect to change the map
display mode between 2D
north-up, 2D heading-up
or 3D. In 3D map, only
a heading-up view is
available.207
*
7UDI

BASIC OPERATION
201
NAVIGATION SYSTEM
8
No. Name Information/Function Page
*Highway
informationSelect to display the
highway information.227
Speed Limit
indicatorDisplays the speed limit for
the road being driven on.-
*: The default setting is not displayed, and can be displayed from “Display
<0052005100030030004400530003000b0027004c00560053004f0044005c0003005200510003003000440053000c00b40003004c0051000300b300300044005300030036004800570057004c0051004a00560003000b003000440053000300360048005700
57004c0051004a0056000c00b400110003000b013a0033>
NOTE
OAn “Unable to read the map SD data. Check the map SD. If
necessary, consult your dealer.” message appears if the map SD
card is not inserted, or if an SD card containing no map data is
inserted.
MAP OPERATIONS
You can touch a position on the map, and then check that
position during navigation. The map’s current position
tracking function stops (the car marker (a blue arrow by
GHIDXOW LV QRW

BASIC OPERATION
202
No. Operation Function
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigationSelect to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/downSelect to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/outSelect to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
OThe map screen scale can be changed by double-touching or
SLQFKLQJWKHVFUHHQ
:3
OThe map direction can be changed by rotating the screen.

:3

BASIC OPERATION
203
NAVIGATION SYSTEM
8
NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No. Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to clear the route and cancel navigation.
6HOHFWWRRSHQWKH³7UDI¿F6XPPDU\7UDI¿F6XPPDU\´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.
