Page 207 of 308
BASIC OPERATION
205
NAVIGATION SYSTEM
8
MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1. Select , or select and then select MAP
(MAP).
2. Check that the current position map is displayed.
NOTE
O : K L O H G U L Y L Q J W K H F X U U H Q W S R V L W L R Q P D U N L V

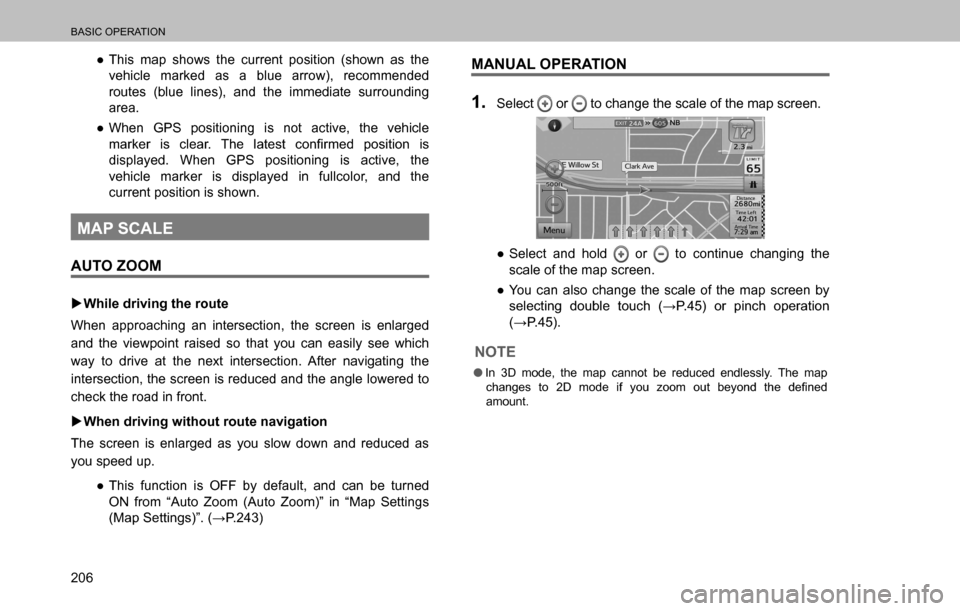

Page 208 of 308
BASIC OPERATION
206
”This map shows the current position (shown as the
vehicle marked as a blue arrow), recommended
routes (blue lines), and the immediate surrounding
area.
”When GPS positioning is not active, the vehicle
P D U N H U L V F O H D U 7 K H O D W H V W F R Q
Page 209 of 308
BASIC OPERATION
207
NAVIGATION SYSTEM
8
ORIENTATION OF THE MAP
The orientation of the map can be changed between 2D
north-up, 2D heading-up and 3D.
1. Select or .
XNorth-up screen
XHeading-up screen
X3D screen
”: 2D north-up symbol
Regardless of the direction of vehicle travel, north is
always up.
”
: 2D heading-up and 3D symbol
The direction of vehicle travel is always up.
”The letter(s) indicate the vehicle’s heading direction
(e.g. N for north).

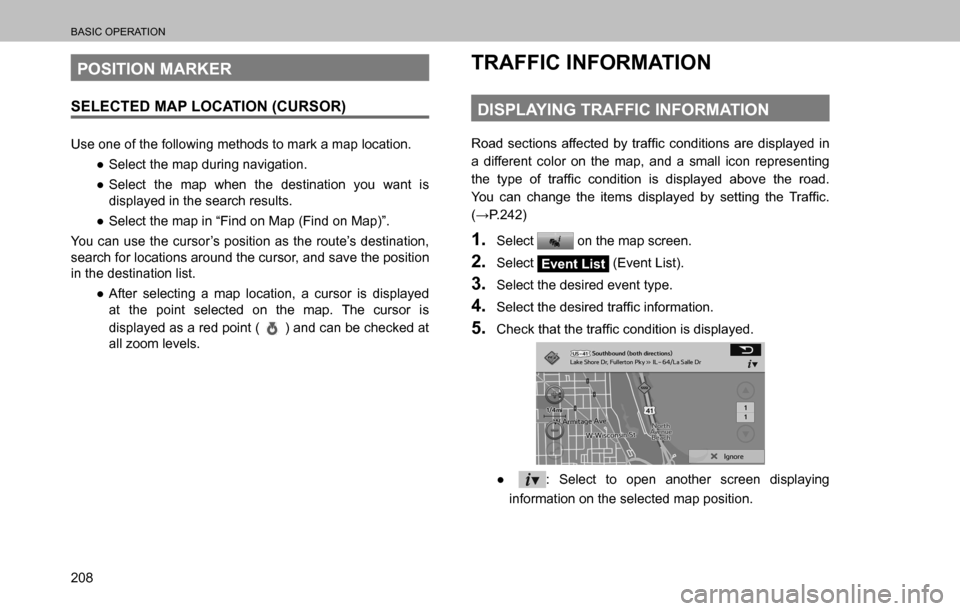

Page 210 of 308
BASIC OPERATION
208
POSITION MARKER
SELECTED MAP LOCATION (CURSOR)
Use one of the following methods to mark a map location.
”Select the map during navigation.
”Select the map when the destination you want is
displayed in the search results.
”Select the map in “Find on Map (Find on Map)”.
You can use the cursor’s position as the route’s destination,
search for locations around the cursor, and save the position
in the destination list.
”After selecting a map location, a cursor is displayed
at the point selected on the map. The cursor is
displayed as a red point (
) and can be checked at
all zoom levels.
TRAFFIC INFORMATION
DISPLAYING TRAFFIC INFORMATION
5 R D G V H F W L R Q V D I I H F W H G E \ W U D I
Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8
DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 211
Select to search for a destination by point of
interest.214
Select to search for a destination by the map. 218
Select to search for a destination from
destination list.218
Select to search for a destination from
frequently used destination.219
Select to search for a destination from
previously set destinations.219
Select to search for a destination by
coordinates.219
Select to set a destination by home. 211

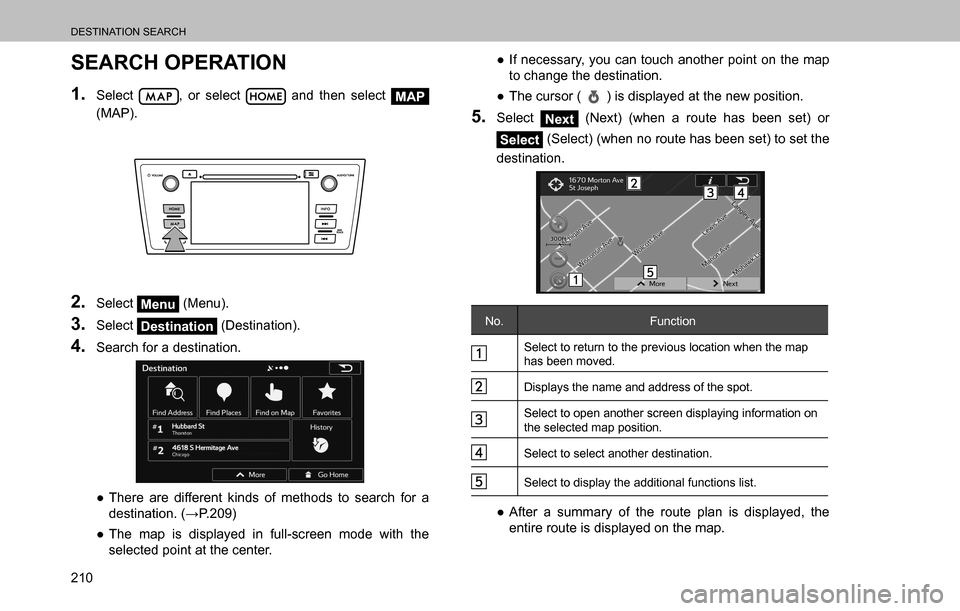

Page 212 of 308
DESTINATION SEARCH
210
SEARCH OPERATION
1. Select , or select and then select MAP
(MAP).
2. Select Menu (Menu).
3. Select Destination (Destination).
4. Search for a destination.
”There are different kinds of methods to search for a
G H V W L Q D W L R Q : 3
”The map is displayed in full-screen mode with the
selected point at the center. ”If necessary, you can touch another point on the map
to change the destination.
”The cursor (
) is displayed at the new position.
5. Select Next (Next) (when a route has been set) or
Select (Select) (when no route has been set) to set the
destination.
No. Function
Select to return to the previous location when the map
has been moved.
Displays the name and address of the spot.
Select to open another screen displaying information on
the selected map position.
Select to select another destination.
Select to display the additional functions list.
”After a summary of the route plan is displayed, the
entire route is displayed on the map.
Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1. Display the “Destination (Destination)” screen.
: 3
2. Select Go Home (Go Home).
3. Select Next (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
”The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find Address (Find Address).
3. Select Country or State/Province (Country or State/
Province).
”By default, the country and district for your current
position are displayed.
4. Select the desired country or state (province).
5. Select the desired search method.
No. Function Page
Select to search by city. 212
Select to search by street. 212
Select to search by intersection. 213
Select to search by city/town center. 212

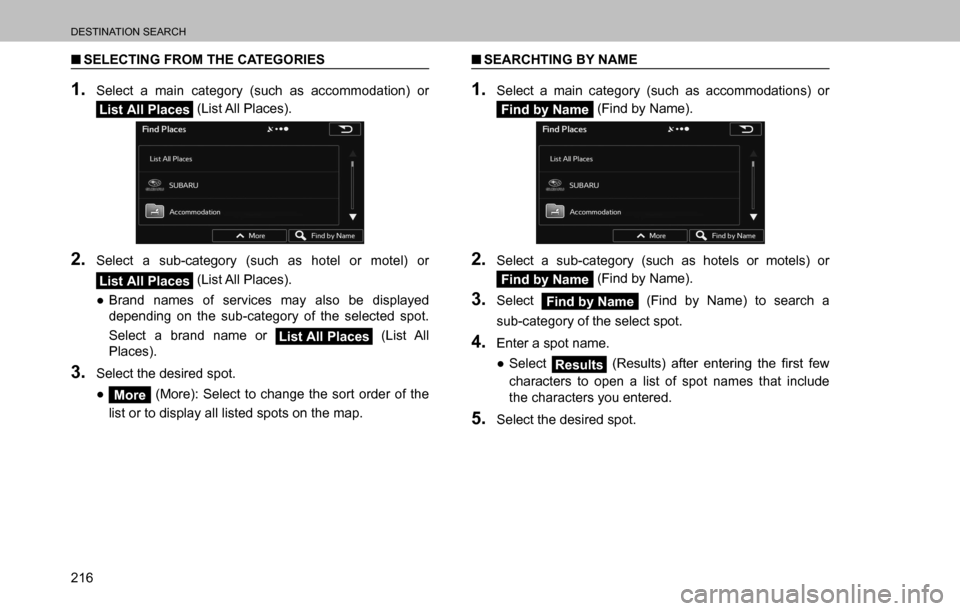

Page 218 of 308
DESTINATION SEARCH
216
QSELECTING FROM THE CATEGORIES
1. Select a main category (such as accommodation) or
List All Places (List All Places).
2. Select a sub-category (such as hotel or motel) or
List All Places (List All Places).
”Brand names of services may also be displayed
depending on the sub-category of the selected spot.
Select a brand name or
List All Places (List All
Places).
3. Select the desired spot.
”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.
QSEARCHTING BY NAME
1. Select a main category (such as accommodations) or
Find by Name (Find by Name).
2. Select a sub-category (such as hotels or motels) or
Find by Name (Find by Name).
3. Select Find by Name (Find by Name) to search a
sub-category of the select spot.
4. Enter a spot name.
”Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H

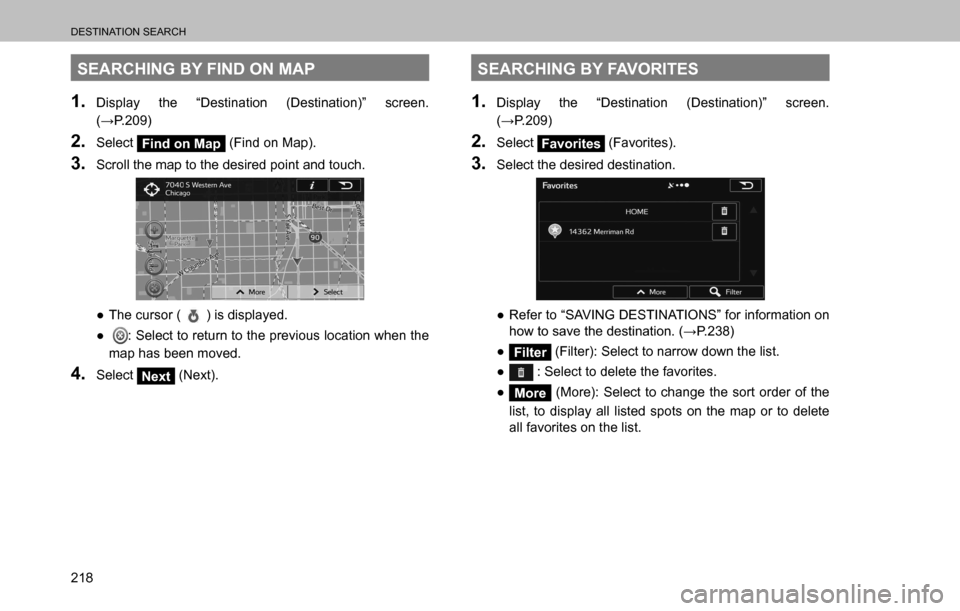

Page 220 of 308
DESTINATION SEARCH
218
SEARCHING BY FIND ON MAP
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find on Map (Find on Map).
3. Scroll the map to the desired point and touch.
”The cursor () is displayed.
”
: Select to return to the previous location when the
map has been moved.
4. Select Next (Next).
SEARCHING BY FAVORITES
1. Display the “Destination (Destination)” screen.
: 3
2. Select Favorites (Favorites).
3. Select the desired destination.
”Refer to “SAVING DESTINATIONS” for information on
K R Z W R V D Y H W K H G H V W L Q D W L R Q : 3
”
Filter (Filter): Select to narrow down the list.
”
: Select to delete the favorites.
”
More (More): Select to change the sort order of the
list, to display all listed spots on the map or to delete
all favorites on the list.

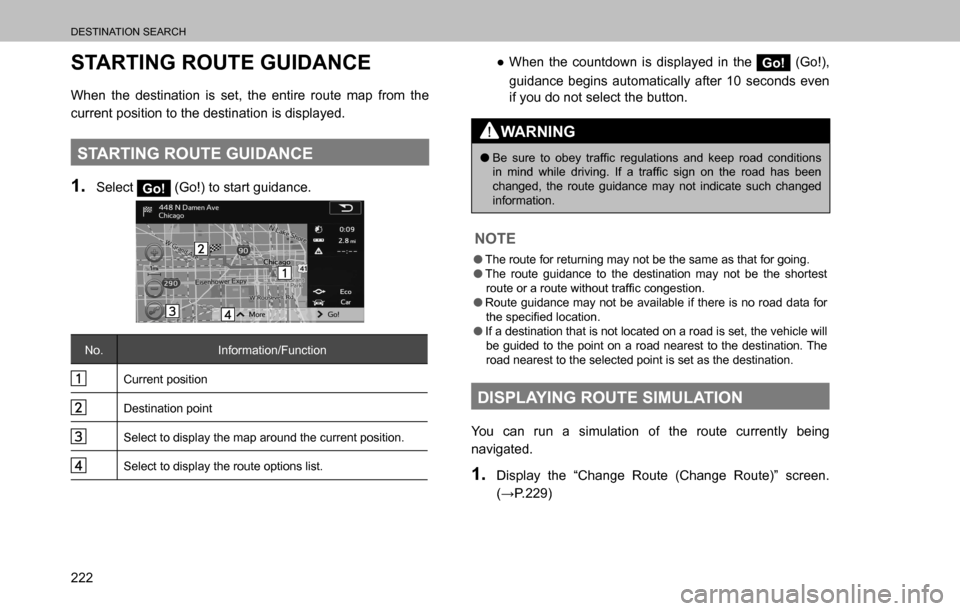

Page 224 of 308
DESTINATION SEARCH
222
STARTING ROUTE GUIDANCE
When the destination is set, the entire route map from the
current position to the destination is displayed.
STARTING ROUTE GUIDANCE
1. Select Go! (Go!) to start guidance.
No. Information/Function
Current position
Destination point
Select to display the map around the current position.
Select to display the route options list.
”When the countdown is displayed in the Go! (Go!),
guidance begins automatically after 10 seconds even
if you do not select the button.
WARNING
O % H V X U H W R R E H \ W U D I
