SUBARU OUTBACK 2016 6.G Navigation Manual

TIPS FOR THE NAVIGATION SYSTEM
249
NAVIGATION SYSTEM
8
‡If a location has multiple names and the system
announces 1 or more of them.
‡When a route cannot be searched.
‡If the route to your destination includes gravel,
unpaved roads or alleys, the route guidance may
not be shown.
‡Your destination point might be shown on the
opposite side of the street.
‡When a portion of the route has regulations
prohibiting the entry of the vehicle that vary by time
or season or other reasons.
‡The road and map data stored in the navigation
system may not be complete or may not be the
latest version.
NOTE
OThis navigation system uses tire turning data and is designed to
ZRUN ZLWK IDFWRU\VSHFL

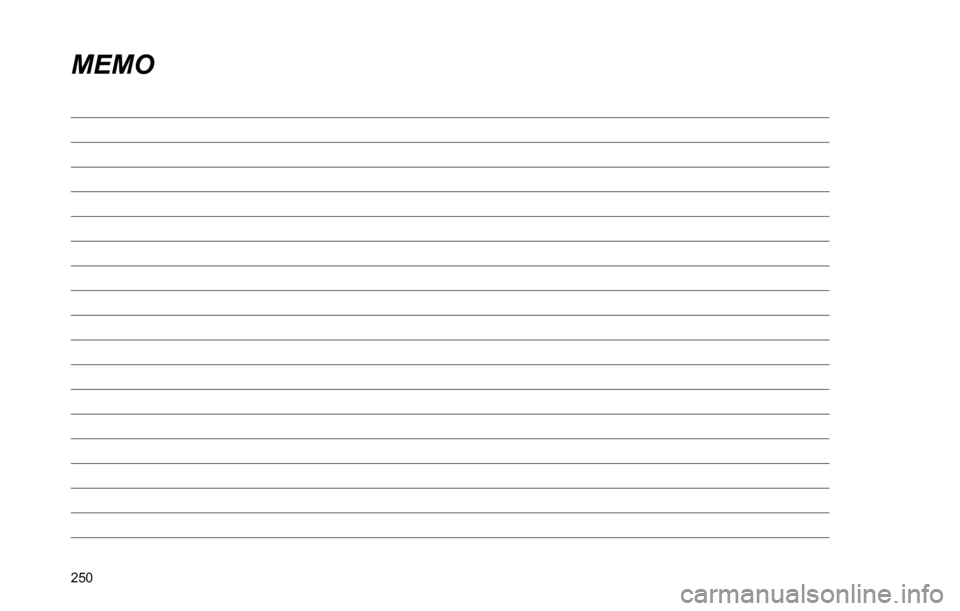

MEMO
250

251

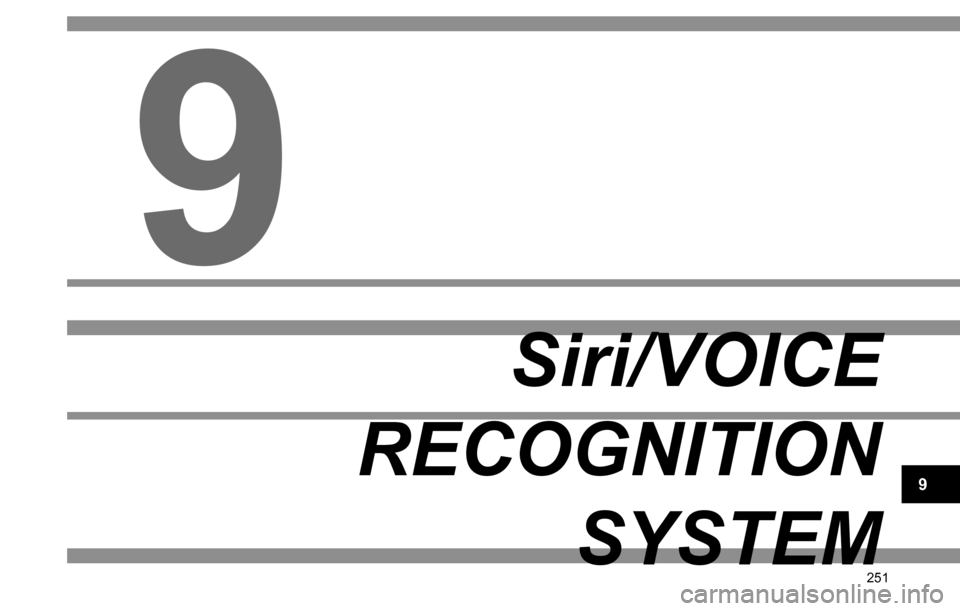

Siri/VOICE
RECOGNITION
SYSTEM
9
9

Siri

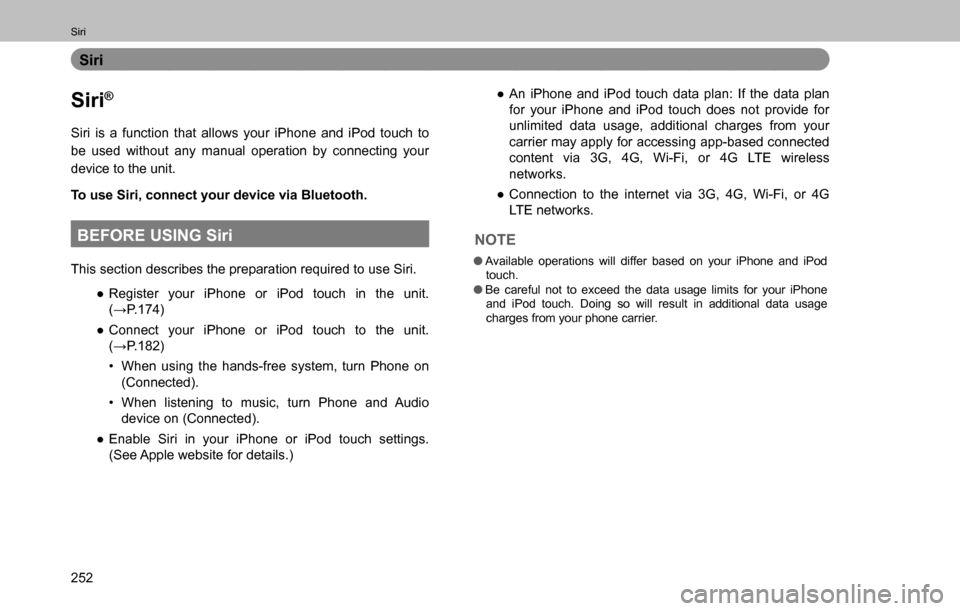

252
Siri
Siri®
Siri is a function that allows your iPhone and iPod touch to
be used without any manual operation by connecting your
device to the unit.
To use Siri, connect your device via Bluetooth.
BEFORE USING Siri
This section describes the preparation required to use Siri.

”Register your iPhone or iPod touch in the unit.

:3

”Connect your iPhone or iPod touch to the unit.

:3
‡When using the hands-free system, turn Phone on
(Connected).
‡When listening to music, turn Phone and Audio
device on (Connected).

”Enable Siri in your iPhone or iPod touch settings.
(See Apple website for details.)
”An iPhone and iPod touch data plan: If the data plan
for your iPhone and iPod touch does not provide for
unlimited data usage, additional charges from your
carrier may apply for accessing app-based connected
content via 3G, 4G, Wi-Fi, or 4G LTE wireless
networks.

”Connection to the internet via 3G, 4G, Wi-Fi, or 4G
LTE networks.
NOTE
OAvailable operations will differ based on your iPhone and iPod
touch.
OBe careful not to exceed the data usage limits for your iPhone
and iPod touch. Doing so will result in additional data usage
charges from your phone carrier.

Siri
253
Siri/VOICE RECOGNITION SYSTEM
9

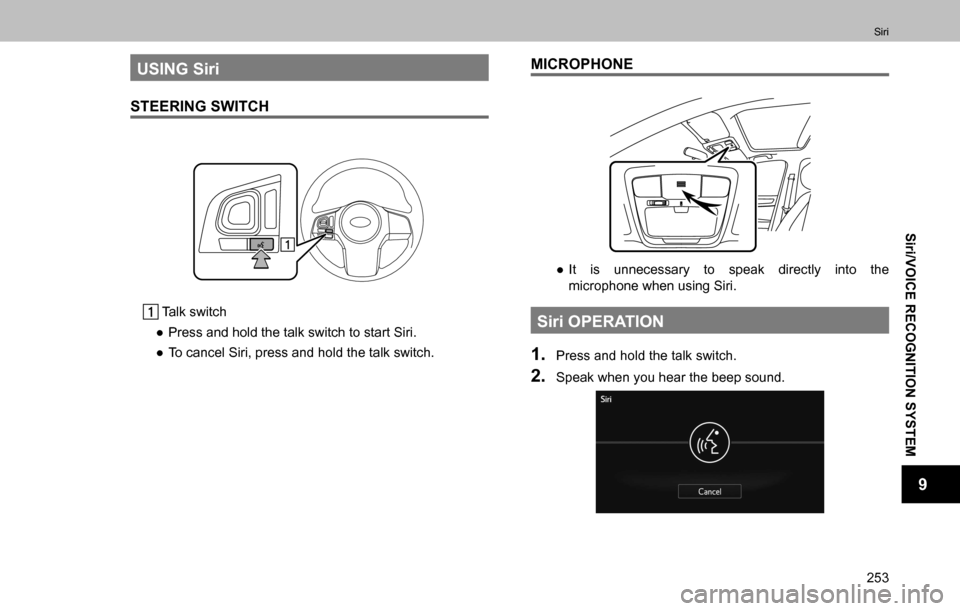

USING Siri
STEERING SWITCH
Talk switch

”Press and hold the talk switch to start Siri.

”To cancel Siri, press and hold the talk switch.
MICROPHONE

”It is unnecessary to speak directly into the
microphone when using Siri.
Siri OPERATION
1. Press and hold the talk switch.
2. Speak when you hear the beep sound.

Siri
254
”If required to say more, the system will notify you with
the beep sound. Continue speaking.

”If the system fails to recognize what is being said, or
to request a different operation, select
, or press
the talk switch.

”To cancel Siri, select
Cancel (Cancel), or press and
hold the talk switch.
NOTE
OSiri cannot be started while placing or receiving hands-free
calls with your iPhone and iPod touch (including while holding
incoming calls), or while having a hands-free conversation.
OSiri cannot be used while using the system's voice recognition
function. Start Siri after exiting the voice recognition function.
OThe system screen will display the calling screen when a hands-
free call is placed.
OUnit operation while using Siri will differ depending on your
iPhone or iPod touch.
OSiri may not recognize what is being said if:
‡Spoken too quickly.
‡Spoken at a low or high volume.
‡Driving with a window open.
‡Passengers are talking while using Siri.
‡The air conditioning speed is set high.
‡When air from the ventilator blows directly toward the
microphone.
NOTE
OIn the following conditions, the system may not recognize what is
being said properly, and use of Siri may not be possible.
‡What is being said is incorrect or unclear. Note that certain
ZRUGV DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
255
Siri/VOICE RECOGNITION SYSTEM
9
VOICE RECOGNITION SYSTEM OPERATION
VOICE RECOGNITION SYSTEM
The voice recognition system enables the navigation,
audio, hands-free systems, etc. to be operated using voice
commands.
Refer to the command list for samples of voice commands.

:3
USING THE VOICE RECOGNITION SYSTEM
STEERING SWITCH
Talk switch

”Press the talk switch to start the voice recognition
system.

”To cancel voice recognition, press and hold the talk
switch or the source switch.
MICROPHONE

”It is unnecessary to speak directly into the
microphone when giving a command.
NOTE
O:<0044004c0057000300490052005500030057004b0048000300460052005100bf0055005000440057004c0052005100030045004800480053000300450048004900520055004800030056005300480044004e004c0051004a00030044000300460052005000
500044005100470011>
OVoice commands may not be recognized if:
‡Spoken too quickly.
‡Spoken at a low or high volume.
‡Driving with a window open.
‡Passengers are talking while voice commands are spoken.
‡The air conditioning speed is set high.
‡When air from the ventilator blows directly toward the
microphone.

VOICE RECOGNITION SYSTEM OPERATION

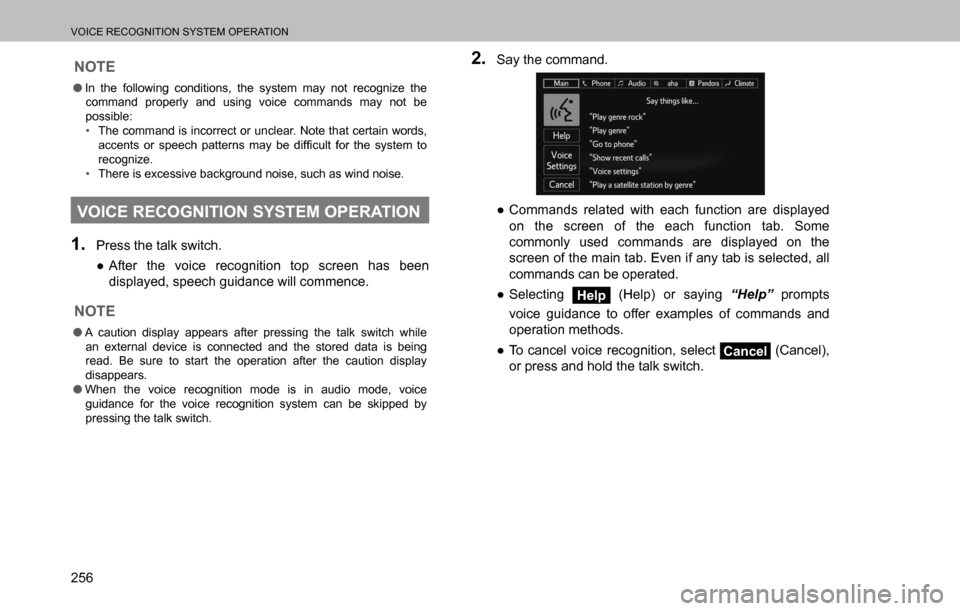

256
NOTE
OIn the following conditions, the system may not recognize the
command properly and using voice commands may not be
possible:
‡The command is incorrect or unclear. Note that certain words,
DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
257
Siri/VOICE RECOGNITION SYSTEM
9

”With navigation function:
To use the voice recognition system for navigation
function, say the command to change to the
QDYLJDWLRQIXQFWLRQ

VOICE RECOGNITION SYSTEM OPERATION

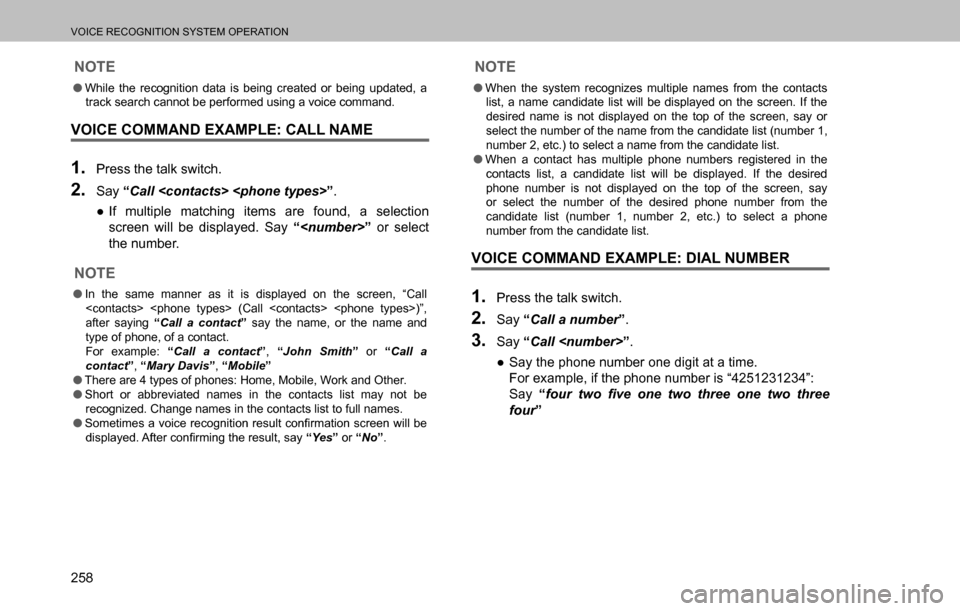

258
NOTE
OWhile the recognition data is being created or being updated, a
track search cannot be performed using a voice command.
VOICE COMMAND EXAMPLE: CALL NAME
1. Press the talk switch.
2. Say “Call ”.

”If multiple matching items are found, a selection
screen will be displayed. Say “” or select
the number.
NOTE
OIn the same manner as it is displayed on the screen, “Call
(Call )”,
after saying “Call a contact” say the name, or the name and
type of phone, of a contact.
For example: “Call a contact”, “John Smith” or “Call a
contact”, “Mary Davis”, “Mobile”
OThere are 4 types of phones: Home, Mobile, Work and Other.
OShort or abbreviated names in the contacts list may not be
recognized. Change names in the contacts list to full names.
O6RPHWLPHVDYRLFHUHFRJQLWLRQUHVXOWFRQ
