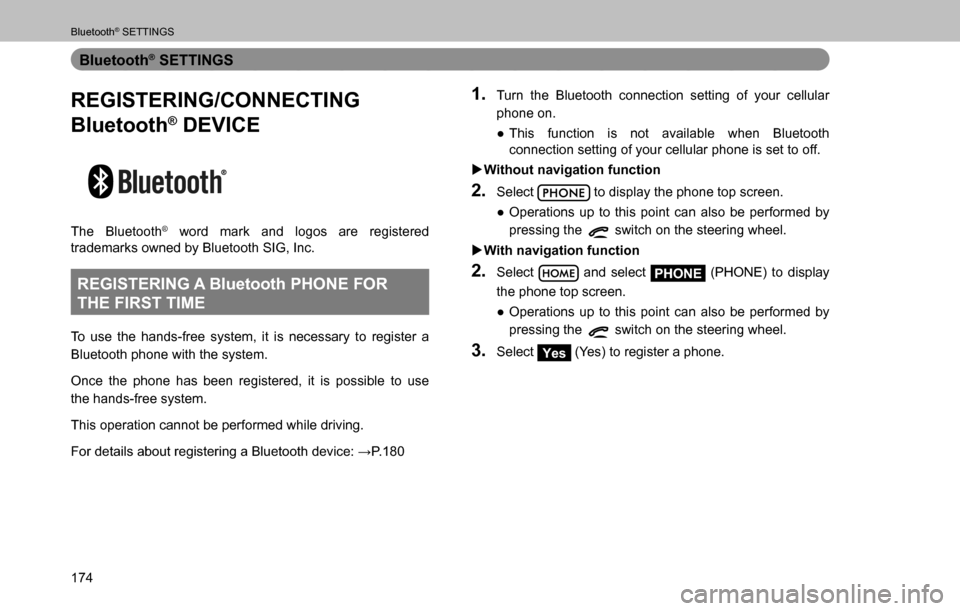

Page 176 of 308
Bluetooth® SETTINGS
174
Bluetooth® SETTINGS
REGISTERING/CONNECTING
Bluetooth
® DEVICE
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.
REGISTERING A Bluetooth PHONE FOR
THE FIRST TIME
To use the hands-free system, it is necessary to register a
Bluetooth phone with the system.
Once the phone has been registered, it is possible to use
the hands-free system.
This operation cannot be performed while driving.
<00290052005500030047004800570044004c004f0056000300440045005200580057000300550048004a004c0056005700480055004c0051004a0003004400030025004f005800480057005200520057004b0003004700480059004c00460048001d000301
3a0033>
1. Turn the Bluetooth connection setting of your cellular
phone on.
”This function is not available when Bluetooth
connection setting of your cellular phone is set to off.
XWithout navigation function
2. Select to display the phone top screen.
”Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
XWith navigation function
2. Select and select PHONE (PHONE) to display
the phone top screen.
”Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
3. Select Yes (Yes) to register a phone.

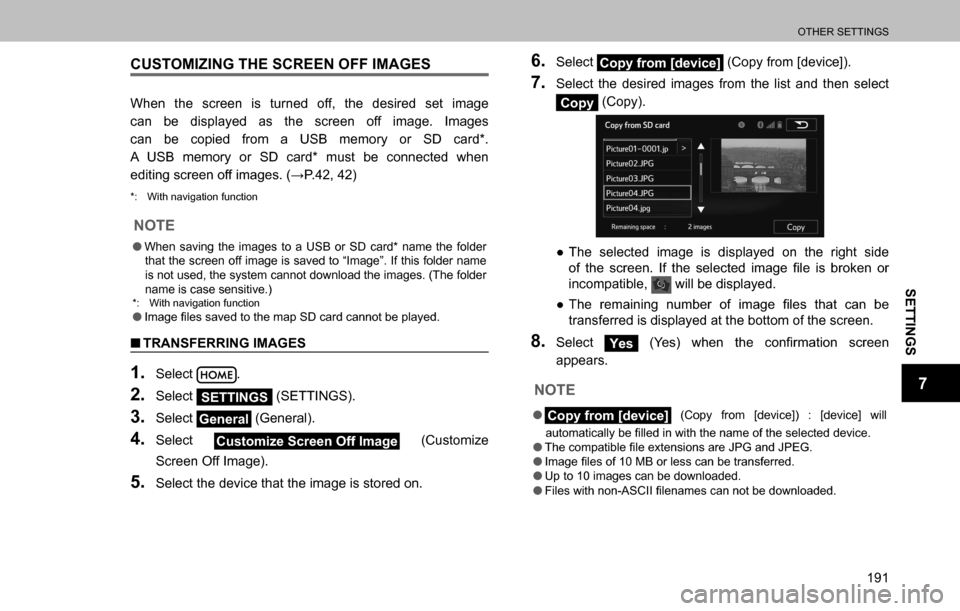

Page 193 of 308
OTHER SETTINGS
191
SETTINGS
7
CUSTOMIZING THE SCREEN OFF IMAGES
When the screen is turned off, the desired set image
can be displayed as the screen off image. Images
can be copied from a USB memory or SD card*.
A USB memory or SD card* must be connected when
H G L W L Q J V F U H H Q R I I L P D J H V : 3
*: With navigation function
NOTE
OWhen saving the images to a USB or SD card* name the folder
that the screen off image is saved to “Image”. If this folder name
is not used, the system cannot download the images. (The folder
name is case sensitive.)
*: With navigation function O<002c00500044004a0048000300bf004f0048005600030056004400590048004700030057005200030057004b0048000300500044005300030036002700030046004400550047000300460044005100510052005700030045004800030053004f0044005c00
48004700110003>
QTRANSFERRING IMAGES
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select General (General).
4. Select Customize Screen Off Image (Customize
Screen Off Image).
5. Select the device that the image is stored on.
6. Select Copy from [device] (Copy from [device]).
7. Select the desired images from the list and then select
Copy (Copy).
”The selected image is displayed on the right side
R I W K H V F U H H Q , I W K H V H O H F W H G L P D J H
Page 199 of 308
OTHER SETTINGS
197
SETTINGS
7
No. Function
When set to on, the indicator will illuminate. The
system is set to give maintenance information with the
“Maintenance Reminder (Maintenance Reminder)”
V F U H H Q : 3
NOTE
OWhen the vehicle needs to be serviced, the screen button color
will change to orange.
MAINTENANCE INFORMATION SETTING
1. Select the desired part or component screen button.
”When the vehicle needs to be serviced, the screen
button color will change to orange.
2. Set the conditions.
No. Function
Select to enter the next maintenance date.
Select to enter the driving distance until the next
maintenance check.
Select to cancel the conditions which have been
entered.
Select to reset the conditions which have expired.
3. Select OK (OK) after entering the conditions.
NOTE
ODepending on driving or road conditions, the actual date and
distance that maintenance should be performed may differ from
the stored date and distance in the system.
OWithout navigation function: No reminder is given even if the
entered date has passed. A reminder is only given when the
entered distance is reached.

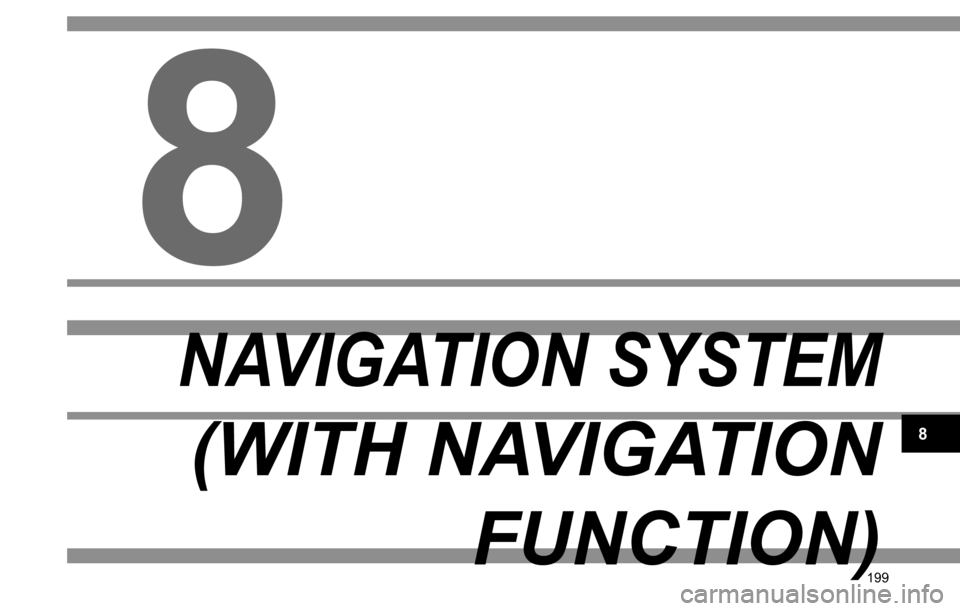

Page 201 of 308
199
NAVIGATION SYSTEM
(WITH NAVIGATION
FUNCTION)
8
8

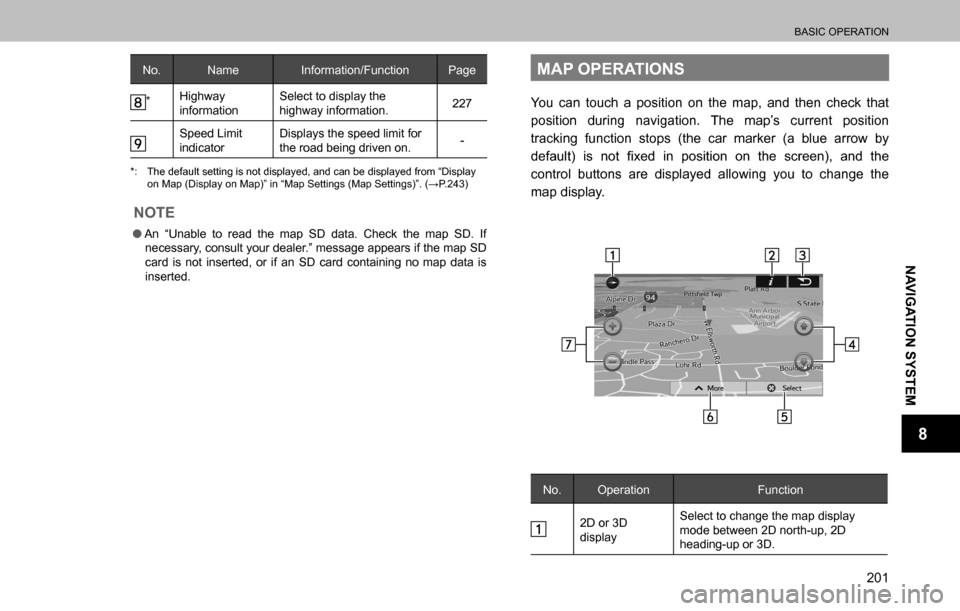

Page 203 of 308
BASIC OPERATION
201
NAVIGATION SYSTEM
8
No. Name Information/Function Page
*Highway
informationSelect to display the
highway information.227
Speed Limit
indicatorDisplays the speed limit for
the road being driven on.-
*: The default setting is not displayed, and can be displayed from “Display
<0052005100030030004400530003000b0027004c00560053004f0044005c0003005200510003003000440053000c00b40003004c0051000300b300300044005300030036004800570057004c0051004a00560003000b003000440053000300360048005700
57004c0051004a0056000c00b400110003000b013a0033>
NOTE
OAn “Unable to read the map SD data. Check the map SD. If
necessary, consult your dealer.” message appears if the map SD
card is not inserted, or if an SD card containing no map data is
inserted.
MAP OPERATIONS
You can touch a position on the map, and then check that
position during navigation. The map’s current position
tracking function stops (the car marker (a blue arrow by
G H I D X O W L V Q R W
Page 205 of 308
BASIC OPERATION
203
NAVIGATION SYSTEM
8
NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No. Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to clear the route and cancel navigation.
6 H O H F W W R R S H Q W K H ³ 7 U D I ¿ F 6 X P P D U \ 7 U D I ¿ F 6 X P P D U \ ´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.

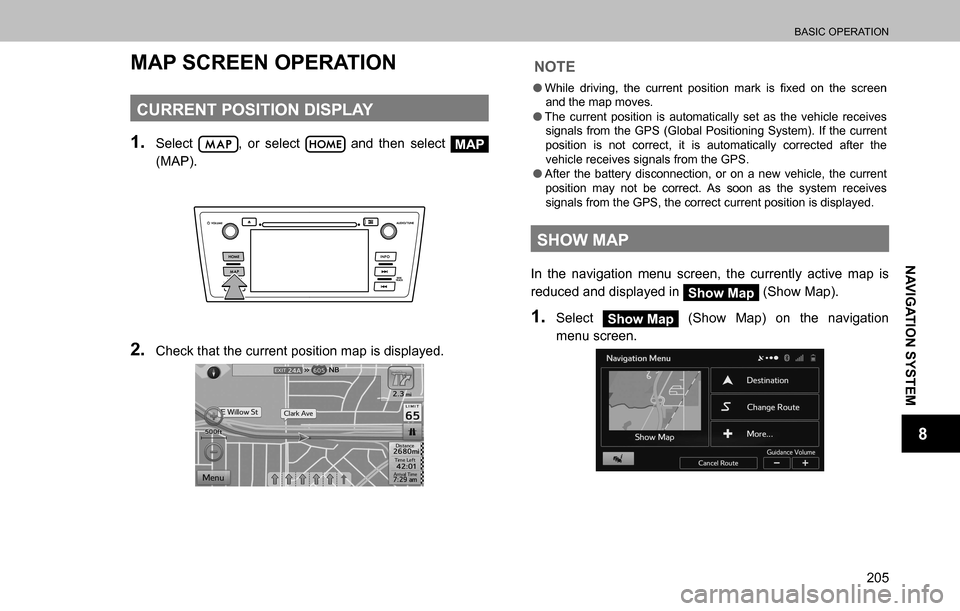

Page 207 of 308
BASIC OPERATION
205
NAVIGATION SYSTEM
8
MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1. Select , or select and then select MAP
(MAP).
2. Check that the current position map is displayed.
NOTE
O : K L O H G U L Y L Q J W K H F X U U H Q W S R V L W L R Q P D U N L V

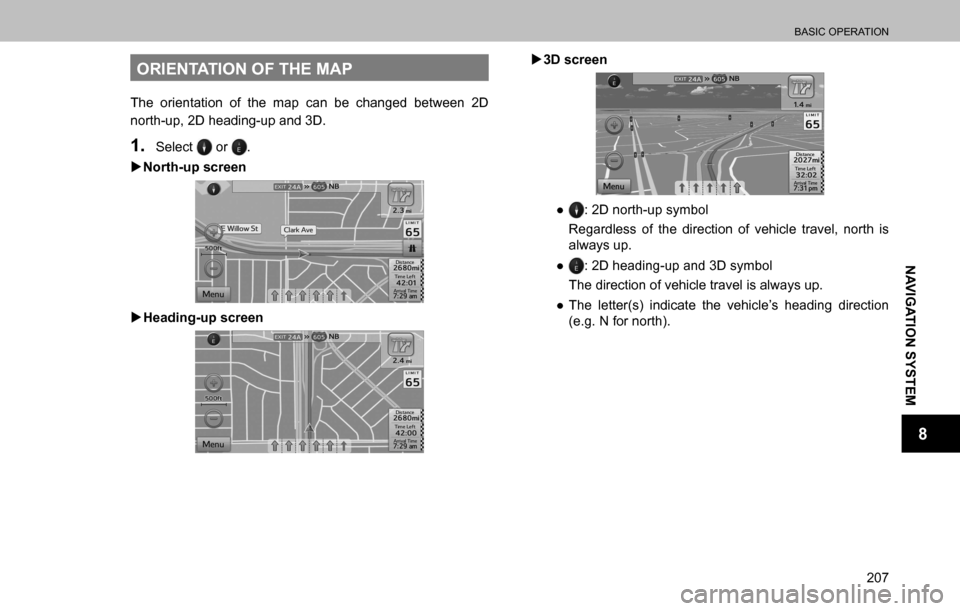

Page 209 of 308
BASIC OPERATION
207
NAVIGATION SYSTEM
8
ORIENTATION OF THE MAP
The orientation of the map can be changed between 2D
north-up, 2D heading-up and 3D.
1. Select or .
XNorth-up screen
XHeading-up screen
X3D screen
”: 2D north-up symbol
Regardless of the direction of vehicle travel, north is
always up.
”
: 2D heading-up and 3D symbol
The direction of vehicle travel is always up.
”The letter(s) indicate the vehicle’s heading direction
(e.g. N for north).

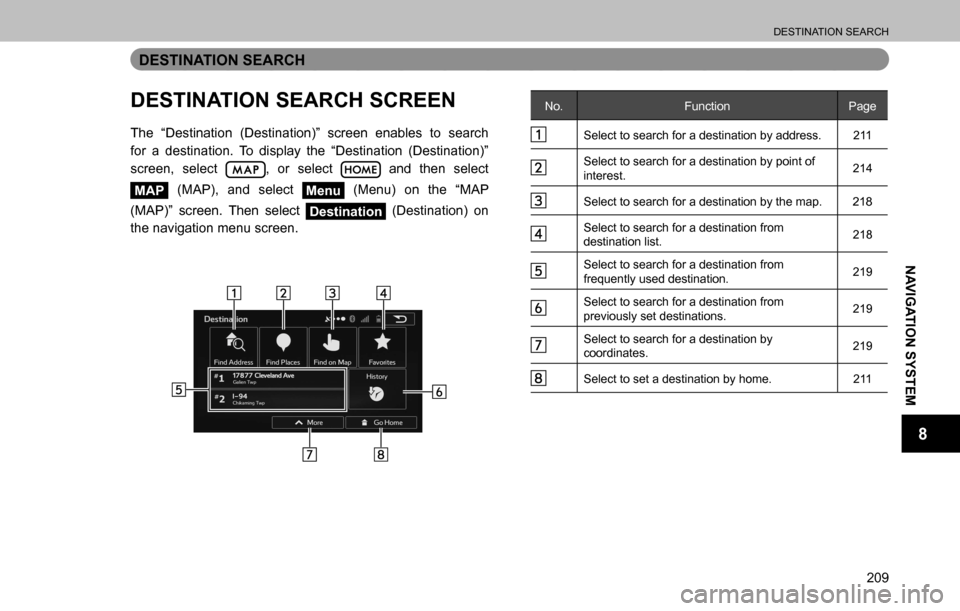

Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8
DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 211
Select to search for a destination by point of
interest.214
Select to search for a destination by the map. 218
Select to search for a destination from
destination list.218
Select to search for a destination from
frequently used destination.219
Select to search for a destination from
previously set destinations.219
Select to search for a destination by
coordinates.219
Select to set a destination by home. 211
Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1. Display the “Destination (Destination)” screen.
: 3
2. Select Go Home (Go Home).
3. Select Next (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
”The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find Address (Find Address).
3. Select Country or State/Province (Country or State/
Province).
”By default, the country and district for your current
position are displayed.
4. Select the desired country or state (province).
5. Select the desired search method.
No. Function Page
Select to search by city. 212
Select to search by street. 212
Select to search by intersection. 213
Select to search by city/town center. 212
