Page 21 of 610

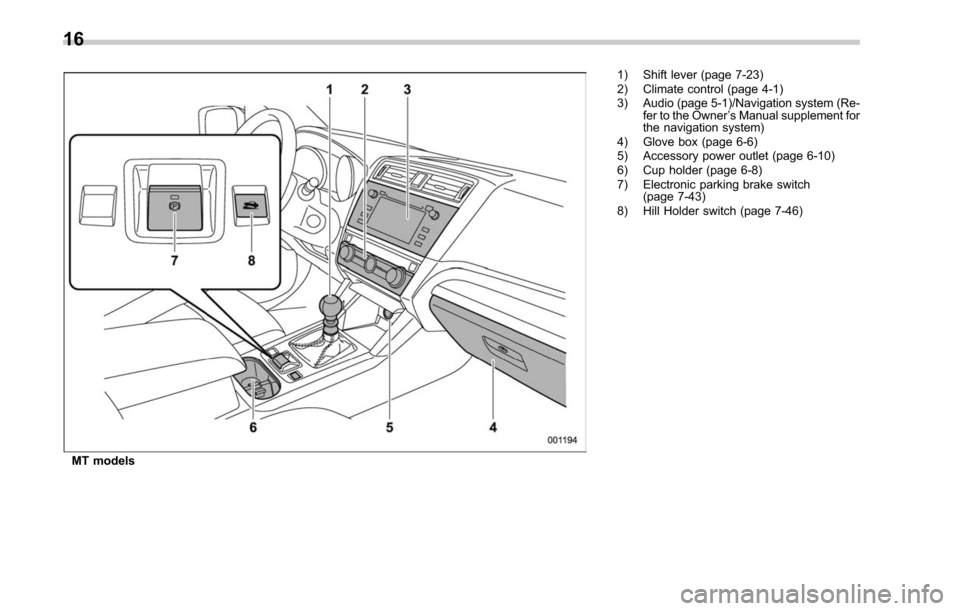

MT models1) Shift lever (page 7-23)
2) Climate control (page 4-1)
3) Audio (page 5-1)/Navigation system (Re-
fer to the Owner ’s Manual supplement for
the navigation system)
4) Glove box (page 6-6)
5) Accessory power outlet (page 6-10)
6) Cup holder (page 6-8)
7) Electronic parking brake switch (page 7-43)
8) Hill Holder switch (page 7-46)
16
Page 22 of 610

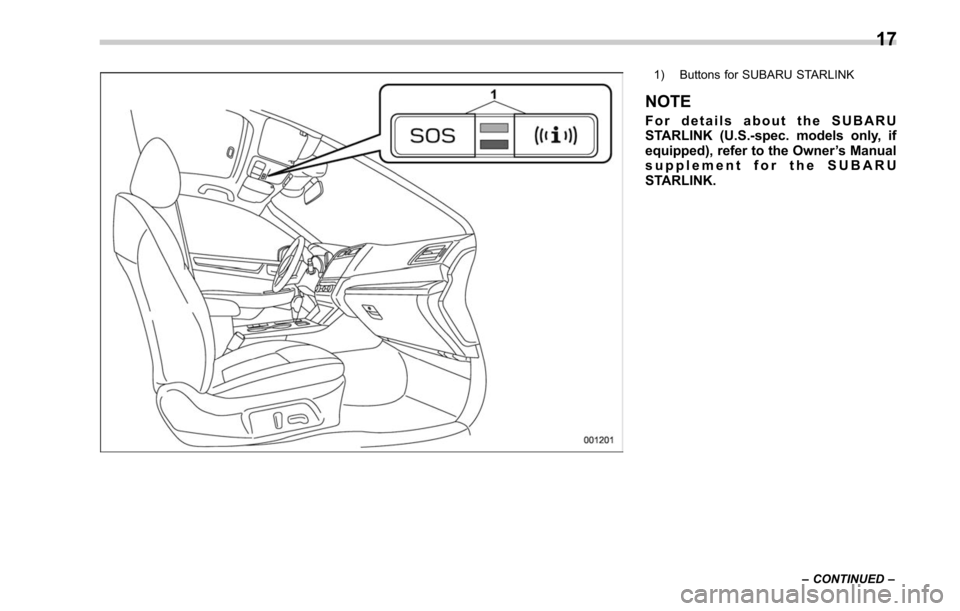

1) Buttons for SUBARU STARLINK
NOTE
For details about the SUBARU
STARLINK (U.S.-spec. models only, if
equipped), refer to the Owner’s Manual
supplement for the SUBARU
STARLINK.
– CONTINUED –
17
Page 23 of 610

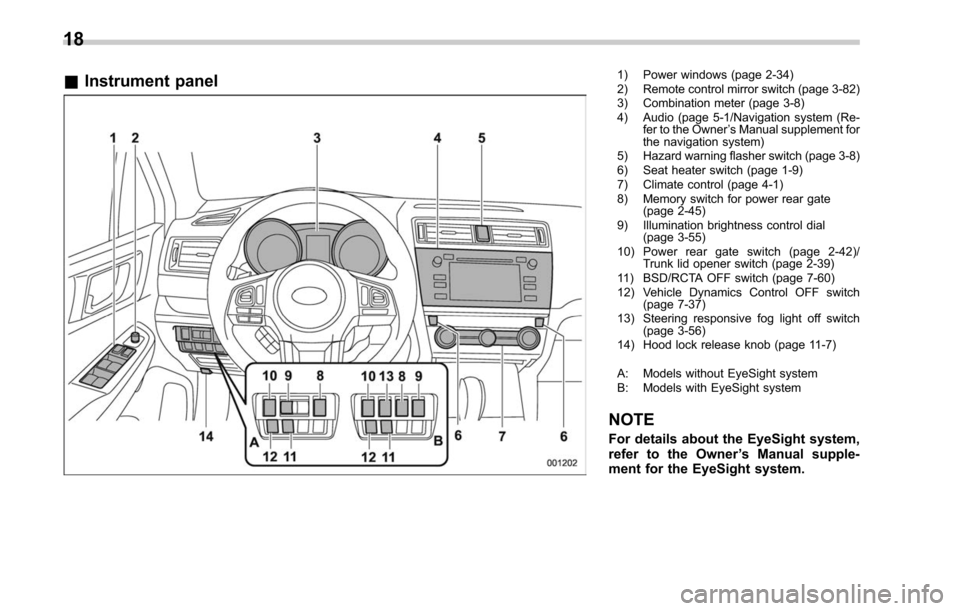

&Instrument panel1) Power windows (page 2-34)
2) Remote control mirror switch (page 3-82)
3) Combination meter (page 3-8)
4) Audio (page 5-1/Navigation system (Re-
fer to the Owner ’s Manual supplement for
the navigation system)
5) Hazard warning flasher switch (page 3-8)
6) Seat heater switch (page 1-9)
7) Climate control (page 4-1)
8) Memory switch for power rear gate (page 2-45)
9) Illumination brightness control dial (page 3-55)
10) Power rear gate switch (page 2-42)/ Trunk lid opener switch (page 2-39)
11) BSD/RCTA OFF switch (page 7-60)
12) Vehicle Dynamics Control OFF switch (page 7-37)
13) Steering responsive fog light off switch (page 3-56)
14) Hood lock release knob (page 11-7)
A: Models without EyeSight system
B: Models with EyeSight system
NOTE
For details about the EyeSight system,
refer to the Owner ’s Manual supple-
ment for the EyeSight system.
18
Page 24 of 610

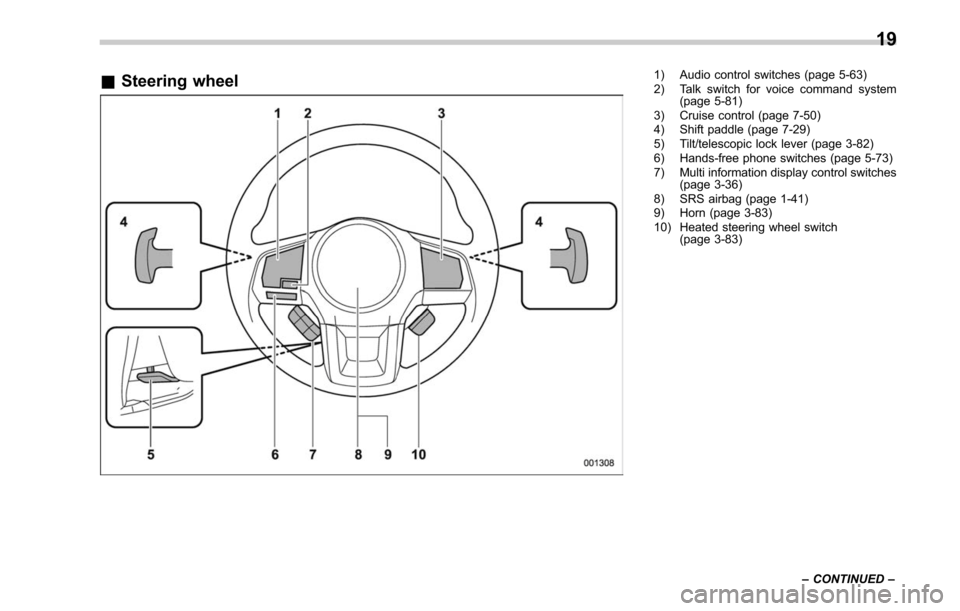

&Steering wheel1) Audio control switches (page 5-63)
2) Talk switch for voice command system
(page 5-81)
3) Cruise control (page 7-50)
4) Shift paddle (page 7-29)
5) Tilt/telescopic lock lever (page 3-82)
6) Hands-free phone switches (page 5-73)
7) Multi information display control switches (page 3-36)
8) SRS airbag (page 1-41)
9) Horn (page 3-83)
10) Heated steering wheel switch (page 3-83)
–CONTINUED –
19
Page 25 of 610

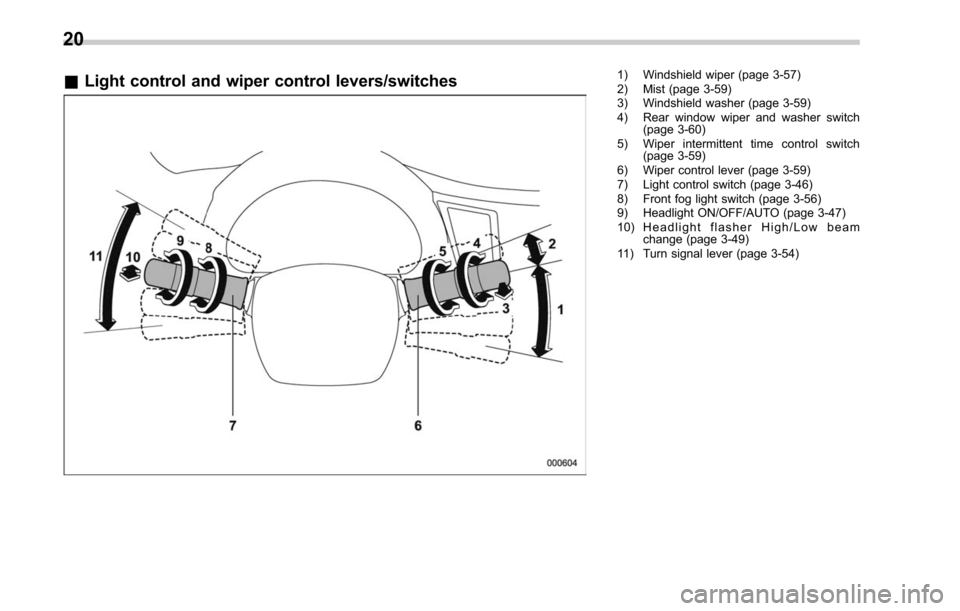

&Light control and wiper control levers/switches1) Windshield wiper (page 3-57)
2) Mist (page 3-59)
3) Windshield washer (page 3-59)
4) Rear window wiper and washer switch
(page 3-60)
5) Wiper intermittent time control switch (page 3-59)
6) Wiper control lever (page 3-59)
7) Light control switch (page 3-46)
8) Front fog light switch (page 3-56)
9) Headlight ON/OFF/AUTO (page 3-47)
10) Headlight flasher High/Low beam change (page 3-49)
11) Turn signal lever (page 3-54)
20
Page 26 of 610

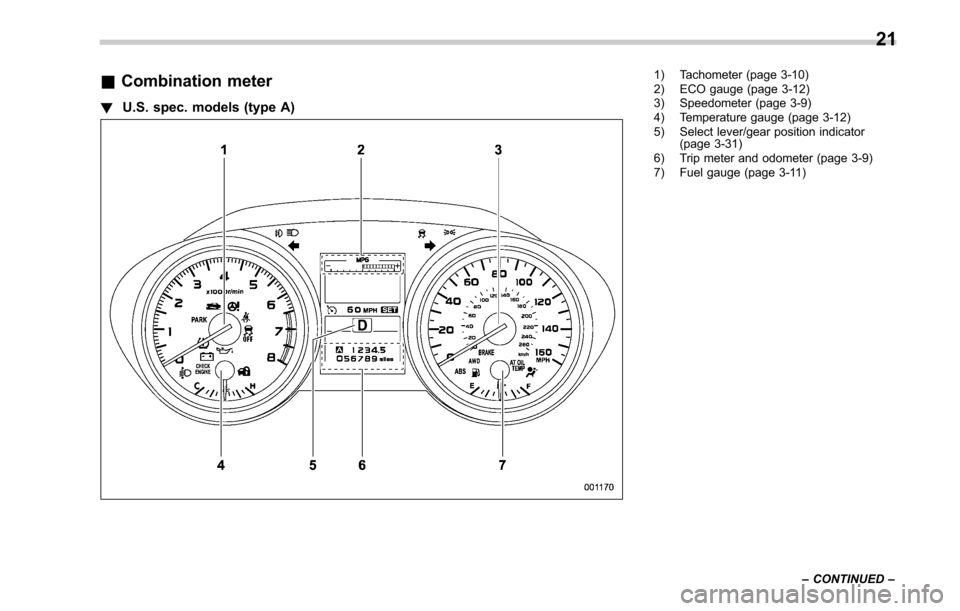

&Combination meter
! U.S. spec. models (type A)
1) Tachometer (page 3-10)
2) ECO gauge (page 3-12)
3) Speedometer (page 3-9)
4) Temperature gauge (page 3-12)
5) Select lever/gear position indicator
(page 3-31)
6) Trip meter and odometer (page 3-9)
7) Fuel gauge (page 3-11)
–CONTINUED –
21
Page 27 of 610

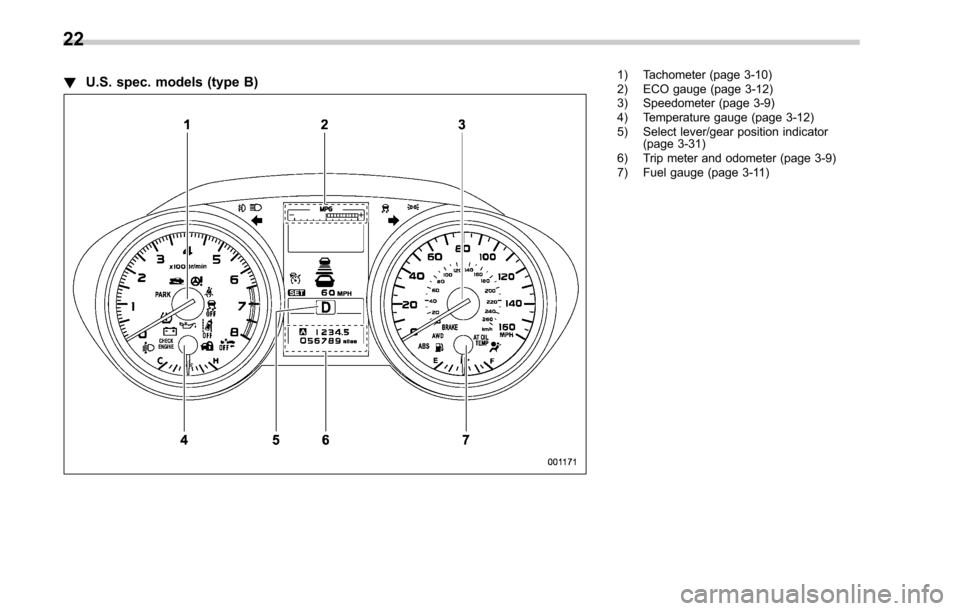

!U.S. spec. models (type B)1) Tachometer (page 3-10)
2) ECO gauge (page 3-12)
3) Speedometer (page 3-9)
4) Temperature gauge (page 3-12)
5) Select lever/gear position indicator
(page 3-31)
6) Trip meter and odometer (page 3-9)
7) Fuel gauge (page 3-11)
22
Page 28 of 610

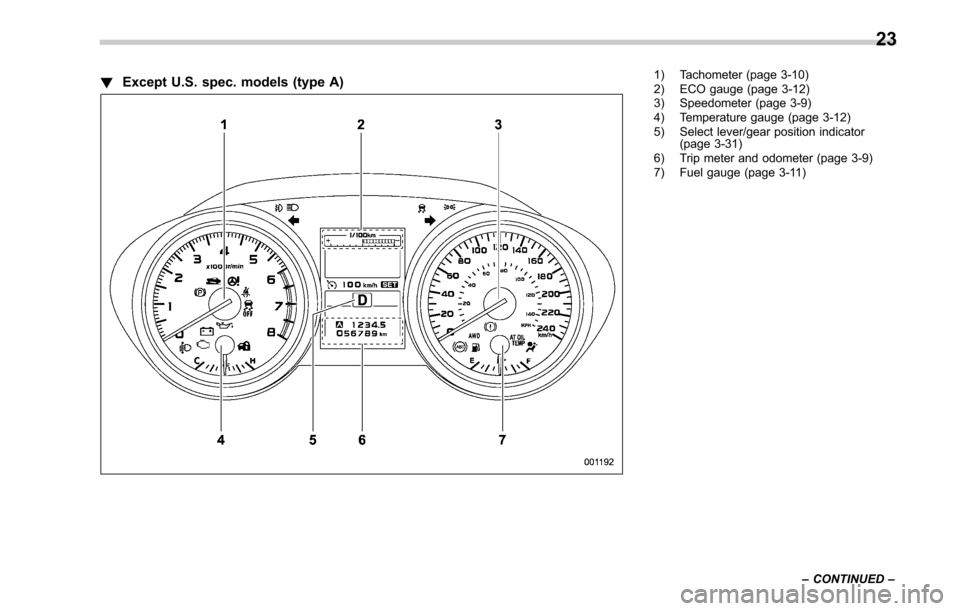

!Except U.S. spec. models (type A)1) Tachometer (page 3-10)
2) ECO gauge (page 3-12)
3) Speedometer (page 3-9)
4) Temperature gauge (page 3-12)
5) Select lever/gear position indicator
(page 3-31)
6) Trip meter and odometer (page 3-9)
7) Fuel gauge (page 3-11)
–CONTINUED –
23
Page 29 of 610

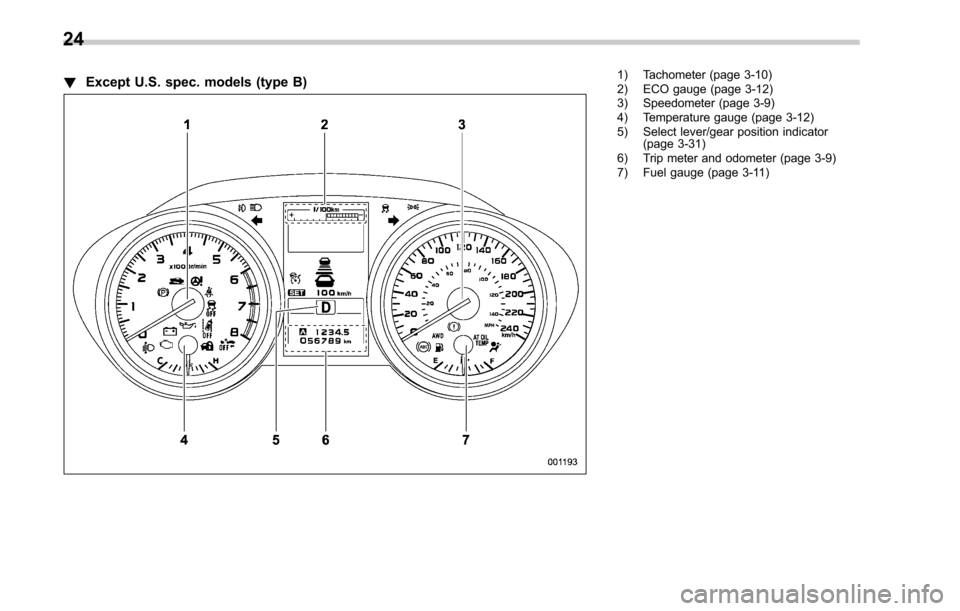

!Except U.S. spec. models (type B)1) Tachometer (page 3-10)
2) ECO gauge (page 3-12)
3) Speedometer (page 3-9)
4) Temperature gauge (page 3-12)
5) Select lever/gear position indicator
(page 3-31)
6) Trip meter and odometer (page 3-9)
7) Fuel gauge (page 3-11)
24
Page 30 of 610
&Warning and indicator lights
Mark Name Page
Seatbelt warning light 3-13
Front passenger’s
seatbelt warning light 3-13
SRS airbag system
warning light3-15
CHECK ENGINE warn-
ing light/Malfunction in-
dicator light3-16
Charge warning light 3-16
Oil pressure warning
light
3-16
Engine low oil level
warning indicator3-17
AT OIL TEMP warning
light (CVT models)
3-17
/ABS warning light 3-19
/Brake system warning
light3-19Mark Name Page
/Electronic parking
brake indicator light
3-21
Hill Holder indicator
light3-22
Door open indicator 3-23
Low fuel warning light 3-22
All-Wheel Drive warn-
ing light (CVT models)
3-23
Power steering warning
light3-23
Vehicle Dynamics Con-
trol warning light/Vehi-
cle Dynamics Control
operation indicator light3-24
Vehicle Dynamics Con-
trol OFF indicator light
3-25
Access key warning in-
dicator (if equipped)
3-25
Security indicator light 3-30
Turn signal indicator
lights3-31Mark Name Page
High beam indicator
light
3-31
High beam assist indi-
cator (green)3-31
High beam assist
warning indicator
(yellow)3-31
Automatic headlight
beam leveler warning
light (if equipped)
3-32
Front fog light indicator
light (if equipped)
3-32
Cruise control indicator 3-31
Cruise control set indi-
cator3-32
X-mode indicator (if
equipped)
3-32
Hill descent control in-
dicator (if equipped)3-32
Headlight indicator light 3-32
Low tire pressure
warning light (U.S.
spec. models)3-17
– CONTINUED –
25
