&Rear gate lightThe rear gate light is on the ceiling just
inside of the rear gate. Push the right side
of the switch to turn it on, and push the left
side of the switch to turn it off.
&Automatic ambient light for
center console area (if
equipped)The automatic ambient light illuminates
when the ignition switch is in the “ON”
position and the light control switch is in
the “
”position or “
”position. The
light dimly illuminates the area around the
center console. The light turns off when
the light control switch is in the “OFF”
position. Also, the brightness of the light is
adjusted by the illumination brightness
control dial.
Map lightTo turn on the map light, push the switch.
To turn it off, push the switch again.
When leaving the vehicle, make sure the
light is turned off to avoid battery dis-
charge.
The light also can be turned on by use of
the remote keyless entry transmitter. Refer
to “Remote keyless entry system ”in
chapter 2 for detailed information.
The setting of the period for which the light
stays on can be changed by a SUBARU
dealer.
Contact the nearest SUBARU dealer for
details.
Interior equipment
6-3
ProCarManuals.com

6-4
Interior equipment
Sun visorsTo block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.
&Sun visor extension plateWith the sun visor positioned over the side
window, you can use the sun visor
extension plate to prevent glare through
the gap between the sun visor and center
pillar. To use the extension plate, pull it
toward the rear of the vehicle. When you
have finished using it, stow it by pushing it
toward the front of the vehicle.
CAUTION
Do not pull out the extension plate
with the sun visor positioned over
the windshield. The extension plate
would obstruct your view of the
rearview mirror.&Vanity mirror with light
CAUTION
Keep the vanity mirror cover closed
while the car is being driven to avoid
dazzle.
ProCarManuals.com

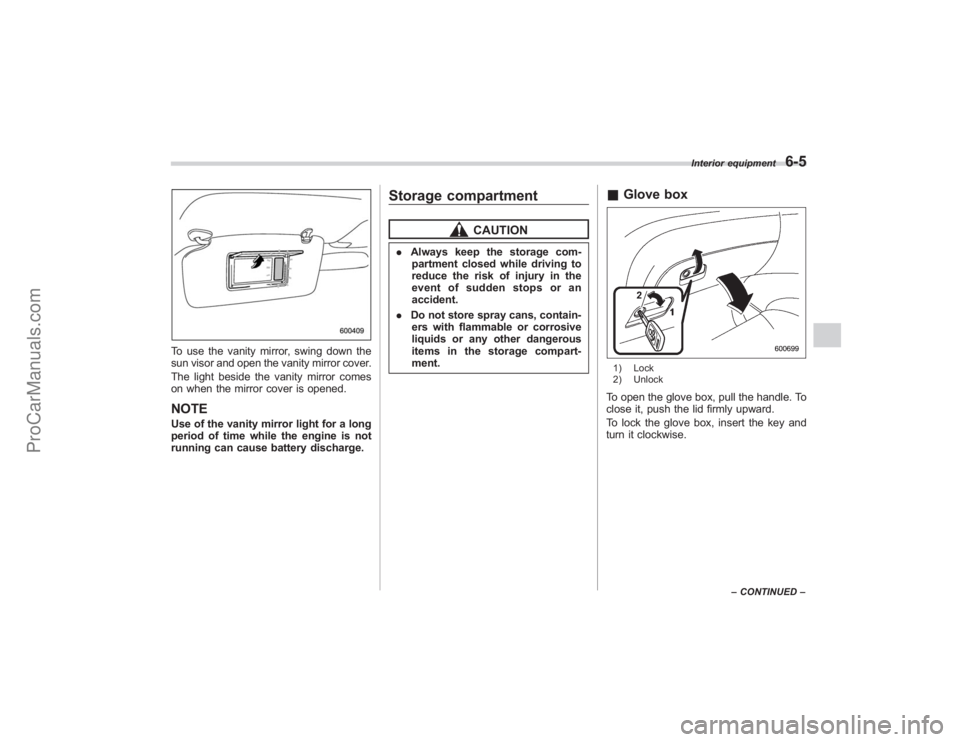

To use the vanity mirror, swing down the
sun visor and open the vanity mirror cover.
The light beside the vanity mirror comes
on when the mirror cover is opened.NOTEUse of the vanity mirror light for a long
period of time while the engine is not
running can cause battery discharge.
Storage compartment
CAUTION
.Always keep the storage com-
partment closed while driving to
reduce the risk of injury in the
event of sudden stops or an
accident.
. Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the storage compart-
ment.
& Glove box1) Lock
2) UnlockTo open the glove box, pull the handle. To
close it, push the lid firmly upward.
To lock the glove box, insert the key and
turn it clockwise.
Interior equipment
6-5
–CONTINUED –
ProCarManuals.com

6-6
Interior equipment

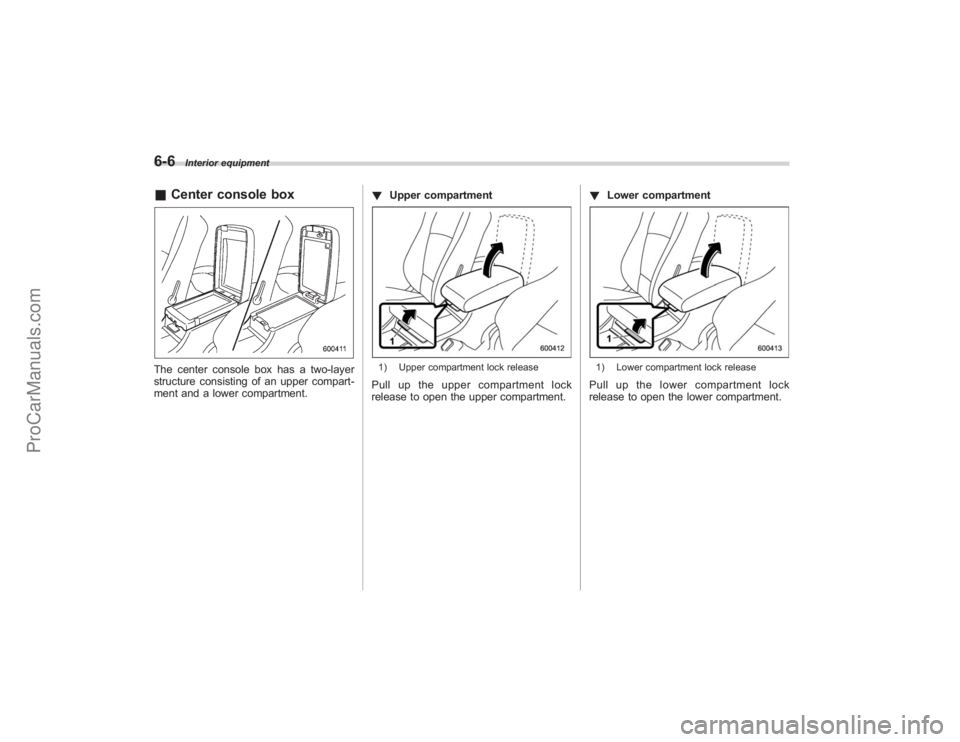

&Center console boxThe center console box has a two-layer
structure consisting of an upper compart-
ment and a lower compartment. !
Upper compartment
1) Upper compartment lock releasePull up the upper compartment lock
release to open the upper compartment. !
Lower compartment
1) Lower compartment lock releasePull up the lower compartment lock
release to open the lower compartment.
ProCarManuals.com

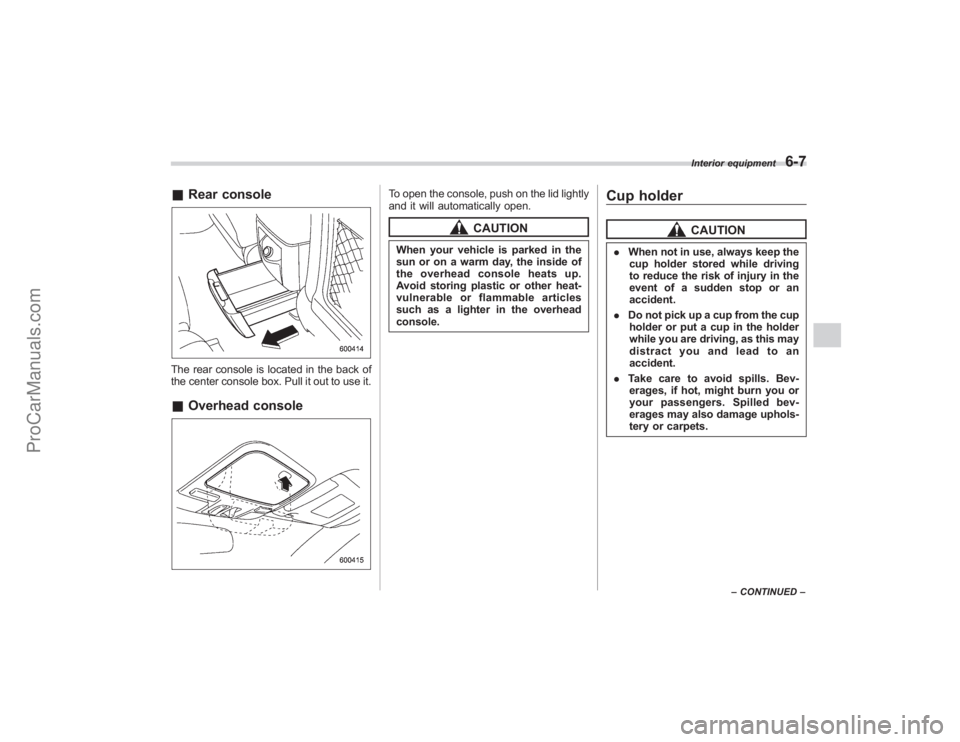

&Rear consoleThe rear console is located in the back of
the center console box. Pull it out to use it.&Overhead console
To open the console, push on the lid lightly
and it will automatically open.
CAUTION
When your vehicle is parked in the
sun or on a warm day, the inside of
the overhead console heats up.
Avoid storing plastic or other heat-
vulnerable or flammable articles
such as a lighter in the overhead
console.
Cup holder
CAUTION
. When not in use, always keep the
cup holder stored while driving
to reduce the risk of injury in the
event of a sudden stop or an
accident.
. Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an
accident.
. Take care to avoid spills. Bev-
erages, if hot, might burn you or
your passengers. Spilled bev-
erages may also damage uphols-
tery or carpets.
Interior equipment
6-7
– CONTINUED –
ProCarManuals.com

6-8
Interior equipment

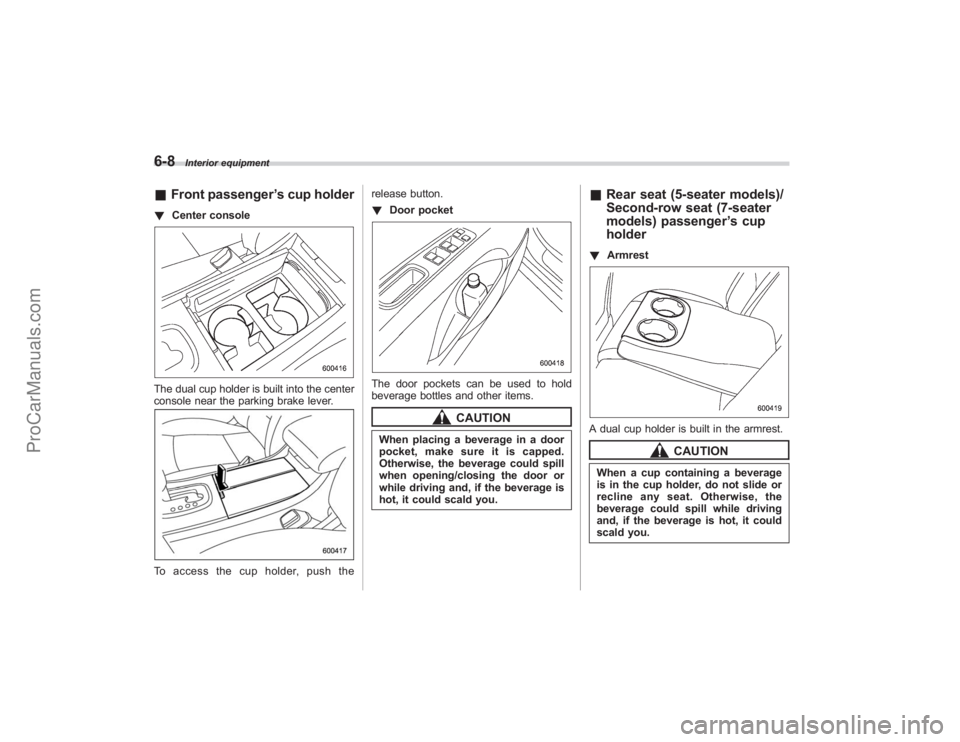

&Front passenger ’s cup holder! Center consoleThe dual cup holder is built into the center
console near the parking brake lever.To access the cup holder, push the release button.
!
Door pocket
The door pockets can be used to hold
beverage bottles and other items.
CAUTION
When placing a beverage in a door
pocket, make sure it is capped.
Otherwise, the beverage could spill
when opening/closing the door or
while driving and, if the beverage is
hot, it could scald you.
&Rear seat (5-seater models)/
Second-row seat (7-seater
models) passenger ’s cup
holder! ArmrestA dual cup holder is built in the armrest.
CAUTION
When a cup containing a beverage
is in the cup holder, do not slide or
recline any seat. Otherwise, the
beverage could spill while driving
and, if the beverage is hot, it could
scald you.
ProCarManuals.com

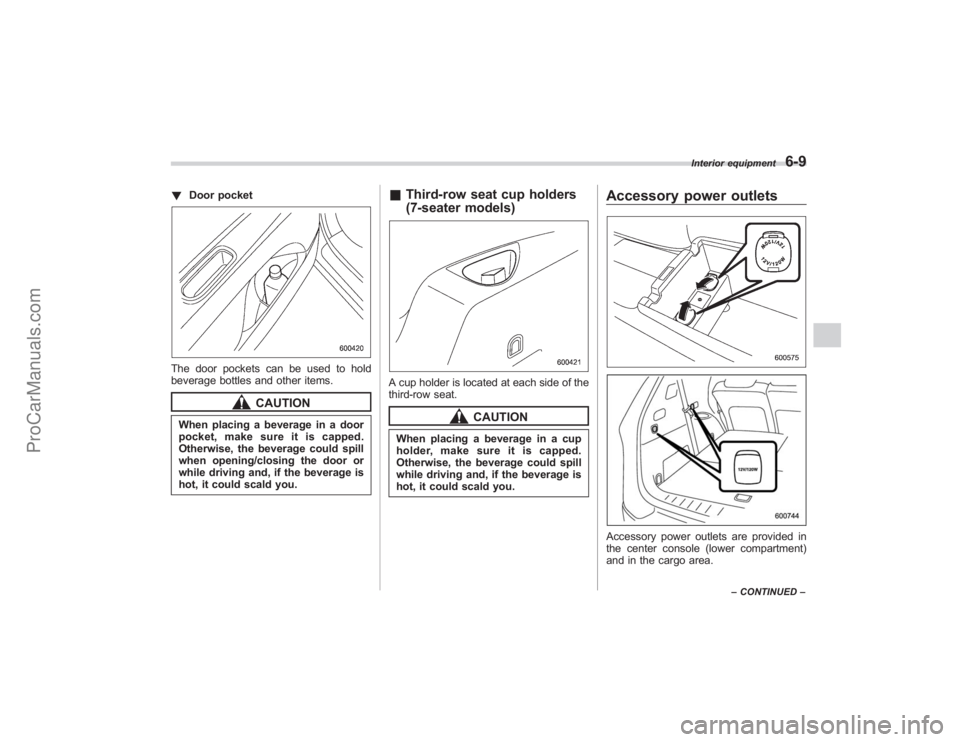

!Door pocketThe door pockets can be used to hold
beverage bottles and other items.
CAUTION
When placing a beverage in a door
pocket, make sure it is capped.
Otherwise, the beverage could spill
when opening/closing the door or
while driving and, if the beverage is
hot, it could scald you.
&Third-row seat cup holders
(7-seater models)A cup holder is located at each side of the
third-row seat.
CAUTION
When placing a beverage in a cup
holder, make sure it is capped.
Otherwise, the beverage could spill
while driving and, if the beverage is
hot, it could scald you.
Accessory power outletsAccessory power outlets are provided in
the center console (lower compartment)
and in the cargo area.
Interior equipment
6-9
–CONTINUED –
ProCarManuals.com

6-10
Interior equipment

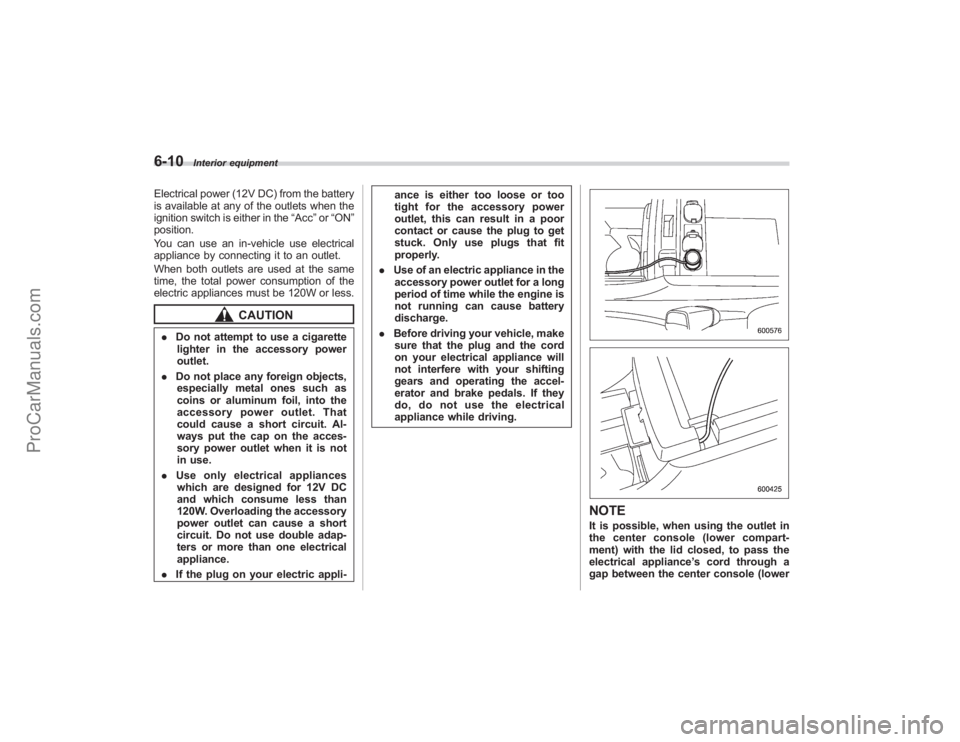

Electrical power (12V DC) from the battery
is available at any of the outlets when the
ignition switch is either in the“Acc”or “ON ”
position.
You can use an in-vehicle use electrical
appliance by connecting it to an outlet.
When both outlets are used at the same
time, the total power consumption of the
electric appliances must be 120W or less.
CAUTION
. Do not attempt to use a cigarette
lighter in the accessory power
outlet.
. Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit. Al-
ways put the cap on the acces-
sory power outlet when it is not
in use.
. Use only electrical appliances
which are designed for 12V DC
and which consume less than
120W. Overloading the accessory
power outlet can cause a short
circuit. Do not use double adap-
ters or more than one electrical
appliance.
. If the plug on your electric appli- ance is either too loose or too
tight for the accessory power
outlet, this can result in a poor
contact or cause the plug to get
stuck. Only use plugs that fit
properly.
. Use of an electric appliance in the
accessory power outlet for a long
period of time while the engine is
not running can cause battery
discharge.
. Before driving your vehicle, make
sure that the plug and the cord
on your electrical appliance will
not interfere with your shifting
gears and operating the accel-
erator and brake pedals. If they
do, do not use the electrical
appliance while driving.
NOTEIt is possible, when using the outlet in
the center console (lower compart-
ment) with the lid closed, to pass the
electrical appliance ’s cord through a
gap between the center console (lower
ProCarManuals.com

compartment) and the lid. It is also
possible to pass the cord through a
groove in the lid and up to the center
console (upper compartment).

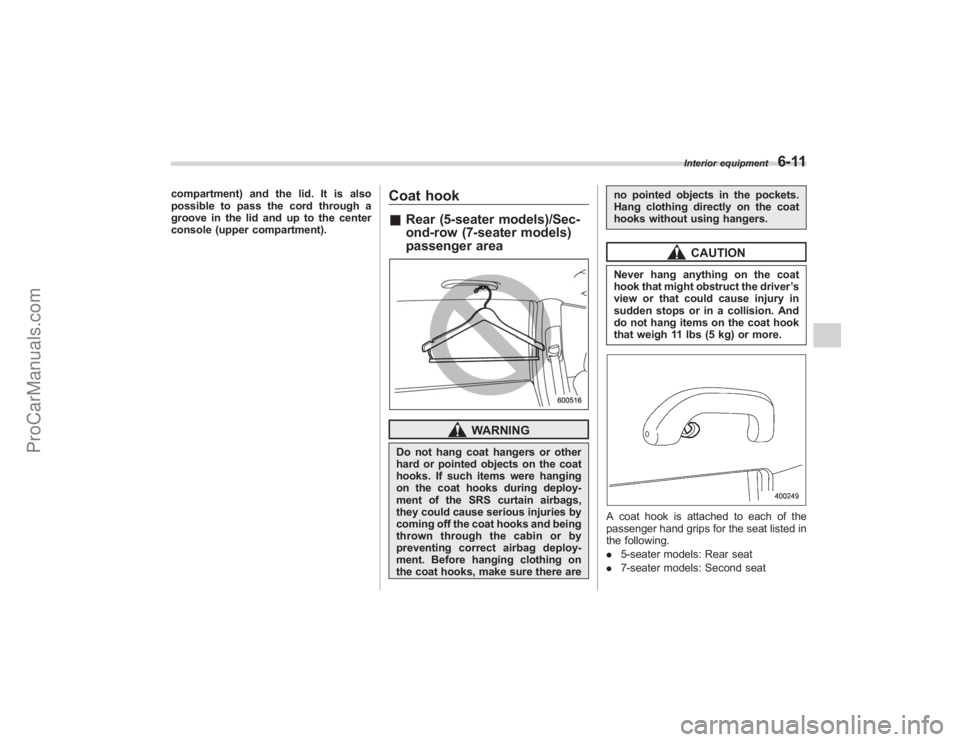

Coat hook&Rear (5-seater models)/Sec-
ond-row (7-seater models)
passenger area
WARNING
Do not hang coat hangers or other
hard or pointed objects on the coat
hooks. If such items were hanging
on the coat hooks during deploy-
ment of the SRS curtain airbags,
they could cause serious injuries by
coming off the coat hooks and being
thrown through the cabin or by
preventing correct airbag deploy-
ment. Before hanging clothing on
the coat hooks, make sure there are no pointed objects in the pockets.
Hang clothing directly on the coat
hooks without using hangers.
CAUTION
Never hang anything on the coat
hook that might obstruct the driver
’s
view or that could cause injury in
sudden stops or in a collision. And
do not hang items on the coat hook
that weigh 11 lbs (5 kg) or more.A coat hook is attached to each of the
passenger hand grips for the seat listed in
the following.
. 5-seater models: Rear seat
. 7-seater models: Second seat
Interior equipment
6-11
ProCarManuals.com

6-12
Interior equipment

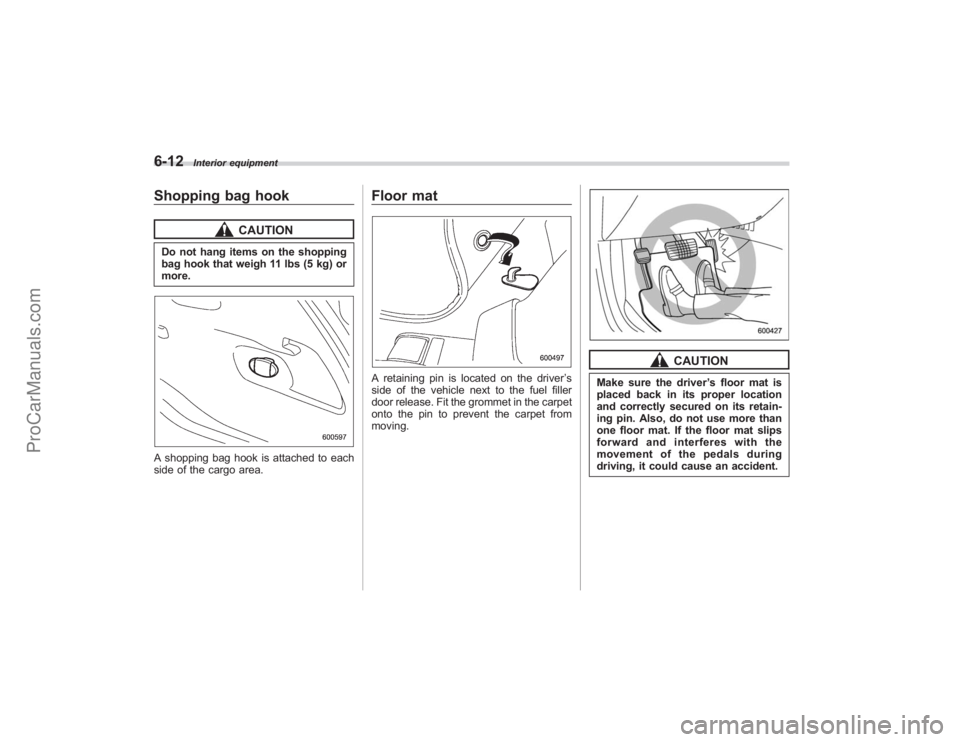

Shopping bag hook
CAUTION
Do not hang items on the shopping
bag hook that weigh 11 lbs (5 kg) or
more.A shopping bag hook is attached to each
side of the cargo area.
Floor matA retaining pin is located on the driver’s
side of the vehicle next to the fuel filler
door release. Fit the grommet in the carpet
onto the pin to prevent the carpet from
moving.
CAUTION
Make sure the driver ’s floor mat is
placed back in its proper location
and correctly secured on its retain-
ing pin. Also, do not use more than
one floor mat. If the floor mat slips
forward and interferes with the
movement of the pedals during
driving, it could cause an accident.
