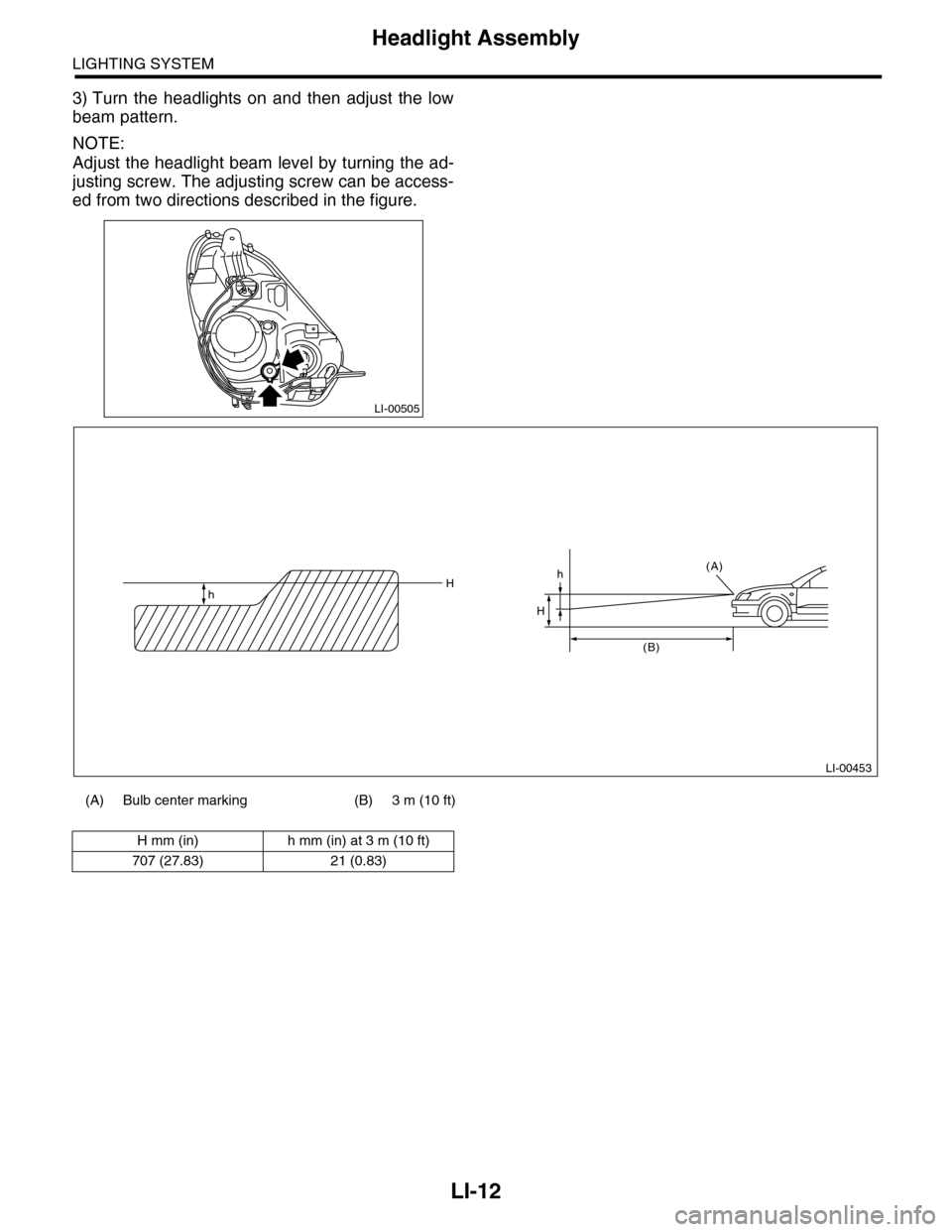

Page 545 of 2453
LI-12
Headlight Assembly
LIGHTING SYSTEM
3) Turn the headlights on and then adjust the low
beam pattern.
NOTE:
Adjust the headlight beam level by turning the ad-
justing screw. The adjusting screw can be access-
ed from two directions described in the figure.
LI-00505
(A) Bulb center marking (B) 3 m (10 ft)
LI-00453
Hh
H
h
(B)
(A)
H mm (in) h mm (in) at 3 m (10 ft)
707 (27.83) 21 (0.83)

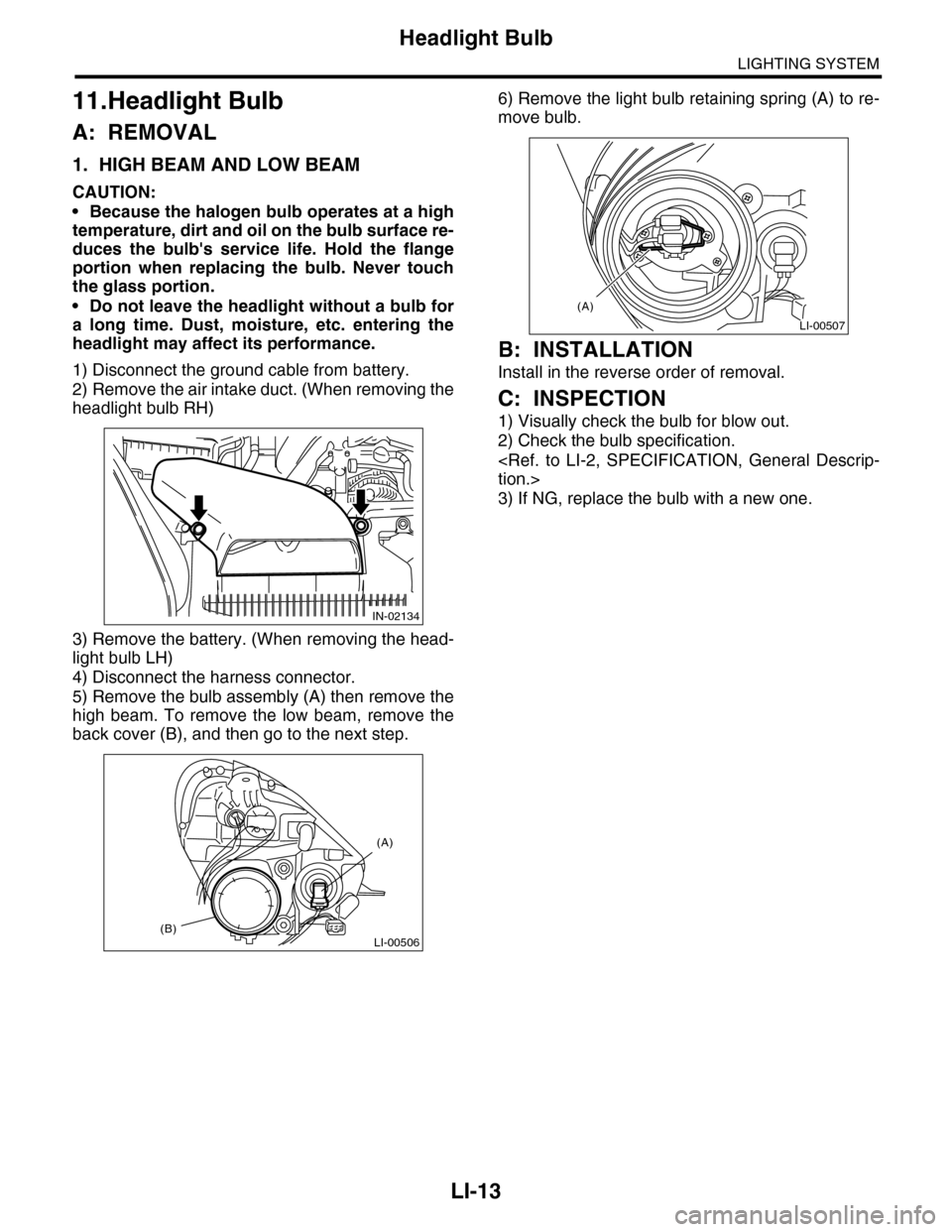

Page 546 of 2453
LI-13
Headlight Bulb
LIGHTING SYSTEM
11.Headlight Bulb
A: REMOVAL
1. HIGH BEAM AND LOW BEAM
CAUTION:
•Because the halogen bulb operates at a high
temperature, dirt and oil on the bulb surface re-
duces the bulb's service life. Hold the flange
portion when replacing the bulb. Never touch
the glass portion.
•Do not leave the headlight without a bulb for
a long time. Dust, moisture, etc. entering the
headlight may affect its performance.
1) Disconnect the ground cable from battery.
2) Remove the air intake duct. (When removing the
headlight bulb RH)
3) Remove the battery. (When removing the head-
light bulb LH)
4) Disconnect the harness connector.
5) Remove the bulb assembly (A) then remove the
high beam. To remove the low beam, remove the
back cover (B), and then go to the next step.
6) Remove the light bulb retaining spring (A) to re-
move bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
3) If NG, replace the bulb with a new one.
IN-02134
LI-00506(B)
(A)
LI-00507
(A)
