AB-2
General Description
AIRBAG SYSTEM
1. General Description
A: COMPONENT
1. DRIVER’S AIRBAG MODULE
Tightening torque:
10 N·m (1.0 kgf-m, 7.2 ft-lb)
2. PASSENGER’S AIRBAG MODULE
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.5 ft-lb)
3. SIDE AIRBAG MODULE
Tightening torque:
6 N·m (0.61 kgf-m, 4.4 ft-lb)
4. AIRBAG CONTROL MODULE
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
5. FRONT SUB SENSOR
Tightening torque:
13 N·m (1.32 kgf-m, 9.6 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
AB-01269
TT
AB-01270
T
AB-00754
T
(A) Bolt
(A) Bolt
AB-01271
T
(A)
AB-01272
T
T
(A)
(A)
Page 2 of 2453
AB-3
General Description
AIRBAG SYSTEM
6. SIDE AIRBAG SENSOR
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
7. CURTAIN AIRBAG SENSOR
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
8. STEERING ROLL CONNECTOR
9. AIRBAG HARNESS(A) Bolt
(A) Nut
AB-01190
T
(A)
AB-01191
(A)
(1) Airbag main harness
(2) Airbag rear harness RH
(3) Airbag rear harness LH
AB-01273
AB-01275
(1)
(3)
(2)
Page 3 of 2453
AB-4
General Description
AIRBAG SYSTEM
10.CURTAIN AIRBAG MODULE
Tightening torque:
7.5 N·m (0.77 kgf-m, 5.5 ft-lb)
B: CAUTION
•When servicing a vehicle, be sure to turn the ig-
nition switch to OFF, disconnect the ground cable
from battery, and wait for more than 20 seconds
before starting work.
•The airbag system is fitted with a backup power
source. After disconnecting the battery ground ca-
ble, the airbag may deploy if you do not wait for
more than 20 seconds before starting the service of
airbag system.
•If the airbag warning light illuminates, repair the
vehicle immediately. Otherwise, the airbag or pre-
tensioner may inflate incorrectly, or not inflate in
collision.
•If sensors, airbag module, airbag control module,
pretensioner or harness is deformed or damaged,
replace with new part.
•When checking the airbag system, be sure to
use a digital circuit tester. Use of an analog circuit
tester may cause the airbag to activate erroneously
due to a minimal current inside tester.
(F) Front side (1) Bolt
AB-01274
(1)(1)
(1)
(1)(1)(1)(1)(1)(1)(1)
(1)
(1)
(F)
IN-00203
AB-00120
AB-00121
Page 4 of 2453
AB-5
General Description
AIRBAG SYSTEM
•When checking, use a test harness (1). Damage
to connector terminal cause malfunction. Do not di-
rectly apply the tester probe to connector terminal
of airbag.
•Do not allow water or oil to come in contact with
the connector terminals. Also do not touch the con-
nector terminals.
•Do not check continuity of the airbag modules for
driver’s side, passenger’s side and curtain, or the
pretensioner.
•If damage, open circuit or rust is found on airbag
system wire harness, do not use a soldering equip-
ment to repair. Replace the faulty harness with a
new genuine part.
•Install the wire harness securely with the speci-
fied clips to avoid interference or tangled with other
parts.
•When painting or performing sheet metal work
on the front part of the vehicle, including the front
wheel apron, front fender and front side frame, re-
move the front sub sensors and wire harness of air-
bag system.
•When painting or performing sheet metal work
on the side of the vehicle, including the side sill,
center pillar and front and rear doors, remove the
side airbag sensors and wire harness of the airbag
system.
•Do not use the airbag or pretensioner parts from
other vehicles. Always replace the defective parts
with new parts.
•Never reuse a deployed airbag module and pre-
tensioner.
AB-00122
(1)
AB-00126
AB-00006
AB-00124
AB-00125
AB-00129
Page 5 of 2453
AB-6
General Description
AIRBAG SYSTEM
•Do not discard the uninflated airbag or preten-
sioner.
•When airbag control module, front sub sensor,
side airbag sensor and curtain airbag sensor are
removed, do not reuse the bolts and nuts of them.
Always use new bolts and nuts for them.
•Do not drop each airbag module, airbag control
module and each sensor, or store these parts un-
der high temperature over 93°C (199°F), or let wa-
ter, oil or grease get on them; the internal parts may
be damaged or the reliability may be greatly low-
ered.
•After removal of each parts for airbag system,
keep them with the pad facing upward on a dry,
clean and flat surface without heat, light sources,
moisture and dust.
•The airbag modules for driver’s, passenger’s,
side or curtain, or the pretensioner must not be dis-
assembled.
•When performing attachment of the steering
wheel and steering roll connector, make sure to
perform adjustment of the steering roll connector.
•The removed front seat with airbag module must
be kept at least 200 mm (8 in) away from walls and
other objects.
AB-00123
AB-00056
(1) 200 mm (8 in) or more
AB-00779
AB-00128
(1)
Page 6 of 2453
AB-7
General Description
AIRBAG SYSTEM

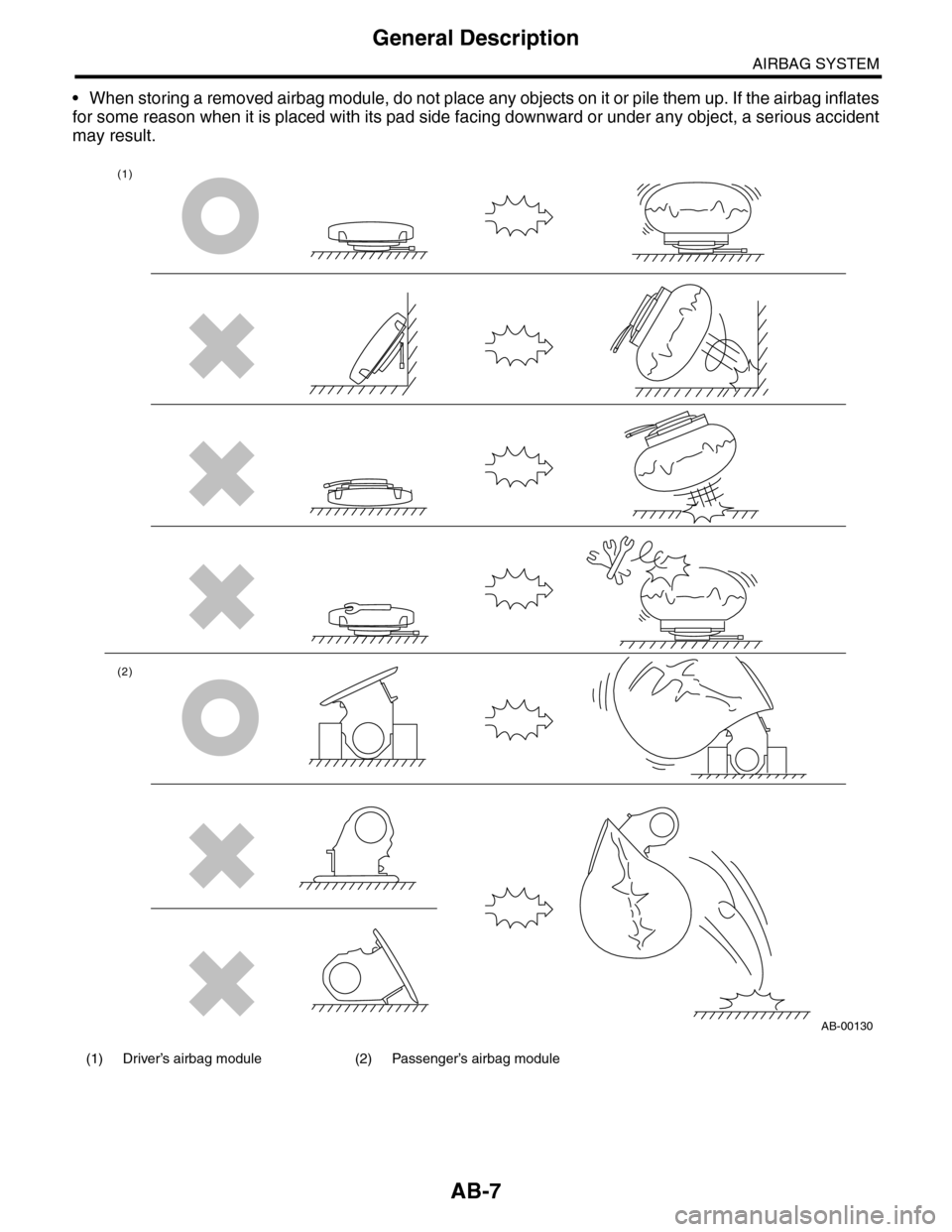

•When storing a removed airbag module, do not place any objects on it or pile them up. If the airbag inflates
for some reason when it is placed with its pad side facing downward or under any object, a serious accident
may result.
(1) Driver’s airbag module (2) Passenger’s airbag module
AB-00130
(2)
(1)
Page 7 of 2453
AB-8
General Description
AIRBAG SYSTEM

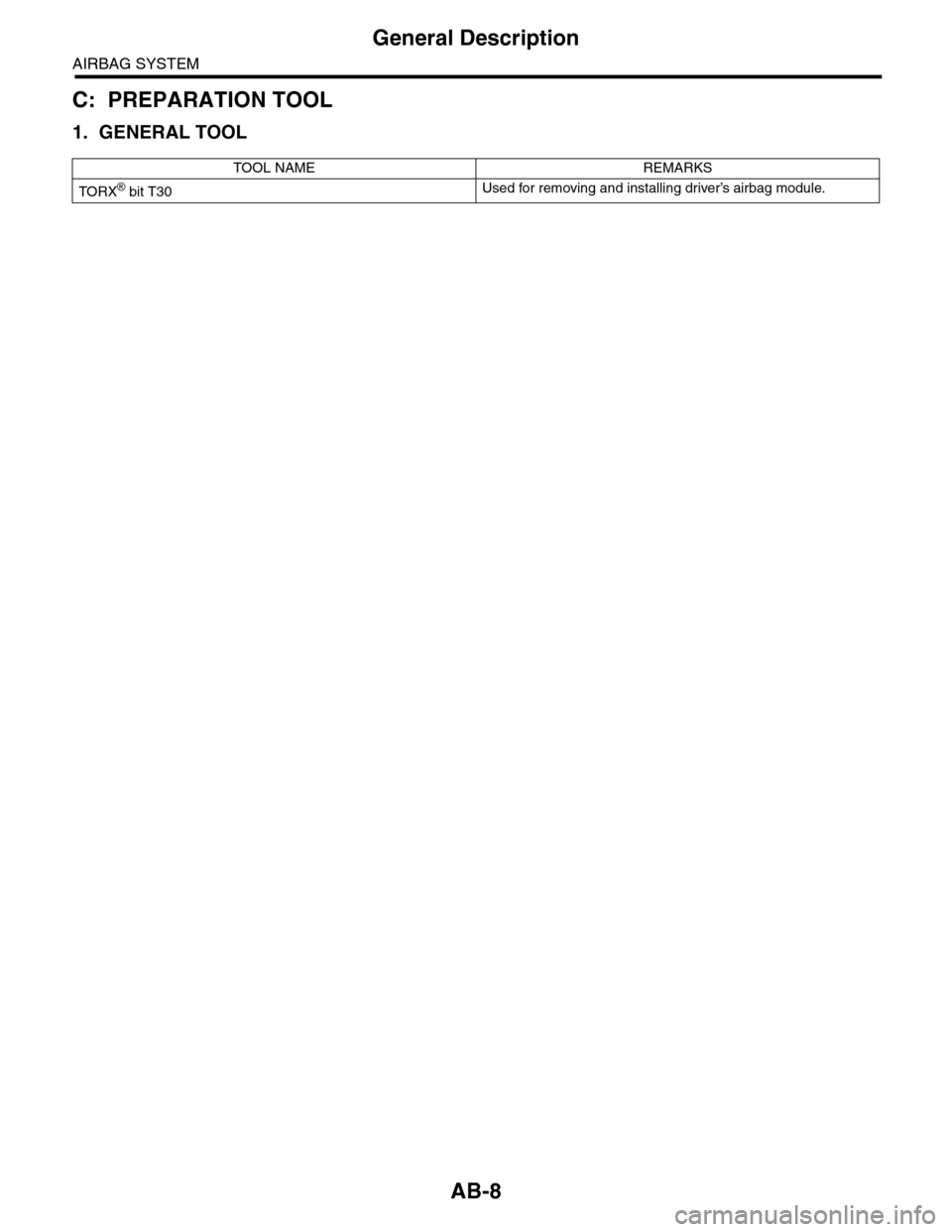

C: PREPARATION TOOL
1. GENERAL TOOL
TOOL NAME REMARKS
TO RX® bit T30Used for removing and installing driver’s airbag module.
Page 8 of 2453
AB-9
Airbag Connector
AIRBAG SYSTEM

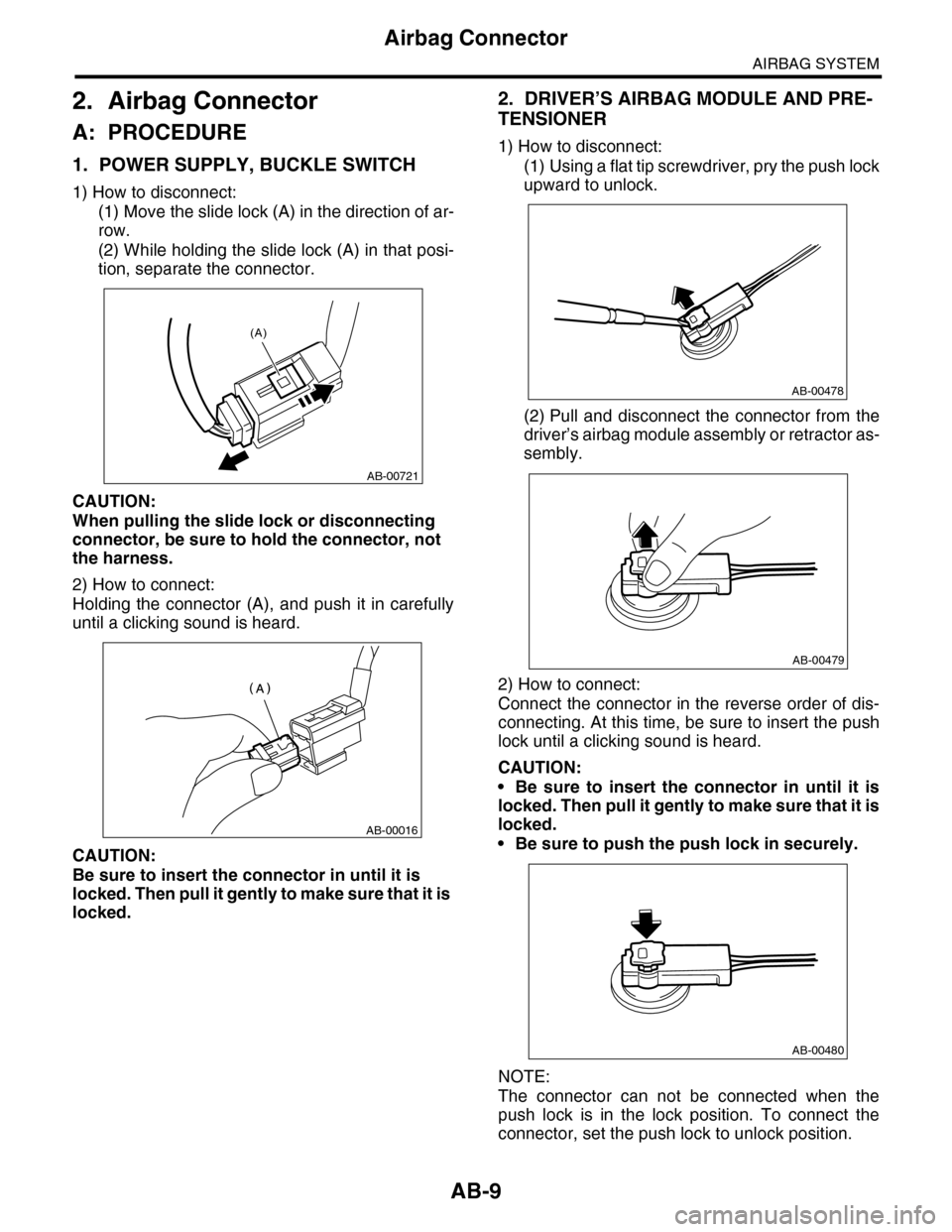

2. Airbag Connector
A: PROCEDURE
1. POWER SUPPLY, BUCKLE SWITCH
1) How to disconnect:
(1) Move the slide lock (A) in the direction of ar-
row.
(2) While holding the slide lock (A) in that posi-
tion, separate the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector (A), and push it in carefully
until a clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
2. DRIVER’S AIRBAG MODULE AND PRE-
TENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push lock
upward to unlock.
(2) Pull and disconnect the connector from the
driver’s airbag module assembly or retractor as-
sembly.
2) How to connect:
Connect the connector in the reverse order of dis-
connecting. At this time, be sure to insert the push
lock until a clicking sound is heard.
CAUTION:
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
•Be sure to push the push lock in securely.
NOTE:
The connector can not be connected when the
push lock is in the lock position. To connect the
connector, set the push lock to unlock position.
AB-00721
(A)
AB-00016
AB-00478
AB-00479
AB-00480
Page 9 of 2453
AB-10
Airbag Connector
AIRBAG SYSTEM

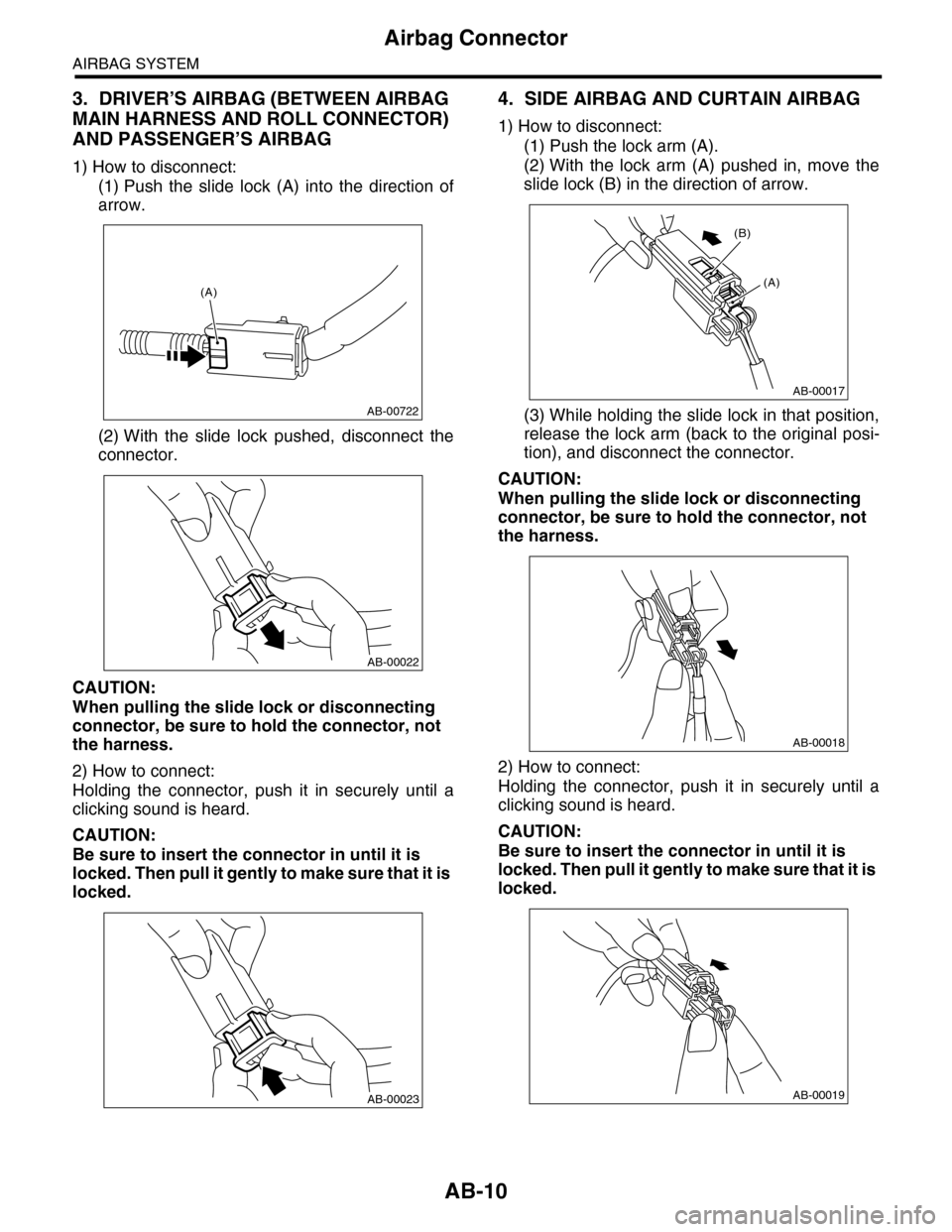

3. DRIVER’S AIRBAG (BETWEEN AIRBAG
MAIN HARNESS AND ROLL CONNECTOR)
AND PASSENGER’S AIRBAG
1) How to disconnect:
(1) Push the slide lock (A) into the direction of
arrow.
(2) With the slide lock pushed, disconnect the
connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
4. SIDE AIRBAG AND CURTAIN AIRBAG
1) How to disconnect:
(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of arrow.
(3) While holding the slide lock in that position,
release the lock arm (back to the original posi-
tion), and disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00722
(A)
AB-00022
AB-00023
AB-00017
(A)
(B)
AB-00018
AB-00019
Page 10 of 2453
AB-11
Airbag Connector
AIRBAG SYSTEM
5. FRONT SUB SENSOR, SIDE AIRBAG
SENSOR, CURTAIN AIRBAG SENSOR AND
SEAT POSITION SENSOR
1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
•Outer side (A) move back, and so do not put
your hand on the outer part.
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
6. PASSENGER DETECTION SYSTEM (BE-
TWEEN AIR BAG REAR HARNESS AND
SEAT HARNESS) AND BELT TENSION
SENSOR
1) How to disconnect:
Push lock arm (A), then disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00024
