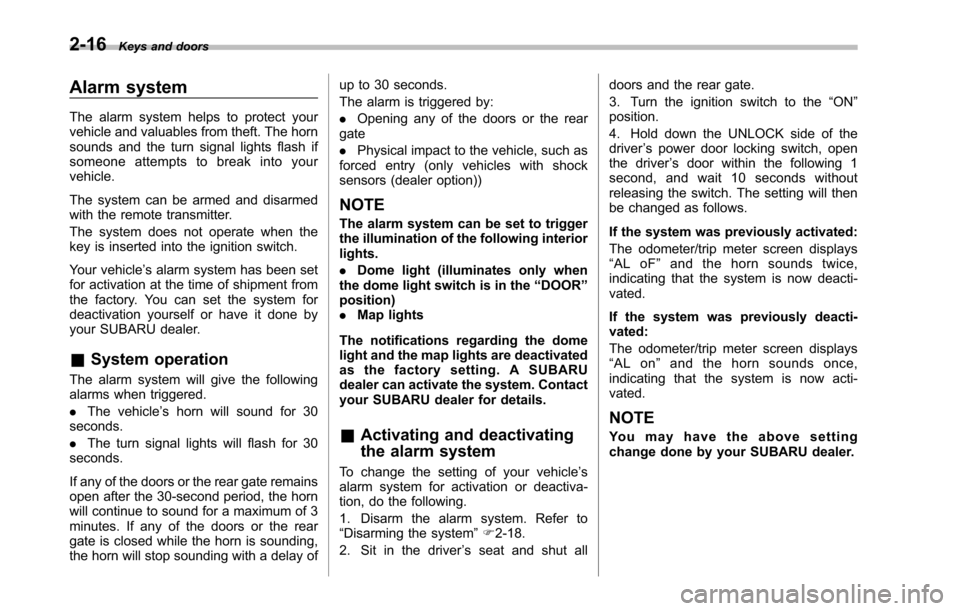

2-16Keys and doors
Alarm system
The alarm system helps to protect yourvehicle and valuables from theft. The hornsounds and the turn signal lights flash ifsomeone attempts to break into yourvehicle.
The system can be armed and disarmedwith the remote transmitter.
The system does not operate when thekey is inserted into the ignition switch.
Your vehicle’s alarm system has been setfor activation at the time of shipment fromthe factory. You can set the system fordeactivation yourself or have it done byyour SUBARU dealer.
&System operation
The alarm system will give the followingalarms when triggered.
.The vehicle’s horn will sound for 30seconds.
.The turn signal lights will flash for 30seconds.
If any of the doors or the rear gate remainsopen after the 30-second period, the hornwill continueto sound for a maximum of 3minutes. If any of the doors or the reargate is closed while the horn is sounding,the horn will stop sounding with a delay of
up to 30 seconds.
The alarm is triggered by:
.Opening any of the doors or the reargate
.Physical impact to the vehicle, such asforced entry (only vehicles with shocksensors (dealer option))
NOTE
The alarm system can be set to triggerthe illumination of the following interiorlights.
.Dome light (illuminates only whenthe dome light switch is in the“DOOR”position).Map lights
The notifications regarding the domelight and the map lights are deactivatedas the factory setting. A SUBARUdealer can activate the system. Contactyour SUBARU dealer for details.
&Activating and deactivating
the alarm system
To change the setting of your vehicle’salarm system for activation or deactiva-tion, do the following.
1. Disarm the alarm system. Refer to“Disarming the system”F2-18.
2. Sit in the driver’s seat and shut all
doors and the rear gate.
3. Turn the ignition switch to the“ON”position.
4. Hold down the UNLOCK side of thedriver’s power door locking switch, openthe driver’s door within the following 1second, and wait 10 seconds withoutreleasing the switch. The setting will thenbe changed as follows.
If the system was previously activated:
The odometer/trip meter screen displays“AL oF”and the horn sounds twice,indicating that the system is now deacti-vated.
If the system was previously deacti-vated:
The odometer/trip meter screen displays“AL on”and the horn sounds once,indicating that the system is now acti-vated.
NOTE
Yo u m a y h a v e t h e a b o v e s e t t i n gchange done by your SUBARU dealer.

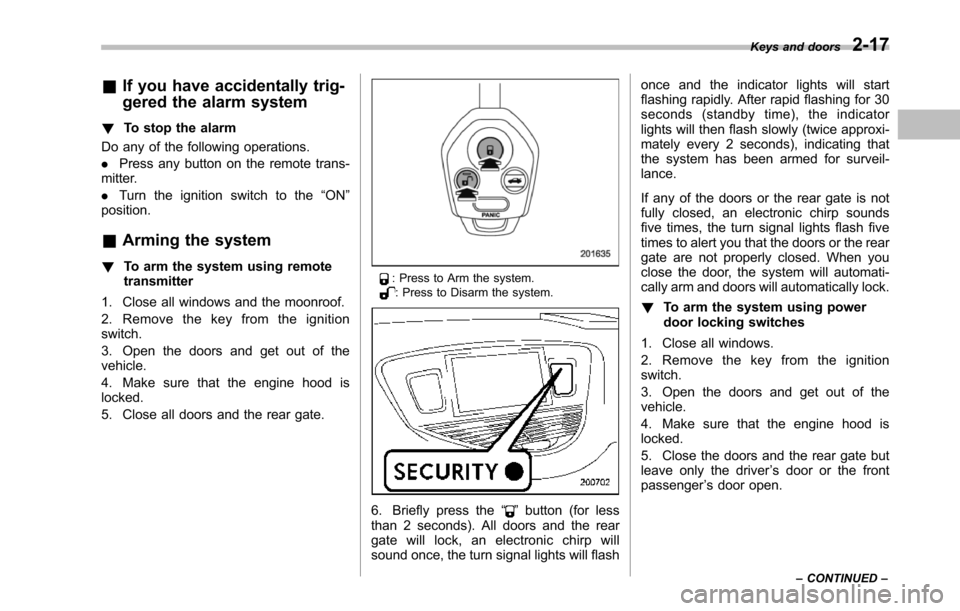

&If you have accidentally trig-
gered the alarm system
!To stop the alarm
Do any of the following operations.
.Press any button on the remote trans-mitter.
.Turn the ignition switch to the“ON”position.
&Arming the system
!To arm the system using remotetransmitter
1. Close all windows and the moonroof.
2. Remove the key from the ignitionswitch.
3. Open the doors and get out of thevehicle.
4. Make sure that the engine hood islocked.
5. Close all doors and the rear gate.
: Press to Arm the system.: Press to Disarm the system.
6. Briefly press the“”button (for lessthan 2 seconds). All doors and the reargate will lock, an electronic chirp willsound once, the turn signal lights will flash
once and the indicator lights will startflashing rapidly. After rapid flashing for 30seconds (standby time), the indicatorlights will then flash slowly (twice approxi-mately every 2 seconds), indicating thatthe system has been armed for surveil-lance.
If any of the doors or the rear gate is notfully closed, an electronic chirp soundsfive times, the turn signal lights flash fivetimes to alert you that the doors or the reargate are not properly closed. When youclose the door, the system will automati-cally arm and doors will automatically lock.
!To arm the system using powerdoor locking switches
1. Close all windows.
2. Remove the key from the ignitionswitch.
3. Open the doors and get out of thevehicle.
4. Make sure that the engine hood islocked.
5. Close the doors and the rear gate butleave only the driver’s door or the frontpassenger’s door open.
Keys and doors2-17
–CONTINUED–

2-18Keys and doors
6. Push the front side (“LOCK”side) ofthe power door locking switch to set thedoor locks.
7. Close the door. An electronic chirp willsound once,the turn signal lights will flashonce and the indicator lights will startflashing rapidly. After rapid flashing for 30seconds (standby time), the indicatorlights will then flash slowly (twice approxi-mately every 2 seconds), indicating thatthe system has been armed for surveil-lance.
NOTE
.The system can be armed even if theengine hood, the windows and/ormoonroof are opened. Always makesure that they are fully closed beforearming the system.
.The 30-second standby time can beeliminated if you prefer. Have it per-formed by your SUBARU dealer..The system is in the standby modefor a 30-second period after locking thedoors with the remote transmitter. Thesecurity indicator light will flash atshort intervals during this period..If any of the following actions isdoneduring the standby period, thesystem will not switch to the surveil-lance state.–Doors are unlocked using theremote transmitter.–Any of the doors or the rear gateis opened.–Ignition switch is turned to the“ON”position.
&Disarming the system
Briefly press the“”button (for less than2 seconds) on the remote transmitter. Thedriver’s door will unlock, an electronicchirp will sound twice and the turn signallights willflash twice. The flashing of thesecurity indicator light will then changeslowly (once approximately every 3 sec-onds from twice approximately every 2seconds), indicating that the alarm systemhas been disarmed.
To unlock all other doors and the reargate, briefly press the“”button a
second time within 5 seconds.
NOTE
If the interval between the first andsecond presses of the“”button (forunlocking of all of the doors and therear gate) is extremely short, the sys-tem may not respond.
!Emergency disarming
If you cannot disarm the system using thetransmitter (i.e. the transmitter is lost,broken or the transmitter battery is tooweak), you can disarm the system withoutusing the transmitter.
The system can be disarmed if you turnthe ignition switch from the“LOCK”to the“ON”position with a registered key.
&Valet mode
When you choose the valet mode, thealarm system does not operate. In valetmode, the remote transmitter is used onlyfor locking and unlocking the doors andrear gate and panic activation.
To enter the valet mode, change thesetting of your vehicle’s alarm system fordeactivation mode. Refer to“Activatingand deactivatingthe alarm system”F2-16. The security indicator light will con-tinue to flash once every 3 secondsindicating that the system is in the valet

mode.

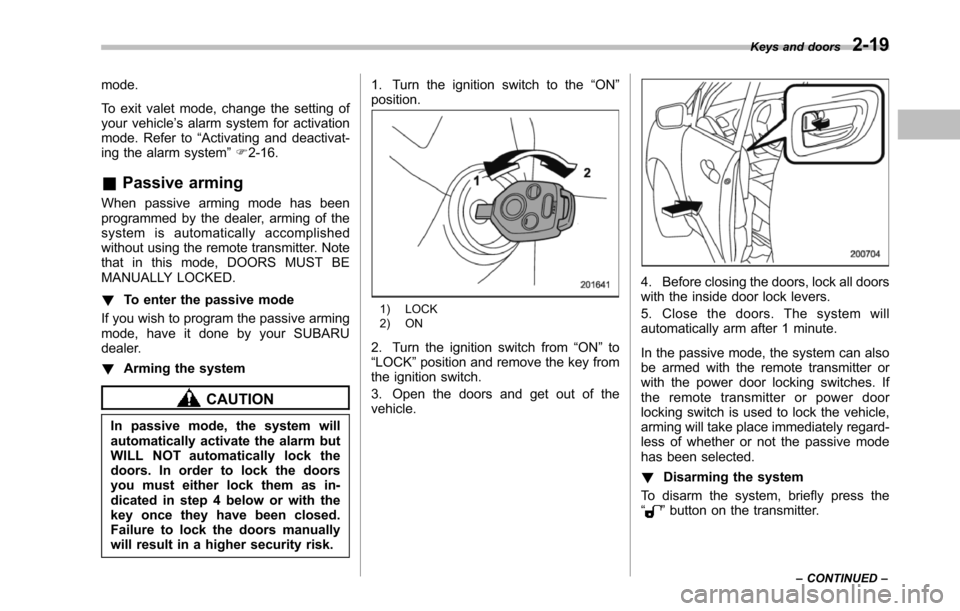

To exit valet mode, change the setting ofyour vehicle’s alarm system for activationmode. Refer to“Activating and deactivat-ing the alarm system”F2-16.
&Passive arming
When passive arming mode has beenprogrammed by the dealer, arming of thesystem is automatically accomplishedwithout using the remote transmitter. Notethat in this mode, DOORS MUST BEMANUALLY LOCKED.
!To enter the passive mode
If you wish to program the passive armingmode, have it done by your SUBARUdealer.
!Armingthe system
CAUTION
In passive mode, the system willautomatically activate the alarm butWILL NOT automatically lock thedoors. In order to lock the doorsyou must either lock them as in-dicated in step 4 below or with thekey once they have been closed.Failure to lock the doors manuallywill result in a higher security risk.
1. Turn the ignition switch to the“ON”position.
1) LOCK2) ON
2. Turn the ignition switch from“ON”to“LOCK”position and remove the key fromthe ignition switch.
3. Open the doors and get out of thevehicle.
4. Before closing the doors, lock all doorswith the inside door lock levers.
5. Close the doors. The system willautomatically arm after 1 minute.
In the passive mode, the system can alsobe armed with the remote transmitter orwith the power door locking switches. Ifthe remote transmitter or power doorlocking switch is used to lock the vehicle,arming will take place immediately regard-less of whether or not the passive modehas been selected.
!Disarming the system
To disarm the system, briefly press the“”button on the transmitter.
Keys and doors2-19
–CONTINUED–

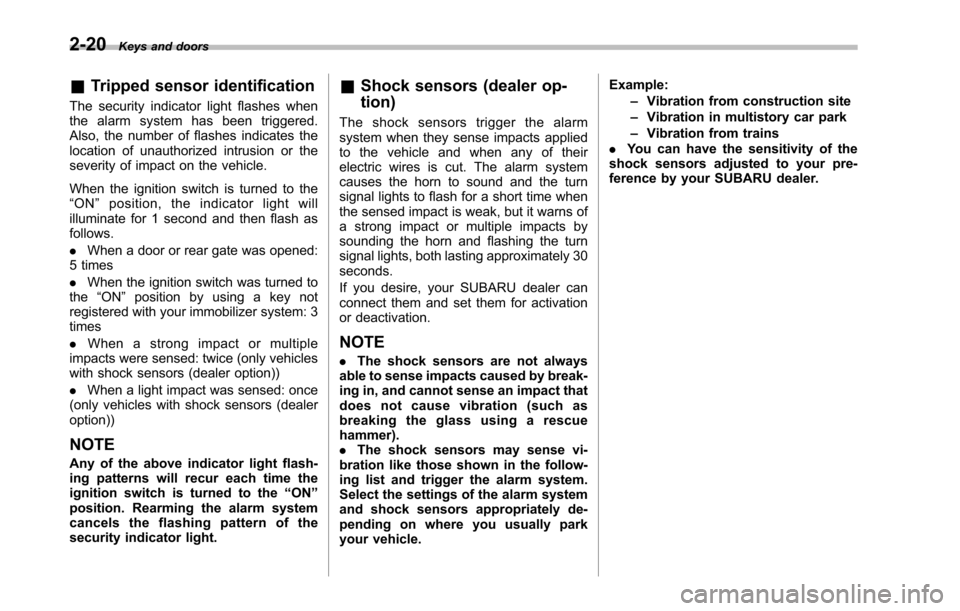

2-20Keys and doors
&Tripped sensor identification
The security indicator light flashes whenthe alarm system has been triggered.Also, the number of flashes indicates thelocation of unauthorized intrusion or theseverity of impact on the vehicle.
When the ignition switch is turned to the“ON”position, the indicator light willilluminate for 1 second and then flash asfollows.
.When a door or rear gate was opened:5 times
.When the ignition switch was turned tothe“ON”position by using a key notregistered with your immobilizer system: 3times
.When a strong impact or multipleimpacts were sensed: twice (only vehicleswith shock sensors (dealer option))
.When a light impact was sensed: once(onlyvehicles with shock sensors (dealeroption))
NOTE
Any of the above indicator light flash-ing patterns will recur each time theignition switchis turned to the“ON”position. Rearming the alarm systemcancels the flashing pattern of thesecurity indicator light.
&Shock sensors (dealer op-
tion)
The shock sensors trigger the alarmsystem when they sense impacts appliedto the vehicle and when any of theirelectric wires is cut. The alarm systemcauses the horn to sound and the turnsignal lights to flash for a short time whenthe sensed impact is weak, but it warns ofa strong impact or multiple impacts bysounding the horn and flashing the turnsignal lights, both lasting approximately 30seconds.
If you desire, your SUBARU dealer canconnect them and set them for activationor deactivation.
NOTE
.The shock sensors are not alwaysable to sense impacts caused by break-ing in, and cannot sense an impact thatdoes not cause vibration (such asbreaking the glass using a rescuehammer)..The shock sensors may sense vi-bration like those shown in the follow-ing list and trigger the alarm system.Select the settings of the alarm systemand shock sensors appropriately de-pending on where you usually parkyour vehicle.
Example:–Vibration from construction site–Vibration in multistory car park–Vibration from trains.You can have the sensitivity of theshock sensors adjusted to your pre-ference by your SUBARU dealer.

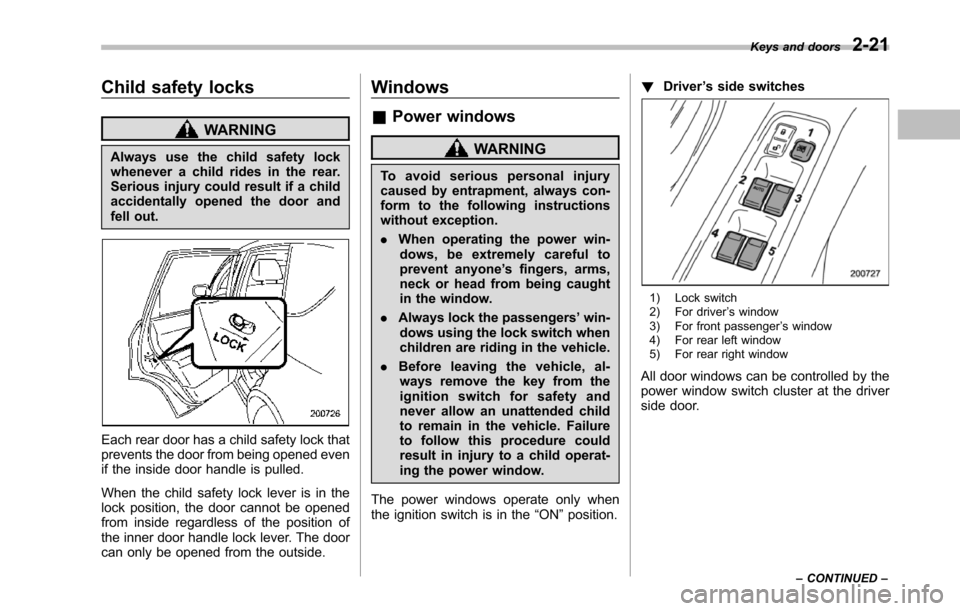

Child safety locks
WARNING
Always use the child safety lockwhenever a child rides in the rear.Serious injury could result if a childaccidentally opened the door andfell out.
Each rear door has a child safety lock thatprevents the door from being opened evenif the inside door handle is pulled.
When the child safety lock lever is in thelock position, the door cannot be openedfrom inside regardless of the position ofthe inner door handle lock lever. The doorcan only be opened from the outside.
Windows
&Power windows
WARNING
To a v o i d s e r i o u s p e r s o n a l i n j u r ycausedby entrapment, always con-form to the following instructionswithout exception.
.When operating the power win-dows, be extremely careful toprevent anyone’s fingers, arms,neck or head from being caughtin the window.
.Always lockthe passengers’win-dows using the lock switch whenchildren are riding in the vehicle.
.Before leaving the vehicle, al-ways remove the key from theignition switch for safety andnever allow an unattended childto remain in the vehicle. Failureto follow this procedure couldresult in injury to a child operat-ing the power window.
The power windows operate only whentheignition switch is in the“ON”position.
!Driver’s side switches
1) Lock switch2) For driver’s window3) For front passenger’s window4) For rear left window5) For rear right window
All door windows can be controlled by thepower window switch cluster at the driverside door.
Keys and doors2-21
–CONTINUED–

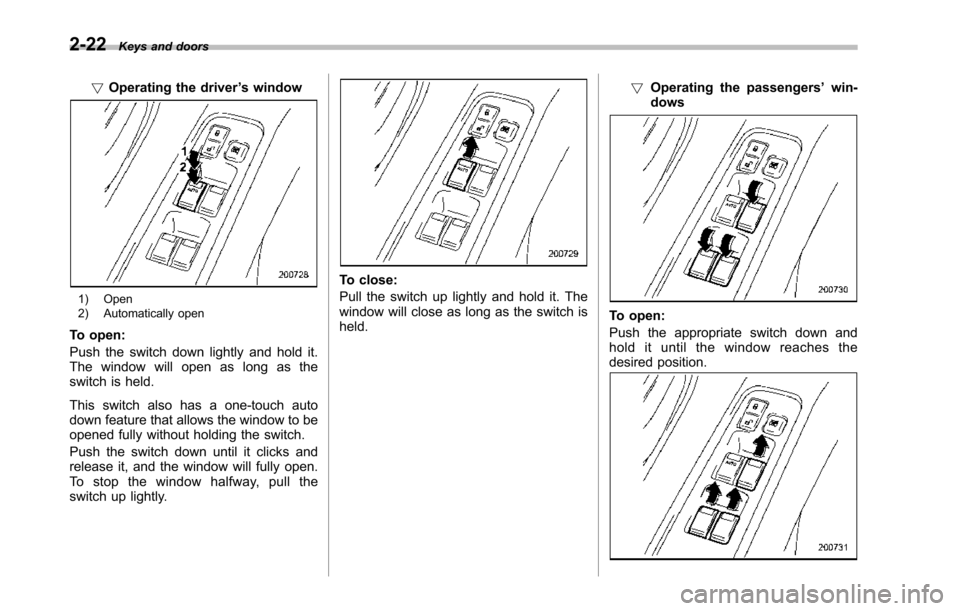

2-22Keys and doors
!Operating the driver’s window
1) Open2) Automatically open
To open:
Push the switch down lightly and hold it.The window will open as long as theswitch is held.
This switch also has a one-touch autodown feature that allows the window to beopened fully without holding the switch.
Push the switch down until it clicks andrelease it, and the window will fully open.To s t o p t h e w i n d o w h a l f w a y, p u l l t h eswitch up lightly.
To close:
Pull the switch up lightly and hold it. Thewindow will close as long as the switch isheld.
!Operating the passengers’win-dows
To open:
Pushthe appropriate switch down andhold it until the window reaches thedesired position.

To close:
Pull the switch up and hold it until thewindow reaches the desired position.

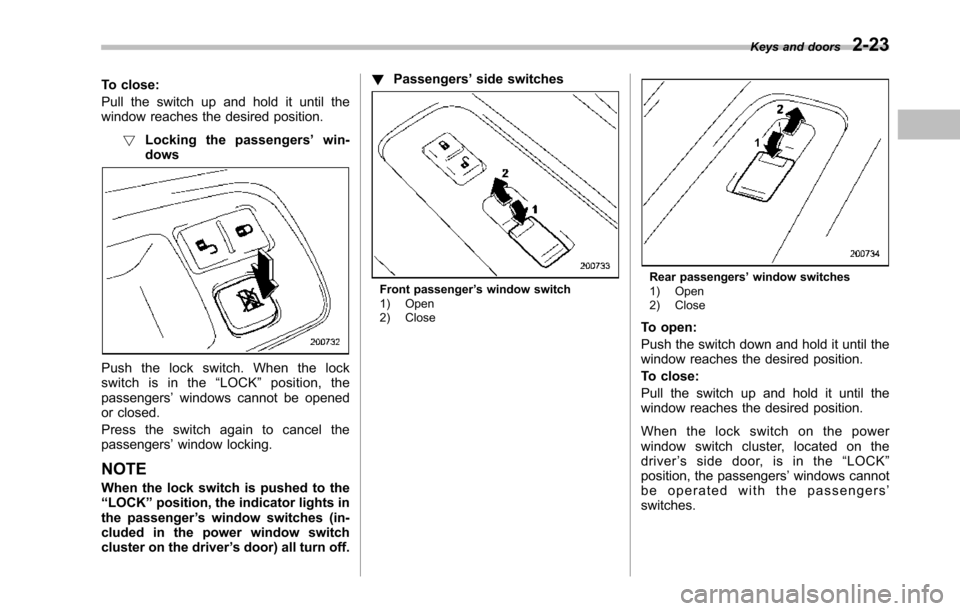

!Locking the passengers’win-dows
Push the lock switch. When the lockswitch is in the“LOCK”position, thepassengers’windows cannot be openedor closed.
Press the switch again to cancel thepassengers’window locking.
NOTE
When the lockswitch is pushed to the“LOCK”position,the indicator lights inthe passenger’s window switches (in-cluded in the power window switchcluster on the driver’s door) all turn off.
!Passengers’side switches
Front passenger’s window switch1) Open2) Close
Rear passengers’window switches1) Open2) Close
To open:
Push the switch down and hold it until thewindow reaches the desired position.
To close:
Pull the switch up and hold it until thewindow reaches the desired position.
When the lock switch on the powerwindow switch cluster, located on thedriver’ssidedoor,isinthe“LOCK”position, the passengers’windows cannotbe operated with the passengers’switches.
Keys and doors2-23

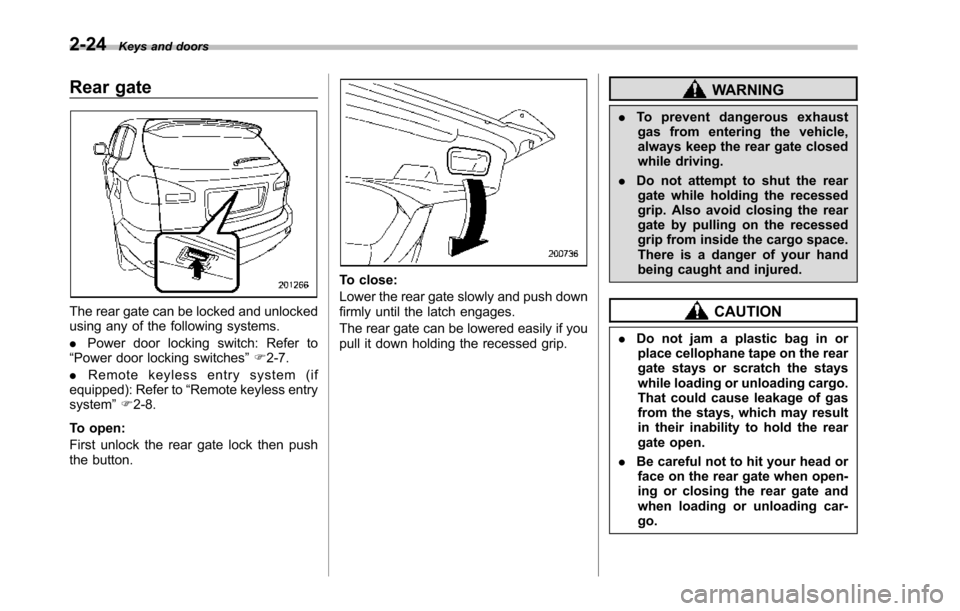

2-24Keys and doors
Rear gate
The rear gate can be locked and unlockedusing any of the following systems.
.Power door locking switch: Refer to“Power door locking switches”F2-7.
.Remote keyless entry system (ifequipped):Refer to“Remote keylessentrysystem”F2-8.
To open:
First unlock the rear gate lock then pushthe button.
To close:
Lower the rear gate slowly and push downfirmly until the latch engages.
The rear gate can be lowered easily if youpull it down holding the recessed grip.
WARNING
.To prevent dangerous exhaustgas from entering the vehicle,always keep the rear gate closedwhile driving.
.Do not attempt to shut the reargate while holding the recessedgrip. Also avoid closing the reargate by pulling on the recessedgrip from inside the cargo space.There is a danger of your handbeing caught and injured.
CAUTION
.Do not jam a plastic bag in orplace cellophane tape on the reargate stays or scratch the stayswhile loading or unloading cargo.That could cause leakage of gasfrom the stays, which may resultin their inability to hold the reargate open.
.Be careful not to hit your head orface on the rear gate when open-ing or closing the rear gate andwhen loading or unloading car-go.

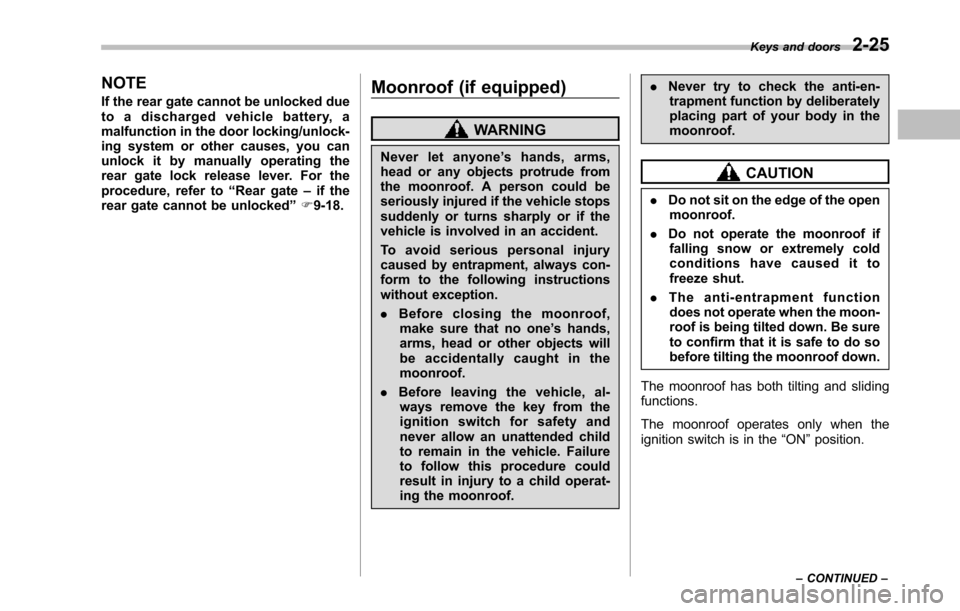

NOTE
If the rear gate cannot be unlocked dueto a discharged vehicle battery, amalfunction in the door locking/unlock-ing system or other causes, you canunlock it by manually operating therear gate lock release lever. For theprocedure, refer to“Rear gate–if therear gate cannot be unlocked”F9-18.
Moonroof (if equipped)
WARNING
Never let anyone’shands,arms,head or any objects protrude fromthe moonroof. A person could beseriously injured if the vehicle stopssuddenly or turns sharply or if thevehicle is involved in an accident.
To a v o i d s e r i o u s p e r s o n a l i n j u r ycaused by entrapment, always con-form to the following instructionswithoutexception.
.Before closing the moonroof,make sure that no one’s hands,arms, head or other objects willbe accidentally caught in themoonroof.
.Before leaving the vehicle, al-ways remove the key from theignition switch for safety andnever allow an unattended childto remain in the vehicle. Failureto follow this procedure couldresult in injury to a child operat-ingthe moonroof.
.Never try to check the anti-en-trapment function by deliberatelyplacing part of your body in themoonroof.
CAUTION
.Do not sit on the edge of the openmoonroof.
.Do not operate the moonroof iffalling snow or extremely coldconditions have caused it tofreeze shut.
.The anti-entrapment functiondoes not operate when the moon-roof is being tilted down. Be sureto confirm that it is safe to do sobeforetilting the moonroof down.
The moonroofhas both tilting and slidingfunctions.
The moonroof operates only when theignition switch is in the“ON”position.
