!Parking brake apply inhibit warn-
ing
The electronic parking brake indicator light
flashes for 10 seconds and a chirp sound
will be heard if the parking brake switch is
operated when the parking brake cannot
be applied.
!Frequent operation warning
The electronic parking brake indicator light
flashes for 10 seconds and a chirp sound
will be heard if the parking brake switch is
operated too frequently. In this case, the
operation of the parking brake switch is
restricted to protect the electronic parking
brake system.
NOTEWait until the indicator light turns off.&Low fuel warning lightThe low fuel warning light illuminates when
the tank is nearly empty, at approximately
2.6 US gal (10.0 liters, 2.2 Imp gal). It only
operates when the ignition switch is in the
“ON”position.
CAUTION
Promptly put fuel in the tank when-
ever the low fuel warning light
illuminates. Engine misfires as aresult of an empty tank could cause
damage to the engine.
&Hill start assist warning
light/Hill start assist
OFF indicator light
(models without electro-
nic parking brake sys-
tem)!Hill start assist warning light
While the engine is running, if there are
any malfunctions in the Hill start assist
system, the warning light will illuminate.
WARNING
When the Hill start assist warning
light illuminates, have the vehicle
inspected at an authorized SUBARU
dealer.
!Hill start assist OFF indicator light
While the Hill start assist system is
deactivated, the Hill start assist OFF
indicator light illuminates continuously to
inform the driver that the Hill start assist
system is not operational.
&Auto Vehicle Hold ON
indicator light (models
with electronic parking
brake system)
CAUTION
If the Auto Vehicle Hold ON indicator
light does not illuminate even when
the Auto Vehicle Hold switch is
pressed to activate the Auto Vehicle
Hold function, the electronic parking
brake system may be malfunction-
ing. Immediately stop the vehicle in
a safe location and contact your
SUBARU dealer.
This indicator light illuminates when the
Auto Vehicle Hold is activated. For details,
refer to“To turn on/off the Auto Vehicle
Hold function”F7-47.&Auto Vehicle Hold op-
eration indicator light
(models with electronic
parking brake system)This indicator light illuminates while the
vehicle is stopped by the Auto Vehicle Hold
function. For details, refer to“To operate
the Auto Vehicle Hold function”F7-48.
Instruments and controls/Warning and indicator lights
3-24

(167,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Door open warning lightThe warning light illuminates if any door or
the trunk lid is not fully closed. This
function is effective even if the ignition
switch is in the“LOCK”/“OFF”or“ACC”
position, or the key is removed from the
ignition switch.
Always make sure this light is not illumi-
nated before you start to drive.&All-Wheel Drive warn-
ing light (if equipped)This light flashes if the vehicle is driven
with tires of differing diameters fitted on the
wheels or with an excessively low air
pressure in any of the tires.

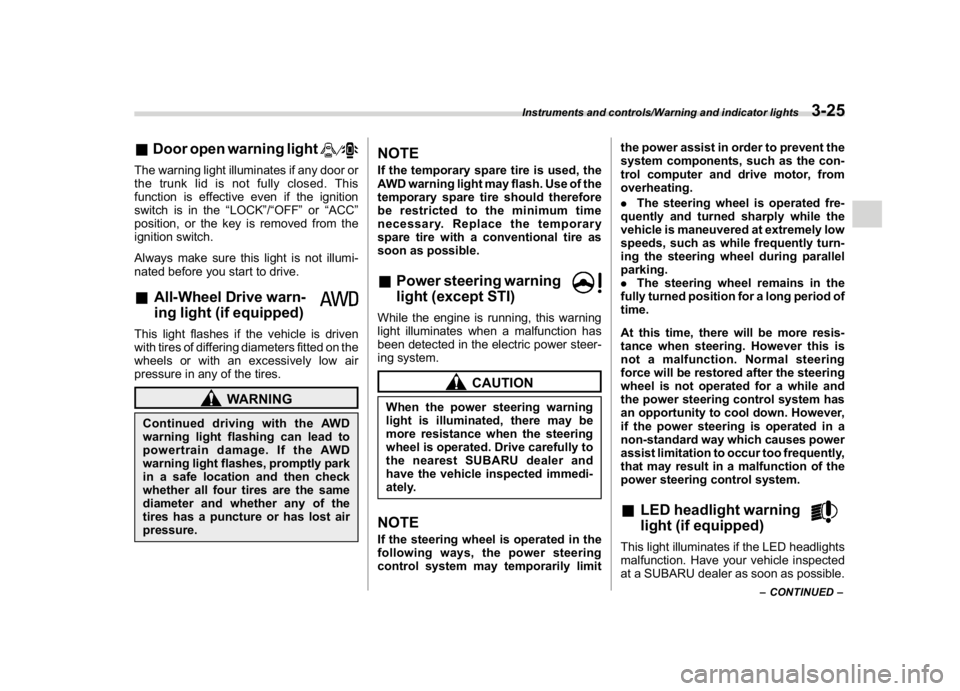

WARNING
Continued driving with the AWD
warning light flashing can lead to
powertrain damage. If the AWD
warning light flashes, promptly park
in a safe location and then check
whether all four tires are the same
diameter and whether any of the
tires has a puncture or has lost air
pressure.
NOTEIf the temporary spare tire is used, the
AWD warning light may flash. Use of the
temporary spare tire should therefore
be restricted to the minimum time
necessary. Replace the temporary
spare tire with a conventional tire as
soon as possible.&Power steering warning
light (except STI)While the engine is running, this warning
light illuminates when a malfunction has
been detected in the electric power steer-
ing system.
CAUTION
When the power steering warning
light is illuminated, there may be
more resistance when the steering
wheel is operated. Drive carefully to
the nearest SUBARU dealer and
have the vehicle inspected immedi-
ately.NOTEIf the steering wheel is operated in the
following ways, the power steering
control system may temporarily limitthe power assist in order to prevent the
system components, such as the con-
trol computer and drive motor, from
overheating.
.The steering wheel is operated fre-
quently and turned sharply while the
vehicle is maneuvered at extremely low
speeds, such as while frequently turn-
ing the steering wheel during parallel
parking.
.The steering wheel remains in the
fully turned position for a long period of
time.
At this time, there will be more resis-
tance when steering. However this is
not a malfunction. Normal steering
force will be restored after the steering
wheel is not operated for a while and
the power steering control system has
an opportunity to cool down. However,
if the power steering is operated in a
non-standard way which causes power
assist limitation to occur too frequently,
that may result in a malfunction of the
power steering control system.
&LED headlight warning
light (if equipped)This light illuminates if the LED headlights
malfunction. Have your vehicle inspected
at a SUBARU dealer as soon as possible.
–CONTINUED–
Instruments and controls/Warning and indicator lights
3-25
3

(168,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Vehicle Dynamics Con-
trol warning light/Vehicle
Dynamics Control op-
eration indicator light!Vehicle Dynamics Control warning
light
CAUTION
The Vehicle Dynamics Control sys-
tem provides its ABS control
through the electrical circuit of the
ABS. Accordingly, if the ABS is
inoperative, the Vehicle Dynamics
Control system becomes unable to
provide ABS control. As a result, the
Vehicle Dynamics Control system
also becomes inoperative, causing
the warning light to illuminate.
Though both the Vehicle Dynamics
Control and ABS are inoperative in
this case, the ordinary functions of
the brake system are still available.
You will be safe while driving with
this condition, but drive carefully
and have your vehicle checked at a
SUBARU dealer as soon as possi-
ble.
NOTE.If the electrical circuit of the Vehicle
Dynamics Control system itself mal-
functions, the warning light only illumi-
nates. At this time, the ABS (Anti-lock
Brake System) remains fully opera-
tional.
.The warning light illuminates when
the electronic control system of the
ABS/Vehicle Dynamics Control system
malfunctions.
The Vehicle Dynamics Control system is
probably inoperative under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately.
.The warning light does not illuminate
when the ignition switch is turned to the
“ON”position.
.The warning light illuminates while the
vehicle is running.
NOTEIf the warning light behavior is as
described in the following examples,
the Vehicle Dynamics Control system
may be considered normal.
.The warning light illuminates when
the ignition switch is turned to the“ON”
position and turns off approximately 2
seconds after the engine has started.
.The warning light illuminates right
after the engine is started but turns off
immediately, remaining off.
.The warning light illuminates after
the engine has started and turns off
while the vehicle is subsequently being
driven.
.The warning light illuminates while
driving, but it turns off immediately and
remains off.
.The warning light illuminates when
the engine has stalled and continues to
illuminate after the engine has been
restarted. However, it will turn off once
the vehicle starts moving.
Instruments and controls/Warning and indicator lights
3-26

(169,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Vehicle Dynamics Control operation
indicator light
The indicator light flashes during activation
of the skid suppression function and during
activation of the traction control function.NOTE.The light may remain illuminated for
a short period of time after the engine
has been started, especially in cold
weather. This does not indicate the
existence of a problem. The light
should turn off as soon as the engine
has warmed up.
.The indicator light illuminates when
the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.
The Vehicle Dynamics Control system is
probably malfunctioning under the follow-
ing condition. Have your vehicle checked
at a SUBARU dealer as soon as possible.
.The light does not turn off even after the
lapse of several minutes (the engine has
warmed up) after the engine has started.
&Vehicle Dynamics Control OFF indicator light/Traction mode
indicator light
/
The indicator light shows the activated/deactivated conditions as follows.
Activated/deactivated status for each function
Traction ControlVehicle
Dynamics
Control systemABS
Indicator lightTurn off Activated Activated ActivatedDeactivated Activated ActivatedDeactivated DeactivatedActivated
For details about the Traction Control and Vehicle Dynamics Control system, refer to
“Vehicle Dynamics Control system”F7-37.
–CONTINUED–
Instruments and controls/Warning and indicator lights
3-27
3

(170,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Vehicle Dynamics Control OFF in-
dicator light
This light illuminates when the Vehicle
Dynamics Control OFF switch is operated
to select the traction mode or the Vehicle
Dynamic Control OFF mode. For details,
refer to“Vehicle Dynamics Control sys-
tem”F7-37.NOTE.The light may remain illuminated for
a while after the engine has been
started, especially in cold weather. This
does not indicate the existence of a
problem. The light should turn off as
soon as the engine has warmed up.
.The indicator light illuminates when
the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.
The Vehicle Dynamics Control system is
probably malfunctioning under the follow-
ing conditions. Have your vehicle checked
at a SUBARU dealer as soon as possible.
.The light does not illuminate when the
ignition switch is turned to the“ON”
position.
.The light does not turn off even after the
lapse of several minutes (the engine has
warmed up) after the engine has started.!Traction mode indicator light
The light illuminates when the Vehicle
Dynamics Control OFF switch is pressed
briefly to select the traction mode. For
details, refer to“Traction mode”F7-39.
&Warning chimes and warning
indicator of the keyless ac-
cess with push-button start

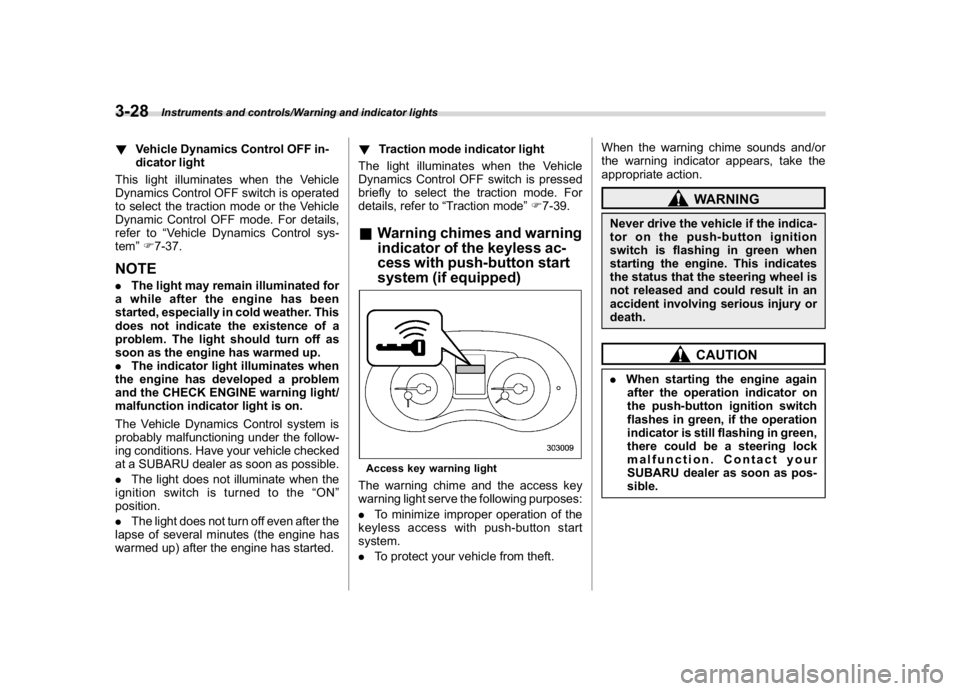

system (if equipped)Access key warning lightThe warning chime and the access key
warning light serve the following purposes:
.To minimize improper operation of the
keyless access with push-button start
system.
.To protect your vehicle from theft.When the warning chime sounds and/or
the warning indicator appears, take the
appropriate action.
WARNING
Never drive the vehicle if the indica-
tor on the push-button ignition
switch is flashing in green when
starting the engine. This indicates
the status that the steering wheel is
not released and could result in an
accident involving serious injury or
death.
CAUTION
.When starting the engine again
after the operation indicator on
the push-button ignition switch
flashes in green, if the operation
indicator is still flashing in green,
there could be a steering lock
malfunction. Contact your
SUBARU dealer as soon as pos-
sible.
Instruments and controls/Warning and indicator lights
3-28

(171,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
.When the operation indicator on
the push-button ignition switch
flashes in orange, contact a
SUBARU dealer immediately.NOTE.When doors are not locked because
the access key fob is left inside the
trunk, you cannot open the trunk lid by
pushing the trunk opener button on the
trunk lid. Press the trunk opener switch
for approximately 1 second to open the
trunk lid. Refer to“To open the trunk lid
from inside”F2-36.
.Do not leave the access key fob
inside the trunk. Depending on the
status of the access key fob and
situation, the trunk lockout protect
function may not operate. Make sure
that you carry the access key fob, and
close the trunk lid.
.Even when the access key fob is
within the operating ranges inside the
vehicle, the access key warning for
engine start may be provided depend-
ing on the status of the access key fob
and the environmental conditions..When the access key fob is taken out
of the vehicle through an open window,
the access key takeout warning or
passenger access key takeout warning
will not be provided.
!List of warnings
CAUTION
When any of the following warnings
occurs even if the access key warn-
ing indicator does not appear, take
the appropriate action.
–CONTINUED–
Instruments and controls/Warning and indicator lights
3-29
3

(172,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Inside warning
chimeOutside warning
chimeOperation indicator
on push-button igni-
tion switchStatus Action
Ding, ding ...
(intermittent)——The driver’s door was opened while the
push-button ignition switch is“ACC”(in
CVT models, when the select lever is in
the“P”position.)Switch the push-button ignition switch to
“OFF”, or close the driver’s door.
*When exiting the vehicle, be sure to
switch the push-button ignition switch to
“OFF”.
The push-button ignition switch was
switched to“OFF”while the driver’s door
is open.Close the driver’s door.
DingShort beep
(2 seconds)—Lockout warning:
All doors were closed after the locking of
all doors was set by using the door lock
lever or power door locking switch while
the access key fob is inside the vehicle.Take out the access key fob from the
vehicle, and lock the doors.
*The doors cannot be locked while the
access key fob is inside the vehicle.
*A chirp sound will be heard, and all
doors will be unlocked.
—Short beep
(2 seconds)—Trunk lockout warning:
The trunk was closed with the access key
fob in it while all doors are locked (or
during the automatic lock time period).Take out the access key fob from the
trunk, and close the trunk.
*By pressing the trunk opener button
after this warning chime sounds, the
trunk can be unlocked.
Access key lock-in warning:
The door lock sensor was touched while
the push-button ignition switch is“OFF”
and the access key fob is inside the
vehicle.Take out the access key fob from the
vehicle, and lock the doors.
*If the access key fob is inside the
vehicle, the doors cannot be locked.
—Beep, beep ...
(5 beeps)—Door ajar warning:
The door lock sensor is touched while the
push-button ignition switch is in the
“OFF”position and another door or the
trunk is opened.Close the doors securely and lock them.
*If one of the doors is opened, the doors
cannot be locked.
Instruments and controls/Warning and indicator lights
3-30

(173,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Inside warning
chimeOutside warning
chimeOperation indicator
on push-button igni-
tion switchStatus Action
DingLong beep
(60 seconds max.)—Power warning:
The door lock sensor was touched while
carrying the access key fob and the
push-button ignition switch is in a posi-
tion other than“OFF”and the select lever
is in the“P”position.Open the door and return the access key
fob inside the vehicle, or switch the push-
button ignition switch to“OFF”.
*If the push-button ignition switch is not
switched to“OFF”, the doors cannot be
locked.
Ding, ding ...
(7 seconds)——Access key warning:
The vehicle was driven while the access
key fob is not inside the vehicle.Carry the access key fob, and drive the
vehicle.
Ding——Access key warning for engine start:
The push-button ignition switch was
pressed while the access key fob is not
inside the vehicle.Carry the access key fob, and press the
push-button ignition switch.
DingBeep, beep, beep
(3 beeps)—Access key takeout warning:
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition
switch is in a position other than“OFF”
and the select lever is in the“P”position.Switch the push-button ignition switch to
“OFF”, and get out of the vehicle.
DingBeep, beep, beep
(3 beeps)—Passenger access key takeout warn-
ing:
A fellow passenger exited the vehicle
with the access key fob and closed a
door other than the driver’s door while
the push-button ignition switch is in a
position other than“OFF”.Return the access key fob to inside the
vehicle, or switch the push-button ignition
switch to“
OFF”.
Long beep
(continuous)Long beep
(continuous)—Access key takeout without“P”posi-
tion warning:
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition
switch is in a position other than“OFF”
and the select lever is in a position other
than the“P”position.Shift the select lever to the“P”position,
switch the push-button ignition switch to
“OFF”and exit the vehicle.
–CONTINUED–
Instruments and controls/Warning and indicator lights
3-31
3

(174,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Inside warning
chimeOutside warning
chimeOperation indicator
on push-button igni-
tion switchStatus Action
Long beep
(continuous)——Select lever position warning:
.Case 1: The driver’s door was
opened while the push-button igni-
tion switch is in a position other than
“OFF”and the select lever is in a
position other than the“P”position.
.Case 2: The engine is turned off by
pressing the push-button ignition
switch and the select lever is in a
position other than the“P”position..Case 1: Shift the select lever to
the“P”position, switch the push-
button ignition switch to“OFF”and
exit the vehicle.
.Case 2: Start the engine, shift
the select lever to the“P”position,
switch the push-button ignition
switch to“OFF”and exit the vehicle.
Ding——The battery of the access key fob is low.Replace the battery of the access key
fob.
Ding—Flashes in green
(15 seconds max.)Steering lock warning:
The engine start procedure was per-
formed, but the steering is still locked.While turning the steering wheel right and
left lightly, depress the brake pedal and
press the push-button ignition switch.
Ding—Flashes in orangeSystem malfunction warning:
A malfunction was detected in the power
system or steering lock.Contact a SUBARU dealer immediately
and have the vehicle inspected.
NOTEAn electronic chirp will sound while the select lever is in the“R”position. In this case, the select lever position warning chime
will not sound.
Instruments and controls/Warning and indicator lights
3-32

(175,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Security indicator lightThis indicator light shows the status of the
alarm system. It also indicates operation of
the immobilizer system.
!Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to“Alarm system”F2-
24.
!Immobilizer system
The security indicator light starts blinking
in the following conditions.
For models with“keyless access with
push-button start system”:
.Immediately after turning the push-
button ignition switch to the“OFF”position.
.Immediately after opening or closing
the driver’s door when all of the following
conditions are met.
–The push-button ignition switch is in
the“ON”or“ACC”position.
–The access key fob is outside the
vehicle.
–The engine is not running.
–In the event that an unauthorized
key is used (for example, the key is
unregistered or the ID code does not
match), the power is not switched to
“ON”and the security indicator lightcontinues blinking.
For models without“keyless access
with push-button start system”:
.Approximately 60 seconds after turning
the ignition switch from the“ON”position to
the“ACC”or“LOCK”position.
.Immediately after pulling out the key.
If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunction-
ing. Contact your nearest SUBARU dealer
immediately.
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illumi-
nates. For details about the immobilizer
system, refer to“Immobilizer”F2-22.
NOTE.The security indicator light remains
off in the following conditions. It means
that the matching of the ID code is
completed and the immobilizer system
is deactivated, and it does not indicate
a malfunction.
Models with“keyless access with
push-button start system”:
–while the engine is running
–the push-button ignition switchhas been turned to the“ON”or
“ACC”position and the driver’s
door has not been opened or closed
Models without“keyless access
with push-button start system”:
–while the engine is running
–for approximately 60 seconds
after the ignition switch is turned
from the“ON”position to the“ACC”
or“LOCK”position
–when the ignition switch is in the
“ON”position.
.Even if a malfunction occurs, such
as the security indicator light flashes
irregularly, it will not affect the func-
tionality of the immobilizer system.
–CONTINUED–
Instruments and controls/Warning and indicator lights
3-33
3
