SUZUKI ALTO 2014 Service Manual

42
76G-74E
INSTRUMENT PANEL
If you operate the engine with thislight on, severe engine damage can
result.
Do not rely on the Oil Pressure Light to indicate the need to add oil.
Be sure to periodically check the
engine oil level (see section
"INSPECTION & MANINTENANCE").
5-5
CAUTION

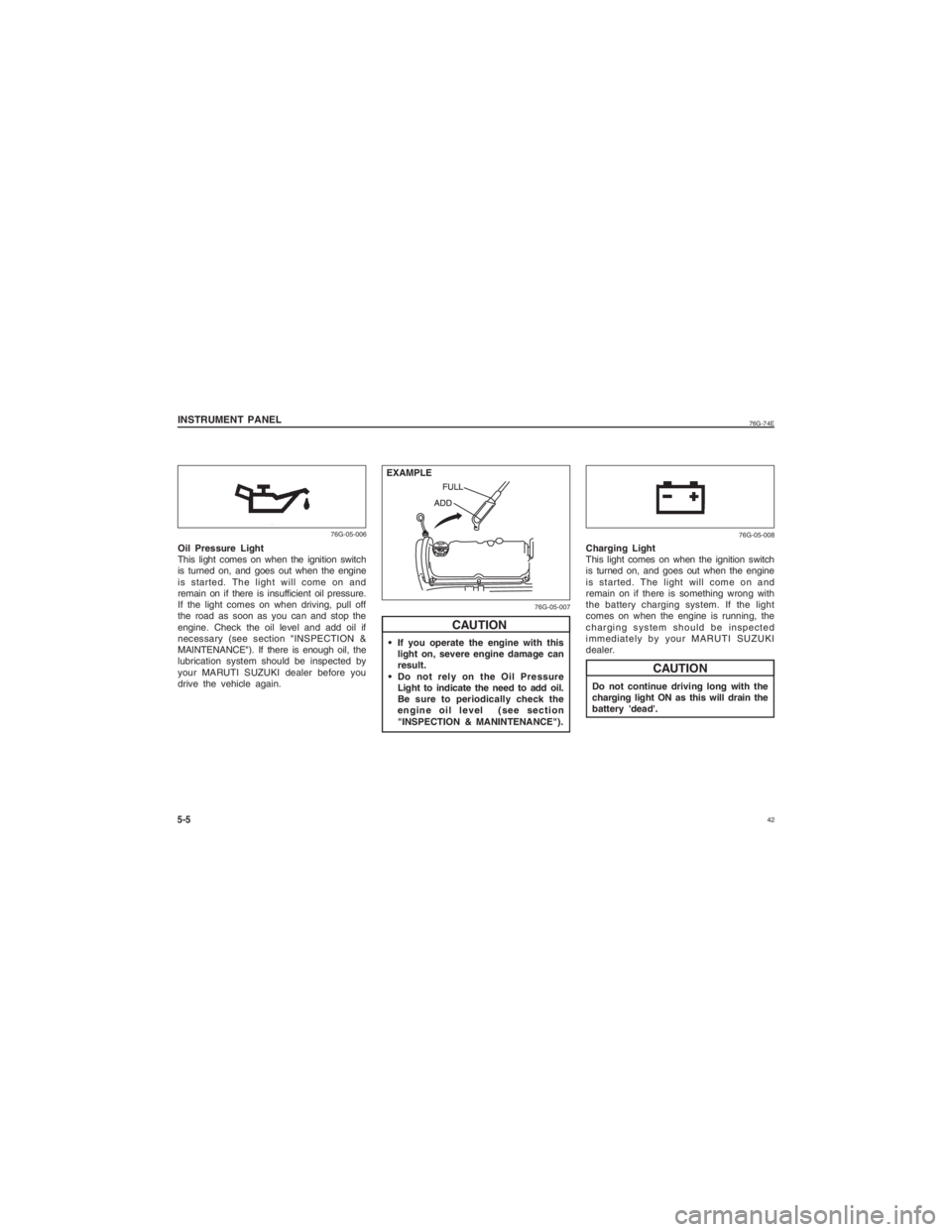

Charging Light
This light comes on when the ignition switch
is turned on, and goes out when the engine
is started. The light will come on and
remain on if there is something wrong with
the battery charging system. If the light
comes on when the engine is running, the
charging system should be inspected
immediately by your MARUTI SUZUKI
dealer.
Do not continue driving long with the
charging light ON as this will drain the
battery 'dead'.
CAUTION
76G-05-007 76G-05-008
EXAMPLE
Oil Pressure Light
This light comes on when the ignition switch
is turned on, and goes out when the engine
is started. The light will come on and
remain on if there is insufficient oil pressure.
If the light comes on when driving, pull off
the road as soon as you can and stop the
engine. Check the oil level and add oil if
necessary (see section "INSPECTION &
MAINTENANCE"). If there is enough oil, the
lubrication system should be inspected by
your MARUTI SUZUKI dealer before you
drive the vehicle again.
76G-05-006

4376G-74E
INSTRUMENT PANEL
5-6
Immobilizer System Light
When the ignition switch is turned to the
“ON” position, this light comes on to let you
know the light is working. If this light blinks
with the ignition switch turned to “ON”, there
may be something wrong with the immobi-
lizer system. Contact your MARUTI SUZUKI
dealer to have the system inspected.
76G-05-010
Electric Power Steering Light
(if equipped)
This light comes on when the ignition switch
is turned to the “ON” position, and goes out
when the engine is started.
If this light comes on while driving, the
power steering system may not work prop-
erly. Have the system inspected by your
MARUTI SUZUKI Authorized workshop.NOTE:If the power steering system does not workproperly, you will feel heavier to steer butyou still will be able to steer.
76G-05-009A
“Malfunction Indicator” Light
Your vehicle has a computer-controlled
emission control system. A “Malfunction
Indicator” light is provided on the instrument
panel to indicate when it is necessary to
have the emission control system serviced.
The “Malfunction Indicator” light comes on
when the ignition switch is turned to “ON”
and goes out when the engine is started.
If the “Malfunction Indicator” light comes on
when the engine is running, there is a
problem with the emission control system.
Take the vehicle to your MARUTI SUZUKI
dealer to have the problem corrected.
Continuing to drive the vehicle when
the “Malfunction Indicator” light is on
can cause permanent damage to the
vehicle’s emission control system, and
can affect fuel economy and
driveability.
CAUTION
76G-05-009

44
76G-74E
INSTRUMENT PANEL5-7
76G-05-013A76G-05-013B

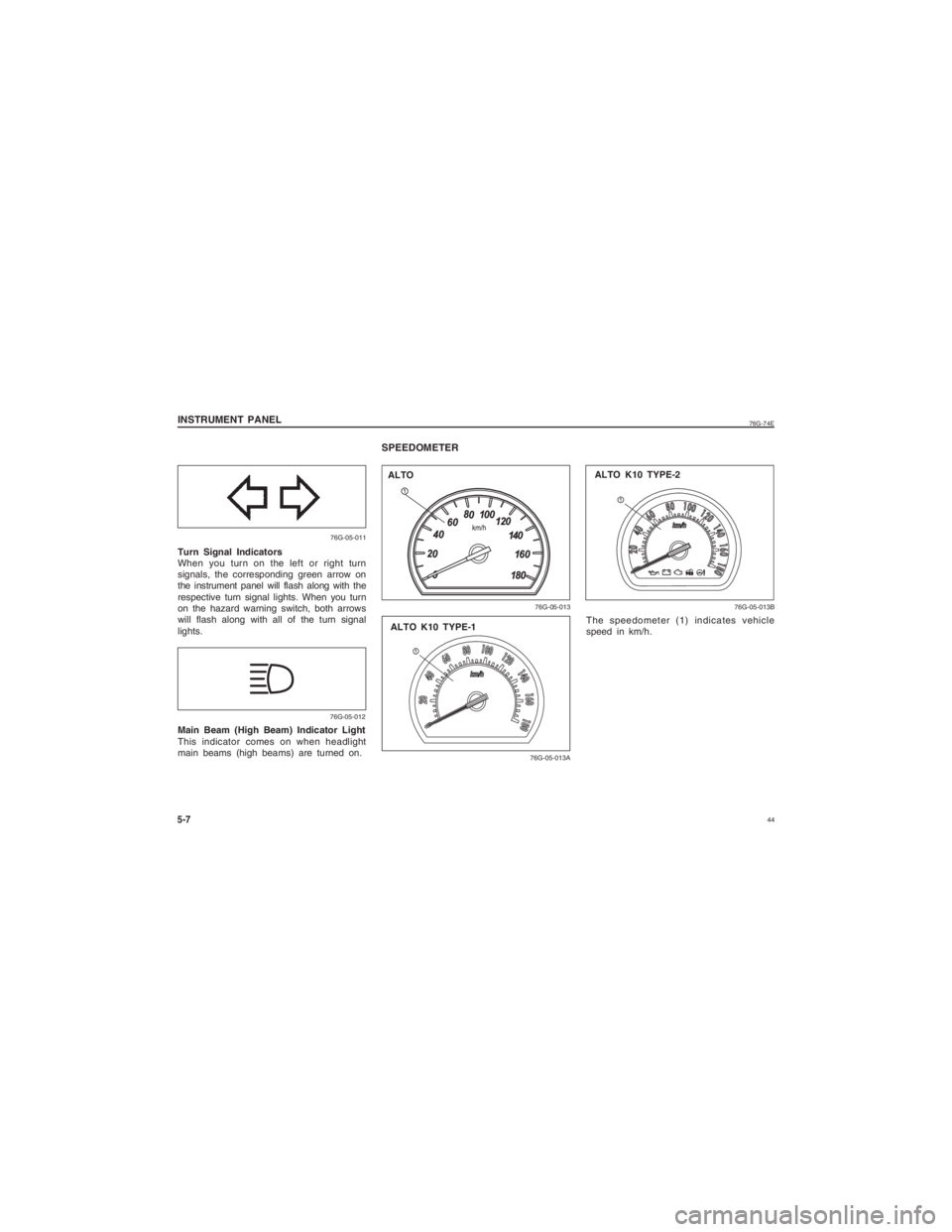

SPEEDOMETER
The speedometer (1) indicates vehicle
speed in km/h.
76G-05-013
ALTO K10 TYPE-1
ALTO K10 TYPE-2
ALTO
Turn Signal Indicators
When you turn on the left or right turn
signals, the corresponding green arrow on
the instrument panel will flash along with the
respective turn signal lights. When you turn
on the hazard warning switch, both arrows
will flash along with all of the turn signal
lights.
Main Beam (High Beam) Indicator Light
This indicator comes on when headlight
main beams (high beams) are turned on.
76G-05-011
76G-05-012

4576G-74E
INSTRUMENT PANEL
5-8
Push the selector knob for a little while
(about 2 seconds) to reset the trip meter
to zero.
76G-05-016
When the ignition switch is turned to "ON"
the display shows the odometer or trip
meter.
The display shows three types of indication;
odometer, trip meter A and/or trip meter B.
Push the selector knob quickly to switch the
indication among the three.
You can use the two trip meters (A and B)
independently.
76G-05-015
76G-05-014

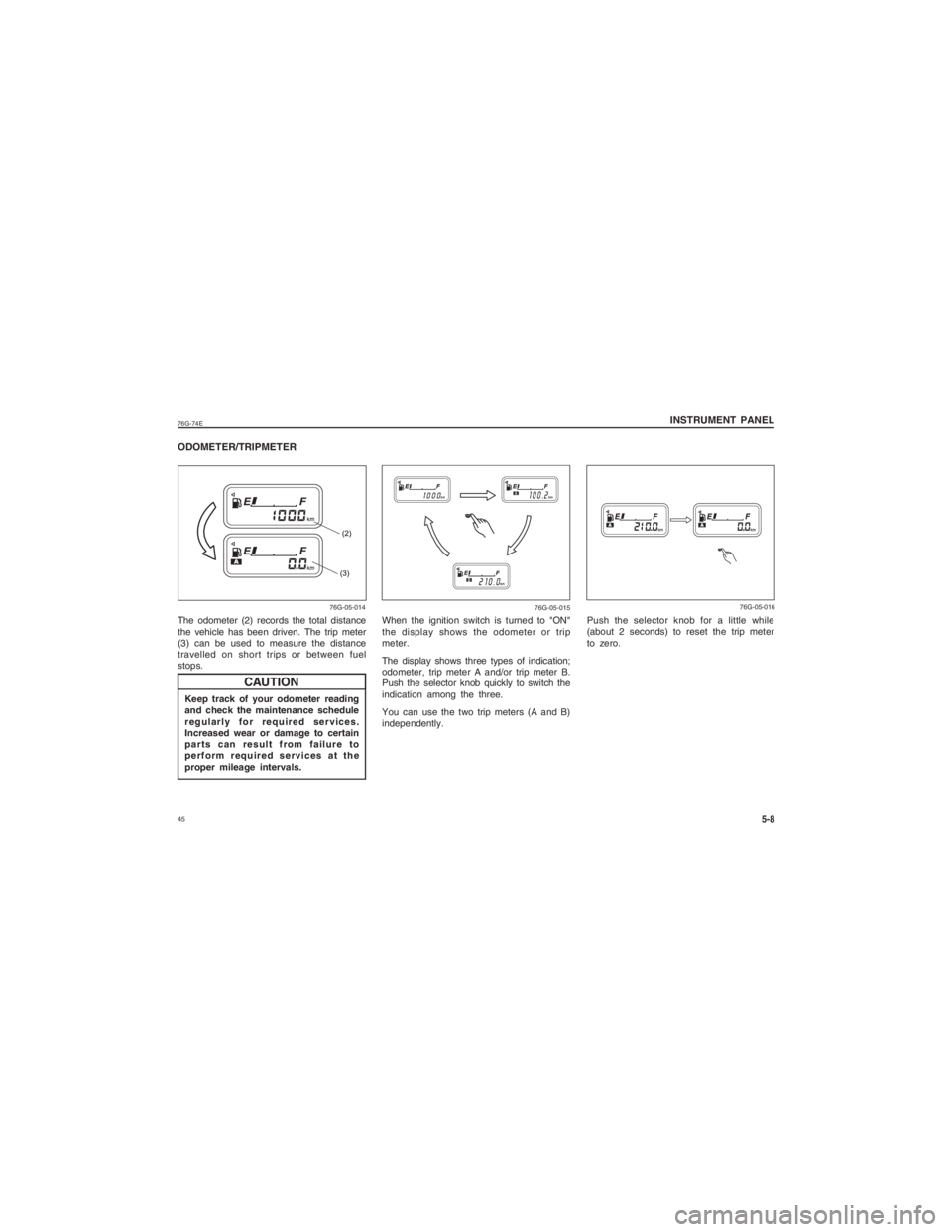

ODOMETER/TRIPMETERThe odometer (2) records the total distance
the vehicle has been driven. The trip meter
(3) can be used to measure the distance
travelled on short trips or between fuel
stops.Keep track of your odometer reading
and check the maintenance schedule
regularly for required services.
Increased wear or damage to certain
parts can result from failure to
perform required services at the
proper mileage intervals.
CAUTION

46
76G-74E
INSTRUMENT PANEL5-9
HIGH ENGINE COOLANT
TEMPERATURE WARNING
LIGHT (Red Color)When the ignition switch is turned to the
“ON” position, this light comes on briefly so
you can check that the light is working. If
this light blinks while driving, it means the
engine is running hot. Avoid driving condi-
tions that may lead to actual overheating.
If the light stays on without blinking, then
the engine is overheating. Follow the in-
structions in the “If the Engine Over heats”
of “EMERGENCY SERVICE” section.Continuing to drive the vehicle when
engine overheating is indicated can
result in severe engine damage.
CAUTION
76G-05-019
FUEL GAUGEWhen the ignition switch is in the “ON”
position, this gauge gives an approximate
indication of the amount of fuel in the fuel
tank. “F” stands for full and “E” stands for
empty.
When the fuel meter indicator shows only
one segment to “E”, refill the tank as soon
as possible.Note:If the last segment blinks, it means that the
fuel tank is almost empty.
Note:The fuel level indicator varies depending onroad conditions (for example, slope orcurve) and driving conditions because of
fuel moving in the tank.
76G-05-018
The tachometer indicates engine speed
in revolutions per minute.
76G-05-013C
Never drive with the engine speed in-
dicator in the red zone (1) or severe
engine damage can result.
When downshifting to a lower gear,
make sure not to operate with exces-
sive revolution speeds of the engine.
Refer to “Downshifting maximum allow-
able speeds” in the “OPERATING
YOUR VEHICLE” section.
CAUTION
TACHOMETER (if equipped)

4776G-74E
INSTRUMENT PANEL
5-10

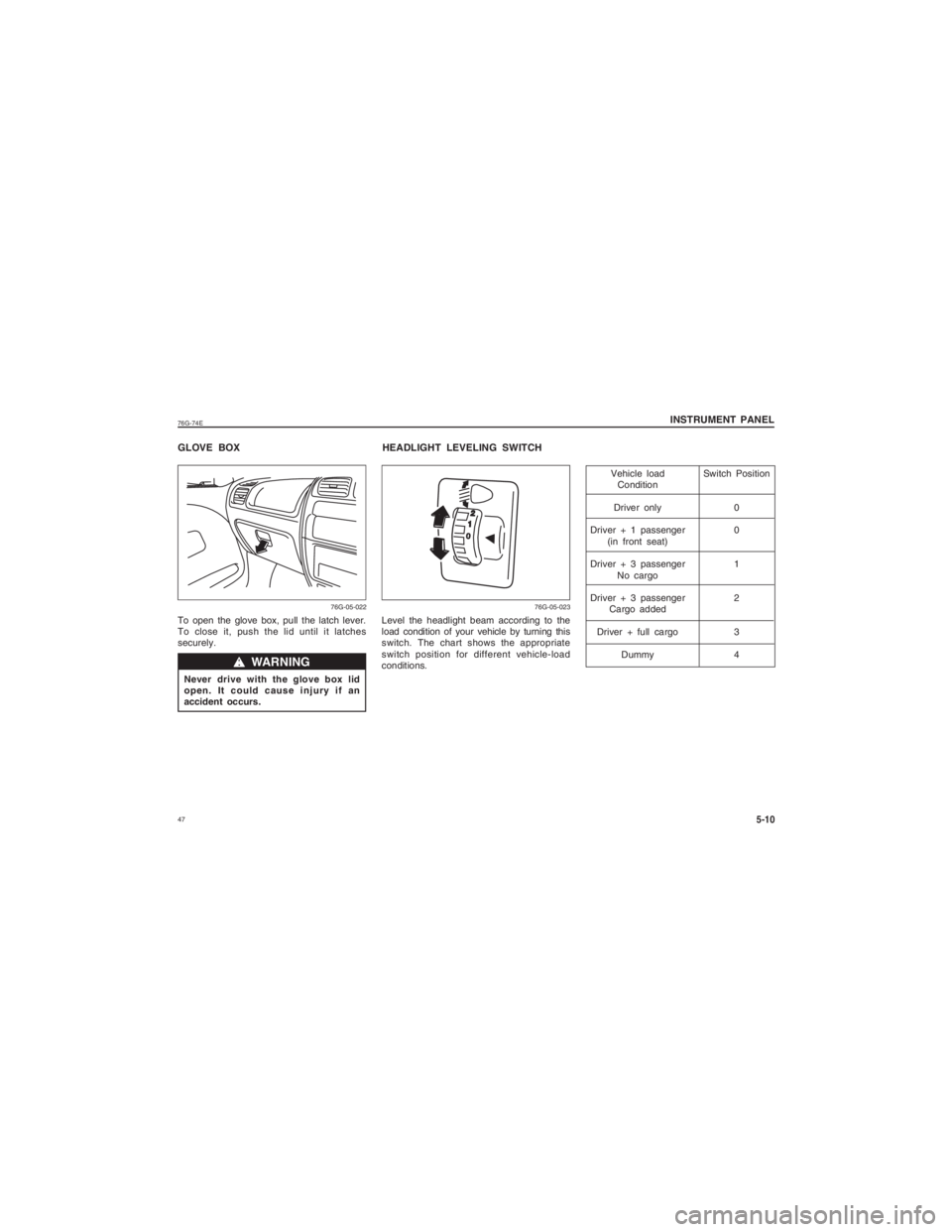

Vehicle load Switch PositionCondition
Driver only 0
Driver + 1 passenger 0 (in front seat)
Driver + 3 passenger 1 No cargo
Driver + 3 passenger 2 Cargo added
Driver + full cargo 3 Dummy 4
Level the headlight beam according to the
load condition of your vehicle by turning this
switch. The chart shows the appropriate
switch position for different vehicle-load
conditions.HEADLIGHT LEVELING SWITCH
76G-05-023
To open the glove box, pull the latch lever.
To close it, push the lid until it latches
securely.
Never drive with the glove box lid
open. It could cause injury if an
accident occurs.
ww ww
w WARNING
76G-05-022
GLOVE BOX

48
76G-74E
INSTRUMENT PANEL

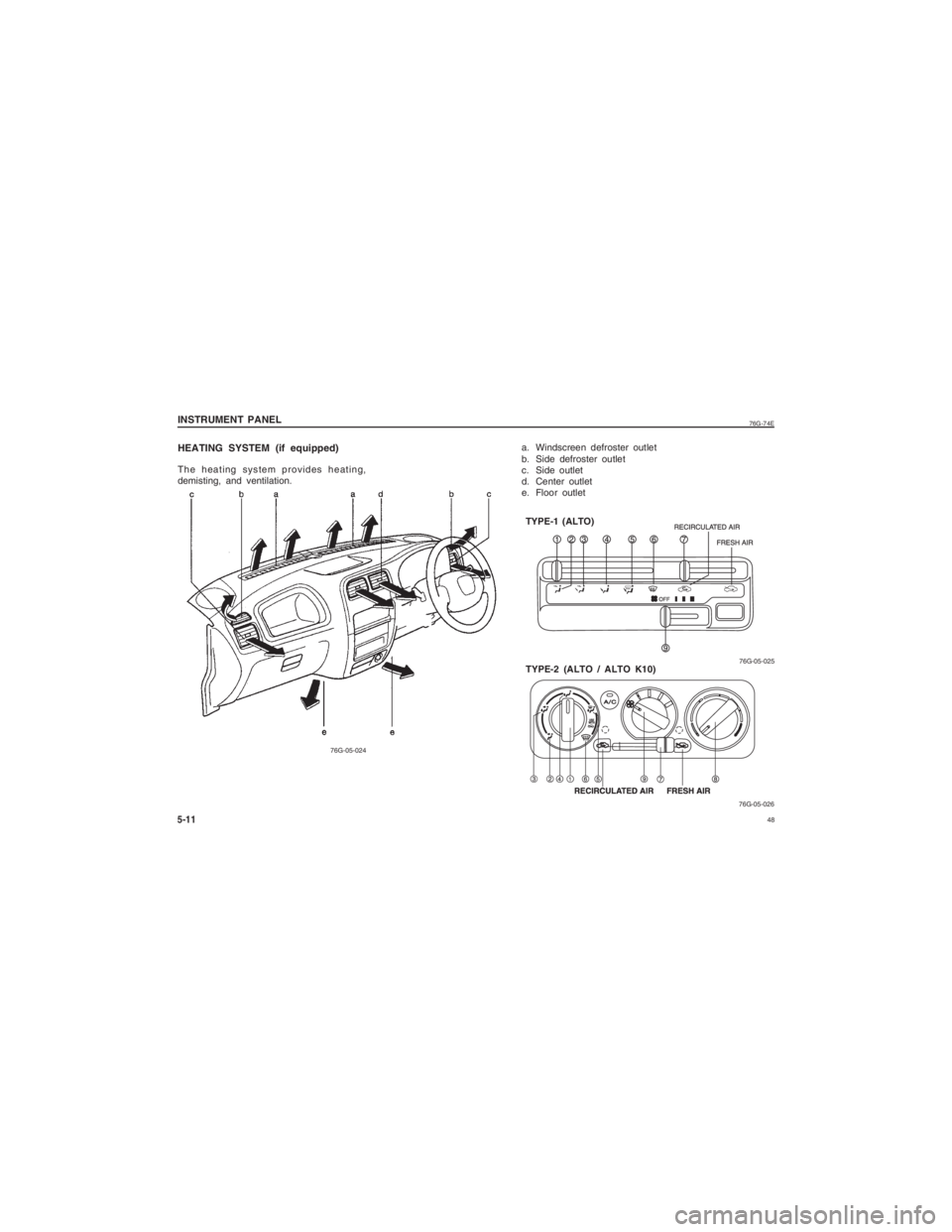

HEATING SYSTEM (if equipped)5-11
a. Windscreen defroster outlet
b. Side defroster outlet
c. Side outlet
d. Center outlet
e. Floor outlet
The heating system provides heating,
demisting, and ventilation.
76G-05-02476G-05-025
76G-05-026
TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10)

4976G-74E
INSTRUMENT PANEL

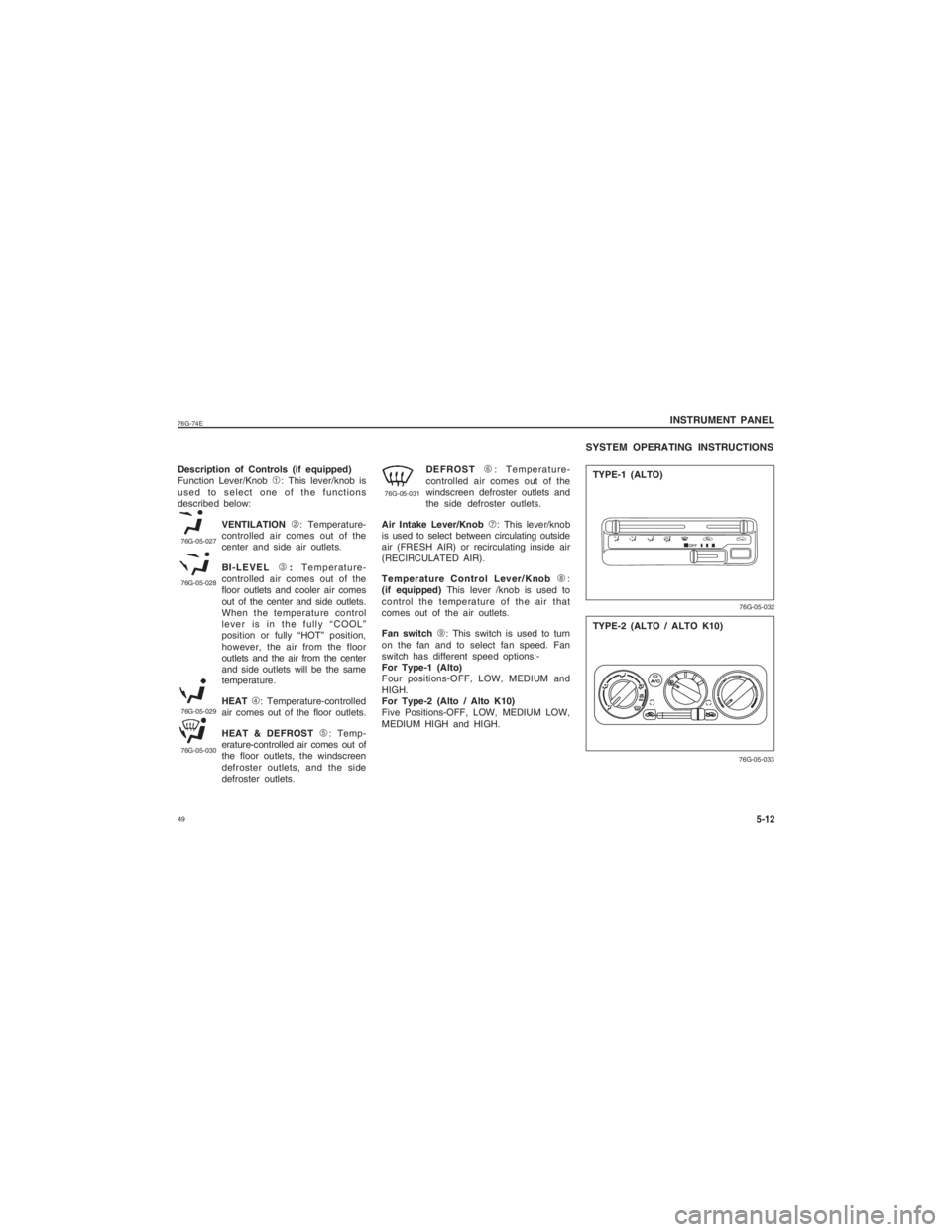

Description of Controls (if equipped)
Function Lever/Knob 1: This lever/knob is
used to select one of the functions
described below:
VENTILATION 2: Temperature-
controlled air comes out of the
center and side air outlets.
BI-LEVEL 3: Temperature-
controlled air comes out of the
floor outlets and cooler air comes
out of the center and side outlets.
When the temperature control
lever is in the fully “COOL”
position or fully “HOT” position,
however, the air from the floor
outlets and the air from the center
and side outlets will be the same
temperature.
HEAT 4: Temperature-controlled
air comes out of the floor outlets.
HEAT & DEFROST 5: Temp-
erature-controlled air comes out of
the floor outlets, the windscreen
defroster outlets, and the side
defroster outlets. DEFROST
6: Temperature-
controlled air comes out of the
windscreen defroster outlets and
the side defroster outlets.
Air Intake Lever/Knob 7 : This lever/knob
is used to select between circulating outside
air (FRESH AIR) or recirculating inside air
(RECIRCULATED AIR).
Temperature Control Lever/Knob 8 :
(if equipped) This lever /knob is used to
control the temperature of the air that
comes out of the air outlets.
Fan switch 9 : This switch is used to turn
on the fan and to select fan speed. Fan
switch has different speed options:-
For Type-1 (Alto)
Four positions-OFF, LOW, MEDIUM and
HIGH.
For Type-2 (Alto / Alto K10)
Five Positions-OFF, LOW, MEDIUM LOW,
MEDIUM HIGH and HIGH.
SYSTEM OPERATING INSTRUCTIONS
5-12
76G-05-032
76G-05-031
76G-05-027
76G-05-028
76G-05-029
76G-05-030 76G-05-033
TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10)

50
76G-74E

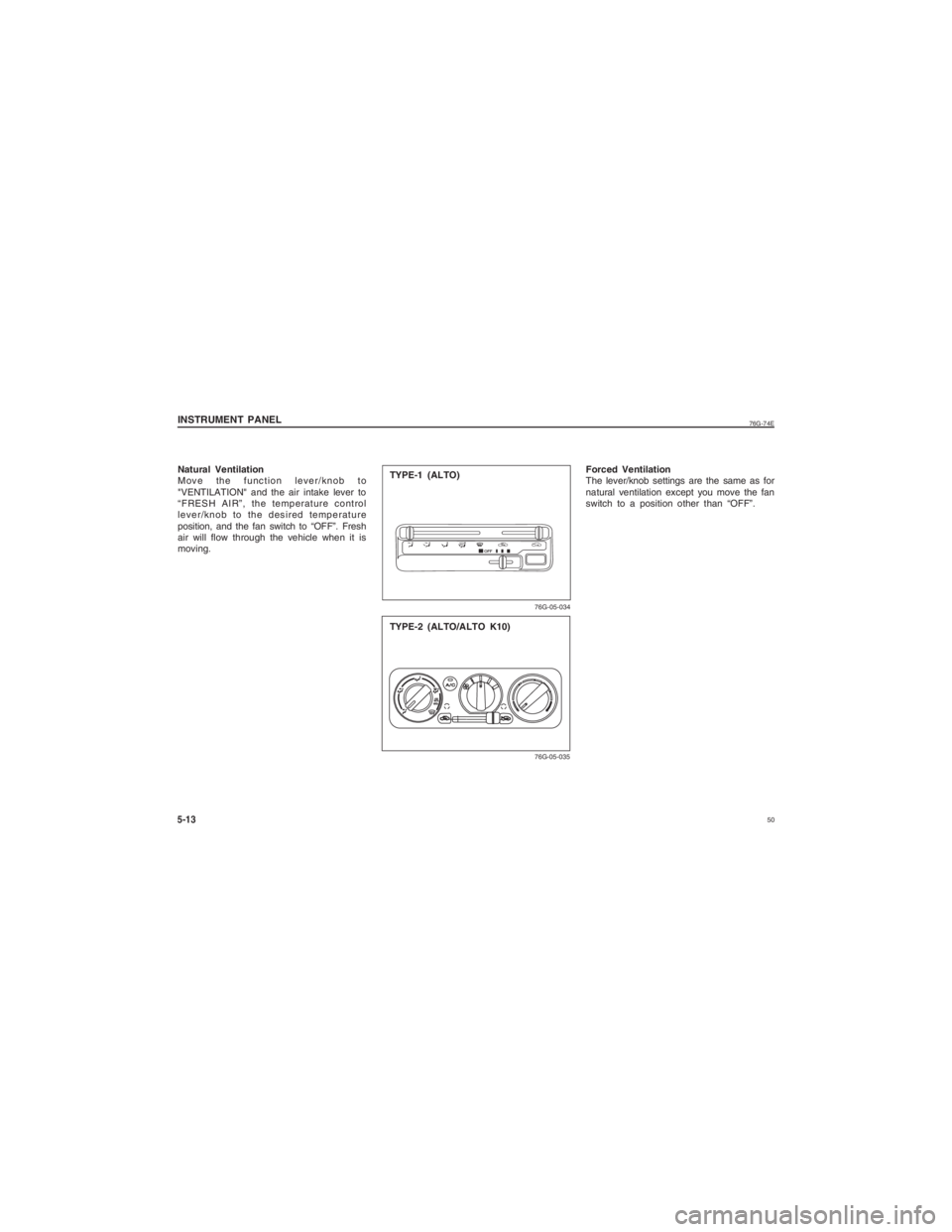

Natural Ventilation
Move the function lever/knob to
"VENTILATION" and the air intake lever to
“FRESH AIR”, the temperature control
lever/knob to the desired temperature
position, and the fan switch to “OFF”. Fresh
air will flow through the vehicle when it is
moving.
Forced Ventilation
The lever/knob settings are the same as for
natural ventilation except you move the fan
switch to a position other than “OFF”.
5-13INSTRUMENT PANEL
76G-05-034
76G-05-035
TYPE-1 (ALTO) TYPE-2 (ALTO/ALTO K10)

5176G-74E
INSTRUMENT PANEL

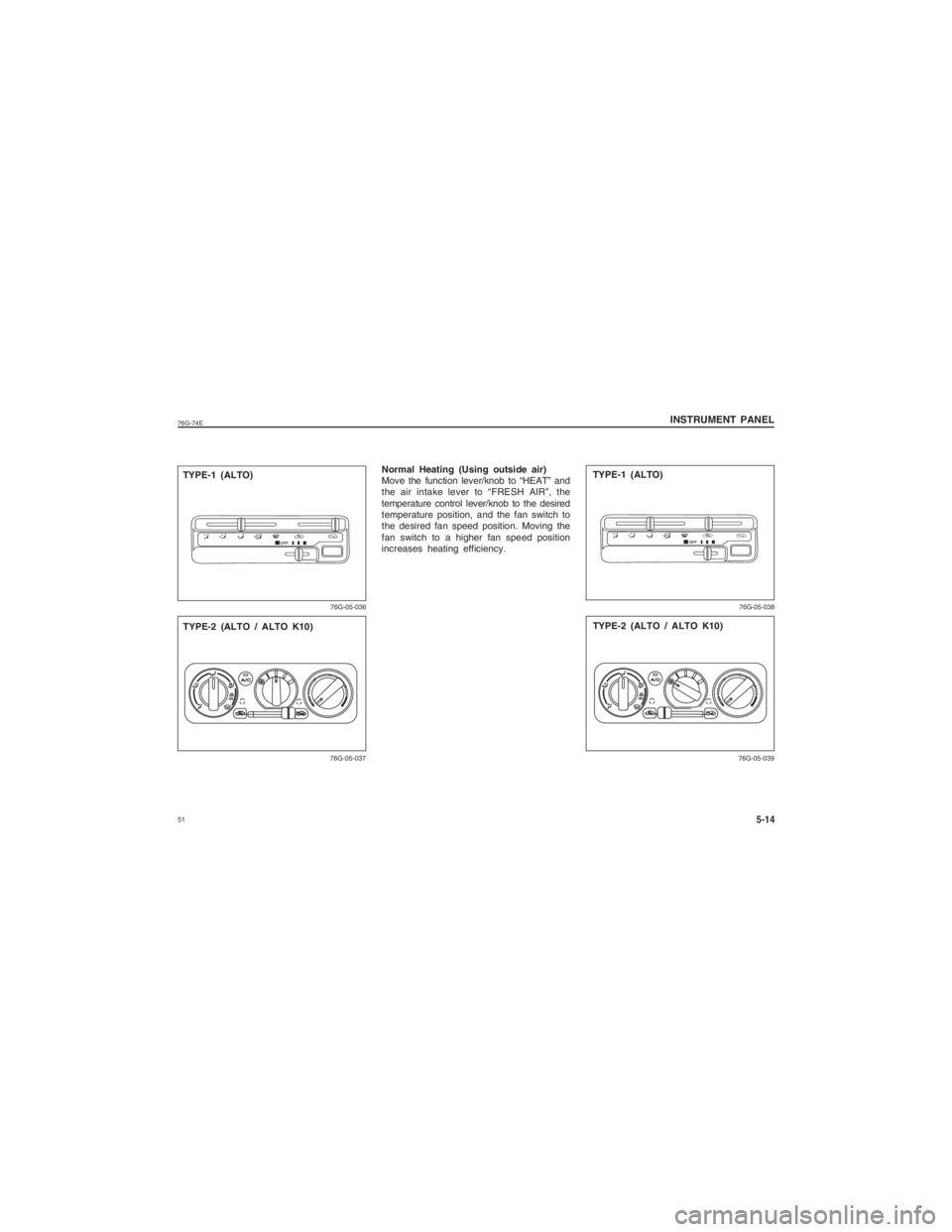

Normal Heating (Using outside air)
Move the function lever/knob to “HEAT” and
the air intake lever to “FRESH AIR”, the
temperature control lever/knob to the desired
temperature position, and the fan switch to
the desired fan speed position. Moving the
fan switch to a higher fan speed position
increases heating efficiency.
5-14
76G-05-03676G-05-038
76G-05-037 76G-05-039
TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10)
TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10)
