SUZUKI GRAND VITARA 2001 2.G Owners Manual

7B1-22 AUTOMATIC TRANSMISSION (4 A/T)

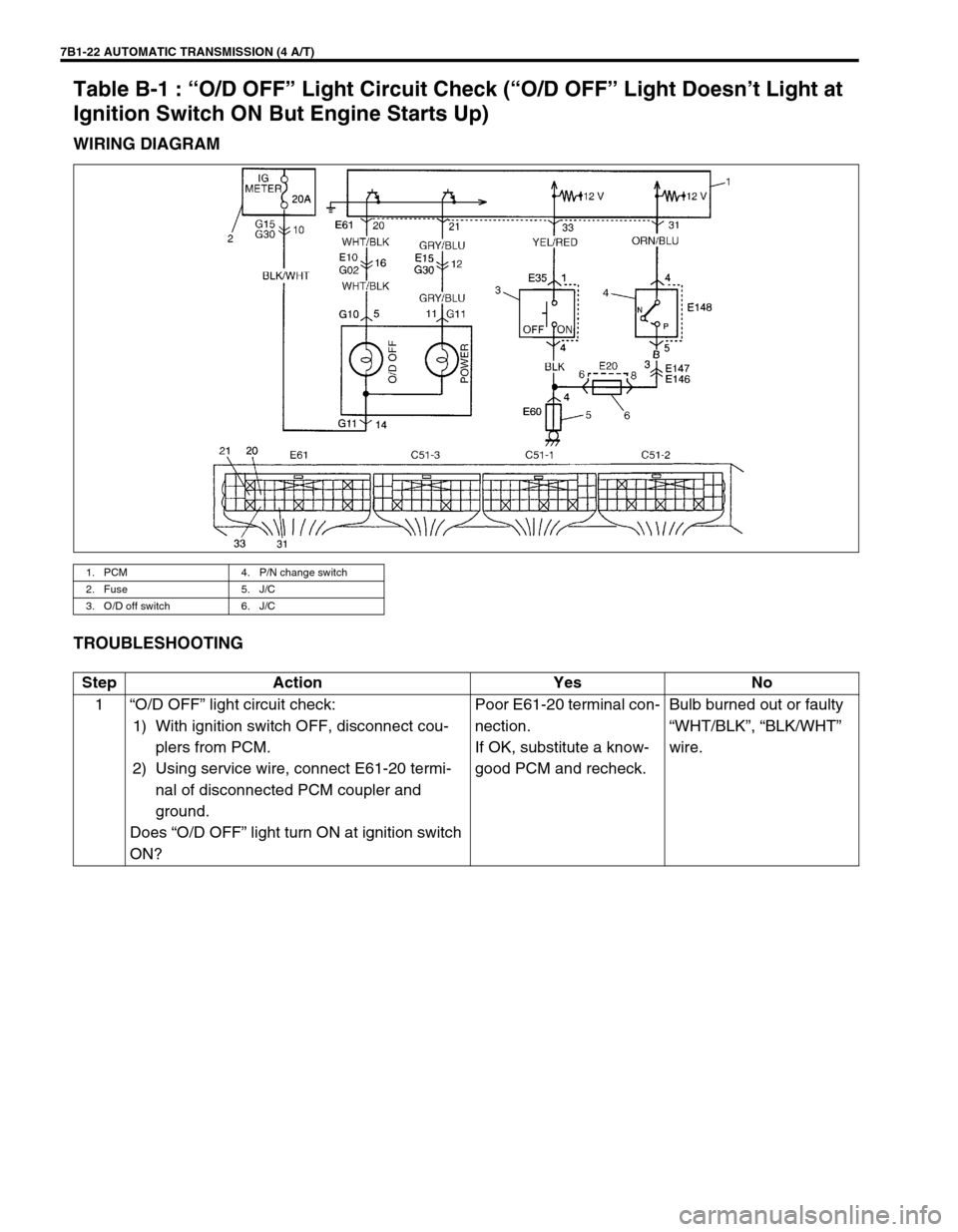

Table B-1 : “O/D OFF” Light Circuit Check (“O/D OFF” Light Doesn’t Light at
Ignition Switch ON But Engine Starts Up)
WIRING DIAGRAM
TROUBLESHOOTING
1. PCM 4. P/N change switch
2. Fuse 5. J/C
3. O/D off switch 6. J/C
Step Action Yes No
1“O/D OFF” light circuit check:
1) With ignition switch OFF, disconnect cou-
plers from PCM.
2) Using service wire, connect E61-20 termi-
nal of disconnected PCM coupler and
ground.
Does “O/D OFF” light turn ON at ignition switch
ON?Poor E61-20 terminal con-
nection.
If OK, substitute a know-
good PCM and recheck.Bulb burned out or faulty
“WHT/BLK”, “BLK/WHT”
wire.

AUTOMATIC TRANSMISSION (4 A/T) 7B1-23

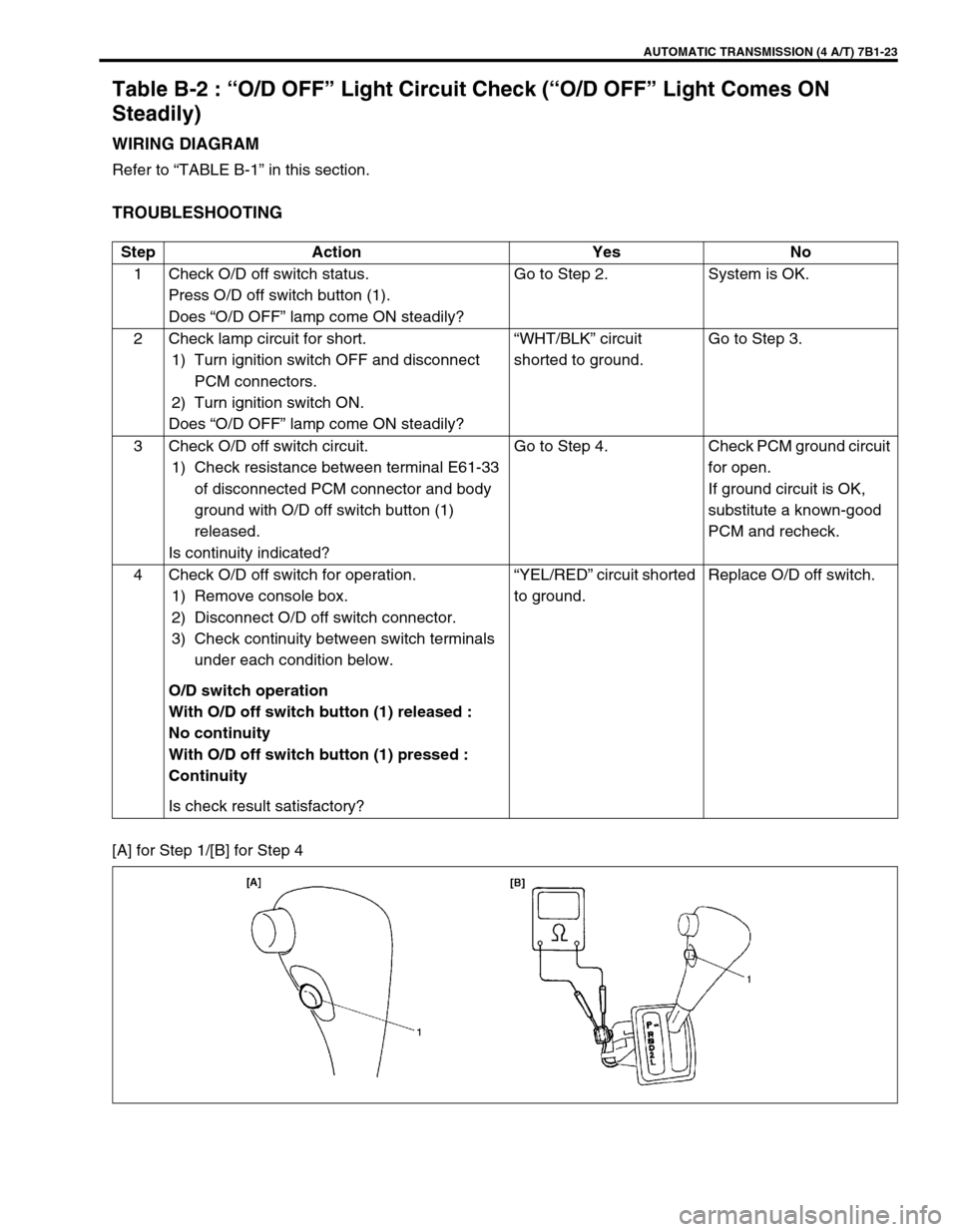

Table B-2 : “O/D OFF” Light Circuit Check (“O/D OFF” Light Comes ON
Steadily)
WIRING DIAGRAM
Refer to “TABLE B-1” in this section.
TROUBLESHOOTING
[A] for Step 1/[B] for Step 4Step Action Yes No
1 Check O/D off switch status.
Press O/D off switch button (1).
Does “O/D OFF” lamp come ON steadily?Go to Step 2. System is OK.
2 Check lamp circuit for short.
1) Turn ignition switch OFF and disconnect
PCM connectors.
2) Turn ignition switch ON.
Does “O/D OFF” lamp come ON steadily?“WHT/BLK” circuit
shorted to ground.Go to Step 3.
3 Check O/D off switch circuit.
1) Check resistance between terminal E61-33
of disconnected PCM connector and body
ground with O/D off switch button (1)
released.
Is continuity indicated?Go to Step 4. Check PCM ground circuit
for open.
If ground circuit is OK,
substitute a known-good
PCM and recheck.
4 Check O/D off switch for operation.
1) Remove console box.
2) Disconnect O/D off switch connector.
3) Check continuity between switch terminals
under each condition below.
O/D switch operation
With O/D off switch button (1) released :
No continuity
With O/D off switch button (1) pressed :
Continuity
Is check result satisfactory?“YEL/RED” circuit shorted
to ground.Replace O/D off switch.

7B1-24 AUTOMATIC TRANSMISSION (4 A/T)
Table B-3 : “POWER” Light Circuit Check (“POWER” Light Doesn’t Light at
Ignition Switch ON But Engine Starts Up)
WIRING DIAGRAM
TROUBLESHOOTING
1. PCM 4. P/N change switch
2. Fuse 5. J/C
3. O/D off switch
Step Action Yes No
1“POWER” light circuit check :
1) With ignition switch OFF, disconnect cou-
plers from PCM.
2) Using service wire, connect E61-21 termi-
nal of disconnected PCM coupler and
ground.
Does “POWER” light turn ON at ignition switch
ON?Poor E61-21 terminal con-
nection.
If OK, substitute a known-
good PCM and recheck.Bulb burned out or faulty
“GRY/BLU”, “BLK/WHT”
wire.

AUTOMATIC TRANSMISSION (4 A/T) 7B1-25

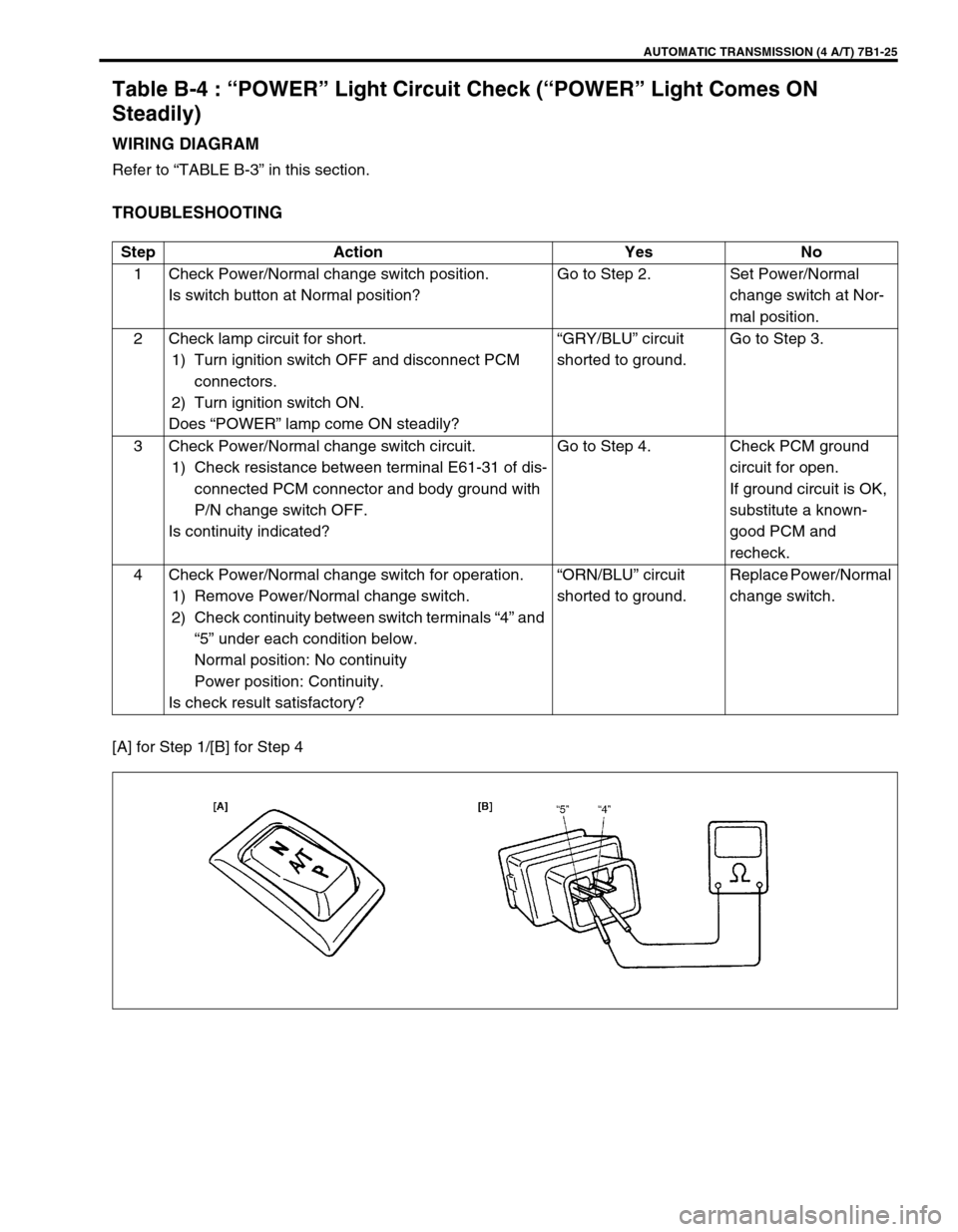

Table B-4 : “POWER” Light Circuit Check (“POWER” Light Comes ON
Steadily)
WIRING DIAGRAM
Refer to “TABLE B-3” in this section.
TROUBLESHOOTING
[A] for Step 1/[B] for Step 4Step Action Yes No
1 Check Power/Normal change switch position.
Is switch button at Normal position?Go to Step 2. Set Power/Normal
change switch at Nor-
mal position.
2 Check lamp circuit for short.
1) Turn ignition switch OFF and disconnect PCM
connectors.
2) Turn ignition switch ON.
Does “POWER” lamp come ON steadily?“GRY/BLU” circuit
shorted to ground.Go to Step 3.
3 Check Power/Normal change switch circuit.
1) Check resistance between terminal E61-31 of dis-
connected PCM connector and body ground with
P/N change switch OFF.
Is continuity indicated?Go to Step 4. Check PCM ground
circuit for open.
If ground circuit is OK,
substitute a known-
good PCM and
recheck.
4 Check Power/Normal change switch for operation.
1) Remove Power/Normal change switch.
2) Check continuity between switch terminals “4” and
“5” under each condition below.
Normal position: No continuity
Power position: Continuity.
Is check result satisfactory?“ORN/BLU” circuit
shorted to ground.Replace Power/Normal
change switch.

7B1-26 AUTOMATIC TRANSMISSION (4 A/T)

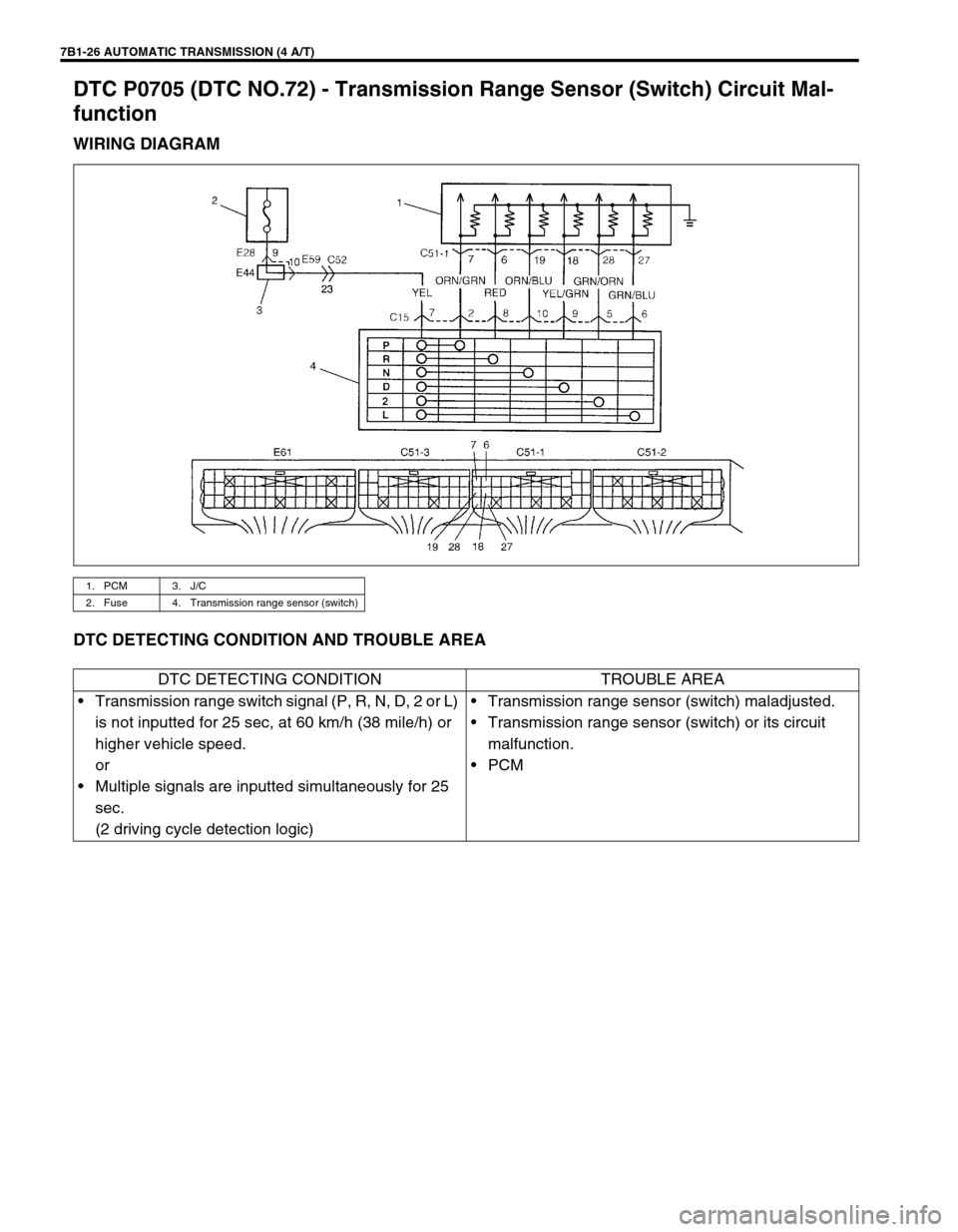

DTC P0705 (DTC NO.72) - Transmission Range Sensor (Switch) Circuit Mal-
function
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
1. PCM 3. J/C
2. Fuse 4. Transmission range sensor (switch)
DTC DETECTING CONDITION TROUBLE AREA
•Transmission range switch signal (P, R, N, D, 2 or L)
is not inputted for 25 sec, at 60 km/h (38 mile/h) or
higher vehicle speed.
or
•Multiple signals are inputted simultaneously for 25
sec.
(2 driving cycle detection logic)•Transmission range sensor (switch) maladjusted.
•Transmission range sensor (switch) or its circuit
malfunction.
•PCM

AUTOMATIC TRANSMISSION (4 A/T) 7B1-27

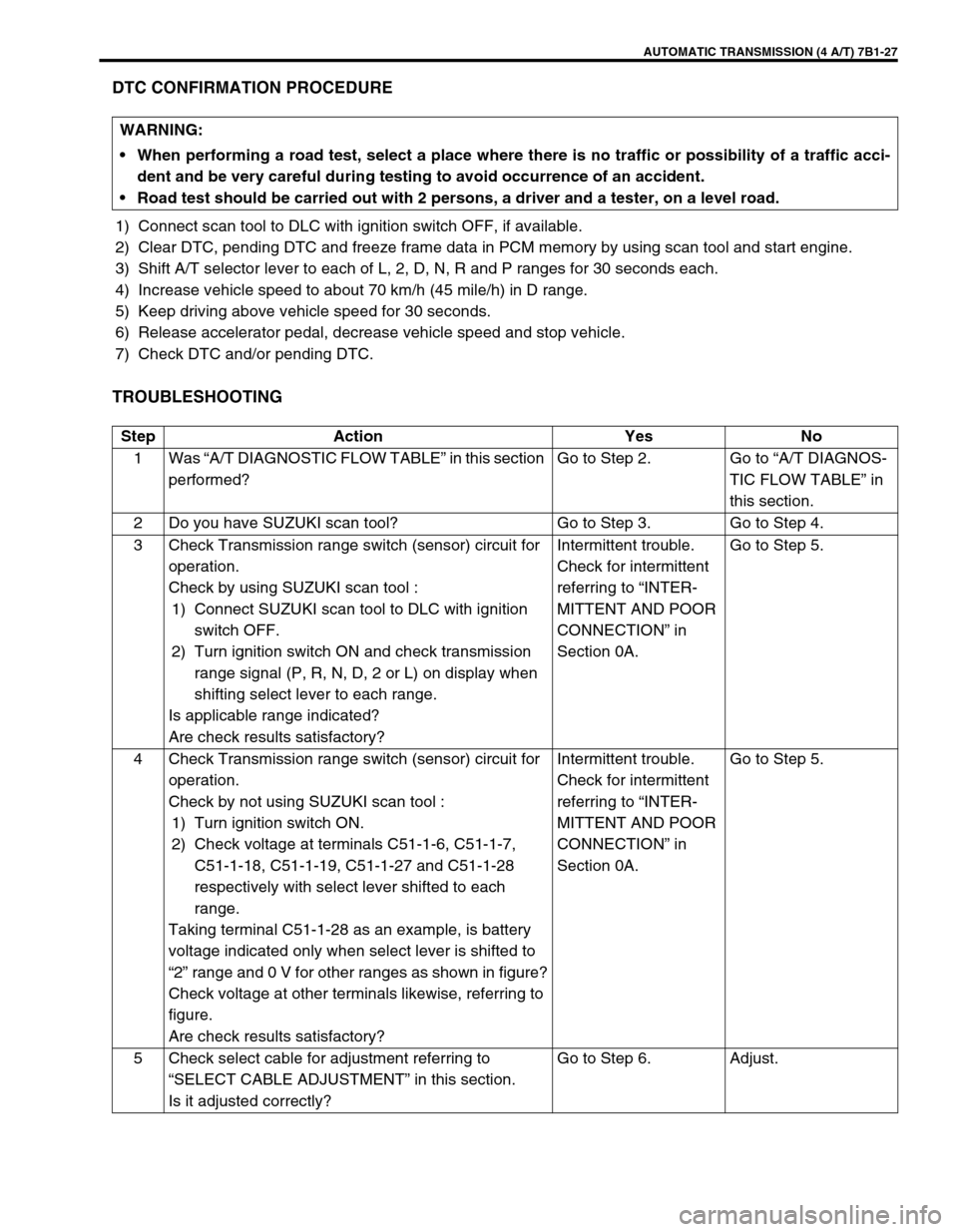

DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC, pending DTC and freeze frame data in PCM memory by using scan tool and start engine.
3) Shift A/T selector lever to each of L, 2, D, N, R and P ranges for 30 seconds each.
4) Increase vehicle speed to about 70 km/h (45 mile/h) in D range.
5) Keep driving above vehicle speed for 30 seconds.
6) Release accelerator pedal, decrease vehicle speed and stop vehicle.
7) Check DTC and/or pending DTC.
TROUBLESHOOTING
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
Step Action Yes No
1Was “A/T DIAGNOSTIC FLOW TABLE” in this section
performed?Go to Step 2. Go to “A/T DIAGNOS-
TIC FLOW TABLE” in
this section.
2 Do you have SUZUKI scan tool? Go to Step 3. Go to Step 4.
3 Check Transmission range switch (sensor) circuit for
operation.
Check by using SUZUKI scan tool :
1) Connect SUZUKI scan tool to DLC with ignition
switch OFF.
2) Turn ignition switch ON and check transmission
range signal (P, R, N, D, 2 or L) on display when
shifting select lever to each range.
Is applicable range indicated?
Are check results satisfactory?Intermittent trouble.
Check for intermittent
referring to “INTER-
MITTENT AND POOR
CONNECTION” in
Section 0A.Go to Step 5.
4 Check Transmission range switch (sensor) circuit for
operation.
Check by not using SUZUKI scan tool :
1) Turn ignition switch ON.
2) Check voltage at terminals C51-1-6, C51-1-7,
C51-1-18, C51-1-19, C51-1-27 and C51-1-28
respectively with select lever shifted to each
range.
Taking terminal C51-1-28 as an example, is battery
voltage indicated only when select lever is shifted to
“2” range and 0 V for other ranges as shown in figure?
Check voltage at other terminals likewise, referring to
figure.
Are check results satisfactory?Intermittent trouble.
Check for intermittent
referring to “INTER-
MITTENT AND POOR
CONNECTION” in
Section 0A.Go to Step 5.
5 Check select cable for adjustment referring to
“SELECT CABLE ADJUSTMENT” in this section.
Is it adjusted correctly?Go to Step 6. Adjust.

7B1-28 AUTOMATIC TRANSMISSION (4 A/T)

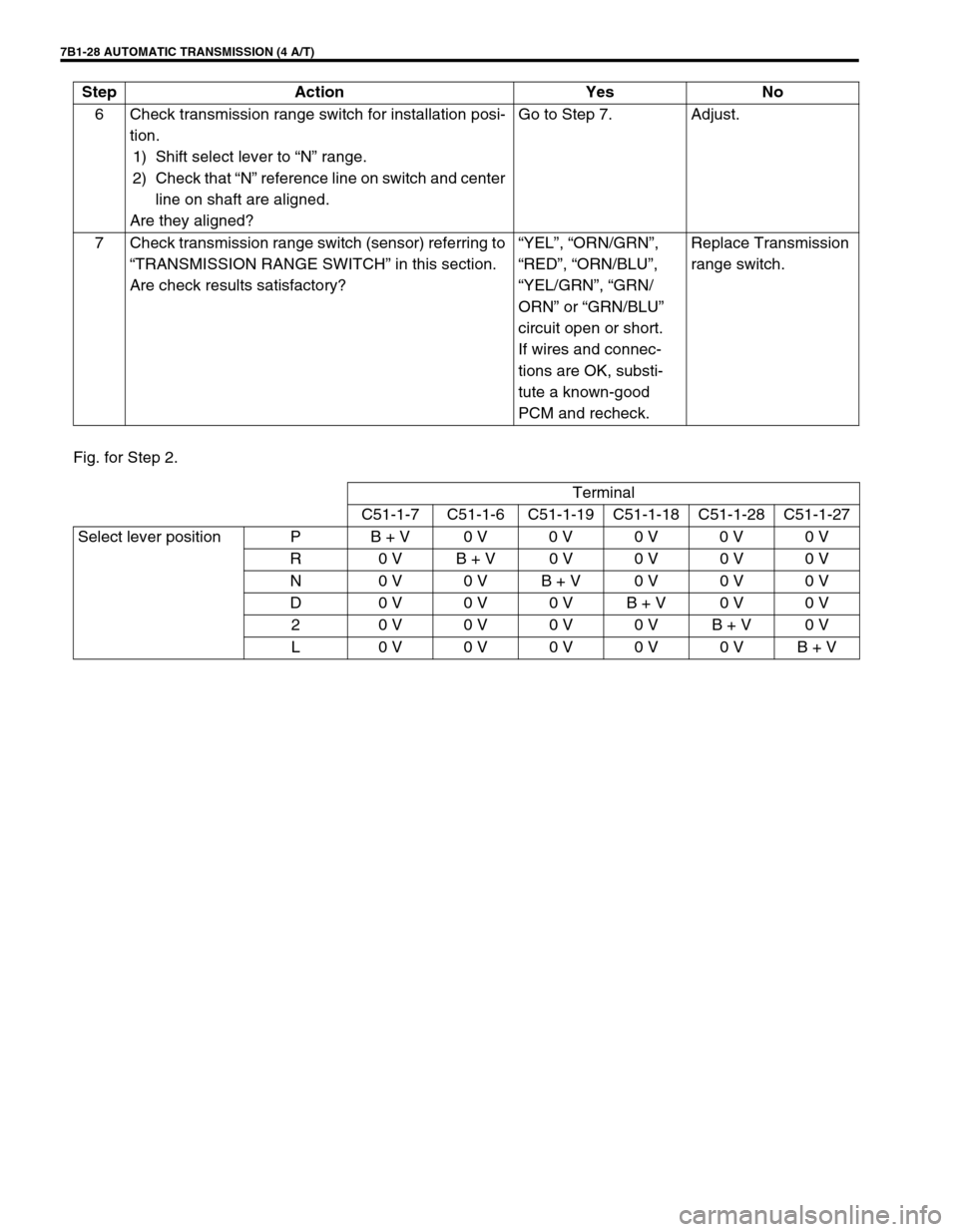

Fig. for Step 2.6 Check transmission range switch for installation posi-
tion.
1) Shift select lever to “N” range.
2) Check that “N” reference line on switch and center
line on shaft are aligned.
Are they aligned?Go to Step 7. Adjust.
7 Check transmission range switch (sensor) referring to
“TRANSMISSION RANGE SWITCH” in this section.
Are check results satisfactory?“YEL”, “ORN/GRN”,
“RED”, “ORN/BLU”,
“YEL/GRN”, “GRN/
ORN” or “GRN/BLU”
circuit open or short.
If wires and connec-
tions are OK, substi-
tute a known-good
PCM and recheck.Replace Transmission
range switch. Step Action Yes No
Terminal
C51-1-7 C51-1-6 C51-1-19 C51-1-18 C51-1-28 C51-1-27
Select lever position P B + V0 V0 V0 V0 V0 V
R 0 VB + V0 V0 V0 V0 V
N 0 V0 VB + V0 V0 V0 V
D 0 V0 V0 VB + V0 V0 V
2 0 V0 V0 V0 VB + V0 V
L 0 V0 V0 V0 V0 VB + V

AUTOMATIC TRANSMISSION (4 A/T) 7B1-29

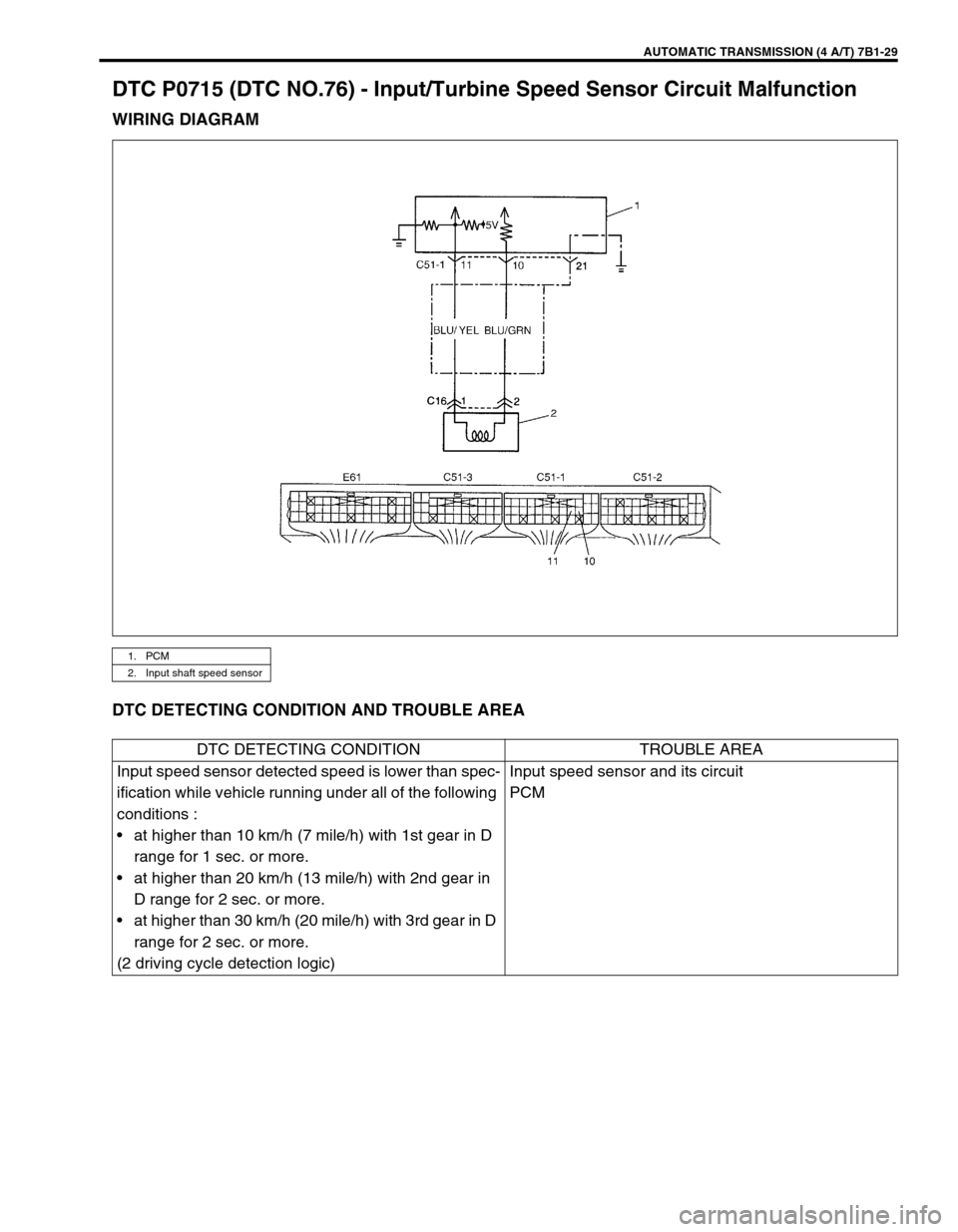

DTC P0715 (DTC NO.76) - Input/Turbine Speed Sensor Circuit Malfunction
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
1. PCM
2. Input shaft speed sensor
DTC DETECTING CONDITION TROUBLE AREA
Input speed sensor detected speed is lower than spec-
ification while vehicle running under all of the following
conditions :
•at higher than 10 km/h (7 mile/h) with 1st gear in D
range for 1 sec. or more.
•at higher than 20 km/h (13 mile/h) with 2nd gear in
D range for 2 sec. or more.
•at higher than 30 km/h (20 mile/h) with 3rd gear in D
range for 2 sec. or more.
(2 driving cycle detection logic)Input speed sensor and its circuit
PCM

7B1-30 AUTOMATIC TRANSMISSION (4 A/T)

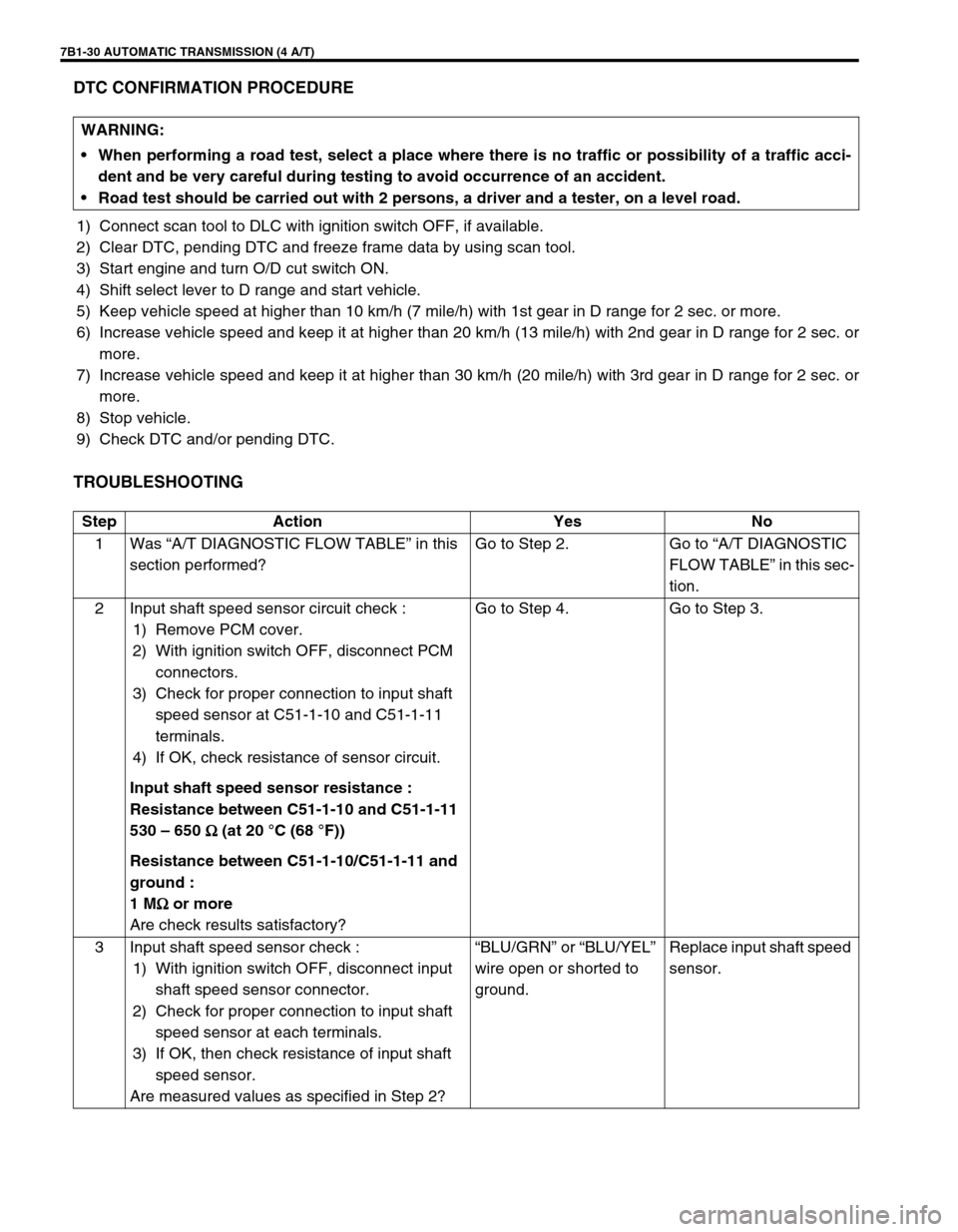

DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC, pending DTC and freeze frame data by using scan tool.
3) Start engine and turn O/D cut switch ON.
4) Shift select lever to D range and start vehicle.
5) Keep vehicle speed at higher than 10 km/h (7 mile/h) with 1st gear in D range for 2 sec. or more.
6) Increase vehicle speed and keep it at higher than 20 km/h (13 mile/h) with 2nd gear in D range for 2 sec. or
more.
7) Increase vehicle speed and keep it at higher than 30 km/h (20 mile/h) with 3rd gear in D range for 2 sec. or
more.
8) Stop vehicle.
9) Check DTC and/or pending DTC.
TROUBLESHOOTING
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
Step Action Yes No
1Was “A/T DIAGNOSTIC FLOW TABLE” in this
section performed?Go to Step 2. Go to “A/T DIAGNOSTIC
FLOW TABLE” in this sec-
tion.
2 Input shaft speed sensor circuit check :
1) Remove PCM cover.
2) With ignition switch OFF, disconnect PCM
connectors.
3) Check for proper connection to input shaft
speed sensor at C51-1-10 and C51-1-11
terminals.
4) If OK, check resistance of sensor circuit.
Input shaft speed sensor resistance :
Resistance between C51-1-10 and C51-1-11
530 – 650 Ω
ΩΩ Ω (at 20 °C (68 °F))
Resistance between C51-1-10/C51-1-11 and
ground :
1 MΩ
ΩΩ Ω or more
Are check results satisfactory?Go to Step 4. Go to Step 3.
3 Input shaft speed sensor check :
1) With ignition switch OFF, disconnect input
shaft speed sensor connector.
2) Check for proper connection to input shaft
speed sensor at each terminals.
3) If OK, then check resistance of input shaft
speed sensor.
Are measured values as specified in Step 2?“BLU/GRN” or “BLU/YEL”
wire open or shorted to
ground.Replace input shaft speed
sensor.

AUTOMATIC TRANSMISSION (4 A/T) 7B1-31

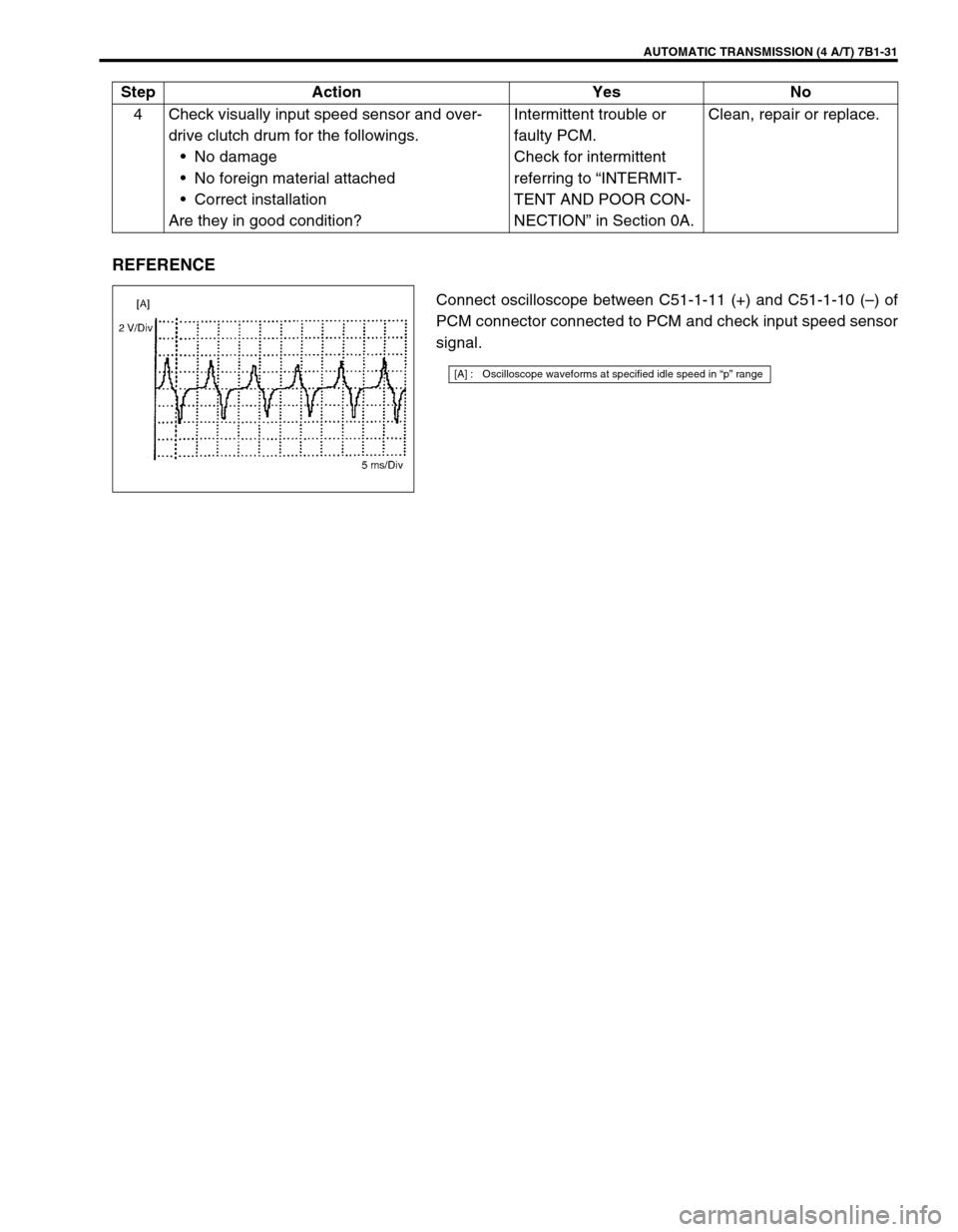

REFERENCE
Connect oscilloscope between C51-1-11 (+) and C51-1-10 (–) of
PCM connector connected to PCM and check input speed sensor
signal. 4 Check visually input speed sensor and over-
drive clutch drum for the followings.
•No damage
•No foreign material attached
•Correct installation
Are they in good condition?Intermittent trouble or
faulty PCM.
Check for intermittent
referring to “INTERMIT-
TENT AND POOR CON-
NECTION” in Section 0A.Clean, repair or replace. Step Action Yes No
[A] : Oscilloscope waveforms at specified idle speed in “p” range
