Page 80 of 656

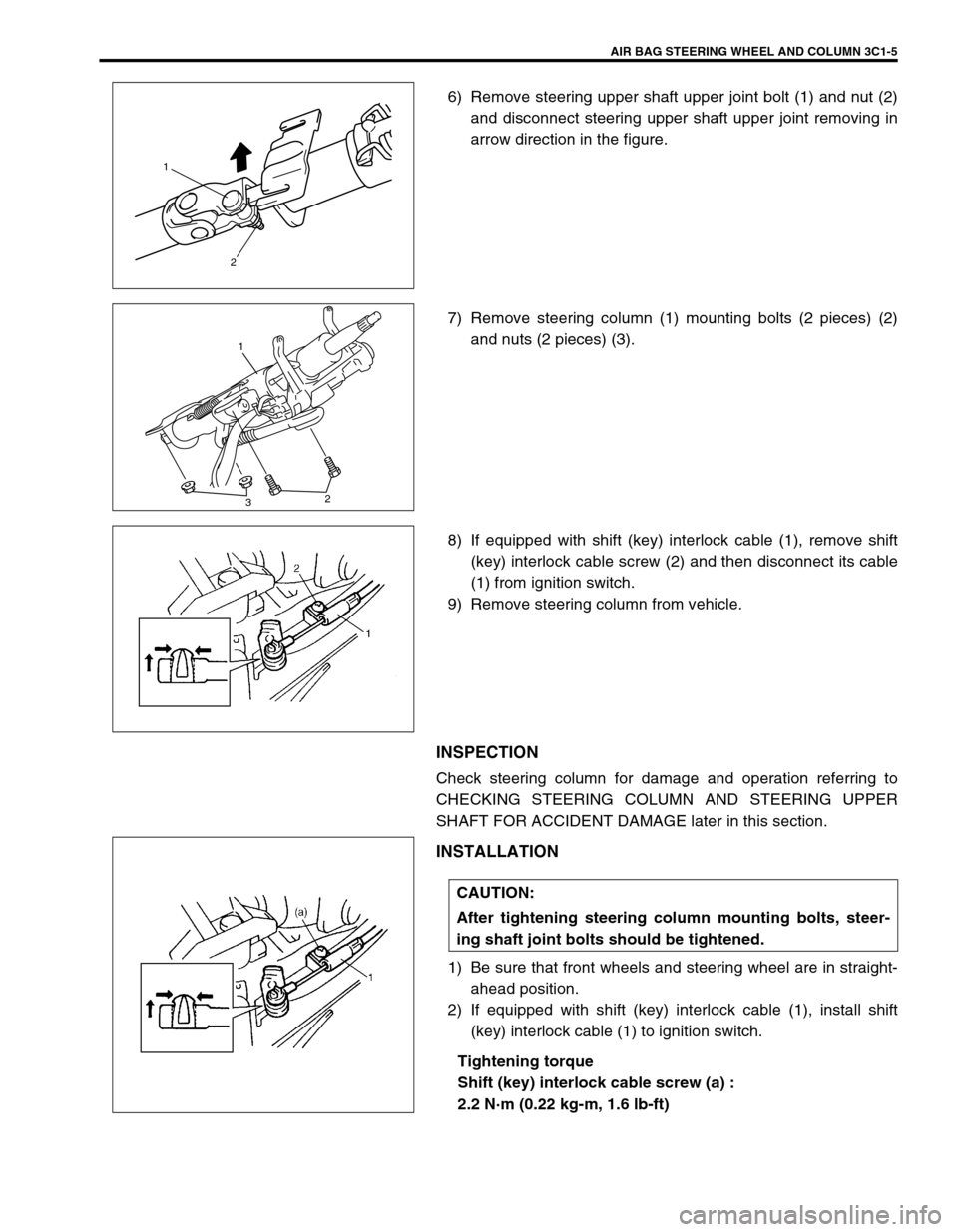

AIR BAG STEERING WHEEL AND COLUMN 3C1-5
6) Remove steering upper shaft upper joint bolt (1) and nut (2)
and disconnect steering upper shaft upper joint removing in
arrow direction in the figure.
7) Remove steering column (1) mounting bolts (2 pieces) (2)
and nuts (2 pieces) (3).
8) If equipped with shift (key) interlock cable (1), remove shift
(key) interlock cable screw (2) and then disconnect its cable
(1) from ignition switch.
9) Remove steering column from vehicle.
INSPECTION
Check steering column for damage and operation referring to
CHECKING STEERING COLUMN AND STEERING UPPER
SHAFT FOR ACCIDENT DAMAGE later in this section.
INSTALLATION
1) Be sure that front wheels and steering wheel are in straight-
ahead position.
2) If equipped with shift (key) interlock cable (1), install shift
(key) interlock cable (1) to ignition switch.
Tightening torque
Shift (key) interlock cable screw (a) :
2.2 N·m (0.22 kg-m, 1.6 lb-ft)
1
2
1
32
CAUTION:
After tightening steering column mounting bolts, steer-
ing shaft joint bolts should be tightened.
Page 87 of 656
3C1-12 AIR BAG STEERING WHEEL AND COLUMN
Take measurement “b” as shown in the figure. If it is shorter
than specified length, replace steering upper shaft assembly
with new one.
Steering upper shaft assembly length “b” :
419.0 ± 1.0 mm (16.50 ± 0.04 in.)
Tightening Torque Specification
“b”
Fastening partTightening torque
Nm kg-m lb-ft
Driver air bag (inflator) module bolt 9 0.9 6.5
Steering shaft nut 33 3.3 23.5
Steering column mounting bolt and nut 25 2.5 18.0
Steering shaft joint bolt 25 2.5 18.0
Steering lower shaft assembly lower joint bolt 25 2.5 18.0
Shift (key) interlock cable screw 2.2 0.22 1.6
Steering upper shaft mounting bolt 23 2.3 17.0
Steering upper shaft upper joint nut 23 2.3 17.0
Page 166 of 656
ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-5
Fuel Pressure Relief Procedure
After making sure that engine is cold, relief fuel pressure as fol-
lows.
1) Place transmission gear shift lever in “Neutral” (shift selector
lever to “P” range for A/T vehicle), set parking brake, and
block drive wheels.
2) Remove fuel pump relay (1) from its connector.
3) Remove fuel filler cap to release fuel vapor pressure in fuel
tank and then reinstall it.
4) Start engine and run it till it stops for lack of fuel. Repeat
cranking engine 2 – 3 times of about 3 seconds each time to
dissipate fuel pressure in lines. Fuel connections are now
safe for servicing.
5) Upon completion of servicing, install fuel pump relay to relay
box.
Fuel Leakage Check Procedure
After performing any service on fuel system, check to make sure
that there are no fuel leakages as follows.
1) Turn ON ignition switch for 3 seconds (to operate fuel pump)
and then turn it OFF.
Repeat this (ON and OFF) 3 or 4 times and apply fuel pres-
sure to fuel line (till fuel pressure is felt by hand placed on
fuel return hose).
2) In this state, check to see that there are no fuel leakages
from any part of fuel system. CAUTION:
This work must not be done when engine is hot. If done
so, it may cause adverse effect to catalyst.
[A] : Left hand steering vehicle
[B] : Right hand steering vehicle
2. Fuse box
Page 182 of 656

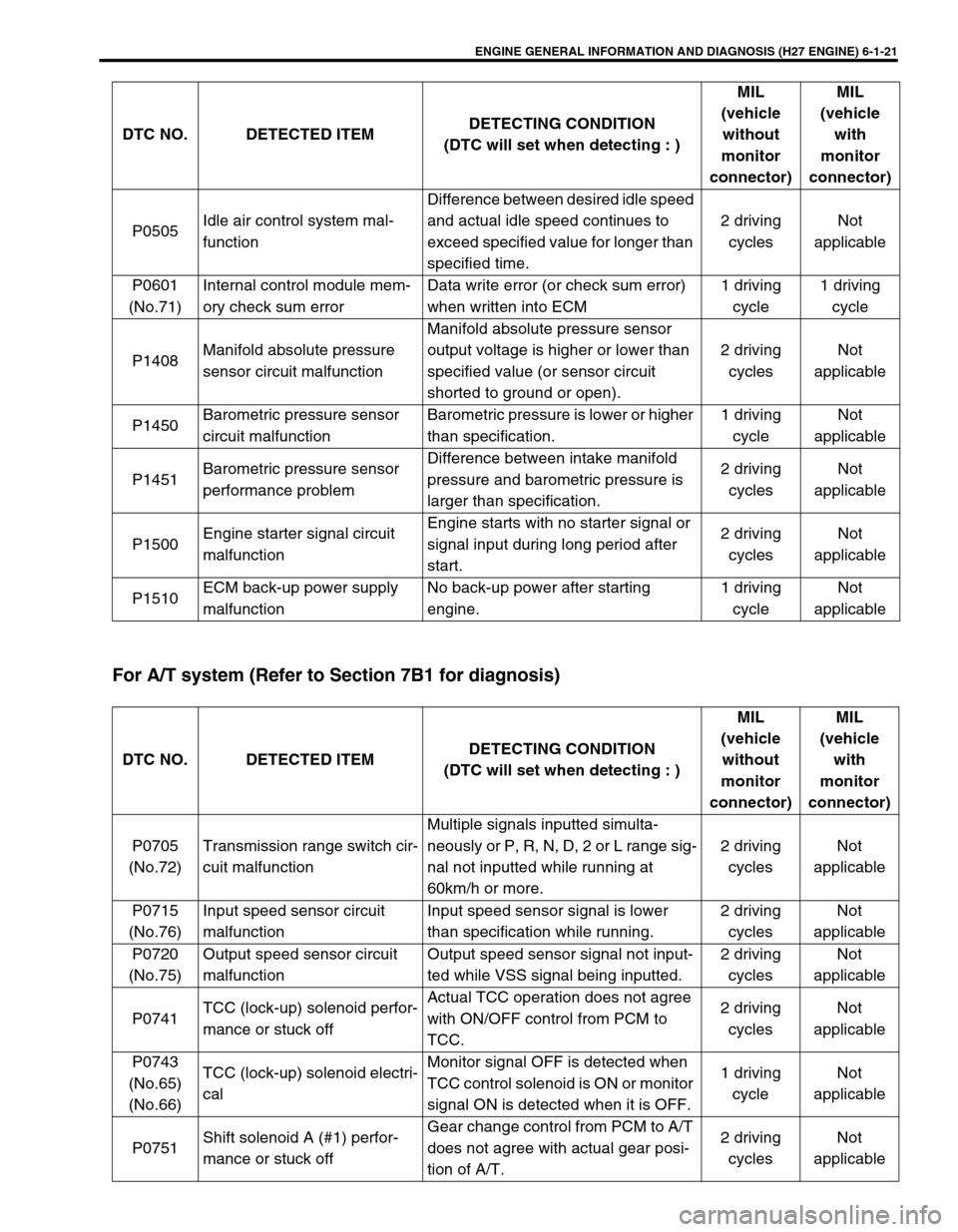

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-21
For A/T system (Refer to Section 7B1 for diagnosis)
P0505Idle air control system mal-
functionDifference between desired idle speed
and actual idle speed continues to
exceed specified value for longer than
specified time.2 driving
cyclesNot
applicable
P0601
(No.71)Internal control module mem-
ory check sum errorData write error (or check sum error)
when written into ECM1 driving
cycle1 driving
cycle
P1408Manifold absolute pressure
sensor circuit malfunctionManifold absolute pressure sensor
output voltage is higher or lower than
specified value (or sensor circuit
shorted to ground or open).2 driving
cyclesNot
applicable
P1450Barometric pressure sensor
circuit malfunctionBarometric pressure is lower or higher
than specification.1 driving
cycleNot
applicable
P1451Barometric pressure sensor
performance problemDifference between intake manifold
pressure and barometric pressure is
larger than specification.2 driving
cyclesNot
applicable
P1500Engine starter signal circuit
malfunctionEngine starts with no starter signal or
signal input during long period after
start.2 driving
cyclesNot
applicable
P1510ECM back-up power supply
malfunctionNo back-up power after starting
engine.1 driving
cycleNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P0705
(No.72)Transmission range switch cir-
cuit malfunctionMultiple signals inputted simulta-
neously or P, R, N, D, 2 or L range sig-
nal not inputted while running at
60km/h or more.2 driving
cyclesNot
applicable
P0715
(No.76)Input speed sensor circuit
malfunctionInput speed sensor signal is lower
than specification while running.2 driving
cyclesNot
applicable
P0720
(No.75)Output speed sensor circuit
malfunctionOutput speed sensor signal not input-
ted while VSS signal being inputted.2 driving
cyclesNot
applicable
P0741TCC (lock-up) solenoid perfor-
mance or stuck offActual TCC operation does not agree
with ON/OFF control from PCM to
TCC.2 driving
cyclesNot
applicable
P0743
(No.65)
(No.66)TCC (lock-up) solenoid electri-
calMonitor signal OFF is detected when
TCC control solenoid is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0751Shift solenoid A (#1) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable
Page 183 of 656

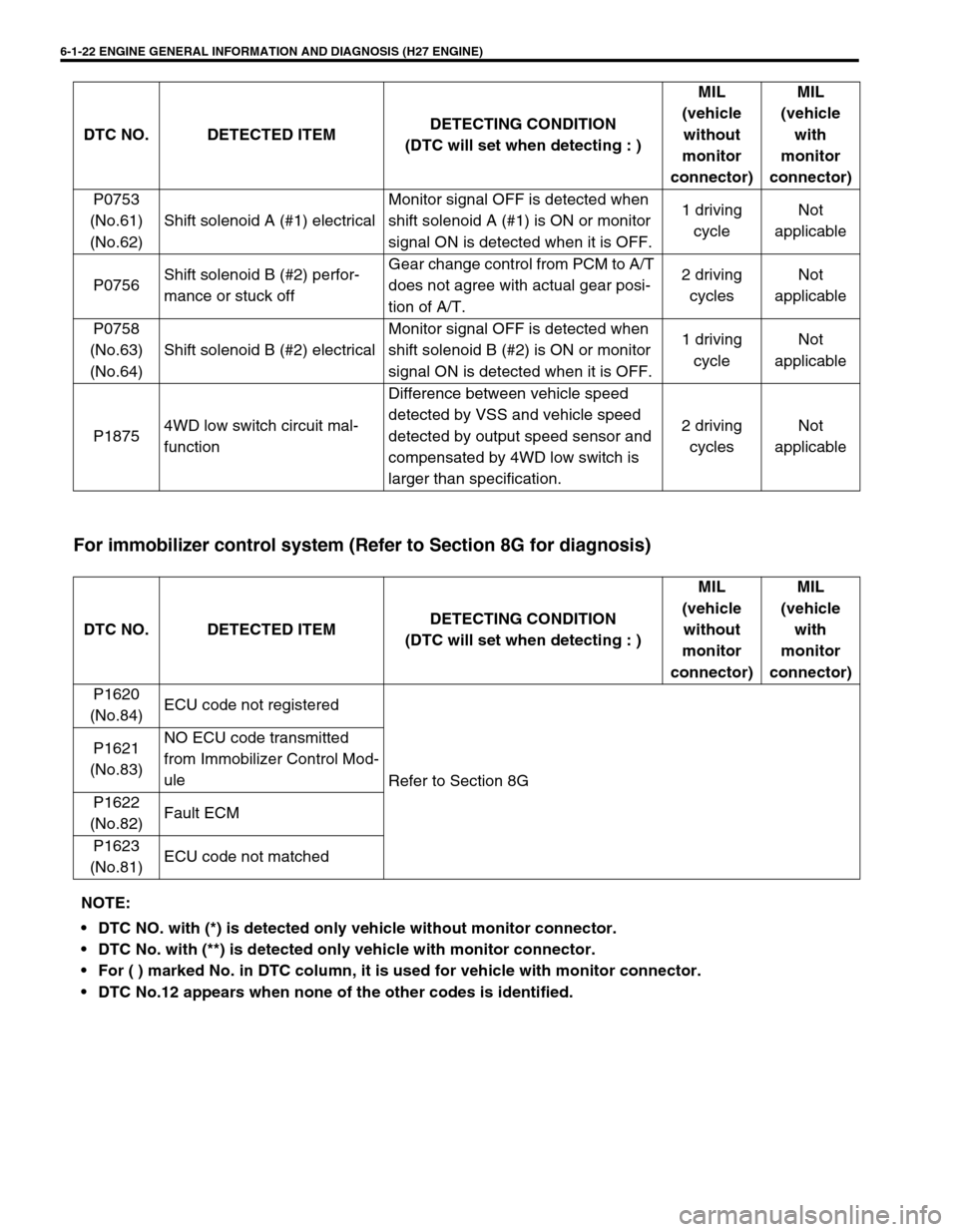

6-1-22 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
For immobilizer control system (Refer to Section 8G for diagnosis)
P0753
(No.61)
(No.62)Shift solenoid A (#1) electricalMonitor signal OFF is detected when
shift solenoid A (#1) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0756Shift solenoid B (#2) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable
P0758
(No.63)
(No.64)Shift solenoid B (#2) electricalMonitor signal OFF is detected when
shift solenoid B (#2) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P18754WD low switch circuit mal-
functionDifference between vehicle speed
detected by VSS and vehicle speed
detected by output speed sensor and
compensated by 4WD low switch is
larger than specification.2 driving
cyclesNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P1620
(No.84)ECU code not registered
Refer to Section 8G P1621
(No.83)NO ECU code transmitted
from Immobilizer Control Mod-
ule
P1622
(No.82)Fault ECM
P1623
(No.81)ECU code not matched
NOTE:
DTC NO. with (*) is detected only vehicle without monitor connector.
DTC No. with (**) is detected only vehicle with monitor connector.
For ( ) marked No. in DTC column, it is used for vehicle with monitor connector.
DTC No.12 appears when none of the other codes is identified.
Page 184 of 656
ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-23
Fail-Safe Table
When any of the following DTCs is detected, ECM (PCM) enters fail-safe mode as long as malfunction continues
to exist but that mode is canceled when ECM (PCM) detects normal condition after that.
DTC NO. TROUBLE AREA FAIL SAFE OPERATION
P0100
(No.33, 34)MAF SENSOR• Injector drive time (fuel injection volume) is determined according to
throttle valve opening and engine speed.
• EGR valve stops.
• Air flow of IAC valve is limited.
P0110
(No.23, 25)IAT SENSOR Each control is performed on the basis of 22.1°C intake air temp.
P0115
(No.14, 15)ECT SENSOR• Each control except 4-A/T is performed on the basis of 29.9°C engine
coolant temp.
• 4-A/T control is performed assuming 31°C (engine warmed up) or
higher after 15 min. from engine start.
P0120
(No.21, 22)TP SENSOR• Each control except 4-A/T is performed on the basis of 124.5° throttle
valve opening.
• 4-A/T control is performed on the basis of 0° throttle valve opening.
P0460 FUEL LEVEL SENSOR Each control is performed in the basis of full fuel level.
P0500VEHICLE SPEED
SENSORAir flow of IAC valve is limited.
P1450BAROMETRIC
PRESSURE SENSOREach control is performed based on 760 mmHg barometric pressure.
P0705 TR SWITCH A/T control is performed in priority order of L, 2, N, D, R and P.
P0720OUTPUT SPEED
SENSOR CIRCUIT
MALFUNCTIONA/T control is performed by using signal from VSS.
P0753SHIFT SOLENOID
A (#1)• A/T control using 3rd gear is performed when D range, 1st, or 2nd
gear is used.
• TCC solenoid OFF
P0758SHIFT SOLENOID
B (#2)• A/T control using 4th gear is performed when D range, 2nd or 3rd
gear is used.
• When both shift solenoids A (#1) and B (#2) failed simultaneously,
A/T control using 4th gear is always performed in D range.
• TCC solenoid OFF
P0743TCC (Lock-up)
SOLENOIDTCC (Lock-up) solenoid OFF
Page 185 of 656

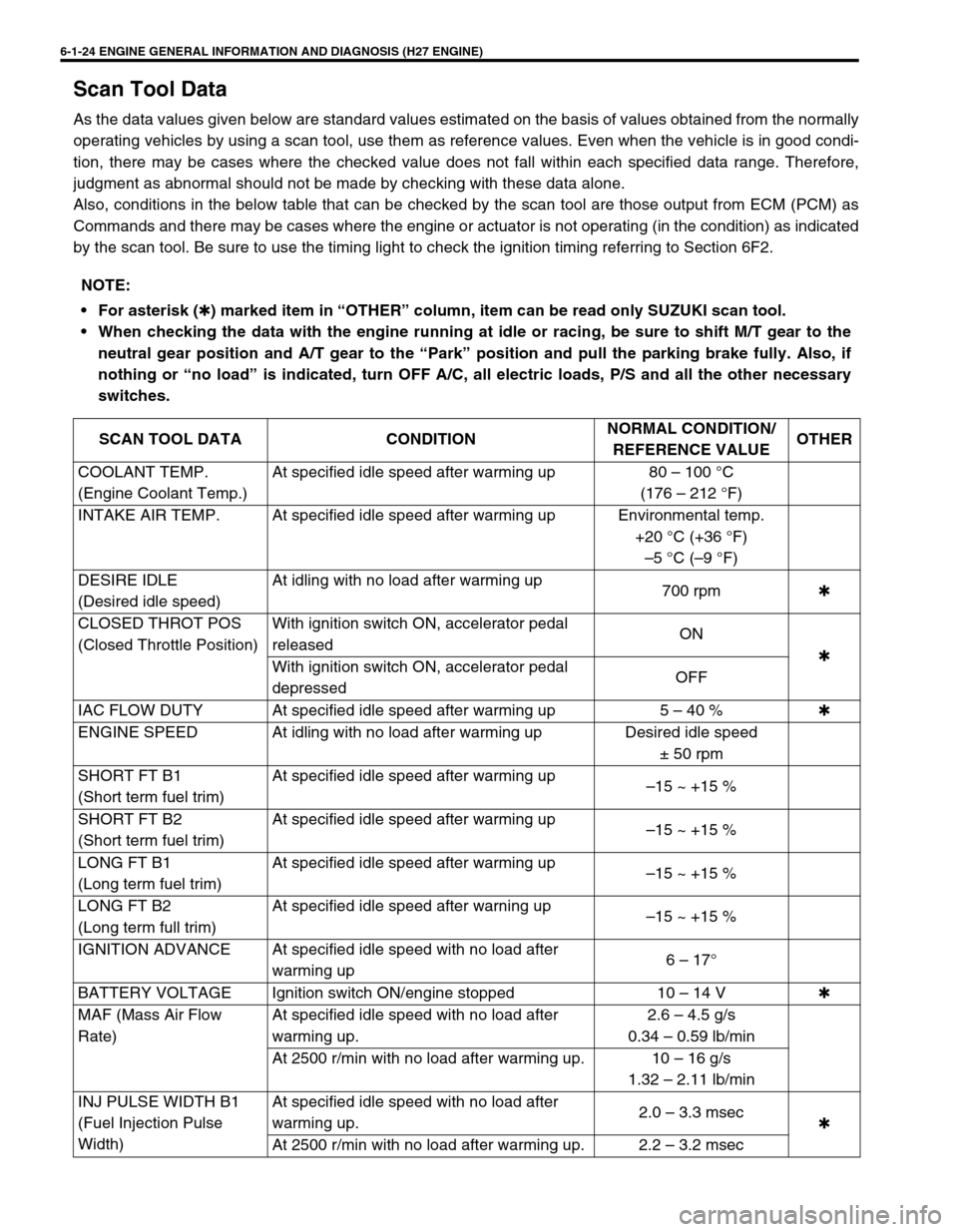

6-1-24 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Scan Tool Data
As the data values given below are standard values estimated on the basis of values obtained from the normally
operating vehicles by using a scan tool, use them as reference values. Even when the vehicle is in good condi-
tion, there may be cases where the checked value does not fall within each specified data range. Therefore,
judgment as abnormal should not be made by checking with these data alone.
Also, conditions in the below table that can be checked by the scan tool are those output from ECM (PCM) as
Commands and there may be cases where the engine or actuator is not operating (in the condition) as indicated
by the scan tool. Be sure to use the timing light to check the ignition timing referring to Section 6F2.
NOTE:
For asterisk (
✱) marked item in “OTHER” column, item can be read only SUZUKI scan tool.
When checking the data with the engine running at idle or racing, be sure to shift M/T gear to the
neutral gear position and A/T gear to the “Park” position and pull the parking brake fully. Also, if
nothing or “no load” is indicated, turn OFF A/C, all electric loads, P/S and all the other necessary
switches.
SCAN TOOL DATA CONDITIONNORMAL CONDITION/
REFERENCE VALUEOTHER
COOLANT TEMP.
(Engine Coolant Temp.)At specified idle speed after warming up 80 – 100 °C
(176 – 212 °F)
INTAKE AIR TEMP. At specified idle speed after warming up Environmental temp.
+20 °C (+36 °F)
–5 °C (–9 °F)
DESIRE IDLE
(Desired idle speed)At idling with no load after warming up
700 rpm✱
CLOSED THROT POS
(Closed Throttle Position)With ignition switch ON, accelerator pedal
releasedON
✱
With ignition switch ON, accelerator pedal
depressedOFF
IAC FLOW DUTY At specified idle speed after warming up 5 – 40 %✱
ENGINE SPEED At idling with no load after warming up Desired idle speed
± 50 rpm
SHORT FT B1
(Short term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
SHORT FT B2
(Short term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
LONG FT B1
(Long term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
LONG FT B2
(Long term full trim)At specified idle speed after warning up
–15 ~ +15 %
IGNITION ADVANCE At specified idle speed with no load after
warming up6 – 17°
BATTERY VOLTAGE Ignition switch ON/engine stopped 10 – 14 V✱
MAF (Mass Air Flow
Rate)At specified idle speed with no load after
warming up.2.6 – 4.5 g/s
0.34 – 0.59 lb/min
At 2500 r/min with no load after warming up. 10 – 16 g/s
1.32 – 2.11 lb/min
INJ PULSE WIDTH B1
(Fuel Injection Pulse
Width)At specified idle speed with no load after
warming up.2.0 – 3.3 msec
✱
At 2500 r/min with no load after warming up. 2.2 – 3.2 msec
Page 187 of 656
6-1-26 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
PNP SIGNAL (Transmis-
sion Range Switch) (for 4-
A/T)With ignition switch ON, selector lever in “P”
or “N” positionP/N Range
✱
With ignition switch ON, selector lever in “R”,
“D”, “2” or “L” positionD Range
FUEL TANK LEVEL Ignition switch ON 0 – 100 %✱
ELECTRIC LOAD Ignition ON, small light OFF OFF✱
Ignition switch ON, small light ON ON✱
VSS (Vehicle speed sen-
sor) (for 4-A/T)At stop.
0 km/h 0 MPH✱
GEAR POSITION (for 4-
A/T)Ignition switch ON, selector lever is shifted at
“R”, “D”, “2” or “L” range and vehicle stops.1st✱
THROT POS LEVEL
(Throttle position level for
4-A/T)“0” (about idle position), “1”,“2”,“3”,“4”,“5”,“6” or “7” (about full open)
appears according to throttle valve opening.✱
SHIFT SOL #1 (A)
CON (Shift solenoid #1
command signal)
MON (Shift solenoid #1
monitor) (for 4-A/T)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.ON✱
SHIFT SOL #2 (B)
CON (Shift solenoid #2
command signal)
MON (Shift solenoid #2
monitor) (for 4-A/T)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.OFF✱
TCC SOL (for 4-A/T)
CON (Torque converter
clutch solenoid command
signal)
MON (Torque converter
clutch solenoid monitor)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.OFF✱
TRANS RANGE
(for 4-A/T)Ignition switch ON, selector lever is at “P”,
“R”, “N”, “D”, “2” or “L” range.P, R, N, D, 2 or L✱
BRAKE SW
(Brake, stop lamp, switch)
(for 4-A/T)Ignition switch ON, Brake pedal is released. OFF
✱
Ignition switch ON, Brake pedal is
depressed.ON
O/D OFF SW
(Overdrive cut switch)Ignition switch ON, Overdrive cut switch OFF OFF
✱
Ignition switch ON, Overdrive cut switch ON ON
MODE SELECT SW
(Power/Normal change
switch) (for 4-A/T)Ignition switch ON, P/N change switch is at
normal position.NORMAL
✱
Ignition switch ON, P/N change switch is at
power position.POWER
4WD-L SW
(4WD low switch)Ignition switch ON, Transfer lever is shifted
at “4H” or “2H” position.OFF
✱
Ignition switch ON, Transfer lever is shifted
at “4L” position.ON SCAN TOOL DATA CONDITIONNORMAL CONDITION/
REFERENCE VALUEOTHER
Page 190 of 656

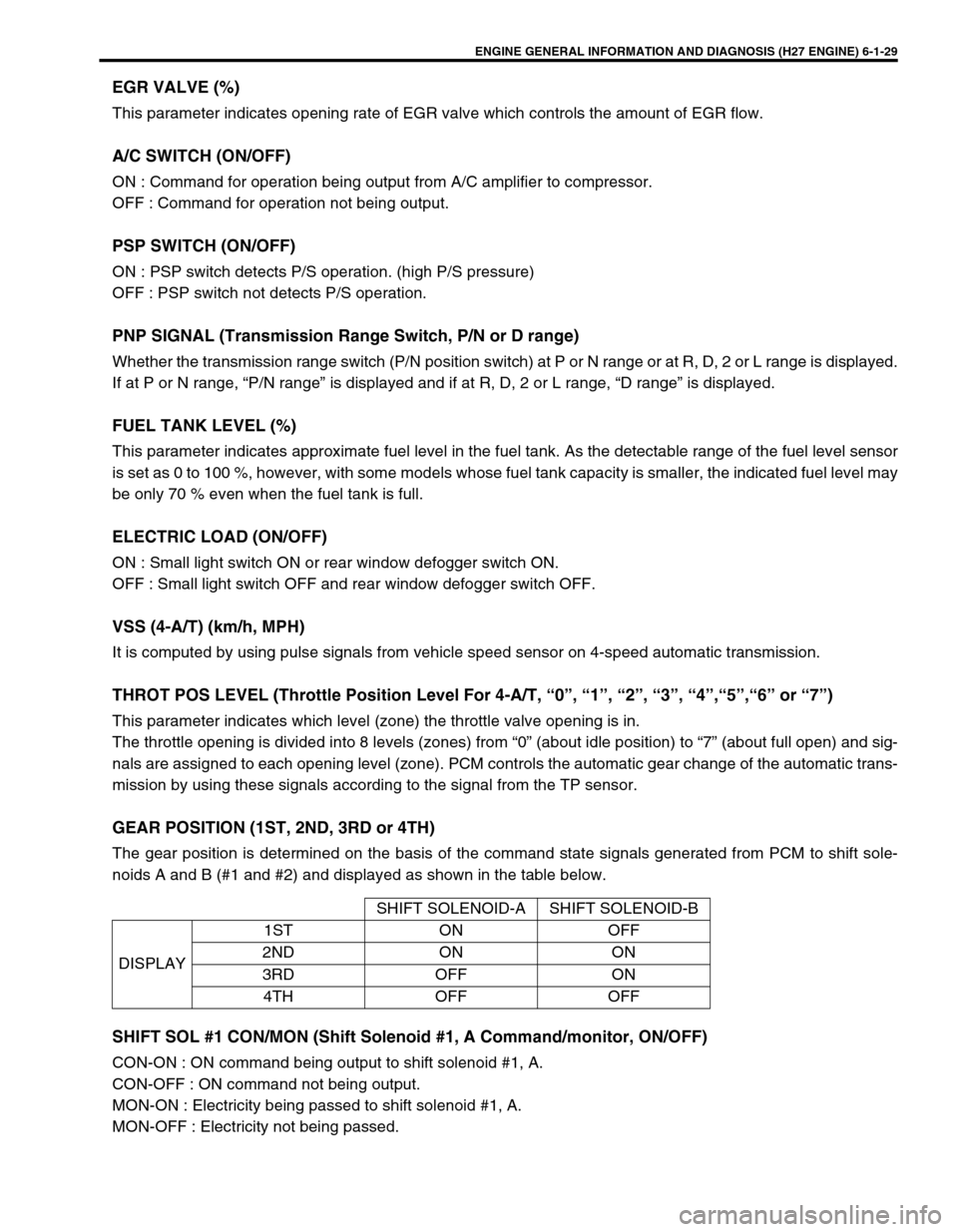

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-29
EGR VALVE (%)
This parameter indicates opening rate of EGR valve which controls the amount of EGR flow.
A/C SWITCH (ON/OFF)
ON : Command for operation being output from A/C amplifier to compressor.
OFF : Command for operation not being output.
PSP SWITCH (ON/OFF)
ON : PSP switch detects P/S operation. (high P/S pressure)
OFF : PSP switch not detects P/S operation.
PNP SIGNAL (Transmission Range Switch, P/N or D range)
Whether the transmission range switch (P/N position switch) at P or N range or at R, D, 2 or L range is displayed.
If at P or N range, “P/N range” is displayed and if at R, D, 2 or L range, “D range” is displayed.
FUEL TANK LEVEL (%)
This parameter indicates approximate fuel level in the fuel tank. As the detectable range of the fuel level sensor
is set as 0 to 100 %, however, with some models whose fuel tank capacity is smaller, the indicated fuel level may
be only 70 % even when the fuel tank is full.
ELECTRIC LOAD (ON/OFF)
ON : Small light switch ON or rear window defogger switch ON.
OFF : Small light switch OFF and rear window defogger switch OFF.
VSS (4-A/T) (km/h, MPH)
It is computed by using pulse signals from vehicle speed sensor on 4-speed automatic transmission.
THROT POS LEVEL (Throttle Position Level For 4-A/T, “0”, “1”, “2”, “3”, “4”,“5”,“6” or “7”)
This parameter indicates which level (zone) the throttle valve opening is in.
The throttle opening is divided into 8 levels (zones) from “0” (about idle position) to “7” (about full open) and sig-
nals are assigned to each opening level (zone). PCM controls the automatic gear change of the automatic trans-
mission by using these signals according to the signal from the TP sensor.
GEAR POSITION (1ST, 2ND, 3RD or 4TH)
The gear position is determined on the basis of the command state signals generated from PCM to shift sole-
noids A and B (#1 and #2) and displayed as shown in the table below.
SHIFT SOL #1 CON/MON (Shift Solenoid #1, A Command/monitor, ON/OFF)
CON-ON : ON command being output to shift solenoid #1, A.
CON-OFF : ON command not being output.
MON-ON : Electricity being passed to shift solenoid #1, A.
MON-OFF : Electricity not being passed.SHIFT SOLENOID-A SHIFT SOLENOID-B
DISPLAY1ST ON OFF
2ND ON ON
3RD OFF ON
4TH OFF OFF
Page 191 of 656
6-1-30 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
SHIFT SOL #2 CON/MON (Shift Solenoid #2, B Command/monitor, ON/OFF)
CON-ON : ON command being output to shift solenoid #2, B.
CON-OFF : ON command not being output.
MON-ON : Electricity being passed to shift solenoid #2, B.
MON-OFF : Electricity not being passed.
TCC SOL CON/MON (Torque Converter Clutch Solenoid Command/monitor, ON/OFF)
CON-ON : ON command being output to TCC solenoid.
CON-OFF : ON command not being output.
MON-ON : Electricity being passed to TCC solenoid.
MON-OFF : Electricity not being passed.
TRANS RANGE (Transmission Range, P, R, N, D, 2 or L)
It indicates transmission range according to transmission range switch signal.
BRAKE SW (Brake, Stop Lamp, Switch, ON/OFF)
OFF : Brake pedal is released.
ON : Brake pedal is depressed.
O/D OFF SW (Overdrive Cut Switch, ON/OFF)
OFF : Overdrive cut switch OFF.
ON : Overdrive cut switch ON.
MODE SELECT SW (Power/normal Change Switch, Power/normal)
POWER : Switch button is at POWER position.
NORMAL : Switch button is at NORMAL position.
4WD-L SW (4WD-LOW Switch, ON/OFF)
ON : Transfer lever is shifted to 4L position.
OFF : Transfer lever is shifted to 4H or 2H position.
