SUZUKI GRAND VITARA 2008 3.G Inspection And Maintenance Manual

Downloaded from www.Manualslib.com manuals search engine (Battery label)
1----(5)
Pb-(6)
51KM042

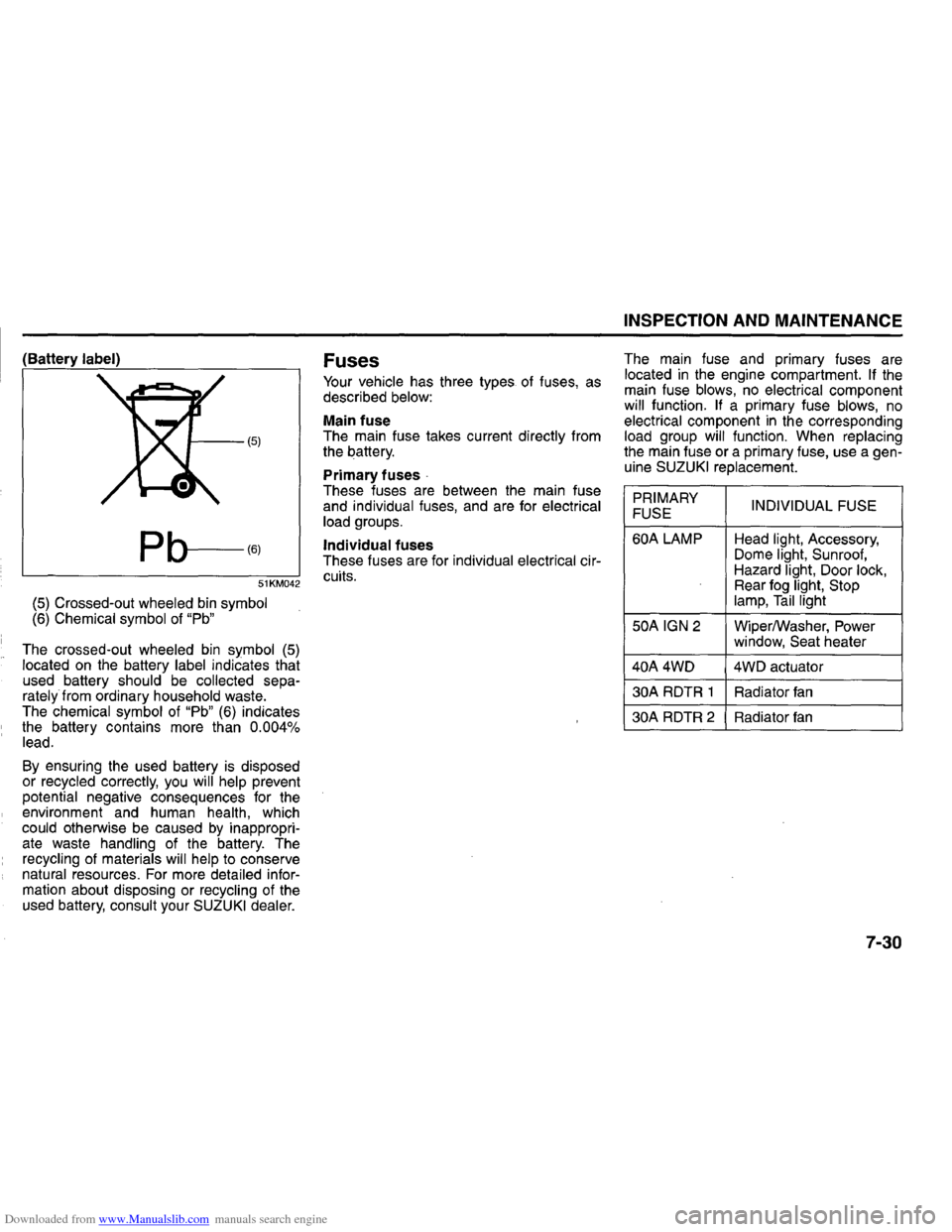

(5) Crossed-out wheeled bin symbol (6) Chemical symbol of "Pb"
The crossed-out wheeled bin symbol (5) located on the battery label indicates that
used battery should be collected sepa­rately from ordinary household waste.
The chemical symbol of "Pb" (6) indicates
the battery contains more than 0.004%
lead.
By ensuring the used battery is disposed
or recycled correctly, you will help prevent
potential negative consequences for the
environment
and human health, which could otherwise be caused by inappropri­
ate waste handling of the battery. The
recycling of materials
will help to conserve natural resources. For more detailed infor­
mation about disposing or recycling of the
used battery,
consult your SUZUKI dealer.
Fuses
Your vehicle has three types of fuses, as described below:
Main fuse The main fuse takes current directly from
the battery.
Primary fuses· These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses These fuses are for individual electrical cir­
cuits.
INSPECTION AND MAINTENANCE
The main fuse and primary fuses are located in the engine compartment. If the
main fuse blows, no electrical component will function. If a primary fuse blOWS, no electrical component in the corresponding load group will function. When replacing
the main fuse or a primary fuse, use a gen­
uine
SUZUKI replacement.
PRIMARY INDIVIDUAL FUSE
FUSE
60A LAMP
Head light, Accessory,
Dome light, Sunroof,
Hazard light, Door lock, Rear fog light, Stop
lamp, Tail light
50A
IGN 2 WiperlWasher, Power window, Seat heater
40A 4WD 4WD actuator
30A RDTR 1 Radiator fan
30A RDTR 2 Radiator fan
7-30

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE

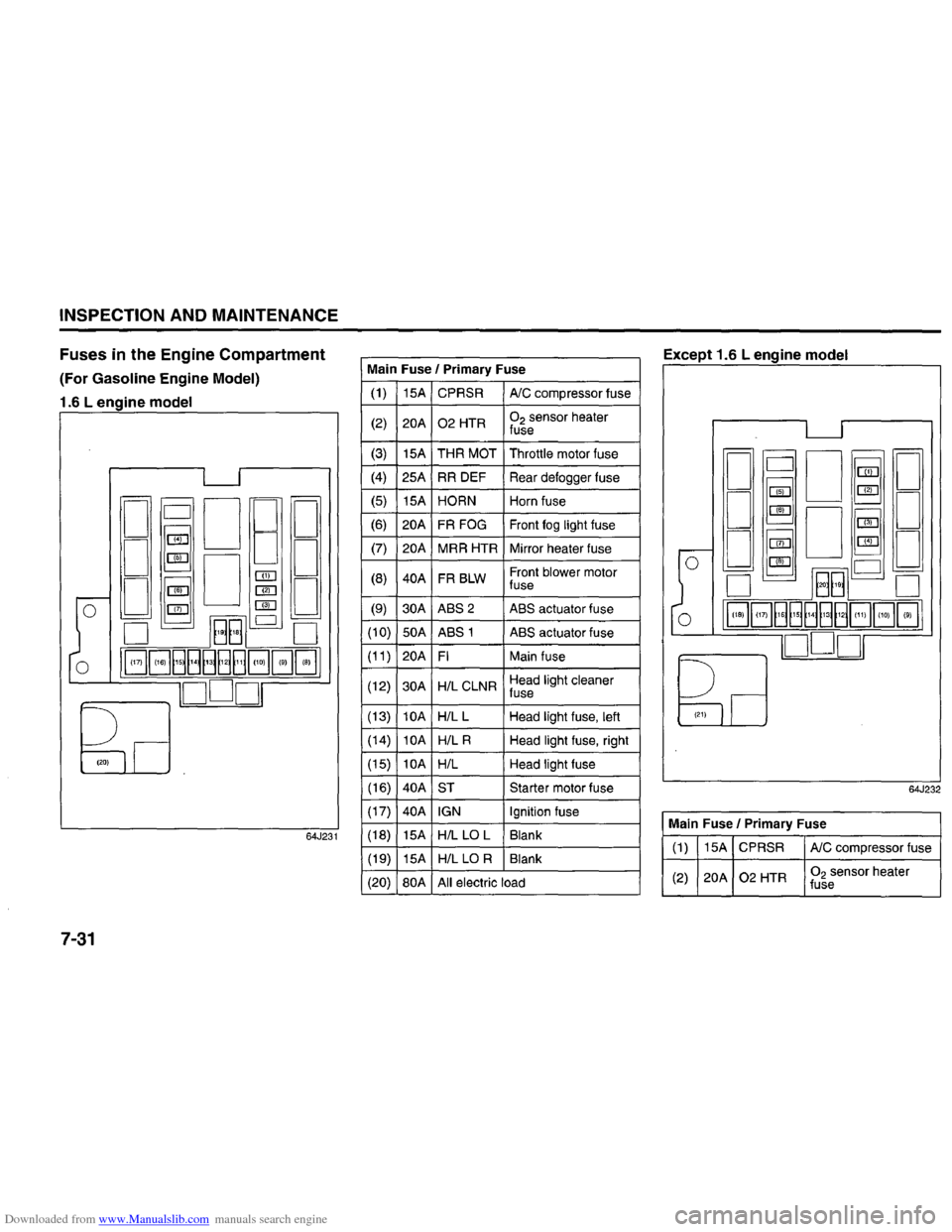

Fuses in the Engine Compartment
(For Gasoline Engine Model)
1.6 L engine model
64J231
7-31
Main Fuse I Primary Fuse
(1 ) 15A CPRSR AlC compressor fuse
(2) 20A
02HTR O2 sensor heater
fuse
(3) 15A THR
MOT Throttle motor fuse
(4) 25A RR DEF Rear defogger fuse
(5) 15A
HORN Horn fuse
(6) 20A FR
FOG Front fog light fuse
(7) 20A MRR
HTR
Mirror heater fuse
(8) 40A
FRBLW Front blower motor
fuse
(9) 30A
ABS2 ABS actuator fuse
(10) 50A
ABS 1 ABS actuator fuse
(11 )
20A FI Main fuse
(12) 30A H/L
CLNR Head light cleaner fuse
(13) 10A H/L L Head
light fuse, left
(14)
10A H/L R Head light fuse, right
(15) 10A
H/L Head
light fuse
(16) 40A
ST Starter motor fuse
(17) 40A
IGN Ignition fuse
(18) 15A H/L
LO L Blank
(19)
15A H/L LO R Blank
(20)
80A All electric load
Except 1.6 L engine model
64J232
Main Fuse I Primary Fuse
(1 ) 15A CPRSR
AlC compressor fuse
(2) 20A
02HTR O2 sensor heater
fuse

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE

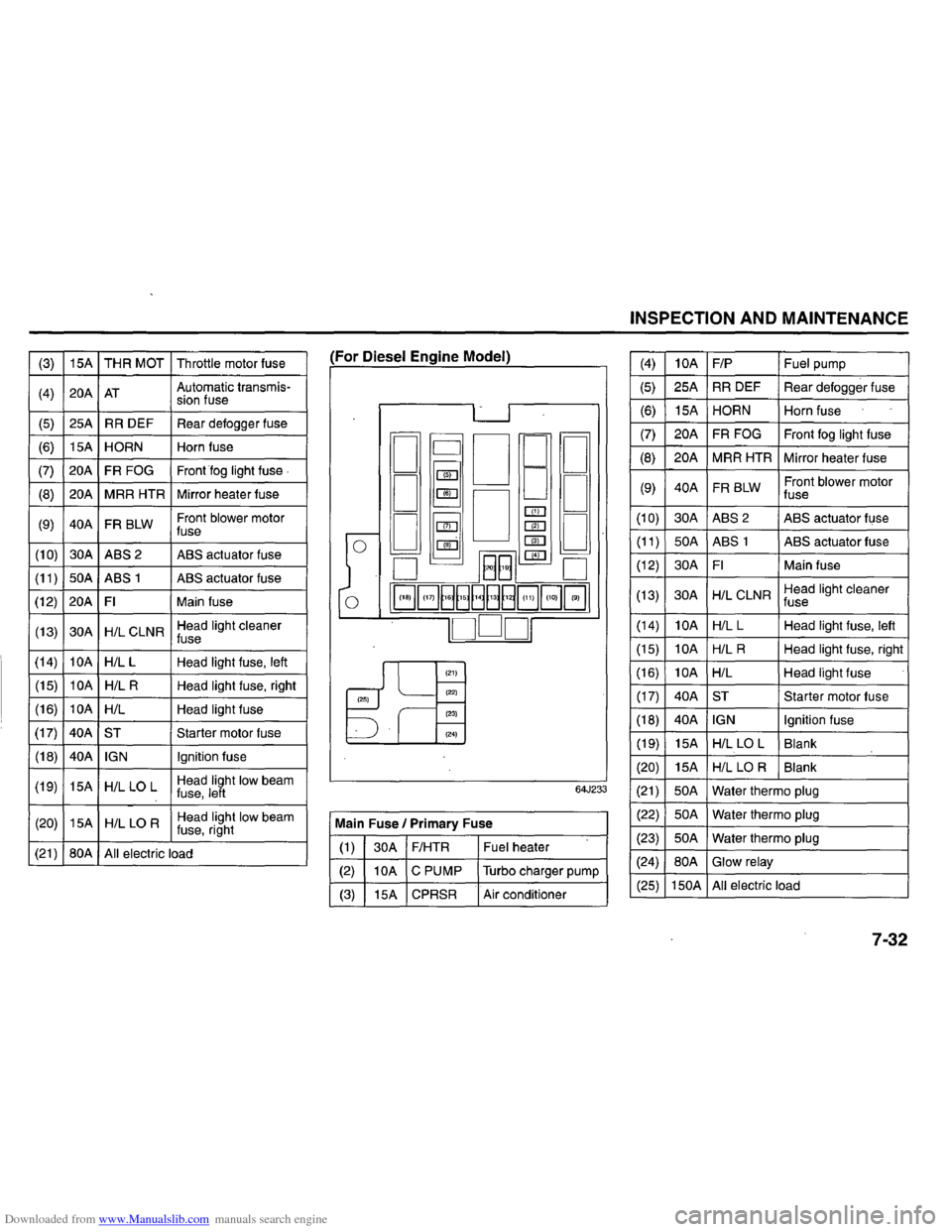

(3) 15A THR MOT Throttle motor fuse (For Diesel Engine Model) (4) 10A F/P Fuel pump
(4)
20A AT Automatic transmis-
sion fuse (5)
25A RR
DEF
Rear defogger fuse
(6) 15A
HORN Horn fuse
(5) 25A RR DEF Rear defogger fuse
(6) 15A
HORN Horn fuse (7) 20A FR FOG Front
fog light fuse
(8)
20A MRR HTR
Mirror heater fuse
(7) 20A FR FOG Frontfog light fuse·
(8) 20A MRR HTR Mirror
heater fuse (9) 40A FRBLW Front blower motor
fuse
(9)
40A FRBLW Front blower motor
fuse (10) 30A ABS2 ASS actuator fuse
(11 ) 50A ABS 1 ABS actuator fuse (10) 30A ASS 2 ABS actuator fuse
(12) 30A FI Main fuse (11 ) 50A
ABS 1 ABS actuator fuse
(12)
20A FI Main fuse (13) 30A H/L
CLNR Head
light cleaner
fuse
(13)
30A H/L CLNR Head
light cleaner
fuse (14) 10A H/L
L
Head light fuse, left
(15)
10A H/L R
Head light fuse, right
(14) 10A H/L L
Head light fuse, left (21) (16) 10A H/L Head light fuse
(15) 10A H/L R Head light fuse, right (22) (17) 40A ST Starter motor fuse
(16) 10A H/L Head light fuse
(17)
40A ST Starter motor fuse
(23)
(24) (18) 40A IGN Ignition fuse
(19) 15A
H/L
LO L Blank
(18) 40A IGN Ignition fuse (20) 15A
H/L LO R Blank
(19) 15A
H/L LO L Head
light low beam
fuse, left
64J233 (21) 50A Water thermo plug
(20) 15A
H/L LO R Head
light low beam
fuse, right
(21)
80A All electric load Main
Fuse I Primary Fuse
(1 ) 30A F/HTR
Fuel heater
(2)
10A CPUMP Turbo charger pump (22)
50A Water
thermo plug
(23)
50A Water thermo plug
(24)
80A Glow relay
(3) 15A CPRSR Air conditioner (25) 150A All
electric load
7-32

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE

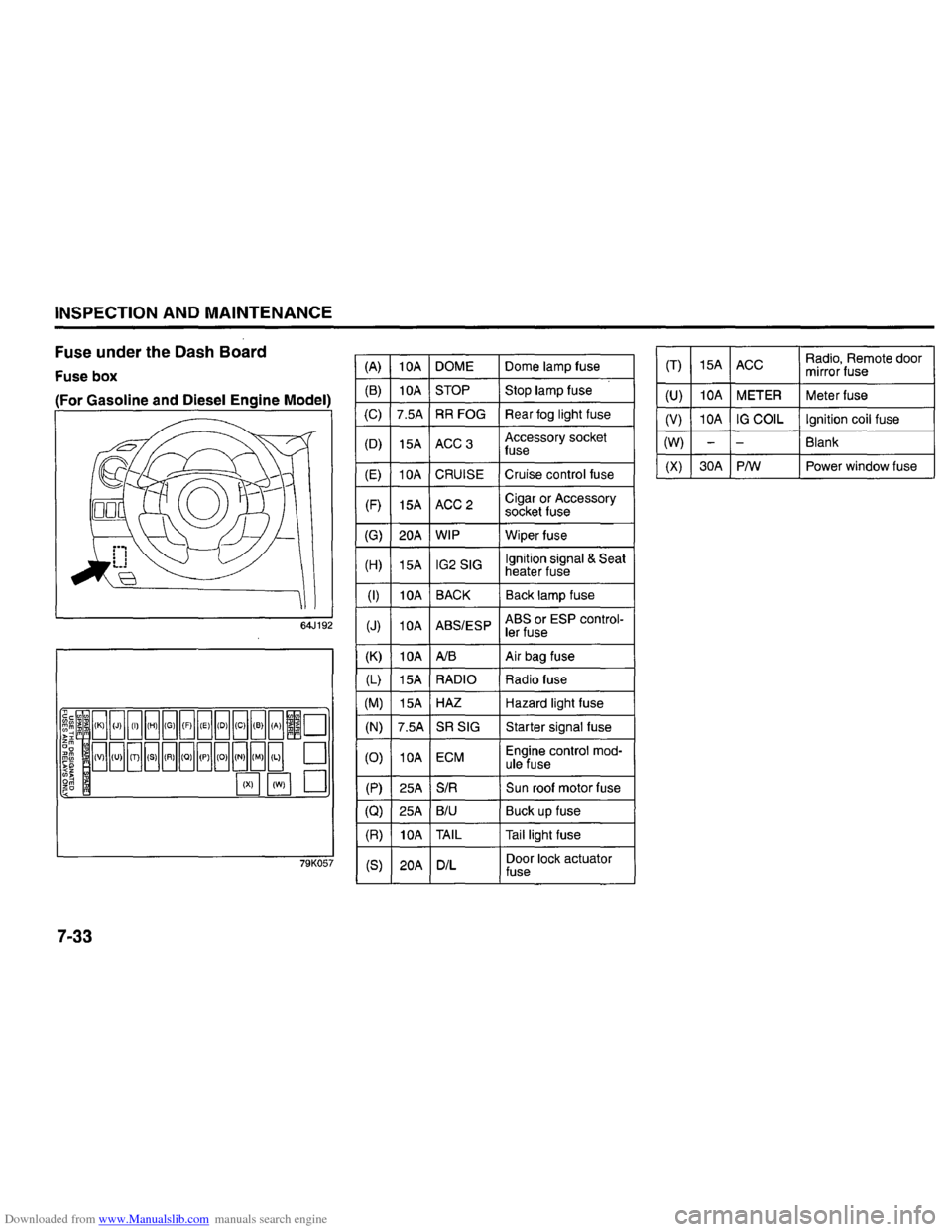

Fuse under the Dash Board
Fuse box
(For
Gasoline and Diesel Engine Model)
64J192
~]~ jBBBBBBBBBBBID rn~j >" Zm °0
~8B8BBBBBB8B D ~m moo ~~ oo> ~ BE] D g~ ,<0
79K057
7-33
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K) (L)
(M) (N)
(0)
(P)
(0)
(R)
(S)
10A DOME
10A STOP
7.5A RRFOG
15A ACC3
10A CRUISE
15A ACC2
20A WIP
15A IG2SIG
10A BACK
10A ABS/ESP
10A AlB
15A RADIO
15A
HAZ
7.5A
SRSIG
10A ECM
25A
SIR
25A BIU
10A TAIL
20A OIL
Dome lamp fuse (T)
15A
ACC Radio,
Remote door
mirror fuse
Stop
lamp fuse (U) 10A METER Meter fuse
Rear fog
light fuse (V) 10A IGCOIL Ignition coil fuse
Accessory socket
fuse (W)
--Blank
Cruise control fuse (X) 30A P/w Power
window fuse
Cigar
or Accessory
socket fuse
Wiper fuse
Ignition signal & Seat
heater fuse
Back
lamp fuse
ABS or ESP control-
ler fuse
Air bag fuse
Radio fuse
Hazard
light fuse
Starter
signal fuse
Engine
control mod-ule fuse
Sun roof motor fuse
Buck up fuse
Tail light fuse
Door
lock actuator
fuse

Downloaded from www.Manualslib.com manuals search engine EXAMPLE
/
------
65D045

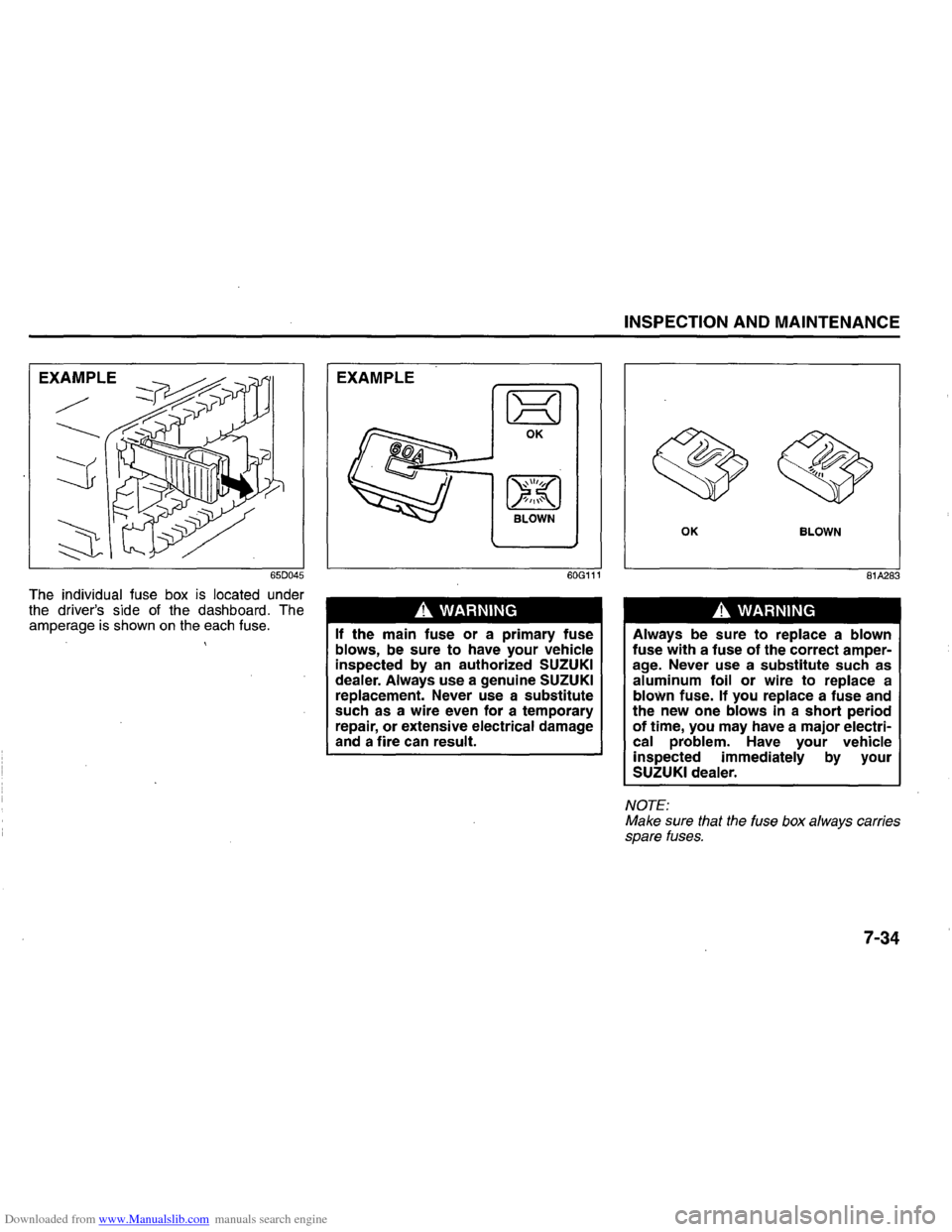

The individual fuse box is located under
the driver's side of the dashboard. The
amperage is shown on the each fuse.
EXAMPLE
(Xl
OK
60G111
A WARNING
If the main fuse or a primary fuse
blows, be sure to have your vehicle inspected by an authorized SUZUKI
dealer. Always use a genuine SUZUKI replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
INSPECTION AND MAINTENANCE
OK BLOWN
81A283
A WARNING
Always be sure to replace a blown fuse with a fuse of the correct amper­
age. Never use a substitute such as
aluminum foil or wire to replace a bloWn fuse. If you replace a fuse and
the new one blows in a short period of time, you may have a major electri­cal problem. Have your vehicle
inspected immediately by your
SUZUKI dealer.
NOTE:
Make sure that the fuse box always carries
spare fuses.
7-34

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE
Headlight Aiming
Since special procedures are required, we
recommend you take your vehicle to your SUZUKI dealer for headlight alignment.
7-35
Head Light Washer Fluid
Check that there is washer fluid in the tank. Refill it if necessary.
CAUTION
• In winter season, be sure to remove snow or ice on the nozzle holder at
the front bumper before operating
head light washer. • To avoid the frozen damage to the nozzle of the head light washer, be sure to use the specific washer fluid.
Bulb Replacement
A WARNING
• Light bulbs can be hot enough to burn your finger right after being
turned off. This is true especially for halogen headlight bulbs.
Replace the bulbs after they
become cool enough. • The headlight bulbs are filled with pressurized halogen gas. They can
burst and injure you if they are hit or dropped. Handle them carefully.
CAUTION
The oils from your skin may cause a halogen bulb to overheat and burst when the lights are on. Grasp a new bulb with a clean cloth.
CAUTION
Frequent replacement of a bulb indi­cates the need for an inspection of the electrical system. This should be
carried out by your SUZUKI dealer.

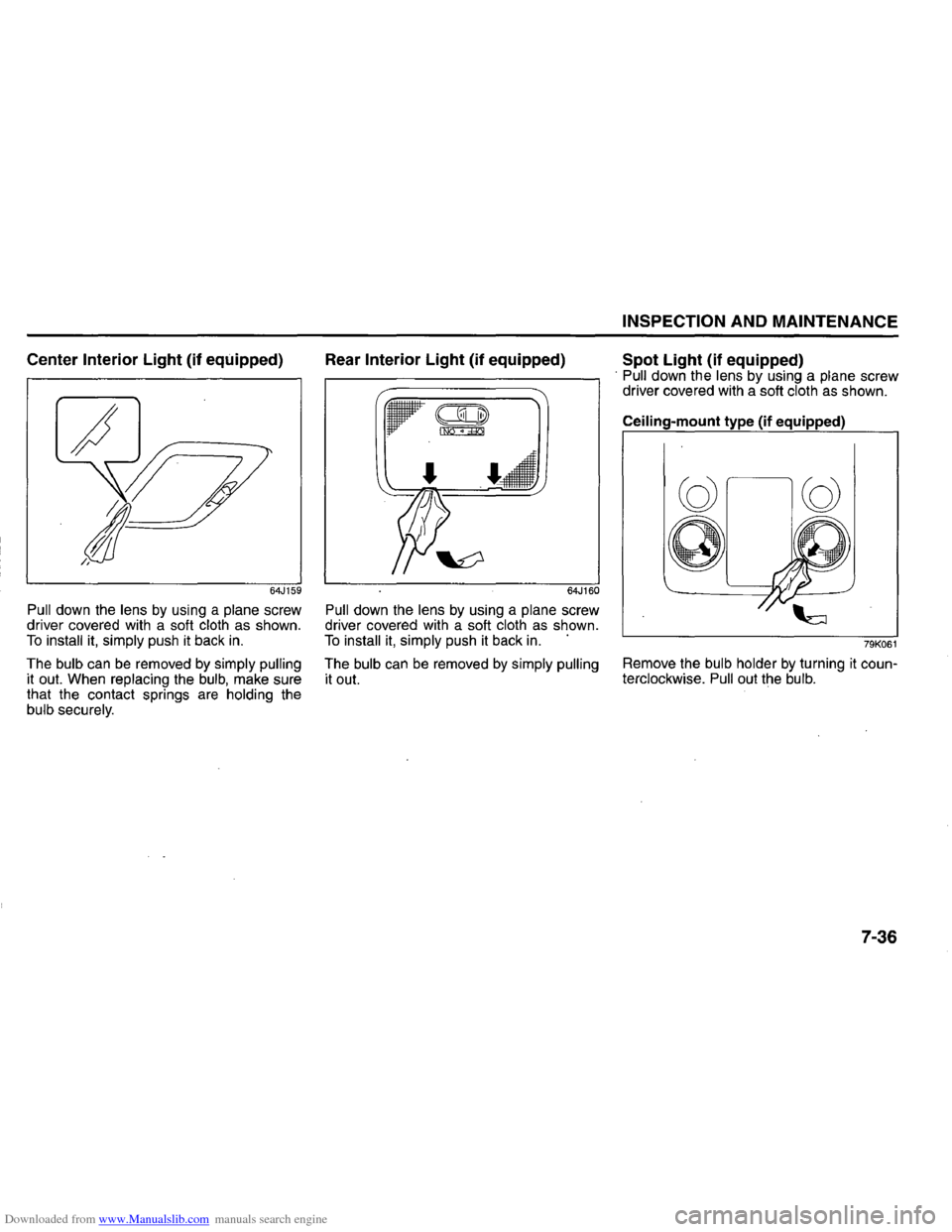

Downloaded from www.Manualslib.com manuals search engine Center Interior Light (if equipped)
64J159
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown. To install it, simply push it back in.
The bulb can be removed by simply pulling it out. When replacing the bulb, make sure
that the contact springs are holding the bulb securely.
Rear Interior Light (if equipped)
64J160
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown. To install it, simply push it back in. .
The
bulb can be removed by simply pulling it out.
INSPECTION AND MAINTENANCE
Spot Light (if equipped) . Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
Ceiling-mount type (if equipped)
79K061
Remove the bulb holder by turning it coun­terclockwise. Pull out the bulb.
7-36

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND M AINTENANCE

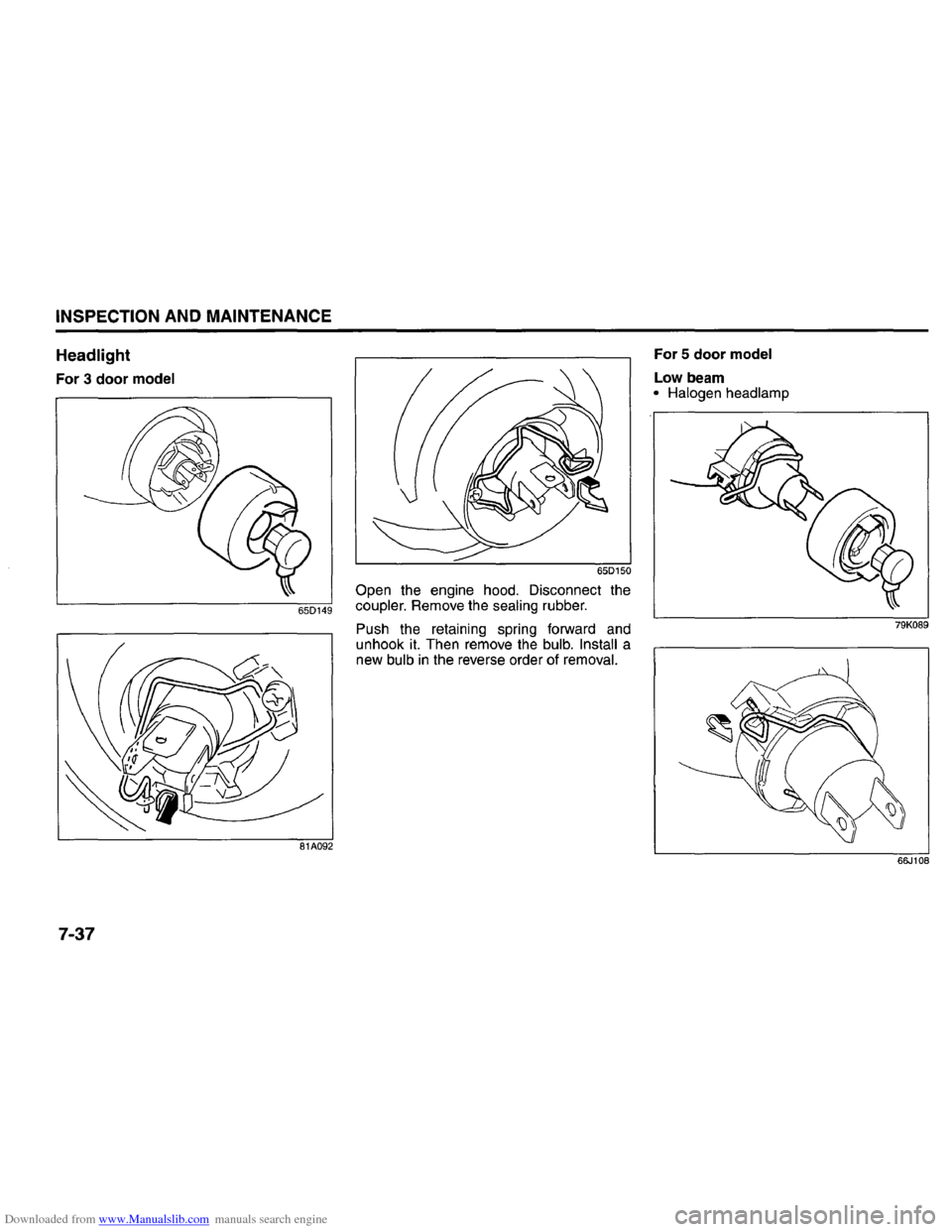

Headlight
For 3 door model
7-37
Open the . coupler R engine hood O' 65D150 P . emove the seaiin Isconnect the
ush the r .. grubber.
unhook it T
etalnlng sprin
new bulb'. hen remove th 9 ~orward and In the reverse ord e ulb. Install a
er of removal.
For5doo=r~m=-o~de-I-------------­
Low beam • Halogen head lamp
79K089

Downloaded from www.Manualslib.com manuals search engine Open the engine hood. Disconnect the Front Fog Light coupler. Remove the sealing rubber.
Push the retaining spring forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
•
Discharge head lamp
Since special procedures are required, we recommend you take your vehicle to your SUZUKI dealer for bulb replacement.

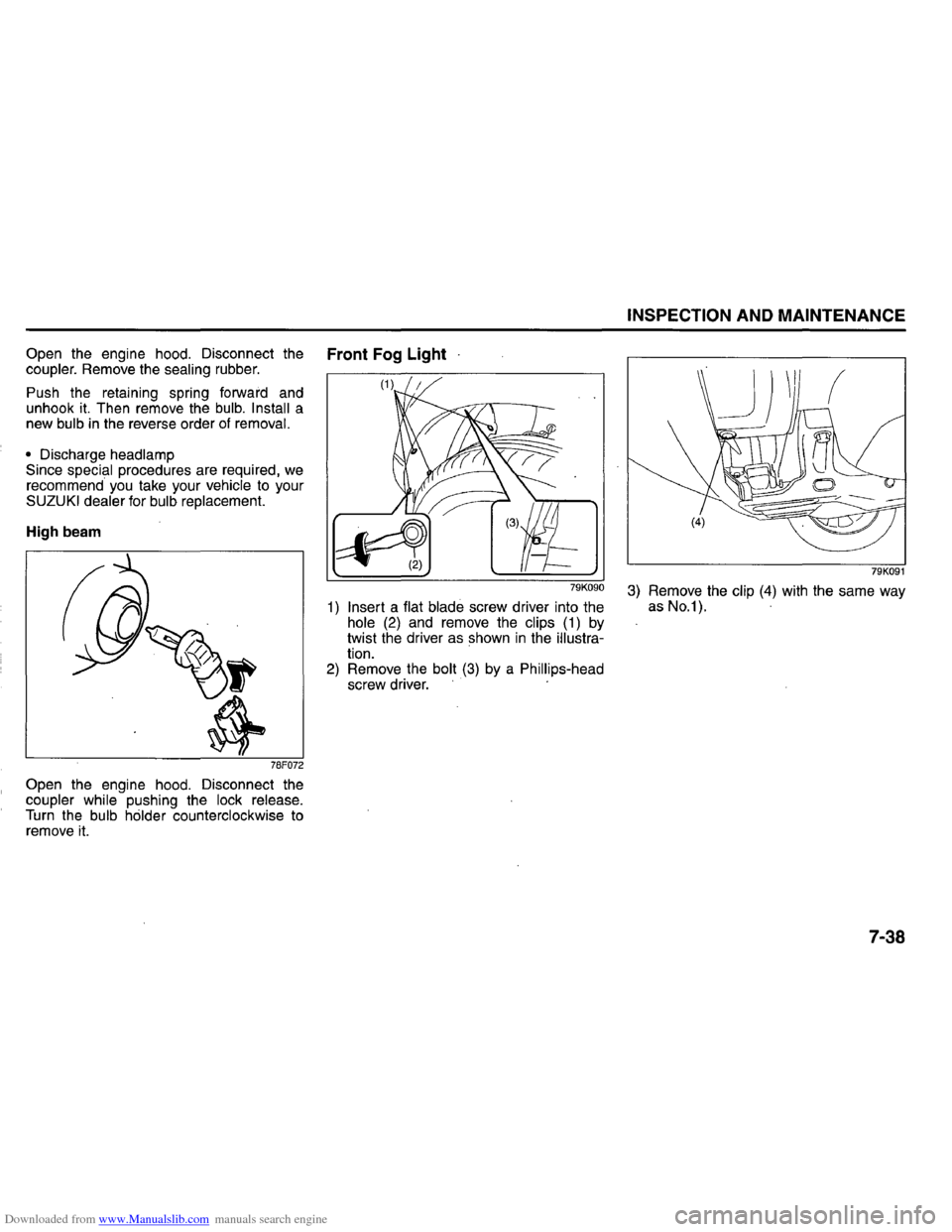

High beam
78F072
Open the engine hood. Disconnect the coupler while pushing the lock release. Turn the bulb holder counterclockwise to remove it.
II~
~1
79K090
1) Insert a flat blade screw driver into the hole (2) and remove the clips (1) by twist the driver as shown in the illustra-tion. .
2) Remove the bolt (3) by a Phillips-head screw driver. .
INSPECTION AND MAINTENANCE
79K091
3) Remove the clip (4) with the same way as No.1).
7-38

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE
78F072
4) Open the fender cover. Disconnect the
coupler with pushing the lock release.
Turn the bulb holder counterclockwise
and remove it.
7-39
Other General Lights
Bulb holder
EXAMPLE 0 "'"
o (2~
~
(2) ,~
(1) ~.
(1) Removal (2) Installation
54G123
To remove a bulb holder from a light hous­
ing, turn the holder counterclockwise and
pull
it out. To install the holder, push the
holder in and turn it clockwise.
Bulb
EXAMPLE~
.. O~y
X?3
-< ~~
~& "~d
(1) • B>~
.(3) r<0' Q(4) V-=-(2)
(3) Removal
(4) Installation
54G124
There are two types of bulb, "Full glass type" (1) and "Glass/metal type" (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb.
To remove a glass metal type bulb (2) from
a bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.
