SUZUKI GRAND VITARA 2022 Owners Manual

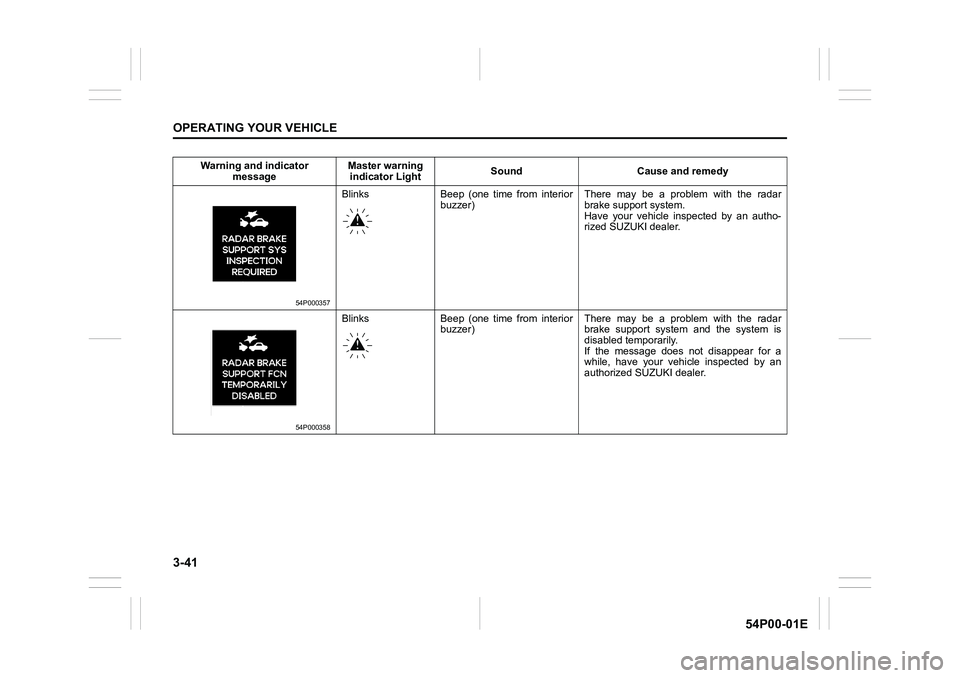

3-41
OPERATING YOUR VEHICLE
54P00-01E
Warning and indicator
messageMaster warning
indicator LightSound Cause and remedy
54P000357
Blinks Beep (one time from interior
buzzer)There may be a problem with the radar
brake support system.
Have your vehicle inspected by an autho-
rized SUZUKI dealer.
54P000358
Blinks Beep (one time from interior
buzzer)There may be a problem with the radar
brake support system and the system is
disabled temporarily.
If the message does not disappear for a
while, have your vehicle inspected by an
authorized SUZUKI dealer.

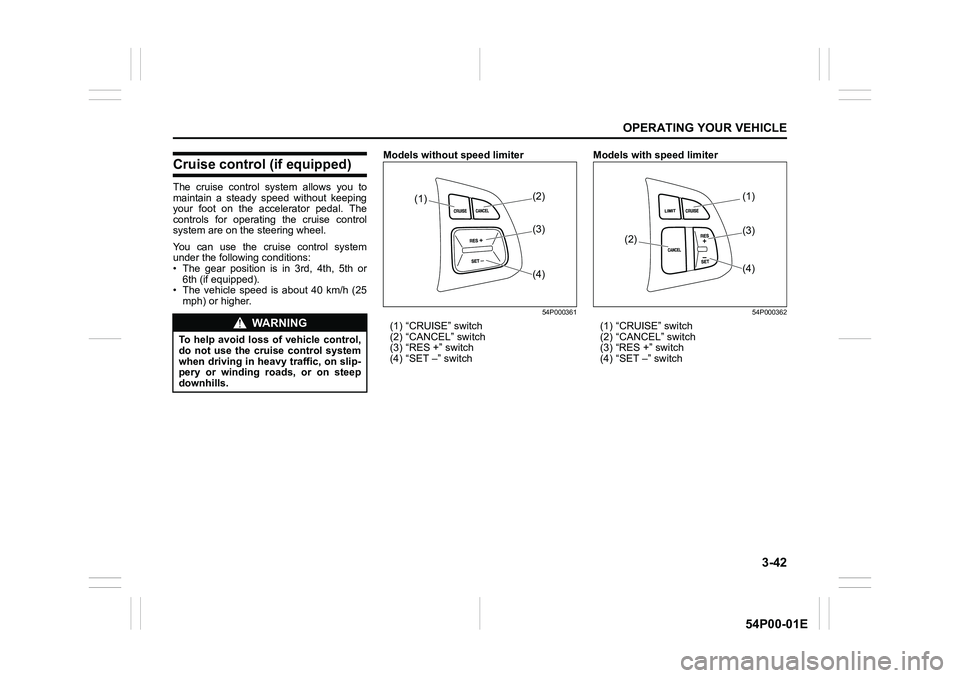

3-42
OPERATING YOUR VEHICLE
54P00-01E
Cruise control (if equipped)
The cruise control system allows you to
maintain a steady speed without keeping
your foot on the accelerator pedal. The
controls for operating the cruise control
system are on the steering wheel.
You can use the cruise control system
under the following conditions:
• The gear position is in 3rd, 4th, 5th or
6th (if equipped).
• The vehicle speed is about 40 km/h (25
mph) or higher.Models without speed limiter
54P000361
(1) “CRUISE” switch
(2) “CANCEL” switch
(3) “RES +” switch
(4) “SET –” switchModels with speed limiter
54P000362
(1) “CRUISE” switch
(2) “CANCEL” switch
(3) “RES +” switch
(4) “SET –” switchWA R N I N G
To help avoid loss of vehicle control,
do not use the cruise control system
when driving in heavy traffic, on slip-
pery or winding roads, or on steep
downhills.
(1)(2)
(4) (3)
(1)
(2)
(4) (3)

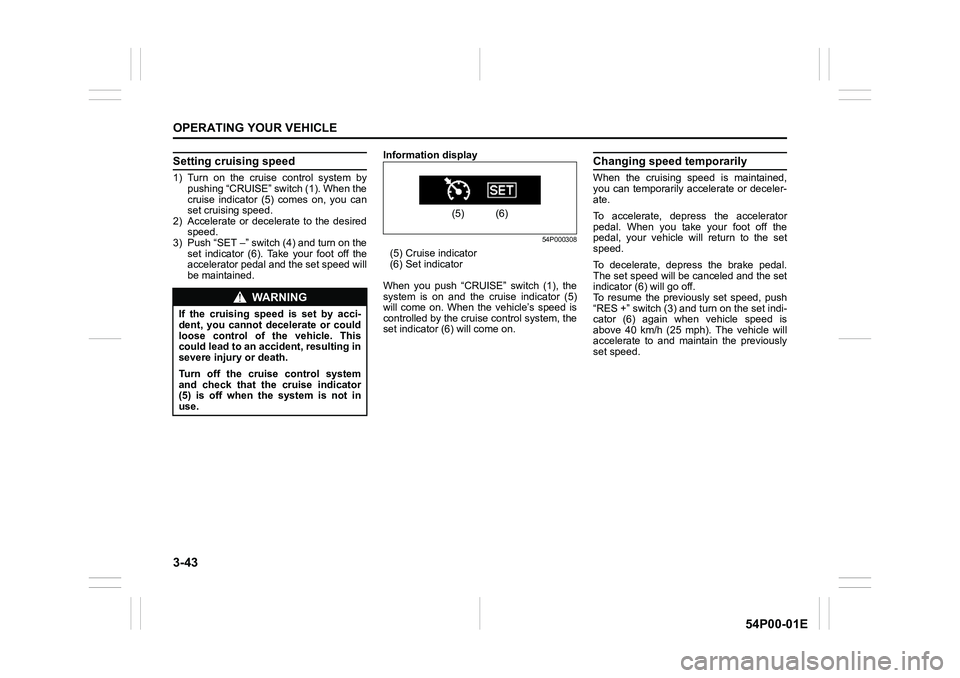

3-43
OPERATING YOUR VEHICLE
54P00-01E
Setting cruising speed
1) Turn on the cruise control system by
pushing “CRUISE” switch (1). When the
cruise indicator (5) comes on, you can
set cruising speed.
2) Accelerate or decelerate to the desired
speed.
3) Push “SET –” switch (4) and turn on the
set indicator (6). Take your foot off the
accelerator pedal and the set speed will
be maintained.Information display
54P000308
(5) Cruise indicator
(6) Set indicator
When you push “CRUISE” switch (1), the
system is on and the cruise indicator (5)
will come on. When the vehicle’s speed is
controlled by the cruise control system, the
set indicator (6) will come on.
Changing speed temporarily
When the cruising speed is maintained,
you can temporarily accelerate or deceler-
ate.
To accelerate, depress the accelerator
pedal. When you take your foot off the
pedal, your vehicle will return to the set
speed.
To decelerate, depress the brake pedal.
The set speed will be canceled and the set
indicator (6) will go off.
To resume the previously set speed, push
“RES +” switch (3) and turn on the set indi-
cator (6) again when vehicle speed is
above 40 km/h (25 mph). The vehicle will
accelerate to and maintain the previously
set speed.
WA R N I N G
If the cruising speed is set by acci-
dent, you cannot decelerate or could
loose control of the vehicle. This
could lead to an accident, resulting in
severe injury or death.
Turn off the cruise control system
and check that the cruise indicator
(5) is off when the system is not in
use.
(5) (6)

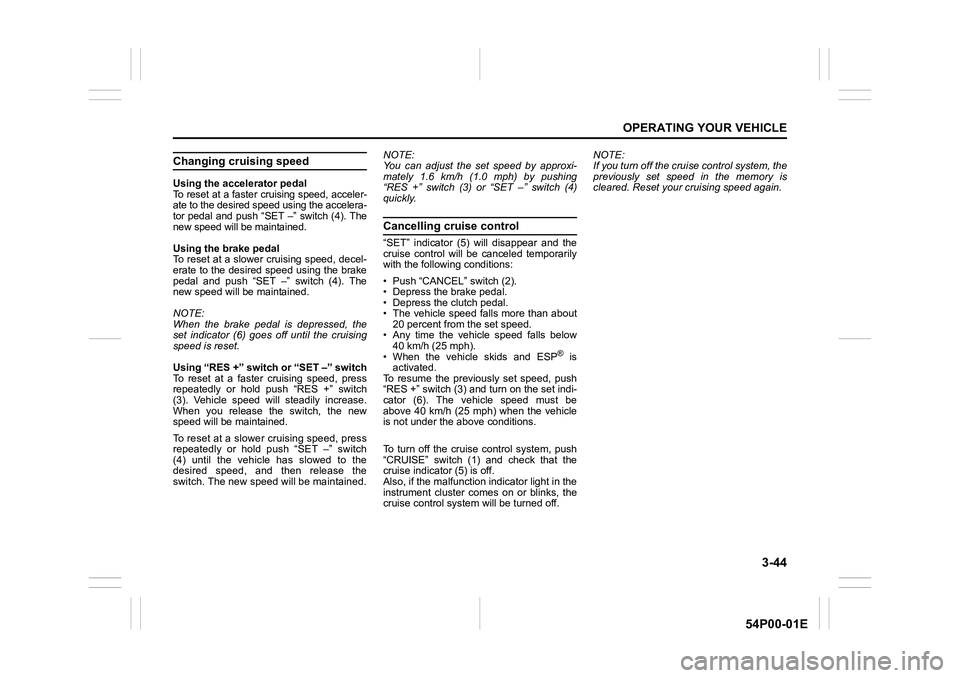

3-44
OPERATING YOUR VEHICLE
54P00-01E
Changing cruising speed
Using the accelerator pedal
To reset at a faster cruising speed, acceler-
ate to the desired speed using the accelera-
tor pedal and push “SET –” switch (4). The
new speed will be maintained.
Using the brake pedal
To reset at a slower cruising speed, decel-
erate to the desired speed using the brake
pedal and push “SET –” switch (4). The
new speed will be maintained.
NOTE:
When the brake pedal is depressed, the
set indicator (6) goes off until the cruising
speed is reset.
Using “RES +” switch or “SET –” switch
To reset at a faster cruising speed, press
repeatedly or hold push “RES +” switch
(3). Vehicle speed will steadily increase.
When you release the switch, the new
speed will be maintained.
To reset at a slower cruising speed, press
repeatedly or hold push “SET –” switch
(4) until the vehicle has slowed to the
desired speed, and then release the
switch. The new speed will be maintained.NOTE:
You can adjust the set speed by approxi-
mately 1.6 km/h (1.0 mph) by pushing
“RES +” switch (3) or “SET –” switch (4)
quickly.
Cancelling cruise control
“SET” indicator (5) will disappear and the
cruise control will be canceled temporarily
with the following conditions:
• Push “CANCEL” switch (2).
• Depress the brake pedal.
• Depress the clutch pedal.
• The vehicle speed falls more than about
20 percent from the set speed.
• Any time the vehicle speed falls below
40 km/h (25 mph).
• When the vehicle skids and ESP
® is
activated.
To resume the previously set speed, push
“RES +” switch (3) and turn on the set indi-
cator (6). The vehicle speed must be
above 40 km/h (25 mph) when the vehicle
is not under the above conditions.
To turn off the cruise control system, push
“CRUISE” switch (1) and check that the
cruise indicator (5) is off.
Also, if the malfunction indicator light in the
instrument cluster comes on or blinks, the
cruise control system will be turned off.NOTE:
If you turn off the cruise control system, the
previously set speed in the memory is
cleared. Reset your cruising speed again.

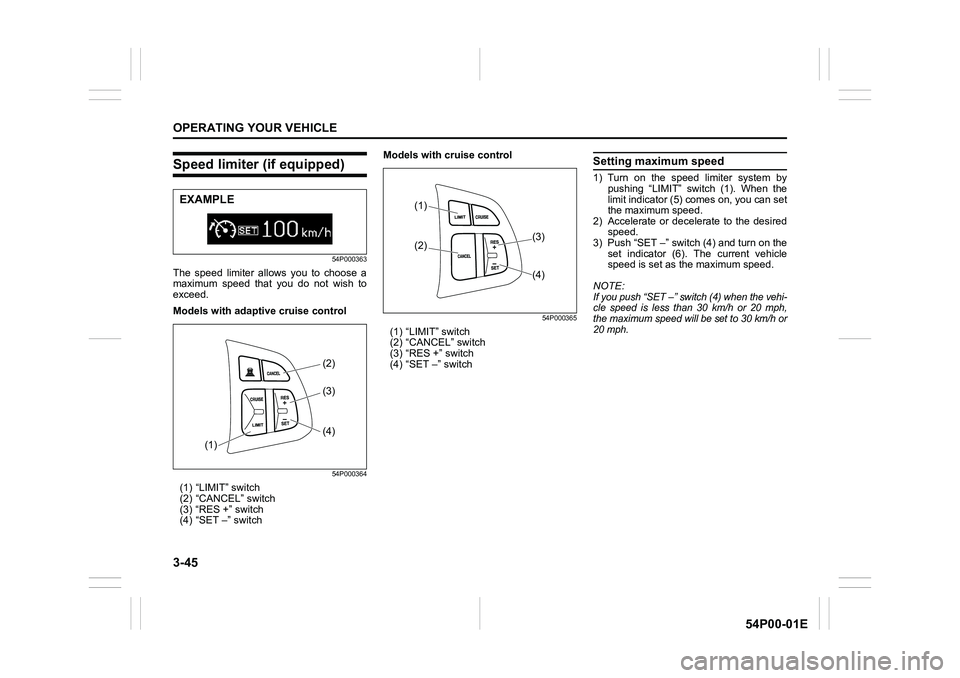

3-45
OPERATING YOUR VEHICLE
54P00-01E
Speed limiter (if equipped)
54P000363
The speed limiter allows you to choose a
maximum speed that you do not wish to
exceed.
Models with adaptive cruise control
54P000364
(1) “LIMIT” switch
(2) “CANCEL” switch
(3) “RES +” switch
(4) “SET –” switchModels with cruise control
54P000365
(1) “LIMIT” switch
(2) “CANCEL” switch
(3) “RES +” switch
(4) “SET –” switch
Setting maximum speed
1) Turn on the speed limiter system by
pushing “LIMIT” switch (1). When the
limit indicator (5) comes on, you can set
the maximum speed.
2) Accelerate or decelerate to the desired
speed.
3) Push “SET –” switch (4) and turn on the
set indicator (6). The current vehicle
speed is set as the maximum speed.
NOTE:
If you push “SET –” switch (4) when the vehi-
cle speed is less than 30 km/h or 20 mph,
the maximum speed will be set to 30 km/h or
20 mph.
EXAMPLE
(3)
(4)
(1)(2)
(1)
(2)
(4) (3)

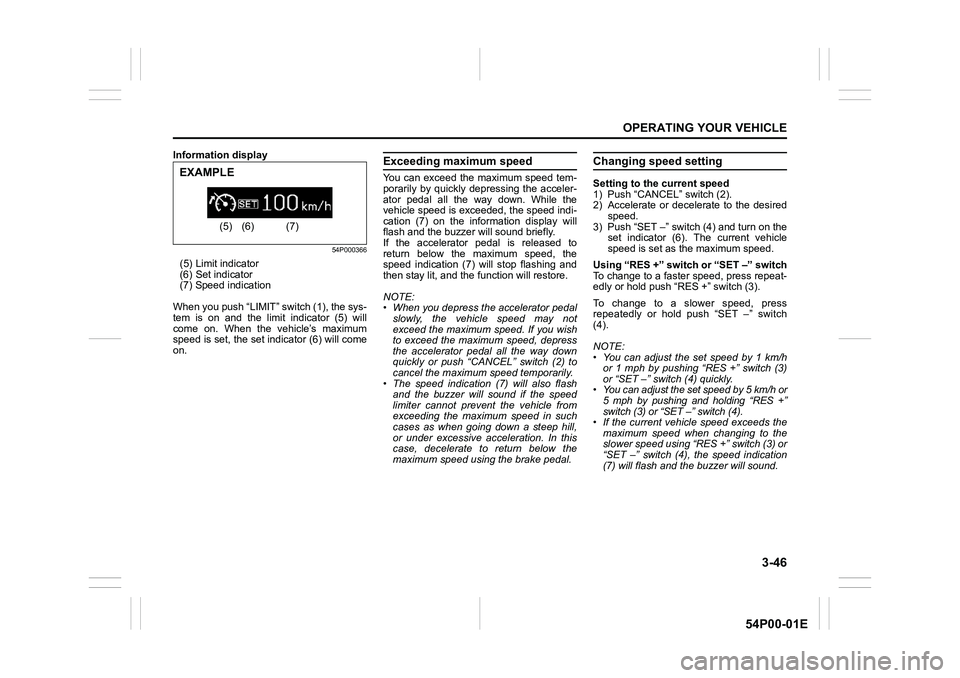

3-46
OPERATING YOUR VEHICLE
54P00-01E
Information display
54P000366
(5) Limit indicator
(6) Set indicator
(7) Speed indication
When you push “LIMIT” switch (1), the sys-
tem is on and the limit indicator (5) will
come on. When the vehicle’s maximum
speed is set, the set indicator (6) will come
on.
Exceeding maximum speed
You can exceed the maximum speed tem-
porarily by quickly depressing the acceler-
ator pedal all the way down. While the
vehicle speed is exceeded, the speed indi-
cation (7) on the information display will
flash and the buzzer will sound briefly.
If the accelerator pedal is released to
return below the maximum speed, the
speed indication (7) will stop flashing and
then stay lit, and the function will restore.
NOTE:
• When you depress the accelerator pedal
slowly, the vehicle speed may not
exceed the maximum speed. If you wish
to exceed the maximum speed, depress
the accelerator pedal all the way down
quickly or push “CANCEL” switch (2) to
cancel the maximum speed temporarily.
• The speed indication (7) will also flash
and the buzzer will sound if the speed
limiter cannot prevent the vehicle from
exceeding the maximum speed in such
cases as when going down a steep hill,
or under excessive acceleration. In this
case, decelerate to return below the
maximum speed using the brake pedal.
Changing speed setting
Setting to the current speed
1) Push “CANCEL” switch (2).
2) Accelerate or decelerate to the desired
speed.
3) Push “SET –” switch (4) and turn on the
set indicator (6). The current vehicle
speed is set as the maximum speed.
Using “RES +” switch or “SET –” switch
To change to a faster speed, press repeat-
edly or hold push “RES +” switch (3).
To change to a slower speed, press
repeatedly or hold push “SET –” switch
(4).
NOTE:
• You can adjust the set speed by 1 km/h
or 1 mph by pushing “RES +” switch (3)
or “SET –” switch (4) quickly.
• You can adjust the set speed by 5 km/h or
5 mph by pushing and holding “RES +”
switch (3) or “SET –” switch (4).
• If the current vehicle speed exceeds the
maximum speed when changing to the
slower speed using “RES +” switch (3) or
“SET –” switch (4), the speed indication
(7) will flash and the buzzer will sound.
(5) (6) (7)
EXAMPLE

3-47
OPERATING YOUR VEHICLE
54P00-01E
Cancelling speed limiter
• To cancel the speed limiter, push “CAN-
CEL” switch (2). The set indicator (6) will
go off.
• To resume the previously set speed,
push “RES +” switch (3) and turn on the
set indicator (6).
To turn off the speed limiter system, push
“LIMIT” switch (1) and check that limit indi-
cator (5) is off.
Also, you can turn off the speed limiter by
turning off the engine.
NOTE:
If you turn off the speed limiter system, the
previously set speed in the memory is
cleared. Set your speed again.
Radar brake support system
(if equipped)
Radar brake support system measures the
relative velocity of, and distance from, the
vehicle in front of you by radar and then
attempts to avoid a crash by giving warn-
ing and, in the event of a crash, attempts to
reduce damage through brake control.
WA R N I N G
• Radar brake support system has
limits and may not function prop-
erly depending on the driving con-
ditions. Do not rely excessively on
the system and always drive in a
safe manner.
• For safety reasons, do not check
the operation of the system by
yourself.
• Check that all passengers fasten
their seat belts when the vehicle is
being operated.
When the system is activated, there
is a risk of serious injury from
being thrown.
(Continued)
WA R N I N G
(Continued)
• On the following surfaces, you may
not be able to decelerate even with
the warning brake system, the
brake assist system and automatic
brake system functioning.
– On sharp curves or extremely
rough surfaces
– On the following slippery sur-
faces
• Frozen or snow-covered sur-
faces
• Over manholes or metal con-
struction plates
• Gravel
• In the following situations, the tilt
and/or height of the vehicle is
changed, the system does not
function properly and unexpected
accidents may occur.
– With a modified suspension
(Altering the vehicle height, etc.)
– With non-specified sized tires
equipped
– With worn or extremely uneven
tires equipped
– With low or high tire pressure

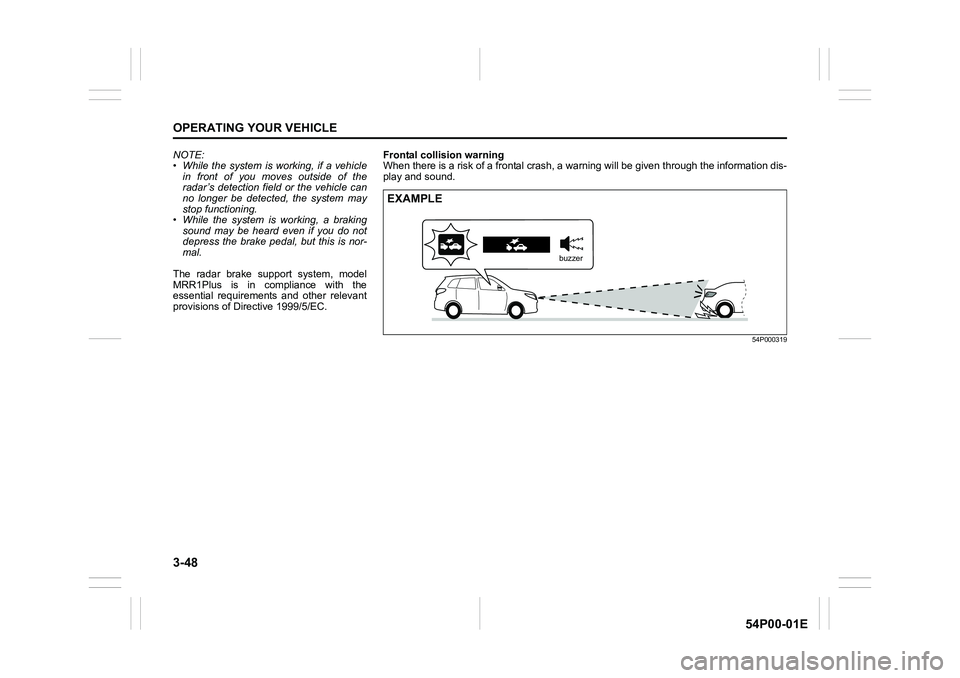

3-48
OPERATING YOUR VEHICLE
54P00-01E
NOTE:
• While the system is working, if a vehicle
in front of you moves outside of the
radar’s detection field or the vehicle can
no longer be detected, the system may
stop functioning.
• While the system is working, a braking
sound may be heard even if you do not
depress the brake pedal, but this is nor-
mal.
The radar brake support system, model
MRR1Plus is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.Frontal collision warning
When there is a risk of a frontal crash, a warning will be given through the information dis-
play and sound.
54P000319
EXAMPLE
buzzer

3-49
OPERATING YOUR VEHICLE
54P00-01E

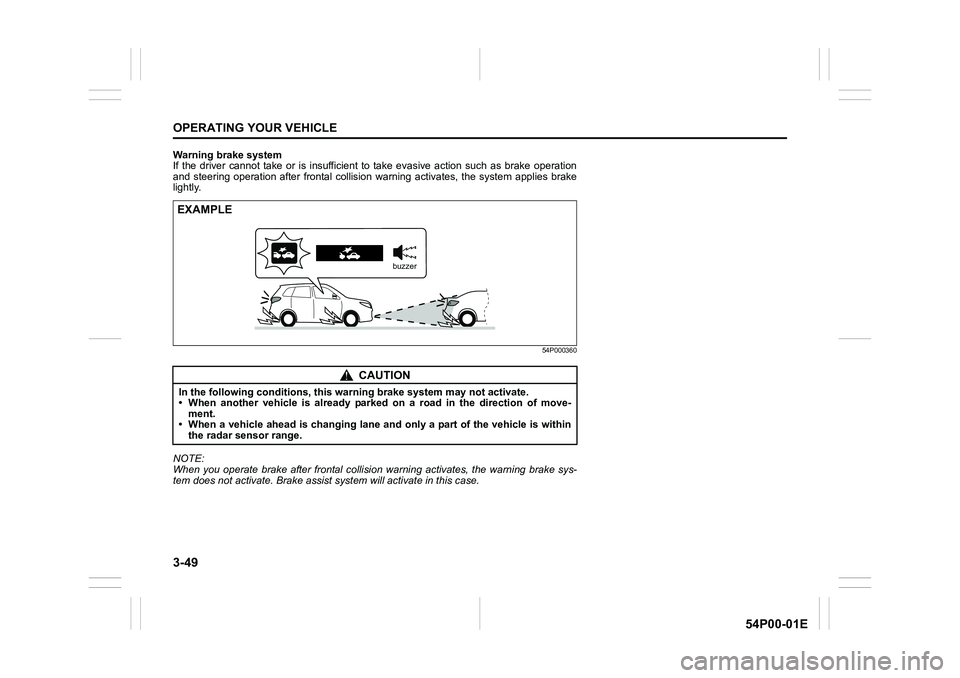

Warning brake system
If the driver cannot take or is insufficient to take evasive action such as brake operation
and steering operation after frontal collision warning activates, the system applies brake
lightly.
54P000360
NOTE:
When you operate brake after frontal collision warning activates, the warning brake sys-
tem does not activate. Brake assist system will activate in this case.
CAUTION
In the following conditions, this warning brake system may not activate.
• When another vehicle is already parked on a road in the direction of move-
ment.
• When a vehicle ahead is changing lane and only a part of the vehicle is within
the radar sensor range.
EXAMPLE
buzzer

3-50
OPERATING YOUR VEHICLE
54P00-01E

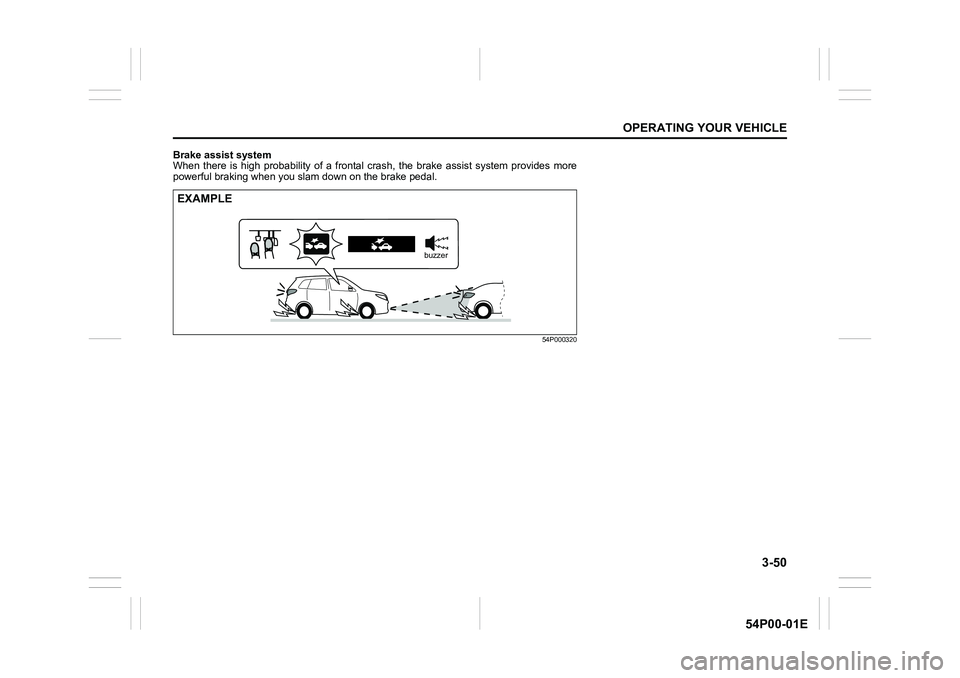

Brake assist system
When there is high probability of a frontal crash, the brake assist system provides more
powerful braking when you slam down on the brake pedal.
54P000320
EXAMPLE
buzzer
