SUZUKI GRAND VITARA 2022 Owners Manual

3-31
OPERATING YOUR VEHICLE
54P00-01E

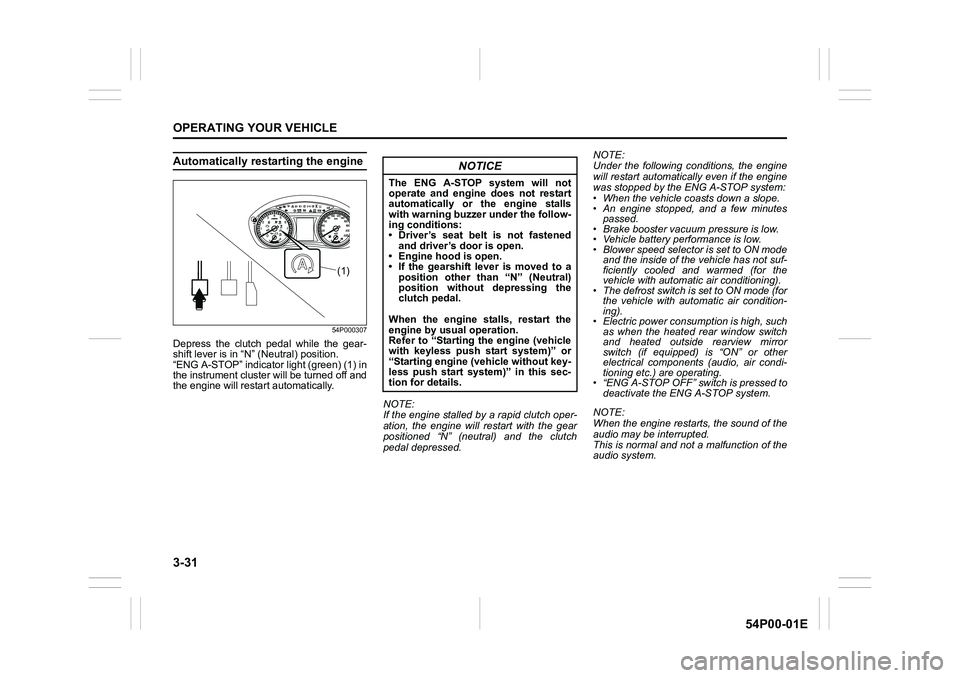

Automatically restarting the engine
54P000307
Depress the clutch pedal while the gear-
shift lever is in “N” (Neutral) position.
“ENG A-STOP” indicator light (green) (1) in
the instrument cluster will be turned off and
the engine will restart automatically.
NOTE:
If the engine stalled by a rapid clutch oper-
ation, the engine will restart with the gear
positioned “N” (neutral) and the clutch
pedal depressed.NOTE:
Under the following conditions, the engine
will restart automatically even if the engine
was stopped by the ENG A-STOP system:
• When the vehicle coasts down a slope.
• An engine stopped, and a few minutes
passed.
• Brake booster vacuum pressure is low.
• Vehicle battery performance is low.
• Blower speed selector is set to ON mode
and the inside of the vehicle has not suf-
ficiently cooled and warmed (for the
vehicle with automatic air conditioning).
• The defrost switch is set to ON mode (for
the vehicle with automatic air condition-
ing).
• Electric power consumption is high, such
as when the heated rear window switch
and heated outside rearview mirror
switch (if equipped) is “ON” or other
electrical components (audio, air condi-
tioning etc.) are operating.
• “ENG A-STOP OFF” switch is pressed to
deactivate the ENG A-STOP system.
NOTE:
When the engine restarts, the sound of the
audio may be interrupted.
This is normal and not a malfunction of the
audio system.
(1)
NOTICE
The ENG A-STOP system will not
operate and engine does not restart
automatically or the engine stalls
with warning buzzer under the follow-
ing conditions:
• Driver’s seat belt is not fastened
and driver’s door is open.
• Engine hood is open.
• If the gearshift lever is moved to a
position other than “N” (Neutral)
position without depressing the
clutch pedal.
When the engine stalls, restart the
engine by usual operation.
Refer to “Starting the engine (vehicle
with keyless push start system)” or
“Starting engine (vehicle without key-
less push start system)” in this sec-
tion for details.

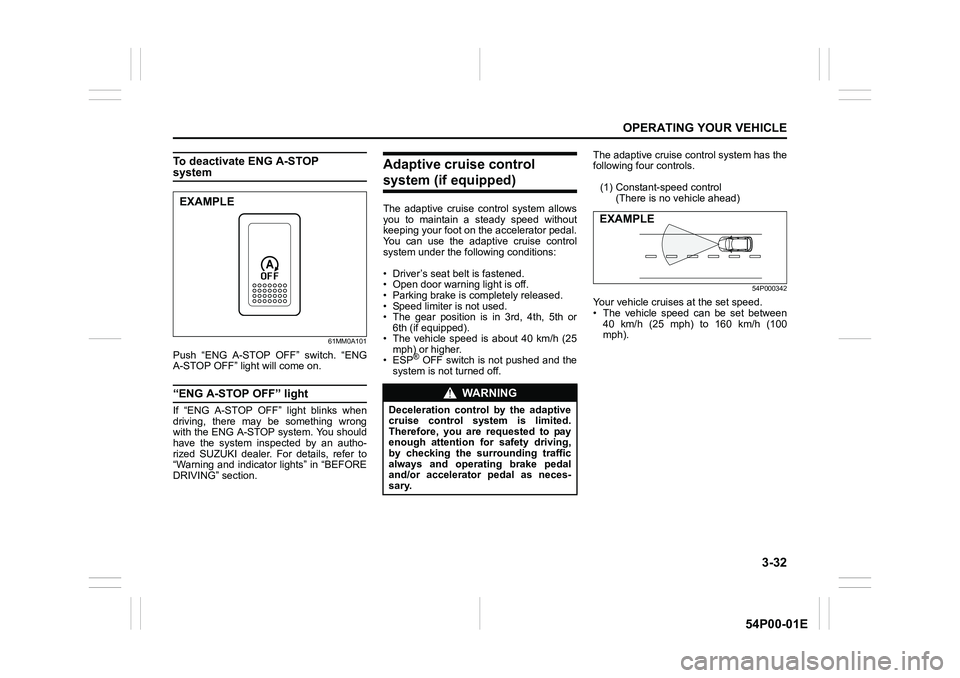

3-32
OPERATING YOUR VEHICLE
54P00-01E
To deactivate ENG A-STOP system
61MM0A101
Push “ENG A-STOP OFF” switch. “ENG
A-STOP OFF” light will come on.
“ENG A-STOP OFF” light
If “ENG A-STOP OFF” light blinks when
driving, there may be something wrong
with the ENG A-STOP system. You should
have the system inspected by an autho-
rized SUZUKI dealer. For details, refer to
“Warning and indicator lights” in “BEFORE
DRIVING” section.
Adaptive cruise control
system (if equipped)
The adaptive cruise control system allows
you to maintain a steady speed without
keeping your foot on the accelerator pedal.
You can use the adaptive cruise control
system under the following conditions:
• Driver’s seat belt is fastened.
• Open door warning light is off.
• Parking brake is completely released.
• Speed limiter is not used.
• The gear position is in 3rd, 4th, 5th or
6th (if equipped).
• The vehicle speed is about 40 km/h (25
mph) or higher.
• ESP
® OFF switch is not pushed and the
system is not turned off.The adaptive cruise control system has the
following four controls.
(1) Constant-speed control
(There is no vehicle ahead)
54P000342
Your vehicle cruises at the set speed.
• The vehicle speed can be set between
40 km/h (25 mph) to 160 km/h (100
mph).
EXAMPLE
WA R N I N G
Deceleration control by the adaptive
cruise control system is limited.
Therefore, you are requested to pay
enough attention for safety driving,
by checking the surrounding traffic
always and operating brake pedal
and/or accelerator pedal as neces-
sary.
EXAMPLE

3-33
OPERATING YOUR VEHICLE
54P00-01E
(2) Deceleration control
(A vehicle ahead is within radar range
and going slower than the set speed)
54P000343
Your vehicle slows down, and maintains
the same speed as the speed of the vehi-
cle ahead to maintain the following dis-
tance.
• Possible detecting distance between
your vehicle and a vehicle ahead is
within about 100 m (328 ft).
(3) Following control
(A vehicle ahead is within radar range
and going at a steady speed)
54P000344
Your vehicle follows the vehicle ahead,
keeping a constant distance, without
exceeding the set speed.NOTE:
• When your vehicle is getting close to the
vehicle ahead while deceleration control
or following control is functioning, a fron-
tal collision warning is activated.
• When operating brake pedal during fol-
lowing control, you might feel that a
brake is heavy. However, this is normal
in the brake system. This occurs
because of the feature of adaptive cruise
control system.
(4) Acceleration control
(A vehicle ahead goes out of range)
54P000345
The adaptive cruise control system accel-
erates your vehicle to the set speed, and
then maintains it.
Situations where radar will not acti-vate properly
Under the following situations, there is a
high possibility that deceleration control,
following control and acceleration control
will not function properly, even if a vehicle
ahead is within radar range.
• When vehicle is driven in a traffic jam
• When vehicle is driven on sharp curves
• When vehicle is driven on slippery road
such as ice or snow-covered road
• When vehicle is driven on steep hill
54P000376
• When vehicle is driven on the road with
many steep uphills and downhills
• When your vehicle is towing a trailer
EXAMPLE
EXAMPLE
EXAMPLE
WA R N I N G
Do not use the adaptive cruise con-
trol system under the following situa-
tions. Otherwise, the system will not
function properly and unexpected
accidents may occur.
EXAMPLE

3-34
OPERATING YOUR VEHICLE
54P00-01E

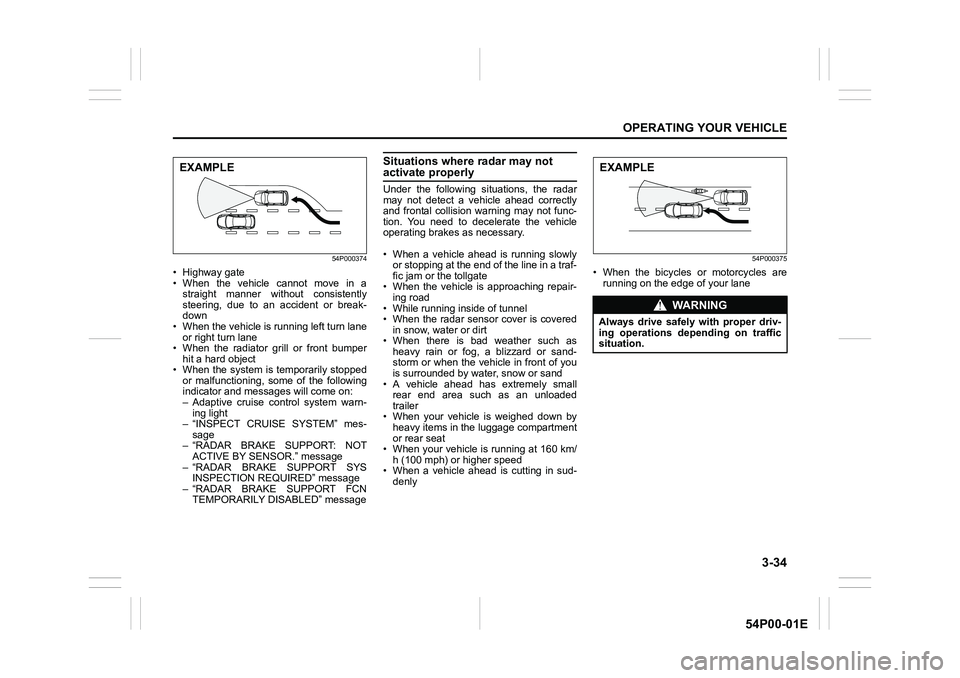

54P000374
• Highway gate
• When the vehicle cannot move in a
straight manner without consistently
steering, due to an accident or break-
down
• When the vehicle is running left turn lane
or right turn lane
• When the radiator grill or front bumper
hit a hard object
• When the system is temporarily stopped
or malfunctioning, some of the following
indicator and messages will come on:
– Adaptive cruise control system warn-
ing light
– “INSPECT CRUISE SYSTEM” mes-
sage
– “RADAR BRAKE SUPPORT: NOT
ACTIVE BY SENSOR.” message
– “RADAR BRAKE SUPPORT SYS
INSPECTION REQUIRED” message
– “RADAR BRAKE SUPPORT FCN
TEMPORARILY DISABLED” message
Situations where radar may not activate properly
Under the following situations, the radar
may not detect a vehicle ahead correctly
and frontal collision warning may not func-
tion. You need to decelerate the vehicle
operating brakes as necessary.
• When a vehicle ahead is running slowly
or stopping at the end of the line in a traf-
fic jam or the tollgate
• When the vehicle is approaching repair-
ing road
• While running inside of tunnel
• When the radar sensor cover is covered
in snow, water or dirt
• When there is bad weather such as
heavy rain or fog, a blizzard or sand-
storm or when the vehicle in front of you
is surrounded by water, snow or sand
• A vehicle ahead has extremely small
rear end area such as an unloaded
trailer
• When your vehicle is weighed down by
heavy items in the luggage compartment
or rear seat
• When your vehicle is running at 160 km/
h (100 mph) or higher speed
• When a vehicle ahead is cutting in sud-
denly
54P000375
• When the bicycles or motorcycles are
running on the edge of your lane
EXAMPLE
WA R N I N G
Always drive safely with proper driv-
ing operations depending on traffic
situation.
EXAMPLE

3-35
OPERATING YOUR VEHICLE
54P00-01E

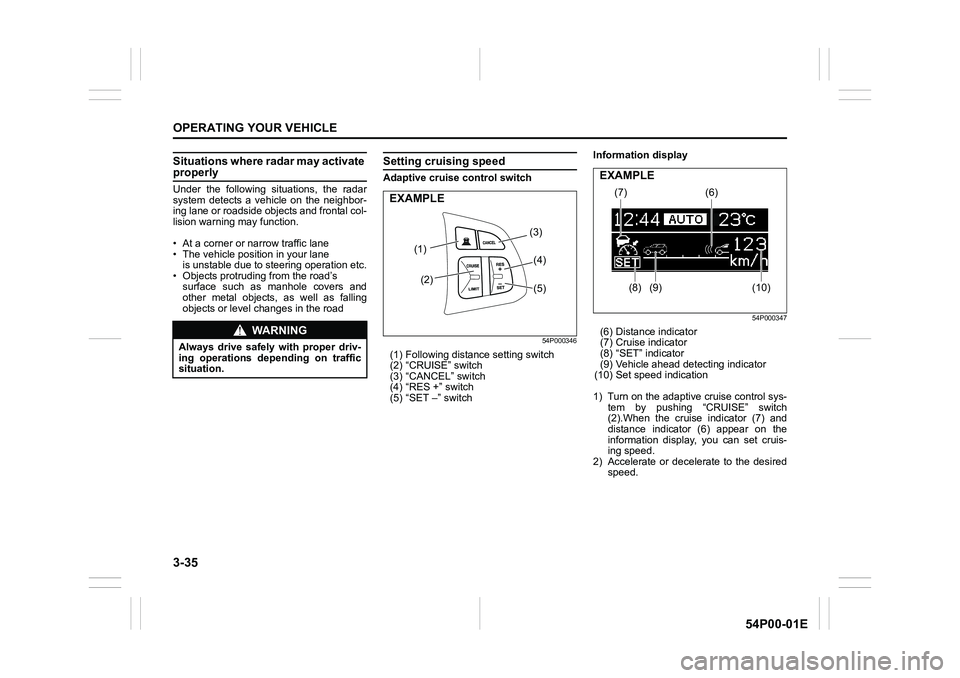

Situations where radar may activate properly
Under the following situations, the radar
system detects a vehicle on the neighbor-
ing lane or roadside objects and frontal col-
lision warning may function.
• At a corner or narrow traffic lane
• The vehicle position in your lane
is unstable due to steering operation etc.
• Objects protruding from the road’s
surface such as manhole covers and
other metal objects, as well as falling
objects or level changes in the road
Setting cruising speed
Adaptive cruise control switch
54P000346
(1) Following distance setting switch
(2) “CRUISE” switch
(3) “CANCEL” switch
(4) “RES +” switch
(5) “SET –” switchInformation display
54P000347
(6) Distance indicator
(7) Cruise indicator
(8) “SET” indicator
(9) Vehicle ahead detecting indicator
(10) Set speed indication
1) Turn on the adaptive cruise control sys-
tem by pushing “CRUISE” switch
(2).When the cruise indicator (7) and
distance indicator (6) appear on the
information display, you can set cruis-
ing speed.
2) Accelerate or decelerate to the desired
speed.WA R N I N G
Always drive safely with proper driv-
ing operations depending on traffic
situation.
(1)
(2)(3)
(4)
(5)
EXAMPLE(7)
(8) (9)(6)
(10)
EXAMPLE

3-36
OPERATING YOUR VEHICLE
54P00-01E

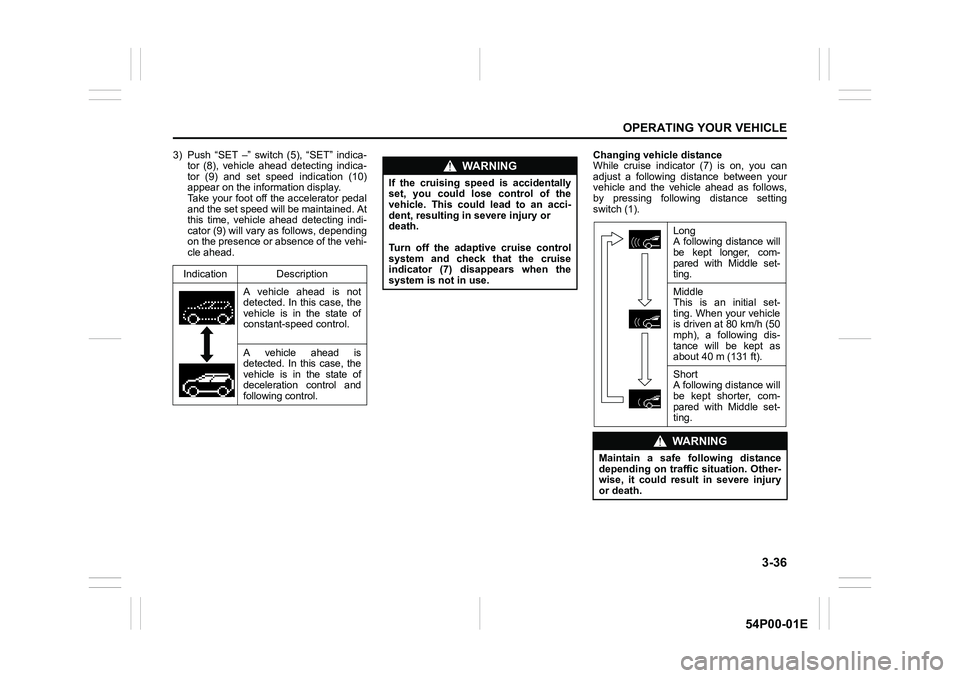

3) Push “SET –” switch (5), “SET” indica-
tor (8), vehicle ahead detecting indica-
tor (9) and set speed indication (10)
appear on the information display.
Take your foot off the accelerator pedal
and the set speed will be maintained. At
this time, vehicle ahead detecting indi-
cator (9) will vary as follows, depending
on the presence or absence of the vehi-
cle ahead.Changing vehicle distance
While cruise indicator (7) is on, you can
adjust a following distance between your
vehicle and the vehicle ahead as follows,
by pressing following distance setting
switch (1).
Indication Description
A vehicle ahead is not
detected. In this case, the
vehicle is in the state of
constant-speed control.
A vehicle ahead is
detected. In this case, the
vehicle is in the state of
deceleration control and
following control.
WA R N I N G
If the cruising speed is accidentally
set, you could lose control of the
vehicle. This could lead to an acci-
dent, resulting in severe injury or
death.
Turn off the adaptive cruise control
system and check that the cruise
indicator (7) disappears when the
system is not in use.
Long
A following distance will
be kept longer, com-
pared with Middle set-
ting.
Middle
This is an initial set-
ting. When your vehicle
is driven at 80 km/h (50
mph), a following dis-
tance will be kept as
about 40 m (131 ft).
Short
A following distance will
be kept shorter, com-
pared with Middle set-
ting.
WA R N I N G
Maintain a safe following distance
depending on traffic situation. Other-
wise, it could result in severe injury
or death.

3-37
OPERATING YOUR VEHICLE
54P00-01E

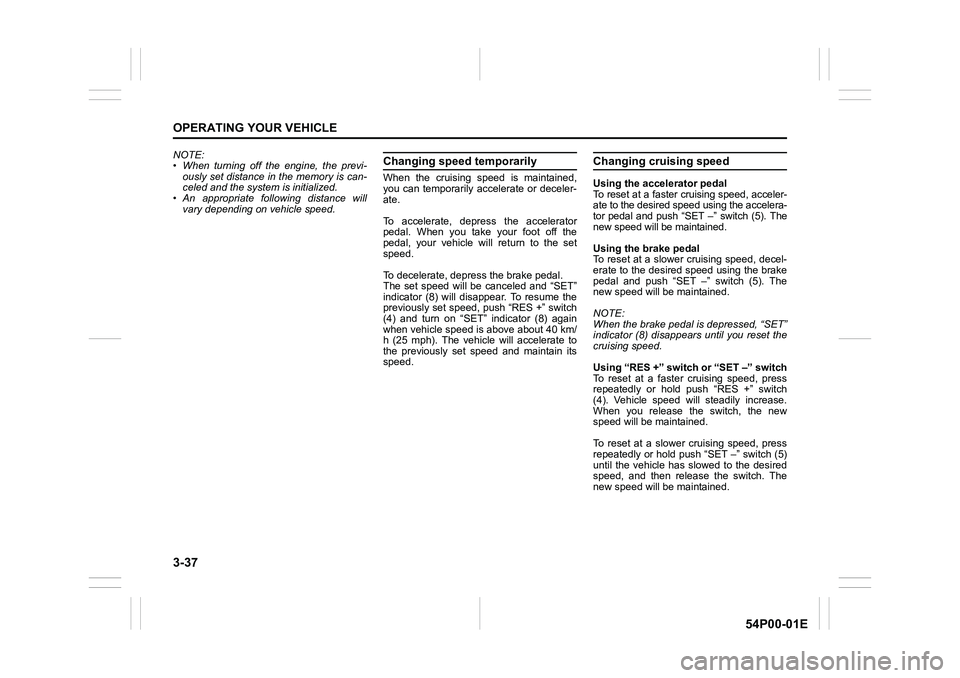

NOTE:
• When turning off the engine, the previ-
ously set distance in the memory is can-
celed and the system is initialized.
• An appropriate following distance will
vary depending on vehicle speed.Changing speed temporarily
When the cruising speed is maintained,
you can temporarily accelerate or deceler-
ate.
To accelerate, depress the accelerator
pedal. When you take your foot off the
pedal, your vehicle will return to the set
speed.
To decelerate, depress the brake pedal.
The set speed will be canceled and “SET”
indicator (8) will disappear. To resume the
previously set speed, push “RES +” switch
(4) and turn on “SET” indicator (8) again
when vehicle speed is above about 40 km/
h (25 mph). The vehicle will accelerate to
the previously set speed and maintain its
speed.
Changing cruising speed
Using the accelerator pedal
To reset at a faster cruising speed, acceler-
ate to the desired speed using the accelera-
tor pedal and push “SET –” switch (5). The
new speed will be maintained.
Using the brake pedal
To reset at a slower cruising speed, decel-
erate to the desired speed using the brake
pedal and push “SET –” switch (5). The
new speed will be maintained.
NOTE:
When the brake pedal is depressed, “SET”
indicator (8) disappears until you reset the
cruising speed.
Using “RES +” switch or “SET –” switch
To reset at a faster cruising speed, press
repeatedly or hold push “RES +” switch
(4). Vehicle speed will steadily increase.
When you release the switch, the new
speed will be maintained.
To reset at a slower cruising speed, press
repeatedly or hold push “SET –” switch (5)
until the vehicle has slowed to the desired
speed, and then release the switch. The
new speed will be maintained.

3-38
OPERATING YOUR VEHICLE
54P00-01E

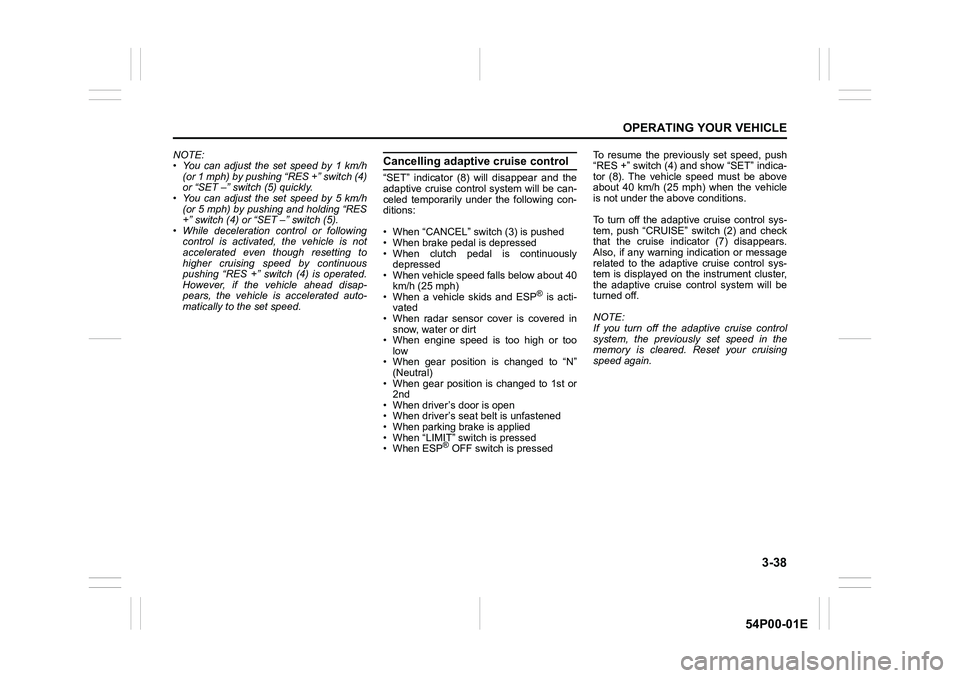

NOTE:
• You can adjust the set speed by 1 km/h
(or 1 mph) by pushing “RES +” switch (4)
or “SET –” switch (5) quickly.
• You can adjust the set speed by 5 km/h
(or 5 mph) by pushing and holding “RES
+” switch (4) or “SET –” switch (5).
• While deceleration control or following
control is activated, the vehicle is not
accelerated even though resetting to
higher cruising speed by continuous
pushing “RES +” switch (4) is operated.
However, if the vehicle ahead disap-
pears, the vehicle is accelerated auto-
matically to the set speed.Cancelling adaptive cruise control
“SET” indicator (8) will disappear and the
adaptive cruise control system will be can-
celed temporarily under the following con-
ditions:
• When “CANCEL” switch (3) is pushed
• When brake pedal is depressed
• When clutch pedal is continuously
depressed
• When vehicle speed falls below about 40
km/h (25 mph)
• When a vehicle skids and ESP
® is acti-
vated
• When radar sensor cover is covered in
snow, water or dirt
• When engine speed is too high or too
low
• When gear position is changed to “N”
(Neutral)
• When gear position is changed to 1st or
2nd
• When driver’s door is open
• When driver’s seat belt is unfastened
• When parking brake is applied
• When “LIMIT” switch is pressed
• When ESP
® OFF switch is pressedTo resume the previously set speed, push
“RES +” switch (4) and show “SET” indica-
tor (8). The vehicle speed must be above
about 40 km/h (25 mph) when the vehicle
is not under the above conditions.
To turn off the adaptive cruise control sys-
tem, push “CRUISE” switch (2) and check
that the cruise indicator (7) disappears.
Also, if any warning indication or message
related to the adaptive cruise control sys-
tem is displayed on the instrument cluster,
the adaptive cruise control system will be
turned off.
NOTE:
If you turn off the adaptive cruise control
system, the previously set speed in the
memory is cleared. Reset your cruising
speed again.

3-39
OPERATING YOUR VEHICLE
54P00-01E

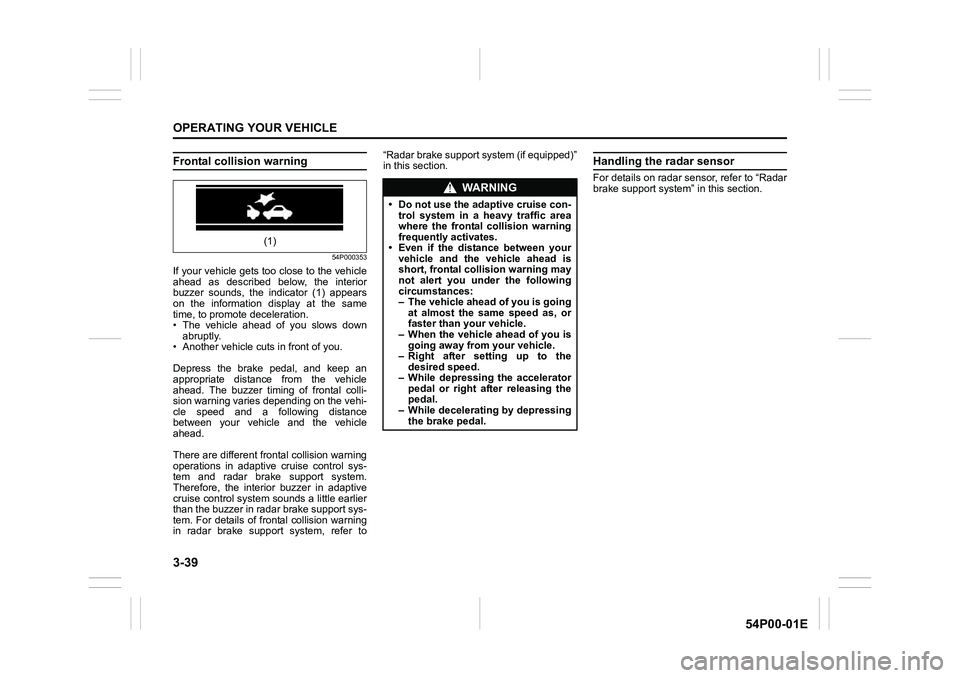

Frontal collision warning
54P000353
If your vehicle gets too close to the vehicle
ahead as described below, the interior
buzzer sounds, the indicator (1) appears
on the information display at the same
time, to promote deceleration.
• The vehicle ahead of you slows down
abruptly.
• Another vehicle cuts in front of you.
Depress the brake pedal, and keep an
appropriate distance from the vehicle
ahead. The buzzer timing of frontal colli-
sion warning varies depending on the vehi-
cle speed and a following distance
between your vehicle and the vehicle
ahead.
There are different frontal collision warning
operations in adaptive cruise control sys-
tem and radar brake support system.
Therefore, the interior buzzer in adaptive
cruise control system sounds a little earlier
than the buzzer in radar brake support sys-
tem. For details of frontal collision warning
in radar brake support system, refer to“Radar brake support system (if equipped)”
in this section.
Handling the radar sensor
For details on radar sensor, refer to “Radar
brake support system” in this section.
(1)
WA R N I N G
• Do not use the adaptive cruise con-
trol system in a heavy traffic area
where the frontal collision warning
frequently activates.
• Even if the distance between your
vehicle and the vehicle ahead is
short, frontal collision warning may
not alert you under the following
circumstances:
– The vehicle ahead of you is going
at almost the same speed as, or
faster than your vehicle.
– When the vehicle ahead of you is
going away from your vehicle.
– Right after setting up to the
desired speed.
– While depressing the accelerator
pedal or right after releasing the
pedal.
– While decelerating by depressing
the brake pedal.

3-40
OPERATING YOUR VEHICLE
54P00-01E

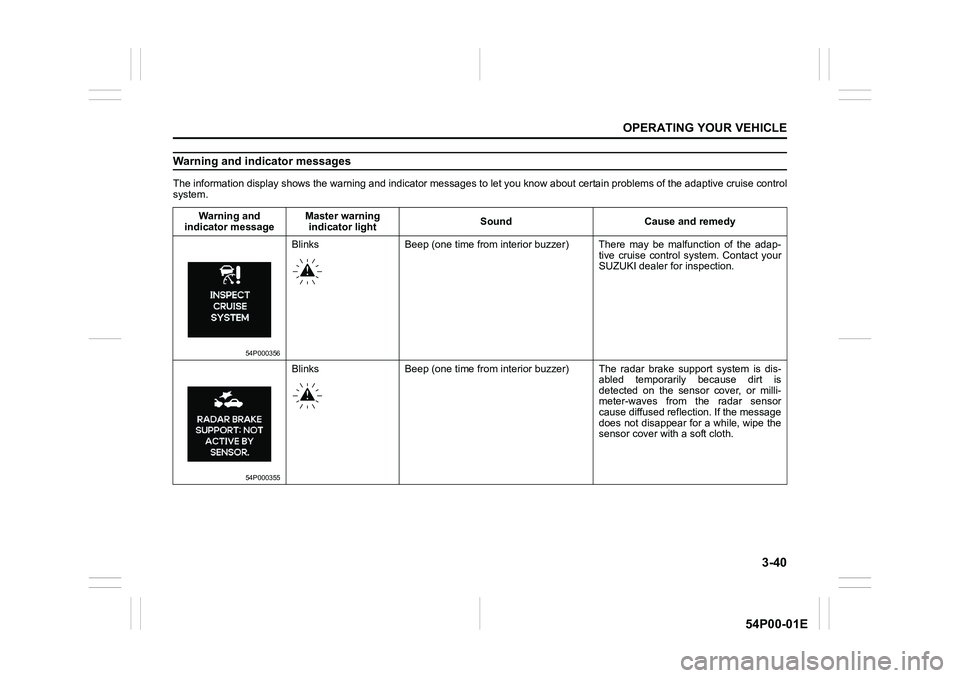

Warning and indicator messages
The information display shows the warning and indicator messages to let you know about certain problems of the adaptive cruise control
system.
Warning and
indicator messageMaster warning
indicator lightSound Cause and remedy
54P000356
Blinks Beep (one time from interior buzzer) There may be malfunction of the adap-
tive cruise control system. Contact your
SUZUKI dealer for inspection.
54P000355
Blinks Beep (one time from interior buzzer) The radar brake support system is dis-
abled temporarily because dirt is
detected on the sensor cover, or milli-
meter-waves from the radar sensor
cause diffused reflection. If the message
does not disappear for a while, wipe the
sensor cover with a soft cloth.
