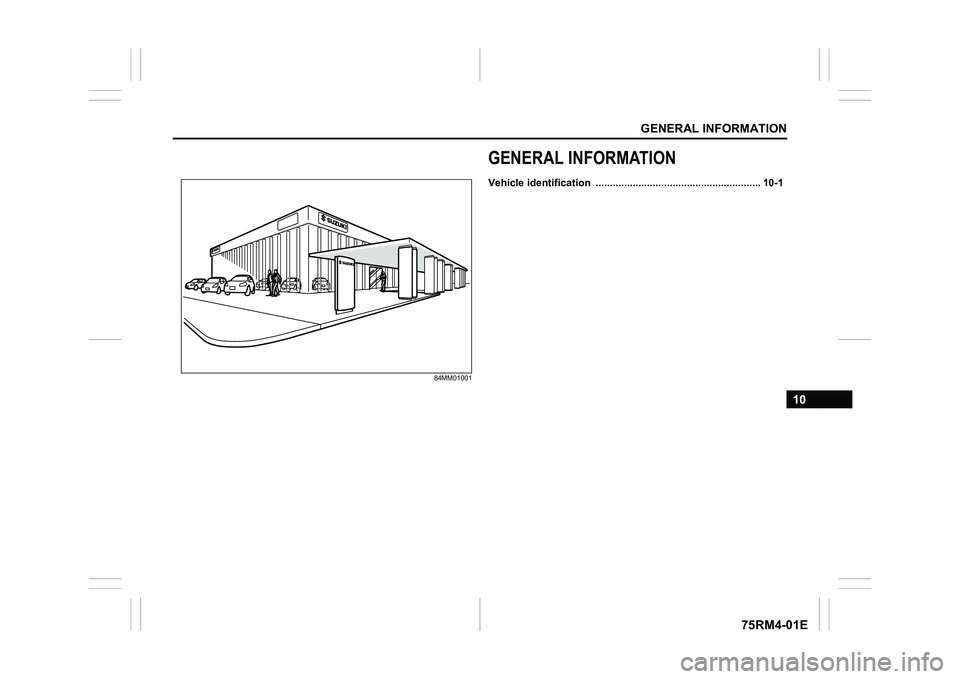

GENERAL INFORMATIONVehicle identification .......................................................... 10-1

10-1GENERAL INFORMATION
75RM4-01E
Vehicle identificationChassis serial number
75RM33768LM101
The chassis and/or engine serial numbers
are used to register the vehicle. They are
also used to assist your dealer when
ordering or referring to special service
information. Whenever you have occasion
to consult your SUZUKI dealer, remember
to identify your vehicle with this number.
Should you find the number difficult to
read, you will also find it on the identifica-
tion plate.
Engine serial number
60G128
The engine serial number is stamped on
the cylinder block as shown in the illustra-
tion.
EXAMPLE
EXAMPLE (for some vehicles)

11-1
SPECIFICATIONS
75RM4-01E
11
SPECIFICATIONSNOTE:
Specifications are subject to change without notice.
M/T: Manual transaxle
CVT: Continuously variable transaxle 2WD: 2-wheel drive
4WD: 4-wheel drive
ITEM: Dimensions UNIT: mm (in.)
Overall length 3700 (145.7)
Overall width without wheel arch extensions 1660 (65.4)
with
wheel arch extensions 1690 (66.5)
Overall height 1595 (62.8)
Wheelbase 2435 (95.9)
Track Front 1460 (57.5)
Rear2WD 1470 (57.9)
4WD 1460 (57.5)
Ground clearance 180 (7.1)
ITEM: Mass (weight) UNIT: kg (lbs) K12C engine model K12M engine m odel
Curb mass (weight) M/T2WD 810 – 870 (1786 – 1918)
815 – 845 (1797 – 1863)
4WD 870 – 920 (1918 – 2028) –
CVT 2WD 865 – 895 ( 1907 – 1973) 860 – 880 (1896 – 1940)
Auto Gear Shift 2WD 8 30 – 865 (1830 – 1907) –
Gross vehicle mass (wei ght) rating 1330 (2932)
Permissible maximum axle weight Front 690 (1521) Rear 750 (1653)

11-2SPECIFICATIONS
75RM4-01E
*1 For about replacing or disposing of the lithium-ion battery, consult your SUZUKI dealer.
ITEM: Engine
Type K12C K12M (DOHC)
Number of cylinders 4

Bore 73.0 mm (2.87 in.) 73.0 mm (2.87 in.)
Stroke 74.2 mm (2.92 in .) 71.5 mm (2.81 in.)
Piston displacement 1242 cm
3 (1242 cc, 75.8 cu.in) 1197 cm
3 (1197 cc, 73.0 cu.in)
Compression ratio 12.5 : 1 11.0 : 1
ITEM: Electrical
Standard spark plug K12C engine models NGK ILZKR6F11 K12M engine models NGK LKR6F-10
Battery without ENG A-STOP system 12V 20HR 45Ah CCA 295A 46B24 (JIS)
with ENG A-STOP system Lead-acid battery 12V 20HR
55Ah CCA 450A LN1 (EN)
Lithium-ion battery Maintenance free
*1
Fuses See “INSPECTION AND MAINTENANCE” section.

11-3
SPECIFICATIONS
75RM4-01E
ITEM: Lights WATTAGE BULB No.
Headlight Halogen headlight 12V 60/55W H4LED headlight LED –
Front fog light (if equipped) 12V 19W H16
Position light 12V 5W W5W LED –
Daytime running light (i f equipped) 12V 13W P13W
LED –
Turn signal light Front 12V 21W WY21W
Rear 12V 21W WY21W
Side turn signal light 12V 5W –
LED –
Tail/brake light 12V 21/5W W21/5W LED –
High mount stop light LED –
Reversing light 12V 16W W16W
License plate light 12V 5W W5W
Rear fog light (if equipped) 12V 21W W21W
Interior light Front 12V 10W – Luggage compartment
(if equipped)12V 5W W5W

11-4SPECIFICATIONS
75RM4-01E
*1 If you cannot prepare tires with the specified load index rate and speed symbol, prepare tires with higher load index rate a nd speed
symbol.
*2 If you prepare snow tires;
• Check that they are tires of the same size, structure and load capacity as the originally installed tires.
• Mount the snow tires on all four wheels.
• Understand that the maximum pe rmissible speed of snow tires is generally less than the originally installed tires.
Consult your SUZUKI dealer or su pplier for further information.
ITEM: Wheels and tires
Tire size, front and rear
175/65R15 84H
*1, 175/60R16 82H
*1
Rim size 175/65R15 tire: 15X5J
175/60R16 tire: 16X5J
Tire pressures For the specified tire pressure, see the tire information label located
on the driver’s door lock pillar.
Recommended snow chain (for Euro pe) Radial thickness: 10 mm, axi al thickness: 10 mm
Recommended snow tire 175/65R15
*2 or 175/60R16
*2

11-5
SPECIFICATIONS
75RM4-01E
ITEM: Recommended fuel / lubricants and capacities (approx.)
Fuel 2WD See “FUEL RECOMMENDATION” section. 32 L (7.0 Imp gal)
4WD 30 L (6.6 Imp gal)
Engine oil
K12C engine models Classification: ACEA A1/B
1, A3/B3, A3/B4, A5/B5
API SL, SM or SN
ILSAC GF-3, GF-4 or GF-5
Viscosity: SAE 0W-16 3.3 L (5.8 Imp pt)
(replacement with oil filter)
K12M engine models Classification: API SG,
SH, SJ, SL, SM or SN
Viscosity: SAE 0W-20 3.1 L (5.5 Imp pt)
(replacement with oil filter)
Engine coolant
K12C
engine
modelsM/T
“SUZUKI LLC: Super (Blue) Coolant” 4.0 L (7.0 Imp pt)
(including reservoir tank)
CVT 4.2 L (7.4 Imp pt)
(including reservoir tank)
Auto Gear
Shift
4.0 L (7.0 Imp pt)
(including reservoir tank)
K12M
engine
models M/T
3.8 L (6.7 Imp pt)
(including reservoir tank)
CVT 4.0 L (7.0 Imp pt)
(including reservoir tank)

11-6SPECIFICATIONS
75RM4-01E
ITEM: Recommended fuel / lubricants and capacities (approx.)
Manual transaxle oil/
Auto Gear Shift oil “SUZUKI GEAR OIL 75W” 1.5 L (2.6 Imp pt)
CVT fluid SUZUKI CVTF GR EEN-2 5.73 L (10.1 Imp pt)
Transfer oil 4WD “SUZUKI GEAR OIL 75W-85” 0.41 L (0.7 Imp pt)
Rear differential oil 4WD “SUZUKI GEAR OIL 75W-85” 0.85 L (1.5 Imp pt)
Brake fluid SAE J1703 or DOT3 Refill to the proper oil level according to the
instructions in the “INSPECTION AND MAINTE-
NANCE” section.

SUPPLEMENT

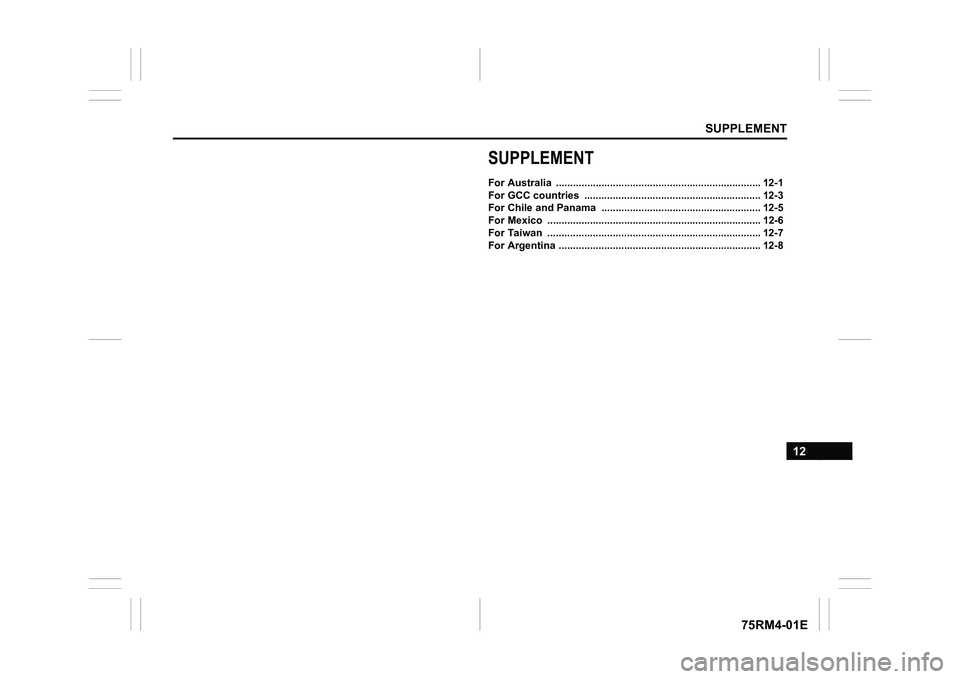

12
75RM4-01E
SUPPLEMENTFor Australia ........................................................................ 12-1
For GCC countries ............................................. ................. 12-3
For Chile and Panama .......................................... .............. 12-5
For Mexico .................................................... ....................... 12-6
For Taiwan .................................................... ....................... 12-7
For Argentina ................................................. ...................... 12-8

12-1SUPPLEMENT
75RM4-01E

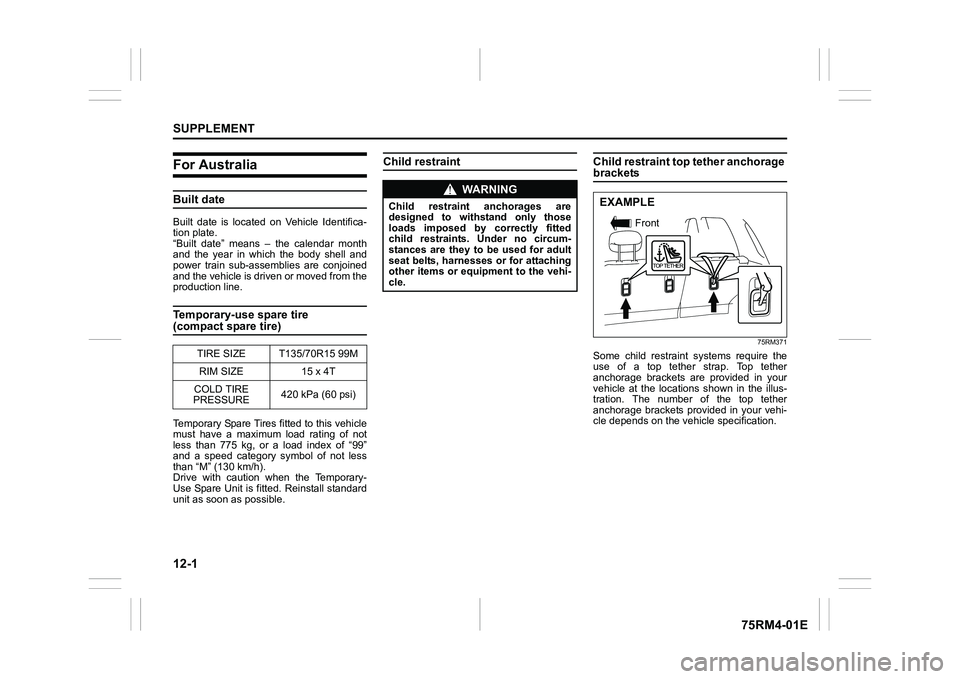

For AustraliaBuilt dateBuilt date is located on Vehicle Identifica-
tion plate.
“Built date” means – the calendar month
and the year in which the body shell and
power train sub-assemblies are conjoined
and the vehicle is driven or moved from the
production line.Temporary-use spare tire (compact spare tire)Temporary Spare Tires fitted to this vehicle
must have a maximum load rating of not
less than 775 kg, or a load index of “99”
and a speed category symbol of not less
than “M” (130 km/h).
Drive with caution when the Temporary-
Use Spare Unit is fitted. Reinstall standard
unit as soon as possible.
Child restraint
Child restraint top tether anchorage brackets
75RM371
Some child restraint systems require the
use of a top tether strap. Top tether
anchorage brackets are provided in your
vehicle at the locations shown in the illus-
tration. The number of the top tether
anchorage brackets provided in your vehi-
cle depends on the v ehicle specification.
TIRE SIZE T135/70R15 99M
RIM SIZE 15 x 4T
COLD TIRE
PRESSURE 420 kPa (60 psi)
WA R N I N G
Child restraint anchorages are
designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts, harnesses or for attaching
other items or equipment to the vehi-
cle.
EXAMPLE
Front
