bluetooth SUZUKI IGNIS 2020 Owner's Manual

5-78
OTHER CONTROLS AND EQUIPMENT
75RM4-01E

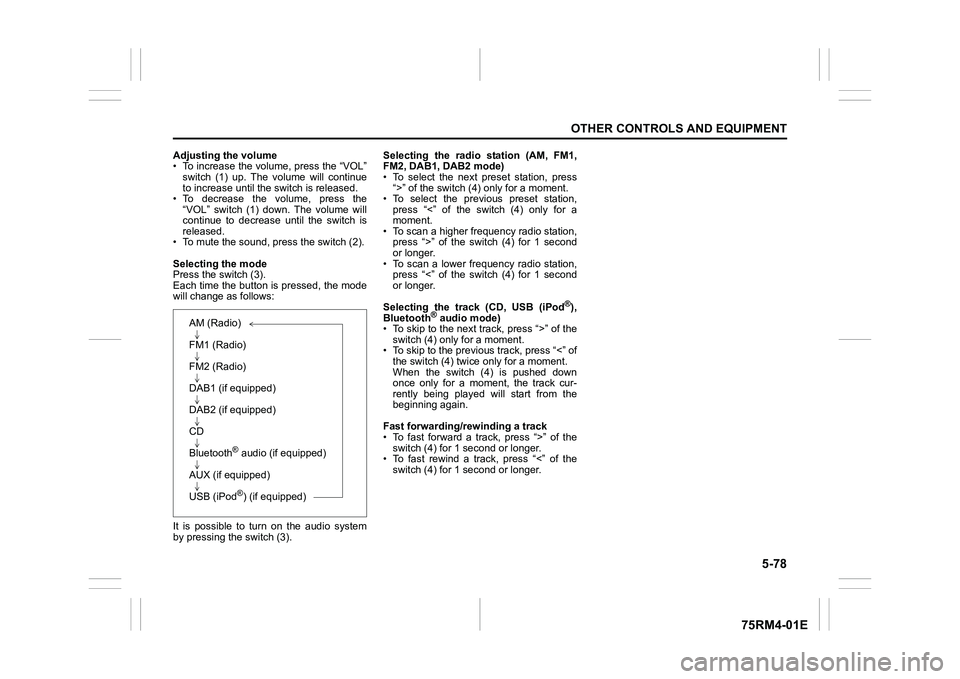

Adjusting the volume
• To increase the volume, press the “VOL”switch (1) up. The volume will continue
to increase until the switch is released.
• To decrease the volume, press the “VOL” switch (1) down. The volume will
continue to decrease until the switch is
released.
• To mute the sound, pr ess the switch (2).
Selecting the mode
Press the switch (3).
Each time the button is pressed, the mode
will change as follows:
It is possible to turn on the audio system
by pressing the switch (3). Selecting the radio station (AM, FM1,
FM2, DAB1, DAB2 mode)
• To select the next preset station, press
“>” of the switch (4 ) only for a moment.
• To select the previous preset station, press “<” of the switch (4) only for a
moment.
• To scan a higher frequency radio station, press “>” of the switch (4) for 1 second
or longer.
• To scan a lower frequency radio station, press “<” of the switch (4) for 1 second
or longer.
Selecting the track (CD, USB (iPod
®),
Bluetooth
® audio mode)
• To skip to the next track, press “>” of the
switch (4) only for a moment.
• To skip to the previous track, press “<” of the switch (4) twice only for a moment.
When the switch (4) is pushed down
once only for a moment, the track cur-
rently being played will start from the
beginning again.
Fast forwarding/rewinding a track
• To fast forward a track, press “>” of the switch (4) for 1 second or longer.
• To fast rewind a track, press “<” of the
switch (4) for 1 second or longer.
AM (Radio)
FM1 (Radio)
FM2 (Radio)
DAB1 (if equipped)
DAB2 (if equipped)
CD
Bluetooth
® audio (if equipped)
AUX (if equipped)
USB (iPod®) (if equipped)

5-82
OTHER CONTROLS AND EQUIPMENT
75RM4-01E
MP3/WMA/AACNo playback The disc contains unsupported formatted
data.
Check the file format.
Sound skips or noise produced Sound skipping may occur when playing
VBR (Variable Bit Rate) files.It is not recommended
to play VBR files.
USB
Playback does not start when the USB
device is connected There is no supported format file to play
on this unit.
Check the file format.
The current consumption of the USB
device exce eds 1.0 A. Use a USB device with a current con-
sumption lower than 1.0 A.
Bluetooth
®
Pairing failed The distance between this unit and the
Bluetooth
® ready device is too far, or a
metallic object may be located between
the Bluetooth® ready device and this unit. Change the location of the Bluetooth
®
ready device.
The Bluetooth
® function of the Bluetooth
®
ready device is off. Refer to the manual of the Bluetooth
®
ready device. (Some devices have the
power saving function that automatically
activates after a certain time.)
Unable to receive a call Your current location may be out of ser-
vice area. Drive your vehicle to the service area of
the phone.
The voice quality of hands-free is low
(Distortion, noise etc.) Another wireless device may be located
near the unit.Switch off the wireless device or keep it
away from the unit.
Problem
Possible cause
Possible solution

5-84
OTHER CONTROLS AND EQUIPMENT
75RM4-01E
Bluetooth
®“ERROR 1”The player developed an error of an
unidentified cause. Disconnect the Bluetooth
® ready device and connect it
again.
When “ERROR 1” does not disappear, contact your
dealer.
“Connection Failed” Failed to establish pairing or c onnection Try to establish the p airing or connection again.
“Memory Full” Reached the limit for the number of phone-
book data in transfer Delete registered data of unnecessary number in phone-
book and try to transfer the register phone numbers in
the phonebook again.
“Not Available” Inoperable during driving Operate the syst em after pulling over your car.
Display
Possible cause
Possible solution

13-1
INDEX
13
75RM4-01E
INDEXSymbols“SET” indicator light ......................................................... 2-115AAccelerator pedal................................................................. 3-12
Accessory socket ............. .................................. ................... 5-6
Adding coolant................................................. .................... 7-28
Adjusting headlight pattern .................................... .......... 2-120
AIR BAG light .................................................. .......... 2-55, 2-106
Air cleaner .................................................... ........................ 7-29
Air conditioner filter replacement ............................. ......... 7-59
Air conditioning system ...... ................................................ 7-58
AM/FM CD player ................................................ ................. 5-33
AM/FM/DAB CD player ........... ............................................. 5-33
Anti-lock brake system (ABS) ................................... 3-76, 3-78
Anti-lock brake system (ABS) warning light ................... 2- 104
Anti-theft feature ............................................. ..................... 5-79
Assist grips ................................................... ......................... 5-7
Audio system ................................................... .................... 5-33
Auto Gear Shift ................................................ .................... 3-25
Auto Gear Shift oil ............................................ ................... 7-34
Automatic headlight leveling system warning light ....... 2-111
Automatic heating and air conditioning system
(climate control) .............................................. ..................... 5-26
Auto-on headlight system...... ........................................... 2-117
AUX function ................................................... ..................... 5-63
AUX/USB socket ................................................. ................... 5-7
Average fuel consumption....................................... .. 2-74, 2-94
Average speed .................................................. ................... 2-74
BBattery ................................................................................... 7-42
Battery replacement........... .........................................2-12, 2-15
Bluetooth
® audio......................................................... ......... 5-74
Bluetooth® hands-free .................................................... ..... 5-65
Brake assist system............................................ ................. 3-76
Brake discs and brake drums .................................... ......... 7-38
Brake fluid.................................................... ......................... 7-36
Brake pedal .................................................... ..............3-12, 7-37
Brake system warning light ..................................... ......... 2-103
Brakes ......................................................... .......................... 7-36
Braking ........................................................ .......................... 3-75
Brightness control ............................................. .................. 2-70
Built date ..................................................... .......................... 12-1
Bulb replacement ............................................... .................. 7-49
CCable control clutch........................................... .................. 7-36
Catalytic converter ........ ......................................................... 4-1
Center console tray......... ....................................................... 5-9
Central door locking system .................................... ............. 2-3
Changing engine oil and filter................................. ............ 7-25
Changing wheels................................................ .................... 8-4
Charging light ................................................. .................... 2-106
Chassis serial number ....... .................................................. 10-1
Child restraint ................................................ ....................... 12-1
Child restraint system f or countries applied for
UN Regulation No.16............................................ ................ 2-43
Child restraint systems ........................................ ............... 2-40
Child-proof locks (rear door) .................................. .............. 2-5
Clock .......................................................... ..................2-74, 2-98
Clutch pedal................................................... ..............3-12, 7-36
