7-2
INSPECTION AND MAINTENANCE
75RM4-01E

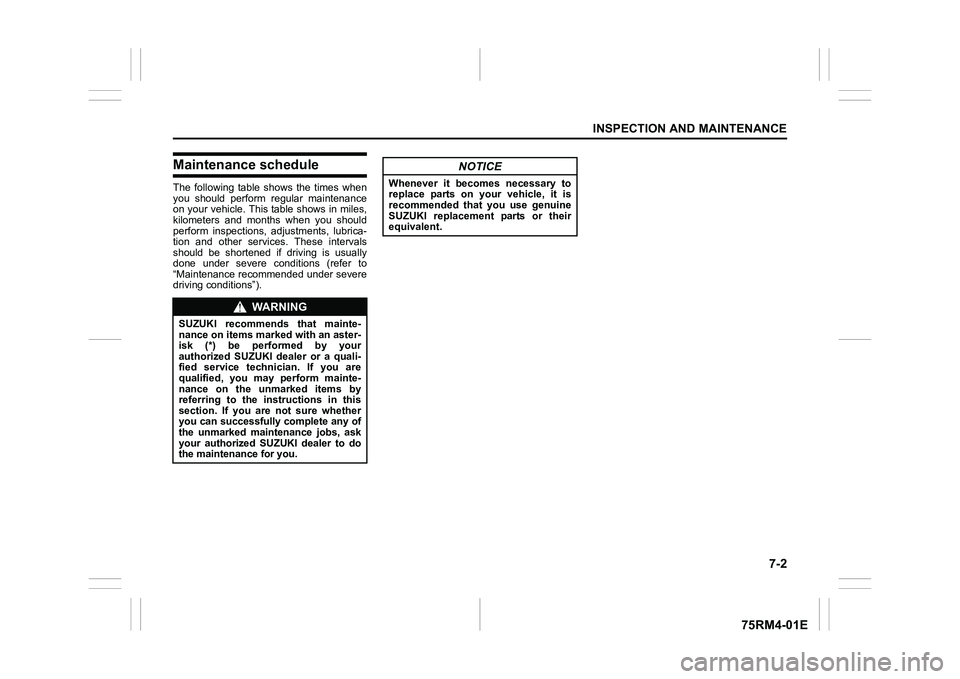

Maintenance scheduleThe following table shows the times when
you should perform regular maintenance
on your vehicle. This table shows in miles,
kilometers and months when you should
perform inspections, adjustments, lubrica-
tion and other services. These intervals
should be shortened if driving is usually
done under severe conditions (refer to
“Maintenance recommended under severe
driving conditions”).
WA R N I N G
SUZUKI recommends that mainte-
nance on items marked with an aster-
isk (*) be performed by your
authorized SUZUKI dealer or a quali-
fied service technician. If you are
qualified, you may perform mainte-
nance on the unmarked items by
referring to the instructions in this
section. If you are not sure whether
you can successfully complete any of
the unmarked maintenance jobs, ask
your authorized SUZUKI dealer to do
the maintenance for you.
NOTICE
Whenever it becomes necessary to
replace parts on your vehicle, it is
recommended that you use genuine
SUZUKI replacement parts or their
equivalent.
Page 352 of 505
7-3INSPECTION AND MAINTENANCE
75RM4-01E

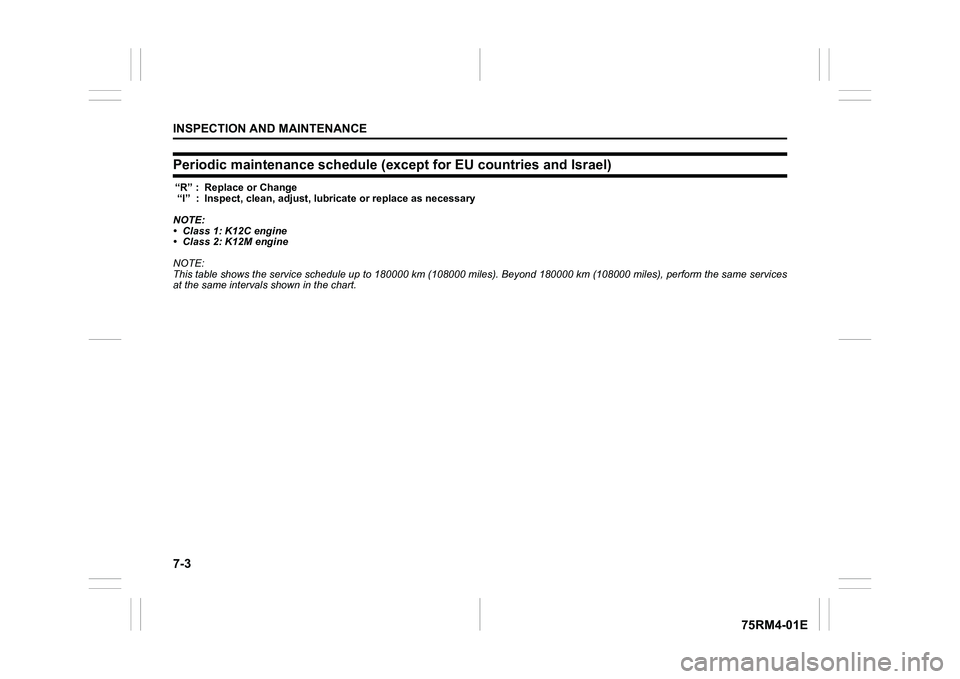

Periodic maintenance schedule (except for EU countries and Israel)“R” : Replace or Change
“I” : Inspect, clean, adjust, lub ricate or replace as necessary
NOTE:
• Class 1: K12C engine
• Class 2: K12M engine
NOTE:
This table shows the service schedule up to 180000 km (108000 miles). Beyond 180000 km (108000 miles), perform the same service s
at the same intervals shown in the chart.
Page 353 of 505
7-4
INSPECTION AND MAINTENANCE
75RM4-01E
• Class 1: K12C engine
• Class 2: K12M engine• For Item 2-1. “Nickel plugs”, replace every 50000 km
if the local law requires.#1: Valve clearance for K12C engin e models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 15 30 45 60 75 90
miles (x1000) 9 18 27 36 45 54
months 12 24 36 48 60 72ENGINE*1-1. Engine accessory drive belt [Class 1] Tension check, *Adjust ment, *Replacement – – I – – R
[Class 2] Tension check, *Adjustment, *Replacement
–
–
I
–
–
R
*1-2. Valve clearance [Class 2] (#1) – I – I – I
1-3.
Engine oil and engine oil filter
R
R
R
R
R
R
1-4. Engine coolant SUZUKI LLC: Super (Blue) (#2)
First time only: Replace at 150000 km (90000 miles) or 96 months .
Second time and after:
Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC: Standard (Green) – – R – – R
*1-5.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
[Class 1] Iridium plug
Replace every 105000 km (63000 miles) or 84 months.
[Class 2] Nickel plug – – R – – R
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL 3-1.
Air cleaner filter element
Paved-road
I
I
R
I
I
R
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
I
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I
Page 354 of 505
7-5INSPECTION AND MAINTENANCE
75RM4-01E
#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 105 120 135 150 165 180
miles (x1000) 63 72 81 90 99 108 months 84 96 108 120 132 144ENGINE*1-1. Engine accessory drive belt [Class 1] Tension check, *Adjust ment, *Replacement – – I – – R
[Class 2] Tension check, *Adjustment, *Replacement
–
–
I
–
–
R
*1-2. Valve clearance [Class 2] (#1) – I – I – I
1-3.
Engine oil and engine oil filter
R
R
R
R
R
R
1-4. Engine coolant SUZUKI LLC: Super (Blue) (#2)
First time only: Replace at 150000 km (90000 miles) or 96 months .
Second time and after:
Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC: Standard (Green) – – R – – R
*1-5.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
[Class 1] Iridium plug
Replace every 105000 km (63000 miles) or 84 months.
[Class 2] Nickel plug – – R – – R
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL 3-1.
Air cleaner filter element
Paved-road
I
I
R
I
I
R
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
I
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I
Page 355 of 505
7-6
INSPECTION AND MAINTENANCE
75RM4-01E
#3: Tires/Wheels (including tire rotation) for Mexico models :Inspect every 15000 km (9000 miles) or 12 months.
#4: Wheel bearings for Mexico models :Inspect every 15000 km (900 0 miles) or 12 months.
#5: Drive axle boots for Mexico models :Inspect every 15000 km (9 000 miles) or 12 months.
#6: Suspension system for Mexico models :Inspect every 15000 km ( 9000 miles) or 12 months.
#7: Steering system for Mexico m odels :Inspect every 15000 km (90 00 miles) or 12 months.Interval: This interval should be judged by
odometer reading or months, whichever
comes first. km (x1000) 15 30 45 60 75 90
miles (x1000) 9 18 27 36 45 54 months 12 24 36 48 60 72BRAKE*5-1. Brake discs and pads (front) IIIIII
Brake drums and shoes (rear)
–
I
–
I
–
I
*5-2. Brake hoses and pipes –I–I–I
5-3.
Brake fluid
Check, *Replacement
–
R
–
R
–
R
5-4. Brake lever and cable
Check, *Adjustment (1st 15000 km only)
I –––––
CHASSIS AND BODY *6-1. Clutch (Cable control type) IIIIII6-2.
Tires/Wheels (#3)
I
I
I
I
I
I
*6-3. Wheel bearings (#4) –I–I–I
*6-4.
Drive axle boots (#5)
–
–
I
–
–
I
*6-5. Suspension system (#6) –I–I–I
*6-6.
Steering system (#7)
–
I
–
I
–
I
*6-7.
Manual transaxle oil Genuine “SUZUKI GEAR OIL 75W”
Inspect every 30000 km (18000 miles) or 24 months.
Other than “SUZUKI GEAR OIL 75W”
(I: 1st 15000 km only)
I
–
R
–
–
R
6-8. Continuously variable transaxle (CVT) Fluid level – I – I – I
6-9.
All latches, hinges and locks
–
I
–
I
–
I
*6-10. Air conditioner filter element (if equipped) –IR–IR
WA R N I N G
The shock absorbers are filled with high pressure gas. Never attempt to disassemble them or throw them into a fire. Avoid
storing them near a heater or heating device. When scrapping th e absorber, the gas must be released from the absorber
safely. Ask your deal er for assistance.
Page 356 of 505
7-7INSPECTION AND MAINTENANCE
75RM4-01E
#3: Tires/Wheels (including tire rotation) for Mexico models :Inspect every 15000 km (9000 miles) or 12 months.
#4: Wheel bearings for Mexico models :Inspect every 15000 km (900 0 miles) or 12 months.
#5: Drive axle boots for Mexico models :Inspect every 15000 km (9 000 miles) or 12 months.
#6: Suspension system for Mexico models :Inspect every 15000 km ( 9000 miles) or 12 months.
#7: Steering system for Mexico m odels :Inspect every 15000 km (90 00 miles) or 12 months.Interval: This interval should be judged by
odometer reading or months, whichever
comes first. km (x1000) 105 120 135 150 165 180
miles (x1000) 63 72 81 90 99 108 months 84 96 108 120 132 144BRAKE*5-1. Brake discs and pads (front) IIIIII
Brake drums and shoes (rear)
–
I
–
I
–
I
*5-2. Brake hoses and pipes –I–I–I
5-3.
Brake fluid
Check, *Replacement
–
R
–
R
–
R
5-4. Brake lever and cable
Check, *Adjustment (1st 15000 km only)
––––––
CHASSIS AND BODY *6-1. Clutch (Cable control type) IIIIII6-2.
Tires/Wheels (#3)
I
I
I
I
I
I
*6-3. Wheel bearings (#4) –I–I–I
*6-4.
Drive axle boots (#5)
–
–
I
–
–
I
*6-5. Suspension system (#6) –I–I–I
*6-6.
Steering system (#7)
–
I
–
I
–
I
*6-7.
Manual transaxle oil Genuine “SUZUKI GEAR OIL 75W”
Inspect every 30000 km (18000 miles) or 24 months.
Other than “SUZUKI GEAR OIL 75W”
(I: 1st 15000 km only)
–
–
R
–
–
R
6-8. Continuously variable transaxle (CVT) Fluid level – I – I – I
6-9.
All latches, hinges and locks
–
I
–
I
–
I
*6-10. Air conditioner filter element (if equipped) –IR–IR
Page 357 of 505
7-8
INSPECTION AND MAINTENANCE
75RM4-01E

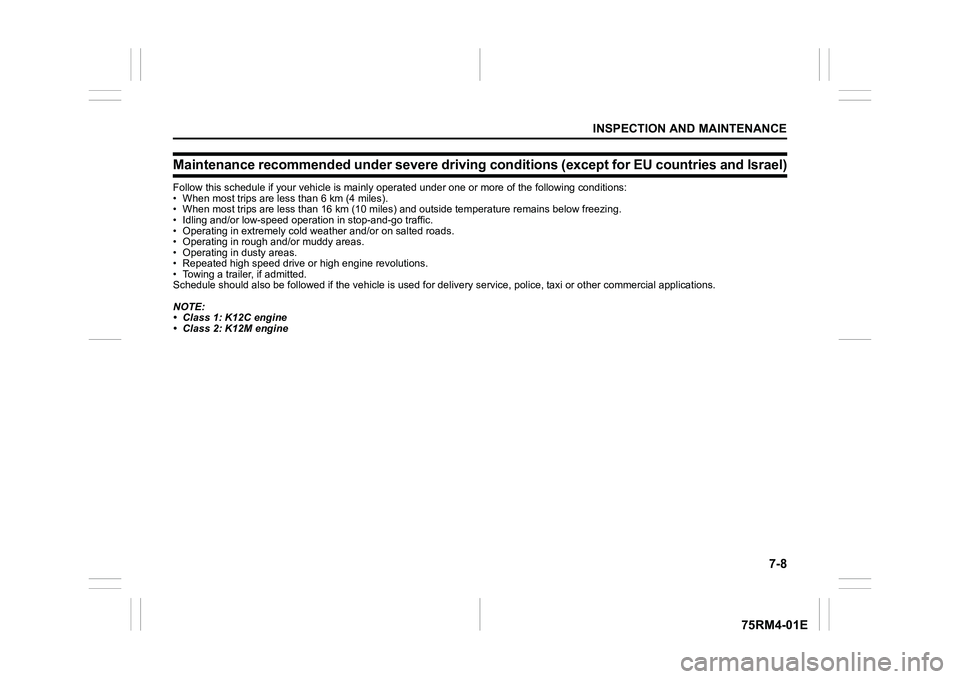

Maintenance recommended under severe driving conditions (except for EU countries and Israel)Follow this schedule if your vehicle is mainly operated under o ne or more of the following conditions:
• When most trips are le ss than 6 km (4 miles).
• When most trips are less than 16 km (10 miles) and outside temperature remains below freezing.
• Idling and/or low-speed operat ion in stop-and-go traffic.
• Operating in extremely cold we ather and/or on salted roads.
• Operating in rough and/or muddy areas.
• Operating in dusty areas.
• Repeated high speed drive or high engine revolutions.
• Towing a trailer, if admitted.
Schedule should also be followed if the vehicle is used for del ivery service, police, taxi or other commercial applications.
NOTE:
• Class 1: K12C engine
• Class 2: K12M engine
Page 358 of 505
7-9INSPECTION AND MAINTENANCE
75RM4-01E
• Class 1: K12C engine
• Class 2: K12M engine#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 7.5 15 22.5 30 37.5 45
miles (x1000) 4.5 9 13.5 18 22.5 27
months6 1218243036ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R*1-2.
Valve clearance
[Class 2] (#1)
–
–
–
I
–
–
1-3. Engine oil and engine oil filter RRRRRR
1-4.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)
First time only:
Replace at 150000 km (90000 miles) or 96 months.
Second time and after: Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
–
–
–
–
–
R
*1-5. Exhaust system (except catalyst) ––– I ––
IGNITION
2-1. Spark plugs [Class 1] Iridium plug – – – R – –
[Class 2] Nickel plug
Replace every 10000 km (6000 miles) or 8 months.
FUEL
3-1.
Air cleaner filter element*
1
Inspect every 2500 km (1500 miles).
Replace every 30000 km (18000 miles) or 24 months.
*3-2.
Fuel lines
–
–
–
I
–
–
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
–
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––––
Page 359 of 505
7-10
INSPECTION AND MAINTENANCE
75RM4-01E
#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 52.5 60 67.5 75 82.5 90
miles (x1000) 31.5 36 40.5 45 49.5 54 months 42 48 54 60 66 72ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R*1-2.
Valve clearance
[Class 2] (#1)
–
I
–
–
–
I
1-3. Engine oil and engine oil filter RRRRRR
1-4.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)
First time only:
Replace at 150000 km (90000 miles) or 96 months.
Second time and after: Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
–
–
–
–
–
R
*1-5. Exhaust system (except catalyst) – I ––– I
IGNITION
2-1. Spark plugs [Class 1] Iridium plug – R – – – R
[Class 2] Nickel plug
Replace every 10000 km (6000 miles) or 8 months.
FUEL
3-1.
Air cleaner filter element*
1
Inspect every 2500 km (1500 miles).
Replace every 30000 km (18000 miles) or 24 months.
*3-2.
Fuel lines
–
I
–
–
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
–
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I
Page 360 of 505
7-11INSPECTION AND MAINTENANCE
75RM4-01E
#3: Tires/Wheels (including tire rotation) for Mexico models :Inspect every 7500 km (4500 miles) or 6 months.
#4: Wheel bearings for Mexico models :Inspect every 7500 km (4500 miles) or 6 months.
#5: Drive axle boots for Mexico models :Inspect every 7500 km (45 00 miles) or 6 months.
#6: Suspension system for Mexico models :Inspect every 7500 km (4 500 miles) or 6 months.
#7: Steering system for Mexico m odels :Inspect every 7500 km (450 0 miles) or 6 months.Interval: This interval should be judged by
odometer reading or months, whichever
comes first. km (x1000) 7.5 15 22.5 30 37.5 45
miles (x1000) 4.5 9 13.5 18 22.5 27 months6 1218243036BRAKE*5-1. Brake discs and pads (front) –I–I–I
Brake drums and shoes (rear)
–
–
–
I
–
–
*5-2. Brake hoses and pipes ––– I ––
5-3.
Brake fluid
Check, *Replacement
–
–
–
R
–
–
5-4. Brake lever and cable
Check, *Adjustment (1st 15000 km only)
– I ––––
CHASSIS AND BODY *6-1. Clutch (Cable control type) –I–I–I6-2.
Tires/Wheels (#3)
–
I
–
I
–
I
*6-3. Wheel bearings (#4) –I–I–I
*6-4.
Drive axle boots (#5)
–
I
–
I
–
I
*6-5. Suspension system (#6) ––– I ––
*6-6.
Steering system (#7)
–
–
–
I
–
–
*6-7.
Manual transaxle oil Genuine “SUZUKI GEAR OIL 75W”
Inspect every 30000 km (18000 miles) or 24 months.Replace every 60000 km (36000 miles) or 48 months.
Other than “SUZUKI GEAR OIL 75W”
–––R––
6-8.
Continuously variable transaxle (CVT)
Fluid level
–
–
–
I
–
–
*Fluid deterioration check*
2 –––I––
*Fluid change
Replace every 75000 km (45000 miles).
6-9. All latches, hinges and locks ––– I ––
*6-10.
Air conditioner filter element (if equipped)*
3
–
I
–
I
–
R
WA R N I N G
The shock absorbers are filled with high pressure gas. Never attempt to disassemble them or throw them into a fire. Avoid
storing them near a heater or heating device. When scrapping th e absorber, the gas must be released from the absorber
safely. Ask your deal er for assistance.
