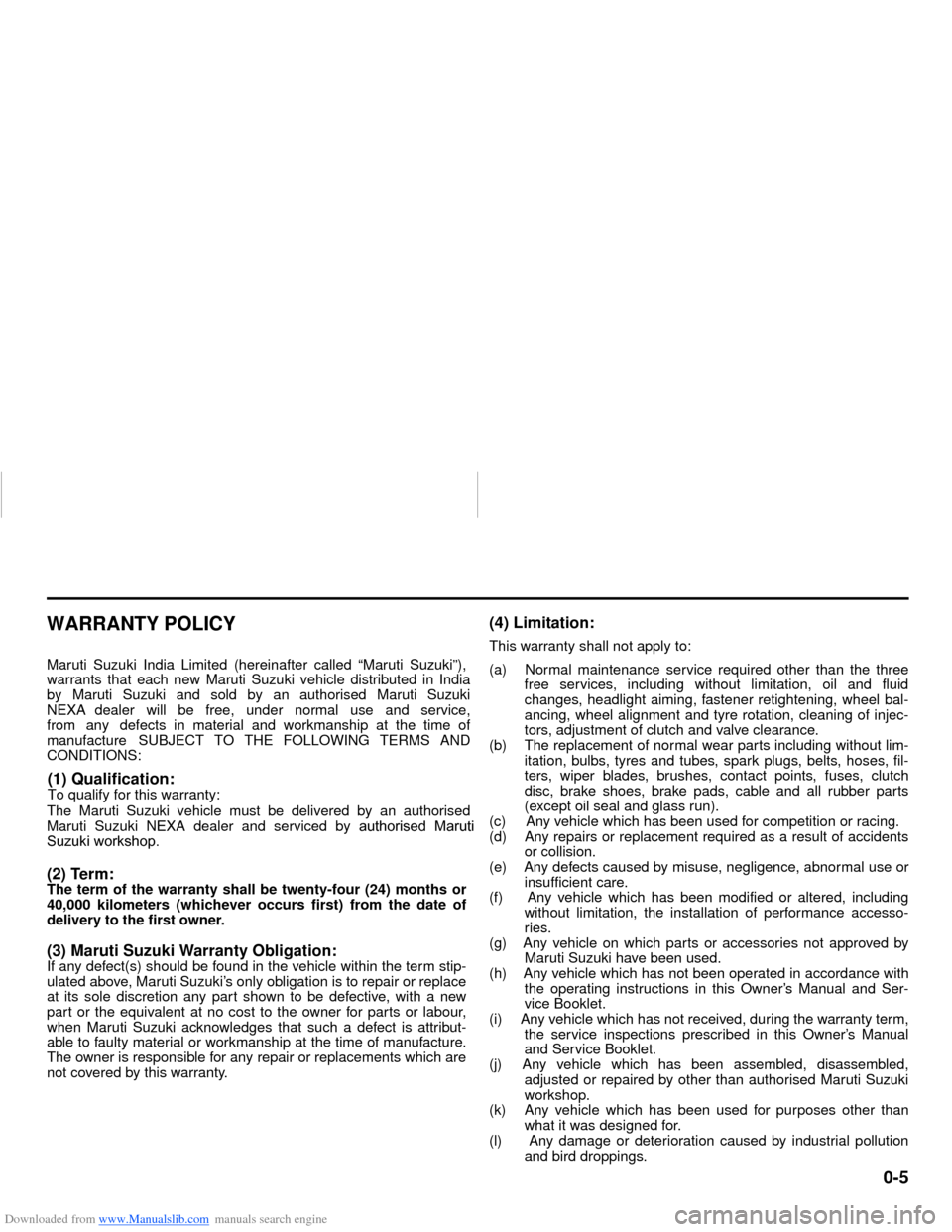

WARRANTY POLICYMaruti Suzuki India Limited (hereinafter called “Maruti Suzuki”),
warrants that each new Maruti Suzuki vehicle distributed in India
by Maruti Suzuki and sold by an authorised Maruti Suzuki
N % 8 ! dealer will be free, under normal use and service,
from any defects in material and workmanship at the time of
manufacture SUBJECT TO THE FOLLOWING TERMS AND
CONDITIONS:
The Maruti Suzuki vehicle must be delivered by an authorised
Maruti Suzuki N % 8 ! dealer and serviced by D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S (2) Term:The term of the warranty shall be twenty-four (24) months or
40,000 kilometers (whichever occurs first) from the date of
delivery to the first owner.(3) Maruti Suzuki Warranty Obligation:If any defect(s) should be found in the vehicle within the term stip-
ulated above, Maruti Suzuki’s only obligation is to repair or replace
at its sole discretion any part shown to be defective, with a new
part or the equivalent at no cost to the owner for parts or labour,
when Maruti Suzuki acknowledges that such a defect is attribut-
able to faulty material or workmanship at the time of manufacture.
The owner is responsible for any repair or replacements which are
not covered by this warranty.
(4) Limitation:This warranty shall not apply to:
(a) Normal maintenance service required other than the three
free services, including without limitation, oil and fluid
changes, headlight aiming, fastener retightening, wheel bal-
ancing, wheel alignment and tyre rotation, cleaning of injec-
tors, adjustment of clutch and valve clearance.
(b) The replacement of normal wear parts including without lim-
itation, bulbs, tyres and tubes, spark plugs, belts, hoses, fil-
ters, wiper blades, brushes, contact points, fuses, clutch
disc, brake shoes, brake pads, cable and all rubber parts
(except oil seal and glass run).
(c) Any vehicle which has been used for competition or racing.
(d) Any repairs or replacement required as a result of accidents
or collision.
(e) Any defects caused by misuse, negligence, abnormal use or
insufficient care.
(f) Any vehicle which has been modified or altered, including
without limitation, the installation of performance accesso-
ries.
(g) Any vehicle on which parts or accessories not approved by
Maruti Suzuki have been used.
(h) Any vehicle which has not been operated in accordance with
the operating instructions in this Owner’s Manual and Ser-
vice Booklet.
(i) Any vehicle which has not received, during the warranty term,
the service inspections prescribed in this Owner’s Manual
and Service Booklet.
(j) Any vehicle which has been assembled, disassembled,
adjusted or repaired by other than authorised Maruti Suzuki
workshop.
(k) Any vehicle which has been used for purposes other than
what it was designed for.
(l) Any damage or deterioration caused by industrial pollution
and bird droppings.
(1) Qualification:To qualify for this warranty:
Page 12 of 288
Downloaded from www.Manualslib.com manuals search engine 0-6
55KS0-74E

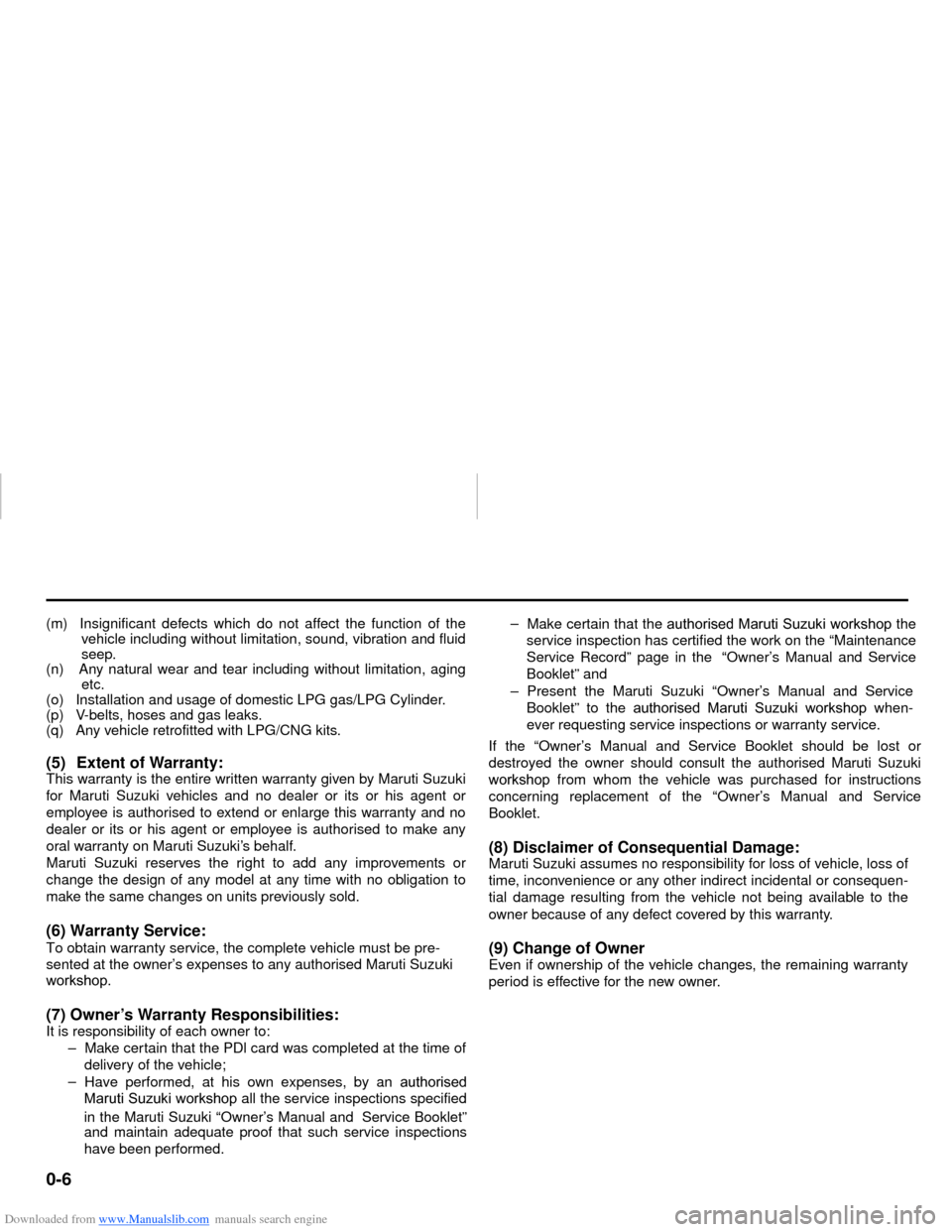

(m) Insignificant defects which do not affect the function of the
vehicle including without limitation, sound, vibration and fluid
seep.
(n) Any natural wear and tear including without limitation, aging
etc.
(o) Installation and usage of domestic LPG gas/LPG Cylinder.
(p) V-belts, hoses and gas leaks.
(q) Any vehicle retrofitted with LPG/CNG kits.(5) Extent of Warranty:This warranty is the entire written warranty given by Maruti Suzuki
for Maruti Suzuki vehicles and no dealer or its or his agent or
employee is authorised to extend or enlarge this warranty and no
dealer or its or his agent or employee is authorised to make any
oral warranty on Maruti Suzuki’s behalf.
Maruti Suzuki reserves the right to add any improvements or
change the design of any model at any time with no obligation to
make the same changes on units previously sold.(6) Warranty Service:To obtain warranty service, the complete vehicle must be pre-
sented at the owner’s expenses to any authorised Maruti Suzuki
Z R U N V K R S.(7) Owner’s Warranty Responsibilities:It is responsibility of each owner to:
– Make certain that the PDl card was completed at the time of
delivery of the vehicle;
–
Have performed, at his own expenses, by an D X W K R U L V H G
0 D U X W L 6 X ] X N L Z R U N V K R S all the service inspections specified
in the Maruti Suzuki “Owner’s Manual and Service Booklet”
and maintain adequate proof that such service inspections
have been performed.–
Make certain that the D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S the
service inspection has certified the work on the “Maintenance
Service Record” page in the “Owner’s Manual and Service
Booklet” and
– Present the Maruti Suzuki “Owner’s Manual and Service
Booklet” to the D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S when-
ever requesting service inspections or warranty service.
If the “Owner’s Manual and Service Booklet should be lost or
destroyed the owner should consult the authorised Maruti Suzuki
Z R U N V K R S from whom the vehicle was purchased for instructions
concerning replacement of the “Owner’s Manual and Service
Booklet.
(8) Disclaimer of Consequential Damage:Maruti Suzuki assumes no responsibility for loss of vehicle, loss of
time, inconvenience or any other indirect incidental or consequen-
tial damage resulting from the vehicle not being available to the
owner because of any defect covered by this warranty.(9) Change of OwnerEven if ownership of the vehicle changes, the remaining warranty
period is effective for the new owner.
Page 13 of 288
Downloaded from www.Manualslib.com manuals search engine 0-7

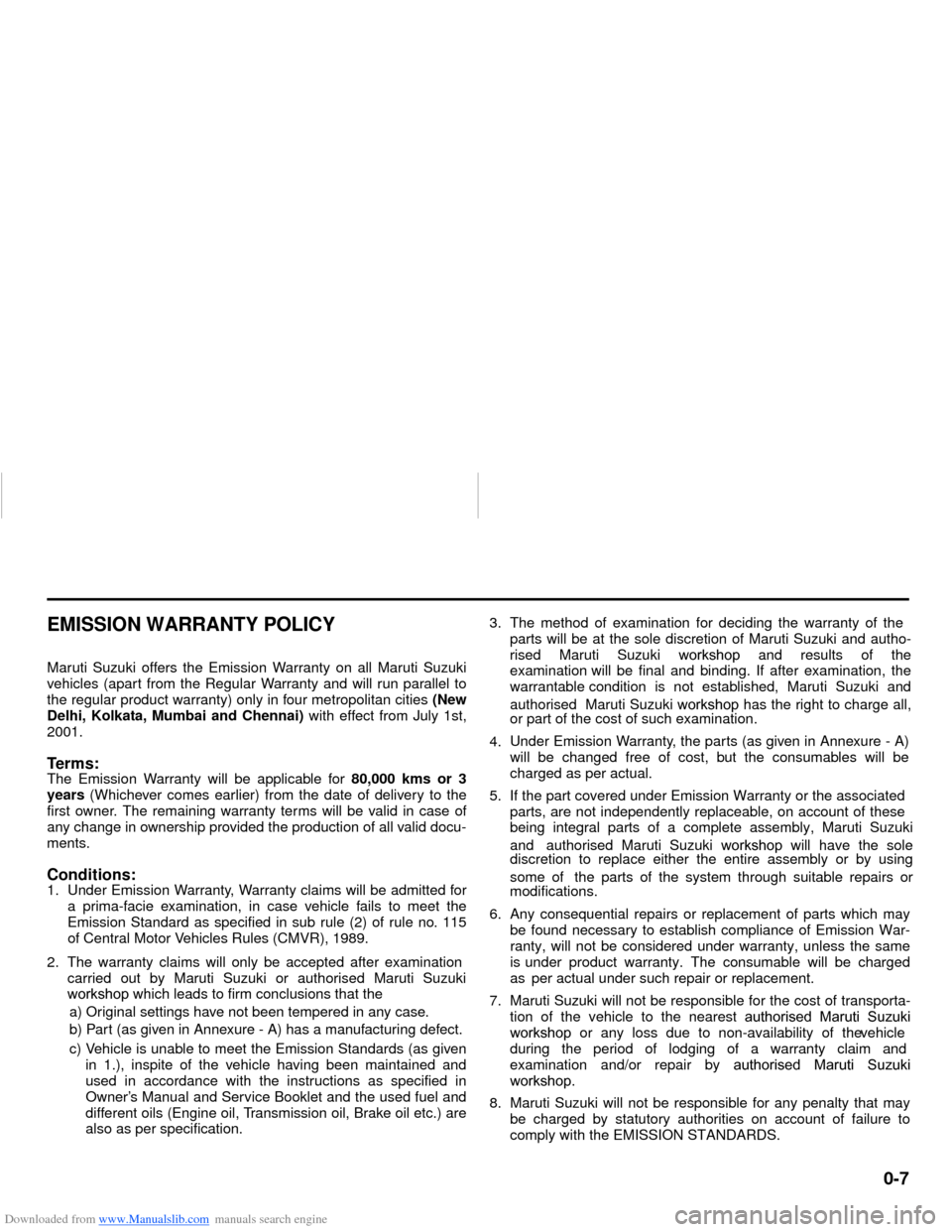

EMISSION WARRANTY POLICYMaruti Suzuki offers the Emission Warranty on all Maruti Suzuki
vehicles (apart from the Regular Warranty and will run parallel to
the regular product warranty) only in four metropolitan cities (New
Delhi, Kolkata, Mumbai and Chennai) with effect from July 1st,
2001.Terms:The Emission Warranty will be applicable for 80,000 kms or 3
years (Whichever comes earlier) from the date of delivery to the
first owner. The remaining warranty terms will be valid in case of
any change in ownership provided the production of all valid docu-
ments.Conditions:1. Under Emission Warranty, Warranty claims will be admitted for
a prima-facie examination, in case vehicle fails to meet the
Emission Standard as specified in sub rule (2) of rule no. 115
of Central Motor Vehicles Rules (CMVR), 1989.
2. The warranty claims will only be accepted after examination
carried out by Maruti Suzuki or authorised Maruti Suzuki
Z R U N V K R S which leads to firm conclusions that the
a) Original settings have not been tempered in any case.
b) Part (as given in Annexure - A) has a manufacturing defect.
c) Vehicle is unable to meet the Emission Standards (as given
in 1.), inspite of the vehicle having been maintained and
used in accordance with the instructions as specified in
Owner’s Manual and Service Booklet and the used fuel and
different oils (Engine oil, Transmission oil, Brake oil etc.) are
also as per specification.3.The method of examination for deciding the warranty of the
parts will be at the sole discretion of Maruti Suzuki and autho-
rised Maruti Suzuki Z R U N V K R S and results of the
examination will be final and binding. If after examination, the
warrantable condition is not established, Maruti Suzuki and
authorised Maruti Suzuki Z R U N V K R S has the right to charge all,
or part of the cost of such examination.
4.Under Emission Warranty, the parts (as given in Annexure - A)
will be changed free of cost, but the consumables will be
charged as per actual.
5. If the part covered under Emission Warranty or the associated
parts, are not independently replaceable, on account of these
being integral parts of a complete assembly, Maruti Suzuki
and authorised Maruti Suzuki Z R U N V K R S Zill have the sole
discretion to replace either the entire assembly or by using
some of the parts of the system through suitable repairs or
modifications.
6.Any consequential repairs or replacement of parts which may
be found necessary to establish compliance of Emission War-
ranty, will not be considered under warranty, unless the same
is under product warranty. The consumable will be charged
as per actual under such repair or replacement.
7. Maruti Suzuki will not be responsible for the cost of transporta-
tion of the vehicle to the nearest D X W K R U L V H G 0 D U X W L 6 X ] X N L
Z R U N V K R S or any loss due to non-availability of the vehicle
during the period of lodging of a warranty claim and
examination and/or repair by D X W K R U L V H G 0 D U X W L 6 X ] X N L
Z R U N V K R S.
8.
Maruti Suzuki will not be responsible for any penalty that may
be charged by statutory authorities on account of failure to
comply with the EMISSION STANDARDS.
Page 14 of 288
Downloaded from www.Manualslib.com manuals search engine 0-8
55KS0-74E

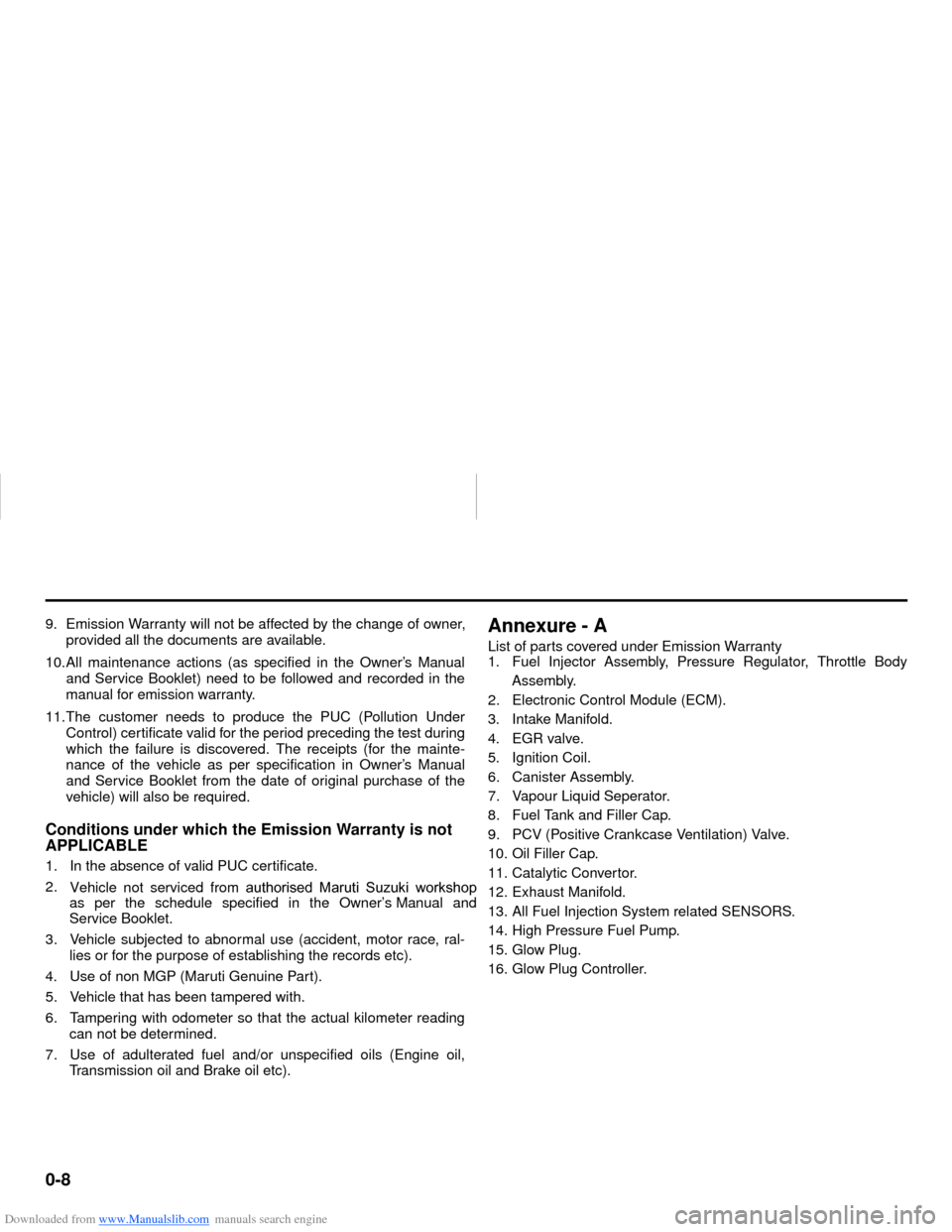

9. Emission Warranty will not be affected by the change of owner,
provided all the documents are available.
10.All maintenance actions (as specified in the Owner’s Manual
and Service Booklet) need to be followed and recorded in the
manual for emission warranty.
11.The customer needs to produce the PUC (Pollution Under
Control) certificate valid for the period preceding the test during
which the failure is discovered. The receipts (for the mainte-
nance of the vehicle as per specification in Owner’s Manual
and Service Booklet from the date of original purchase of the
vehicle) will also be required.Conditions under which the Emission Warranty is not
APPLICABLE1. In the absence of valid PUC certificate.
2.
Vehicle not serviced from D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
as per the schedule specified in the Owner’s Manual and
Service Booklet.
3
. Vehicle subjected to abnormal use (accident, motor race, ral-
lies or for the purpose of establishing the records etc).
4. Use of non MGP (Maruti Genuine Part).
5. Vehicle that has been tampered with.
6. Tampering with odometer so that the actual kilometer reading
can not be determined.
7. Use of adulterated fuel and/or unspecified oils (Engine oil,
Transmission oil and Brake oil etc).
Annexure - AList of parts covered under Emission Warranty
1. Fuel Injector Assembly, Pressure Regulator, Throttle Body
Assembly.
2. Electronic Control Module (ECM).
3. Intake Manifold.
4. EGR valve.
5. Ignition Coil.
6. Canister Assembly.
7. Vapour Liquid Seperator.
8. Fuel Tank and Filler Cap.
9. PCV (Positive Crankcase Ventilation) Valve.
10. Oil Filler Cap.
11. Catalytic Convertor.
12. Exhaust Manifold.
13. All Fuel Injection System related SENSORS.
14. High Pressure Fuel Pump.
15. Glow Plug.
16. Glow Plug Controller.
Page 15 of 288
Downloaded from www.Manualslib.com manuals search engine 0 + (

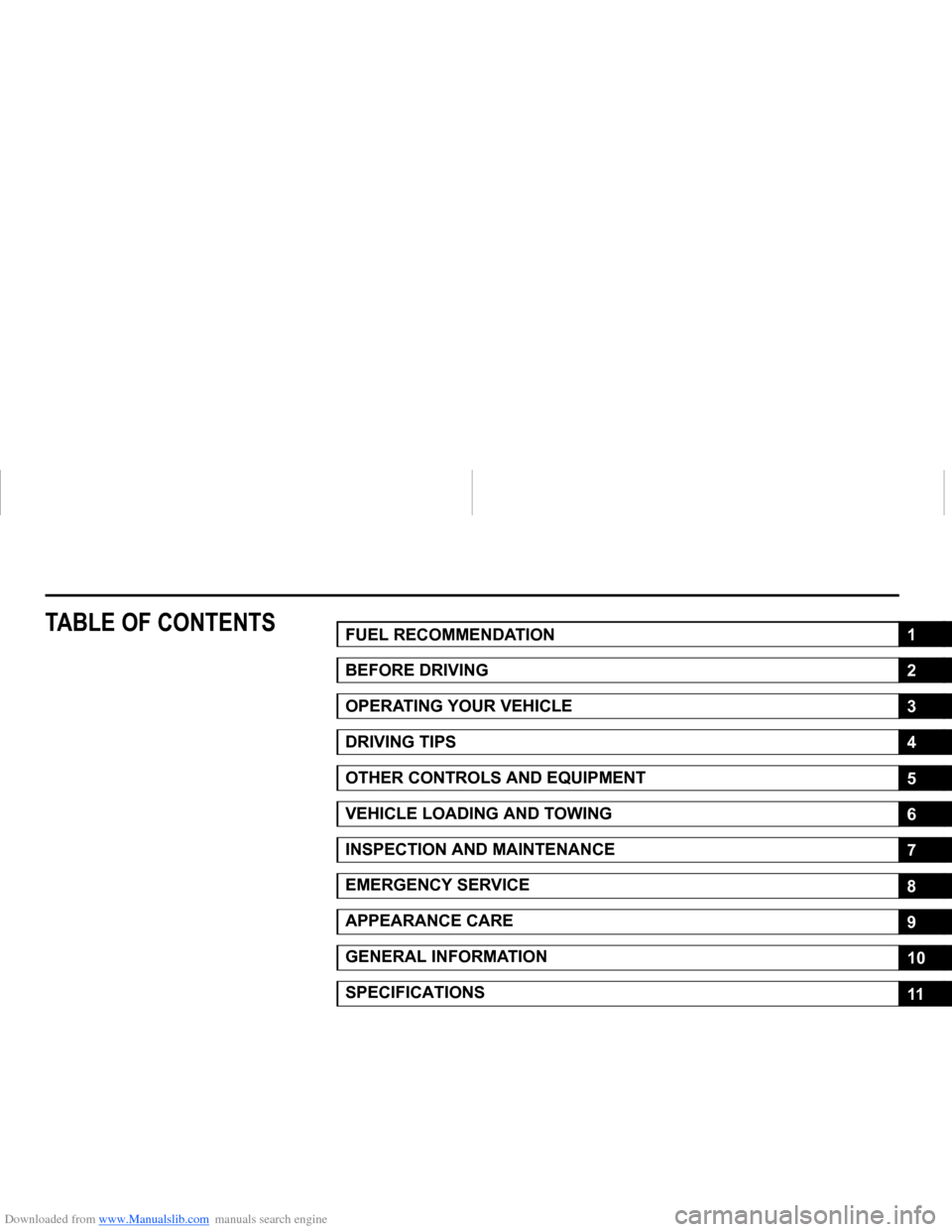

7 $ % / ( 2 ) & 2 1 7 ( 1 7 6
) 8 ( / 5 ( & 2 0 0 ( 1 ' $ 7 , 2 1
% ( ) 2 5 ( ' 5 , 9 , 1 *
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
' 5 , 9 , 1 * 7 , 3 6
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
9 ( + , & / ( / 2 $ ' , 1 * $ 1 ' 7 2 : , 1 *
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
( 0 ( 5 * ( 1 & < 6 ( 5 9 , & (
$ 3 3 ( $ 5 $ 1 & ( & $ 5 (
* ( 1 ( 5 $ / , 1 ) 2 5 0 $ 7 , 2 1
6 3 ( & , ) , & $ 7 , 2 1 6
Page 16 of 288
Downloaded from www.Manualslib.com manuals search engine
Page 17 of 288

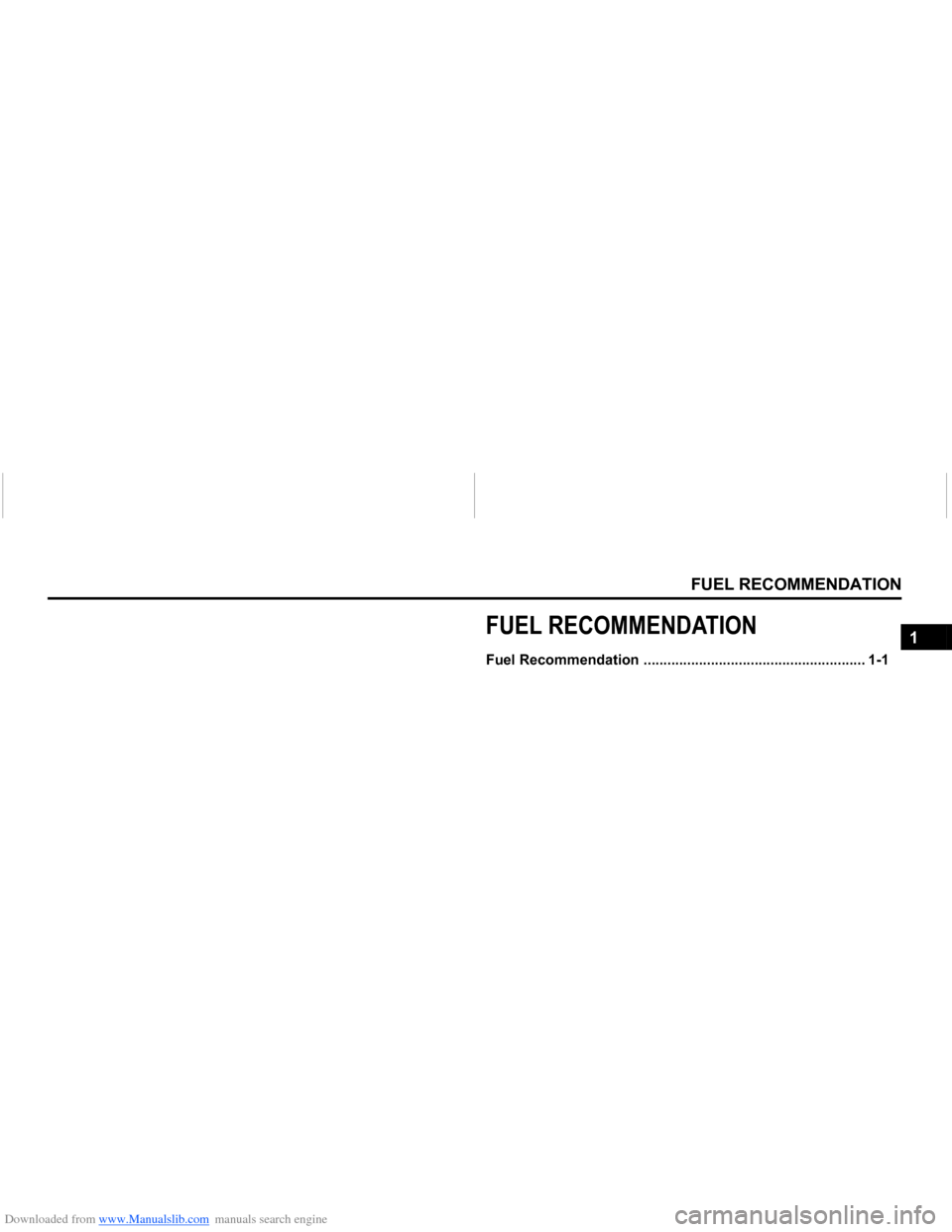

Downloaded from www.Manualslib.com manuals search engine ) 8 ( / 5 ( & 2 0 0 ( 1 ' $ 7 , 2 1
0 6 (

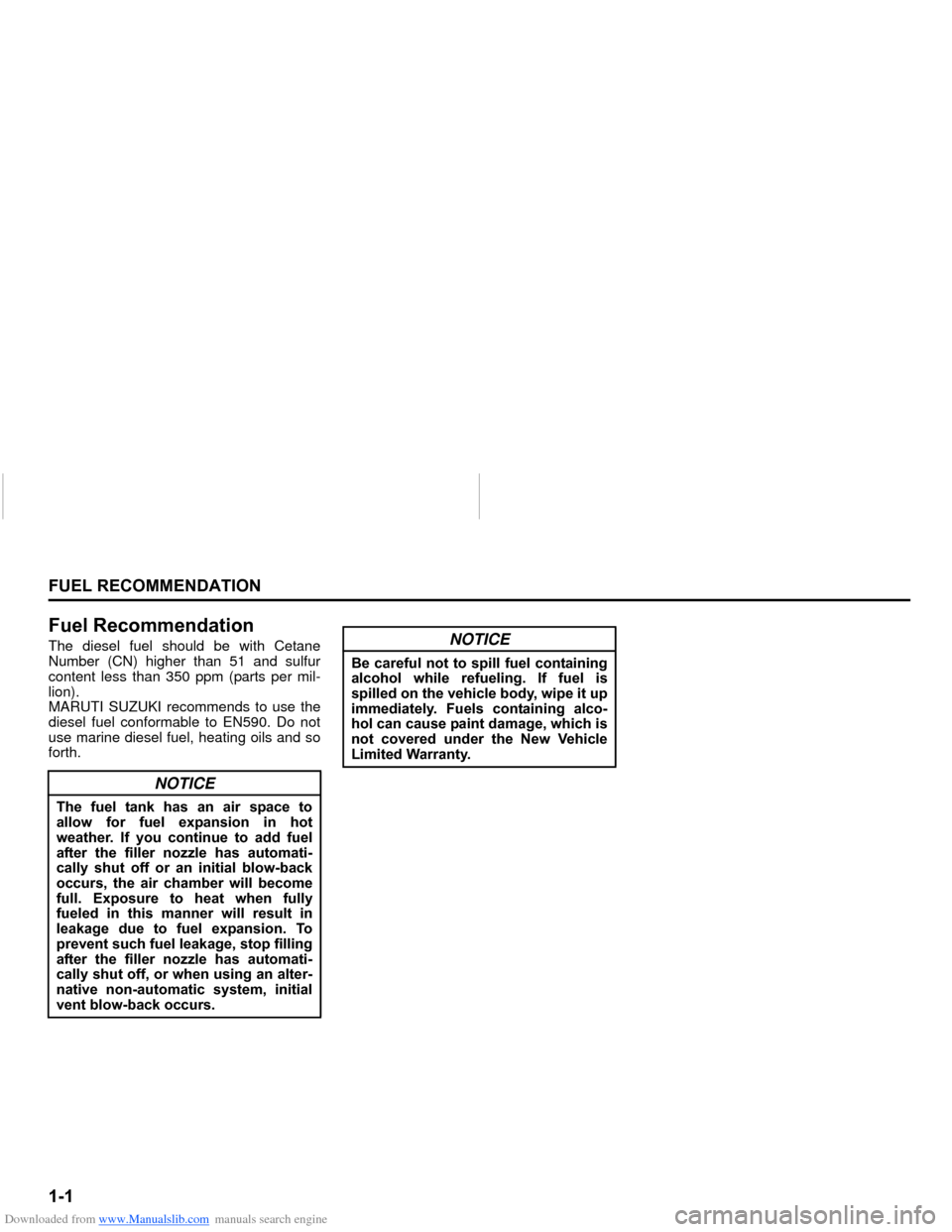

) 8 ( / 5 ( & 2 0 0 ( 1 ' $ 7 , 2 1 ) X H O 5 H F R P P H Q G D W L R Q
Page 18 of 288
Downloaded from www.Manualslib.com manuals search engine ) 8 ( / 5 ( & 2 0 0 ( 1 ' $ 7 , 2 1
0 6 (
) X H O 5 H F R P P H Q G D W L R QThe diesel fuel should be with Cetane
Number (CN) higher than 51 and sulfur
content less than 350 ppm (parts per mil-
lion).
MARUTI SUZUKI recommends to use the
diesel fuel conformable to EN590. Do not
use marine diesel fuel, heating oils and so
forth.
NOTICE
7 K H I X H O W D Q N K D V D Q D L U V S D F H W R
D O O R Z I R U I X H O H [ S D Q V L R Q L Q K R W
Z H D W K H U , I \ R X F R Q W L Q X H W R D G G I X H O
D I W H U W K H I L O O H U Q R ] ] O H K D V D X W R P D W L
F D O O \ V K X W R I I R U D Q L Q L W L D O E O R Z E D F N
R F F X U V W K H D L U F K D P E H U Z L O O E H F R P H
I X O O ( [ S R V X U H W R K H D W Z K H Q I X O O \
I X H O H G L Q W K L V P D Q Q H U Z L O O U H V X O W L Q
O H D N D J H G X H W R I X H O H [ S D Q V L R Q 7 R
S U H Y H Q W V X F K I X H O O H D N D J H V W R S I L O O L Q J
D I W H U W K H I L O O H U Q R ] ] O H K D V D X W R P D W L
F D O O \ V K X W R I I R U Z K H Q X V L Q J D Q D O W H U
Q D W L Y H Q R Q D X W R P D W L F V \ V W H P L Q L W L D O
Y H Q W E O R Z E D F N R F F X U V
NOTICE
% H F D U H I X O Q R W W R V S L O O I X H O F R Q W D L Q L Q J
D O F R K R O Z K L O H U H I X H O L Q J , I I X H O L V
V S L O O H G R Q W K H Y H K L F O H E R G \ Z L S H L W X S
L P P H G L D W H O \ ) X H O V F R Q W D L Q L Q J D O F R
K R O F D Q F D X V H S D L Q W G D P D J H Z K L F K L V
Q R W F R Y H U H G X Q G H U W K H 1 H Z 9 H K L F O H
/ L P L W H G : D U U D Q W \
Page 19 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
% ( ) 2 5 ( ' 5 , 9 , 1 * . H \ V
' R R U / R F N V <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011>
. H \ O H V V 3 X V K 6 W D U W 6 \ V W H P 5 H P R W H & R Q W U R O O H U
. H \ O H V V ( Q W U \ 6 \ V W H P 7 U D Q V P L W W H U
6 H F X U L W \ 6 \ V W H P L I H T X L S S H G
: L Q G R Z V
0 L U U R U V
) U R Q W 6 H D W V
5 H D U 6 H D W V
6 H D W % H O W V D Q G & K L O G 5 H V W U D L Q W 6 \ V W H P V
6 X S S O H P H Q W D O 5 H V W U D L Q W 6 \ V W H P D L U E D J V
, Q V W U X P H Q W & O X V W H U
6 S H H G R P H W H U
7 D F K R P H W H U
) X H O * D X J H
7 H P S H U D W X U H * D X J H
% U L J K W Q H V V & R Q W U R O
, Q I R U P D W L R Q ' L V S O D \
: D U Q L Q J D Q G , Q G L F D W R U / L J K W V
/ L J K W L Q J & R Q W U R O / H Y H U
) U R Q W ) R J / L J K W 6 Z L W F K L I H T X L S S H G
+ H D G O L J K W / H Y H O L Q J 6 Z L W F K
7 X U Q 6 L J Q D O & R Q W U R O / H Y H U
+ D ] D U G : D U Q L Q J 6 Z L W F K
: L Q G V K L H O G : L S H U D Q G : D V K H U / H Y H U
7 L O W 7 H O H V F R S L Q J L I H T X L S S H G 6 W H H U L Q J / R F N / H Y H U
+ R U Q
+ H D W H G 5 H D U : L Q G R Z 6 Z L W F K L I H T X L S S H G
Page 20 of 288
Downloaded from www.Manualslib.com manuals search engine 2-1BEFORE DRIVING
64MS0-74E
Keys
54G489
Your vehicle comes with a pair of identical
keys. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer System This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
or keyless push start system remote con-
troller which has an electronic identification
code programmed into it. The key or
remote controller communicates the identi-
fication code to the vehicle when the igni-
tion switch is turned to the “ON” position or
the engine switch is pressed to change the
ignition mode to ON. If you need to make
spare keys or remote controllers, see your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S. The
vehicle must be programmed with the
correct identification code for the spare.
A key made by an ordinary locksmith will
not start the engine.
80JM122
If the immobilizer/keyless push start sys-
tem warning light blinks when the ignition
switch is in the “ON” position or the ignition
mode is ON, the engine will not start.
NOTE:If the immobilizer/keyless push start sys-
tem warning light blinks or comes on, a
message may be shown on the information
display.
If the light still blinks after the ignition
switch is turned back to the “ON” position,
there may be something wrong with your
key or with the immobilizer system. Ask
your D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
to have the system inspected.
For vehicles with keyless push start
system
If this light blinks, change the ignition mode
to “LOCK” (OFF), then change back to
“ON”. Also refer to “If the master warning
indicator light blinks and the engine cannot
be started” in “Starting the Engine (Vehicle
with Keyless Push Start System)” in the
“OPERATING YOUR VEHICLE” section.
If the light still blinks after the ignition mode
is changed back to “ON”, there may be
something wrong with your key or with the
immobilizer system. Ask your D X W K R U L V
H G 0 D U X W L 6 X ] X N L Z R U N V K R S to have the
system inspected.
The immobilizer/keyless push start system
warning light may also blinks if the remote
controller is not in the vehicle when you KEY NUMBER:
EXAMPLE
For vehicles without keyless push start
system
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to
the “ON” position.
