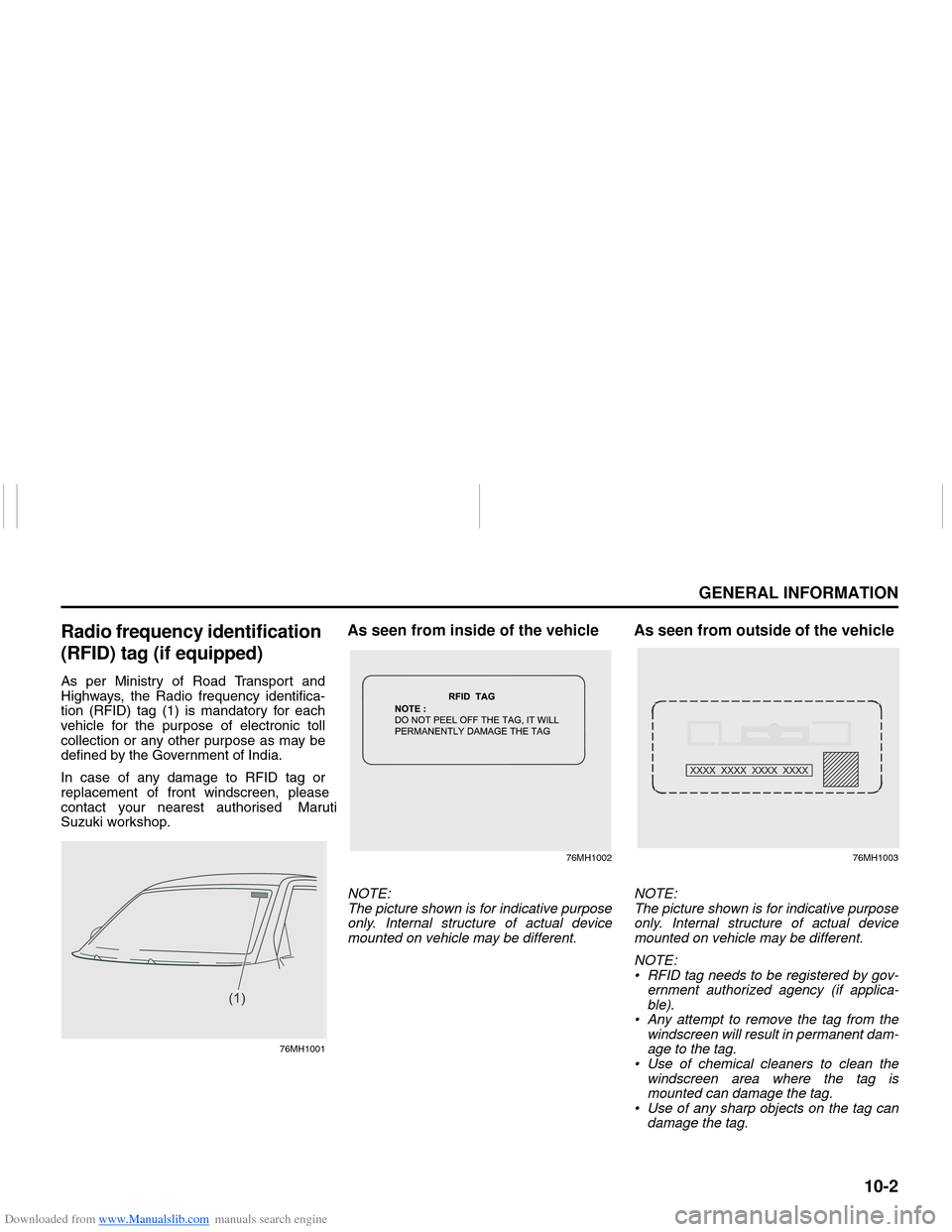

Radio frequency identification
(RFID) tag (if equipped)As per Ministry of Road Transport and
Highways, the Radio frequency identifica-
tion (RFID) tag (1) is mandatory for each
vehicle for the purpose of electronic toll
collection or any other purpose as may be
defined by the Government of India.
In case of any damage to RFID tag or
replacement of front windscreen, please
contact your nearest AUTHORISED -ARUTI
3UZUKIWORKSHOP
76MH1001
As seen from inside of the vehicle
76MH1002
NOTE:
The picture shown is for indicative purpose
only. Internal structure of actual device
mounted on vehicle may be different.
As seen from outside of the vehicle
76MH1003
NOTE:
The picture shown is for indicative purpose
only. Internal structure of actual device
mounted on vehicle may be different.
NOTE:
• RFID tag needs to be registered by gov-
ernment authorized agency (if applica-
ble).
• Any attempt to remove the tag from the
windscreen will result in permanent dam-
age to the tag.
• Use of chemical cleaners to clean the
windscreen area where the tag is
mounted can damage the tag.
• Use of any sharp objects on the tag can
damage the tag.
(1)

Downloaded from www.Manualslib.com manuals search engine *(1(5$/,1)250$7,21
06(

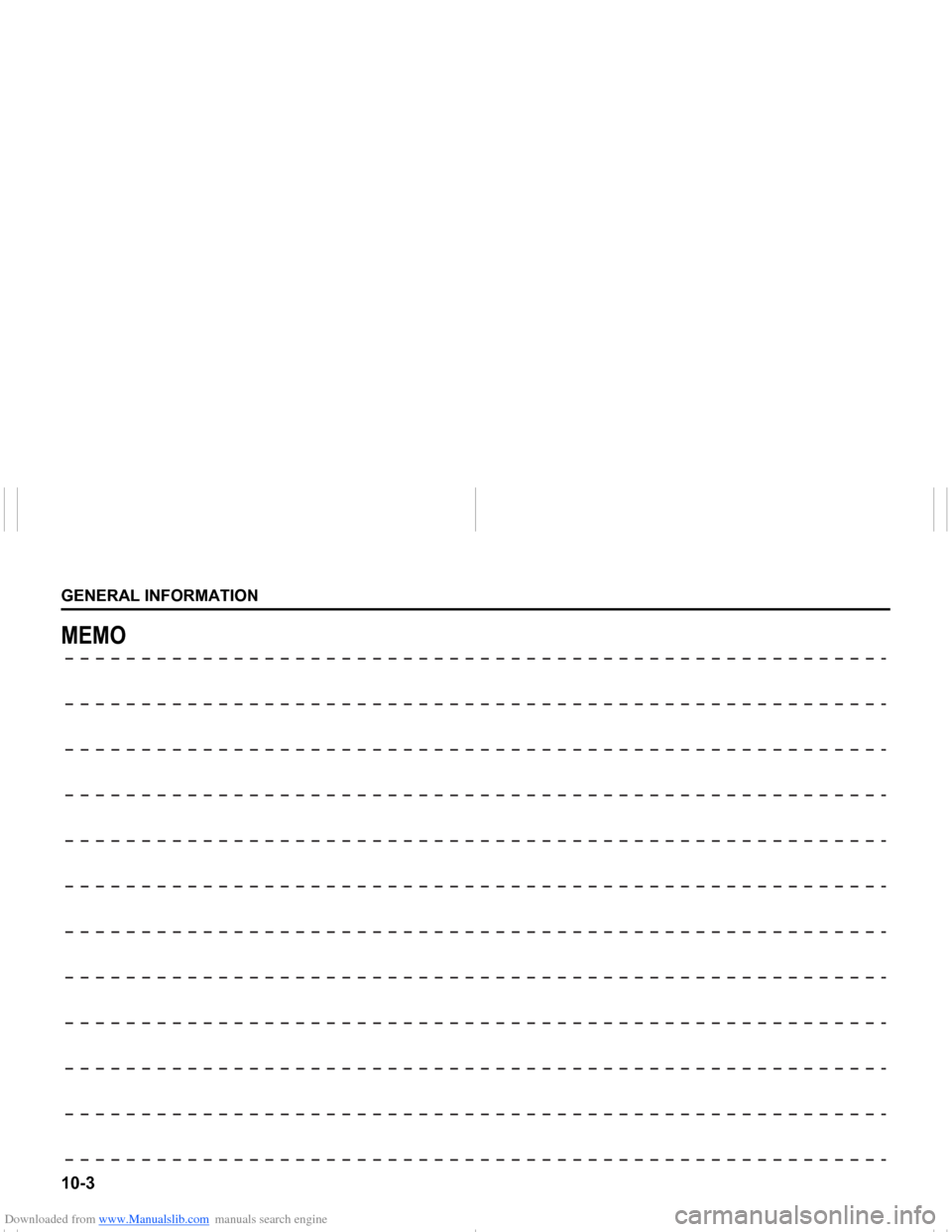

0(02

Downloaded from www.Manualslib.com manuals search engine 11-1
SPECIFICATIONS
64MS0-74E

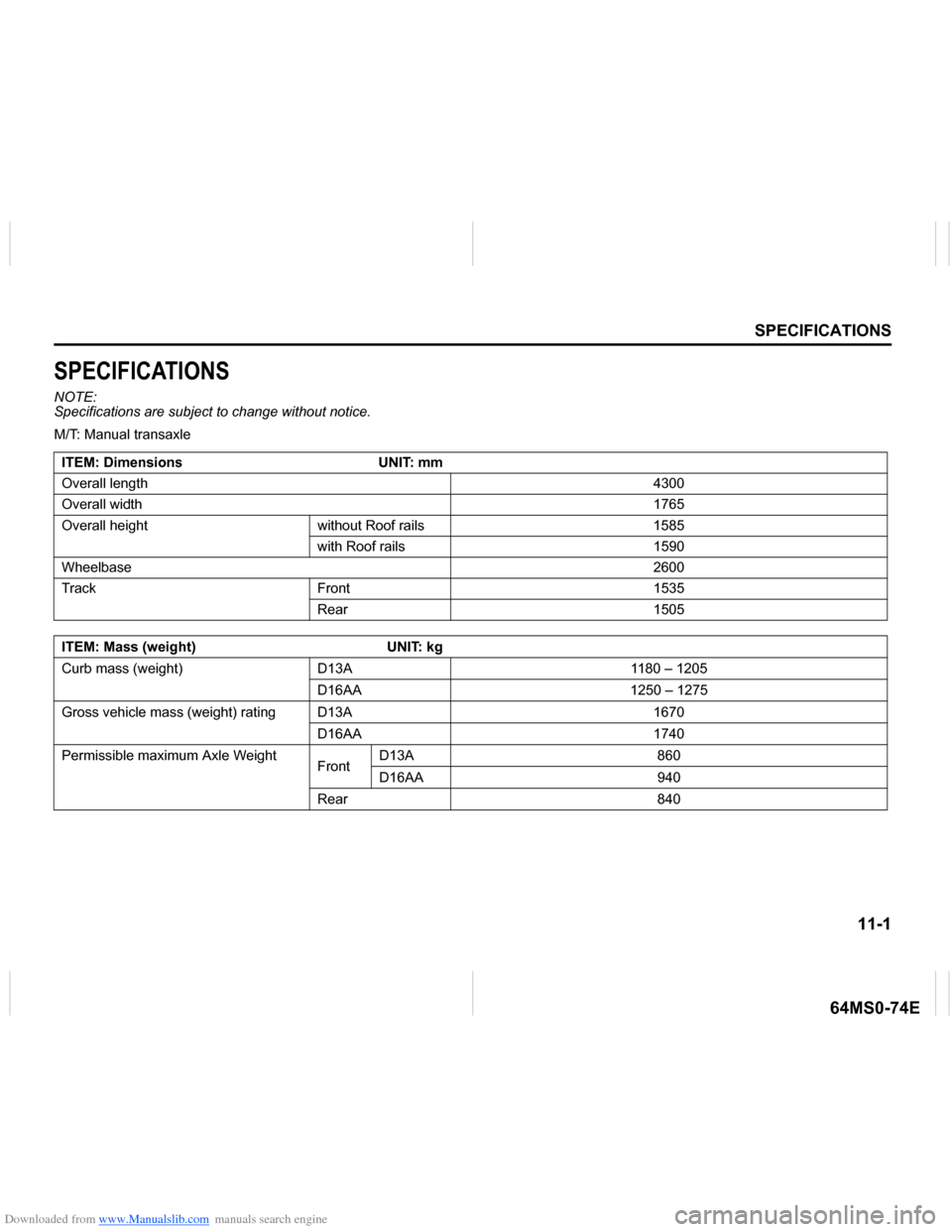

SPECIFICATIONS
NOTE:
Specifications are subject to change without notice.
M/T: Manual transaxle
ITEM: Dimensions UNIT: mm
Overall length4300
Overall width1765
Overall height without Roof rails 1585
with Roof rails 1590
Wheelbase2600
Track Front 1535
Rear 1505
ITEM: Mass (weight) UNIT: kg
Curb mass (weight) D13A 1180 – 1205
D16AA 1250 – 1275
Gross vehicle mass (weight) rating D13A 1670
D16AA 1740
Permissible maximum Axle Weight
FrontD13A 860
D16AA 940
Rear 840

Downloaded from www.Manualslib.com manuals search engine 63(&,),&$7,216
06(

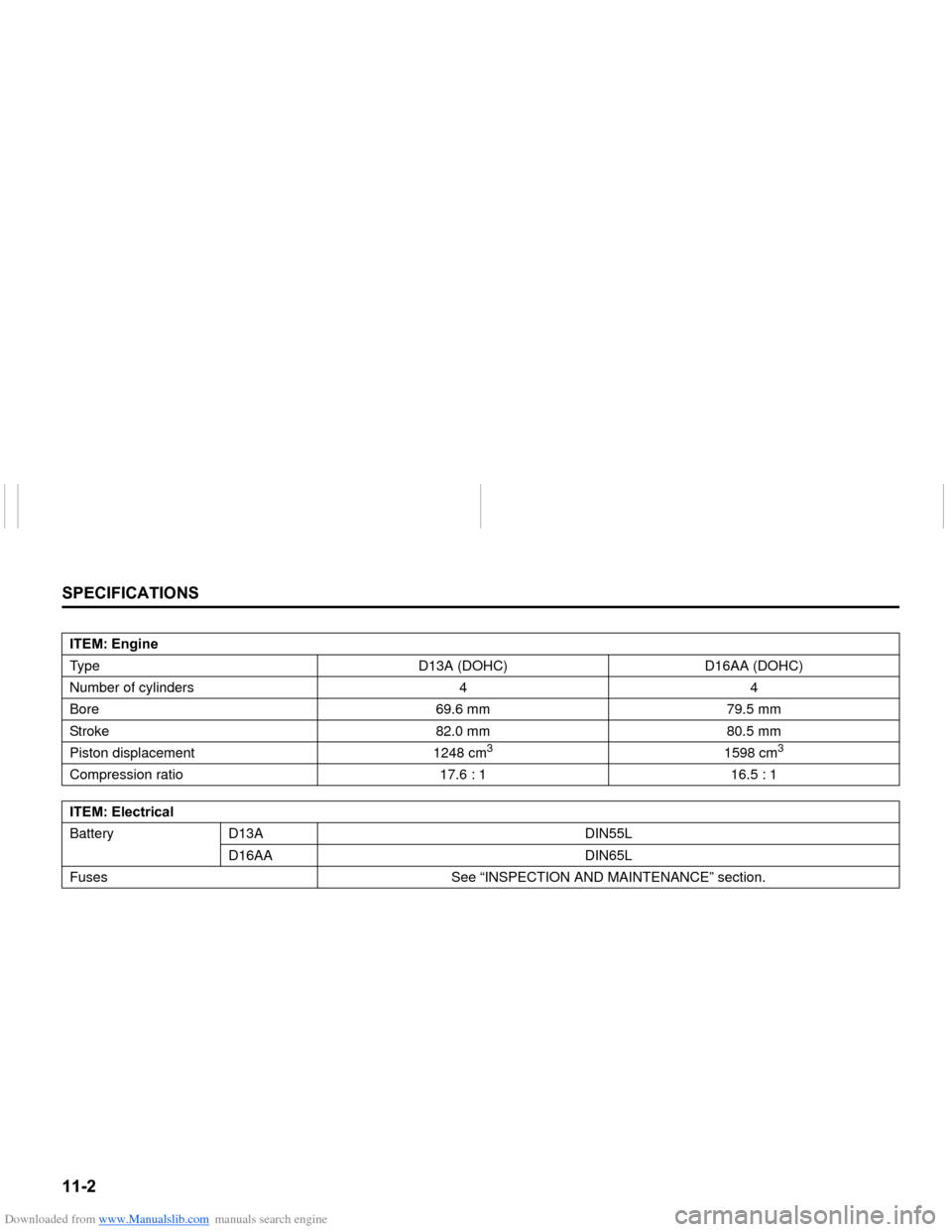

,7(0(QJLQH
Type D13A (DOHC) D16AA (DOHC)
Number of cylinders 4 4
Bore 69.6 mm 79.5 mm
Stroke 82.0 mm 80.5 mm
Piston displacement 1248 cm
3
1598 cm
3
Compression ratio 17.6 : 1 16.5 : 1
,7(0(OHFWULFDO
Battery D13A DIN55L
D16AA DIN65L
Fuses See “INSPECTION AND MAINTENANCE” section.

Downloaded from www.Manualslib.com manuals search engine
63(&,),&$7,216
06(

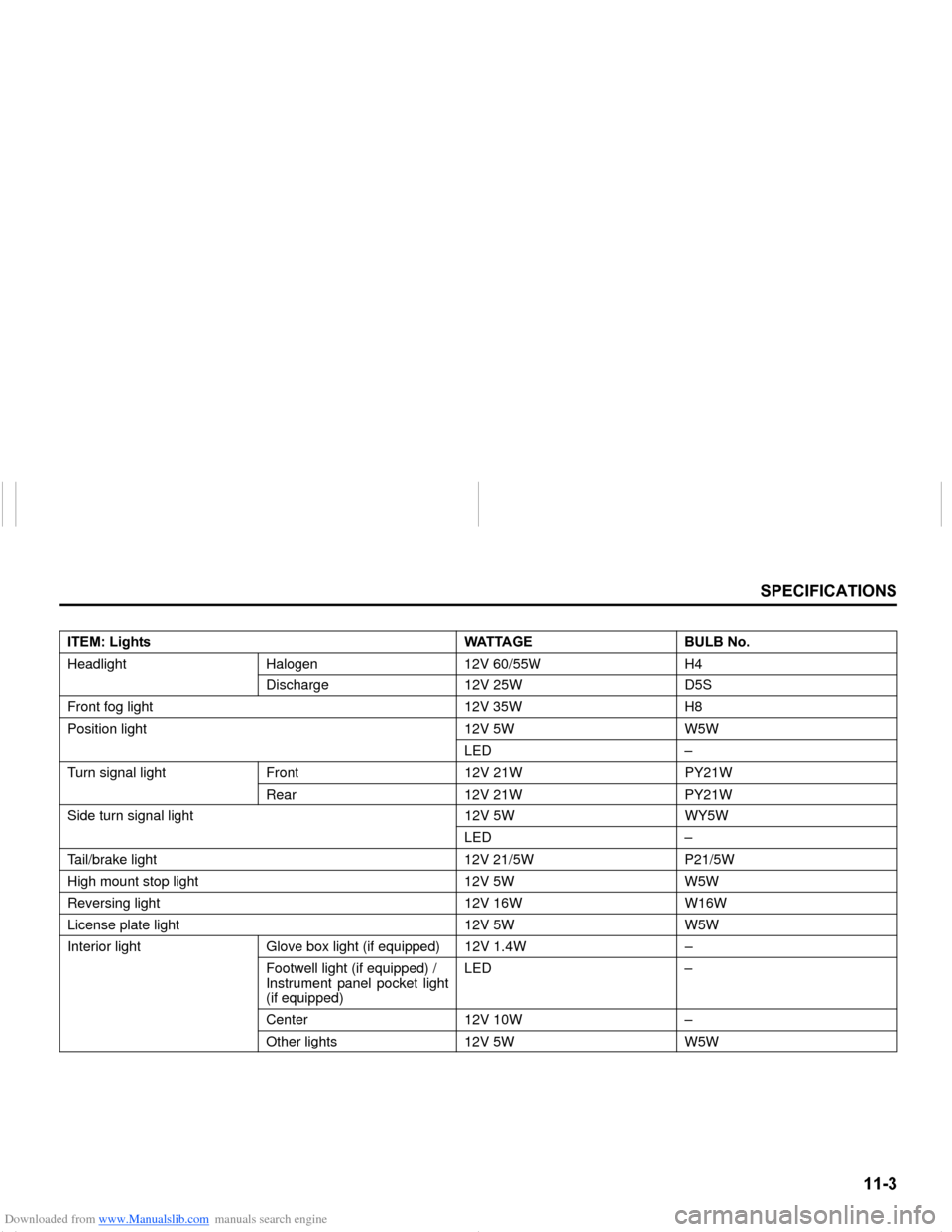

,7(0/LJKWV :$77$*( %8/%1R
Headlight Halogen 12V 60/55W H4
Discharge 12V 25W D5S
Front fog light 12V 35W H8
Position light 12V 5W W5W
LED –
Turn signal light Front 12V 21W PY21W
Rear 12V 21W PY21W
Side turn signal light 12V 5W WY5W
LED –
Tail/brake light 12V 21/5W P21/5W
High mount stop light 12V 5W W5W
Reversing light 12V 16W W16W
License plate light 12V 5W W5W
Interior light Glove box light (if equipped) 12V 1.4W –
Footwell light (if equipped) /
Instrument panel pocket light
(if equipped)LED –
Center 12V 10W –
Other lights 12V 5W W5W

Downloaded from www.Manualslib.com manuals search engine 63(&,),&$7,216
06(

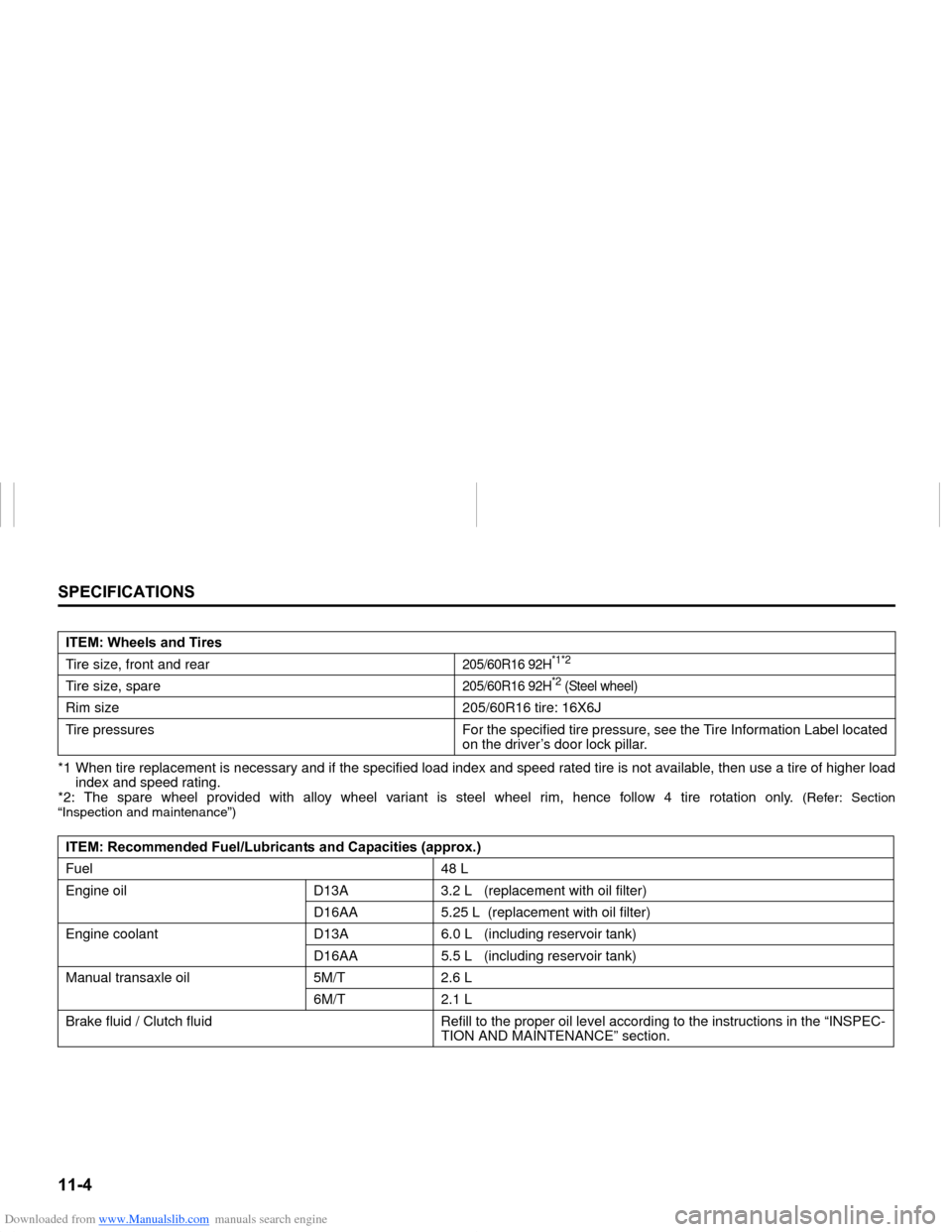

*1 When tire replacement is necessary and if the specified load index and speed rated tire is not available, then use a tire of higher load
index and speed rating.
*2: The spare wheel provided with alloy wheel variant is steel wheel rim, hence follow 4 tire rotation only.
(Refer: Section
“Inspection and maintenance”)
,7(0:KHHOVDQG7LUHV
Tire size, front and rear
205/60R16 92H
*1*2
Tire size, spare
205/60R16 92H
*2 (Steel wheel)
Rim size 205/60R16 tire: 16X6J
Tire pressures For the specified tire pressure, see the Tire Information Label located
on the driver’s door lock pillar.
,7(05HFRPPHQGHG)XHO/XEULFDQWVDQG&DSDFLWLHVDSSUR[
Fuel 48 L
Engine oil D13A 3.2 L (replacement with oil filter)
D16AA 5.25 L (replacement with oil filter)
Engine coolant D13A 6.0 L (including reservoir tank)
D16AA 5.5 L (including reservoir tank)
Manual transaxle oil 5M/T 2.6 L
6M/T 2.1 L
Brake fluid / Clutch fluid Refill to the proper oil level according to the instructions in the “INSPEC-
TION AND MAINTENANCE” section.
