, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (
) U R Q W ) R J / L J K W L I H T X L S S H G 1) Start the engine. Turn the steering wheel
to rotate the tires to the opposite side of
the fog light that requires replacement.
Then turn off the engine.
61MM0B079
2) Remove the screws (1).
61MM0B080
3) Remove the clips (2) by prying it off with
a flat blade screwdriver as shown in the
illustration.
61MM0B081
4) Open the end of the cover inside the
fender.
80JM071
5) Disconnect the coupler by pushing the
lock release. Turn the bulb holder coun-
terclockwise and remove it.
(1)
( ; $ 0 3 / (
(2)
( ; $ 0 3 / ( ( ; $ 0 3 / (
( ; $ 0 3 / (
Page 252 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (
5 H D U & R P E L Q D W L R Q / L J K W
61MM0B082
1) Remove the bolts (1) and pull the light
housing (2) straight.
61MM0B083
2) To remove the bulb holder of the rear
turn signal light (3) or the tail/brake light
(4) from the light housing, turn the
holder counterclockwise and pull it out.
61MM0B084
(5) Removal
(6) Install3) To remove the bulb of the rear turn sig-
nal light (3) or the tail/brake light (4) from
bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
(2)(1)
(3)(4)
(3) / (4)
(5)
(6)
( ; $ 0 3 / (
Page 253 of 288
Downloaded from www.Manualslib.com manuals search engine
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

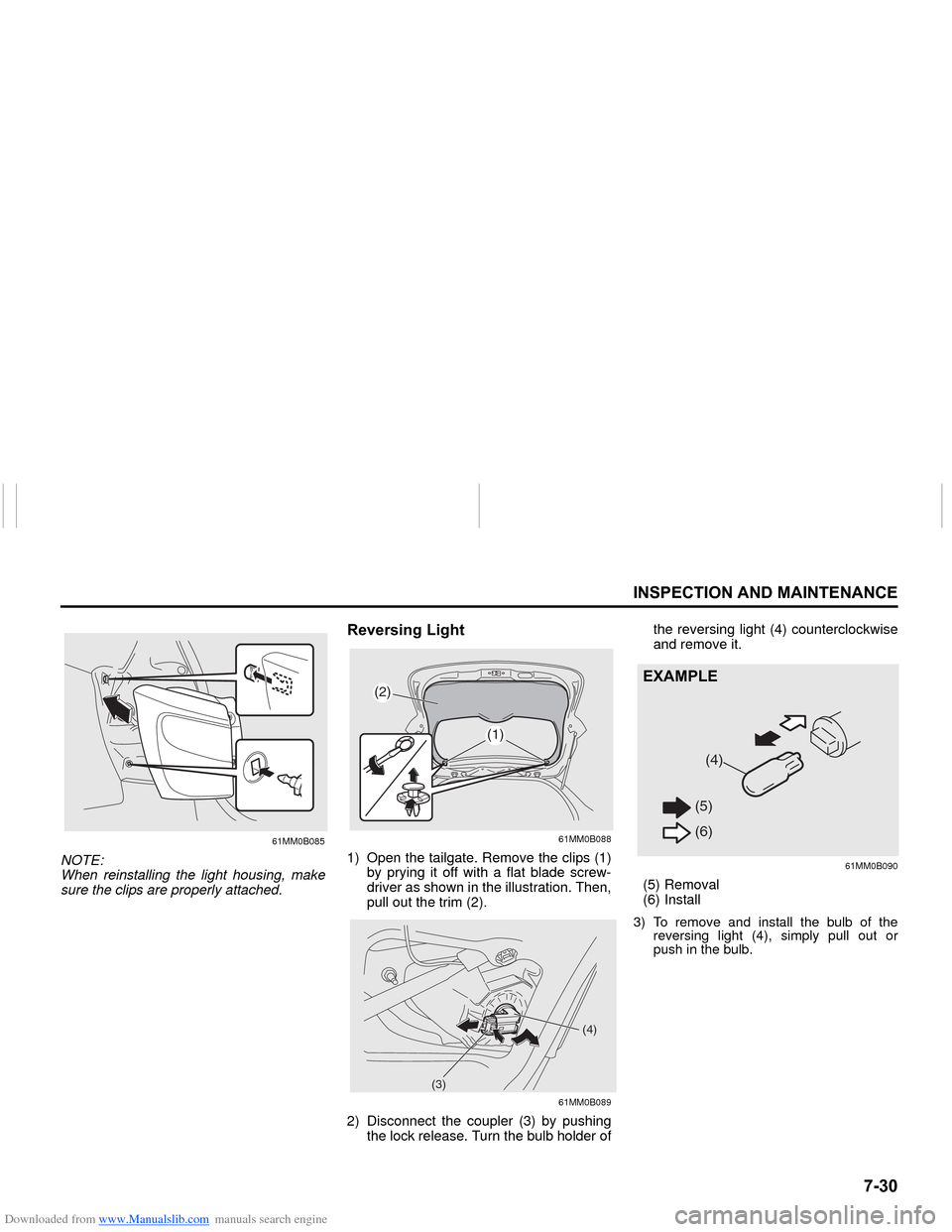

61MM0B085
NOTE:
When reinstalling the light housing, make
sure the clips are properly attached.
5 H Y H U V L Q J / L J K W
61MM0B088
1) Open the tailgate. Remove the clips (1)
by prying it off with a flat blade screw-
driver as shown in the illustration. Then,
pull out the trim (2).
61MM0B089
2) Disconnect the coupler (3) by pushing
the lock release. Turn the bulb holder ofthe reversing light (4) counterclockwise
and remove it.
61MM0B090
(5) Removal
(6) Install3) To remove and install the bulb of the
reversing light (4), simply pull out or
push in the bulb.
(2)
(1)
(3)
(4)
(4)
(5)
(6)
( ; $ 0 3 / (
Page 254 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

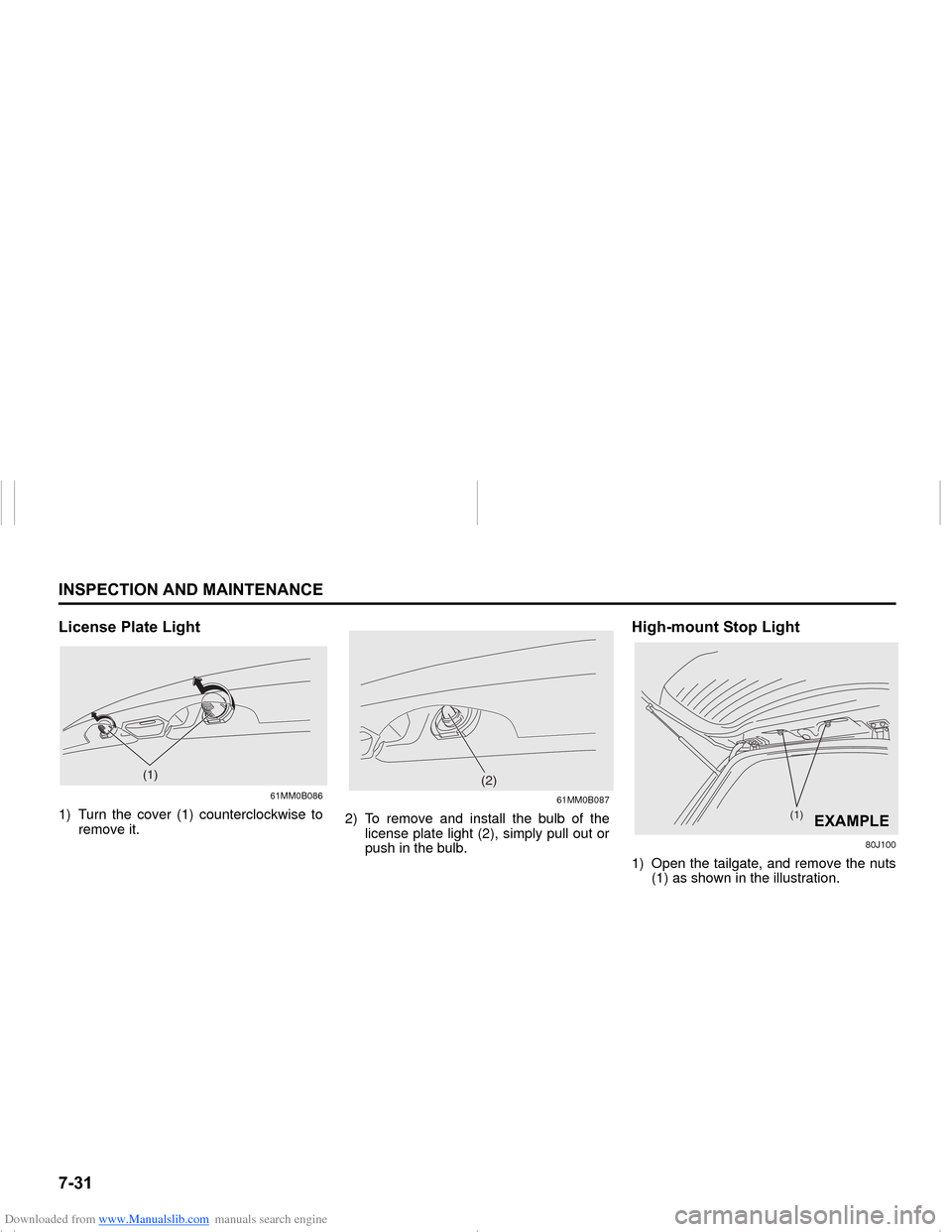

/ L F H Q V H 3 O D W H / L J K W
61MM0B086
1) Turn the cover (1) counterclockwise to
remove it.
61MM0B087
2) To remove and install the bulb of the
license plate light (2), simply pull out or
push in the bulb.
+ L J K P R X Q W 6 W R S / L J K W
80J100
1) Open the tailgate, and remove the nuts
(1) as shown in the illustration.
(1)
(2)
(1)
( ; $ 0 3 / (
Page 255 of 288
Downloaded from www.Manualslib.com manuals search engine
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

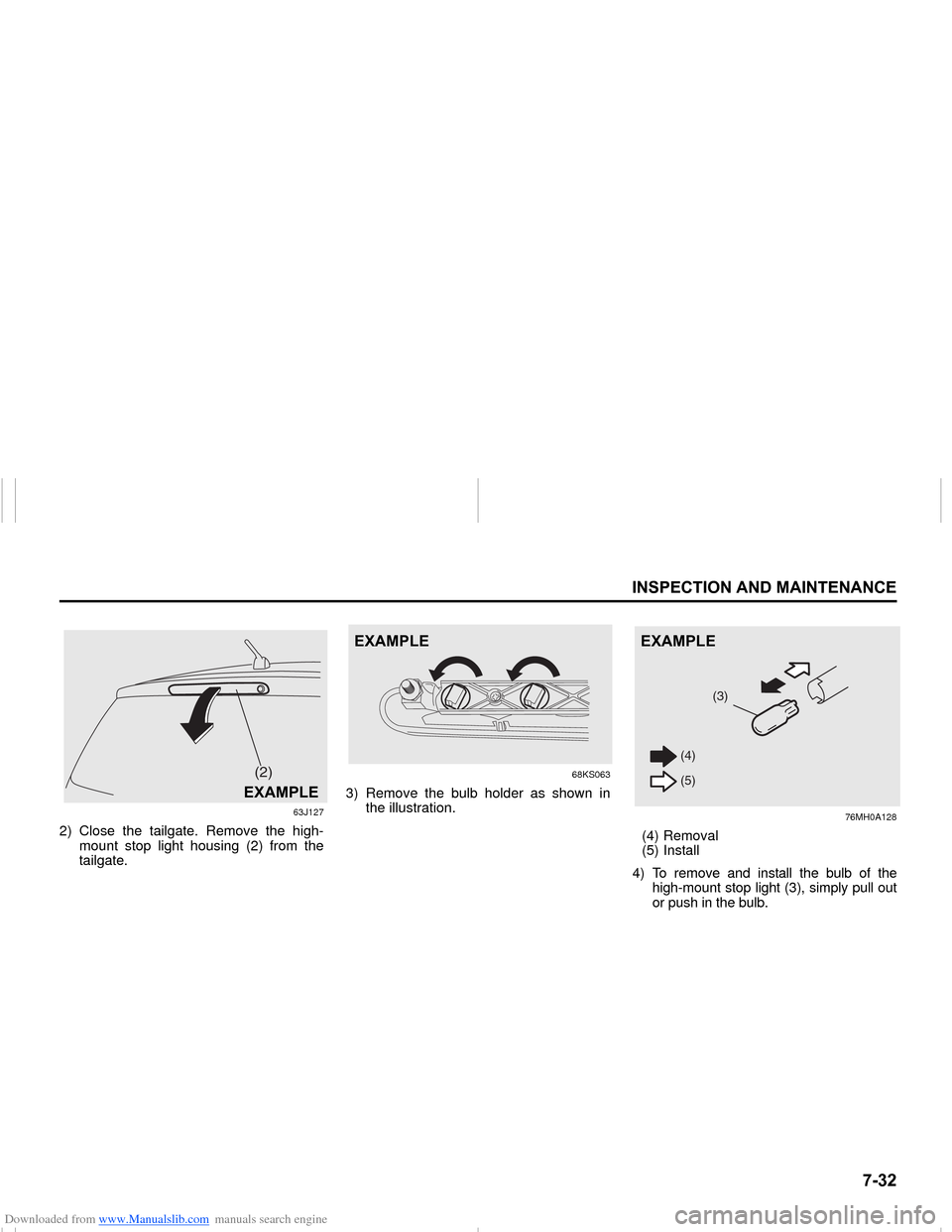

63J127
2) Close the tailgate. Remove the high-
mount stop light housing (2) from the
tailgate.
68KS063
3) Remove the bulb holder as shown in
the illustration.
76MH0A128
(4) Removal
(5) Install
4) To remove and install the bulb of the
high-mount stop light (3), simply pull out
or push in the bulb.
(2) ( ; $ 0 3 / (
( ; $ 0 3 / (
(3)
(4)
(5)
( ; $ 0 3 / (
Page 256 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

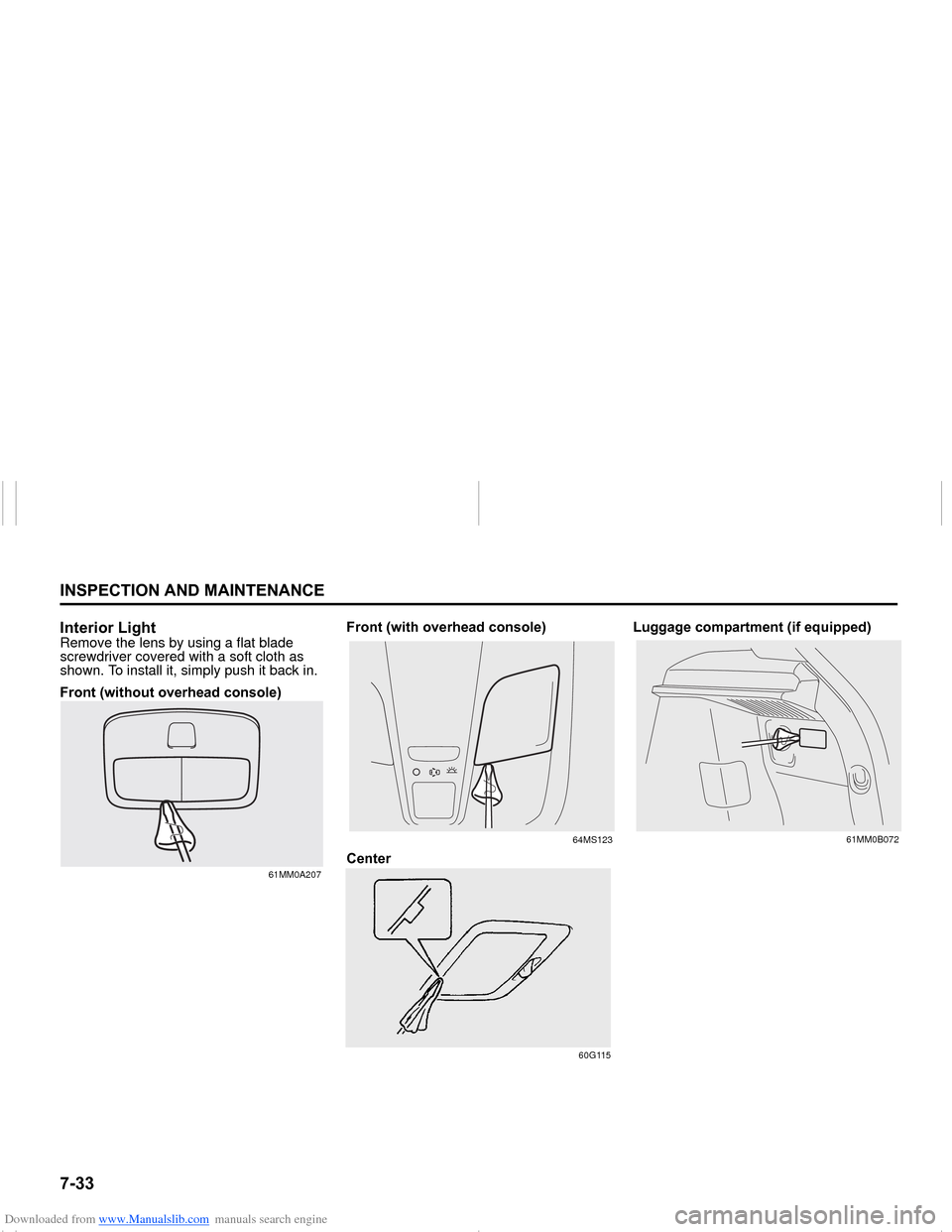

, Q W H U L R U / L J K WRemove the lens by using a flat blade
screwdriver covered with a soft cloth as
shown. To install it, simply push it back in.
) U R Q W Z L W K R X W R Y H U K H D G F R Q V R O H
61MM0A207
) U R Q W Z L W K R Y H U K H D G F R Q V R O H
64MS123
& H Q W H U
60G115
/ X J J D J H F R P S D U W P H Q W L I H T X L S S H G
61MM0B072
Page 257 of 288
Downloaded from www.Manualslib.com manuals search engine
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

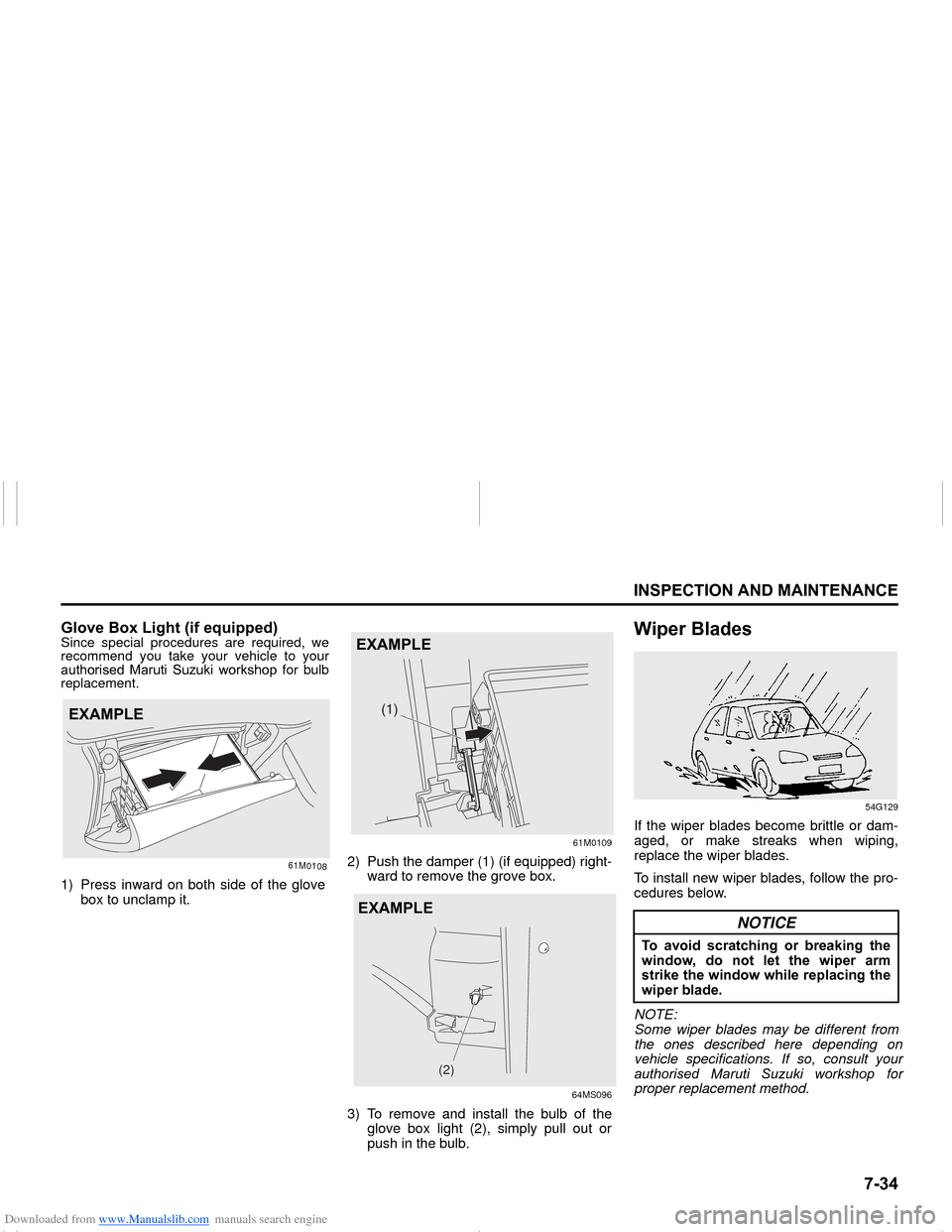

* O R Y H % R [ / L J K W L I H T X L S S H G
Since special procedures are required, we
recommend you take your vehicle to your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S for bulb
replacement.
61M0108
1) Press inward on both side of the glove
box to unclamp it.
61M0109
2) Push the damper (1) (if equipped) right-
ward to remove the grove box.
64MS096
3) To remove and install the bulb of the
glove box light (2), simply pull out or
push in the bulb.
: L S H U % O D G H V
54G129
If the wiper blades become brittle or dam-
aged, or make streaks when wiping,
replace the wiper blades.
To install new wiper blades, follow the pro-
cedures below.
NOTE:
Some wiper blades may be different from
the ones described here depending on
vehicle specifications. If so, consult your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S for
proper replacement method.
( ; $ 0 3 / (
( ; $ 0 3 / (
(1)
(2)
( ; $ 0 3 / (
NOTICE
7 R D Y R L G V F U D W F K L Q J R U E U H D N L Q J W K H
Z L Q G R Z G R Q R W O H W W K H Z L S H U D U P
V W U L N H W K H Z L Q G R Z Z K L O H U H S O D F L Q J W K H
Z L S H U E O D G H
Page 258 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

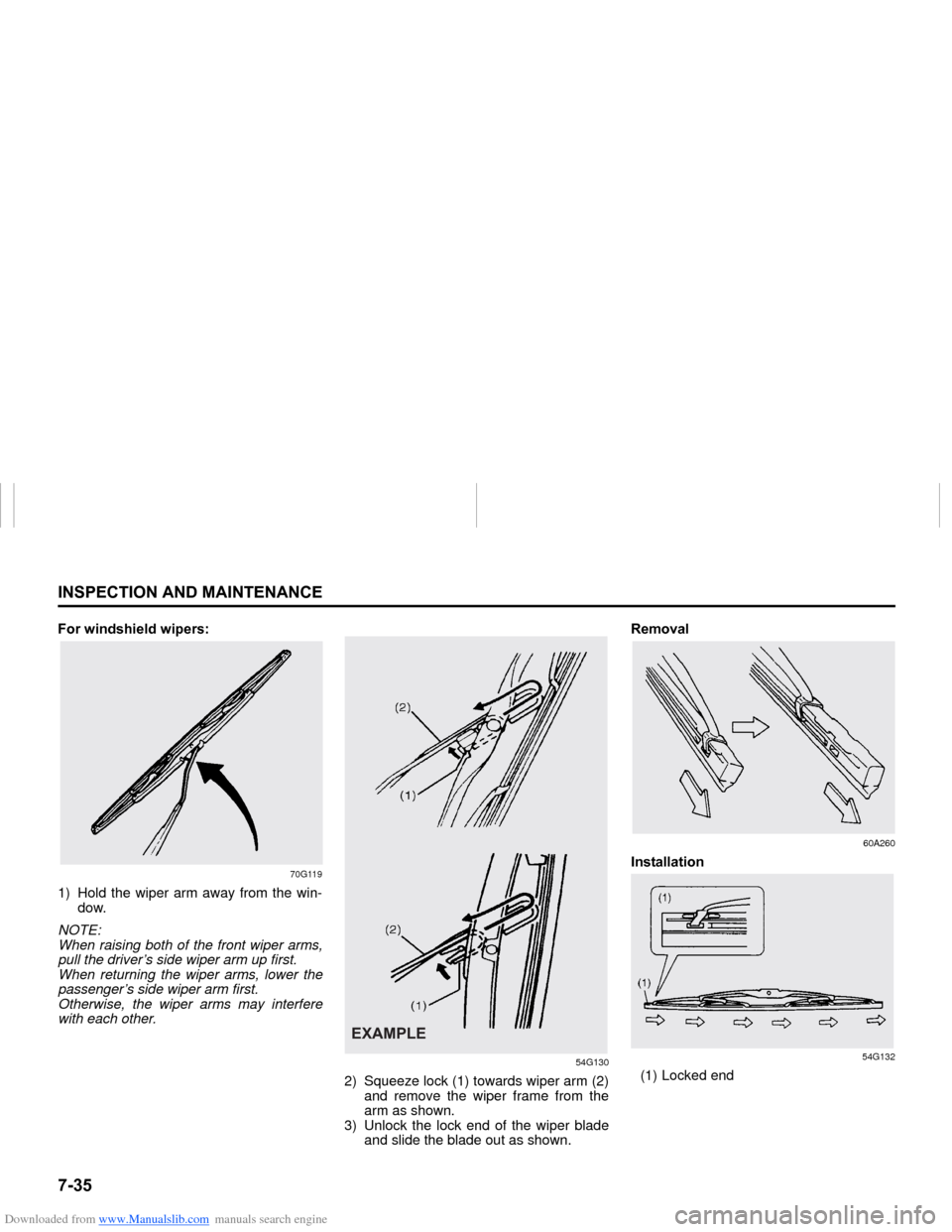

) R U Z L Q G V K L H O G Z L S H U V
70G119
1) Hold the wiper arm away from the win-
dow.
NOTE:
When raising both of the front wiper arms,
pull the driver’s side wiper arm up first.
When returning the wiper arms, lower the
passenger’s side wiper arm first.
Otherwise, the wiper arms may interfere
with each other.
54G130
2) Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
3) Unlock the lock end of the wiper blade
and slide the blade out as shown. 5 H P R Y D O
60A260
, Q V W D O O D W L R Q
54G132
(1) Locked end
( ; $ 0 3 / (
Page 259 of 288
Downloaded from www.Manualslib.com manuals search engine
, 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

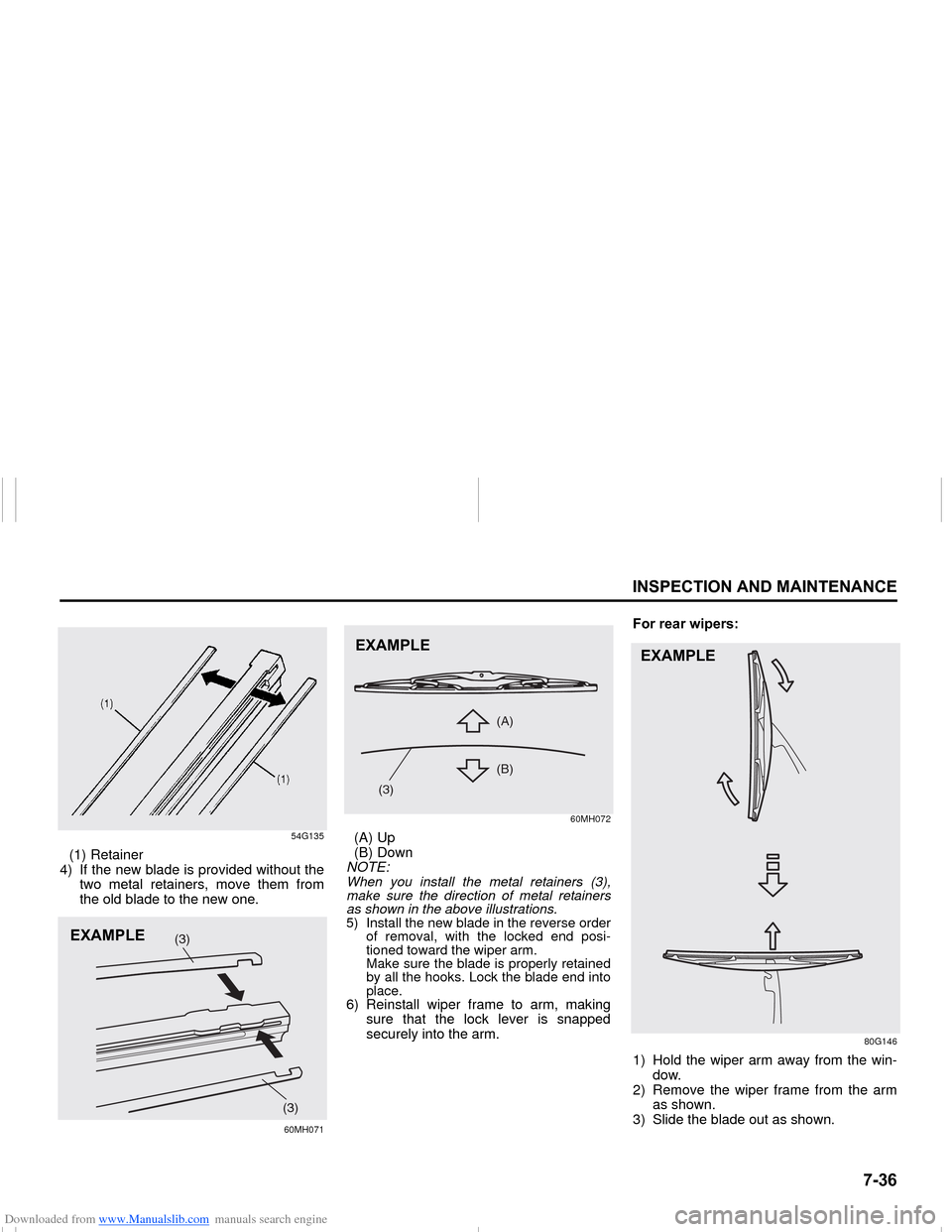

54G135
(1) Retainer
4) If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
60MH07160MH072
(A) Up
(B) Down
NOTE:When you install the metal retainers (3),
make sure the direction of metal retainers
as shown in the above illustrations.
5) Install the new blade in the reverse order
of removal, with the locked end posi-
tioned toward the wiper arm.
Make sure the blade is properly retained
by all the hooks. Lock the blade end into
place.6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely into the arm. ) R U U H D U Z L S H U V
80G146
1) Hold the wiper arm away from the win-
dow.
2) Remove the wiper frame from the arm
as shown.
3) Slide the blade out as shown.
(3)
(3)
( ; $ 0 3 / (
(3)(A)
(B)
( ; $ 0 3 / (
( ; $ 0 3 / (
Page 260 of 288
Downloaded from www.Manualslib.com manuals search engine , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
0 6 (

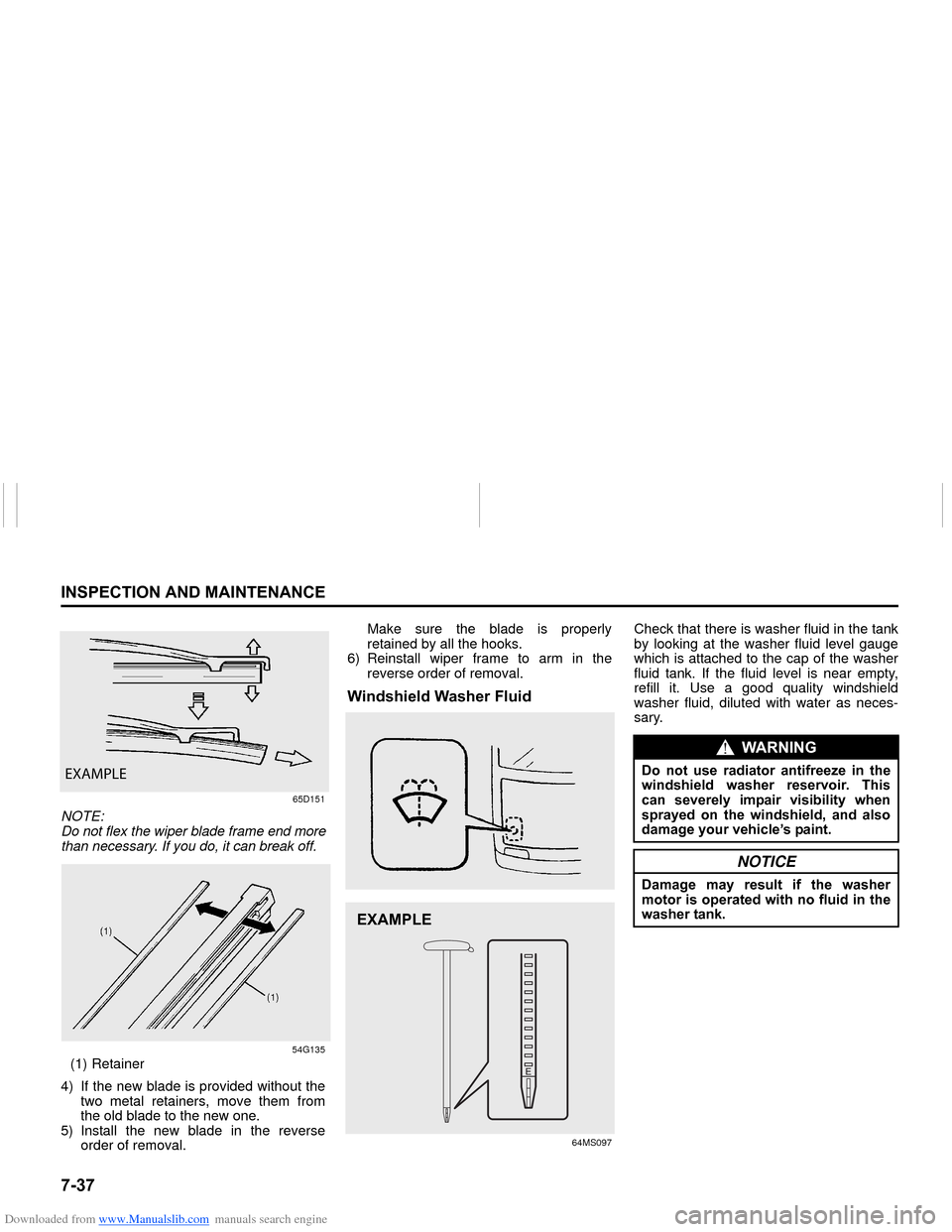

65D151
NOTE:
Do not flex the wiper blade frame end more
than necessary. If you do, it can break off.
54G135
(1) Retainer
4) If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
5) Install the new blade in the reverse
order of removal.Make sure the blade is properly
retained by all the hooks.
6) Reinstall wiper frame to arm in the
reverse order of removal.
: L Q G V K L H O G : D V K H U ) O X L G
64MS097
Check that there is washer fluid in the tank
by looking at the washer fluid level gauge
which is attached to the cap of the washer
fluid tank. If the fluid level is near empty,
refill it. Use a good quality windshield
washer fluid, diluted with water as neces-
sary.
( ; $ 0 3 / (
( ; $ 0 3 / (
( ; $ 0 3 / (
: $ 5 1 , 1 *
' R Q R W X V H U D G L D W R U D Q W L I U H H ] H L Q W K H
Z L Q G V K L H O G Z D V K H U U H V H U Y R L U 7 K L V
F D Q V H Y H U H O \ L P S D L U Y L V L E L O L W \ Z K H Q
V S U D \ H G R Q W K H Z L Q G V K L H O G D Q G D O V R
G D P D J H \ R X U Y H K L F O H
