SUZUKI NEXA 2015 1.G Owners Manual
Manufacturer: SUZUKI, Model Year: 2015, Model line: NEXA, Model: SUZUKI NEXA 2015 1.GPages: 288, PDF Size: 8.02 MB
Page 271 of 288
Downloaded from www.Manualslib.com manuals search engine
( 0 ( 5 * ( 1 & < 6 ( 5 9 , & (
0 6 (

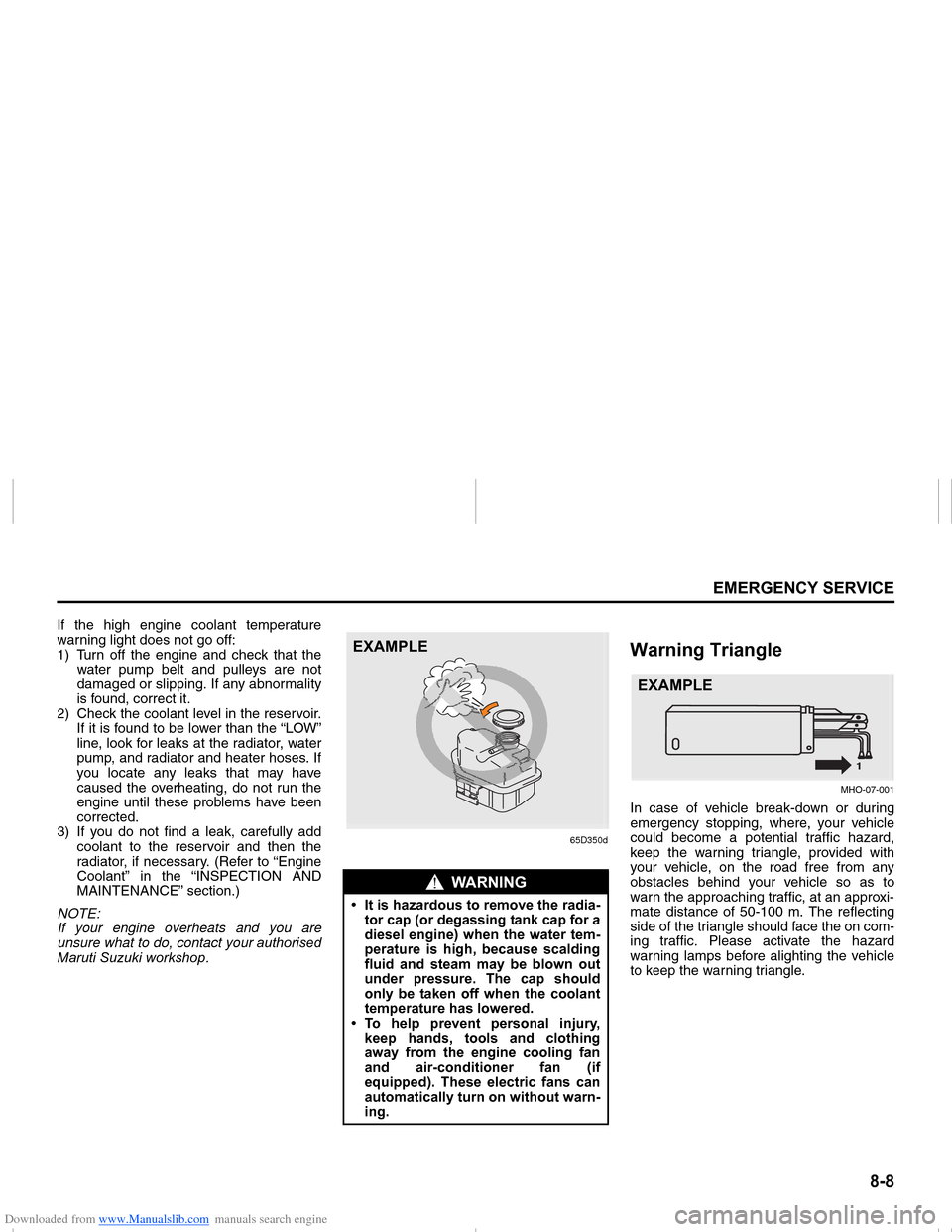

If the high engine coolant temperature
warning light does not go off:
1) Turn off the engine and check that the
water pump belt and pulleys are not
damaged or slipping. If any abnormality
is found, correct it.
2) Check the coolant level in the reservoir.
If it is found to be lower than the “LOW”
line, look for leaks at the radiator, water
pump, and radiator and heater hoses. If
you locate any leaks that may have
caused the overheating, do not run the
engine until these problems have been
corrected.
3) If you do not find a leak, carefully add
coolant to the reservoir and then the
radiator, if necessary. (Refer to “Engine
Coolant” in the “INSPECTION AND
MAINTENANCE” section.)
NOTE:
If your engine overheats and you are
unsure what to do, contact your D X W K R U L V H G
0 D U X W L 6 X ] X N L Z R U N V K R S.
65D350d
: D U Q L Q J 7 U L D Q J O H
MHO-07-001
In case of vehicle break-down or during
emergency stopping, where, your vehicle
could become a potential traffic hazard,
keep the warning triangle, provided with
your vehicle, on the road free from any
obstacles behind your vehicle so as to
warn the approaching traffic, at an approxi-
mate distance of 50-100 m. The reflecting
side of the triangle should face the on com-
ing traffic. Please activate the hazard
warning lamps before alighting the vehicle
to keep the warning triangle.
: $ 5 1 , 1 *
Page 272 of 288
Downloaded from www.Manualslib.com manuals search engine ( 0 ( 5 * ( 1 & < 6 ( 5 9 , & (
0 6 (

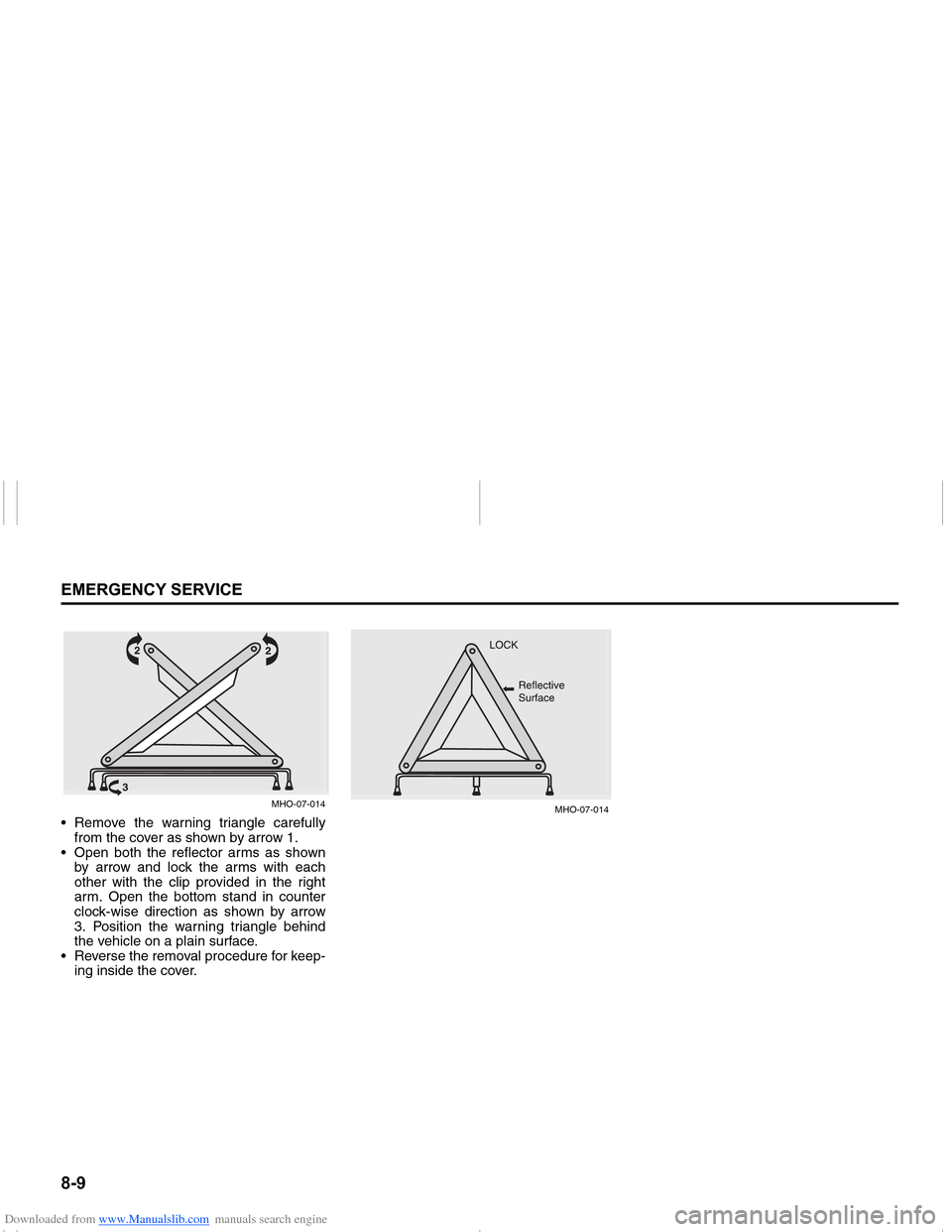

MHO-07-014
• Remove the warning triangle carefully
from the cover as shown by arrow 1.
• Open both the reflector arms as shown
by arrow and lock the arms with each
other with the clip provided in the right
arm. Open the bottom stand in counter
clock-wise direction as shown by arrow
3. Position the warning triangle behind
the vehicle on a plain surface.
• Reverse the removal procedure for keep-
ing inside the cover.
MHO-07-014
Page 273 of 288
Downloaded from www.Manualslib.com manuals search engine $ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (

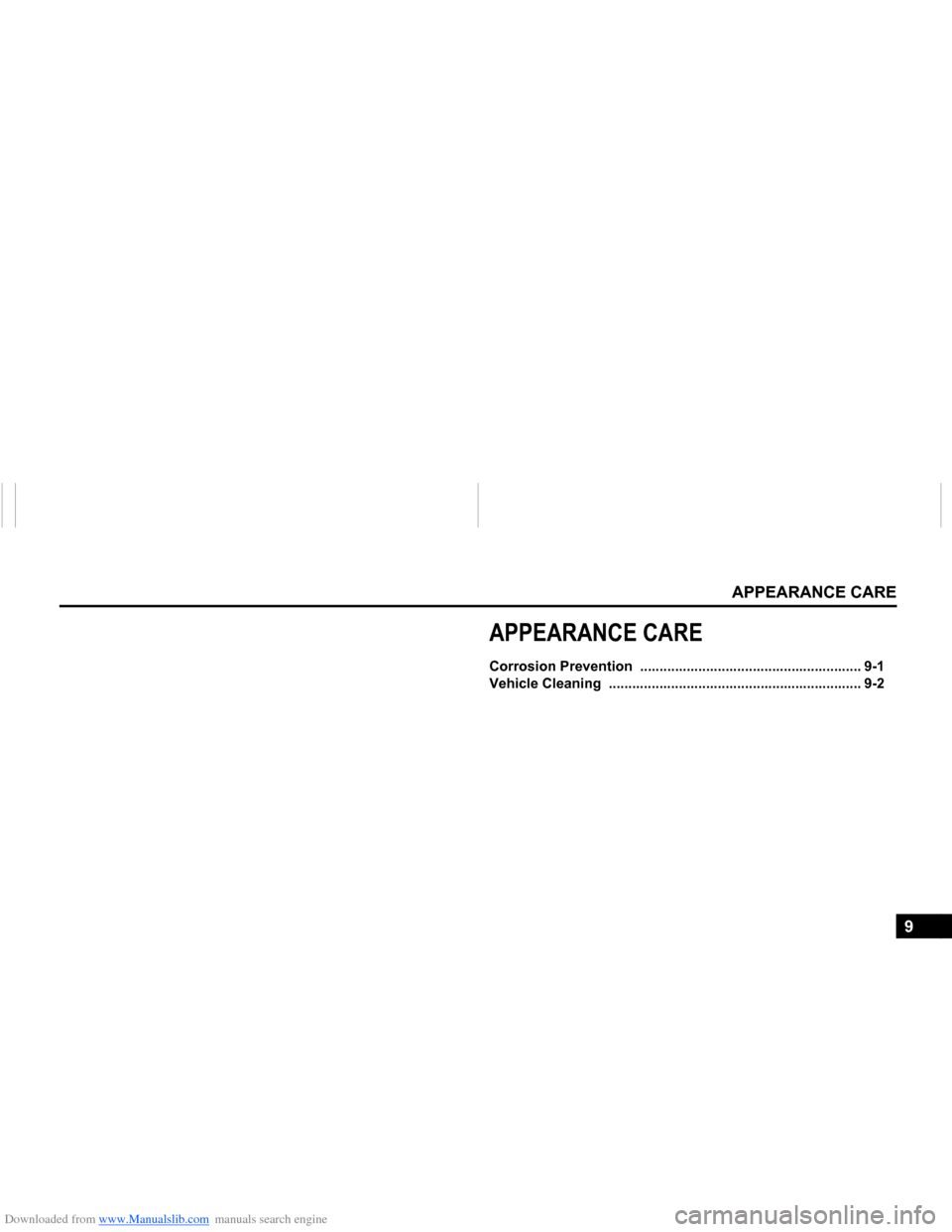

$ 3 3 ( $ 5 $ 1 & ( & $ 5 ( & R U U R V L R Q 3 U H Y H Q W L R Q
9 H K L F O H & O H D Q L Q J
Page 274 of 288
Downloaded from www.Manualslib.com manuals search engine $ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (

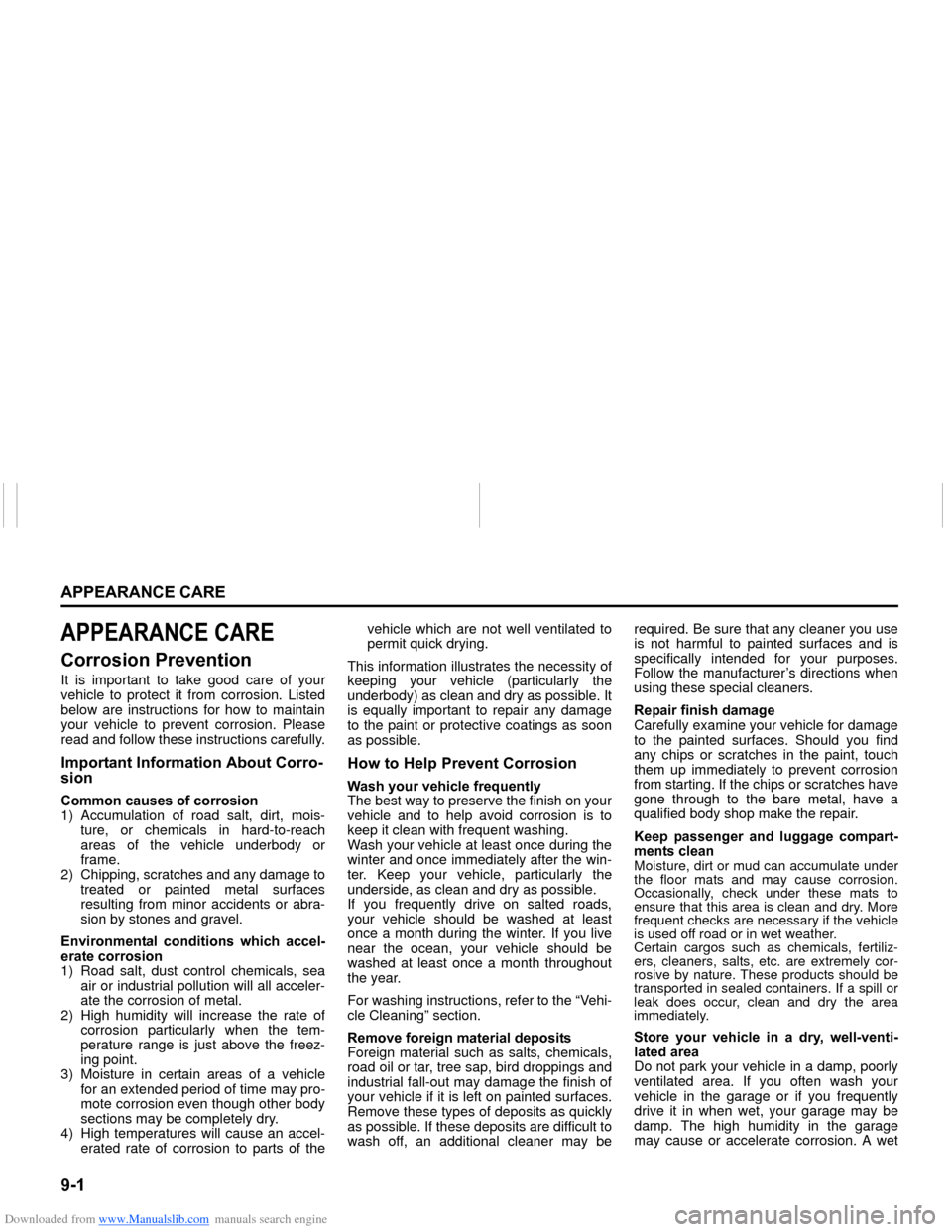

$ 3 3 ( $ 5 $ 1 & ( & $ 5 ( & R U U R V L R Q 3 U H Y H Q W L R QIt is important to take good care of your
vehicle to protect it from corrosion. Listed
below are instructions for how to maintain
your vehicle to prevent corrosion. Please
read and follow these instructions carefully. , P S R U W D Q W , Q I R U P D W L R Q $ E R X W & R U U R
V L R Q & R P P R Q F D X V H V R I F R U U R V L R Q
1) Accumulation of road salt, dirt, mois-
ture, or chemicals in hard-to-reach
areas of the vehicle underbody or
frame.
2) Chipping, scratches and any damage to
treated or painted metal surfaces
resulting from minor accidents or abra-
sion by stones and gravel.
( Q Y L U R Q P H Q W D O F R Q G L W L R Q V Z K L F K D F F H O
H U D W H F R U U R V L R Q
1) Road salt, dust control chemicals, sea
air or industrial pollution will all acceler-
ate the corrosion of metal.
2) High humidity will increase the rate of
corrosion particularly when the tem-
perature range is just above the freez-
ing point.
3) Moisture in certain areas of a vehicle
for an extended period of time may pro-
mote corrosion even though other body
sections may be completely dry.
4) High temperatures will cause an accel-
erated rate of corrosion to parts of thevehicle which are not well ventilated to
permit quick drying.
This information illustrates the necessity of
keeping your vehicle (particularly the
underbody) as clean and dry as possible. It
is equally important to repair any damage
to the paint or protective coatings as soon
as possible.
+ R Z W R + H O S 3 U H Y H Q W & R U U R V L R Q : D V K \ R X U Y H K L F O H I U H T X H Q W O \
The best way to preserve the finish on your
vehicle and to help avoid corrosion is to
keep it clean with frequent washing.
Wash your vehicle at least once during the
winter and once immediately after the win-
ter. Keep your vehicle, particularly the
underside, as clean and dry as possible.
If you frequently drive on salted roads,
your vehicle should be washed at least
once a month during the winter. If you live
near the ocean, your vehicle should be
washed at least once a month throughout
the year.
For washing instructions, refer to the “Vehi-
cle Cleaning” section.
5 H P R Y H I R U H L J Q P D W H U L D O G H S R V L W V
Foreign material such as salts, chemicals,
road oil or tar, tree sap, bird droppings and
industrial fall-out may damage the finish of
your vehicle if it is left on painted surfaces.
Remove these types of deposits as quickly
as possible. If these deposits are difficult to
wash off, an additional cleaner may berequired. Be sure that any cleaner you use
is not harmful to painted surfaces and is
specifically intended for your purposes.
Follow the manufacturer’s directions when
using these special cleaners.
5 H S D L U I L Q L V K G D P D J H
Carefully examine your vehicle for damage
to the painted surfaces. Should you find
any chips or scratches in the paint, touch
them up immediately to prevent corrosion
from starting. If the chips or scratches have
gone through to the bare metal, have a
qualified body shop make the repair.
. H H S S D V V H Q J H U D Q G O X J J D J H F R P S D U W
P H Q W V F O H D Q
Moisture, dirt or mud can accumulate under
the floor mats and may cause corrosion.
Occasionally, check under these mats to
ensure that this area is clean and dry. More
frequent checks are necessary if the vehicle
is used off road or in wet weather.
Certain cargos such as chemicals, fertiliz-
ers, cleaners, salts, etc. are extremely cor-
rosive by nature. These products should be
transported in sealed containers. If a spill or
leak does occur, clean and dry the area
immediately. 6 W R U H \ R X U Y H K L F O H L Q D G U \ Z H O O Y H Q W L
O D W H G D U H D
Do not park your vehicle in a damp, poorly
ventilated area. If you often wash your
vehicle in the garage or if you frequently
drive it in when wet, your garage may be
damp. The high humidity in the garage
may cause or accelerate corrosion. A wet
Page 275 of 288
Downloaded from www.Manualslib.com manuals search engine
$ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (

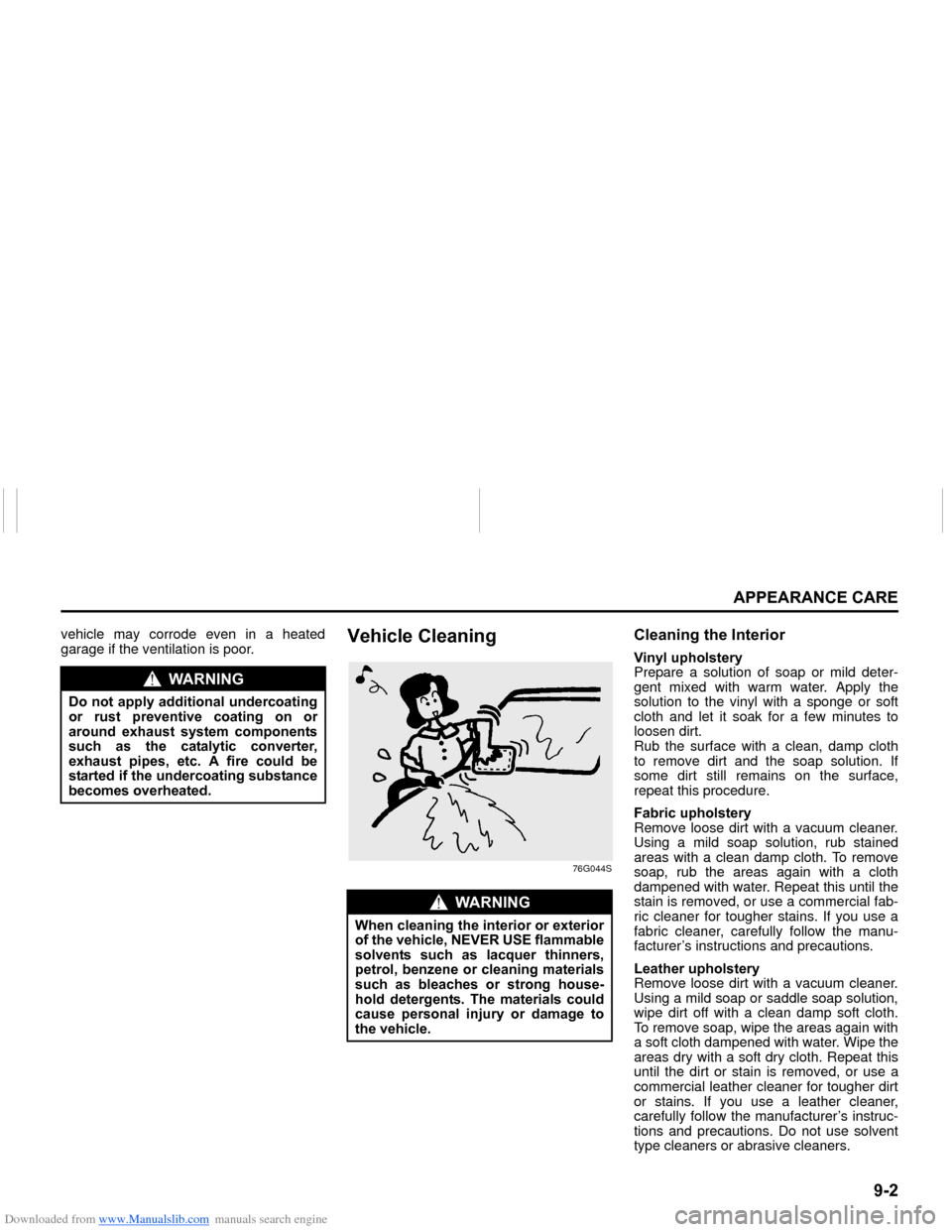

vehicle may corrode even in a heated
garage if the ventilation is poor.
9 H K L F O H & O H D Q L Q J
76G044S
& O H D Q L Q J W K H , Q W H U L R U 9 L Q \ O X S K R O V W H U \
Prepare a solution of soap or mild deter-
gent mixed with warm water. Apply the
solution to the vinyl with a sponge or soft
cloth and let it soak for a few minutes to
loosen dirt.
Rub the surface with a clean, damp cloth
to remove dirt and the soap solution. If
some dirt still remains on the surface,
repeat this procedure.
) D E U L F X S K R O V W H U \
Remove loose dirt with a vacuum cleaner.
Using a mild soap solution, rub stained
areas with a clean damp cloth. To remove
soap, rub the areas again with a cloth
dampened with water. Repeat this until the
stain is removed, or use a commercial fab-
ric cleaner for tougher stains. If you use a
fabric cleaner, carefully follow the manu-
facturer’s instructions and precautions.
/ H D W K H U X S K R O V W H U \
Remove loose dirt with a vacuum cleaner.
Using a mild soap or saddle soap solution,
wipe dirt off with a clean damp soft cloth.
To remove soap, wipe the areas again with
a soft cloth dampened with water. Wipe the
areas dry with a soft dry cloth. Repeat this
until the dirt or stain is removed, or use a
commercial leather cleaner for tougher dirt
or stains. If you use a leather cleaner,
carefully follow the manufacturer’s instruc-
tions and precautions. Do not use solvent
type cleaners or abrasive cleaners.
: $ 5 1 , 1 *
' R Q R W D S S O \ D G G L W L R Q D O X Q G H U F R D W L Q J
R U U X V W S U H Y H Q W L Y H F R D W L Q J R Q R U
D U R X Q G H [ K D X V W V \ V W H P F R P S R Q H Q W V
V X F K D V W K H F D W D O \ W L F F R Q Y H U W H U
H [ K D X V W S L S H V H W F $ I L U H F R X O G E H
V W D U W H G L I W K H X Q G H U F R D W L Q J V X E V W D Q F H
E H F R P H V R Y H U K H D W H G
: $ 5 1 , 1 *
: K H Q F O H D Q L Q J W K H L Q W H U L R U R U H [ W H U L R U
R I W K H Y H K L F O H 1 ( 9 ( 5 8 6 ( I O D P P D E O H
V R O Y H Q W V V X F K D V O D F T X H U W K L Q Q H U V
S H W U R O E H Q ] H Q H R U F O H D Q L Q J P D W H U L D O V
V X F K D V E O H D F K H V R U V W U R Q J K R X V H
K R O G G H W H U J H Q W V 7 K H P D W H U L D O V F R X O G
F D X V H S H U V R Q D O L Q M X U \ R U G D P D J H W R
W K H Y H K L F O H
Page 276 of 288
Downloaded from www.Manualslib.com manuals search engine $ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (

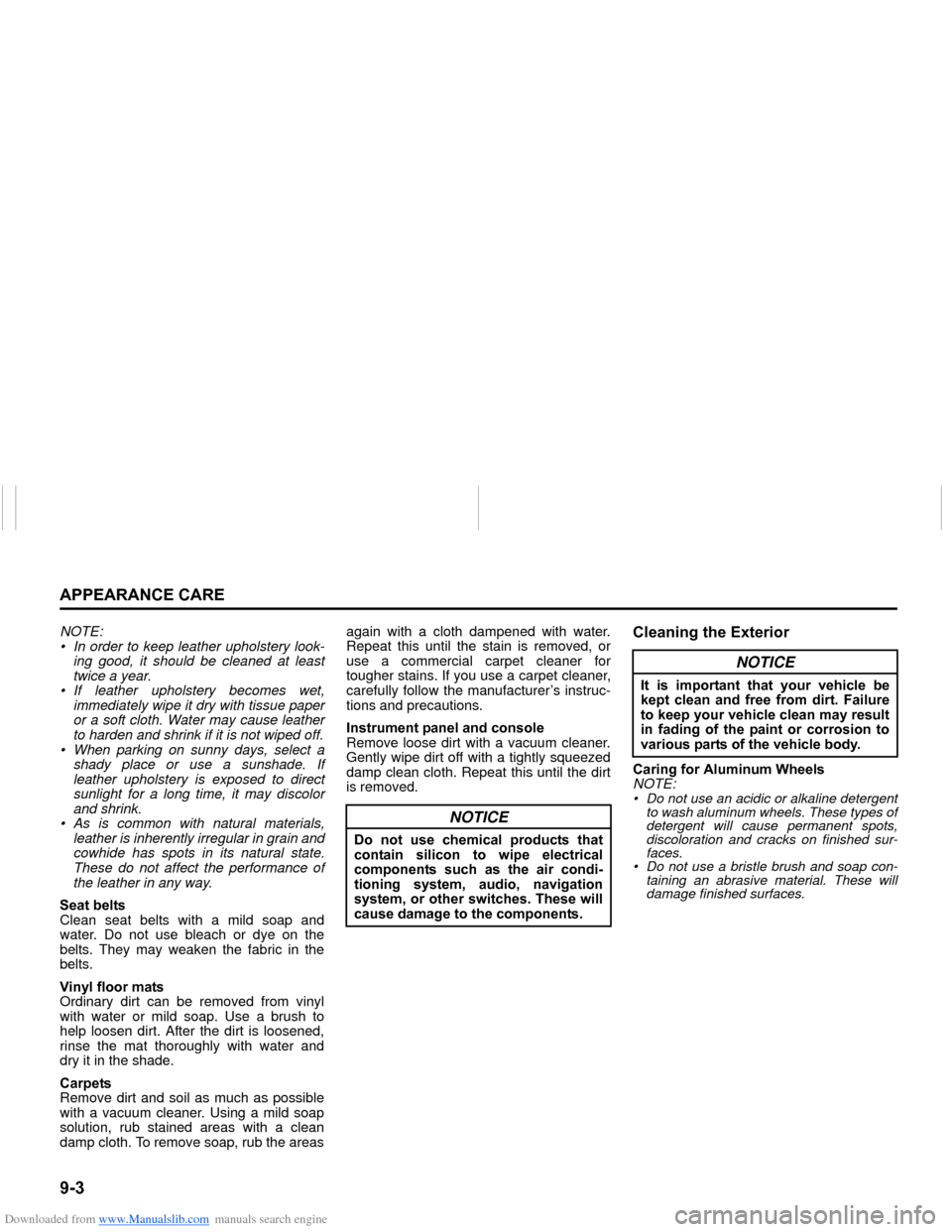

NOTE:
• In order to keep leather upholstery look-
ing good, it should be cleaned at least
twice a year.
• If leather upholstery becomes wet,
immediately wipe it dry with tissue paper
or a soft cloth. Water may cause leather
to harden and shrink if it is not wiped off.
• When parking on sunny days, select a
shady place or use a sunshade. If
leather upholstery is exposed to direct
sunlight for a long time, it may discolor
and shrink.
• As is common with natural materials,
leather is inherently irregular in grain and
cowhide has spots in its natural state.
These do not affect the performance of
the leather in any way.
6 H D W E H O W V
Clean seat belts with a mild soap and
water. Do not use bleach or dye on the
belts. They may weaken the fabric in the
belts.
9 L Q \ O I O R R U P D W V
Ordinary dirt can be removed from vinyl
with water or mild soap. Use a brush to
help loosen dirt. After the dirt is loosened,
rinse the mat thoroughly with water and
dry it in the shade.
& D U S H W V
Remove dirt and soil as much as possible
with a vacuum cleaner. Using a mild soap
solution, rub stained areas with a clean
damp cloth. To remove soap, rub the areasagain with a cloth dampened with water.
Repeat this until the stain is removed, or
use a commercial carpet cleaner for
tougher stains. If you use a carpet cleaner,
carefully follow the manufacturer’s instruc-
tions and precautions.
, Q V W U X P H Q W S D Q H O D Q G F R Q V R O H
Remove loose dirt with a vacuum cleaner.
Gently wipe dirt off with a tightly squeezed
damp clean cloth. Repeat this until the dirt
is removed.
& O H D Q L Q J W K H ( [ W H U L R U & D U L Q J I R U $ O X P L Q X P : K H H O V
NOTE:• Do not use an acidic or alkaline detergent
to wash aluminum wheels. These types of
detergent will cause permanent spots,
discoloration and cracks on finished sur-
faces.
• Do not use a bristle brush and soap con-
taining an abrasive material. These will
damage finished surfaces.
NOTICE
' R Q R W X V H F K H P L F D O S U R G X F W V W K D W
F R Q W D L Q V L O L F R Q W R Z L S H H O H F W U L F D O
F R P S R Q H Q W V V X F K D V W K H D L U F R Q G L
W L R Q L Q J V \ V W H P D X G L R Q D Y L J D W L R Q
V \ V W H P R U R W K H U V Z L W F K H V 7 K H V H Z L O O
F D X V H G D P D J H W R W K H F R P S R Q H Q W V
NOTICE
, W L V L P S R U W D Q W W K D W \ R X U Y H K L F O H E H
N H S W F O H D Q D Q G I U H H I U R P G L U W ) D L O X U H
W R N H H S \ R X U Y H K L F O H F O H D Q P D \ U H V X O W
L Q I D G L Q J R I W K H S D L Q W R U F R U U R V L R Q W R
Y D U L R X V S D U W V R I W K H Y H K L F O H E R G \
Page 277 of 288
Downloaded from www.Manualslib.com manuals search engine
$ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (
: D V K L Q J
60B212S

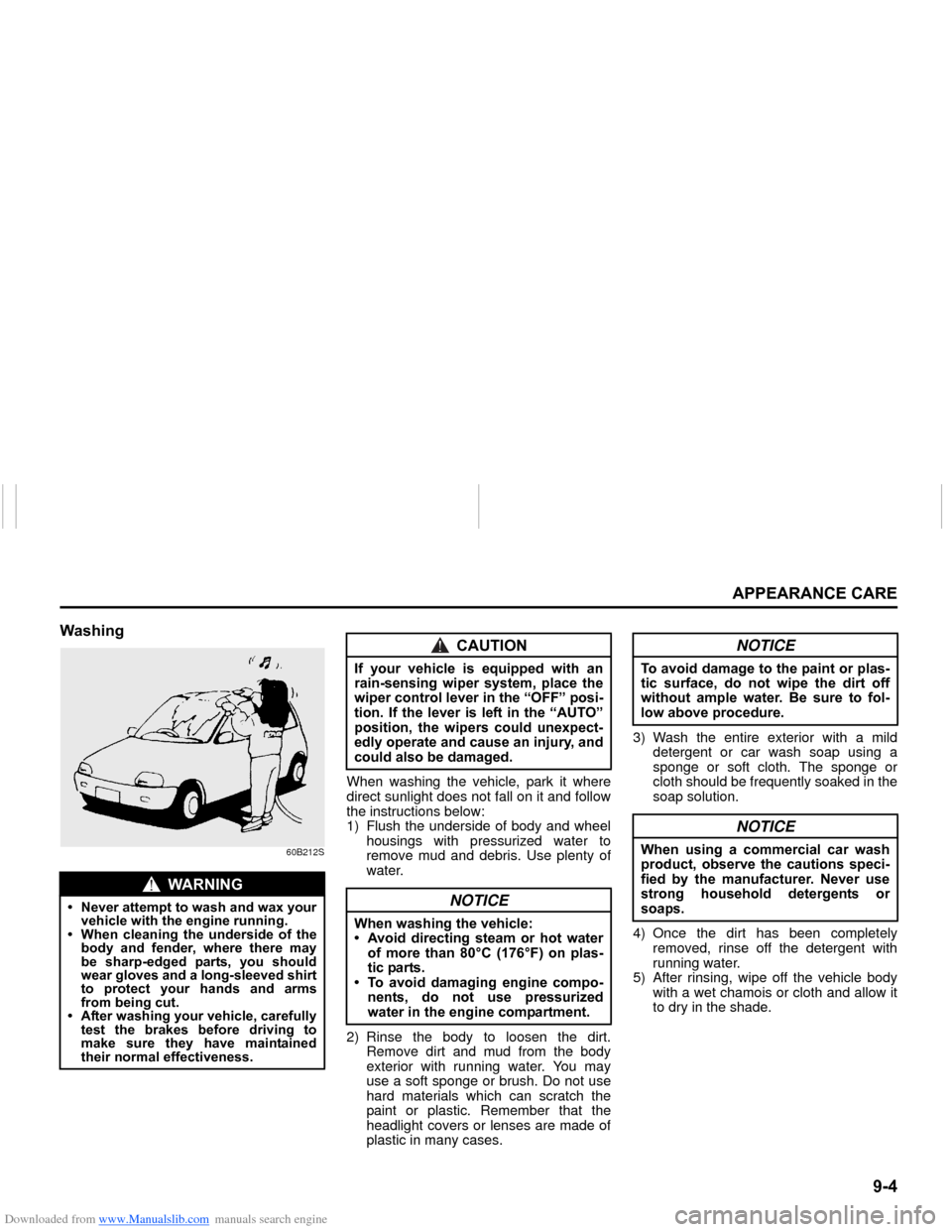

When washing the vehicle, park it where
direct sunlight does not fall on it and follow
the instructions below:
1) Flush the underside of body and wheel
housings with pressurized water to
remove mud and debris. Use plenty of
water.
2) Rinse the body to loosen the dirt.
Remove dirt and mud from the body
exterior with running water. You may
use a soft sponge or brush. Do not use
hard materials which can scratch the
paint or plastic. Remember that the
headlight covers or lenses are made of
plastic in many cases.3) Wash the entire exterior with a mild
detergent or car wash soap using a
sponge or soft cloth. The sponge or
cloth should be frequently soaked in the
soap solution.
4) Once the dirt has been completely
removed, rinse off the detergent with
running water.
5) After rinsing, wipe off the vehicle body
with a wet chamois or cloth and allow it
to dry in the shade.
: $ 5 1 , 1 *
Page 278 of 288
Downloaded from www.Manualslib.com manuals search engine $ 3 3 ( $ 5 $ 1 & ( & $ 5 (
0 6 (

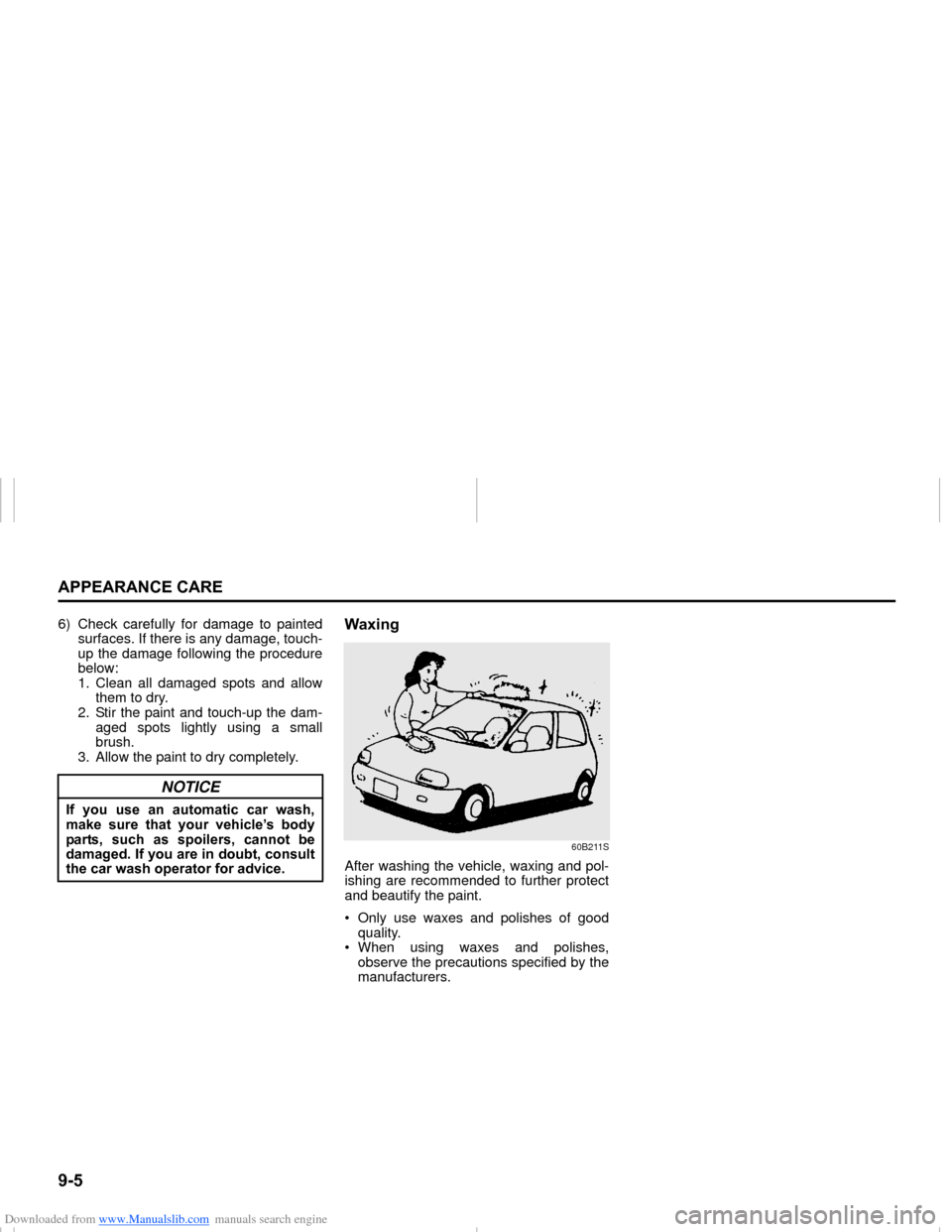

6) Check carefully for damage to painted
surfaces. If there is any damage, touch-
up the damage following the procedure
below:
1. Clean all damaged spots and allow
them to dry.
2. Stir the paint and touch-up the dam-
aged spots lightly using a small
brush.
3. Allow the paint to dry completely.
: D [ L Q J
60B211S
After washing the vehicle, waxing and pol-
ishing are recommended to further protect
and beautify the paint.
• Only use waxes and polishes of good
quality.
• When using waxes and polishes,
observe the precautions specified by the
manufacturers.
NOTICE
, I \ R X X V H D Q D X W R P D W L F F D U Z D V K
P D N H V X U H W K D W \ R X U Y H K L F O H
Page 279 of 288
Downloaded from www.Manualslib.com manuals search engine * ( 1 ( 5 $ / , 1 ) 2 5 0 $ 7 , 2 1
0 6 (

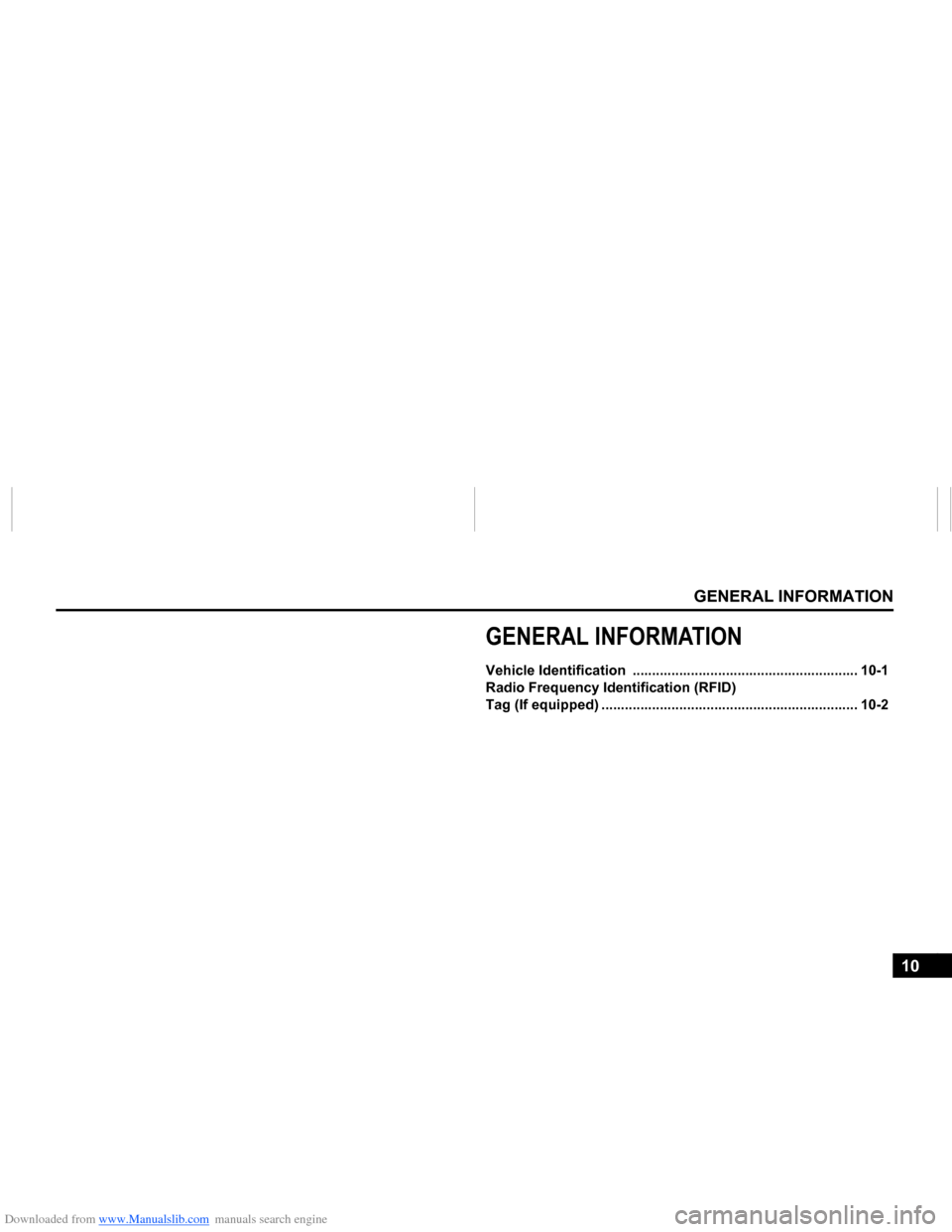

* ( 1 ( 5 $ / , 1 ) 2 5 0 $ 7 , 2 1 9 H K L F O H , G H Q W L I L F D W L R Q
5 D G L R ) U H T X H Q F \ , G H Q W L I L F D W L R Q 5 ) , '
7 D J , I H T X L S S H G
Page 280 of 288
Downloaded from www.Manualslib.com manuals search engine * ( 1 ( 5 $ / , 1 ) 2 5 0 $ 7 , 2 1
0 6 (
9 H K L F O H , G H Q W L I L F D W L R Q & K D V V L V 6 H U L D O 1 X P E H U
79MH0A01
64MS179
The chassis and/or engine serial numbers
are used to register the vehicle. They arealso used to assist your dealer when
ordering or referring to special service
information. Whenever you have occasion
to consult your D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S, remember to iden-tify
your vehicle with this number. Should
you find the number difficult to read, you
will also find it on the identification plate.
( Q J L Q H 6 H U L D O 1 X P E H U
60G128
The engine serial number is stamped on
the cylinder block as shown in the
illustration.
( ; $ 0 3 / (
( ; $ 0 3 / (
