Air bag connection SUZUKI SWIFT 2006 2.G Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine 8B-66 Air Bag System:
2 1) With ignition switch OFF, disconnect SDM connector “L29”.
2) Check proper connection to SDM at terminals “L29-11” and “L29-12” or “L29-13” and “L29-14”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
4) Measure resistance between “L29-11” and “L29-12” terminals (for DTC B1061) or “L29-13” and “L29-14”
terminals (for DTC B1065) with connected special tool
(B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
Is resistance 2.62
Ω or less? Substitute a known-
good SDM and recheck.
DTC B1061: Repair
high resistance or open
in “GRY/RED” or “GRY”
wire circuit in floor
harness.
DTC B1065: Repair
high resistance or open
in “BRN/WHT” or “BRN”
wire circuit in floor
harness.
Step Action Yes No
(A)
"L29-12" "L29-13" "L29-14"
"L29-11"
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820021-01

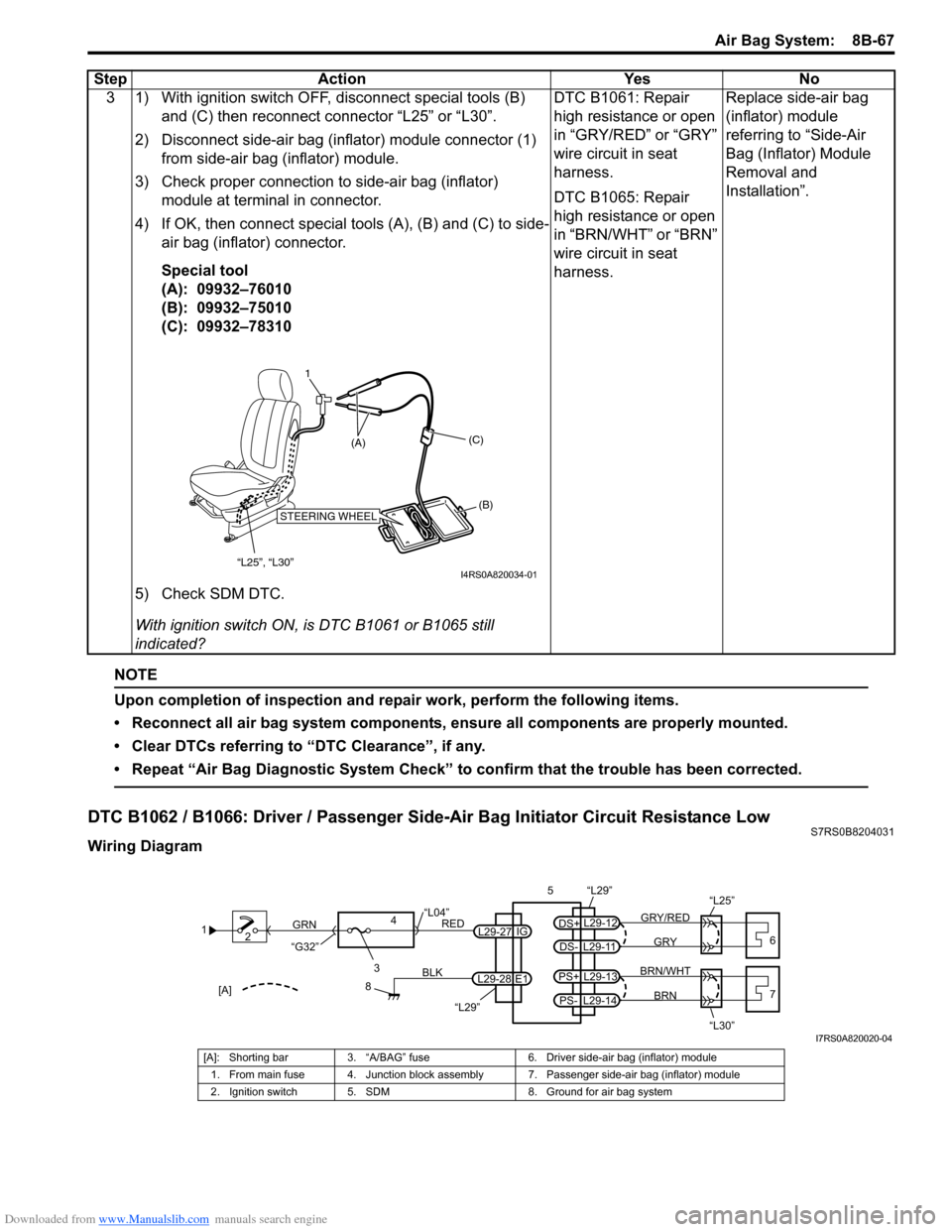

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-67
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1062 / B1066: Driver / Passenger Side-Air Bag Initiator Circuit Resistance LowS7RS0B8204031
Wiring Diagram3 1) With ignition switch OFF, disconnect special tools (B)
and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1) from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator) module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side- air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1061 or B1065 still
indicated? DTC B1061: Repair
high resistance or open
in “GRY/RED” or “GRY”
wire circuit in seat
harness.
DTC B1065: Repair
high resistance or open
in “BRN/WHT” or “BRN”
wire circuit in seat
harness.
Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
Step Action Yes No
1
“L25”, “L30”
STEERING WHEEL(B)
(C)
(A)
I4RS0A820034-01
1
2
3
GRN
RED
8
BLK
L29-27
L29-28 IG
E1
4
“L29”
“L04”
“G32”
“L29”
L29-12
DS+
L29-11
DS-GRY
GRY/RED
56
“L25”
L29-13
PS+
L29-14
PS-BRN
BRN/WHT7
“L30”[A]
I7RS0A820020-04
[A]: Shorting bar 3. “A/BAG” fuse 6. Driver side-air bag (inflator) module
1. From main fuse 4. Junction block assembly 7. Passenger side-air bag (inflator) module
2. Ignition switch 5. SDM 8. Ground for air bag system

Downloaded from www.Manualslib.com manuals search engine 8B-68 Air Bag System:
CAUTION!
• Be sure to perform “Air Bag Diagnostic System Check” before starting diagnosis according to flow.
• When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, refer to “Inspection of Intermittent and Poor Connections”.
• If there is open circuit in the air bag wire harnes s, connector or terminal is found damaged, replace
the wire harness, connector and terminal as an assembly.

DTC Will Set when
The combined resistance of the side-air bag (inflator) module (driver or passenger), harness wiring and connector
terminal contact is below a spec ified value for specified time.
Flow Test Description
Step 1: Check whether malfunction is in side-air bag (inflator) module.
Step 2: Check side-air bag initiator circuit in floor harness.
Step 3: Check side-air bag init iator circuit in seat harness.
DTC Troubleshooting Step Action YesNo
1 1) With ignition switch OFF, disconnect side-air bag (inflator) module connector under front seat cushion.
2) Check proper connection to driver or passenger side-air bag (inflator) module at terminals in “L25” or “L30”
connector.
3) If OK, then connect special tools (B) and (C) to side-air bag (inflator) module connector disconnected at the Step
1.
Special tool
(B): 09932–75010
(C): 09932–78340
4) Check SDM DTC.
With ignition switch ON, is DTC B1062 or B1066 still
indicated? Go to Step 2.
Go to Step 3.
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I4RS0A820032-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-69
2 1) With ignition switch OFF, disconnect SDM connector “L29”.
2) Check proper connection to SDM at terminals “L29-11” and “L29-12” or “L29-13” and “L29-14”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
4) Measure resistance between “L29-11” and “L29-12” terminals (for DTC B1062) or “L29-13” and “L29-14”
terminals (for DTC B1066) with connected special tools
(B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
Is resistance 1.8
Ω or more? Substitute a known-
good SDM and recheck.
DTC B1062: Repair
short from “GRY/RED”
wire circuit to “GRY”
wire circuit or from
“GRY/RED” or “GRY”
wire circuit to other wire
circuit in floor harness.
DTC B1066: Repair
short from “BRN/WHT”
wire circuit to “BRN”
wire circuit or from
“BRN/WHT” or “BRN”
wire circuit to other wire
circuit in floor harness.
Step Action Yes No
(A)
"L29-12" "L29-13" "L29-14"
"L29-11"
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820021-01

Downloaded from www.Manualslib.com manuals search engine 8B-70 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1063 / B1067: Driver / Passenger Side-Air Bag Initiator Circuit Short to GroundS7RS0B8204032
Wiring Diagram3 1) With ignition switch OFF, disconnect special tools (B)
and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1) from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator) module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side- air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1062 or B1066 still
indicated? DTC B1062: Repair
short from “GRY/RED”
wire circuit to “GRY”
wire circuit in seat
harness or from “GRY/
RED” or “GRY” wire
circuit to other wire
circuit.
DTC B1066: Repair
short from “BRN/WHT”
wire circuit to “BRN”
wire circuit in seat
harness or from “BRN/
WHT” or “BRN” wire
circuit to other wire
circuit.
Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
Step Action Yes No
1
“L25”, “L30”
STEERING WHEEL(B)
(C)
(A)
I4RS0A820034-01
1
2
3
GRN
RED
8
BLK
L29-27
L29-28 IG
E1
4
“L29”
“L04”
“G32”
“L29”
L29-12
DS+
L29-11
DS-GRY
GRY/RED
56
“L25”
L29-13
PS+
L29-14
PS-BRN
BRN/WHT7
“L30”[A]
I7RS0A820020-04
[A]: Shorting bar 3. “A/BAG” fuse 6. Driver side-air bag (inflator) module
1. From main fuse 4. Junction block assembly 7. Passenger side-air bag (inflator) module
2. Ignition switch 5. SDM 8. Ground for air bag system

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-71
CAUTION!
• Be sure to perform “Air Bag Diagnostic System Check” before starting diagnosis according to flow.
• When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, refer to “Inspection of Intermittent and Poor Connections”.
• If there is open circuit in the air bag wire harnes s, connector or terminal is found damaged, replace
the wire harness, connector and terminal as an assembly.

DTC Will Set when
The voltage measured at side-air bag (driver or passenger) init iator circuit is below a specified value for specified time.
Flow Test Description
Step 1: Check whether malfunction is in side-air bag (inflator) module.
Step 2: Check side-air bag initiator circuit in floor harness.
Step 3: Check side-air bag init iator circuit in seat harness.
DTC Troubleshooting Step Action YesNo
1 1) With ignition switch OFF, disconnect side-air bag (inflator) module connector under front seat cushion.
2) Check proper connection to driver or passenger side-air bag (inflator) module at terminals in “L25” or “L30”
connector.
3) If OK, then connect special tools (B) and (C) to side-air bag (inflator) module connector disconnected at the Step
1.
Special tool
(B): 09932–75010
(C): 09932–78340
4) Check SDM DTC.
With ignition switch ON, is DTC B1063 or B1067 still
indicated? Go to Step 2.
Go to Step 3.
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I4RS0A820032-01

Downloaded from www.Manualslib.com manuals search engine 8B-72 Air Bag System:
2 1) With ignition switch OFF, disconnect special tools and SDM connector “L29”.
2) Release shorting bar in SDM connector inserting release tool (1) included in special tool (A).
3) Measure resistance between “L29-11” and body ground, and between “L29-12” and body ground (for DTC
B1063) or “L29-13” and body ground, and between “L29-
14” and body ground (for DTC B1067) with connected
special tools (B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
Is resistance infinity? Substitute a known-
good SDM and recheck.
DTC B1063: Repair
short from “GRY/RED”
or “GRY” wire circuit to
ground in floor harness.
DTC B1067: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
ground in floor harness.
3 1) With ignition switch OFF, disconnect special tools (B) and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1) from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator) module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side- air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1063 or B1067 still
indicated? DTC B1063: Repair
short from “GRY/RED”
or “GRY” wire circuit to
ground in seat harness.
DTC B1067: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
ground in seat harness.
Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
Step Action Yes No
"L29-12""L29-13""L29-14"
"L29-11"
(A)
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820022-01
1
“L25”, “L30”
STEERING WHEEL(B)
(C)
(A)
I4RS0A820034-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-73
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1064 / B1068: Driver / Passenger Side-Air Bag Initiator Circuit Short to Power CircuitS7RS0B8204033
Wiring Diagram
CAUTION!
• Be sure to perform “Air Bag Diagnostic System Check” before starting diagnosis according to flow.
• When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, refer to “Inspection of Intermittent and Poor Connections”.
• If there is open circuit in the air bag wire harnes s, connector or terminal is found damaged, replace
the wire harness, connector and terminal as an assembly.

DTC Will Set when
The voltage measured at side-air bag (driver or passenger) init iator circuit is above a specified value for specified time.
Flow Test Description
Step 1: Check whether malfunction is in side-air bag (inflator) module.
Step 2: Check side-air bag initiator circuit in floor harness.
Step 3: Check side-air bag init iator circuit in seat harness.
1
2
3
GRN
RED
8
BLK
L29-27
L29-28 IG
E1
4
“L29”
“L04”
“G32”
“L29”
L29-12
DS+
L29-11
DS-GRY
GRY/RED
56
“L25”
L29-13
PS+
L29-14
PS-BRN
BRN/WHT7
“L30”[A]
I7RS0A820020-04
[A]: Shorting bar 3. “A/BAG” fuse 6. Driver side-air bag (inflator) module
1. From main fuse 4. Junction block assembly 7. Passenger side-air bag (inflator) module
2. Ignition switch 5. SDM 8. Ground for air bag system

Downloaded from www.Manualslib.com manuals search engine 8B-74 Air Bag System:
DTC TroubleshootingStep Action YesNo
1 1) With ignition switch OFF, disconnect side-air bag (inflator) module connector under front seat cushion.
2) Check proper connection to driver or passenger side-air bag (inflator) module at terminals in “L25” or “L30”
connector.
3) If OK, then connect special tools (B) and (C) to side-air bag (inflator) module connector disconnected at the Step
1.
Special tool
(B): 09932–75010
(C): 09932–78340
4) Check SDM DTC.
With ignition switch ON, is DTC B1064 or B1068 still
indicated? Go to Step 2.
Go to Step 3.
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I4RS0A820032-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-75
2 1) With ignition switch OFF, disconnect special tools (B), (C) and SDM connector “L29”.
2) Release shorting bar in SDM connector inserting release tool (1) included in special tool (A).
3) Measure voltage between “L29-11” and body ground, and between “L29-12” and ground (for DTC B1064) or
“L29-13” and body ground, and between “L29-14” and
body ground (for DTC B1068) with connected special
tools (B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
With ignition switch ON, is voltage 1 V or less? Substitute a known-
good SDM and recheck.
DTC B1064: Repair
short from “GRY/RED”
or “GRY” wire circuit to
power circuit in floor
harness.
DTC B1068: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
power circuit in floor
harness.
3 1) With ignition switch OFF, disconnect special tools (B) and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1) from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator) module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side- air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1064 or B1068 still
indicated? DTC B1064: Repair
short from “GRY/RED”
or “GRY” wire circuit to
power circuit in seat
harness.
DTC B1068: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
power circuit in seat
harness.
Replace side-air bag
(inflator) module
referring to“Side-Air Bag
(Inflator) Module
Removal and
Installation”.
Step Action Yes No
"L29-12""L29-13""L29-14"
"L29-11"
(A)
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820023-01
1
“L25”, “L30”
STEERING WHEEL(B)
(C)
(A)
I4RS0A820034-01
