SUZUKI SX4 2006 1.G Service Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-7

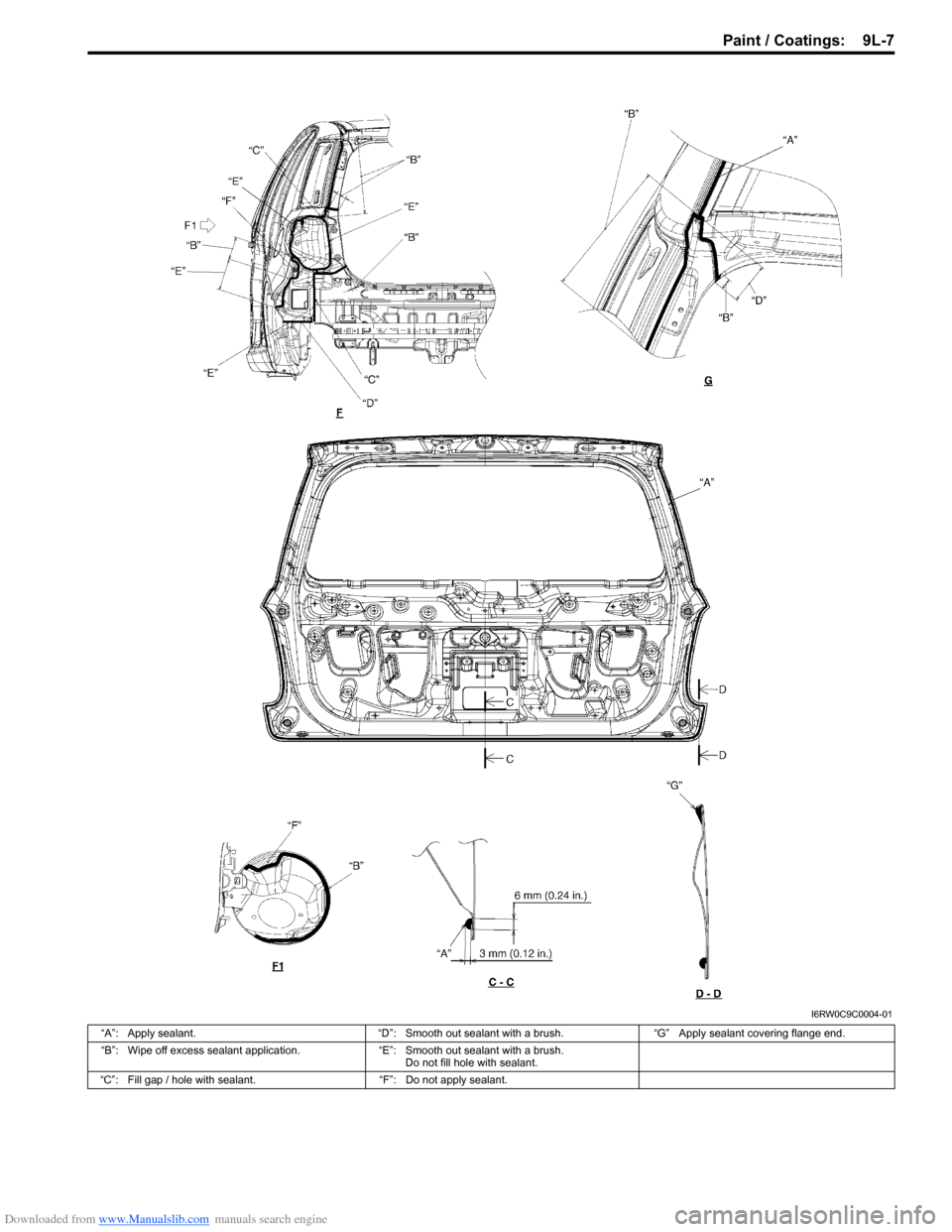

I6RW0C9C0004-01
“A”: Apply sealant. “D”: Smooth out sealant with a brush. “G” Apply sealant covering flange end.
“B”: Wipe off excess sealant application. “E”: Smooth out sealant with a brush.
Do not fill hole with sealant.
“C”: Fill gap / hole with sealant. “F”: Do not apply sealant.

Downloaded from www.Manualslib.com manuals search engine 9L-8 Paint / Coatings:

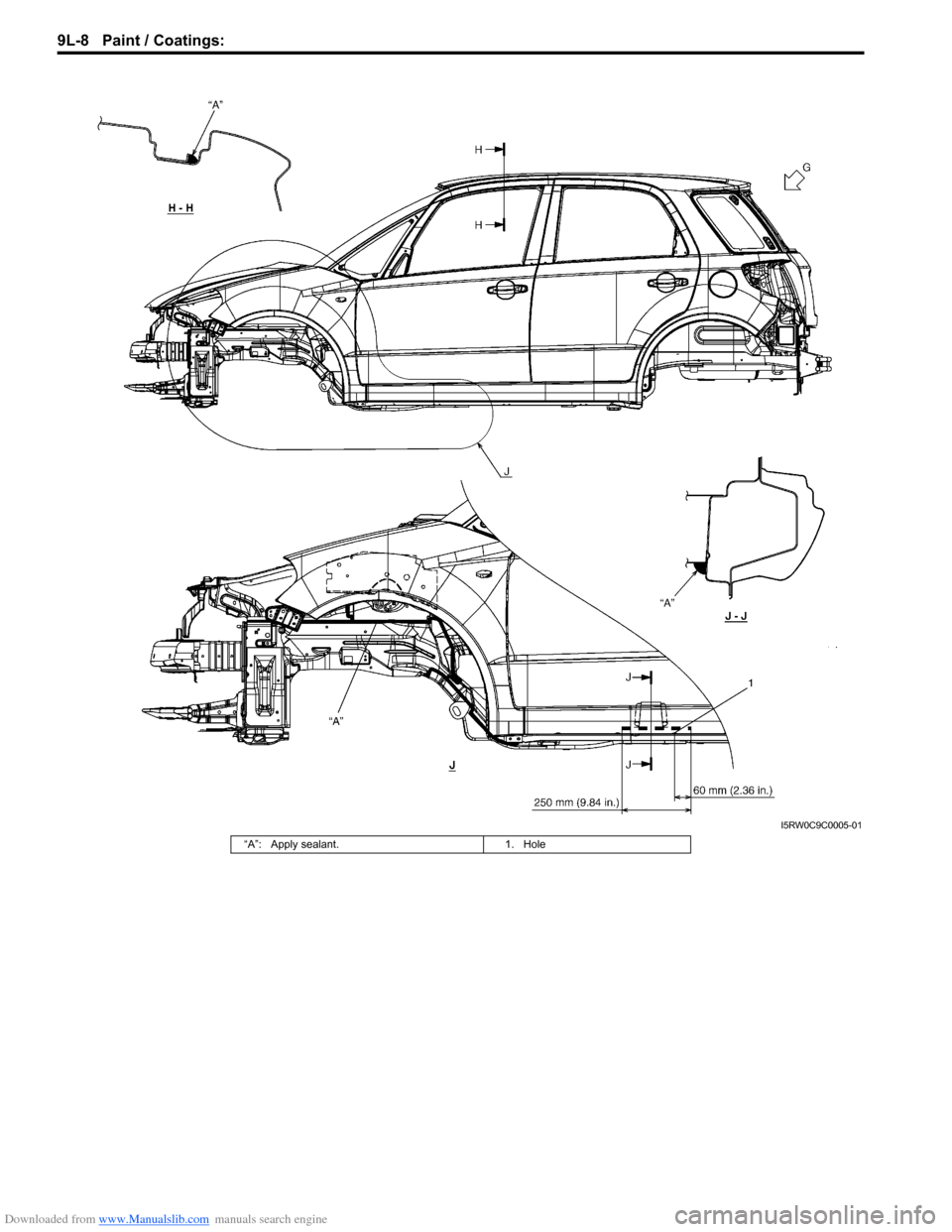

I5RW0C9C0005-01
“A”: Apply sealant. 1. Hole

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-9
I5RW0C9C0006-01
“A”: Apply sealant covering flange end.

Downloaded from www.Manualslib.com manuals search engine 9L-10 Paint / Coatings:

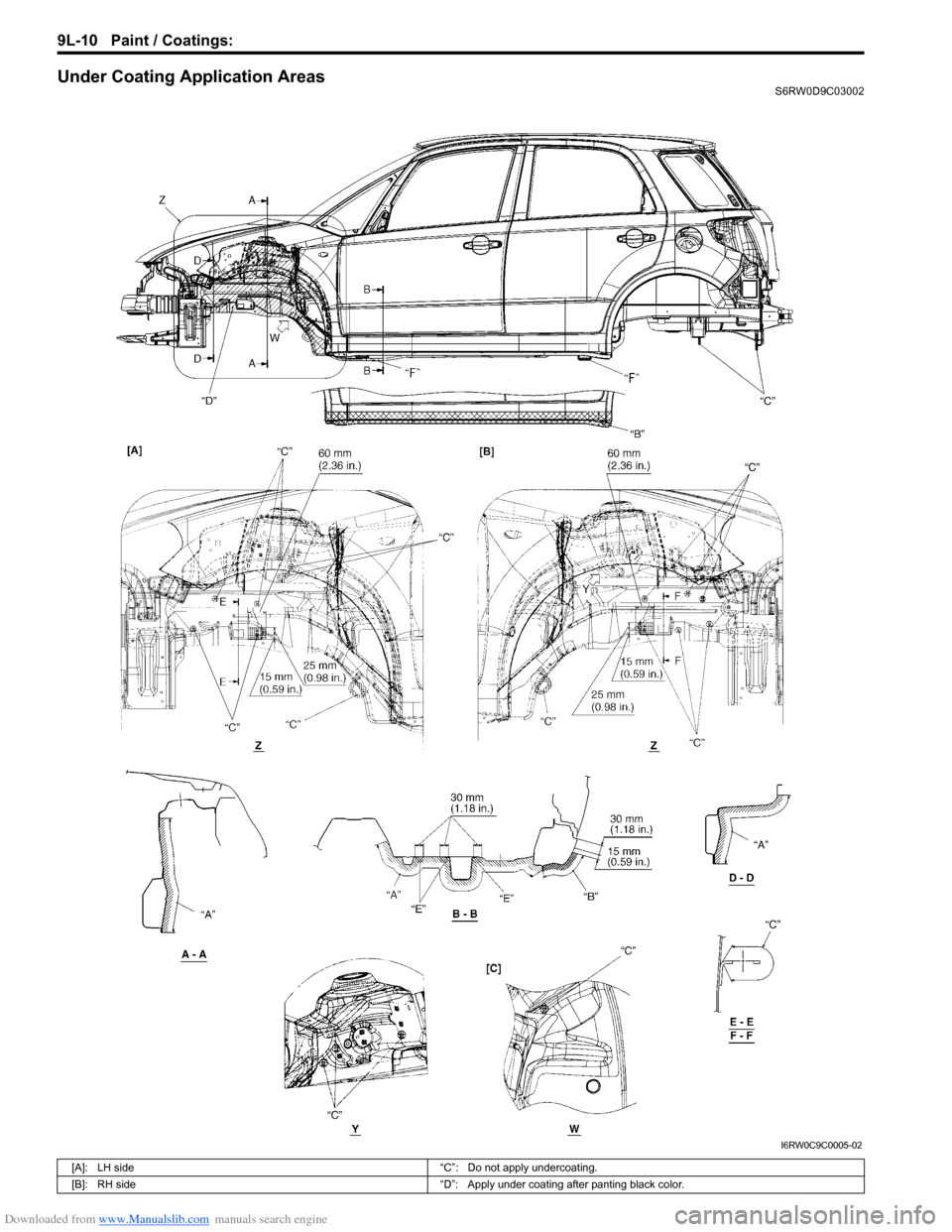

Under Coating Application AreasS6RW0D9C03002
I6RW0C9C0005-02
[A]: LH side “C”: Do not apply undercoating.
[B]: RH side “D”: Apply under coating after panting black color.

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-11

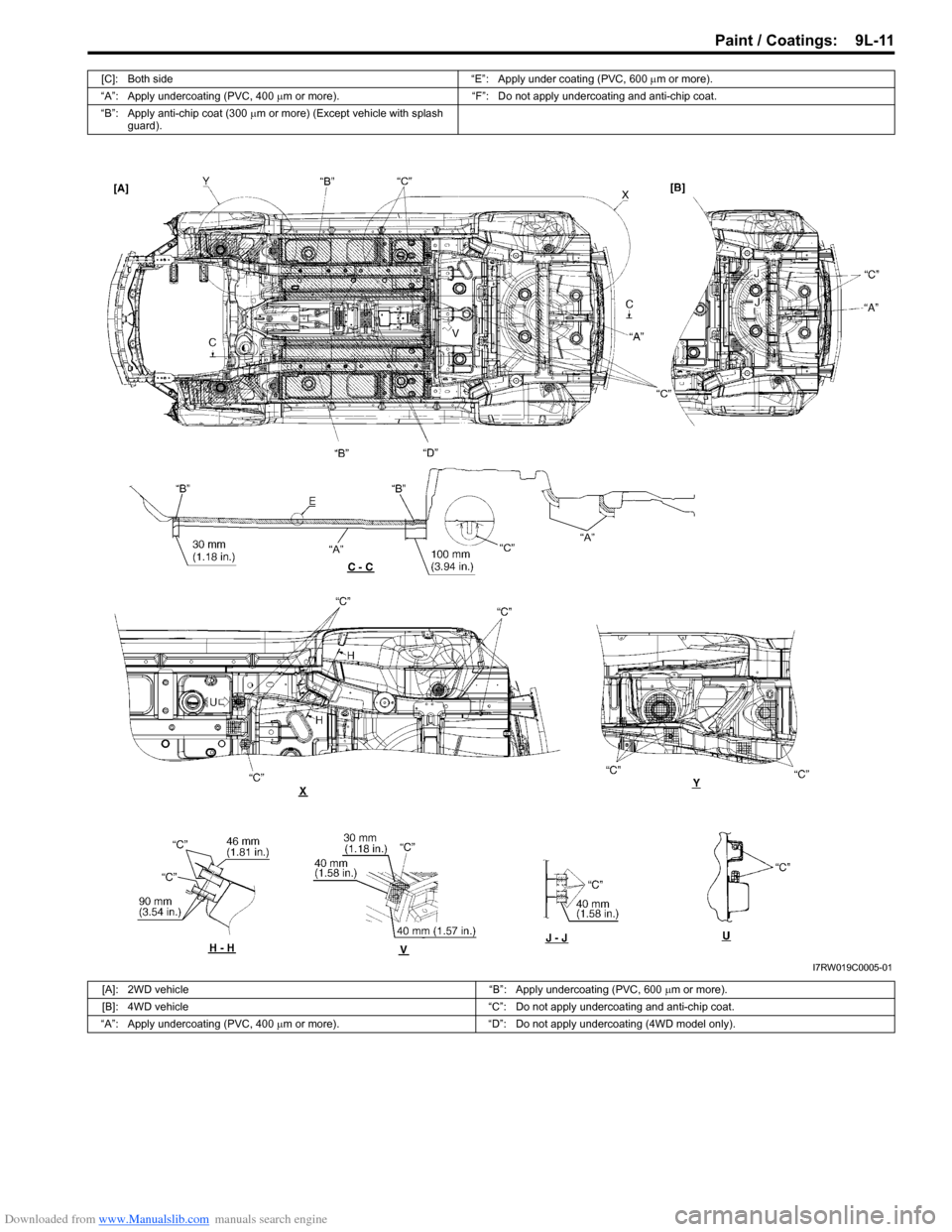

[C]: Both side “E”: Apply under coating (PVC, 600 µm or more).
“A”: Apply undercoating (PVC, 400 µm or more). “F”: Do not apply undercoating and anti-chip coat.
“B”: Apply anti-chip coat (300 µm or more) (Except vehicle with splash
guard).
I7RW019C0005-01
[A]: 2WD vehicle “B”: Apply undercoating (PVC, 600 µm or more).
[B]: 4WD vehicle “C”: Do not apply undercoating and anti-chip coat.
“A”: Apply undercoating (PVC, 400 µm or more). “D”: Do not apply undercoating (4WD model only).

Downloaded from www.Manualslib.com manuals search engine 9L-12 Paint / Coatings:

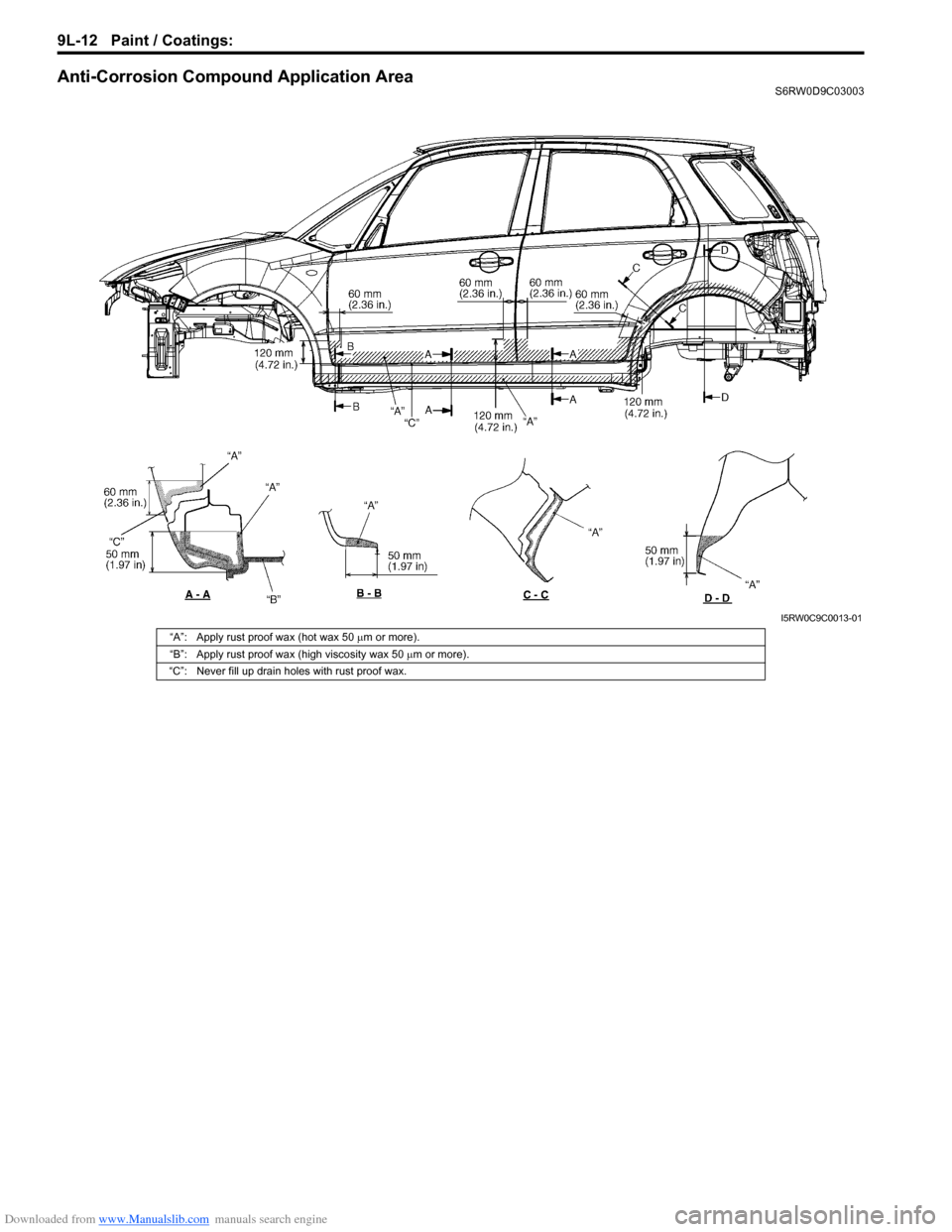

Anti-Corrosion Compound Application AreaS6RW0D9C03003
I5RW0C9C0013-01
“A”: Apply rust proof wax (hot wax 50 µm or more).
“B”: Apply rust proof wax (high viscosity wax 50 µm or more).
“C”: Never fill up drain holes with rust proof wax.

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-13

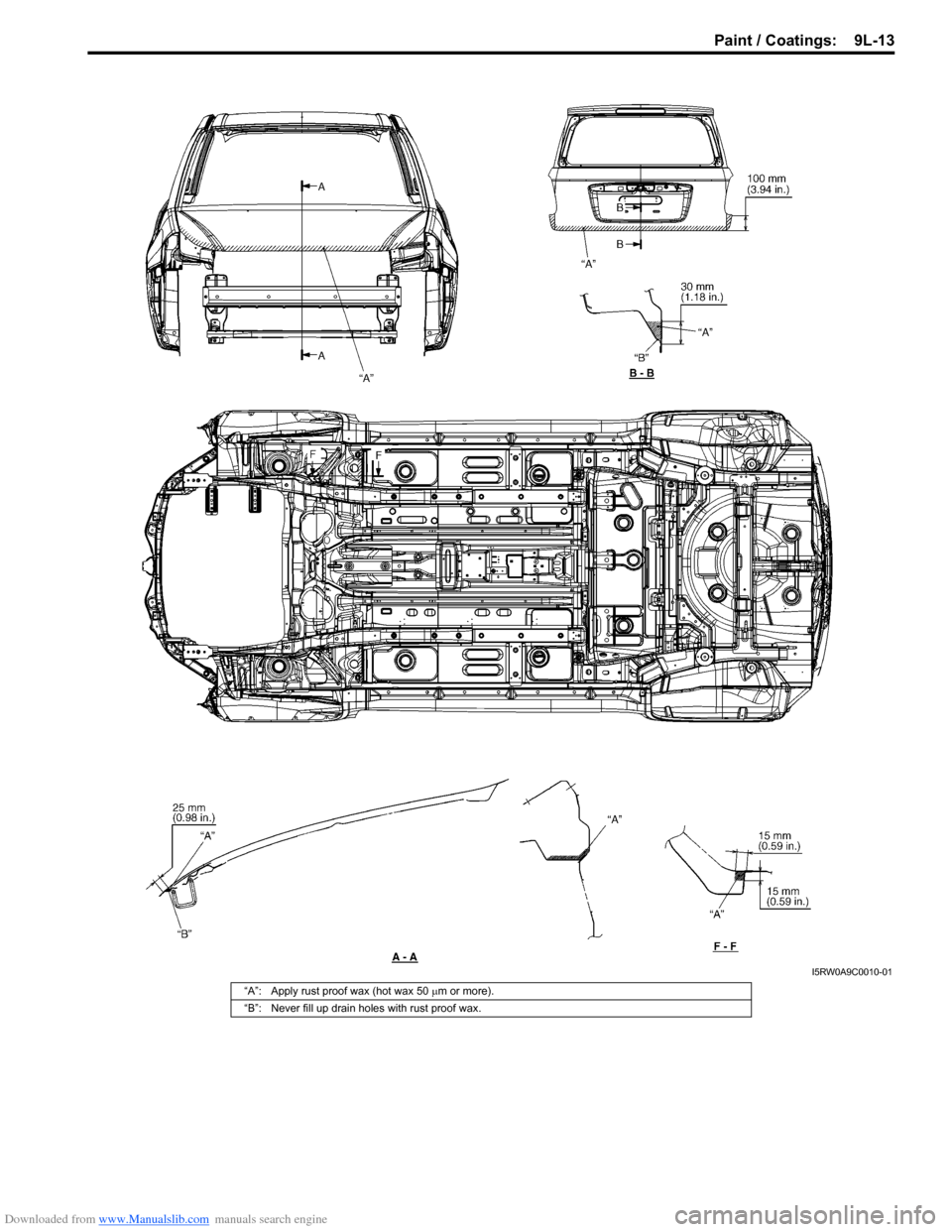

I5RW0A9C0010-01
“A”: Apply rust proof wax (hot wax 50 µm or more).
“B”: Never fill up drain holes with rust proof wax.

Downloaded from www.Manualslib.com manuals search engine 9M-1 Exterior Trim:
Body, Cab and Accessories
Exterior Trim
Repair Instructions

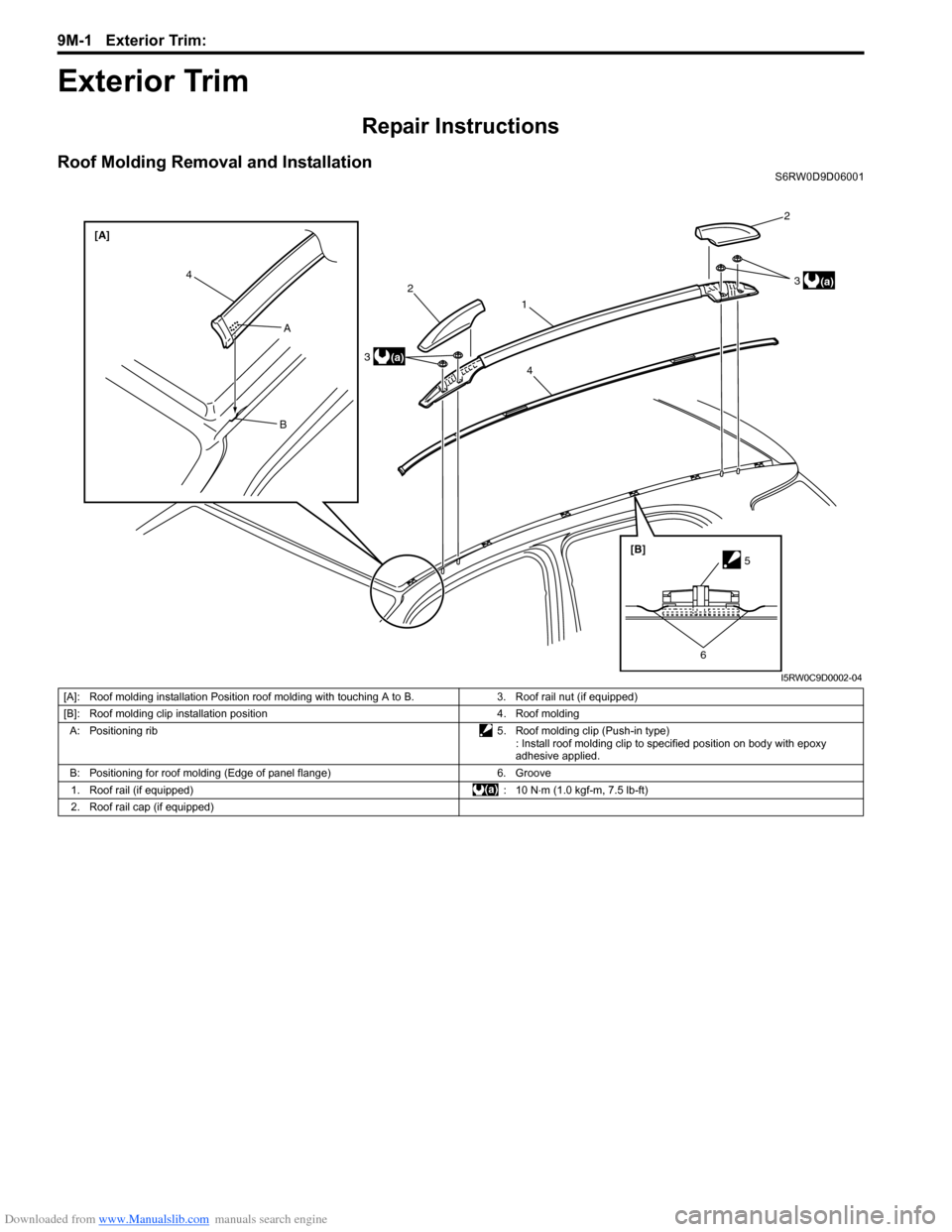

Roof Molding Removal and InstallationS6RW0D9D06001
2
312
3
44 [A]
A
B
[B]
5
6
(a)
(a)
I5RW0C9D0002-04
[A]: Roof molding installation Position roof molding with touching A to B. 3. Roof rail nut (if equipped)
[B]: Roof molding clip installation position 4. Roof molding
A: Positioning rib 5. Roof molding clip (Push-in type)
: Install roof molding clip to specified position on body with epoxy
adhesive applied.
B: Positioning for roof molding (Edge of panel flange) 6. Groove
1. Roof rail (if equipped) : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
2. Roof rail cap (if equipped)

Downloaded from www.Manualslib.com manuals search engine Exterior Trim: 9M-2

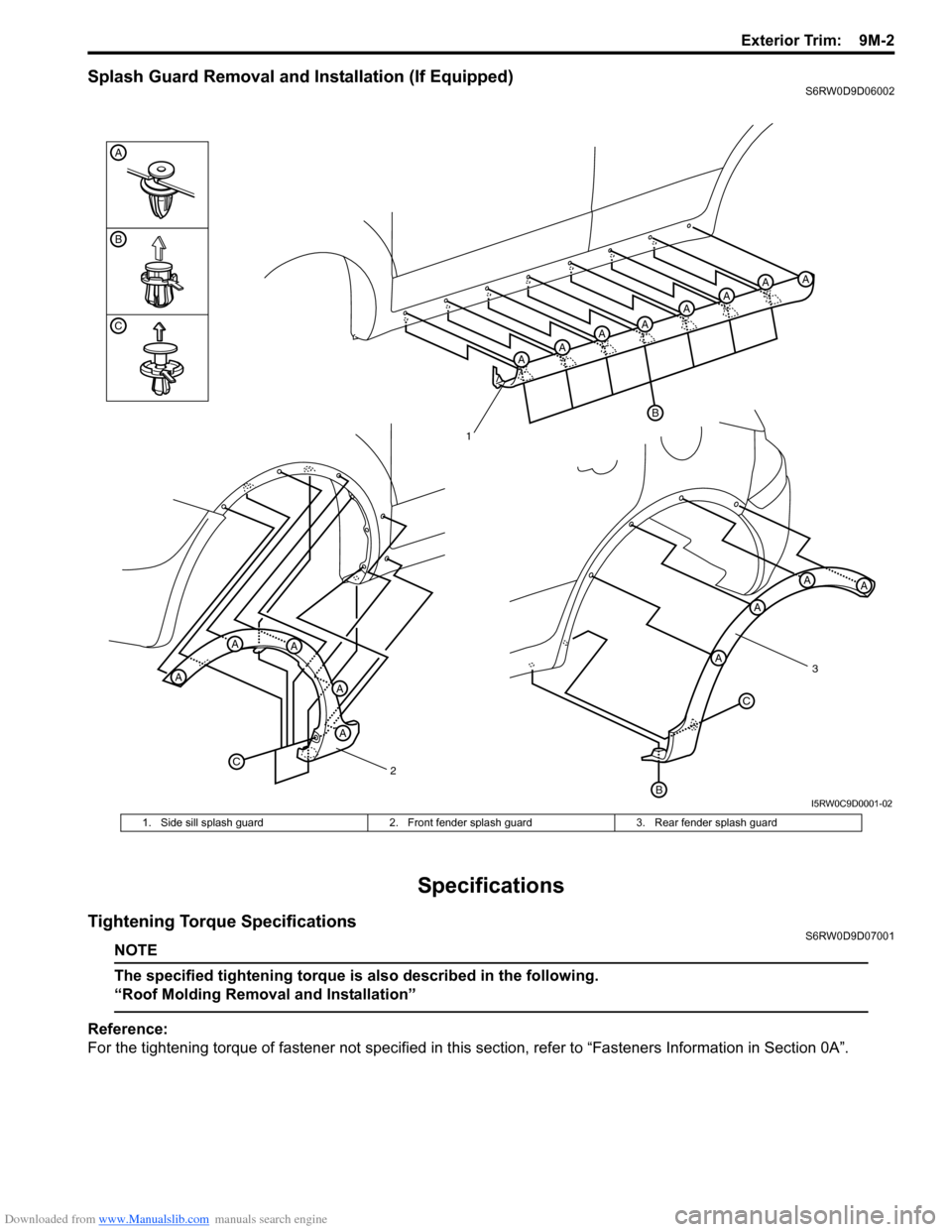

Splash Guard Removal and Installation (If Equipped)S6RW0D9D06002
Specifications
Tightening Torque SpecificationsS6RW0D9D07001
NOTE
The specified tightening torque is also described in the following.
“Roof Molding Removal and Installation”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
A
B
A
AA
A
A
C
B
C
A
A
AA
B
AAAA
AAAA
C
1
23
I5RW0C9D0001-02
1. Side sill splash guard 2. Front fender splash guard 3. Rear fender splash guard

Downloaded from www.Manualslib.com manuals search engine 9M-3 Exterior Trim:
