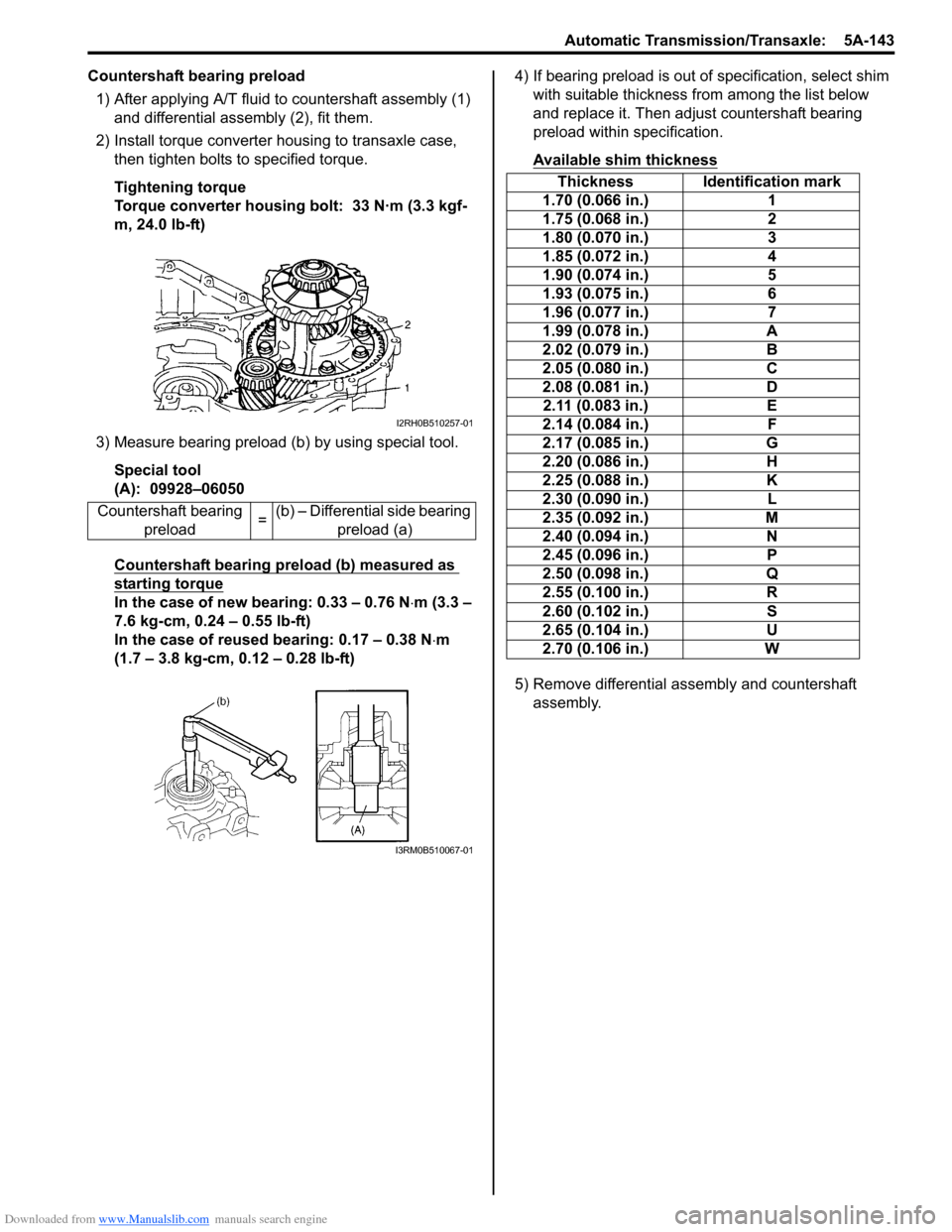

Countershaft bearing preload
1) After applying A/T fluid to countershaft assembly (1)
and differential assembly (2), fit them.
2) Install torque converter housing to transaxle case,
then tighten bolts to specified torque.
Tightening torque
Torque converter housing bolt: 33 N·m (3.3 kgf-
m, 24.0 lb-ft)
3) Measure bearing preload (b) by using special tool.
Special tool
(A): 09928–06050
Countershaft bearing preload (b) measured as
starting torque
In the case of new bearing: 0.33 – 0.76 N⋅m (3.3 –
7.6 kg-cm, 0.24 – 0.55 lb-ft)
In the case of reused bearing: 0.17 – 0.38 N⋅m
(1.7 – 3.8 kg-cm, 0.12 – 0.28 lb-ft)4) If bearing preload is out of specification, select shim
with suitable thickness from among the list below
and replace it. Then adjust countershaft bearing
preload within specification.
Available shim thickness
5) Remove differential assembly and countershaft
assembly. Countershaft bearing
preload=(b) – Differential side bearing
preload (a)
I2RH0B510257-01
I3RM0B510067-01
Thickness Identification mark
1.70 (0.066 in.) 1
1.75 (0.068 in.) 2
1.80 (0.070 in.) 3
1.85 (0.072 in.) 4
1.90 (0.074 in.) 5
1.93 (0.075 in.) 6
1.96 (0.077 in.) 7
1.99 (0.078 in.) A
2.02 (0.079 in.) B
2.05 (0.080 in.) C
2.08 (0.081 in.) D
2.11 (0.083 in.) E
2.14 (0.084 in.) F
2.17 (0.085 in.) G
2.20 (0.086 in.) H
2.25 (0.088 in.) K
2.30 (0.090 in.) L
2.35 (0.092 in.) M
2.40 (0.094 in.) N
2.45 (0.096 in.) P
2.50 (0.098 in.) Q
2.55 (0.100 in.) R
2.60 (0.102 in.) S
2.65 (0.104 in.) U
2.70 (0.106 in.) W

Downloaded from www.Manualslib.com manuals search engine 5A-144 Automatic Transmission/Transaxle:
Automatic Transaxle Unit AssemblyS6RW0D5106058
CAUTION!
• Automatic transaxle consists of highly
precise parts. As even flaw in small part
may cause oil leakage or decrease in
function, check each part carefully before
installation.
• Clean all parts with compressed air. Never
use wiping cloths or rags.
• Before assembling new clutch or brake
discs, soak them in automatic transaxle
fluid for at least 2 hours.
• Be sure to use new gaskets and O-rings.
• Lubricate O-rings with automatic transaxle
fluid.
• Apply automatic transaxle fluid on sliding
or rotating surfaces of the parts before
assembly.
• Use Suzuki Super Grease “C” to retain
parts in place.
• Be sure to install thrust bearings and races
in correct direction and position.
• Make sure that snap ring ends are not
aligned with one of cutouts and are
installed in groove correctly.
• Do not use adhesive cements on gaskets
and similar parts.
• Be sure to torque each bolt and nut to
specification.

1) Install new manual shift shaft oil seal to transaxle
case.
Use special tool and hammer to install it, and then
apply grease to its lip.
Special tool
(A): 09925–98210
“A”: Grease 99000–25030 (SUZUKI Super
Grease C)
Manual shift shaft oil seal installing depth
“a”: 0.75 – 1.25 mm (0.03 – 0.05 in.)2) Install manual detent spring (1) to transaxle case
and tighten manual detent spring bolt to specified
torque.
Tightening torque
Manual detent spring bolt (a): 10 N·m (1.0 kgf-
m, 7.5 lb-ft)
3) Install parking lock pawl rod (2) to manual valve lever
(1).
4) After applying A/T fluid to new manual valve lever
(1), install new manual shift shaft (4), new spacer (3)
and manual valve lever to transaxle case.
5) After installing manual valve lever pin (2) by using
spring pin remover with 3 mm (0.12 in.) in diameter
(5) and hammer, turn spacer to set the position as
shown in figure. Then caulk spacer with a punch.
“a”
(A)
“A”
I2RH0B510258-01
I2RH0B510259-01
I2RH0B510260-01
I2RH0B510261-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-145
6) Install parking lock pawl bracket (1) to transaxle
case.
Tightening torque
Parking lock pawl bracket bolt (a): 7.5 N·m (0.75
kgf-m, 5.5 lb-ft)

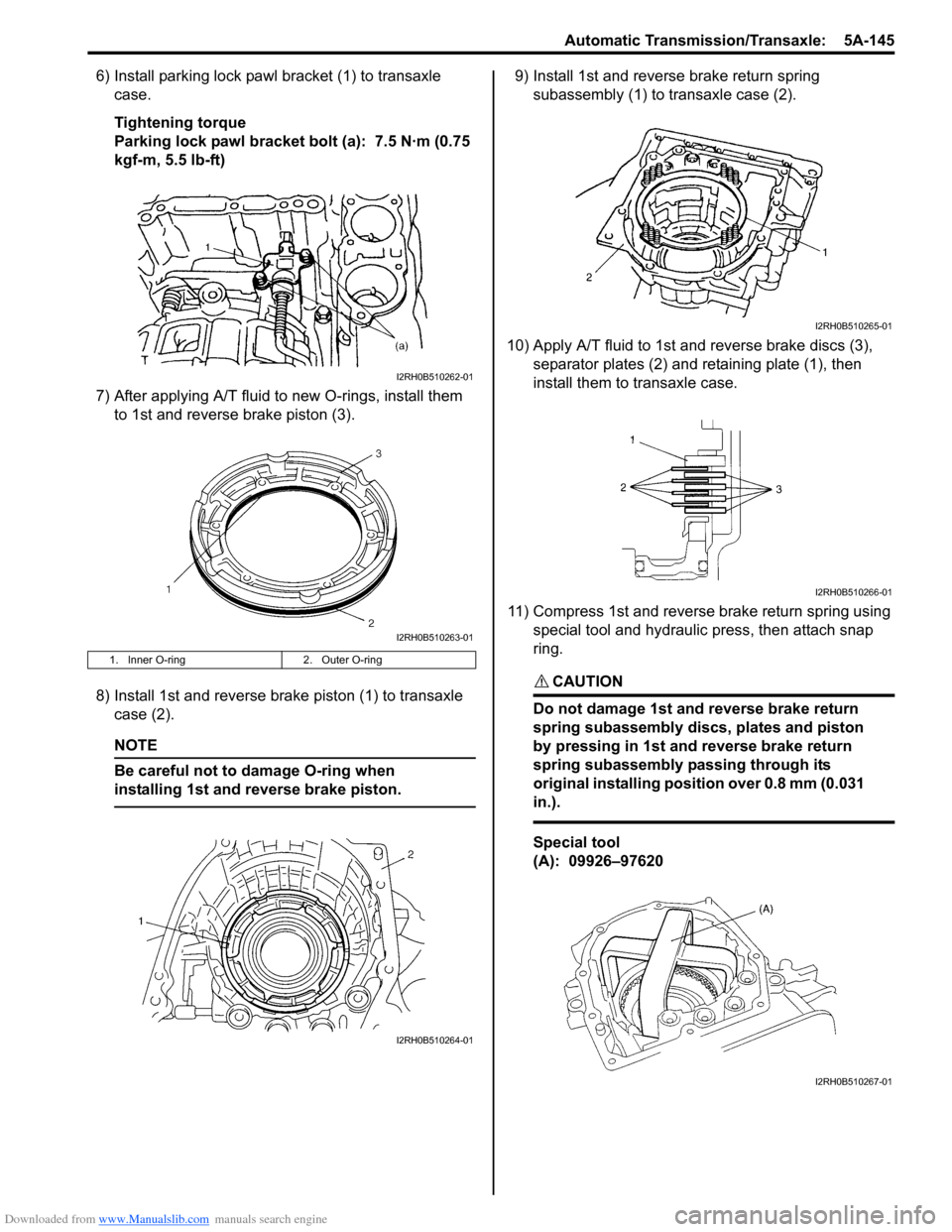

7) After applying A/T fluid to new O-rings, install them
to 1st and reverse brake piston (3).
8) Install 1st and reverse brake piston (1) to transaxle
case (2).
NOTE
Be careful not to damage O-ring when
installing 1st and reverse brake piston.

9) Install 1st and reverse brake return spring
subassembly (1) to transaxle case (2).
10) Apply A/T fluid to 1st and reverse brake discs (3),
separator plates (2) and retaining plate (1), then
install them to transaxle case.
11) Compress 1st and reverse brake return spring using
special tool and hydraulic press, then attach snap
ring.
CAUTION!
Do not damage 1st and reverse brake return
spring subassembly discs, plates and piston
by pressing in 1st and reverse brake return
spring subassembly passing through its
original installing position over 0.8 mm (0.031
in.).

Special tool
(A): 09926–97620
1. Inner O-ring 2. Outer O-ring
I2RH0B510262-01
I2RH0B510263-01
I2RH0B510264-01
I2RH0B510265-01
I2RH0B510266-01
I2RH0B510267-01

Downloaded from www.Manualslib.com manuals search engine 5A-146 Automatic Transmission/Transaxle:
12) Install 1st and reverse brake plate snap ring so that
its both ends would be positioned in correct locations
as shown in figure.
13) Using special tools, measure 1st and reverse brake
piston stroke when compressed air (400 – 800 kPa,
4 – 8 kg/cm
2, 57 – 113 psi) is brown through oil hole.
Special tool
(A): 09900–20607
(B): 09900–20701
(C): 09952–06020
1st and reverse brake piston stroke
Standard: 0.791 – 1.489 mm (0.0311 – 0.0586 in.)14) Install reduction drive gear (1) to transaxle case (3)
by using special tools and hydraulic press.
CAUTION!
• Do not use transaxle case as groundwork
to press fit reduction drive gear.
• Do not give load more than 20 kN (2000 kg,
4410 lb) with hydraulic press. Otherwise, it
may result in damaging reduction drive
gear bearing.

NOTE
When replacing reduction drive gear, replace
it together with reduction driven gear as a
set.

Special tool
(A): 09951–18210
(B): 09944–78210
15) Install parking lock pawl (1) and spring (2). Apply A/T
fluid to parking lock pawl shaft, then insert it into
transaxle case.
[A]: Correct [B]: Incorrect
I2RH0B510268-01
I2RH0B510269-01
2. Stand that can slightly lift transaxle case.
I2RH0B510270-01
I2RH0B510271-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-147

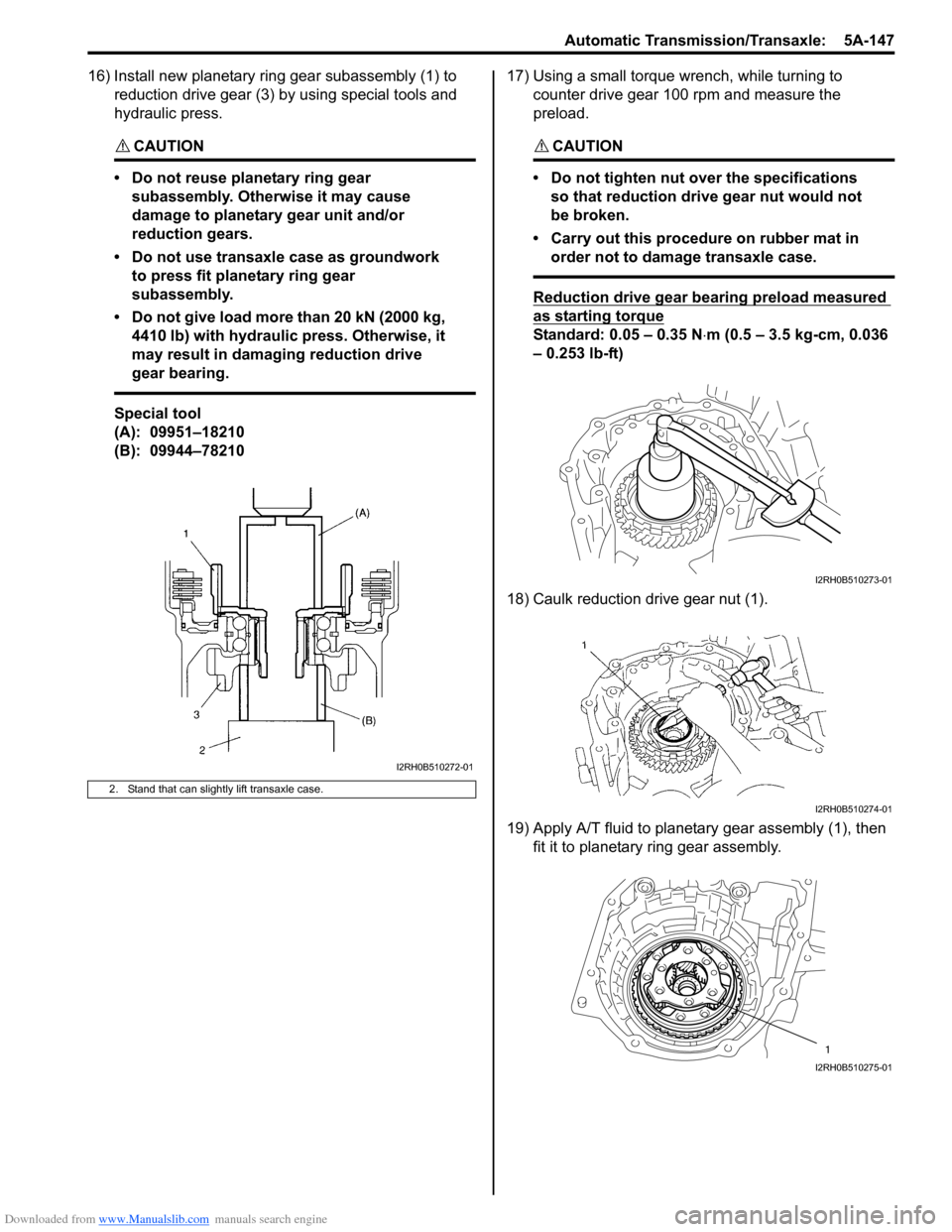

16) Install new planetary ring gear subassembly (1) to
reduction drive gear (3) by using special tools and
hydraulic press.
CAUTION!
• Do not reuse planetary ring gear
subassembly. Otherwise it may cause
damage to planetary gear unit and/or
reduction gears.
• Do not use transaxle case as groundwork
to press fit planetary ring gear
subassembly.
• Do not give load more than 20 kN (2000 kg,
4410 lb) with hydraulic press. Otherwise, it
may result in damaging reduction drive
gear bearing.

Special tool
(A): 09951–18210
(B): 09944–7821017) Using a small torque wrench, while turning to
counter drive gear 100 rpm and measure the
preload.
CAUTION!
• Do not tighten nut over the specifications
so that reduction drive gear nut would not
be broken.
• Carry out this procedure on rubber mat in
order not to damage transaxle case.

Reduction drive gear bearing preload measured
as starting torque
Standard: 0.05 – 0.35 N⋅m (0.5 – 3.5 kg-cm, 0.036
– 0.253 lb-ft)
18) Caulk reduction drive gear nut (1).
19) Apply A/T fluid to planetary gear assembly (1), then
fit it to planetary ring gear assembly.
2. Stand that can slightly lift transaxle case.
I2RH0B510272-01
I2RH0B510273-01
I2RH0B510274-01
1
I2RH0B510275-01

Downloaded from www.Manualslib.com manuals search engine 5A-148 Automatic Transmission/Transaxle:
20) Check for correct installation of planetary gear
assembly as follows.
Measure the distance “a” by using micrometer
caliper (1) and straightedge (2). If measured value is
out of specification, remove planetary gear assembly
and reinstall it properly.
Distance between planetary gear assembly and
mating surface of transaxle case
“a”: More than 49.9 m (1.965 in.)
21) Apply A/T fluid to one-way clutch No.2 assembly (1),
then install it to planetary gear assembly. After that,
ensure that planetary carrier rotates only in
counterclockwise direction “A”, not in clockwise
direction “B”.22) Install one-way clutch outer race retainer (1).
23) Apply A/T fluid to new brake drum gasket (1), then
install it to transaxle case.
24) Apply A/T fluid to 2nd brake retaining plate (1), discs
(2) and separator plates (3), then install them to
transaxle case.
25) Install 2nd brake return spring subassembly (1) to
transaxle case.
“a”
“a”
2
1
I2RH0B510276-01
I2RH0B510277-01
I2RH0B510278-01
I2RH0B510279-01
2
3
1
I2RH0B510280-01
1
I2RH0B510281-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-149
26) Apply A/T fluid to 2nd brake piston assembly (1), and
align the projection of 2nd brake piston assembly
with the groove of transaxle case, then put together.
27) Install 2nd brake piston snap ring (1) by using
special tool and hydraulic press.
CAUTION!
Do not damage 2nd brake piston assembly,
return spring subassembly, plates and discs
by pressing in 2nd brake assembly passing
through its original installing position over
0.4 mm (0.016 in.).

Special tool
(A): 09926–96050
28) Check 2nd brake piston stroke by measuring
clearance between 2nd brake separator plate (1)
and piston (2) with feeler gauge (3).
If clearance, that is, piston stroke is out of
specification replace clutch discs and plates with
new ones.
CAUTION!
When brake disc, retaining plate and/or
separator plate of 2nd brake have been
replaced, all learned contents, which have
been stored in TCM memory by executing
learning control, should be initialized
referring to “Learning Control Initialization”.
Neglecting this initialization may cause
excessive shift shock.

2nd brake piston stroke
Standard: 0.40 – 1.25 mm (0.016 – 0.049 in.)
29) After applying A/T fluid to front sun gear thrust
bearing race (2), install it to front planetary sun gear
(1).
30) Apply A/T fluid to front planetary sun gear (1) and
install it to planetary gear assembly (2).
I2RH0B510282-01
I2RH0B510283-01
32
1
I2RH0B510284-01
I2RH0B510285-01
I2RH0B510286-01

Downloaded from www.Manualslib.com manuals search engine 5A-150 Automatic Transmission/Transaxle:
31) Install O/D and 2nd coast brake retaining plate snap
ring (1).
CAUTION!
Be sure to install O/D and 2nd coast brake
retaining plate snap ring correctly in groove
of transaxle case.

32) After applying grease to slide contact face of
planetary carrier thrust washer (1), install it to
planetary gear assembly.
“A”: Grease 99000–25030 (SUZUKI Super
Grease C)
33) Apply A/T fluid to one-way clutch No.1 assembly (3)
and install one-way clutch No.1 assembly (3) to rear
planetary sun gear subassembly (2).
34) Apply A/T fluid to planetary gear thrust bearing (1),
then install it to one-way clutch No.1 assembly (3).35) After applying A/T fluid to rear planetary sun gear
subassembly and one-way clutch No.1 assembly (1),
install them in transaxle case (2).
36) After applying A/T fluid to rear sun gear thrust
bearing race (1), install it to rear planetary sun gear
(2).
37) After applying A/T fluid to rear sun gear thrust
bearing (1), install it to forward clutch hub (2).
38) After applying A/T fluid to forward clutch hub (1),
install it in transaxle case (2).
I2RH0B510287-01
I2RH0B510288-01
I2RH0B510289-01
I2RH0B510290-01
I2RH0B510291-01
I2RH0B510292-01
I2RH0B510293-01

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-151
39) After applying A/T fluid to intermediate shaft thrust
bearing rear race (3), thrust bearing (2) and front
race (1), install them to forward and reverse clutch
assembly (4).
Bearing race dimension
40) Apply A/T fluid to forward and reverse clutch
assembly (1).
Install forward and reverse clutch assembly while
rotating clockwise and counterclockwise frequently
to fit clutch discs to mating hubs.
NOTE
Before installation, align teeth of forward and
reverse clutch discs to facilitate installation.

41) Check for correct installation of forward and reverse
clutch assembly as follows.
Measure distance “a” by using micrometer caliper (1)
and straightedge (2). If out of specification, remove
forward and reverse clutch assembly, forward clutch
hub, rear planetary sun gear subassembly and one-
way clutch No.1 assembly, and reinstall them
properly.
Distance between forward and reverse clutch
assembly and mating surface of transaxle case
“a”: 27.1 – 29.4 mm (1.067 – 1.157 in.)
42) After applying A/T fluid to O/D and 2nd coast brake
retaining plate (4), separator plate (3), discs (2) and
rear plate (1), install them to transaxle case (5). Front race Rear race
Outside
diameter30.6 mm (1.20 in.) 28.2 mm (1.11 in.)
Thickness 2.0 mm (0.08 in.) 2.0 mm (0.08 in.)
I2RH0B510294-01
I2RH0B510295-01
“a”
“a”
1
2
I2RH0B510296-01
I2RH0B510297-01

Downloaded from www.Manualslib.com manuals search engine 5A-152 Automatic Transmission/Transaxle:
43) Measure O/D and 2nd coast brake piston stroke.
• Measure dimension “a” from end face of transaxle
case to O/D and 2nd coast brake rear plate (1)
using straightedge and micrometer caliper.
• Measure dimension “b” from O/D and 2nd coast
brake piston (2) to rear cover assembly mating
surface using straightedge and micrometer
caliper.
• Calculate piston stroke from measured value of
dimensions “a” and “b”.
• Piston stroke = “a” – “b”
O/D and 2nd coast brake piston stroke
Standard: 0.65 – 1.05 mm (0.026 – 0.041 in.)
When piston stroke is out of specification, select O/D
and 2nd coast brake rear plate with proper thickness
from among the following table and replace it.
CAUTION!
When brake disc, retaining plate, separator
plate and/or rear plate of O/D and 2nd coast
brake have been replaced, all learned
contents, which have been stored in TCM
memory by executing learning control,
should be initialized referring to “Learning
Control Initialization”.
Neglecting this initialization may cause
excessive shift shock.

Available O/D and 2nd coast brake rear plate
thickness
44) After applying A/T fluid to new 2nd brake gaskets (1),
install them to transaxle case (2).
45) After applying A/T fluid to reverse clutch drum thrust
bearing (1), install it to forward and reverse clutch
assembly (2).
46) Remove sealant attached to mating surface of
transaxle rear cover (1) completely.
47) Apply sealant to mating surface of transaxle rear
cover (1) by using a nozzle (2) as shown in figure by
such amount that its section is 1.2 mm (0.047 in.) in
diameter.
“A”: Sealant 99000–31230 (SUZUKI Bond
No.1216B) Thickness Identification mark
1.8 mm (0.071 in.) 1
2.0 mm (0.079 in.) 2
2.2 mm (0.087 in.) 3
2.4 mm (0.094 in.) 4
2.6 mm (0.102 in.) 5
I2RH0B510298-01
I2RH0B510299-01
I2RH0B510300-01
“A”2
1
I2RH0B510301-01
