SUZUKI SX4 2006 1.G Service Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Manual Transmission/Transaxle: 5B-9

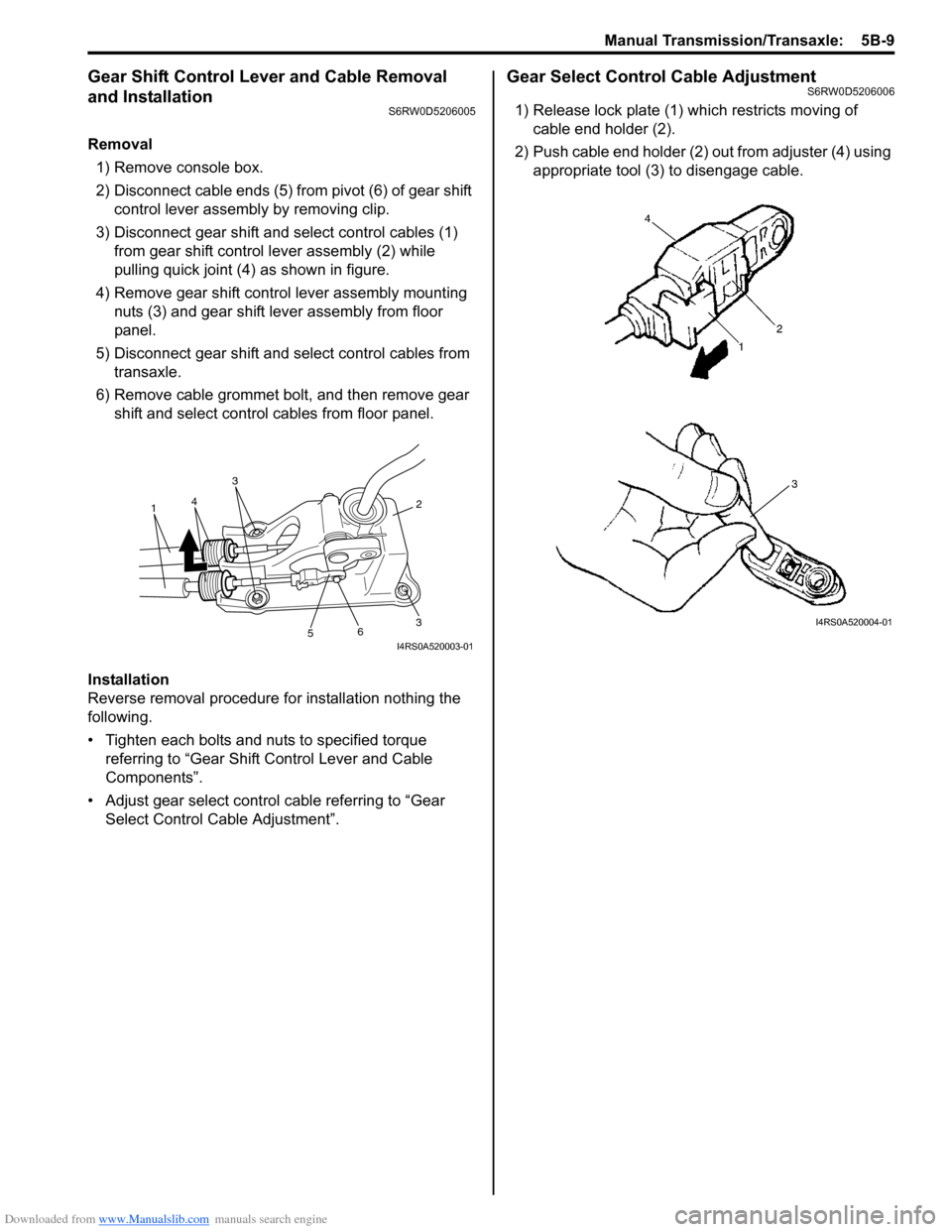

Gear Shift Control Lever and Cable Removal
and Installation
S6RW0D5206005
Removal
1) Remove console box.
2) Disconnect cable ends (5) from pivot (6) of gear shift
control lever assembly by removing clip.
3) Disconnect gear shift and select control cables (1)
from gear shift control lever assembly (2) while
pulling quick joint (4) as shown in figure.
4) Remove gear shift control lever assembly mounting
nuts (3) and gear shift lever assembly from floor
panel.
5) Disconnect gear shift and select control cables from
transaxle.
6) Remove cable grommet bolt, and then remove gear
shift and select control cables from floor panel.
Installation
Reverse removal procedure for installation nothing the
following.
• Tighten each bolts and nuts to specified torque
referring to “Gear Shift Control Lever and Cable
Components”.
• Adjust gear select control cable referring to “Gear
Select Control Cable Adjustment”.
Gear Select Control Cable AdjustmentS6RW0D5206006
1) Release lock plate (1) which restricts moving of
cable end holder (2).
2) Push cable end holder (2) out from adjuster (4) using
appropriate tool (3) to disengage cable.
36
5
2
3
41
I4RS0A520003-01
I4RS0A520004-01

Downloaded from www.Manualslib.com manuals search engine 5B-10 Manual Transmission/Transaxle:
3) Apply grease to pin (5) of gear shift control lever, and
then install adjuster (1) into pin of gear shift control
lever securely.
“A”: Grease 99000–25011 (SUZUKI Super
Grease A)
4) Push cable end holder (2) in the direction of A.
NOTE
At this time, do not apply force in the cable
operation direction B to adjuster.

5) Slide lock plate (3) in the direction of C, until it gets
over the claw (4) of cable end holder.
Back Up Light Switch Removal and InstallationS6RW0D5206007
Removal
1) Remove battery and tray with ECM.
2) Disconnect back up light switch coupler (1).
3) Remove back up light switch.
Installation
1) Apply oil to new O-ring (1) and tighten back up light
switch (2) to specified torque.
Tightening torque
Back up light switch (a): 23 N·m (2.3 kgf-m, 17.0
lb-ft)
2) Connect back up light switch coupler.
3) Install battery and tray with ECM.
Back Up Light Switch InspectionS6RW0D5206008
Check back up light switch for function using ohmmeter.
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
3
3
41
2
A C
1
B
5, “A”
I4RS0A520005-01
2. Gear shift and select shaft assembly
2
1I5RW0A520009-01
1 2, (a)
I3RH0A520006-01
I5RW0A520050-01

Downloaded from www.Manualslib.com manuals search engine Manual Transmission/Transaxle: 5B-11

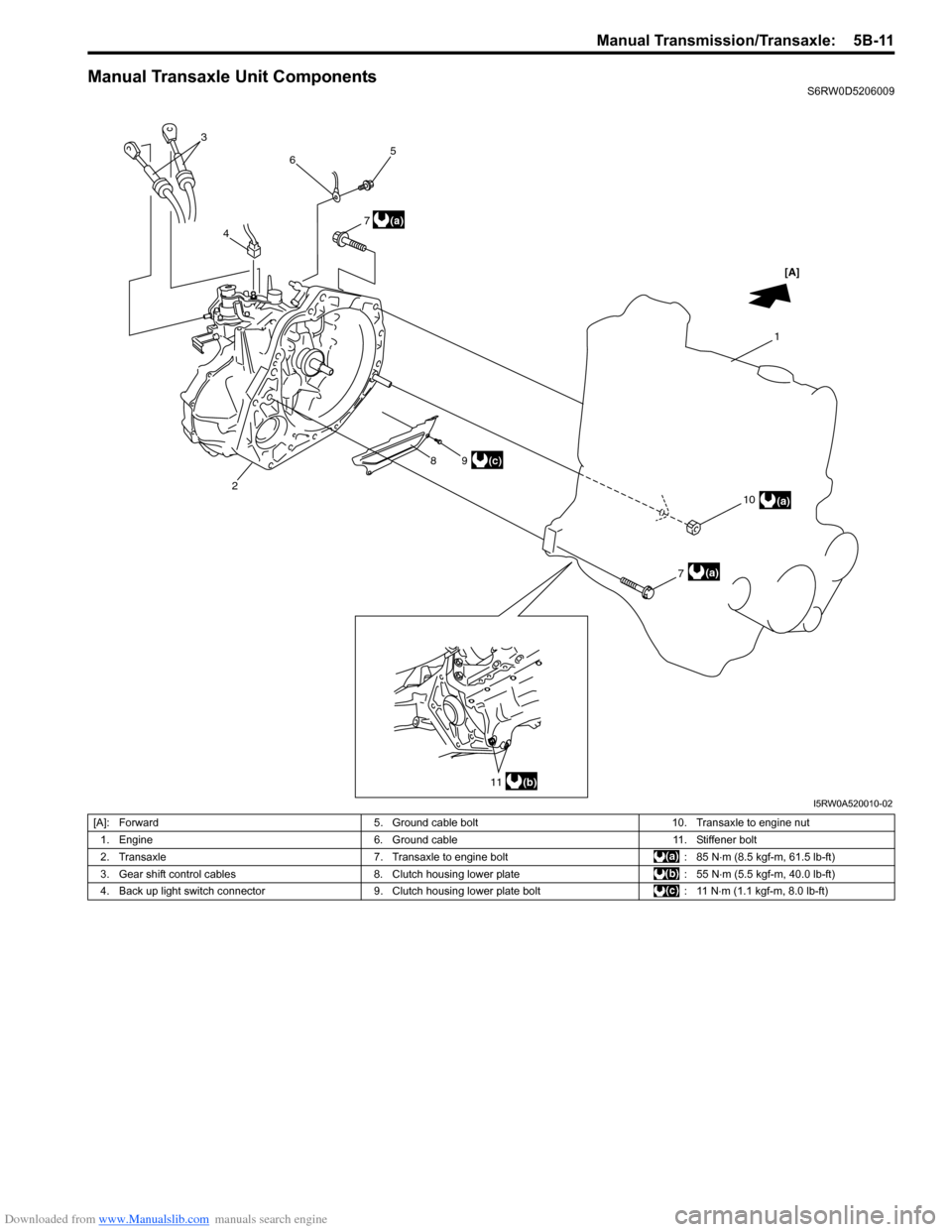

Manual Transaxle Unit ComponentsS6RW0D5206009
3
7(a)4
65
8
2[A]
1
10(a)
7(a) 9
(c)
11(b)
I5RW0A520010-02
[A]: Forward 5. Ground cable bolt 10. Transaxle to engine nut
1. Engine 6. Ground cable 11. Stiffener bolt
2. Transaxle 7. Transaxle to engine bolt : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
3. Gear shift control cables 8. Clutch housing lower plate : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
4. Back up light switch connector 9. Clutch housing lower plate bolt : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)

Downloaded from www.Manualslib.com manuals search engine 5B-12 Manual Transmission/Transaxle:
Manual Transaxle Unit Dismounting and
Remounting
S6RW0D5206010
Dismounting
1) Drain coolant.
2) Remove battery and tray with ECM.
3) Remove air cleaner case and resonator.
4) Remove clutch fluid pipe referring to “Clutch Fluid
Pipe Removal and Installation in Section 5C”.
5) Disconnect back up light switch coupler and undo
wiring harness clamps.
6) Disconnect gear shift and gear select control cables
(1) from transaxle.
7) Remove earth cable from transaxle.
8) Remove water inlet pipe.
9) Remove starting motor referring to “Starting Motor
Dismounting and Remounting in Section 1I”.
10) Remove transaxle to engine bolts (1) of upper side.
11) Drain transaxle oil and transfer oil, if equipped.
12) Remove engine under covers.
13) Remove drive shaft assembly and center shaft
referring to “Front Drive Shaft Assembly Removal
and Installation in Section 3A”.
14) Remove exhaust No.1, No.2 and No.3 pipes
referring to “Exhaust Pipe and Muffler Removal and
Installation in Section 1K”.
15) Remove suspension frame, engine front mounting
member and engine mounting member referring to
“Front Suspension Frame, Stabilizer Bar and/or
Bushing Removal and Installation in Section 2B” and
“Engine Mountings Components in Section 1D”.16) Remove transfer referring to “Transfer Dismounting
and Remounting in Section 3C”, if equipped.
17) Remove clutch housing lower plate.
18) Support transaxle with transmission jack.
19) Remove left mounting (1) and left mounting bracket
(2).
20) Remove stiffener bolts (2), transaxle to engine bolts
(1) and nut of lower side, and then lower transaxle.
Remounting
CAUTION!
• Care should be taken not to scratch oil
seal lip with drive shaft while raising
transaxle.
• Do not hit drive shaft joint with hammer
when installing it into differential gear.

Reverse dismounting procedure for remounting of
transaxle, noting the following points.
• Tighten each bolts and nuts to specified torque
referring to “Manual Transaxle Unit Components” and
“Engine Mountings Components in Section 1D”.
• Set each clamp for wiring securely.
• Fill transaxle oil and transfer oil referring to “Manual
Transaxle Oil Change” and “Transfer Oil Change in
Section 3C”.
• Connect battery and check function of engine, clutch
and transaxle.
1
I5RW0A520011-01
1
I5RW0A520012-01
1
2
I5RW0A520013-01
1
2I5RW0A520014-01

Downloaded from www.Manualslib.com manuals search engine Manual Transmission/Transaxle: 5B-13

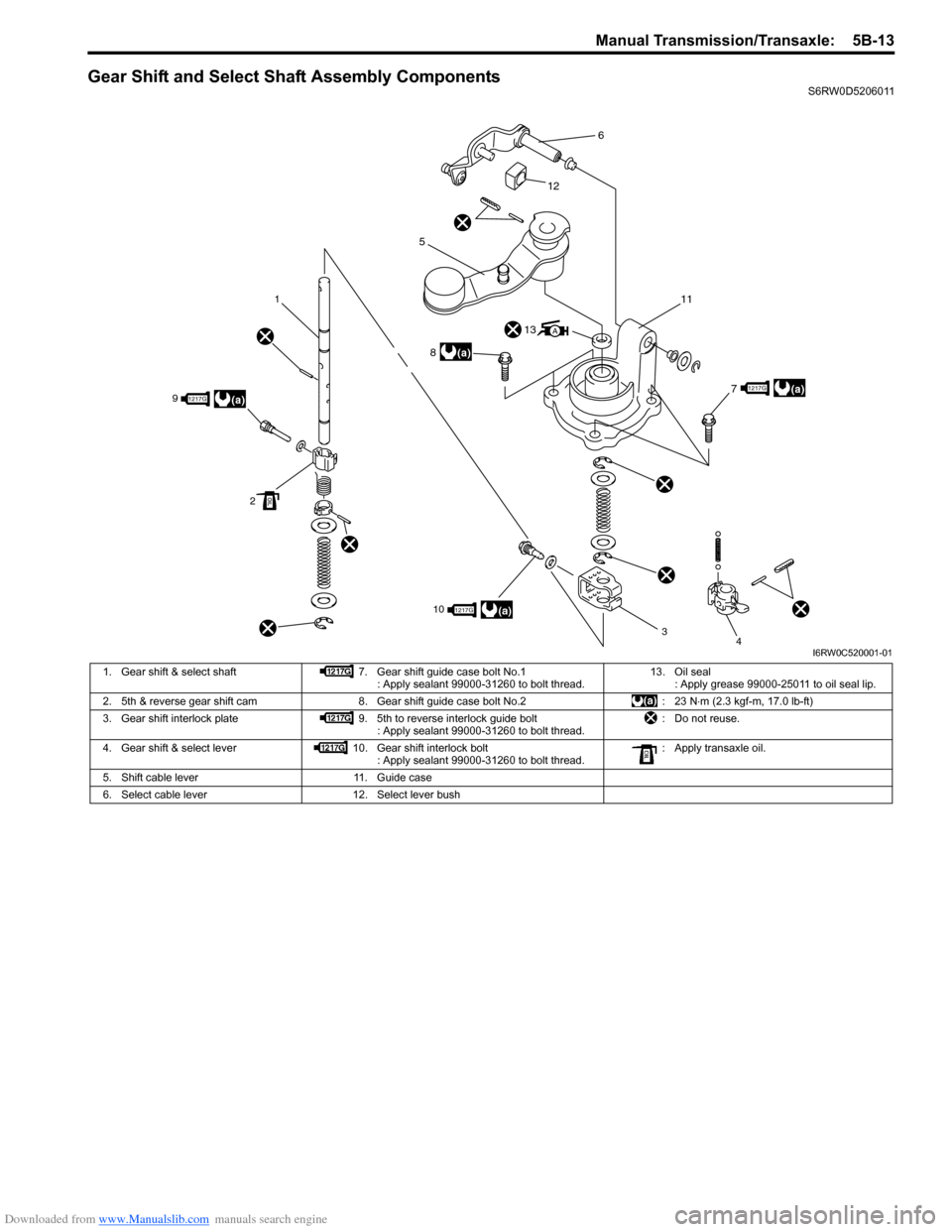

Gear Shift and Select Shaft Assembly ComponentsS6RW0D5206011
1
10
3
4
9
2
6
12
7
11
5
8(a)
(a)
(a)
(a)1217G
1217G
1217G
A13
I6RW0C520001-01
1. Gear shift & select shaft 7. Gear shift guide case bolt No.1
: Apply sealant 99000-31260 to bolt thread.13. Oil seal
: Apply grease 99000-25011 to oil seal lip.
2. 5th & reverse gear shift cam 8. Gear shift guide case bolt No.2 : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
3. Gear shift interlock plate 9. 5th to reverse interlock guide bolt
: Apply sealant 99000-31260 to bolt thread.: Do not reuse.
4. Gear shift & select lever 10. Gear shift interlock bolt
: Apply sealant 99000-31260 to bolt thread.: Apply transaxle oil.
5. Shift cable lever 11. Guide case
6. Select cable lever 12. Select lever bush

Downloaded from www.Manualslib.com manuals search engine 5B-14 Manual Transmission/Transaxle:
Gear Shift and Select Shaft Assembly Removal
and Installation
S6RW0D5206012
Removal
1) Remove battery and tray with ECM.
2) Disconnect gear shift and gear select control cables
from transaxle.
3) Remove gear shift interlock bolt (1) and 5th to
reverse interlock guide bolt (2) from transaxle case.
4) Remove gear shift & select shaft assembly (3).
Installation
1) Clean mating surface of guide case (1) and left case
(5), apply sealant to left case as shown in figure by
such amount that its section is 1.5 mm (0.059 in.) in
diameter, mate guide case with left case.
“B”: Sealant 99000–31260 (SUZUKI Bond
No.1217G)
2) Install guide case bolts No.1 to which sealant has
been applied and guide case bolts No.2 (2), and
tighten them to specified torque.
: Sealant 99000–31260 (SUZUKI Bond No.1217G)
Tightening torque
Guide case bolt No.1: 23 N·m (2.3 kgf-m, 17.0 lb-
ft)
Guide case bolt No.2 (a): 23 N·m (2.3 kgf-m, 17.0
lb-ft)3) Install washer and gear shift interlock bolt (3) to
which sealant has been applied and then tighten it to
specified torque.
“A”: Sealant 99000–31260 (SUZUKI Bond
No.1217G)
Tightening torque
Gear shift interlock bolt (b): 23 N·m (2.3 kgf-m,
17.0 lb-ft)
4) Install washer and 5th to reverse interlock guide bolt
(4) to which sealant has been applied and then
tighten it to specified torque.
“A”: Sealant 99000–31260 (SUZUKI Bond
No.1217G)
Tightening torque
5th to reverse interlock guide bolt (c): 23 N·m (
2.3 kgf-m, 17.0 lb-ft)
5) Connect gear shift and gear select control cables to
transaxle.
6) Install battery and tray with ECM.
7) Check input shaft for rotation in each gear position.
4. Transaxle side cover
3
1
2
4
I5RW0A520016-01
I5RW0A520017-02

Downloaded from www.Manualslib.com manuals search engine Manual Transmission/Transaxle: 5B-15

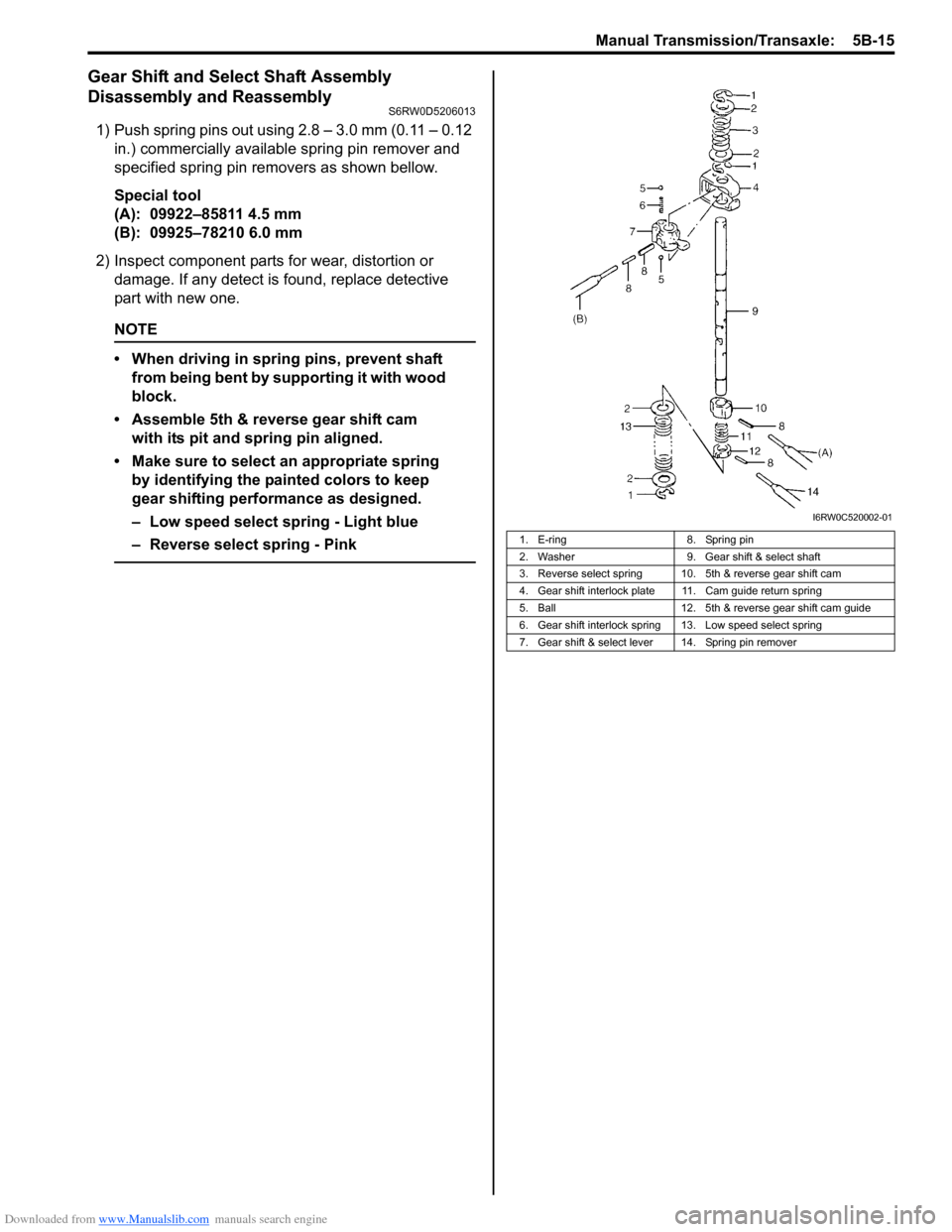

Gear Shift and Select Shaft Assembly
Disassembly and Reassembly
S6RW0D5206013
1) Push spring pins out using 2.8 – 3.0 mm (0.11 – 0.12
in.) commercially available spring pin remover and
specified spring pin removers as shown bellow.
Special tool
(A): 09922–85811 4.5 mm
(B): 09925–78210 6.0 mm
2) Inspect component parts for wear, distortion or
damage. If any detect is found, replace detective
part with new one.
NOTE
• When driving in spring pins, prevent shaft
from being bent by supporting it with wood
block.
• Assemble 5th & reverse gear shift cam
with its pit and spring pin aligned.
• Make sure to select an appropriate spring
by identifying the painted colors to keep
gear shifting performance as designed.
– Low speed select spring - Light blue
– Reverse select spring - Pink

1. E-ring 8. Spring pin
2. Washer 9. Gear shift & select shaft
3. Reverse select spring 10. 5th & reverse gear shift cam
4. Gear shift interlock plate 11. Cam guide return spring
5. Ball 12. 5th & reverse gear shift cam guide
6. Gear shift interlock spring 13. Low speed select spring
7. Gear shift & select lever 14. Spring pin remover
I6RW0C520002-01

Downloaded from www.Manualslib.com manuals search engine 5B-16 Manual Transmission/Transaxle:

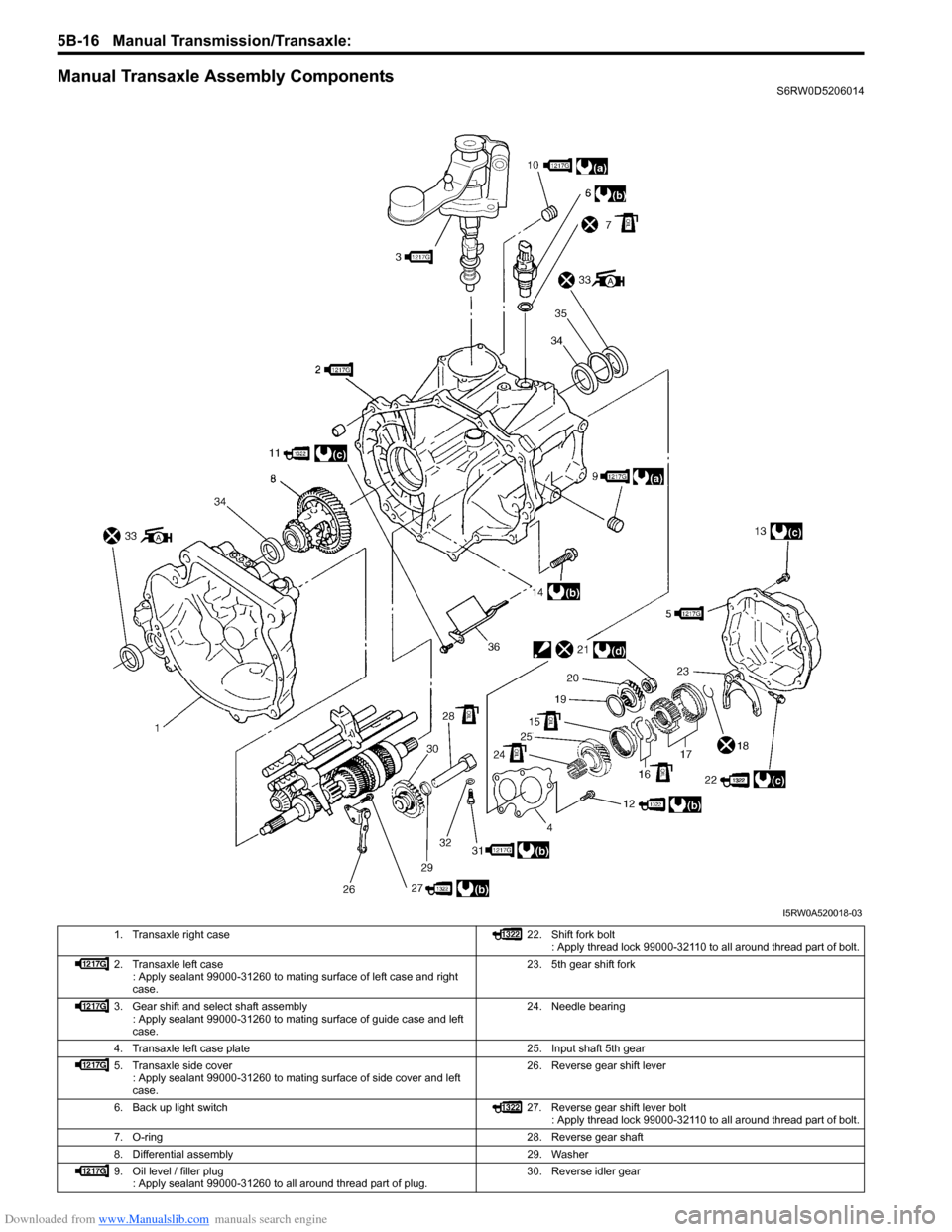

Manual Transaxle Assembly ComponentsS6RW0D5206014
I5RW0A520018-03
1. Transaxle right case 22. Shift fork bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
2. Transaxle left case
: Apply sealant 99000-31260 to mating surface of left case and right
case.23. 5th gear shift fork
3. Gear shift and select shaft assembly
: Apply sealant 99000-31260 to mating surface of guide case and left
case.24. Needle bearing
4. Transaxle left case plate 25. Input shaft 5th gear
5. Transaxle side cover
: Apply sealant 99000-31260 to mating surface of side cover and left
case.26. Reverse gear shift lever
6. Back up light switch 27. Reverse gear shift lever bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
7. O-ring28. Reverse gear shaft
8. Differential assembly 29. Washer
9. Oil level / filler plug
: Apply sealant 99000-31260 to all around thread part of plug.30. Reverse idler gear

Downloaded from www.Manualslib.com manuals search engine Manual Transmission/Transaxle: 5B-17

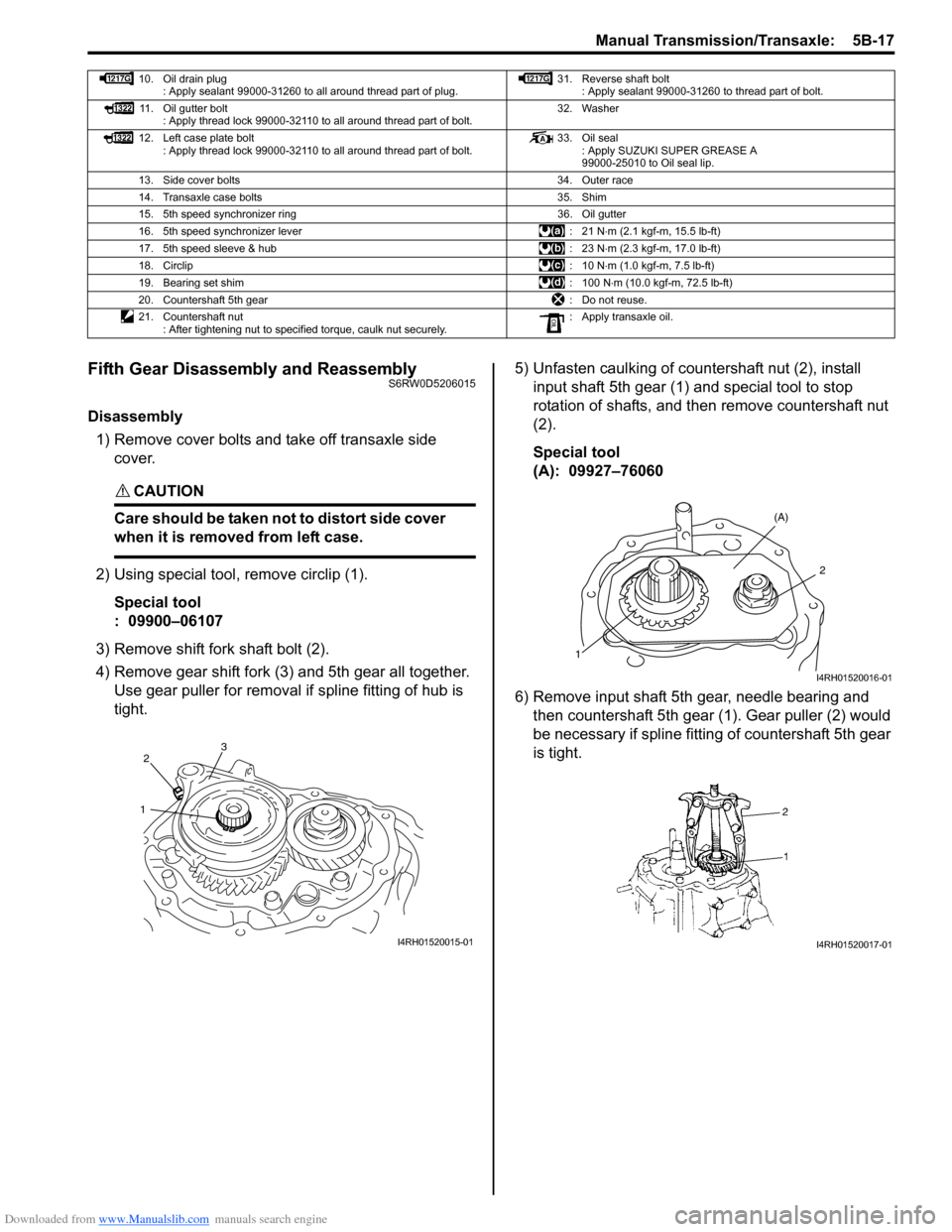

Fifth Gear Disassembly and ReassemblyS6RW0D5206015
Disassembly
1) Remove cover bolts and take off transaxle side
cover.
CAUTION!
Care should be taken not to distort side cover
when it is removed from left case.

2) Using special tool, remove circlip (1).
Special tool
: 09900–06107
3) Remove shift fork shaft bolt (2).
4) Remove gear shift fork (3) and 5th gear all together.
Use gear puller for removal if spline fitting of hub is
tight.5) Unfasten caulking of countershaft nut (2), install
input shaft 5th gear (1) and special tool to stop
rotation of shafts, and then remove countershaft nut
(2).
Special tool
(A): 09927–76060
6) Remove input shaft 5th gear, needle bearing and
then countershaft 5th gear (1). Gear puller (2) would
be necessary if spline fitting of countershaft 5th gear
is tight.
10. Oil drain plug
: Apply sealant 99000-31260 to all around thread part of plug.31. Reverse shaft bolt
: Apply sealant 99000-31260 to thread part of bolt.
11. Oil gutter bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.32. Washer
12. Left case plate bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.33. Oil seal
: Apply SUZUKI SUPER GREASE A
99000-25010 to Oil seal lip.
13. Side cover bolts 34. Outer race
14. Transaxle case bolts 35. Shim
15. 5th speed synchronizer ring 36. Oil gutter
16. 5th speed synchronizer lever : 21 N⋅m (2.1 kgf-m, 15.5 lb-ft)
17. 5th speed sleeve & hub : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
18. Circlip: 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
19. Bearing set shim : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
20. Countershaft 5th gear : Do not reuse.
21. Countershaft nut
: After tightening nut to specified torque, caulk nut securely.: Apply transaxle oil.
32
1
I4RH01520015-01
(A)
2
1
I4RH01520016-01
I4RH01520017-01

Downloaded from www.Manualslib.com manuals search engine 5B-18 Manual Transmission/Transaxle:

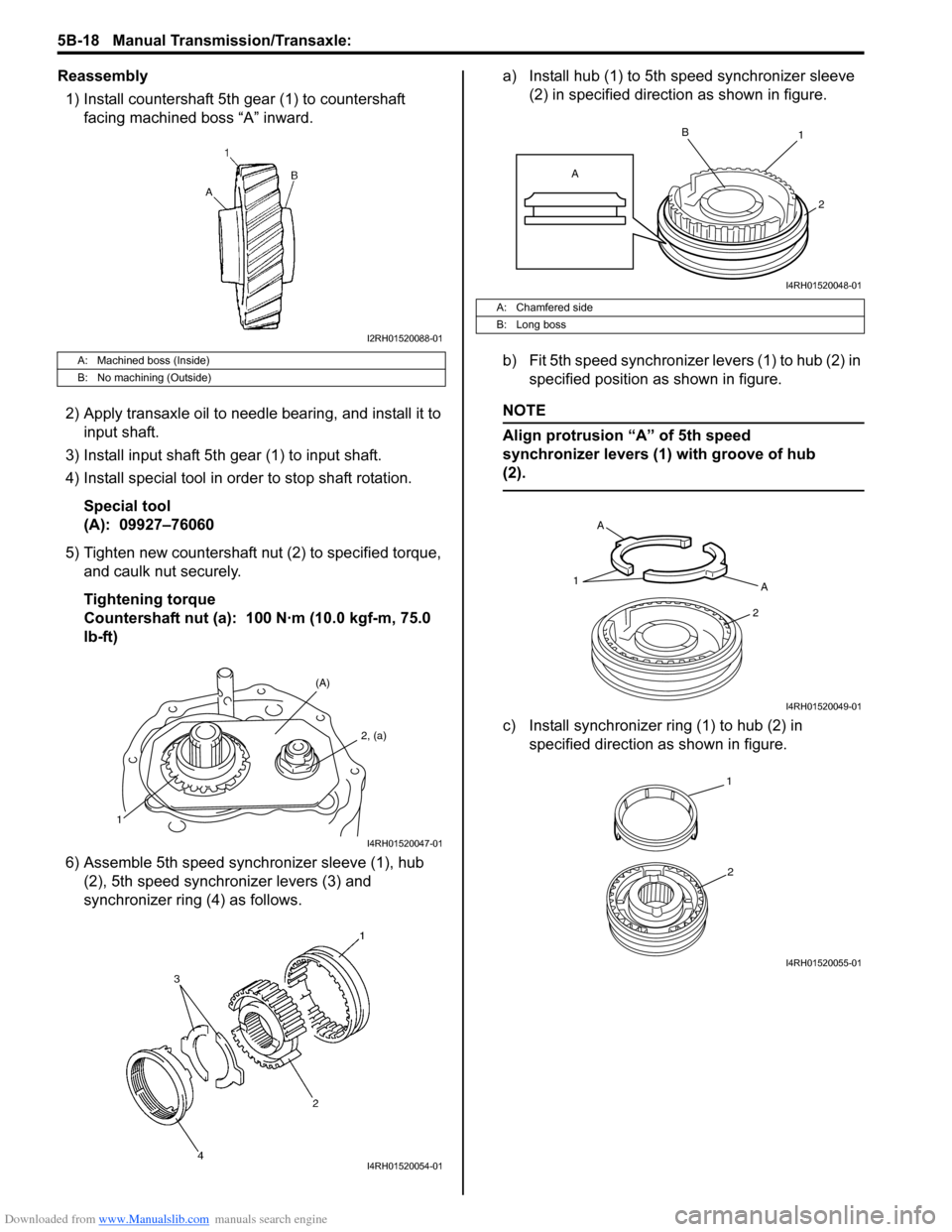

Reassembly
1) Install countershaft 5th gear (1) to countershaft
facing machined boss “A” inward.
2) Apply transaxle oil to needle bearing, and install it to
input shaft.
3) Install input shaft 5th gear (1) to input shaft.
4) Install special tool in order to stop shaft rotation.
Special tool
(A): 09927–76060
5) Tighten new countershaft nut (2) to specified torque,
and caulk nut securely.
Tightening torque
Countershaft nut (a): 100 N·m (10.0 kgf-m, 75.0
lb-ft)
6) Assemble 5th speed synchronizer sleeve (1), hub
(2), 5th speed synchronizer levers (3) and
synchronizer ring (4) as follows.a) Install hub (1) to 5th speed synchronizer sleeve
(2) in specified direction as shown in figure.
b) Fit 5th speed synchronizer levers (1) to hub (2) in
specified position as shown in figure.
NOTE
Align protrusion “A” of 5th speed
synchronizer levers (1) with groove of hub
(2).

c) Install synchronizer ring (1) to hub (2) in
specified direction as shown in figure.
A: Machined boss (Inside)
B: No machining (Outside)
I2RH01520088-01
(A)
2, (a)
1
I4RH01520047-01
I4RH01520054-01
A: Chamfered side
B: Long boss
1
2 B
A
I4RH01520048-01
1A
2 A
I4RH01520049-01
1
2
I4RH01520055-01
