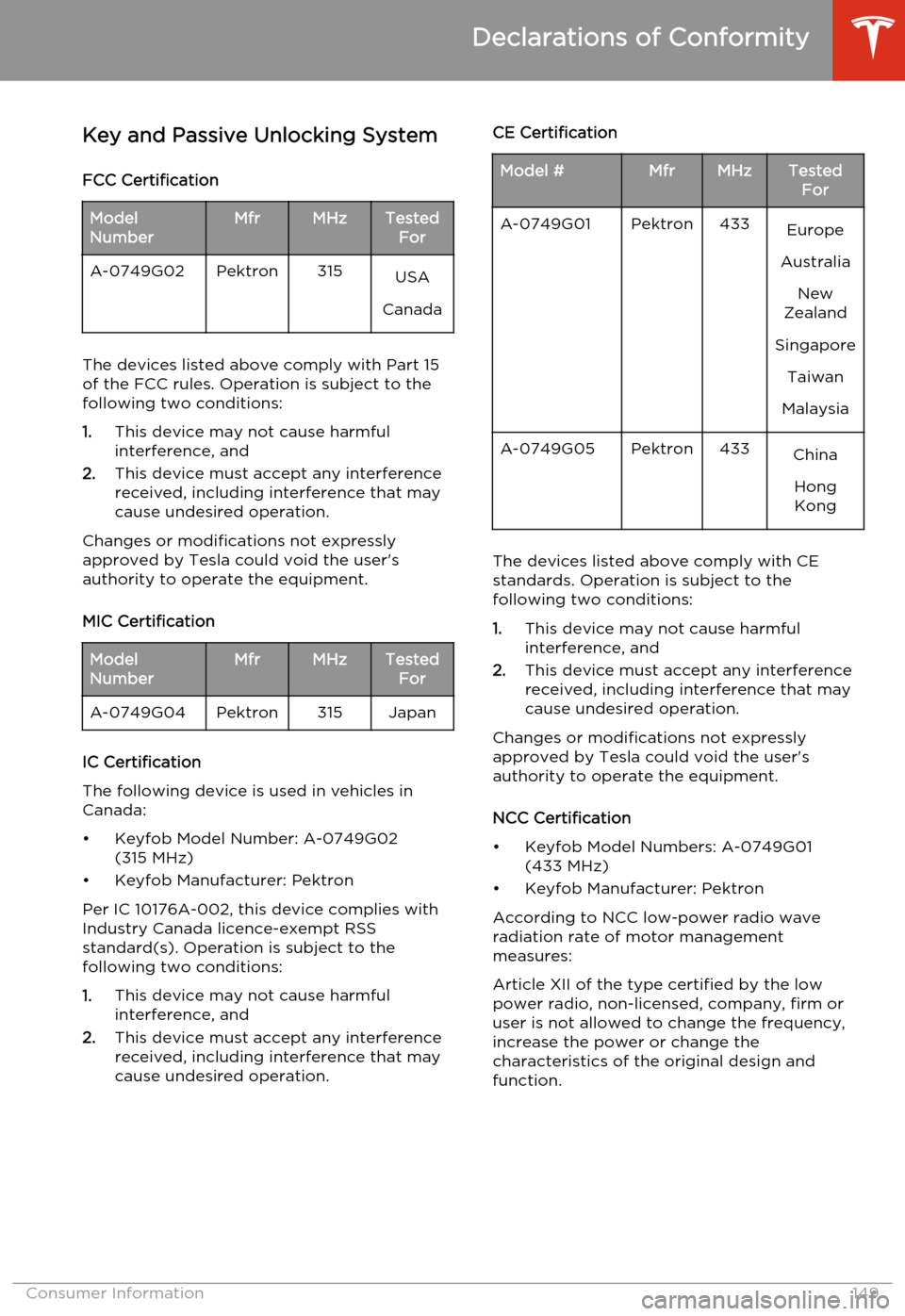

Key and Passive Unlocking System
FCC CertificationModel
NumberMfrMHzTested ForA-0749G02Pektron315USA
Canada
The devices listed above comply with Part 15
of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by Tesla could void the user's
authority to operate the equipment.
MIC Certification
Model
NumberMfrMHzTested ForA-0749G04Pektron315Japan
IC Certification
The following device is used in vehicles in
Canada:
• Keyfob Model Number: A-0749G02 (315 MHz)
• Keyfob Manufacturer: Pektron
Per IC 10176A-002, this device complies with
Industry Canada licence-exempt RSS standard(s). Operation is subject to thefollowing two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation.
CE CertificationModel #MfrMHzTested ForA-0749G01Pektron433Europe
Australia New
Zealand
Singapore Taiwan
MalaysiaA-0749G05Pektron433China
HongKong
The devices listed above comply with CEstandards. Operation is subject to thefollowing two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by Tesla could void the user's authority to operate the equipment.
NCC Certification
• Keyfob Model Numbers: A-0749G01 (433 MHz)
• Keyfob Manufacturer: Pektron
According to NCC low-power radio wave
radiation rate of motor management measures:
Article XII of the type certified by the low
power radio, non-licensed, company, firm or
user is not allowed to change the frequency,
increase the power or change the
characteristics of the original design and
function.
Declarations of Conformity
Consumer Information149
Page 152 of 159

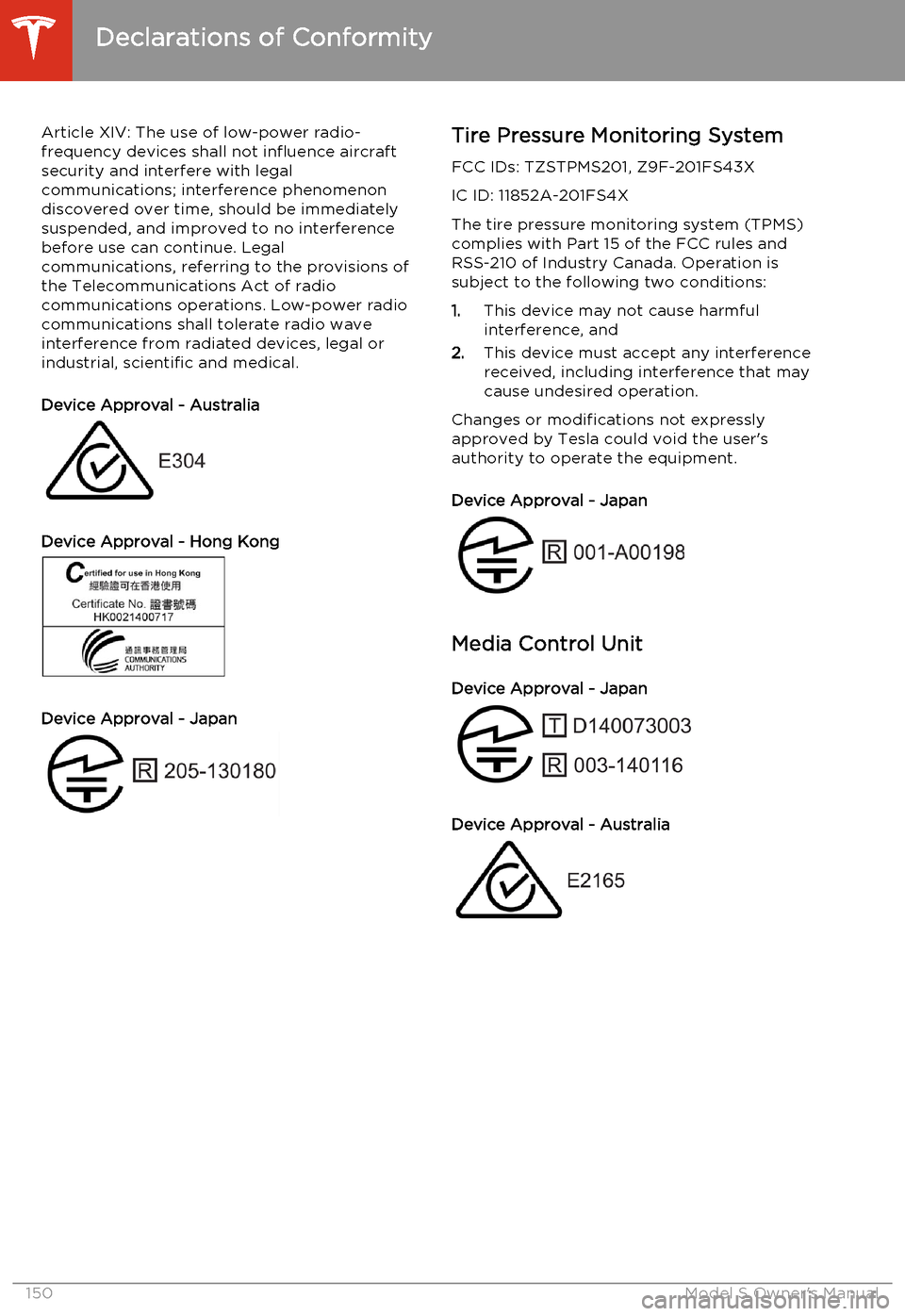

Article XIV: The use of low-power radio-
frequency devices shall not influence aircraft security and interfere with legal
communications; interference phenomenon
discovered over time, should be immediately suspended, and improved to no interference
before use can continue. Legal
communications, referring to the provisions of
the Telecommunications Act of radio communications operations. Low-power radiocommunications shall tolerate radio wave
interference from radiated devices, legal or
industrial, scientific and medical.
Device Approval - Australia
Device Approval - Hong Kong
Device Approval - Japan
Tire Pressure Monitoring System FCC IDs: TZSTPMS201, Z9F-201FS43XIC ID: 11852A-201FS4X
The tire pressure monitoring system (TPMS)
complies with Part 15 of the FCC rules and RSS-210 of Industry Canada. Operation issubject to the following two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by Tesla could void the user's
authority to operate the equipment.
Device Approval - Japan
Media Control Unit
Device Approval - Japan
Device Approval - Australia
Declarations of Conformity
150Model S Owner's Manual
Page 153 of 159

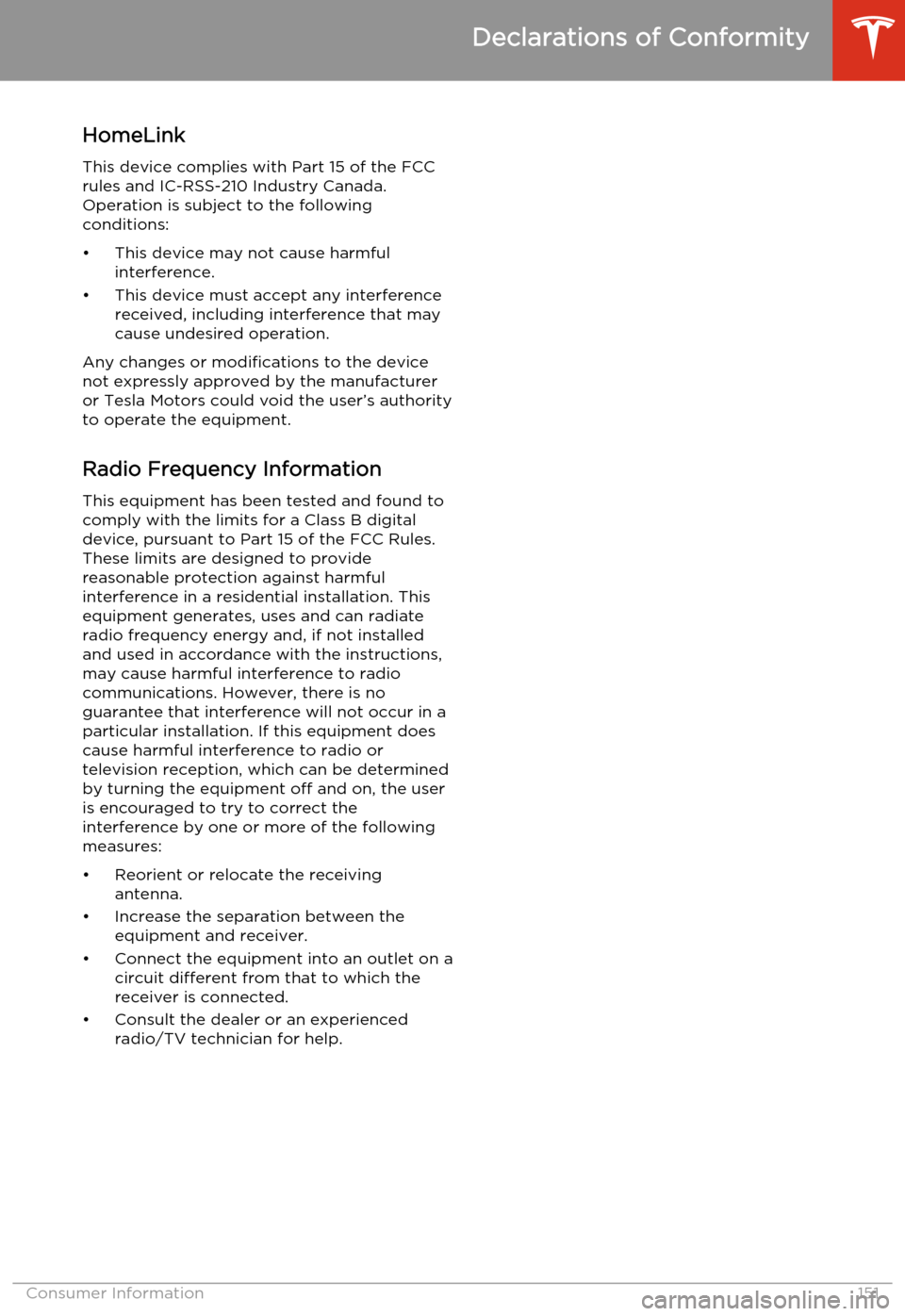

HomeLinkThis device complies with Part 15 of the FCCrules and IC-RSS-210 Industry Canada.
Operation is subject to the following
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications to the device not expressly approved by the manufacturer
or Tesla Motors could void the user’s authority
to operate the equipment.
Radio Frequency Information This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Declarations of Conformity
