4RUNNER (1998)

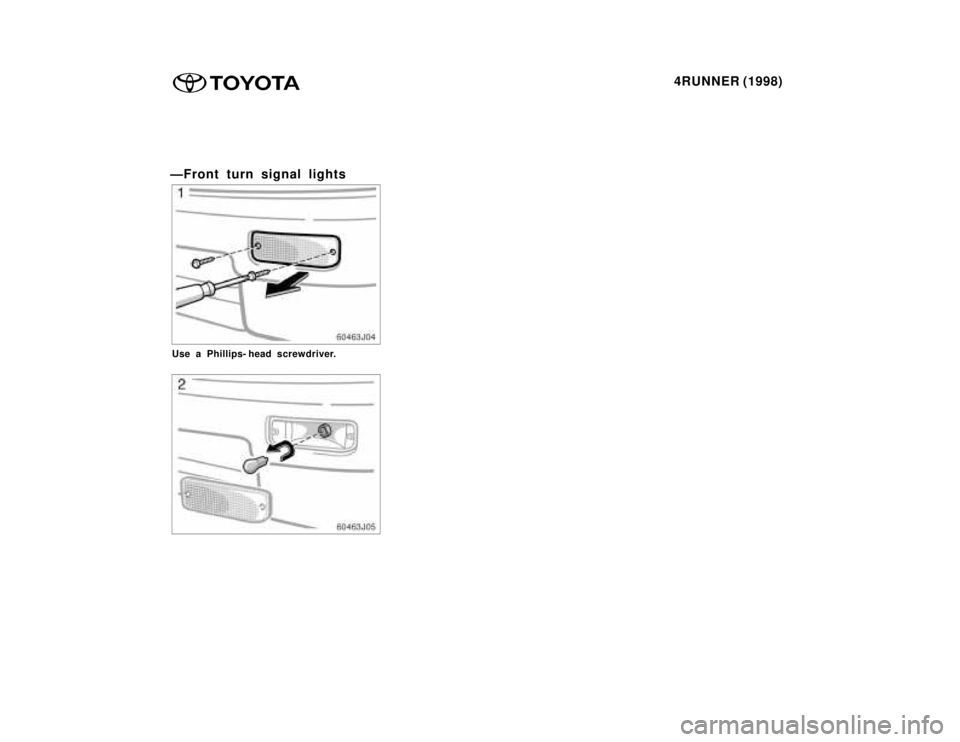

Use a Phillips- head screwdriver.
ÐRear turn signal, stop an
tail, and back- up lights
4RUNNER (1998)
Engine
Model: 3RZ- FE and 5VZ- FE
Type: 3RZ- FE engine4 cylinder in line, 4 cycle, gasoline
5VZ- FE engine 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 3RZ- FE engine95.0 x 95.0 (3.74 x 3.74)
5VZ- FE engine
93.5 x 82.0 (3.68 x 3.23)
Displacement, cm 3
(cu. in.):
3RZ- FE engine 2694 (164.3)
5VZ- FE engine
3378 (206.1) Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or high- er
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
3RZ- FE engineIntake 0.15Ð0.25
(0.006Ð0.010)
Exhaust 0 . 2 5 Ð 0 . 3 5
(0.010Ð0.014)
5VZ- FE engineIntake 0.13Ð0.23
(0.006Ð0.009) Exhaust 0 . 2 7 Ð 0 . 3 7
(0.011Ð0.014)
Spark plug type:
3RZ- FE engineDENSO K16R- U
NGK BKR5EYA
5VZ- FE engine DENSO K16TR11
NGK BKR5EKB- 11
Spark plug gap, mm (in.):
3RZ- FE engine 0.8 (0.031)
5VZ- FE engine 1.1 (0.043)
4RUNNER (1998)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT- 33- 73F (used belt), Ibf:
3RZ- FE engineGenerator belt
11 5 20
Air conditioning compressor belt
100 20
Power steering pump belt
100 +25
-15
5VZ- FE engine Generator belt
100 20
Air conditioning compressor belt
100 20
Power steering pump belt
100 +20
-15
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp. qt.): 3RZ- FE engineWith filter 5.4 (5.7, 4.8)
Without filter 4.7 (5.0, 4.1)
5VZ- FE engine With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3) Oil grade:
API grade SH, ºEnergy- Conserving IIº
or SJ, ºEnergy- Conservingº multi-
grade engine oil or ILSAC multigrade
engine oil is recommended.
Recommended oil viscosity (SAE):
