TOYOTA 4RUNNER 2000 Owners Manual

572000 4Runner (OM35762U)
In the following cases, contact your Toyota
dealer as soon as possible:

The SRS airbags have been inflated.

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS airbags to inflate.

The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. See Seat beltsº for
details.
CAUTION

For effective protection in automo-
bile accidents and sudden stops,
children must be properly re-
strained using a seat belt or child
restraint system depending on the
age and size of the child. Holding
a child in your arms is not a sub-
stitute for a child restraint system.
In an accident, the child can be
crushed against the windshield, or
between you and the vehicle's inte-
rior.

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.

Never put a rear- facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear- facing child restraint system
is put on the front seat.

Unless it is unavoidable, do not put
a forward- facing child restraint sys-
tem on the front seat.

A forward- facing child restraint sys-
tem should be put on the front seat
only when it is unavoidable. Always
move the seat as far back as pos-
sible, because the force of a de-
ploying airbag could cause death or
serious injury to the child.

Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.
Child restraintÐ
ÐChild restraint precautions
ProCarManuals.com

582000 4Runner (OM35762U)
ÐChild restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer 's instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er 's instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer of the system. General
directions are also provided under the fol-
lowing illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.CAUTION

Never put a rear- facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear- facing child restraint system
is put on the front seat.

Unless it is unavoidable, do not put
a forward- facing child restraint sys-
tem on the front seat.

A forward- facing child restraint sys-
tem should be put on the front seat
only when it is unavoidable. Always
move the seat as far back as pos-
sible, because the force of a de-
ploying airbag could cause death or
serious injury to the child.

After installing the child restraint
system, make sure it is secured in
place following the manufacturer 's
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
Your vehicle has anchors for securing the
top strap of a child restraint system. The
anchor nuts are welded beneath the sheet
metal to permit installation of an anchor
bracket for a child restraint system.
To install an anchor bracket, use an 8 mm

30 mm
1.25 mm coarse thread met-
ric bolt and a 10 mm (0.4 in.) spacer.
Note that the bolts accompanying many
child restraint systems are not metric. You
can damage the anchor nuts on your ve-
hicle if you force bolts with different
thread into the anchor nuts.
For instructions about how to install the
anchor bracket, see ÐTop strap anchors
and locationsº.
ProCarManuals.com

592000 4Runner (OM35762U)
If your child restraint system does not
provide any of the necessary parts, you
can purchase the following items from
your Toyota dealer.

CRS installation kit
(Part No. 04731- 22012)Ðcontains 1
bolt, 3 types of spacers and 1 locking
clip.

Bolt (Part No. 91511- 60830)Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
(A) Infant seat
(B) Convertible seat
ÐTypes of child restraint
system
ProCarManuals.com

602000 4Runner (OM35762U)
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat is used in rear- facing
position only.CAUTION
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.
ÐInstallation with 2- point
type seat belt
ProCarManuals.com

612000 4Runner (OM35762U)
1. Run the center lap belt through or
around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.
ProCarManuals.com

622000 4Runner (OM35762U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the infant seat, press the
buckle- release button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward-
facing and rear- facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's
instructions about the applicable child's
age and size as well as direction for
installing of a child restraint system.
ProCarManuals.com

632000 4Runner (OM35762U)
CAUTION
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.
1. Run the center lap belt through or
around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
ProCarManuals.com

642000 4Runner (OM35762U)
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the convertible seat, press
the buckle- release button.
ProCarManuals.com

652000 4Runner (OM35762U)

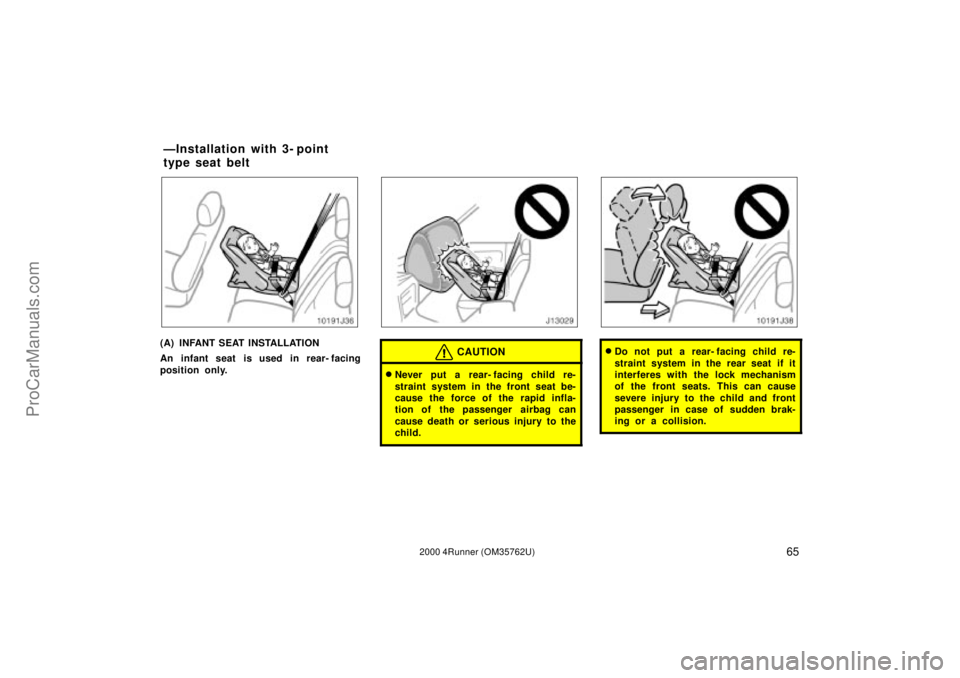

(A) INFANT SEAT INSTALLATION
An infant seat is used in rear- facing
position only.CAUTION

Never put a rear- facing child re-
straint system in the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.

Do not put a rear- facing child re-
straint system in the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.
ÐInstallation with 3- point
type seat belt
ProCarManuals.com

662000 4Runner (OM35762U)

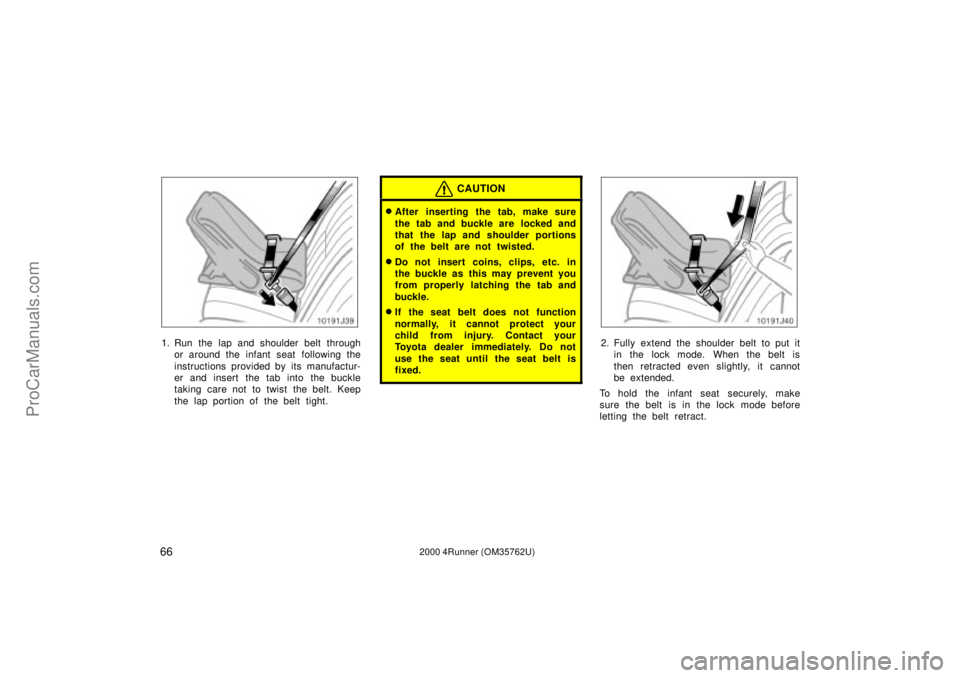

1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
