TOYOTA 4RUNNER 2000 Owners Manual

772000 4Runner (OM35762U)
Ty p e A
Ty p e B
To use the vanity mirrors, swing down
the sun visor and open the cover.
Type B onlyÐThe vanity light comes on
when you open the cover.
Van it y mirro r
(front passenger 's side only)
ProCarManuals.com

782000 4Runner (OM35762U)
ProCarManuals.com

792000 4Runner (OM35762U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment light83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers86 . . . . . . . . . . . .
SECTION 1- 4
ProCarManuals.com

802000 4Runner (OM35762U)
Headlights and turn signals
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
The lights automatically turn off when the
driver 's door is opened with the ignition
switch turned off. To turn them on again,
turn the key to the ONº position or actu-
ate the headlight switch. If you are going
to park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system (on some
models)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the OFFº
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High- Low beamsÐFor high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.
ProCarManuals.com

812000 4Runner (OM35762U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
ProCarManuals.com

822000 4Runner (OM35762U)

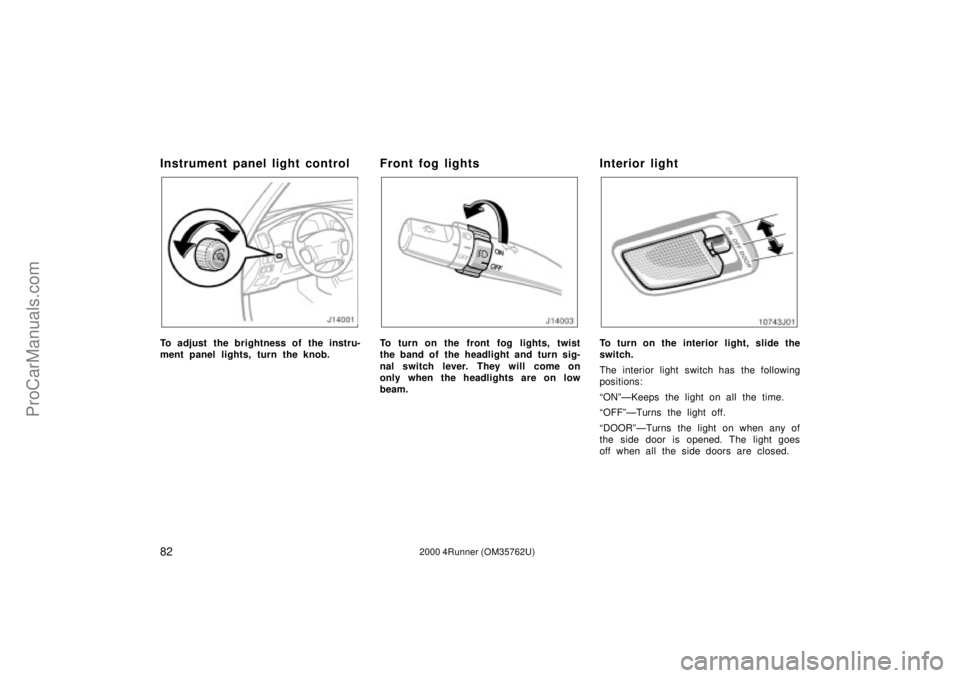

Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Interior light
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
ONºÐKeeps the light on all the time.
OFFºÐTurns the light off.
DOORºÐTurns the light on when any of
the side door is opened. The light goes
off when all the side doors are closed.
ProCarManuals.com

832000 4Runner (OM35762U)

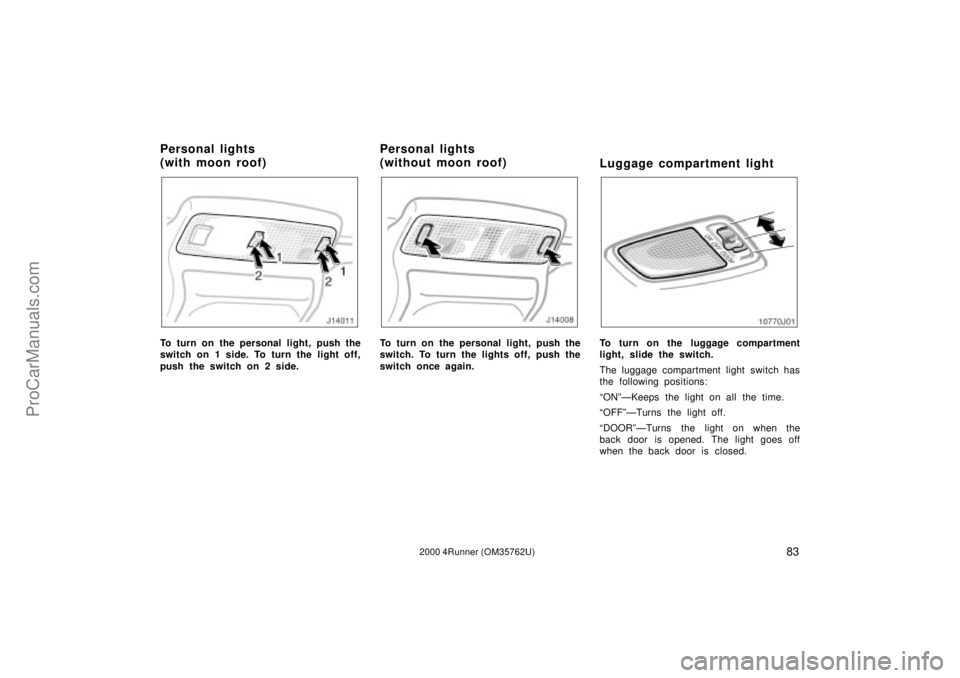

To turn on the personal light, push the
switch on 1 side. To turn the light off,
push the switch on 2 side.To turn on the personal light, push the
switch. To turn the lights off, push the
switch once again.
Luggage compartment light
To turn on the luggage compartment
light, slide the switch.
The luggage compartment light switch has
the following positions:
ONºÐKeeps the light on all the time.
OFFºÐTurns the light off.
DOORºÐTurns the light on when the
back door is opened. The light goes off
when the back door is closed.
Personal lights
(with moon roof)Personal lights
(without moon roof)
ProCarManuals.com

842000 4Runner (OM35762U)

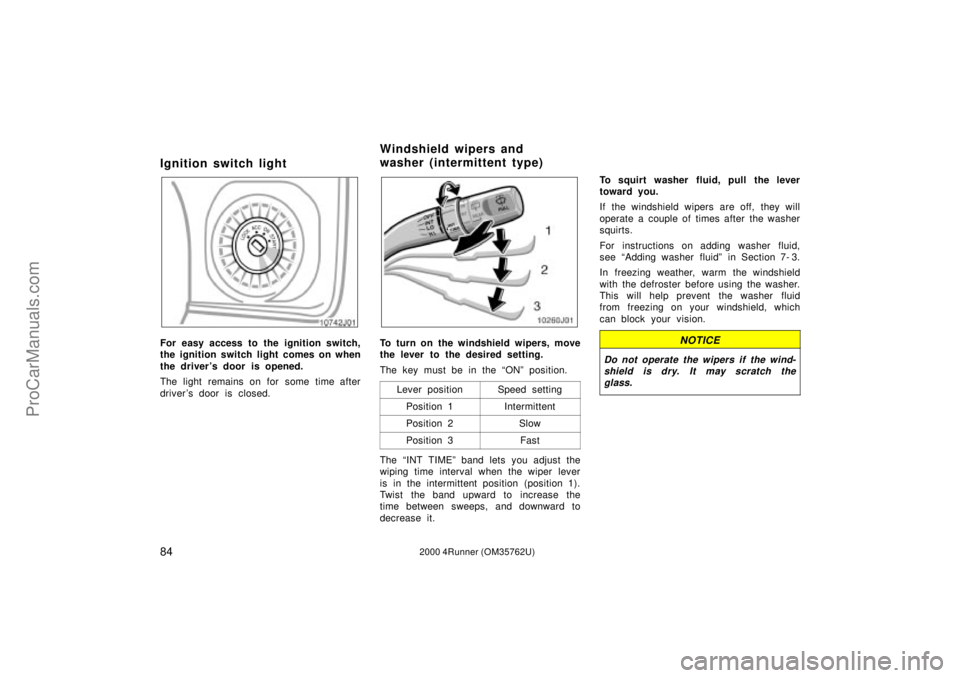

Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
the driver's door is opened.
The light remains on for some time after
driver 's door is closed.To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The INT TIMEº band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see Adding washer fluidº in Section 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and
washer (intermittent type)
ProCarManuals.com

852000 4Runner (OM35762U)

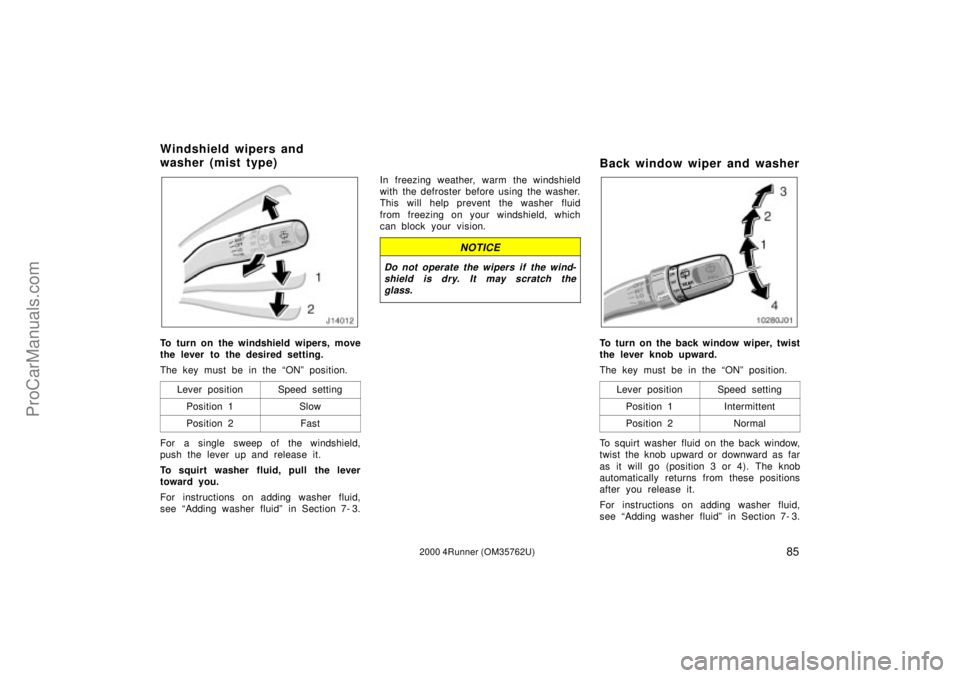

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you.
For instructions on adding washer fluid,
see Adding washer fluidº in Section 7- 3.In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Back window wiper and washer
To turn on the back window wiper, twist
the lever knob upward.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the back window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see Adding washer fluidº in Section 7- 3.
Windshield wipers and
washer (mist type)
ProCarManuals.com

862000 4Runner (OM35762U)

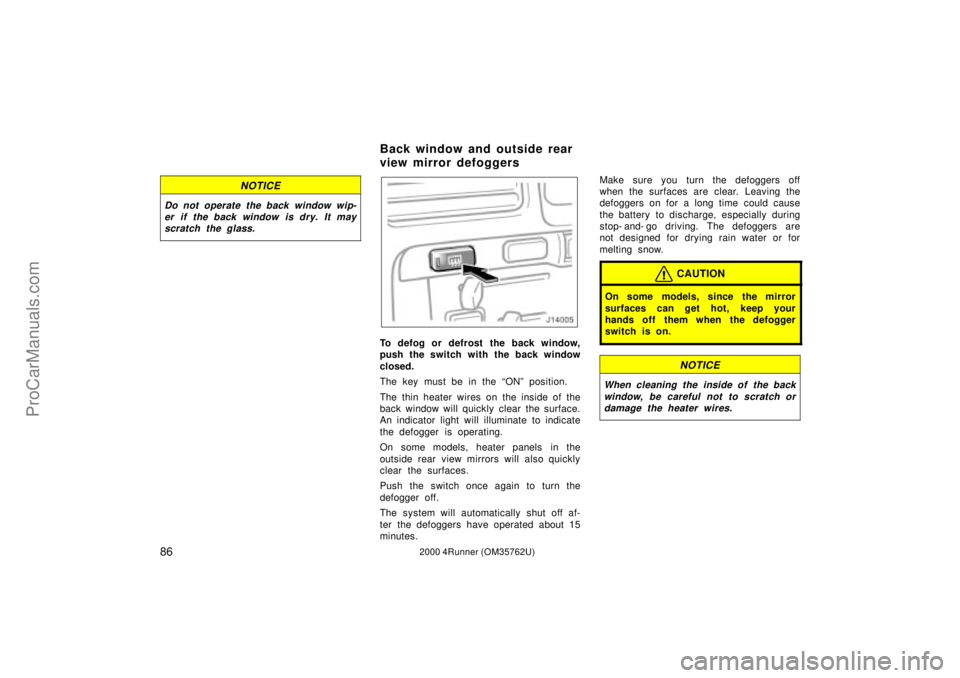

NOTICE
Do not operate the back window wip-
er if the back window is dry. It may
scratch the glass.
To defog or defrost the back window,
push the switch with the back window
closed.
The key must be in the ONº position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop- and- go driving. The defoggers are
not designed for drying rain water or for
melting snow.
CAUTION
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
NOTICE
When cleaning the inside of the back
window, be careful not to scratch or
damage the heater wires.
Back window and outside rear
view mirror defoggers
