TOYOTA 4RUNNER 2000 Owners Manual

972000 4Runner (OM35762U)

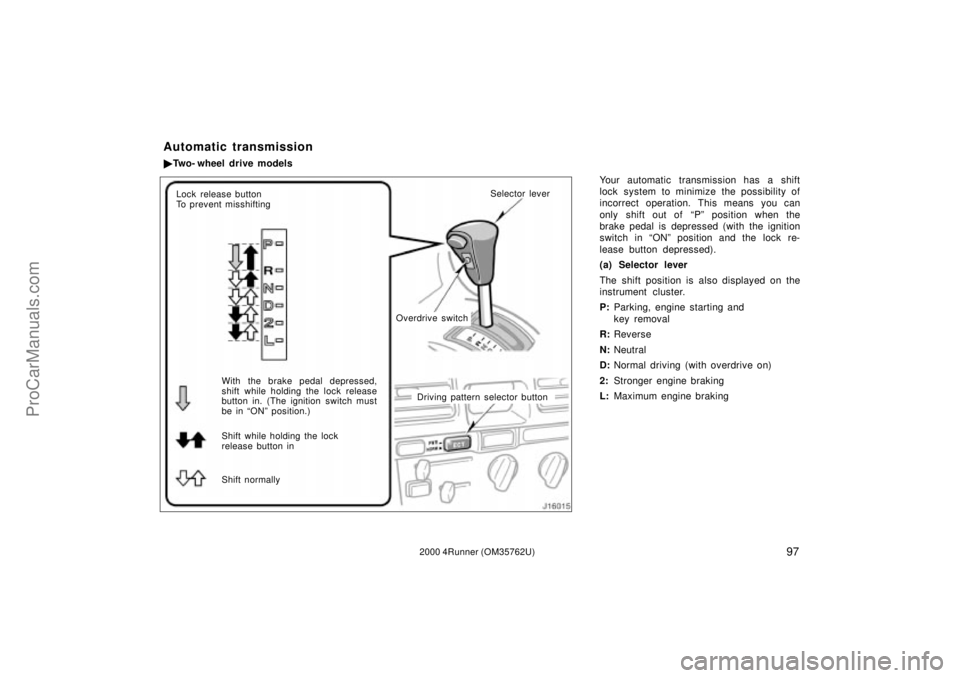

Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the
brake pedal is depressed (with the ignition
switch in ONº position and the lock re-
lease button depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
2:Stronger engine braking
L:Maximum engine braking
Automatic transmission

Two- wheel drive models
Selector lever
Overdrive switch
Driving pattern selector button Lock release button
To prevent misshifting
Shift while holding the lock
release button in
Shift normally With the brake pedal depressed,
shift while holding the lock release
button in. (The ignition switch must
be in ONº position.)
ProCarManuals.com

982000 4Runner (OM35762U)
(b) Overdrive switch
You can select either a third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The O/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be applied because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
(c) Normal driving
1. Start the engine as instructed in How
to start the engineº in Section 3. The
transmission must be in Pº or Nº.
2. With your foot holding down the brake
pedal, shift the selector lever to Dº.
When the lever is in the Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to the
third gear.
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than the following
speed, and stronger engine braking will
be enabled.
3RZ- FE engine
112 km/h (69 mph)
5VZ- FE engine
119 km/h (73 mph)
ProCarManuals.com

992000 4Runner (OM35762U)
Shift into the Lº position. The trans-
mission will downshift to the first gear
When the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
3RZ- FE engine
54 km/h (33 mph)
5VZ- FE engine
58 km/h (36 mph)
Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking is not applied because the cruise
control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to second gear.
With the selector lever in Lº, the trans-
mission is engaged in first gear.
NOTICE

Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
2º 120 km/h (74 mph). . . . . . . . . . . .
Lº 65 km/h (40 mph). . . . . . . . . . . .

Do not continue hill climbing or
hard towing for a long time in the
2º or Lº position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, Dº position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the Pº posi-
tion.
ProCarManuals.com

1002000 4Runner (OM35762U)
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.

Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.

Do not race the engine and avoid
spinning the wheels.

If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
ProCarManuals.com

1012000 4Runner (OM35762U)
(j) Driving in PWRº (Power) mode
In the PWRº mode, the transmission is
shifted up and down at a higher vehicle
speed than in the NORMº (Normal) mode
and a more powerful acceleration is
achieved. To set the PWRº mode, push
in the driving pattern selector button. The
PWRº mode indicator light comes on.
For ordinary driving, Toyota recommends
using the NORMº mode to improve fuel
economy.(k) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from
the Pº position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see If
you cannot shift automatic transmission
selector leverº in Section 4.
ProCarManuals.com

1022000 4Runner (OM35762U)

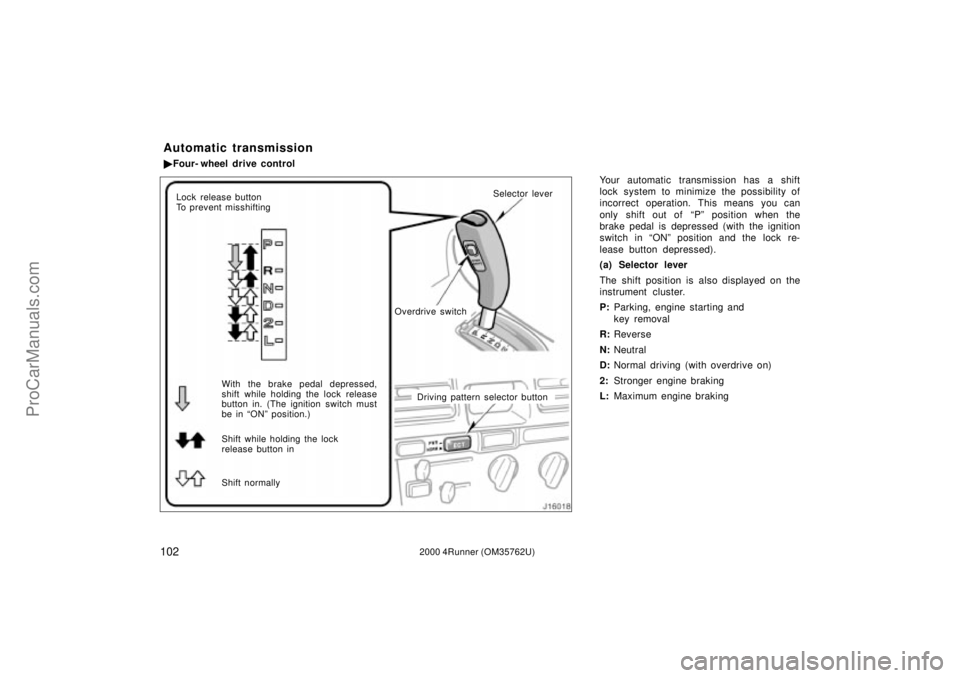

Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the
brake pedal is depressed (with the ignition
switch in ONº position and the lock re-
lease button depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
2:Stronger engine braking
L:Maximum engine braking
Automatic transmission

Four- wheel drive control
Selector lever
Lock release button
To prevent misshifting
Shift while holding the lock
release button in
Shift normally With the brake pedal depressed,
shift while holding the lock release
button in. (The ignition switch must
be in ONº position.)
Overdrive switch
Driving pattern selector button
ProCarManuals.com

1032000 4Runner (OM35762U)
(b) Overdrive switch
You can select either a third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The O/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be applied because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
(c) Normal driving
1. Start the engine as instructed in How
to start the engineº in Section 3. The
transmission must be in Pº or Nº.
When the front drive control lever is in
L4º (low- speed position, four- wheel
drive), the driving pattern selector setting
has no effect on gear shift timing. (See
Four- wheel drive systemº in this section
for information of the front drive control
lever.)
2. With your foot holding down the brake
pedal, shift the selector lever to Dº.
When the lever is in the Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low or when
the front drive control lever is in L4º
(low- speed position, four- wheel drive), the
transmission will not shift into
the overdrive gear even with the overdrive
on. (See Four- wheel drive systemº in this
section for information of the front drive
control lever.)
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to the
third gear.
ProCarManuals.com

1042000 4Runner (OM35762U)
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than the following
speed, and stronger engine braking will
be enabled.
Front drive control lever in H2º or
H4º
3RZ- FE engine
105 km/h (65 mph)
5VZ- FE engine
114 km/h (70 mph)
Front drive control lever in L4º
3RZ- FE engine
38 km/h (23 mph)
5VZ- FE engine
41 km/h (25 mph)
Shift into the Lº position. The trans-
mission will downshift to the first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.Front drive control lever in H2º or
H4º
3RZ- FE engine
51 km/h (31 mph)
5VZ- FE engine
55 km/h (34 mph)
Front drive control lever in L4º
3RZ- FE engine
11 km/h (6 mph)
5VZ- FE engine
12 km/h (7 mph)
Vehicles with cruise controlÐWhen the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking is not applied because the cruise
control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise control
i n this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using the 2º and Lº, positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to second gear.
With the selector lever in Lº, the trans-
mission is engaged in first gear.
NOTICE

Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given above for your reference:
Front drive control lever in H2º or
H4º
3RZ- FE engine
2º 111km/h (68 mph). . . . . . . . . . .
Lº 60km/h (37 mph). . . . . . . . . . .
5VZ- FE engine
2º 118km/h (73 mph). . . . . . . . . . .
Lº 64km/h (40 mph). . . . . . . . . . .
ProCarManuals.com

1052000 4Runner (OM35762U)
Front drive control lever in L4º
3RZ- FE engine
2º 43 km/h (26 mph). . . . . . . . . .
Lº 23 km/h (14 mph). . . . . . . . . .
5VZ- FE engine
2º 46 km/h (28 mph). . . . . . . . . .
Lº 25 km/h (15 mph). . . . . . . . . .

Do not continue hill climbing or
hard towing for a long time in the
2º or Lº position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, Dº position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever fully to
securely apply the parking brake.
3. With the brake pedal pressed down,
shift the selector lever to the Pº posi-
tion.
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
ProCarManuals.com

1062000 4Runner (OM35762U)
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.

Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.

Do not race the engine and avoid
spinning the wheels.

If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(j) Driving in PWRº (Power) mode
In the PWRº mode, the transmission is
shifted up and down at a higher vehicle
speed than in the NORMº(Normal) mode
and a more powerful acceleration is
achieved. To set the PWRº mode, push
in the driving pattern selector button. The
PWRº mode indicator light comes on.
For ordinary driving, Toyota recommends
using the NORMº mode to improve fuel
economy.
ProCarManuals.com
