TOYOTA 4RUNNER 2000 Owners Manual

1272000 4Runner (OM35762U)
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push TAPEº to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing TAPEº.
In both cases, a cassette must already be
loaded in the player.TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.
ProCarManuals.com

1282000 4Runner (OM35762U)

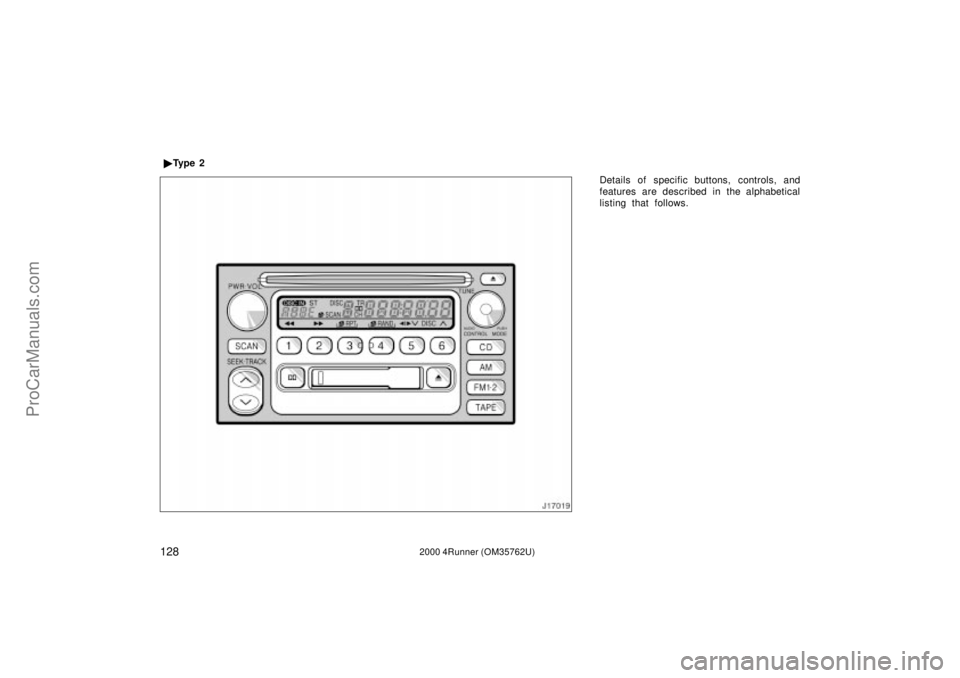

Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
Ty p e 2
ProCarManuals.com

1292000 4Runner (OM35762U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº knob or
SEEKº button). Push and hold down the
button until you hear a beepÐthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FM1´2º).
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCKº, you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates
top side,
º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FFº will appear on
the display. Push the reverse button to
rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
ProCarManuals.com

1302000 4Runner (OM35762U)
CONTROL / MODE (Audio control and
mode adjustment)
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
CONTROL / MODEº repeatedly until
BASº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
BAS -5º to BAS 5º.
For middle- pitch tone adjustment, push
CONTROL / MODEº repeatedly until MIdº
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from MId
- 5º to MId 5º.
For high- pitch tone adjustment, push
CONTROL / MODEº repeatedly until
TREº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
TRE -5º to TRE 5º.
Sound balance adjustment functionÐ
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.For front/rear adjustment, push CONTROL
/ MODEº repeatedly until FAdº appears
on the display. Then turn the knob to
adjust the front/rear balance.
The display will show the range from
FAd- F7º to FAd- R7º.
For left/right adjustment, push CONTROL
/ MODEº repeatedly until BALº appears
on the display. Then turn the knob to
adjust the left/right balance.
The display will show the range from
BAL- L7º to BAL- R7º.
CD (Compact Disc)
Push CDº to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CDº. In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CDº, the
system changes to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.If WAITº appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1º appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up- side down. Clean the
disc or insert it correctly.
If Err 2º appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc.
If Err 3º or Err 4º appears on the
display, it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEnº appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
ProCarManuals.com

1312000 4Runner (OM35762U)
DISC

Compact disc auto changer onlyÐ
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR*
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push the button marked with the double- D
symbol. The double- D symbol will appear
on the display. Push the button again to
turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM1´2
Push FM1´2º to turn on the radio and
select the FM band. FM1º or FM2º will
appear on the display. This system allows
you to set twelve FM stations, two for
each button.If the audio system is off, you can turn
on the radio by pushing FM1´2º. Also,
push FM1´2º to switch from cassette or
compact disc operation to radio operation.
PWR´VOL (Power and Volume)
Push PWR´VOLº to turn the audio system
on and off. Turn PWR´VOLº to adjust the
volume.
RAND (Random)
There are two random featuresÐyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release
º. º
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push this
button again.Compact disc auto changer onlyÐ
To randomly play all the tracks in the
magazine:
Push and hold
º until you hear a
beep.
º will appear on the dis-
play and the player will perform all the
tracks on all the discs in the magazine in
random order. To turn off the random fea-
ture, push this button again.
RPT (Repeat)
Cassette Player
Push
º while the track is playing.

º will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
ProCarManuals.com

1322000 4Runner (OM35762U)
Compact Disc Player
There are two repeat featuresÐYou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release
º while the
track is playing.
º will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer onlyÐ
Repeating a disc:
Push and hold
º until you hear a
beep.
º will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCANº until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCANº again.
To scan all the frequencies:
Quickly push and release SCANº. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCANº again.Compact disc player
There are two scan featuresÐyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release SCANº. SCANº
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCANº again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc auto changer onlyÐ
Scanning the first track of all the discs in
the magazine:
Push SCANº until you hear a beep.

´SCANº will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCANº again. If the player has
scanned all the discs, it will stop scan-
ning.
ProCarManuals.com

1332000 4Runner (OM35762U)
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the
º or º under the SEEKº.
Do this again to find another station.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
FF 1º or REW 1º will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until REW
3º appears on the display.If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.TA P E
Push TAPEº to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing TAPEº.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.
ProCarManuals.com

1342000 4Runner (OM35762U)
NOTICE
To ensure the correct audio system
operation:

Be careful not to spill beverages
over the audio system.

Do not put anything other than a
cassette tape or Compact Disc into
the slot.

The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radioÐit is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stationsÐGenerally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi- pathÐFM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and flutteringÐThese occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swappingÐIf the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.AM
FadingÐAM broadcasts are reflected by
the upper atmosphereÐespecially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interferenceÐWhen a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
StaticÐAM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Car audio system operating
hints
ProCarManuals.com

1352000 4Runner (OM35762U)
Use high- quality cassettes.
Low- quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto- reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Use only compact discs labeled as
shown.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
ProCarManuals.com

1362000 4Runner (OM35762U)
Your compact disc player cannot play
special shaped or low- quality compact
discs such as those shown here. Do
not use them as the player could be
damaged.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening
to them. Store them in their plastic
cases away from moisture, heat, and
direct sunlight.
To clean a compact disc: Wipe it with a
soft, lint- free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint- free cloth. Do not use a conventional
record cleaner or anti- static device.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
ProCarManuals.com
