Window
lock
switch
OPERATING THE PASSENGERS’
WINDOWS

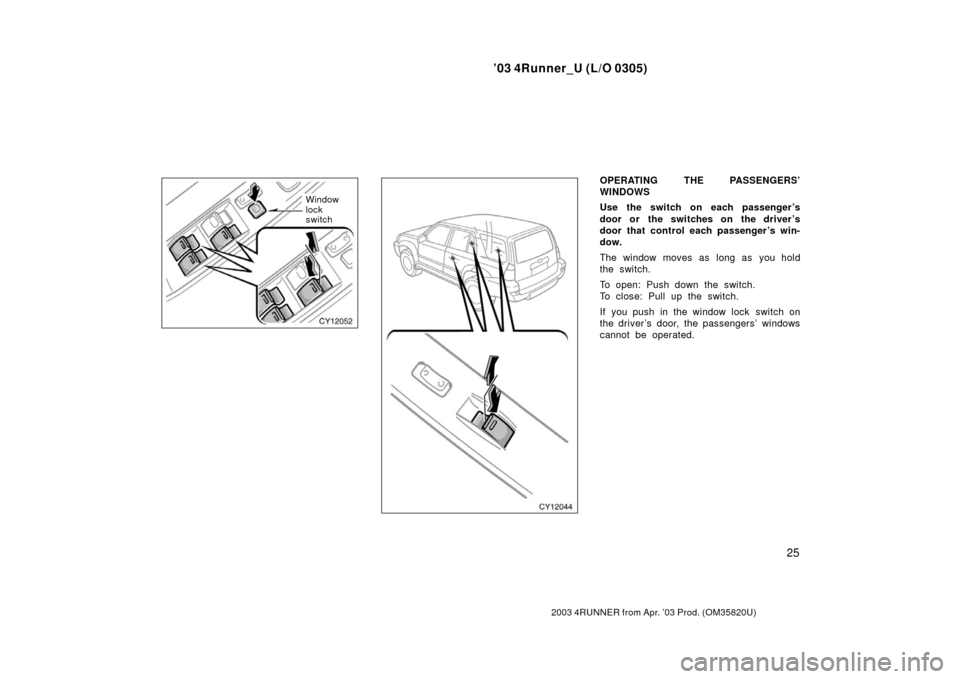

Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Page 32 of 373
’03 4Runner_U (L/O 0305)
26
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

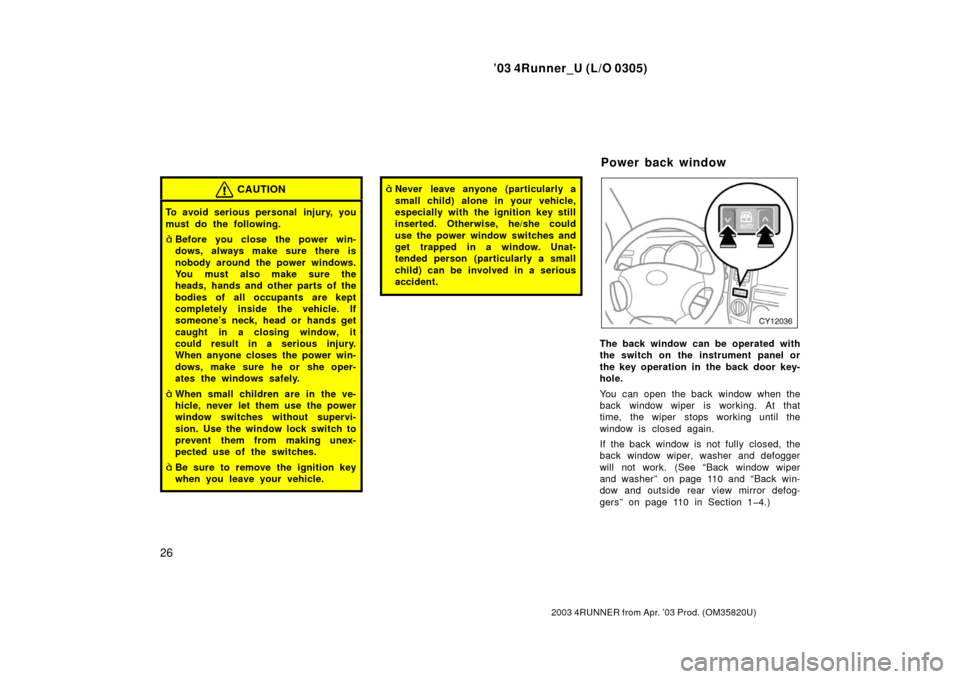

CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

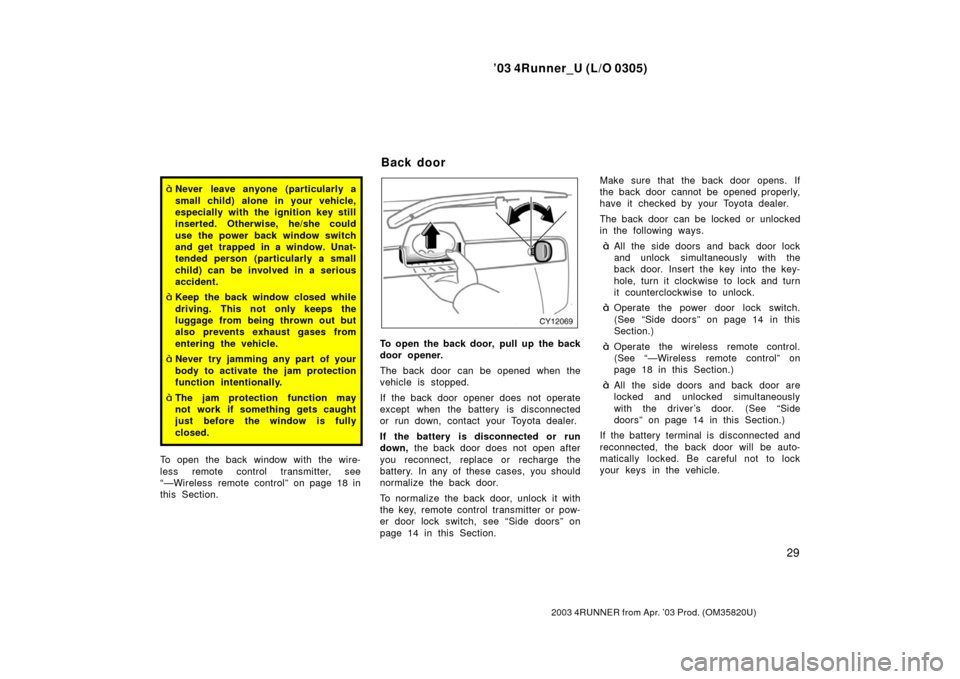

The back window can be operated with
the switch on the instrument panel or
the key operation in the back door key-
hole.
You can open the back window when the
back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer and defogger
will not work. (See “Back window wiper
and washer” on page 110 and “Back win-
dow and outside rear view mirror defog-
gers” on page 110 in Section 1 4.)
Power back window
Page 33 of 373
’03 4Runner_U (L/O 0305)
27
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
If the battery is disconnected or run
down, the power back window may not
operate automatically and the jam protec-
tion function will not function correctly af-
ter you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the power back window with the
power back window switch.
To normalize the power back window:
1. Push the “ ” (down) switch and lower
the window halfway.
2. Push the “ ” (up) switch until the win-
dow closes and hold the switch for a
second.
Make sure that the window opens and
closes automatically. If the power back
window cannot be operated properly, have
it checked by your Toyota dealer.
OPERATING FROM INSIDE
The ignition key must be in the “ON” posi-
tion.
Normal operation: To open or close the
back window, quickly push and release the
“ ” (down) or “ ” (up) switch. Automatic operation:
To open or close
the back window, push and hold the “ ”
(down) or “ ” (up) switch. The window
will fully open or close. To stop the win-
dow partway, push the switch on either
the “ ” (down) or “ ” (up) side briefly.
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either front door is opened.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.

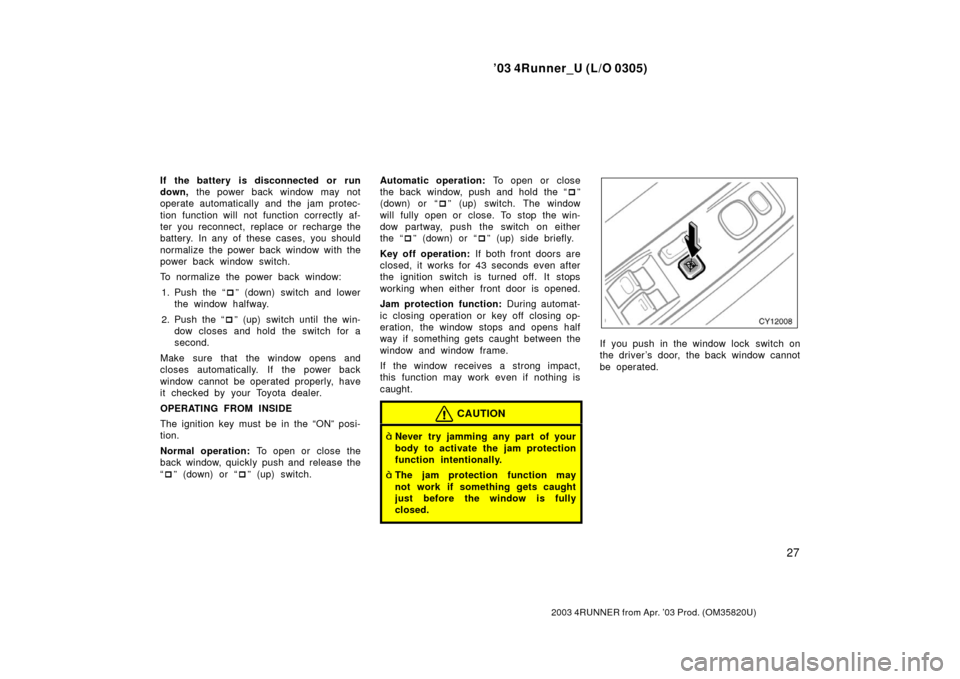

CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
If you push in the window lock switch on
the driver ’s door, the back window cannot
be operated.
Page 34 of 373
’03 4Runner_U (L/O 0305)
28
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclock-
wise and hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This door key linked function can be dis-
abled. For details, contact your Toyota
dealer.
Jam protection function: During closing
operation, the window stops and opens
half way if something gets caught between
the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision. Use the window lock switch
to prevent them from making unex-
pected use of the switch.
Be sure to remove the ignition key
when you leave your vehicle.
Page 35 of 373
’03 4Runner_U (L/O 0305)
29
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
To open the back window with the wire-
less remote control transmitter, see
“—Wireless remote control” on page 18 in
this Section.
To open the back door, pull up the back
door opener.
The back door can be opened when the
vehicle is stopped.
If the back door opener does not operate
except when the battery is disconnected
or run down, contact your Toyota dealer.
If the battery is disconnected or run
down, the back door does not open after
you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the back door.
To normalize the back door, unlock it with
the key, remote control transmitter or pow-
er door lock switch, see “Side doors” on
page 14 in this Section. Make sure that the back door opens. If
the back door cannot be opened properly,
have it checked by your Toyota dealer.
The back door can be locked or unlocked
in the following ways.
All the side doors and back door lock
and unlock simultaneously with the
back door. Insert the key into the key-
hole, turn it clockwise to lock and turn
it counterclockwise to unlock.
Operate the power door lock switch.
(See “Side doors” on page 14 in this
Section.)
Operate the wireless remote control.
(See “—Wireless remote control” on
page 18 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver’s door. (See “Side
doors” on page 14 in this Section.)
If the battery terminal is disconnected and
reconnected, the back door will be auto-
matically locked. Be careful not to lock
your keys in the vehicle.
Back door
Page 36 of 373
’03 4Runner_U (L/O 0305)
30
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light, luggage compartment
light, ignition switch light and running
board lights (on some models) will come
on and remain on for about 15 seconds
before fading out. (For details, see “Interi-
or light” on page 105, “Luggage compart-
ment light” on page 107, “Ignition switch
light” on page 108 and “Running board
lights” on page 108 in Section 1 4.)
The back window can be opened and
closed with the key operation in the back
door keyhole. (For details, see “Power
back window” on page 26 in this Section.)

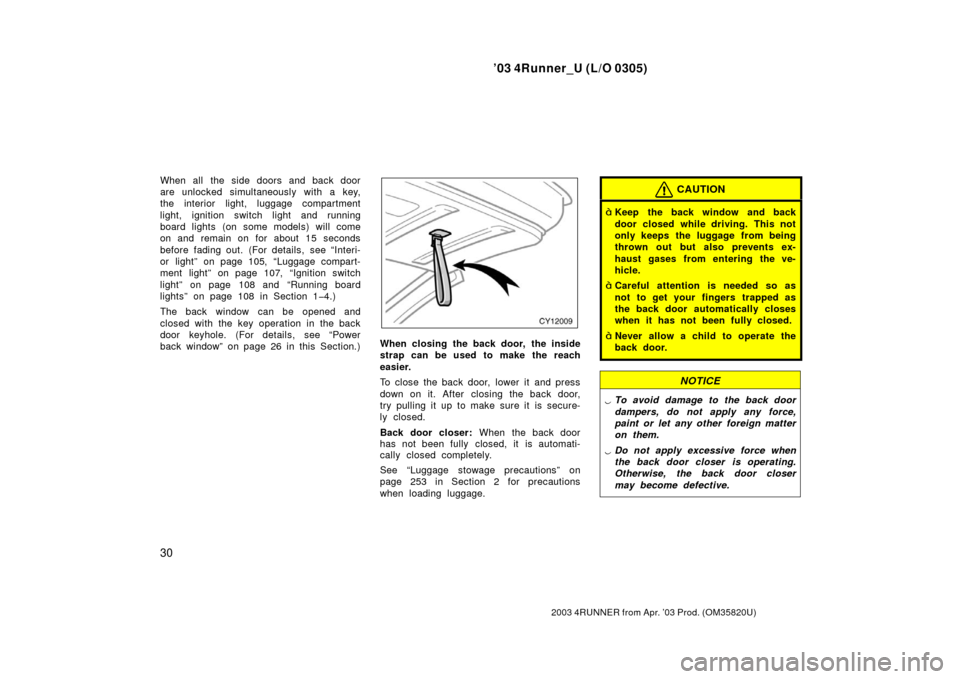

When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
Back door closer: When the back door
has not been fully closed, it is automati-
cally closed completely.
See “Luggage stowage precautions” on
page 253 in Section 2 for precautions
when loading luggage.
CAUTION
Keep the back window and back
door closed while driving. This not
only keeps the luggage from being
thrown out but also prevents ex-
haust gases from entering the ve-
hicle.
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes
when it has not been fully closed.
Never allow a child to operate the
back door.
NOTICE
To avoid damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Do not apply excessive force when
the back door closer is operating.
Otherwise, the back door closer
may become defective.
Page 37 of 373
’03 4Runner_U (L/O 0305)
31
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

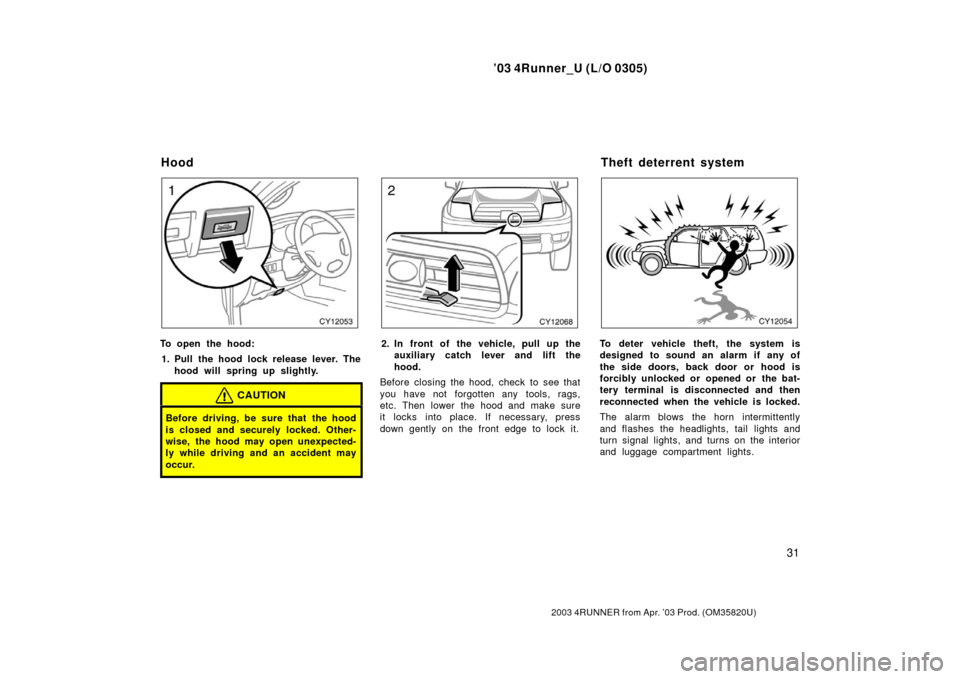

To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
and luggage compartment lights.
Hood Theft deterrent system
Page 38 of 373
’03 4Runner_U (L/O 0305)
32
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
on page 12 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELING THE SYSTEM
The system will cancel under the any of
the following conditions:Any of the side doors, back door or
hood is opened.
Any of the side doors or the back door
is unlocked.
The key is inserted into the ignition.
The battery terminal is reconnected.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
these ways:
Unlock any of the side doors or the
back door with the key or wireless re-
mote control transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.
These ways cancel the system at the
same time.
Page 39 of 373
’03 4Runner_U (L/O 0305)
33
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
If the battery becomes discharged due to
the vehicle being unused for a long time,
etc., when the battery is recharged or re-
placed, the system will give the alarm. If
this happens, immediately unlock any of
the side doors or the back door with the
key or the wireless remote control trans-
mitter, and the alarm will stop.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.

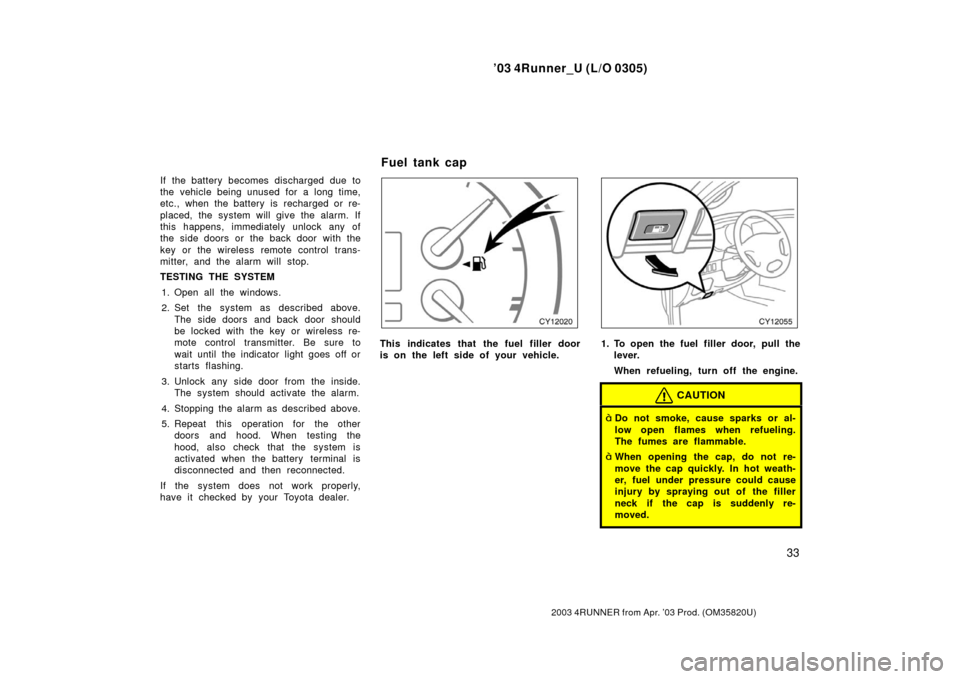

This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap
Page 40 of 373
’03 4Runner_U (L/O 0305)
34
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

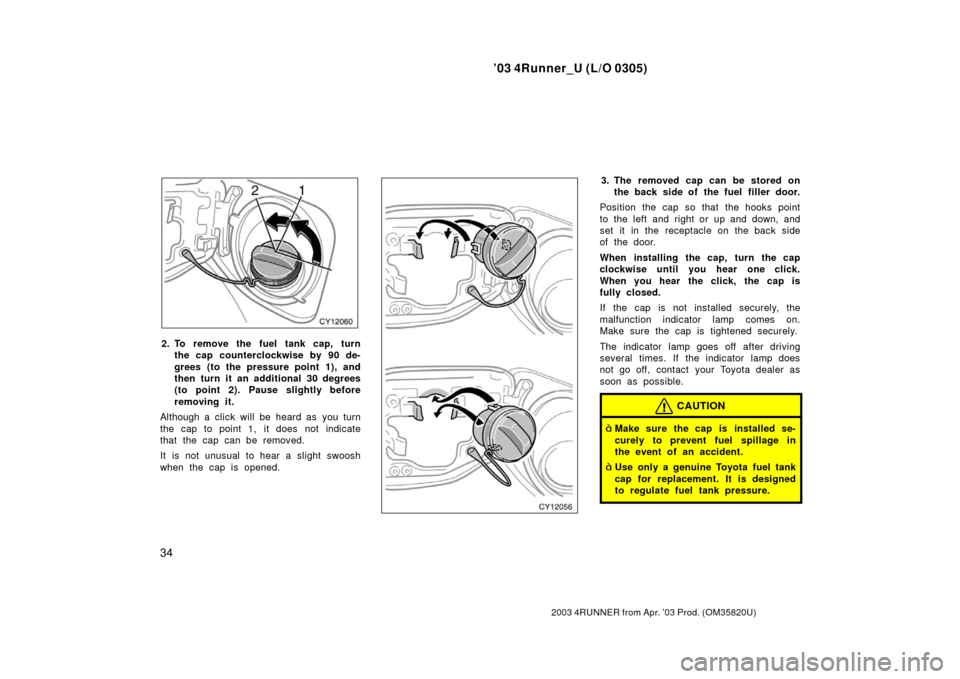

2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
Although a click will be heard as you turn
the cap to point 1, it does not indicate
that the cap can be removed.
It is not unusual to hear a slight swoosh
when the cap is opened.
3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear one click.
When you hear the click, the cap is
fully closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
