2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag or airbag
sensor assembly. Doing so may
cause sudden SRS front airbag
inflation or disable the system,
which could result in death or seri-
ous injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This SRS front airbag system has a ser-
vice reminder indicator to inform the driver
of operating problems. If either of the fol-
lowing conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to ser-
vice the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on while driving.

’03 4Runner_U (L/O 0305)
66
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or dashboard (shaded in the illustra-
tion) is scratched, cracked, or other-
wise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and rear outside passengers in
addition to the primary safety protec-
tion provided by the seat belts.
SRS side airbags and curtain
shield airbags

’03 4Runner_U (L/O 0305)
67
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
In response to a severe side impact, the
SRS side airbags and curtain shield air-
bags work with the seat belts to help
reduce injury by inflating. The SRS side
airbags help to reduce injuries mainly to
the driver ’s or front passenger ’s chest and
the SRS curtain shield airbags help to
reduce injuries mainly to the driver ’s, front
passenger ’s or rear outside passenger ’s
head. The SRS side airbag and curtain
shield airbag on the passenger side are
activated even with no passenger in the
front seat or rear seat.
The curtain shield airbags may activate
even when the side airbags are not acti-
vated.
Be sure to wear your seat belt properly.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front pass enger
when the SRS side airbags and curtain
shield airbags are inflated.CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To avoid potential death or se-
rious injury when they inflate, the
driver, front passenger and rear out-
side passengers must:
Wear their seat belts properly.
Remain properly seated with their
back upright and against the seat at
all times.
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 117 in Sec-
tion 15.)

’03 4Runner_U (L/O 0305)
68
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
The SRS side airbag and curtain shield
airbag system may not inflate if the
vehicle is subjected to a collision from
the side at certain angles, or a collision
to the side of the vehicle body other
than the passenger compartment as
shown in the illustration.
The SRS side airbags and curtain shield
airbags are designed to inflate when the
passenger compartment area suffers a se-
vere impact from the side.
Always wear your seat belts properly.
Collision from the rear
Vehicle rollover
Collision from the front
The SRS side airbags and curtain shield
airbags are not designed to inflate if
the vehicle is involved in a front or
rear collision, if it rolls over, or if it is
involved in a lowspeed side collision.The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are

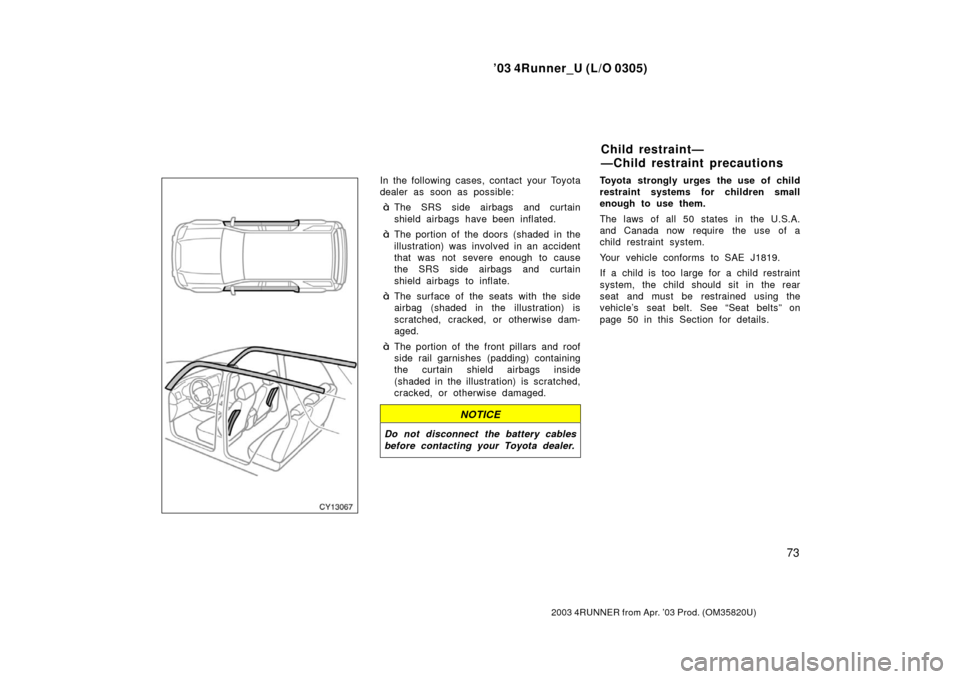

shown in the illustration.
1. SRS warning light
2. Curtain shield airbag modules (airbag and inflator)
3. Side airbag modules (airbag and inflator)
4. Curtain shield airbag sensors
5. Side and curtain shield airbag sensors
6. Airbag sensor assembly

’03 4Runner_U (L/O 0305)
69
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag and curtain shield airbag inflat-
ors and/or the curtain shield airbag inflat-
ors. At this time a chemical reaction in
the inflators quickly fills the air bags with
nontoxic gas to help restrain the lateral
motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with nontoxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling. Front seats as well as parts of the front
pillar, and roof side may be hot for sever-
al minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver side, and
front and rear outside passenger
side seat belt systems. To ensure
maximum protection in an accident,
the driver and all passengers in the
vehicle must wear their seat belts.
Wearing a seat belt during an acci-
dent reduces the chances of death
or serious injury or being thrown
out of the vehicle. For instructions
and precautions concerning the seat
belt system, see “Seat belts” on
page 50 in this Section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by a deploying
airbag. An infant or child who is
too small to use a seat belt should
be properly secured using a child
restraint system. Toyota strongly
recommends that all infants and
children be placed in the rear seat
of the vehicle and properly re-
strained. The rear seat is the safest
for infants and children. For in-
structions concerning the installa-
tion of a child restraint system, see
“Child restraint” on page 73 in this
Section.

’03 4Runner_U (L/O 0305)
70
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

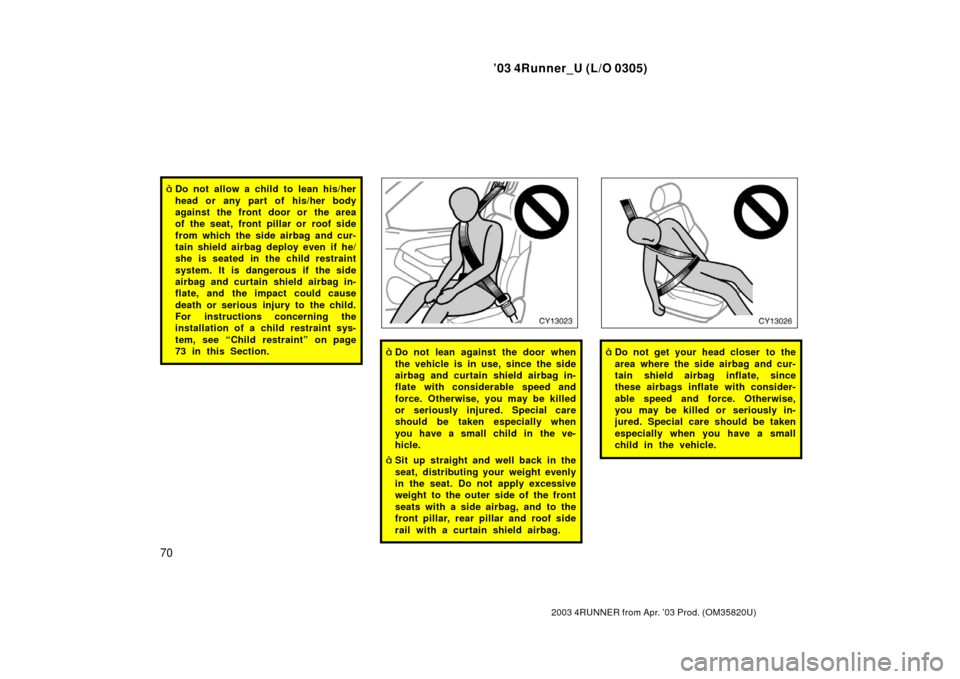

Do not allow a child to lean his/her
head or any part of his/her body
against the front door or the area
of the seat, front pillar or roof side
from which the side airbag and cur-
tain shield airbag deploy even if he/
she is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” on page
73 in this Section.
Do not lean against the door when
the vehicle is in use, since the side
airbag and curtain shield airbag in-
flate with considerable speed and
force. Otherwise, you may be killed
or seriously injured. Special care
should be taken especially when
you have a small child in the ve-
hicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the front
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.
Do not get your head closer to the
area where the side airbag and cur-
tain shield airbag inflate, since
these airbags inflate with consider-
able speed and force. Otherwise,
you may be killed or seriously in-
jured. Special care should be taken
especially when you have a small
child in the vehicle.

’03 4Runner_U (L/O 0305)
71
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

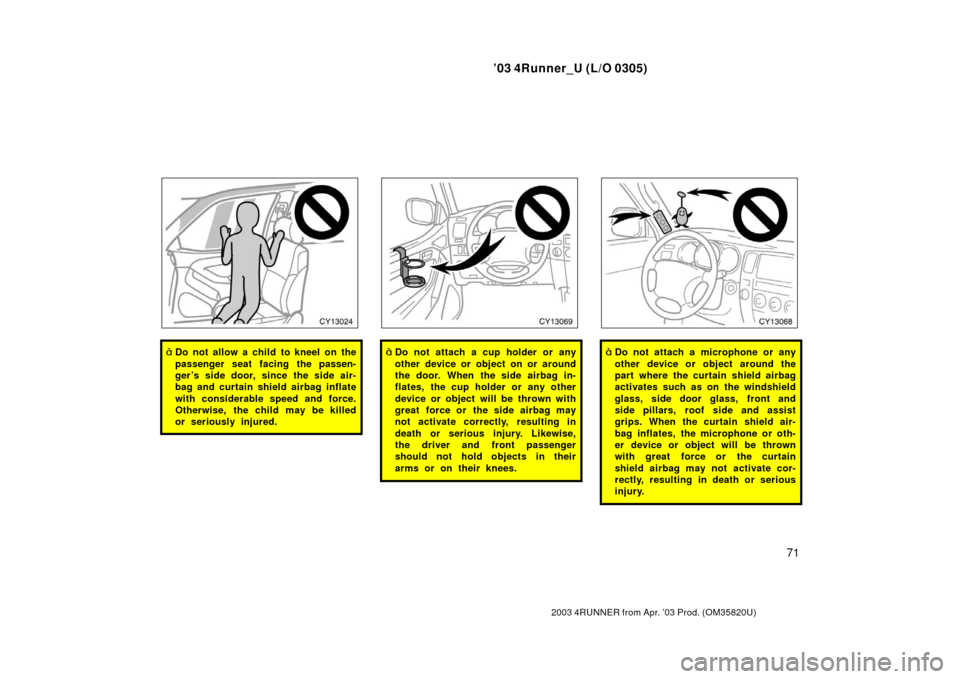

Do not allow a child to kneel on the
passenger seat facing the passen-
ger ’s side door, since the side air-
bag and curtain shield airbag inflate
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
part where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
side pillars, roof side and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.

’03 4Runner_U (L/O 0305)
72
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of front seats with
side airbags. Such changes may
disable the system or cause the
side airbags to inflate accidentally,
resulting in death or serious injury.
Do not disassemble or repair the
front pillar and roof side rail con-
taining the curtain shield airbags.
Such changes may disable the sys-
tem or cause the curtain shield air-
bags to inflate accidentally, result-
ing in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole
This SRS side airbag and curtain shield
airbag system has a service reminder
indicator to inform the driver of operating
problems. If either of the following
conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.

’03 4Runner_U (L/O 0305)
73
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS side airbags and curtain
shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars and roof
side rail garnishes (padding) containing
the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 50 in this Section for details.
Child restraint—
—Child restraint precautions

’03 4Runner_U (L/O 0305)
74
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

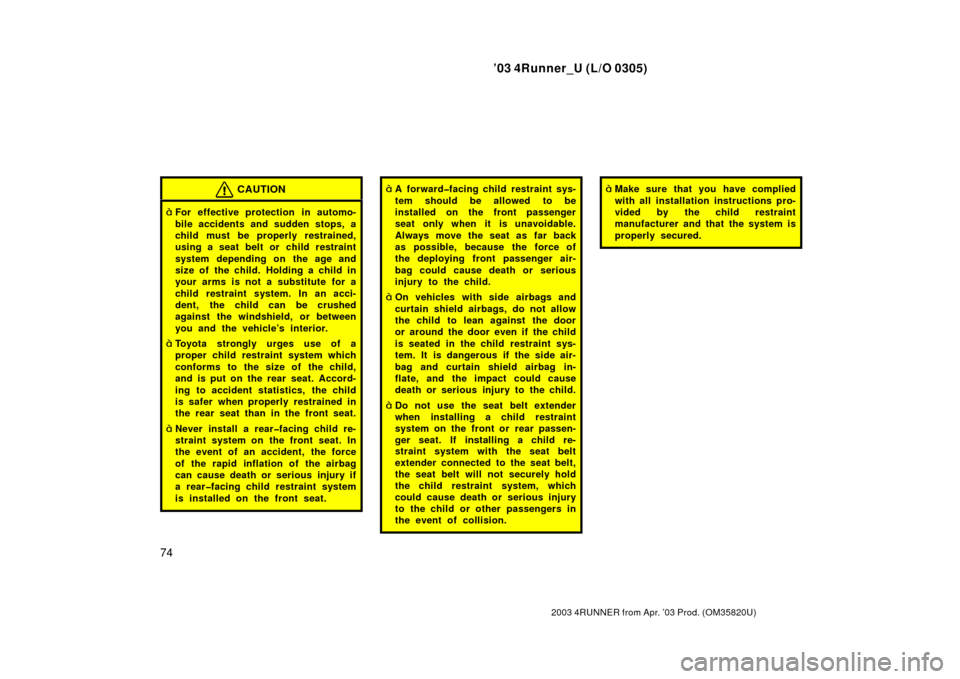

CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rearfacing child restraint system
is installed on the front seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the door
or around the door even if the child
is seated in the child restraint sys-
tem. It is dangerous if the side air-
bag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.
