(b) Driver’s Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer come on if the driver’s seat belt
is not fastened. Unless the driver fastens
the belt, the light continues flashing and
the buzzer sounds for about 4 to 8 se-
conds.
(c) Front Passenger ’s Seat Belt Reminder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light may flash. (d) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Toyota
dealer.
(e) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.

’06 4Runner_U (L/O 0508)
152
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself. Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to the “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 410
in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.

’06 4Runner_U (L/O 0508)
153
(h) Engine Oil Replacement Reminder
Light (for vehicles sold in U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to “ON” and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the “ON”
position. If you continue driving without
the engine oil replacement, and if the driv-
ing range exceeds 8000 km (5000 miles),
the light will come on after the ignition
key is turned to the “ON” position. The
light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road condition. If the light comes on, re-
place it as soon as possible. You need to reset the light after the en-
gine oil replacement. Reset the light by
following the procedure below:

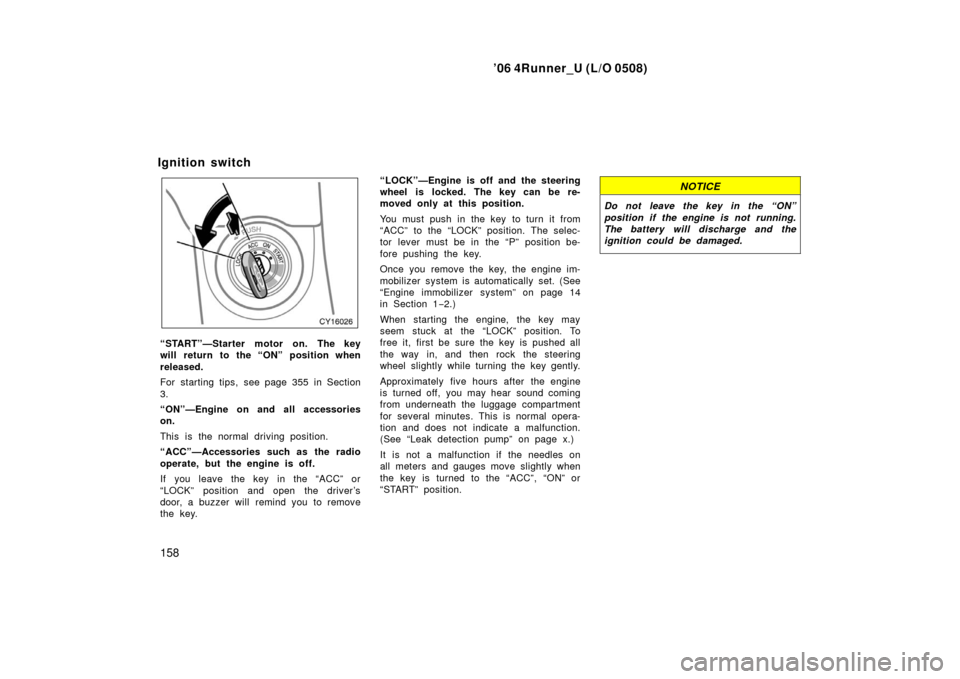

1. Turn the ignition key to the “ACC” or “LOCK” position with the odometer
reading shown. (For details, see
“Odometer and two trip meters” on
page 146 in this Section.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset button.
Hold down the button until the light goes
off. Before the light goes off, it illuminates
for 3 seconds, flashes for 2 seconds and
illuminates for 1 second.
If the system fails to reset, the light will
remain flashing.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti −
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if either
of the systems malfunctions, the light
comes on again. When the “ABS” warning light is on (and
the brake system warning light is off), the
following systems do not operate, but the
brake system still operates conventionally.
Anti
−lock brake system
Brake assist system
Traction control system
(two −wheel drive models)
Active traction control system
(four −wheel drive models)
“AUTO LSD” system
(two −wheel drive models)
Vehicle stability control system
Downhill assist control system
(four −wheel drive models)
Hill −start assist control system
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
so that the wheels will lock up during a
sudden braking or braking on slippery
road surfaces.

’06 4Runner_U (L/O 0508)
154
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are dri-
ving.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Either of the following conditions may
occur, but do not indicate a malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
turns off after a few seconds.
(j) “VSC TRAC” Warning Light
The light warns that there is a problem
somewhere in the following.
Vehicle stability control system
Traction control system
(two −wheel drive models)
Active traction control system
(four− wheel drive models)
“AUTO LSD” system
(two−wheel drive models)
Downhill assist control system
(four− wheel drive models)
Hill−start assist control system
The light will come on when the ignition
key turned to “ON”, and will go off after
a few seconds. It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly
may turn on the lights. It is normal if they
go out after a few seconds.
If the light comes on while driving, the
above mentioned systems do not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
When the brake fluid level is too low, the
above mentioned systems will not operate
and the warning light comes on.
(k) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.

’06 4Runner_U (L/O 0508)
155
(l) SRS Warning Light
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS airbags and seat belt
pretensioners are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, “RSCA OFF” indicator light, intercon-
necting wiring and power sources.
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving. The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
(m) Automatic Transmission Fluid
Temperature Warning Light
(fourwheel drive models)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(n) Low Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (including the
spare tire) is low. The light comes on
when the ignition key is turned to the
“ON” position. It goes off after a few sec-
onds. This indicates that the tire pressure
warning system is functioning properly.
If the warning light comes on, stop your
vehicle in a safe place as soon as pos-
sible and check that the inflation pressure
of all tires (including the spare tire) is as
specified on the tire and loading informa-
tion label. (See “Checking tire inflation
pressure” on page 425 in Section 7− 2.)
The light should go off a few minutes after
the tire pressure is adjusted.
If the warning light blinks, the tire pres-
sure warning system may be malfunction-
ing. Contact your Toyota dealer.
For details, see “Tire pressure warning
system” on page 190 in Section 1 −7.

’06 4Runner_U (L/O 0508)
156
(o) Low Windshield Washer Fluid Level
Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 437 in
Section 7 −3.)
(p) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on.
The following service reminder indica-
tors go off after a few seconds:
Engine oil replacement reminder light
“ABS” warning light
“VSC TRAC” warning light
Low tire pressure warning light
“RSCA OFF” indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
“VSC OFF” indicator light
(four− wheel drive models)
Slip indicator light
Height control indicator lights
Downhill assist control system indicator
light (four −wheel drive models)
Height control “OFF” indicator light
The SRS warning light goes off after
about 6 seconds.
There may be the case that the “ABS”
warning light (brake assist system
warning light), “VSC TRAC” warning
light and “AUTO LSD” (two −wheel drive
models), “VSC OFF” (four −wheel drive
models) or slip indicator light stay on
for about 60 seconds after the ignition
key is turned to the “ON” position. It
is normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’06 4Runner_U (L/O 0508)
157
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Automatic transmission 159
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Four −wheel drive system 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Traction control system 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Active traction control system 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
“AUTO LSD” system 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Vehicle stability control system 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downhill assist control system 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill −start assist control system 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear height control air suspension 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressure warning system 190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 194
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 7

’06 4Runner_U (L/O 0508)
158
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 355 in Section
3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key. “LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn it from
“ACC” to the “LOCK” position. The selec-
tor lever must be in the “P” position be-
fore pushing the key.
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
“Engine immobilizer system” on page 14
in Section 1−
2.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
Approximately five hours after the engine
is turned off, you may hear sound coming
from underneath the luggage compartment
for several minutes. This is normal opera-
tion and does not indicate a malfunction.
(See “Leak detection pump” on page x.)
It is not a malfunction if the needles on
all meters and gauges move slightly when
the key is turned to the “ACC”, “ON” or
“START” position.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch

’06 4Runner_U (L/O 0508)
159
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and key
removal
R: Reverse
N: Neutral
D: Normal driving
(shifting into overdrive possible)
4: Engine braking
(shifting into overdrive not possible)
3, 2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
With the brake pedal depressed
(The ignition switch must be in
“ON” position.)
Shift normally.

’06 4Runner_U (L/O 0508)
160
(b) Normal driving
1. Start the engine as instructed in “How to start the engine” on page 356 in
Section 3. The transmission must be in
“P” or “N”.
Vehicles with four −wheel drive control—
When the four −wheel drive control switch
knob is in “L4” (low −speed position, center
differential locked), the driving pattern se-
lector setting has no effect on gear shift
timing. (See “Four −wheel drive system
(full −time four −wheel drive models)” on
page 164 in this Section for information of
the four −wheel drive control.)
Vehicles with multi −mode control—
When the multi −mode control switch knob
is in “L4” (low −speed position, four −wheel
drive, center differential locked), the driv-
ing pattern selector setting has no effect
on gear shift timing. (See “Four −wheel
drive system (multi −mode four −wheel drive
models)” on page 167 in this Section for
information of the multi −mode control.) 2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Tw o −wheel drive models—
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into the overdrive gear
even in the “D” position.
Vehicles with four −wheel drive control—
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low or when the
four −wheel drive control switch knob is in
“L4” (low −speed position, center differential
locked), the transmission will not shift into
the overdrive gear even in the “D” posi-
tion. (See “Four −wheel drive system (full −
time four −wheel drive models)” on page
164 in this Section for information of the
four −wheel drive control.) Vehicles with multi
−mode control—
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low or when the
multi −mode control switch knob is in “L4”
(low −speed position, four −wheel drive,
c

enter differential locked), the transmission
will not shift into the overdrive gear even
in the “D” position. (See “Four −wheel drive
system (multi −mode four −wheel drive mod-
els)” on page 167 in this Section for in-
formation of the multi −mode control.)
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
If the automatic locking operation linked
with the shift position is set, all the side
doors and back door are automatically
locked when the shift lever is moved out
of the “P” position with the engine running
and all the side doors and back door are
closed. For details, see “—Automatic door
locking and unlocking functions” on page
25 in Section 1 −2.
