LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks, do the following.
If the warning light comes on:
Stop your vehicle in a safe place as
soon as possible and check that the
inflation pressure of all tires (including
the spare tire) is as specified on the
tire and loading information label. (See
“Checking tire inflation pressure” on
page 425 in Section 72.) If the warning
light comes on even after tire inflation
pressure adjustment, you may have a
flat tire. If you have a flat tire, replace
it with the spare tire. For details, see
“If you have a flat tire” on page 379 in
Section 4.
The warning light goes off a few minutes
after air is put into the deflated tire.
This warning light may turn on due to
natural causes such as natural air leaks
or tire pressure changes caused by tem-
perature. In this case, adjusting the tire
pressure will turn off the warning light.CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Depending on the conditions, re-
duce to an appropriate speed as
soon as possible.
Adjust the tire pressure to the spe-
cified level as soon as possible.
Avoid abrupt steering wheel maneu-
vering and braking. Tire deteriora-
tion may reduce steering wheel con-
trol and brake effectiveness. This
may lead to serious injury or death.
The tire pressure warning system
may not activate immediately if sud-
den bursts of air leakage occur.
NOTICE
Do not use liquid sealants for a flat
tire as air pressure sensors will be
damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure sensors will be affected by
the installation or removal of tires.
 The tire pressure warning system is
not to be used as a substitute for
regular inspections. Be sure to
check the air pressure in the tires
on a regular basis.
 When the tires must be replaced,
replace the grommets for air pres-
sure sensors as well.

’06 4Runner_U (L/O 0508)
192
If the warning light blinks:
The tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
SYSTEM MALFUNCTION
The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
Electric devices or facilities using simi-
lar radio wave frequencies are nearby.
A radio set to similar frequencies is in
use.
A lot of snow or ice covers the ve-
hicle, in particular, around the wheels
or wheel housings.
The tires are not equipped with an air
pressure sensor.
Snow tires or tire chains are used.
Non−genuine Toyota wheels are used.
The sensor battery is expired.
Radio waves from the air pressure sen-
sor installed on the spare tire cannot
be received.
CAUTION
The use of nongenuine wheels will
cause the air pressure sensors to
transmit the electronic code in dif-
ferent manner, resulting in the sys-
tem failure.
The use of different type of tires
with genuine wheels may also
cause the malfunction of the sys-
tem.
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)

’06 4Runner_U (L/O 0508)
193
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS
tire pressure warning system) that il-
luminates a low tire pressure telltale
(low tire pressure warning light) when
one or more of your tires is signifi-
cantly underinflated. Accordingly,
when the low tire pressure telltale
(low tire pressure warning light) illu-
minates, you should stop and check
your tires as soon as possible, and
inflate them to the proper pressure.
Driving on a significantly underin-
flated tire causes the tire to overheat
and can lead to tire failure. Under
inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle’s handling and stopping abili-
ty.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsib ility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (low
tire pressure warning light).For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

’06 4Runner_U (L/O 0508)
194
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
When replacing the wheels, be sure to
install air pressure sensors on the
wheels.
There are 3 ways to set up the air pres-
sure sensors: a. Remove the sensor from the old wheel and install it to the new wheel.
b. Keep the same wheel with air pressure sensor and replace only the tire.
c. Use a new wheel and sensor. In this case, you have to register an ID code
for a new sensor.
CAUTION
Have the tires, wheels or sensors re-
placed and ID codes registered by a
Toyota dealer. If you need sensors,
purchase from a Toyota dealer.
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
—Replacing tires and wheels Parking brake

’06 4Runner_U (L/O 0508)
195
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
Cruise control

’06 4Runner_U (L/O 0508)
196

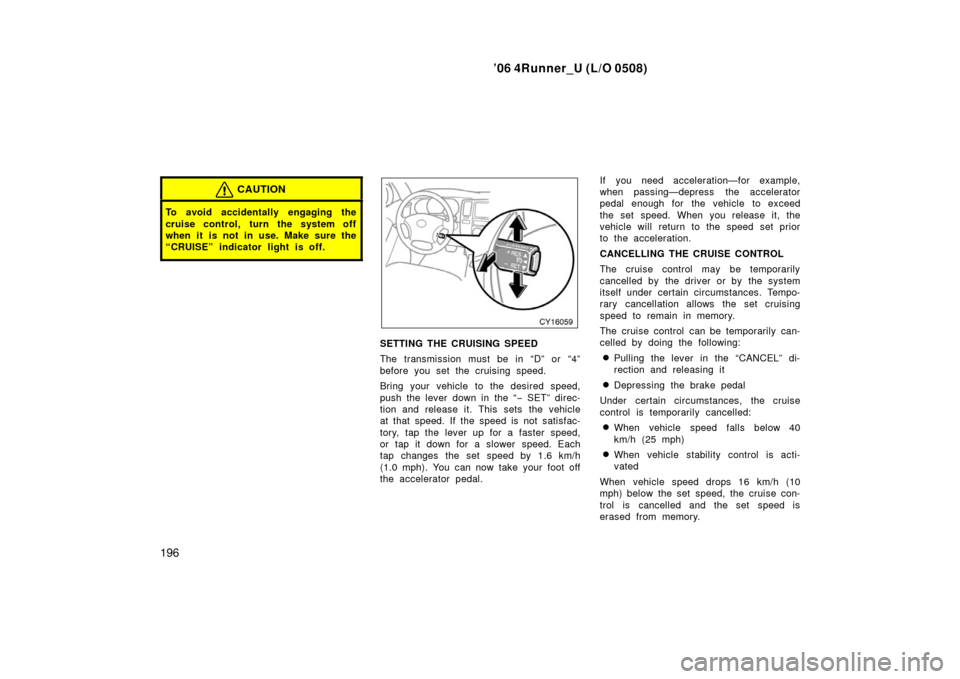

CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
SETTING THE CRUISING SPEED
The transmission must be in “D” or “4”
before you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.

’06 4Runner_U (L/O 0508)
197
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON−OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction. RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4”, with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’06 4Runner_U (L/O 0508)
198

’06 4Runner_U (L/O 0508)
199
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear seat entertainment system 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 270
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’06 4Runner_U (L/O 0508)
200

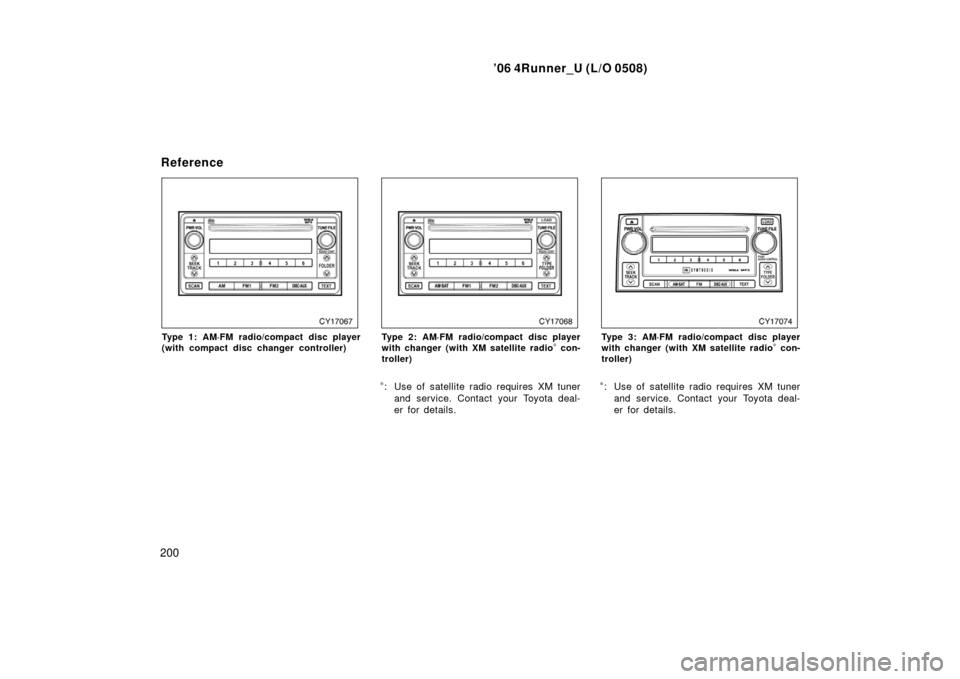

Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 2: AM·FM radio/compact disc player
with changer (with XM satellite radio∗ con-
troller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Type 3: AM·FM radio/compact disc player
with changer (with XM satellite radio∗ con-
troller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Reference
