The tire pressure warning light comes on
when the ignition key is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after a few minutes. If the light
blinks, the tire pressure warning system is
not working properly.Indicator status
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the tire
inflation
pressure
Blinking
Tire pressure
warning
system
malfunctionHave the
system
checked at
your Toyota
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure waring light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes.
The spare tire is also equipped with the
tire pressure warning valve and transmit-
ter. The tire pressure waning light will turn
on if the tire inflation pressure of the
spare tire is low. If a tire goes flat, even
though the flat tire is replaced with the
spare tire, the warning light does not turn
off. Replace the spare tire with the re-
paired tire and adjust the proper tire infla-
tion pressure. The tire pressure warning
light will turn off after a few minutes.

1922007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).NOTICE
 Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

1932007 4Runner from Aug. ’06 Prod. (OM35866U)
CY16072
Ty p e A
CY16071
Ty p e B
IF THE TIRE PRESSURE WARNING
LIGHT BLINKS...
If the tire pressure warning light blinks
when the ignition key is turned to the
“ON” position, the tire pressure warn-
ing system is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non−genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject
to poor radio wave signal reception.
If the tire inflation pressure is more
than 500 kPa (5 kgf/cm2
or bar, 70 psi)
or higher than the specified level.
If the tire pressure warning light continues
to blink when the ignition key is turned to
the “ON” position, have the system
checked by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.

1942007 4Runner from Aug. ’06 Prod. (OM35866U)

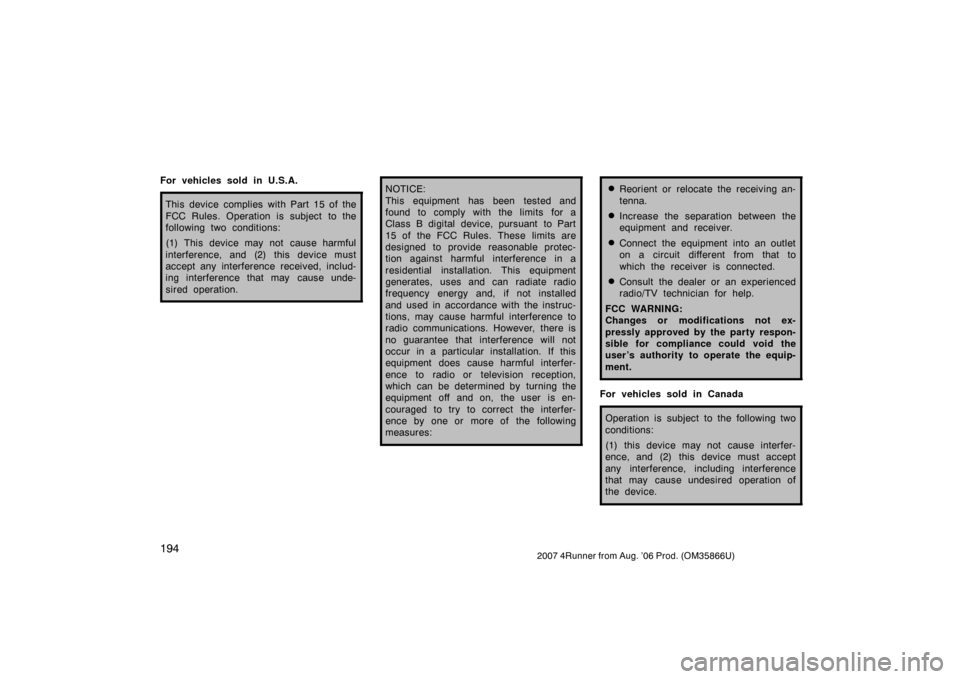

For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

1952007 4Runner from Aug. ’06 Prod. (OM35866U)
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
ECU. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After about 1
hour, the tire pressure warning light blinks
to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
CY16007
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Parking brake

1962007 4Runner from Aug. ’06 Prod. (OM35866U)
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.

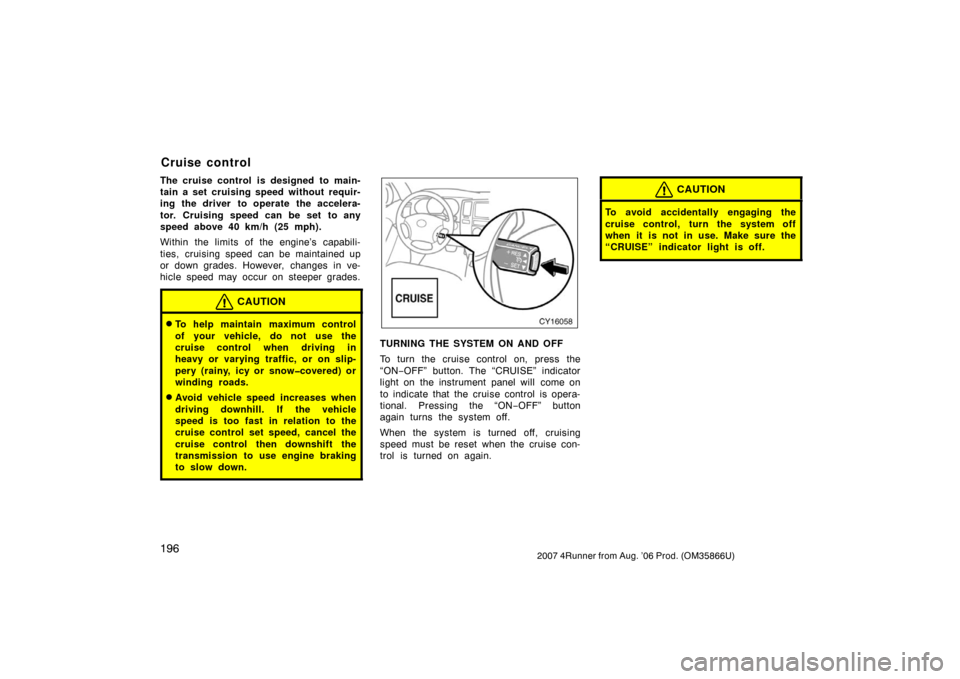

CY16058
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
Cruise control

1972007 4Runner from Aug. ’06 Prod. (OM35866U)
CY16059
SETTING THE CRUISING SPEED
The transmission must be in “D” or “4”
before you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “− SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory. The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON
−OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.

1982007 4Runner from Aug. ’06 Prod. (OM35866U)
RESETTING TO A SLOWER SPEED
Push the lever down in the “− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4”, with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

1992007 4Runner from Aug. ’06 Prod. (OM35866U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear seat entertainment system 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 270
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

2002007 4Runner from Aug. ’06 Prod. (OM35866U)
CY17067
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
CY17068
Type 2: AM·FM radio/compact disc player
with changer (with XM satellite radio∗
controller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
CY17074
Type 3: AM·FM radio/compact disc player
with changer (with XM  satellite radio∗
controller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Reference
