TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

299
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
It is not possible to return to RECIRCU-
LATE in this mode.
Press the A/C" button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
CY18006
Center vents
CY18005
Side vents
CY18017
Rear vents
If air flow control is not satisfactory, check
the instrument panel and rear vents. The
instrument panel and rear vents may be
opened or closed as shown.
Instrument panel and rear
vents

300
CY72020
The air conditioning filter information
label is placed on the upper right side
of the glove box as shown and indi-
cates that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
CY72003
The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, early replacement may be
required. (For scheduled maintenance
information, please refer to the Scheduled
Maintenance Guide" or Owner ’s Manual
Supplement".)
Air conditioning filter
Checking and replacing the
air conditioning filter

301

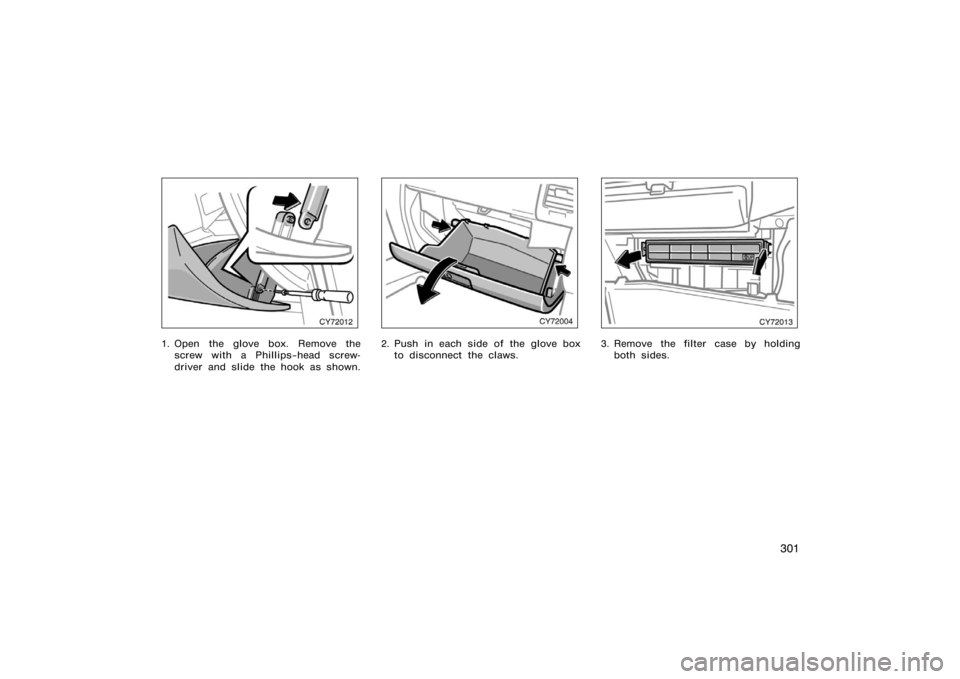

CY72012
1. Open the glove box. Remove thescrew with a Phillips−head screw-
driver and slide the hook as shown.
CY72004
2. Push in each side of the glove boxto disconnect the claws.
CY72013
3. Remove the filter case by holdingboth sides.

302
CY18022
4. Remove the filter from the filtercase.
5. Inspect the filter on the surface.
If it is the just moderately dusty, it may
be cleaned by blowing compressed air
from the reverse surface. Do not wash or
oil the filter.
If it is dirty, it should be replaced.
When setting the filter to the filter case,
ensure that the flat side of the filter is
down and the ribbed side is up.
Position the filter case so that the  ↑UP"
mark is pointing up and install it in the
vehicle.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

303
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Rear view monitor system 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Tissue box holder 325
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Coin holder 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Trash holder 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Front cup holders 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Rear cup holders and tray 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear cup holders 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Bottle holders 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie−down hooks 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Double deck 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Roof luggage carrier 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1− 10

304

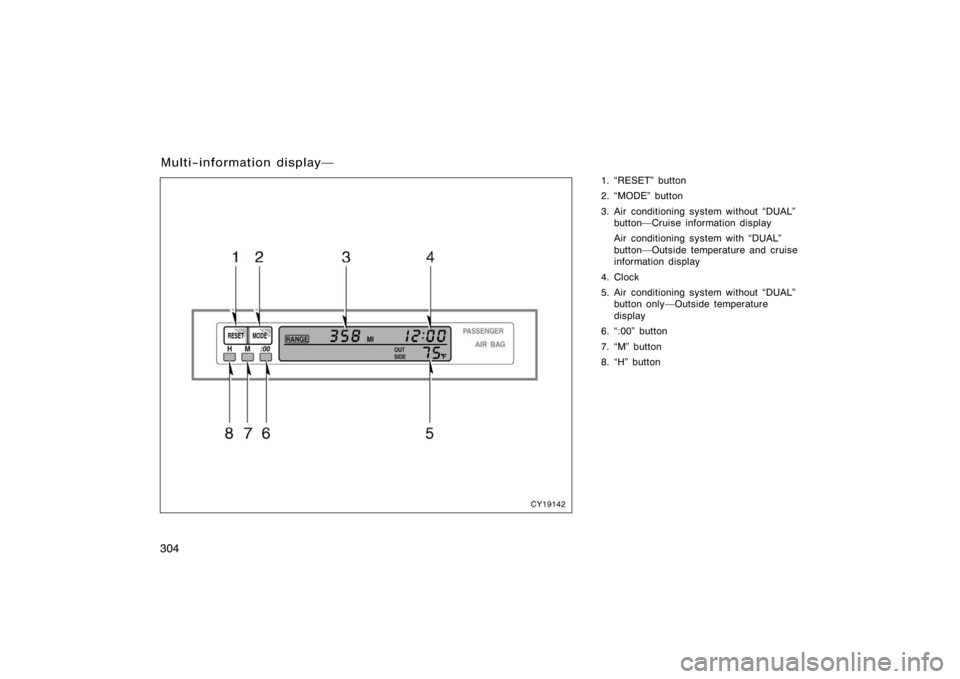

1. RESET" button
2. MODE" button
3. Air conditioning system without DUAL"buttonCruise information display
Air conditioning system with DUAL"
buttonOutside temperature and cruise
information display
4. Clock
5. Air conditioning system without DUAL" button onlyOutside temperature
display
6. :00" button
7. M" button
8. H" button
Multi−information display
CY19142

305
Operate the multi−information display
with the engine switch on.
When the engine switch is turned to ON",
the last previously used mode displayed
just before the engine switch is turned off
will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will automatically be
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

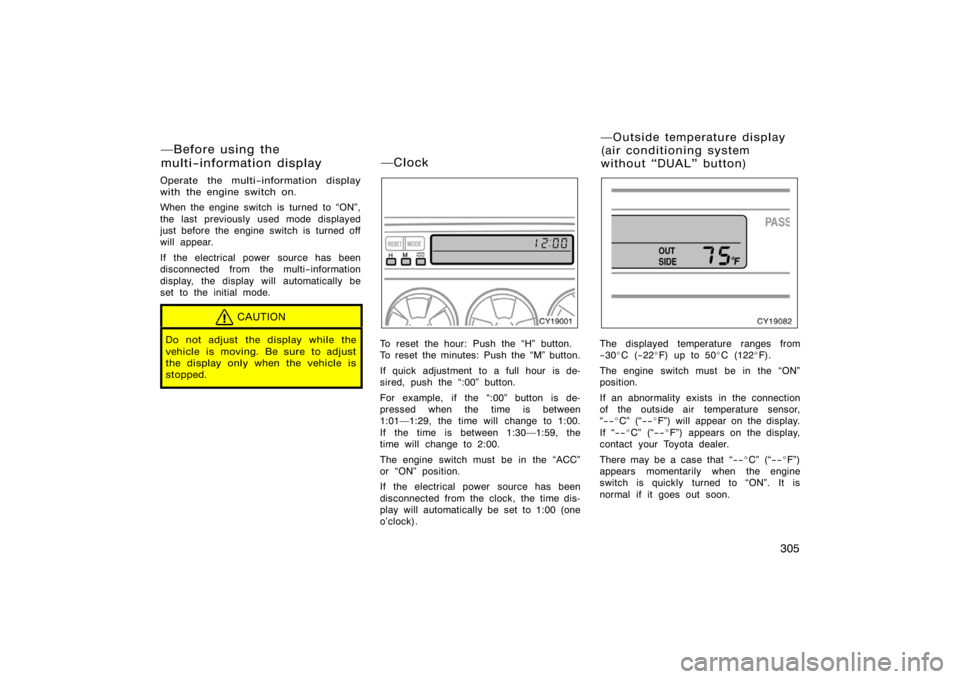

CY19001
To reset the hour: Push the H" button.
To reset the minutes: Push the M" button.
If quick adjustment to a full hour is de-
sired, push the :00" button.
For example, if the :00" button is de-
pressed when the time is between
1:011:29, the time will change to 1:00.
If the time is between 1:301:59, the
time will change to 2:00.
The engine switch must be in the ACC"
or ON" position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
CY19082
The displayed temperature ranges from
−30C (−22 F) up to 50 C (122 F).
The engine switch must be in the ON"
position.
If an abnormality exists in the connection
of the outside air temperature sensor,
−− C" (−− F") will appear on the display.
If −− C" (−− F") appears on the display,
contact your Toyota dealer.
There may be a case that −− C" (−− F")
appears momentarily when the engine
switch is quickly turned to ON". It is
normal if it goes out soon.
Before using the
multi−information display Clock
Outside temperature display
(air conditioning system
without DUAL" button)

306

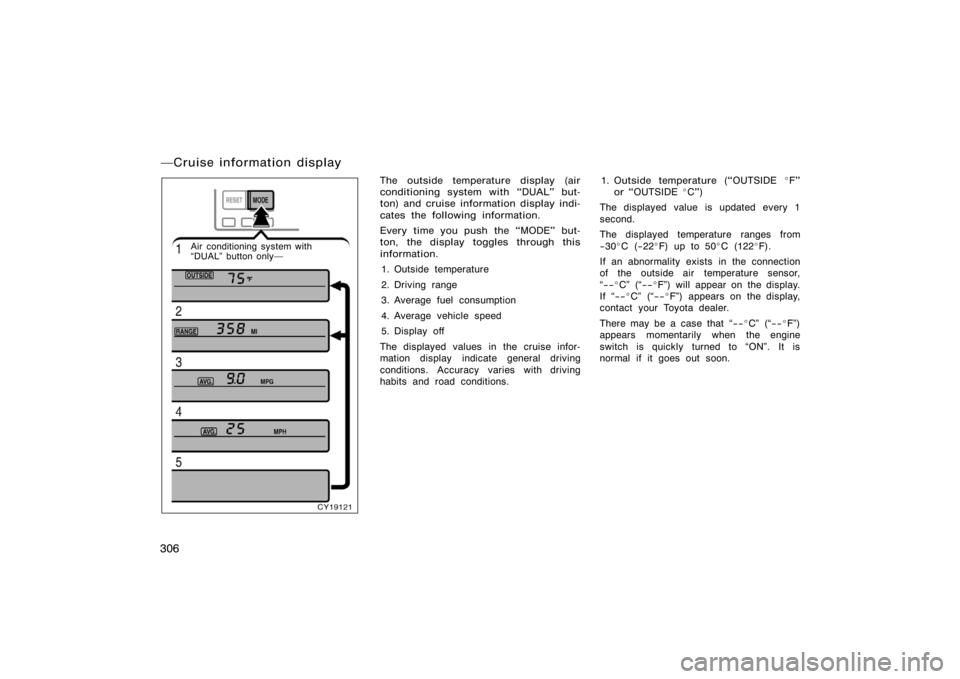

CY19121
Air conditioning system with
DUAL" button only
The outside temperature display (air
conditioning system with DUAL" but-
ton) and cruise information display indi-
cates the following information.
Every time you push the MODE" but-
ton, the display toggles through this
information.1. Outside temperature
2. Driving range
3. Average fuel consumption
4. Average vehicle speed
5. Display off
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions. 1. Outside temperature (OUTSIDE
F"
or OUTSIDE C")
The displayed value is updated every 1
second.
The displayed temperature ranges from
−30 C (−22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
−− C" (−− F") will appear on the display.
If −− C" (−− F") appears on the display,
contact your Toyota dealer.
There may be a case that −− C" (−− F")
appears momentarily when the engine
switch is quickly turned to ON". It is
normal if it goes out soon.
Cruise information display

307
2. Driving range(RANGE MI" or RANGE km")
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches E". It is
different from the actual distance traveled.
The displayed value is updated about ev-
ery 10 seconds.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further. 3. Average fuel consumption
(AVG. MPG" or AVG. L/100 km")
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated about ev-
ery 10 seconds.
To reset the calculation, push the
RESET" button about 1 second.
4. Average vehicle speed (AVG. MPH" or AVG. km/h")
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated about ev-
ery 10 seconds.
To reset the calculation, push the
RESET" button about 1 second.

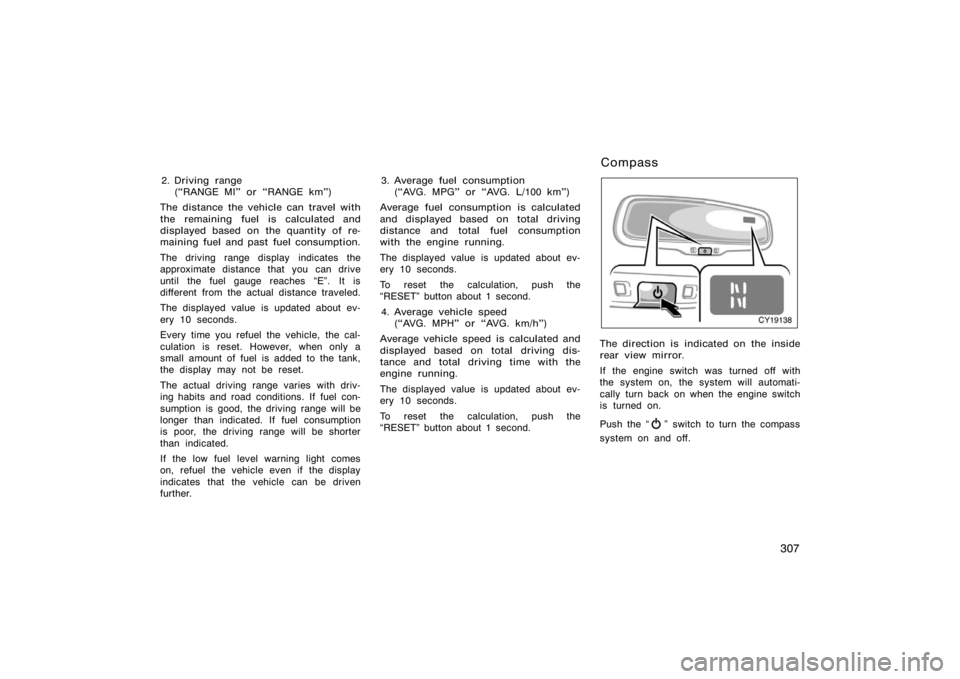

CY19138
The direction is indicated on the inside
rear view mirror.
If the engine switch was turned off with
the system on, the system will automati-
cally turn back on when the engine switch
is turned on.
Push the
" switch to turn the compass
system on and off.
Compass

308
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The engine switch is turned off immedi-
ately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to CALIBRATING THE COMPASS"
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see CALIBRATING THE
COMPASS" below.
CY19139
Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
